Urine-absorbing aids for incontinence — Polyacrylate superabsorbent powders — Part 5: Test method for determination of the free swell capacity in saline by gravimetric measurement

This document provides a test method that determines the free swell capacity of polyacrylate superabsorbent powders in saline solution.

Aides pour absorption d'urine — Méthodes d'essai pour caractériser les matériaux absorbants à base de polymères — Partie 5: Détermination gravimétrique de la capacité de gonflement en solution saline

General Information

Status
Published
Publication Date
26-Oct-2020
Current Stage
6060 - International Standard published
Start Date
27-Oct-2020
Due Date
01-Oct-2020
Completion Date
27-Oct-2020
Ref Project

Relations

Buy Standard

Standard
ISO 17190-5:2020 - Urine-absorbing aids for incontinence -- Polyacrylate superabsorbent powders
English language
7 pages
sale 15% off
Preview
sale 15% off
Preview
Draft
ISO/PRF 17190-5:Version 25-apr-2020 - Urine-absorbing aids for incontinence -- Polyacrylate superabsorbent powders
English language
7 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

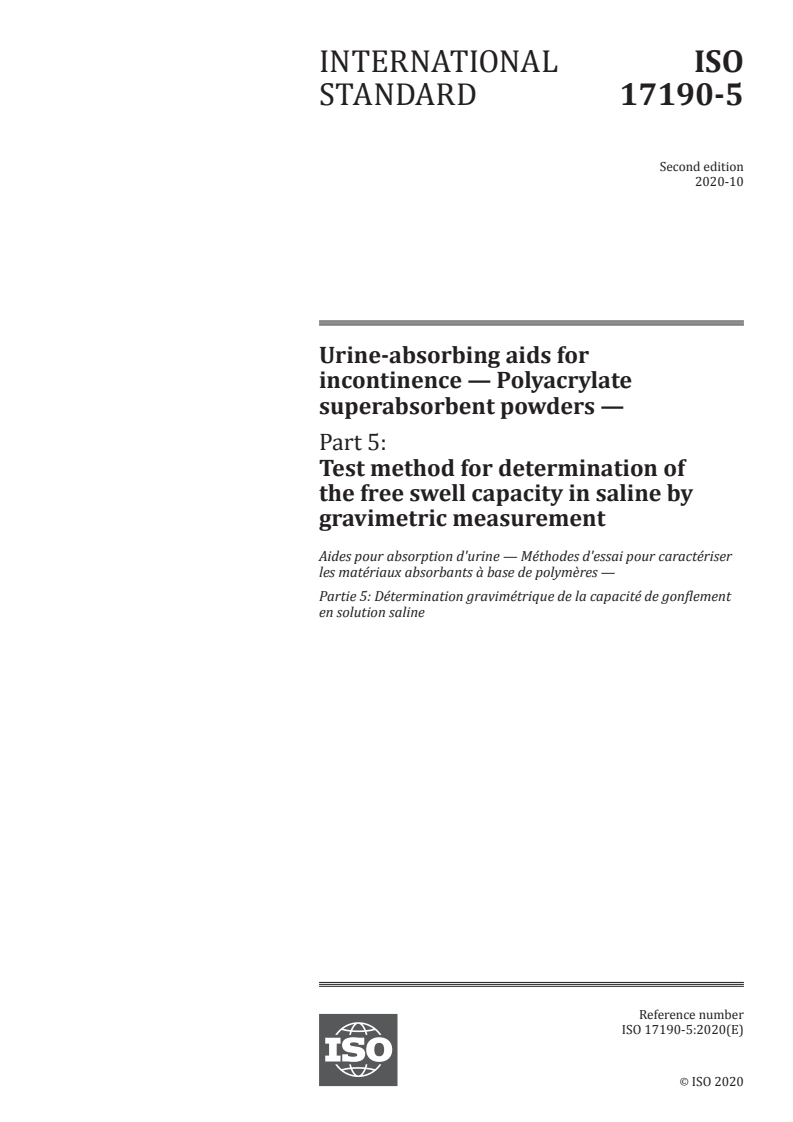

INTERNATIONAL ISO
STANDARD 17190-5
Second edition
2020-10
Urine-absorbing aids for
incontinence — Polyacrylate
superabsorbent powders —
Part 5:
Test method for determination of
the free swell capacity in saline by
gravimetric measurement
Aides pour absorption d'urine — Méthodes d'essai pour caractériser
les matériaux absorbants à base de polymères —
Partie 5: Détermination gravimétrique de la capacité de gonflement
en solution saline
Reference number
ISO 17190-5:2020(E)
©
ISO 2020

---------------------- Page: 1 ----------------------
ISO 17190-5:2020(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2020
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 17190-5:2020(E)

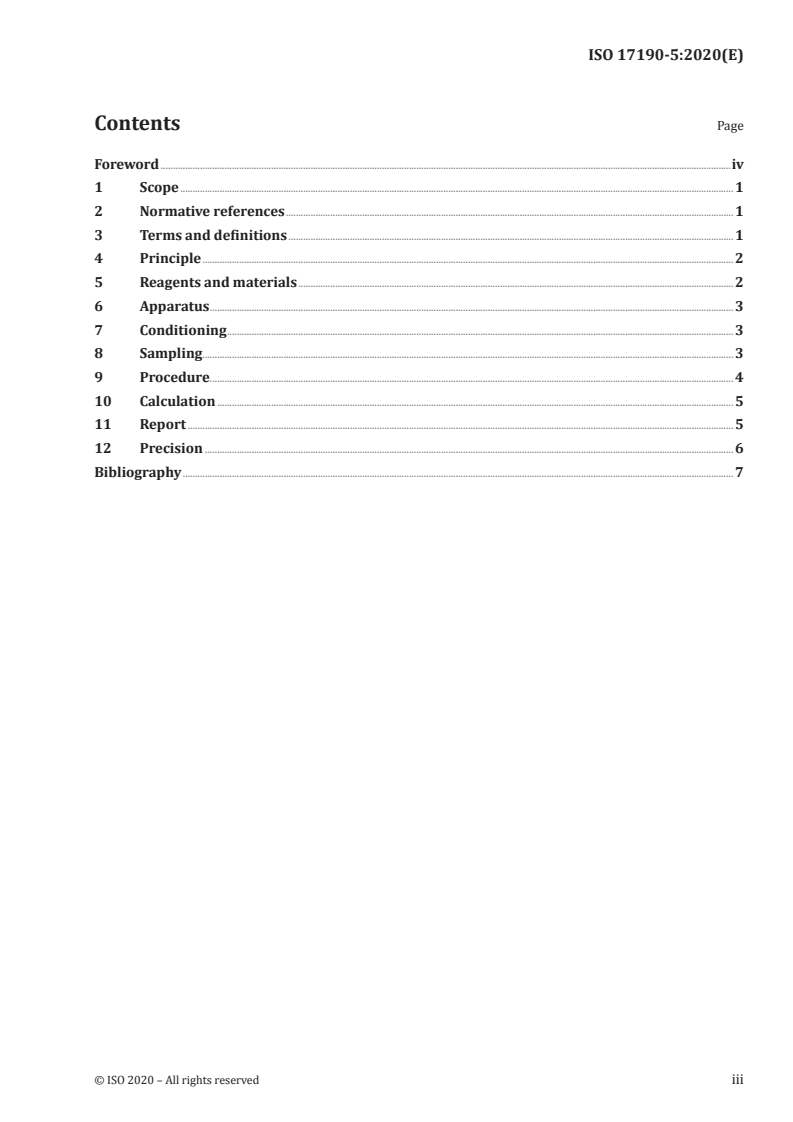

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 2
5 Reagents and materials . 2
6 Apparatus . 3
7 Conditioning . 3
8 Sampling . 3
9 Procedure. 4
10 Calculation . 5
11 Report . 5
12 Precision . 6
Bibliography . 7
© ISO 2020 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 17190-5:2020(E)

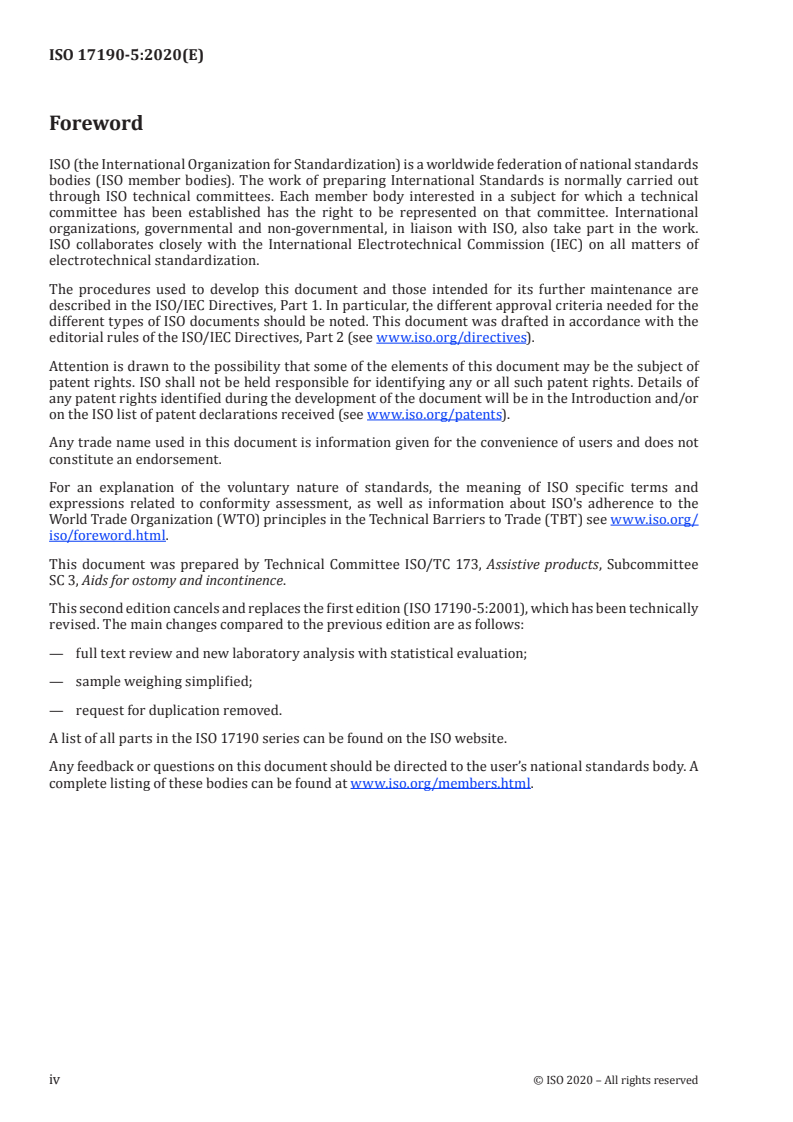

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso .org/
iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 173, Assistive products, Subcommittee
SC 3, Aids for ostomy and incontinence.
This second edition cancels and replaces the first edition (ISO 17190-5:2001), which has been technically
revised. The main changes compared to the previous edition are as follows:
— full text review and new laboratory analysis with statistical evaluation;
— sample weighing simplified;
— request for duplication removed.
A list of all parts in the ISO 17190 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2020 – All rights reserved

---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 17190-5:2020(E)
Urine-absorbing aids for incontinence — Polyacrylate
superabsorbent powders —
Part 5:
Test method for determination of the free swell capacity in
saline by gravimetric measurement
WARNING — This document does not claim to address all of the safety concerns, if any, associated
with its use. It is the responsibility of the user of this document to establish appropriate safety
and health practices and determine the applicability of regulatory limitations prior to use. It
is expected that the person performing this test has been fully trained in all aspects of this
procedure.
1 Scope
This document provides a test method that determines the free swell capacity of polyacrylate
superabsorbent powders in saline solution.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 187, Paper, board and pulps — Standard atmosphere for conditioning and testing and procedure for
monitoring the atmosphere and conditioning of samples
ISO 3696, Water for analytical laboratory use — Specification and test methods
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
sample
product or portion of a product taken from a production lot for testing purposes and identifiable and
traceable back to its origin
3.2
specimen
specific portion of the identified sample (3.1) upon which a test is performed
© ISO 2020 – All rights reserved 1

---------------------- Page: 5 ----------------------
ISO 17190-5:2020(E)

4 Principle
The sample is weighed and placed in a water-permeable bag. The bag is submerged in the fluid to be
absorbed and allowed to soak for a defined soaking period, after which the bag is removed. Excess fluid
is allowed to drip away and the sample is weighed to determine the amount of fluid absorbed.
5 Reagents and materials
Use only reagents of recognized analytical grade, unless otherwise specified.
5.1 Water.
Grade 3 water in accordance with ISO 3696, with the exception that the conductivity can be as high as
30 μS/cm.
5.2 Sodium chloride solution.
5.2.1 0,9 % mass fraction of sodium chloride solution in water. Weigh (9,00 ± 0,01) g of sodium chloride
into a 1 l beaker and add (991,0 ± 0,1) g of deionized water (grade 3). Stir until dissolved.
5.2.2 The conductivity of the solution should be checked prior to each use using properly calibrated
measuring equipment. The expected conductivity of a 0,9 % saline solution is of the order of 1600 S/m
at 25 °C. Each testing lab shall determine the correct conductivity for the conditions obtaining in the lab.
It is also recommended that the temperature of the solution be maintained at (23 ± 2) °C for the duration
of the test. As this matches the required laboratory temperature, it is not necessary to record the solution
temperature.
5.3 Nonwoven bag.
NOTE Bags described in this document are often referred to as “teabags”.
2 2
The bag has the external dimensions of (60 x 40) mm to (60 x 85) mm and is made of non-apertured
heat-sealable nonwoven. One example of a suitable spe
...
