ISO 4587:2003

INTERNATIONAL ISO
STANDARD 4587
Third edition
2003-03-15
Adhesives — Determination of tensile
lap-shear strength of rigid-to-rigid
bonded assemblies
Adhésifs — Détermination de la résistance au cisaillement
d'assemblages collés rigide sur rigide à recouvrement simple

Reference number
©
ISO 2003
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2003
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2003 — All rights reserved

Contents Page
Foreword. iv
1 Scope. 1
2 Normative references . 1
3 Principle . 1
4 Apparatus. 1
5 Specimens . 2
6 Conditioning . 2
7 Procedure. 2
8 Expression of results. 4
9 Precision . 4
10 Test report. 4

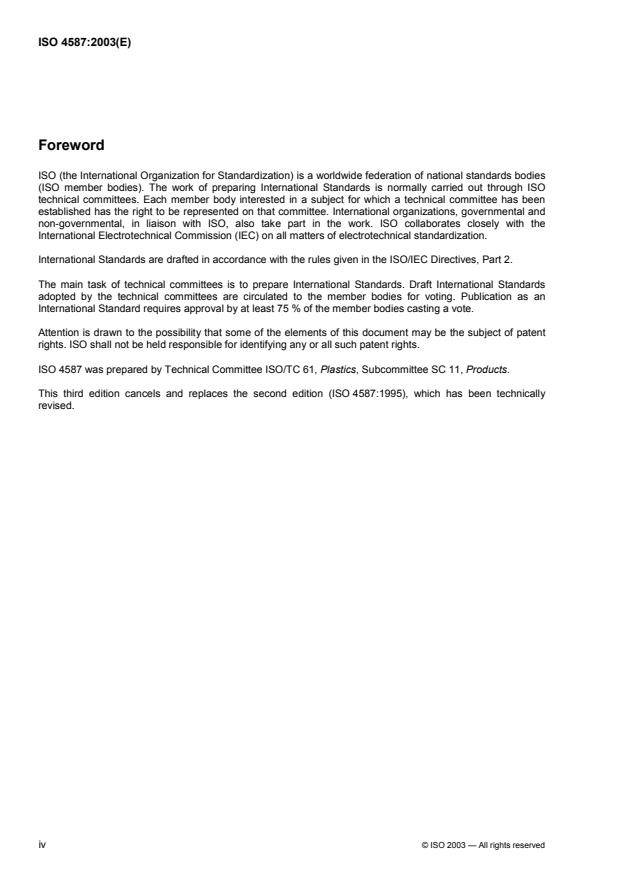

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 4587 was prepared by Technical Committee ISO/TC 61, Plastics, Subcommittee SC 11, Products.
This third edition cancels and replaces the second edition (ISO 4587:1995), which has been technically
revised.
iv © ISO 2003 — All rights reserved

INTERNATIONAL STANDARD ISO 4587:2003(E)

Adhesives — Determination of tensile lap-shear strength of
rigid-to-rigid bonded assemblies
1 Scope
This International Standard specifies a method for determining the tensile lap-shear strength of rigid-to-rigid
bonded assemblies using a standard specimen under specified conditions of preparation and testing. This test
procedure does not provide design information.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 291:1997, Plastics — Standard atmospheres for conditioning and testing
ISO 527-1:1993, Plastics — Determination of tensile properties — Part 1: General principles
ISO 10365:1992, Adhesives — Designation of main failure patterns
1)
EN 13887:— , Structural adhesives — Guidelines for surface preparation of metals and plastics prior to
adhesive bonding
3 Principle
Adhesive lap-shear bond strength is determined by stressing a single-overlap joint between rigid adherends in
shear by the application of a tensile force parallel to the bond area and to the major axis of the specimen.
NOTE 1 Single-lap specimens are economical, practical and easy to make. They are the most widely used specimens
for development, evaluation and comparative studies involving adhesives and bonded products, including manufacturing
quality control.
NOTE 2 The strength values obtained from the single-lap specime
...
