ISO 9149:2010

INTERNATIONAL ISO
STANDARD 9149
Second edition
2010-11-01
Cork wallcoverings in rolls —
Specifications
Revêtements muraux de liège en rouleaux — Spécifications

Reference number
©
ISO 2010

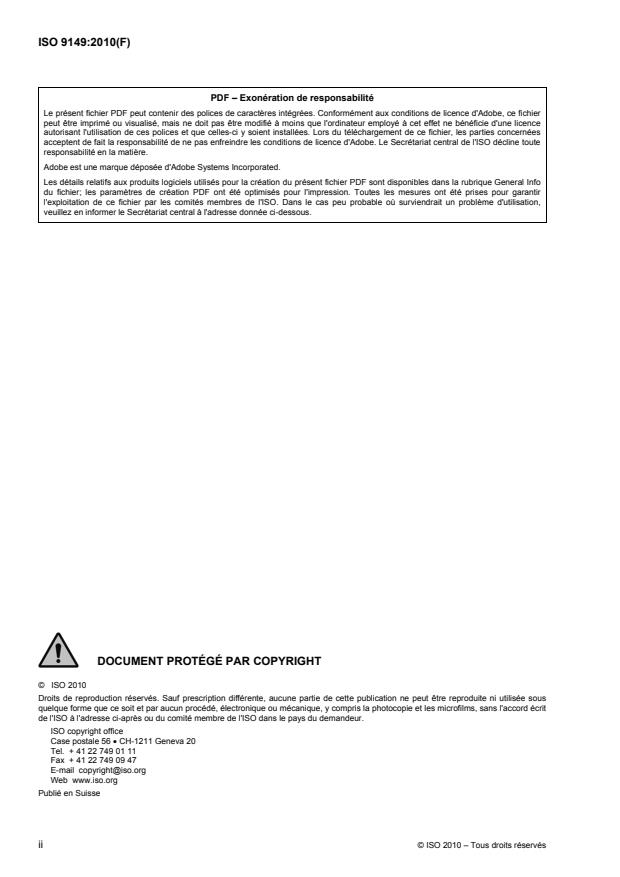

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2010
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2010 – All rights reserved

Contents Page
Foreword .iv
1 Scope.1
2 Normative references.1
3 Terms and definitions .1
4 Requirements.2
5 Test methods .2
6 Evaluation of conformity .3
7 Marking, labelling and packaging.3
Annex A (normative) Modifications for cork products to general test method given in EN 12149.4
Annex B (informative) Optional properties.5
Annex C (normative) Factory production control and initial type testing .6
Annex D (informative) Supplementary information.9
Bibliography.10

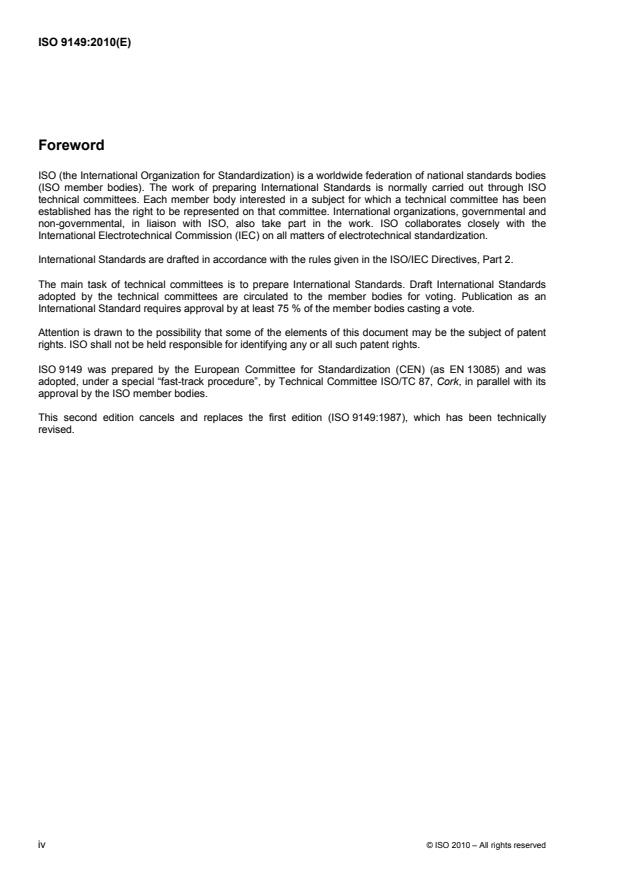

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 9149 was prepared by the European Committee for Standardization (CEN) (as EN 13085) and was
adopted, under a special “fast-track procedure”, by Technical Committee ISO/TC 87, Cork, in parallel with its
approval by the ISO member bodies.
This second edition cancels and replaces the first edition (ISO 9149:1987), which has been technically
revised.
iv © ISO 2010 – All rights reserved

INTERNATIONAL STANDARD ISO 9149:2010(E)

Cork wallcoverings in rolls — Specifications
1 Scope
This International Standard specifies the requirements of cork wallcoverings in roll form to be used within
buildings. The standard contains provisions for the evaluation of conformity of the product. It also includes
requirements for marking, packaging and labelling.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 633, Cork — Vocabulary
ISO 2066, Resilient floor coverings — Determination of moisture content of agglomerated composition cork
ISO 4708:2000, Composition cork — Gasket material — Test methods
ISO 7322, Composition cork — Test methods
ISO 9229, Thermal insulation — Vocabulary
EN 426, Resilient floor coverings — Determination of width, length, straightness and flatness of sheet material
EN 12149:1997, Wallcoverings in roll form — Determination of migration of heavy metals and certain other
elements, of vinyl chloride monomer and of formaldehyde release
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 633 and ISO 9229 and the following
apply.
3.1
agglomerated composition cork
product obtained from the agglutination of granulated cork with the addition of a binder not derived from cork
cells
3.2
wallcovering
product, supplied either in panel or roll form, for hanging onto internal walls or ceilings in buildings by means
of an adhesive covering the whole of the interface between the wallcovering and the support
3.3
cork wallcoverings
product mainly made from cork or agglomerated composition cork, supplied either in panel or roll form, whose
main intended use is for indoor application
3.4
batch
defined quantity of some commodity manufactured or produced under conditions which are presumed uniform
3.5
test specimen
part of a sample prepared for a test
4 Requirements
Cork rolls described in this International Standard shall conform to the appropriate requirements specified in
Table 1, when tested in accordance with methods given therein.
NOTE Information on additional properties is given in Annex B.
5 Test methods
5.1 Sampling
The sample for testing shall be taken from the available material, either during the process or from the final
product. Test specimens shall be taken from the sample at a minimum distance of 100 mm from the edges.
Each test specimen shall be squarely cut and have edges perpendicular to its surface and not show any
cracks or folds.
The minimum number of test specimens required to get one test result on a product property is given in
Table 1.
5.2 Conditioning
Test specimens shall be conditioned before testing for at least 12 h at (23 ± 5) °C. In case of dispute, they
shall be conditioned before testing at (23 ± 2) °C and (50 ± 5) % relative humidity, for at least 24 h. Before the
determination of the moisture content, no conditioning shall be done.
5.3 Testing
Tests shall be carried out in accordance with the standards referred to in Table 1. The test result on a product
property is the mean of the measured values on the number of test specimens given in Table 1.
2 © ISO 2010 – All rights reserved

Table 1 — Requirements
Number of test
Dimension
specimens
Property Requirements (or mass) of test Test method
to get
specimens
one result
Maximum deviation from nominal value
Dimensions
a
±1 %
width 200 mm × w 5
length W nominal EN 426 1
full roll
Straightness Tolerance allowed from nominal value:
full roll 1
1 % per each 5 m length
Maximum deviation from nominal value:
Overall thickness ISO 7322 5
100 mm × 50 mm
±0,3 mm
b c
W 200 kPa
ISO 7322
Tensile strength 100 mm × 50 mm 3 + 3
u 7 %
Moisture content 100 mm × 50 mm ISO 2066 3
ISO 4708:2000
Flexibility There shall be no cracks or failure 150 mm × 15 mm 3
Method A
EN 12149:1997
50 mm × 25 mm
Formaldehyde
u 95 mg/kg
released
d
(10 g to 15 g) Method C
a
Where w is the nominal width of the roll.
b
Applicable to thicknesses no
...
