ISO 11843-6:2013

DRAFT INTERNATIONAL STANDARD ISO/DIS 11843-6.2
ISO/TC 69/SC 6 Secretariat: JISC
Voting begins on Voting terminates on

2012-01-24 2011-03-24
INTERNATIONAL ORGANIZATION FOR STANDARDIZATION  •  МЕЖДУНАРОДНАЯ ОРГАНИЗАЦИЯ ПО СТАНДАРТИЗАЦИИ  •  ORGANISATION INTERNATIONALE DE NORMALISATION

Capability of detection —
Part 6:
Methodology for the determination of the critical value and the
minimum detectable value in Poisson distributed measurements
by normal approximations
Capacité de détection —
Partie 6: Méthodologie pour la détermination de la valeur critique et de la valeur minimale détectable dans les
mesures de distribution selon la loi de Poisson par approximations normales
ICS 03.120.30; 17.020
In accordance with the provisions of Council Resolution 15/1993 this document is circulated in
the English language only.
Conformément aux dispositions de la Résolution du Conseil 15/1993, ce document est
distribué en version anglaise seulement.

To expedite distribution, this document is circulated as received from the committee
secretariat. ISO Central Secretariat work of editing and text composition will be undertaken at
publication stage.
Pour accélérer la distribution, le présent document est distribué tel qu'il est parvenu du
secrétariat du comité. Le travail de rédaction et de composition de texte sera effectué au
Secrétariat central de l'ISO au stade de publication.

THIS DOCUMENT IS A DRAFT CIRCULATED FOR COMMENT AND APPROVAL. IT IS THEREFORE SUBJECT TO CHANGE AND MAY NOT BE
REFERRED TO AS AN INTERNATIONAL STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS BEING ACCEPTABLE FOR INDUSTRIAL, TECHNOLOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN NATIONAL REGULATIONS.
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT, WITH THEIR COMMENTS, NOTIFICATION OF ANY RELEVANT PATENT RIGHTS OF WHICH
THEY ARE AWARE AND TO PROVIDE SUPPORTING DOCUMENTATION.
©  International Organization for Standardization, 2012

ISO/DIS 11843-6.2
Copyright notice
This ISO document is a Draft International Standard and is copyright-protected by ISO. Except as permitted
under the applicable laws of the user’s country, neither this ISO draft nor any extract from it may be
reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic,
photocopying, recording or otherwise, without prior written permission being secured.
Requests for permission to reproduce should be addressed to either ISO at the address below or ISO’s
member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Reproduction may be subject to royalty payments or a licensing agreement.
Violators may be prosecuted.
ii © ISO 2012 – All rights reserved

ISO/DIS 11843-6.2
Contents Page
Foreword .iv
Introduction.v
1 Scope.1
2 Normative references.1
3 Terms and definitions .1
4 Symbols (and abbreviated terms).2
5 Measurement system and data handling.2
6 Computation by approximation (Annex B.1) .2
6.1 Definition of the critical value based on the Normal distribution .2
6.2  Determination of the critical value of the response variable.4
6.3  Sufficient capability of the detection criterion.4
6.4  Confirmation of the sufficient capability of detection criterion .5
8   Reporting of results from an assessment of the capability of detection .6
9   Reporting of results from an application of the method .6
Annex A (normative) Symbols used in ISO 11843-6 .7
Annex B (informative) Approximations of the Poisson distribution by the Normal distribution.8
B.1 Estimation of the mean value and the variance by the approximation .8
Annex C (informative)  An accuracy of the approximations .9
Annex D (informative) Measurement conditions for pulse counting method .13
D.1 Specifying Regions (The number of channels of the detector).13
Annex E (informative) Examples of calculations .14
E.1 Example 1:Measurement of hazardous substance by X-Ray Diffractometer.14
E.1.1  Statistical analysis .15
E.1.2  Estimation of the minimum detectable concentration of asbestos .15
E.2   Example 2: Measurement of contamination on the surface of silicon wafer by XPS (X-ray
photo electron spectroscopy) .15
E.2.1  Statistical analysis .16
E.2.2  Estimation of the minimum detectable concentration of hydrocarbon by the
approximation.16
Bibliography.17

Figure 1 .3
Table C.1—The comparison between the Poisson exact arithmetic and the approximation……….10
Figure C.1 —The difference by percentage depending on the number count between Poisson exact
arithmetic and the approximation arithmetic.12
Figure D.1—Specification of Signal Regions…….………………………………………………………….13
Figure E.1—A powder XRD scan from Chrysotile asbestos as a plot of scattering intensity vs.
the scattering angle 2θ .………….……….…………….…14
Figure E.2—Carbon 1s spectrum and measured response variables.………………………………….….16
ISO/DIS 11843-6.2

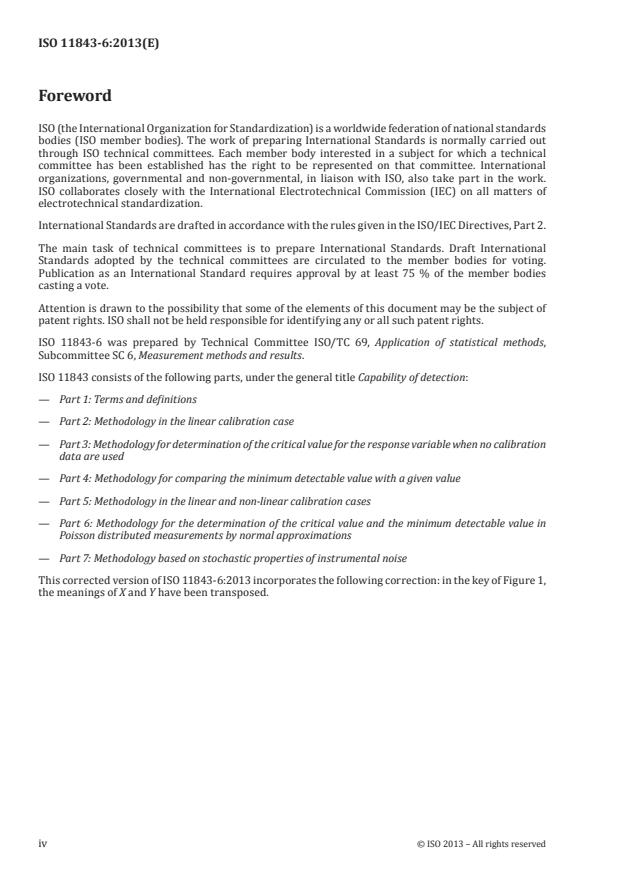

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 11843-6 was prepared by Technical Committee ISO/TC 69, Application of statistical methods,
Subcommittee SC 6, Measurement methods and results.
ISO 11843 consists of the following parts, under the general title Capability of detection:
⎯ Part 1: Terms and definitions
⎯ Part 2: Methodology in the linear calibration case
⎯ Part 3: Methodology for determination of the critical value for the response variable when no calibration
data are used
⎯ Part 4: Methodology for comparing the minimum detectable value with given value
⎯ Part 5: Methodology in the linear and non-linear calibration cases
⎯ Part 6: Methodology for the Determination of the Critical Value and the Minimum Detectable Value in
Poisson Distributed Measurements by normal approximations
⎯ Part 7: Methodology based on stochastic properties of instrumental noise
iv © ISO 2002 – All rights reserved

ISO/DIS 11843-6.2
Introduction
Many types of instruments use the pulse-counting method for detecting signals. X-ray, electron and ion-
spectroscopy detectors, such as X-ray diffractometers(XRD), X-ray fluorescence spectrometers(XRF), X-ray
photoelectron spectrometers(XPS), Auger electron spectrometers(AES), and secondary ion mass
spectrometers(SIMS), gas chromatograph mass spectrometers(GCMS) are of this type. These signals consist
of a series of pulses produced at random and irregular intervals that can be understood statistically using a
Poisson distribution. Since the variation in a signal follows a Poisson distribution, a methodology for
determining the minimum detectable value can be deduced from statistical principles.

Determining the minimum detectable value of signals is sometimes important in practical work. It provides a
criterion for deciding when “the signal is certainly not detected”, or when “the signal is significantly different
from the background noise level"[1-8]. For example, it is valuable when measuring the presence of hazardous
substances or surface contamination of a semi-conductor materials. RoHS(Restrictions on Hazardous
Substances) regulation on heavy metals restricts the use of six hazardous materials(e.g, hexavalent
Chromium,Lead,Mercury,Cadmium,and flame retardant agents such as PBB and PBDE) in the manufacturing
of electronic components and related goods that are sold into the EU. XRF and GCMS are used as testing
instruments. The level of hazardous asbestos and crystalline silica present in the environment or building
material are detect by XRD. It also allows the condition of an analyzer to be quantified when assessing the
limiting performance of an instrument.

The methods used to set the minimum detectable value have for some time been in widespread use in the
field of chemical analysis, although not where pulse-counting measurements are involved. The need to
establish a methodology to determine the minimum detectable value in that area is recognized [9].
This part of ISO 11843 considers the Poisson distribution approximated by the normal distribution, ensuring
consistency with the IUPAC approach and, particularly, with the series of ISO 11843 standards. Conventional
type of approximation is used for this purpose. Definitions are given for the variance, for the critical value of
the response variable, for the capability of detection criteria and for the minimum detectability level [10].

In this part of ISO 11843
the probability isα of detecting (erroneously) that a system is not in the basic state when it is in the basic
state;
the probability isβ of (erroneously) not detecting that a system, for which the value of the state variable is
equal to the minimum detectable value( x ) is not in the basic state.
d
This standard is fully compliant with ISO 11843, part 1, 3 and 4.

ISO/DIS 11843-6.2
Capability of detection —
Part 6:
Methodology for the determination of the critical value and the
minimum detectable value in Poisson distributed measurements
by normal approximations
1 Scope
This part of ISO 11843 provides the methods to determine the critical value of the response variable, and the
minimum detectable value in Poisson distribution measurements. It is applicable when variations in both the
background noise and the signal are describable by the Poisson distribution. Conventional type of
approximation is used to approximate the Poisson distribution by the Normal distribution to consist with
ISO11843-3 and ISO11843-4. This part of ISO 11843 should be applied to a sufficient number of counts of the
response variable.
Note  The accuracy of the approximation is described to compare with the results of the Poisson exact
arithmetic in Annex C.
2 Normative references
The following documents are indispensable for the application of this document. For dated references, only
the edition cited is applicable. For undated references, the latest edition of the reference document (including
any amendments) is applicable.
ISO 3534-1, Statistics - Vocabulary and symbols - Part 1: Probability and general statistical terms
ISO 3534-2, Statistics - Vocabulary and symbols - Part 2: Applied statistics
ISO 3534-3, Statistics - Vocabulary and symbols - Part 3: Design of experiments
I SO 5479: 1 997, Statistical interpretation of data - Tests for departure from normal distribution
ISO 5725-2: 1994, Accuracy (trueness and precision) of measurement methods and results – Part 2: Basic
method for the determination of repeatability and reproducibility of a standard measurement method
ISO 11095: 1996, Linear calibration using reference materials
ISO Guide 30:1992, Terms and definitions used in connection with reference materials
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 3534 (all parts), ISO 5479, ISO
5725-2, ISO 11095, ISO 11843-1, ISO 11843-2, ISO 11843-3, ISO 11843-4, and ISO Guide 30 apply.
ISO/DIS 11843-6.2
4 Symbols (and abbreviated terms)
The meanings of the symbols used here are given in Annex A.
5 Measurement system and data handling
The conditions under which Poisson distribution measurement is made are usually specified by the
experimental set-up. The number of pulses that are detected increases with both the time and with the width
of the region over which the spectrum is being observed. These two parameters should therefore be noted
and not changed during the course of the measurement.
The following conditions are essential for determining the minimum detectable value.
(1) Both the signal and the background noise should have Poisson distributions. The signal should be treated
as mean value of gross count.
(2) The spectra under consideration should not have received any data treatment, such as smoothing.
(3) Time interval: A measurement over a longer period of time is preferable to several shorter measurements.
A measurement taken for over one second is better than 10 measurements over 100 milliseconds each. The
approximation of the Poisson distribution by the Normal distribution is more reliable with higher mean values.
(4) The number of measurements: Since only mean values are used in the approximations presented here,
repeated measurements are necessary to determine them. Moreover, the power of test increases with the
number of measurements.
(5) Number of channels used by the detector: There should be no overlap of neighboring peaks. The number
of channels used to measure the background noise and sample spectra should be identical (Annex D, Figure
D.1).
(6) Peak width: The full width at half maximum (FWHM) is the recommended coverage for monitoring a
single peak, and is preferable to measurements based on the top and/or bottom of the peak with noise. The
appropriate FWHM should be determined beforehand by measurements on a standard sample. An identical
value of the FWHM should be adopted for both background noise and sample measurements.

NOTE  Additional conditions for the interpretation of the data are: the instrument works correctly; the
detector works in the linear counting range; both the ordinate and the abscissa axes are calibrated; there is no
signal that cannot be identified, except statistical fluctuation; degradation of the specimen during
measurement is negligibly small; at least one signal or peak that belongs to an element can be observed.

6 Computation by approximation (Annex B.1)
6.1 Definition of the critical value based on the Normal distribution
The critical value, , is defined as the value of the response variable, , if the system is considered to move
y y
c
from a dormant or ‘basic’ state to an ‘active’ state.
The decision about whether the measured signal is ‘significant’ or ‘not significant’ is made by comparing the
arithmetic mean of the actual measured values, , with the critical value, . The probability that exceeds
y y y
g c g
the critical value, y , for the distribution in the basic state (x = 0) should be less than or equal to an
c
appropriate pre-selected probability,α .
2 © ISO 2002 – All rights reserved

ISO/DIS 11843-6.2
The critical value, , of the response variable, , generally satisfies
y y
c
.                                     (1)
P(y > y x = 0) ≤α
g c
Equation (1) gives the probability that under the condition that
y > y
g c
1 1
,                                   (2)
y = y ± z σ +
c b 1−α b
J K
Where
the probability that an error of the first kind;
α
1 −α   confidence levels;
-quantile of the standard normal distribution;
z (1−α)
1−α
standard deviation under actual performance conditions for responses of the basic state;
σ
b
the arithmetic mean of the actual measured response of the basic state
y
b
J    number of replications of measurement on the reference material representing the value of the
basic state variable (blank sample);
K     number of replications of measurement on the actual state (test sample).

Note that the + sign is used when the response variable increases with increasing level of the state variable.
When the response variable decreases with increasing level of the state variable the - sign is used.

The definition of the critical value and its conceptual diagram in Figure 1 in this clause follow ISO11843-1 and
ISO11843-3.
αα
yy
gg
yy
cc
yy
bb
ββ
SSttatate ve vaarriiaabblele
xx
xx xx ,,
dd
cc gg
Figure 1
ReRespspononsese vvaariariabblleess

ISO/DIS 11843-6.2
6.2 Determination of the critical value of the response variable
If the response variable follows a Poisson distribution, with a sufficiently large mean value, the standard
deviation of the repeated measurements of the response variable in the basic state is estimated through
as gives an estimate of and the that of the repeated measurements of the response variable in the
y y σ
b b b
actual state of the sample is used as gives an estimate of (see Annex B.1).
y σ
g g
The critical value, , of the response variable which follows a Poisson distribution approximated by the
y
c
Normal approximation generally satisfies

1 1 1 1
,                         (3)
y = y + z σ + = y + z y +
c b 1−α b b 1-α b
J K J K
where
the arithmetic mean of the actual measured response of the basic state
y
b
Note that the + sign is preferable in Poisson distribution measurements as the response variable increases
with increasing level of the state variable.

6.3 Sufficient capability of the detection criterion
The sufficient capability of detection criterion enables decisions to be made about the detection of a signal by
comparing the critical value probability with a specified value of the confidence levels,1−β . If the criterion is
satisfied, it may be concluded that the minimum detectable value, , is less than or equal to the value of the
x
d
state variable, . The minimum detectable value then defines the smallest expectation of the response
x
g
variable, , for which an incorrect decision occurs with a probability,β , that there is no signal, but only
η
g
background noise. This is termed an ‘error of the second kind’.

If the standard deviation of the responses for a given value is , the criterion for the probability to be
x σ
g g
greater than or equal to1−β is defined by inequality (4), and it is actually given by inequalities (5) and (6):

1 1
2 2
,                                  (4)
η ≥ y + z σ + σ
g c 1−β b g
J K
1 1
If y is replaced by , defined in equation (2) and (3), then
y =η + z σ +
c
c b 1−α b
J K
1 1 1 1
2 2
,                           (5)
η −η ≥ z σ + + z σ + σ
g b 1−α b 1−β b g
J K J K
where
α    the probability that an error of the first kind has occurred;
the probability that an error of the second kind has occurred;
β
expected value under the actual performance conditions for the responses of the basic state;
η
b
η    expected value under the actual performance conditions for the responses of a sample with
g
4 © ISO 2002 – All rights reserved

ISO/DIS 11843-6.2
the state variable equal to x .
g
Withβ =α ,K = J the criterion in the standard normal distribution is simplified to

2 2
η −η ≥ z ( 2σ + σ +σ ).                                (6)
g b 1−α b b g
The criterion gives inequality (7) by replacing and with and respectively as defined in sub clause
σ σ y y
b g b g
6.2 and by Annex B.
.
...
