ISO 8124-1:2009

INTERNATIONAL ISO
STANDARD 8124-1
Second edition
2009-03-15
Safety of toys —
Part 1:
Safety aspects related to mechanical and
physical properties
Sécurité des jouets —
Partie 1: Aspects de sécurité relatifs aux propriétés mécaniques et
physiques
Reference number
©
ISO 2009
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2009
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2009 – All rights reserved

Contents Page
Foreword. v
Introduction . vi
1 Scope . 1
2 Normative references . 2
3 Terms and definitions. 3
4 Requirements . 11
4.1 Normal use . 11
4.2 Reasonably foreseeable abuse . 12
4.3 Material . 12
4.4 Small parts. 12
4.5 Shape, size and strength of certain toys. 13
4.6 Edges . 18
4.7 Points . 19
4.8 Projections . 19
4.9 Metal wires and rods . 20
4.10 Plastic film or plastic bags in packaging and in toys . 20
4.11 Cords and elastics. 21
4.12 Folding mechanisms . 22
4.13 Holes, clearances and accessibility of mechanisms . 24
4.14 Springs. 26
4.15 Stability and overload requirements. 26
4.16 Enclosures. 27
4.17 Simulated protective equipment, such as helmets, hats and goggles . 29
4.18 Projectile toys . 29
4.19 Aquatic toys . 30
4.20 Braking. 31
4.21 Toy bicycles . 31
4.22 Speed limitation of electrically driven ride-on toys . 32
4.23 Toys containing a heat source . 32
4.24 Liquid-filled toys . 33
4.25 Mouth-actuated toys. 33
4.26 Toy roller skates, toy inline skates and toy skateboards. 33
4.27 Percussion caps . 34
4.28 Acoustic requirements. 34
4.29 Toy scooters. 34
5 Test methods. 36
5.1 General. 36
5.2 Small parts test . 37
5.3 Test for shape and size of certain toys . 38
5.4 Small balls test. 38
5.5 Test for pompoms. 39
5.6 Test for pre-school play figures . 39
5.7 Accessibility of a part or component. 39
5.8 Sharp-edge test. 41
5.9 Sharp-point test . 43
5.10 Determination of thickness of plastic film and sheeting. 45
5.11 Test for cords . 45
5.12 Stability and overload tests . 46
5.13 Test for closures and toy chest lids . 48
5.14 Impact test for toys that cover the face . 48
5.15 Kinetic energy of projectiles, bows and arrows . 49
5.16 Free-wheeling facility and brake performance test . 50
5.17 Determination of speed of electrically driven ride-on toys . 51
5.18 Determination of temperature increases .52
5.19 Leakage of liquid-filled toys. 52
5.20 Durability of mouth-actuated toys. 52
5.21 Expanding materials . 52
5.22 Folding or sliding mechanisms . 53
5.23 Washable toys . 54
5.24 Reasonably foreseeable abuse tests . 54
5.25 Determination of sound pressure levels .59

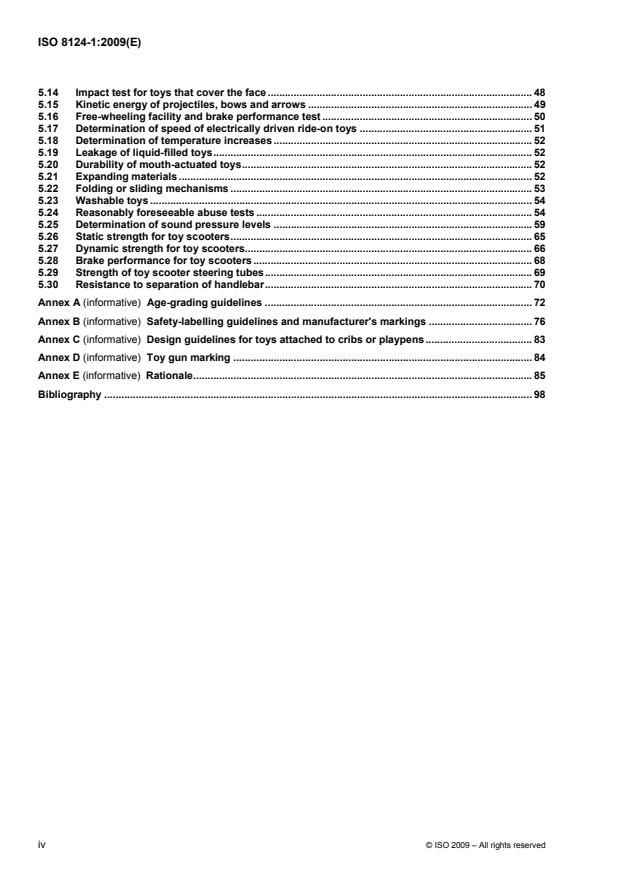

5.26 Static strength for toy scooters. 65
5.27 Dynamic strength for toy scooters. 66
5.28 Brake performance for toy scooters . 68
5.29 Strength of toy scooter steering tubes. 69
5.30 Resistance to separation of handlebar. 70
Annex A (informative) Age-grading guidelines . 72
Annex B (informative) Safety-labelling guidelines and manufacturer's markings . 76
Annex C (informative) Design guidelines for toys attached to cribs or playpens . 83
Annex D (informative) Toy gun marking . 84
Annex E (informative) Rationale. 85
Bibliography . 98

iv © ISO 2009 – All rights reserved

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 8124-1 was prepared by Technical Committee ISO/TC 181, Safety of toys.
This second edition cancels and replaces the first edition ISO 8124-1:2000, ISO 8124-1:2000/Amd.1:2007 and
ISO 8124-1:2000/Amd.2:2007.
ISO 8124 consists of the following parts, under the general title Safety of toys:
⎯ Part 1: Safety aspects related to mechanical and physical properties
⎯ Part 2: Flammability
⎯ Part 3: Migration of certain elements
Introduction
This part of ISO 8124 is largely based upon existing standards in the European Union (EN 71-1) and in the
United States of America (ASTM F963).
However, it should not be construed that a toy manufactured in compliance with this part of ISO 8124 will be in
full compliance with relevant national toy safety requirements in the market where the product is intended to
be distributed. The user of this part of ISO 8124 is therefore advised to be aware of relevant national
requirements.
Compliance with the requirements of this part of ISO 8124 will minimize potential hazards associated with toys
resulting from their use in their intended play modes (normal use) as well as unintended play modes
(reasonably foreseeable abuse).
This part of ISO 8124 will not, nor is it intended to, eliminate parental responsibility in the appropriate selection
of toys. In addition, this part of ISO 8124 will not eliminate the need for parental supervision in situations
where children of various ages may have access to the same toy(s).
Although Annexes A, B, C, D and E are for information purposes only, they are crucial for the correct
interpretation of this part of ISO 8124.
The safety of electric toys is described in IEC 62115.
When age indications are required for safety labelling purposes, they may be given in either months or years.
vi © ISO 2009 – All rights reserved

INTERNATIONAL STANDARD ISO 8124-1:2009(E)

Safety of toys —
Part 1:
Safety aspects related to mechanical and physical properties
1 Scope
The requirements in this part of ISO 8124 apply to all toys, i.e. any product or material designed or clearly
intended for use in play by children under 14 years of age. They are applicable to a toy as it is initially received
by the consumer and, in addition, they apply after a toy is subjected to reasonably foreseeable conditions of
normal use and abuse unless specifically noted otherwise.
The requirements of this part of ISO 8124 specify acceptable criteria for structural characteristics of toys, such
as shape, size, contour, spacing (e.g. rattles, small parts, sharp points and edges, and hinge-line clearances)
as well as acceptable criteria for properties peculiar to certain categories of toy (e.g. maximum kinetic energy
values for non-resilient-tipped projectiles and minimum tip angles for certain ride-on toys).
This part of ISO 8124 specifies requirements and test methods for toys intended for use by children in various
age groups from birth to 14 years. The requirements vary according to the age group for which a particular toy
is intended. The requirements for a particular age group reflect the nature of the hazards and the expected
mental and/or physical abilities of a child to cope with them.
This part of ISO 8124 also requires that appropriate warnings and/or instructions for use be given on certain
toys or their packaging. Due to linguistic problems which may occur in different countries, the wording of these
warnings and instructions is not specified but given as general information in Annex B. It should be noted that
different legal requirements exist in many countries with regard to such marking.
This part of ISO 8124 does not purport to cover or include every conceivable potential hazard of a particular
toy or toy category. Except for labelling requirements indicating the functional hazards and the age range for
which the toy is intended, this part of ISO 8124 has no requirements for those characteristics of toys which
represent an inherent and recognised hazard which is integral to the function of the toy.
EXAMPLE 1 An example of such a hazard is the sharp point necessary for the proper function of a needle. The needle
is a hazard which is well understood by the purchaser of a toy sewing kit, and the functional sharp-point hazard is
communicated to the user as part of the normal educational process of learning to sew as well as at the point of purchase
by means of cautionary labelling on the product's packaging.
EXAMPLE 2 As a further example, a toy scooter has inherent and recognised hazards associated with its use (e.g.
instability during use, especially whilst learning). The potential hazards associated with its structural characteristics (sharp
edges, pinch hazards, etc.) will be minimized by compliance with the requirements of this part of ISO 8124.
Products not included within the scope of this part of ISO 8124 are:
a) bicycles, except for those considered to be toys, i.e. those having a maximum saddle height of 435 mm
(see Clause E.1);
b) slingshots;
NOTE “Slingshots” are also known as “catapults”.
c) darts with metal points;
d) home and public playground equipment;
e) compressed air- and gas-operated guns and pistols (see Clause E.1);
f) kites (except for the electric resistance of their strings, which is included);
g) model kits, hobby and craft items, in which the finished item is not primarily of play value;
h) sporting goods and equipment, camping goods, athletic equipment, musical instruments and furniture;
however, toys which are their counterparts are included.
It is recognised that there is often a fine distinction between, for example a musical instrument or a
sporting item and its toy counterpart. The intention of the manufacturer or distributor, as well as normal
use and reasonably foreseeable abuse, determines whether the item is a toy counterpart or not;
i) models of aircraft, rockets, boats and land vehicles powered by combustion engines; however, toys which
are their counterparts are included (see Clause E.1);
j) collectible products not intended for children under 14 years of age;
k) holiday decorations that are primarily intended for ornamental purposes;
l) aquatic equipment intended to be used in deep water, swimming-learning devices and flotation aids for
children such as swim-seats and swim-aids;
m) toys installed in public places (e.g. arcades and shopping centres);
n) puzzles having more than 500 pieces or without a picture, for specialists;
o) fireworks including percussion caps, except percussion caps specifically designed for toys;
p) products containing heating elements intended for use under the supervision of an adult in a teaching
context;
q) steam engines;
r) video toys that can be connected to a video screen and operated at a nominal voltage greater than 24 V;
s) babies' pacifiers (dummies);
t) faithful reproduction of firearms;
u) electric ovens, irons or other functional products operated at a nominal voltage greater than 24 V;
v) bows for archery with an overall relaxed length exceeding 120 cm;
w) fashion jewellery for children (see Clause E.1).
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 868, Plastics and ebonite — Determination of indentation hardness by means of a durometer (Shore
hardness)
2 © ISO 2009 – All rights reserved

ISO 3746:1995, Acoustics — Determination of sound power levels of noise sources using sound pressure —
Survey method using an enveloping measurement surface over a reflecting plane
ISO 4287, Geometrical Product Specifications (GPS) — Surface texture: Profile method — Terms, definitions
and surface texture parameters
ISO 4593, Plastics — Film and sheeting — Determination of thickness by mechanical scanning
ISO 6508-1, Metallic materials — Rockwell hardness test — Part 1: Test method (scales A, B, C, D, E, F, G, H,
K, N, T)
ISO 11201, Acoustics — Noise emitted by machinery and equipment — Measurement of emission sound
pressure levels at a work station and at other specified positions — Engineering method in an essentially free
field over a reflecting plane
ISO 11202, Acoustics — Noise emitted by machinery and equipment — Measurement of emission sound
pressure levels at a work station and at other specified positions — Survey method in situ
ISO 11204, Acoustics — Noise emitted by machinery and equipment — Measurement of emission sound
pressure levels at a work station and at other specified positions — Method requiring environmental
corrections
IEC 61672-1, Electroacoustics — Sound level meters — Part 1: Specifications
IEC 61672-2, Electroacoustics — Sound level meters — Part 2: Pattern evaluation tests
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
NOTE The requirements in this part of ISO 8124 are applicable to certain age ranges. For interpretation of these age
ranges, see Clause E.42 (age-break terminology).
3.1
accessible area
〈part or component〉 area of the toy which can be contacted by any portion forward of the collar of the
accessibility probe as described in 5.7
3.2
aquatic toy
article, whether inflatable or not, intended to bear the mass of a child and used as an instrument of play in
shallow water
NOTE Bathroom toys and beach balls are not considered aquatic toys.
3.3
backing
material adhering to flexible plastic sheeting
3.4
ball
spherical, ovoid or ellipsoidal object designed or intended to be thrown, hit, kicked, rolled, dropped or bounced
NOTE 1 This definition includes balls attached to a toy or article by a string, elastic cord or similar tether and also any
multi-sided object formed by connecting planes into, and any novelty item of, a generally spherical, ovoid or ellipsoidal
shape designed or intended to be used as a ball.
NOTE 2 This definition does not include dice, or balls permanently enclosed inside pinball machines, mazes or similar
outer containers. A ball is permanently enclosed if, when tested according to 5.24 (reasonably foreseeable abuse), it is not
removed from the outer container.
3.5
battery-operated toy
toy having at least one function dependent on electricity and powered by batteries
3.6
burr
roughness caused by not cleanly severing or finishing the material
3.7
close-to-the-ear toy
toy that is intended to be used close to the ear, i.e. the sound-emitting part of such a toy is normally put
against the ear of a child
EXAMPLES Toy cellphones or toy telephones that emit sounds from the handpiece.
3.8
collapse
sudden or unexpected folding of a structure
3.9
continuous sound
any steady-state sound or group of variable sounds greater than one second in duration
3.10
cord
length of slender, flexible material
EXAMPLE Monofilaments, woven and twisted cord, rope, plastic textile tapes, ribbon and those fibrous materials
known as string.
NOTE Doll hair is not considered a cord.
3.11
crushing
injury to part of the body resulting from compression between two rigid surfaces
3.12
C-weighted peak sound pressure level
L
pCpeak
peak sound pressure level obtained when using standardized C-weighting
3.13
discharge mechanism
inanimate system for releasing and propelling a projectile
3.14
driving mechanism
assembly of linked parts or components (e.g. gears, belts and winding mechanisms), at least one of which
moves, powered by a source (e.g. electrical or mechanical means) independent of a child
3.15
edge
line, formed at the junction of two surfaces, whose length exceeds 2,0 mm
4 © ISO 2009 – All rights reserved

3.15.1
curled edge
edge in which the portion of the sheet adjacent to the edge is bent into an arc and forms an angle of less than
90° with the base sheet
NOTE See Figure 1.
3.15.2
hemmed edge
edge in which the portion of the sheet adjacent to the edge is folded back on the sheet itself through an angle
of approximately 180°, so that the portion of the sheet adjacent to the edge is approximately parallel to the
main sheet
NOTE See Figure 1.
3.15.3
rolled edge
edge in which the portion of the sheet adjacent to the edge is bent into an arc and forms an angle between
90° and 120° with the main sheet
NOTE See Figure 1.
Dimensions in millimetres
a)  Rolled edge b)  Hemmed (folded) edge

c)  Curled edge d)  Typical lap joint
a
No limit.
Figure 1 — Edges
3.16
equivalent sound pressure level
L
pAeq
level of a steady-state sound which, in a stated time period and at a stated location, has the same A-weighted
sound energy as the time-varying sound
3.17
expanding material
material whose volume expands when exposed to water
3.18
explosive action
sudden release of energy characterized by the rapid expansion or bursting of a material
3.19
fastener
mechanical device which attaches two or more elements together
EXAMPLE Screws, rivets and staples.
3.20
feathering
bevelling of an edge (or decrease in thickness moving toward the edge) caused during shearing or cutting of
material
3.21
flash
excess material that escapes between the mating parts of a mould assembly
3.22
folding mechanism
hinged, pivoted, folding or sliding assembly which could crush, scissor, pinch or shear during operation
EXAMPLE Toy ironing boards, toy pushchairs.
3.23
functional toy
toy which performs and is used in the same way as, and is often a scale model of, a certain product, appliance
or installation intended for adults
EXAMPLE Stove with heating properties.
3.24
fuzz
bits of fibrous-type material which can be readily removed from toys with a pile surface
3.25
glass
hard, brittle, amorphous substance produced by fusion, usually consisting of mutually dissolved silica and
silicates which also contain soda and lime
3.26
hand-held toy
toy that is intended to be used or operated while being held in the hand
EXAMPLE Toy tools, small electronic games, stuffed animals, dolls, musical toys and cap-firing toys.
3.27
harm
physical injury or damage to the health of people or damage to property or the environment
3.28
hazard
potential source of harm
NOTE The term hazard can be qualified in order to define its origin or the nature of the expected harm (i.e. electric
shock hazard, crushing hazard, cutting hazard, toxic hazard, fire hazard or drowning hazard).
3.29
hazardous projection
projection that, because of its material or configuration or both, may present a puncture hazard should a child
step on or fall onto it
6 © ISO 2009 – All rights reserved

NOTE 1 Excluded from this definition are puncture hazards to the eyes and/or mouth, because of the impossibility of
eliminating puncture hazards to those areas of the body by product design.
NOTE 2 If the projection is on a small toy which topples over when pressure is applied to the end of the projection, it is
unlikely to present a hazard.
3.30
hazardous sharp edge
accessible edge of a toy which presents an unreasonable risk of injury during normal use and reasonably
foreseeable abuse
3.31
hazardous sharp point
accessible point of a toy which presents an unreasonable risk of injury during normal use or reasonably
foreseeable abuse
3.32
hinge-line clearance
distance between the stationary portion of a toy and the movable portion along or adjacent to a line projected
through the axis of rotation
NOTE See Figure 2.
Key
1 hinge line
2 lid
3 box
A hinge-line clearance between assembled edges
Figure 2 — Hinge-line clearance
3.33
impulsive sound
sound that is characterized by a brief excursion of sound pressure significantly exceeding the ambient noise,
typically less than one second in duration
3.34
intended use
use of a product, process or service in accordance with information provided by the supplier
3.35
lap joint
joint in which an edge overlaps a parallel surface but is not necessarily mechanically attached to it at all points
along the length
NOTE See Figure 1.
3.36
large and bulky toy
2 3
toy that has a projected base area of more than 0,26 m or a volume of more than 0,08 m calculated without
regard to minor appendages
NOTE The base area for toys having permanently attached legs is measured by calculating the area enclosed by
straight lines connecting the outermost edge of each leg of the perimeter.
3.37
marble
sphere made of hard material, such as glass, agate, marble or plastic, which is used in various children's
games, generally as a playing piece or marker
3.38
maximum A-weighted sound pressure level
L
pAmax
maximum sound pressure level obtained when using standardized A-weighting
3.39
metal
material comprising elemental metal and/or metal alloys
3.40
normal use
play modes that conform to the instructions which accompany the toy, and which have been established by
tradition or custom, or which are evident from an examination of the toy
3.41
packaging
material accompanying the toy when purchased, but having no intended play function
3.42
paper
material, marketed as either paper or paperboard, with a maximum mass per unit area of 400 g/m
3.43
play furniture
furniture intended for use by a child and intended to, or likely to, support the mass of a child
3.44
pompom
lengths or strands of fibre, yarn or thread clamped or secured and tied in the centre, and brushed up to form a
spherical shape
NOTE 1 This definition includes spherical-shaped attachments made of stuffed materials (see Figure 3).
NOTE 2 Tassels with long strands are not considered pompoms (see Figure 4).
8 © ISO 2009 – All rights reserved

Figure 3 — Regular and rounded pompoms

Figure 4 — Tassel with long strands
3.45
projectile
object intended to be launched into free flight, or a trajectory, in the air
3.46
projectile toy with stored energy
toy with a projectile propelled by means of a discharge mechanism capable of storing and releasing energy
3.47
projectile toy without stored energy
projectile discharged by the energy imparted by a child
3.48
protective cap, protective cover or protective tip
component that is attached to a potentially hazardous edge or projection to reduce the risk of injury
3.49
pull toy
toy that is intended to be pulled along the floor or ground
NOTE Toys intended for children aged 36 months and over are not regarded as pull toys.
3.50
rattle
toy that is clearly designed to emit sound when shaken, typically intended for children who are too young to sit
up unaided
3.51
reasonably foreseeable abuse
use of a toy under conditions or for purposes not intended by the supplier, but which can happen, induced by
the toy in combination with, or as a result of, common behaviour in a child
EXAMPLE Deliberate disassembly, dropping or use of a toy for a purpose for which it was not intended.
NOTE Tests simulating reasonably foreseeable abuse are given in 5.24.
3.52
removable component
part or component that is intended to be removed from the toy without the use of tools
3.53
resilient material
any material having a hardness value of less than 70 Shore A, measured in accordance with ISO 868
3.54
rigidity
hardness of material exceeding 70 Shore A, measured in accordance with ISO 868
3.55
risk
combination of the probability of occurrence of harm and the severity of that harm
3.56
simulated protective equipment
toys designed to mimic products which infer some sort of physical protection to the wearer
EXAMPLE Protective helmets and visors.
3.57
soft-filled toy
stuffed toy
toy, clothed or unclothed, with soft body surfaces and filled with soft materials, allowing easy compression of
the torso by hand
3.58
splinter
sharp pointed fragment
3.59
springs
3.59.1
helical spring
spring in the form of a coil
NOTE See Figure 5.
3.59.1.1
compression spring
helical spring which essentially returns to its initial state after compression
3.59.1.2
extension spring
helical spring which essentially returns to its initial state after tension
3.59.2
spiral spring
clockwork-type spring
NOTE See Figure 6.
Figure 5 — Helical spring Figure 6 — Spiral spring
10 © ISO 2009 – All rights reserved

3.60
squeeze toy
hand-held pliable toy, usually incorporating a noise-making feature activated by forcing air through an opening
when flexed or squeezed and which usually recovers its original shape when released
3.61
table-top, floor and crib toy
toys intended to be played with while attached to or resting on a table top, floor or crib
3.62
teether
toy designed for oral use and intended primarily for symptomatic relief of teething discomfort
3.63
tool
screwdriver, coin or other object which may be used to operate a screw, clip or similar fixing device
3.64
toy
any product or material designed or clearly intended for use in play by children less than 14 years of age
3.65
toy bicycle
two-wheeled vehicle, with or without stabilizers, with a maximum saddle height of 435 mm and which is
propelled solely by the muscular energy of a child on that vehicle, in particular by means of pedals
3.66
toy chest
container with a hinged lid enclosing a volume greater than 0,03 m , specifically designed for storing toys
3.67
toy scooter
ride-on toy which is propelled by the muscular action of the user or other means and may be foldable or not,
intended for children with a body mass of 50 kg or less and comprised of at least one platform for standing, at
least two wheels, and a steering system equipped with an adjustable or fixed-length steering tube
NOTE The definition includes foldable and non-foldable toy scooters.
4 Requirements
4.1 Normal use
See Clause E.2.
Toys shall be tested to simulate reasonably foreseeable normal use in order to ensure that hazards are not
generated as a result of normal wear and/or deterioration (see Clause E.2 for guidance).
Toys labelled as washable shall be subjected to washing in accordance with 5.23.
After testing, the toy shall continue to conform to the relevant requirements of Clause 4.
4.2 Reasonably foreseeable abuse
See Clause E.3.
All toys shall be tested in accordance with the relevant normal use tests in 5.1 to 5.23. After the normal use
tests, toys intended for children under 96 months, unless otherwise stated, shall be tested in accordance with
5.24 for reasonably foreseeable abuse (see Clause E.3).
After testing, the toy shall continue to conform to the relevant requirements of Clause 4.
4.3 Material
4.3.1 Material quality
See Clause E.4.
All materials shall be visually clean and free from infestation. The materials shall be assessed visually by
normal corrected vision rather than under magnification.
4.3.2 Expanding materials
See Clause E.5.
Toys and components of toys which fit entirely in the small parts cylinder when tested in accordance with 5.2
(small parts test) shall not expand more than 50 % in any dimension when tested in accordance with 5.21
(expanding materials).
This requirement does not apply to seeds in growing kits.
4.4 Small parts
See Clause E.6.
4.4.1 For children under 36 months
Toys intended for children under 36 months, removable components thereof and components liberated during
testing in accordance with 5.24 (reasonably foreseeable abuse tests) shall not fit entirely, whatever their
orientation, into the small parts cylinder when tested in accordance with 5.2 (small parts test).
The requirement also applies to fragments of toys, including, but not limited to, pieces of flash, slivers of
plastics and pieces of foam or shavings.
The following are exempted before and after subjecting the toy to the tests according to Clause 5:
⎯ paper books and other articles made of paper and pieces of paper;
⎯ writing materials such as crayons, chalk, pencils and pens;
⎯ modelling clay and similar products;
⎯ fingerpaints, water colours, paint sets and paint brushes;
⎯ fuzz;
⎯ balloons;
⎯ textile fabric;
12 © ISO 2009 – All rights reserved

⎯ yarn;
⎯ elastic and string;
⎯ audio and/or video discs which are not themselves small parts.
Guidance on categories of toys which can be considered as intended for children under 36 months is given
in A.4.2.
4.4.2 For children 36 months and over but under 72 months
Toys and toys containing removable components, intended for children 36 months and over but under
72 months, which fit entirely in the small parts cylinder when tested in accordance with 5.2, shall carry a
warning (see B.2.3 for guidance). See Clause E.6.
4.5 Shape, size and strength of certain toys
See Clause E.7.
4.5.1 Squeeze toys, rattles and certain other toys
Squeeze toys, rattles and certain other toys
a) shall be designed so that no part of the toy protrudes past the base of test template A, when tested in
accordance with 5.3,
b) with nearly spherical, hemispherical, or circular flared ends shall be designed so that such ends do not
protrude past the base of the supplemental test template B when tested in accordance with 5.3.
Except for soft-filled (stuffed) toys or soft-filled parts of toys or parts of fabric, the requirements in a) and b)
apply to the following types of toys:
⎯ squeeze toys intended for children under 18 months;
⎯ rattles;
⎯ teethers and teething toys;
⎯ legs of baby gyms.
The requirements in a) and b) also apply to the following toys with a mass less than 0,5 kg intended for
children too young to sit up unaided:
⎯ removable components of toys intended to be strung across a crib, playpen or perambulator;
⎯ removable components of baby gyms.
4.5.2 Small balls
A small ball is any ball that passes entirely through the template when tested in accordance with 5.4.
a) Toys intended for children under 36 months shall not be small balls or contain removable small balls.
b) Toys intended for children 36 months and over, but under 96 months, which are small balls or contain
removable small balls or small balls liberated after testing in accordance with 5.24, shall carry a warning
[see B.2.5 a) for guidance].
4.5.3 Pompoms
See Clause E.8.
Pompoms intended for children under 36 months, which become detached when tested in accordance with
5.24.6.3 (tension test for pompoms) shall not pass entirely through the test template when tested in
accordance with 5.5 (test for pompoms). Any components, pieces or individual strands that are detached from
the pompom during the torque or tension tests shall not be subjected to the test in 5.5.
4.5.4 Pre-school play figures
See Clause E.9.
Except for soft play figures made of textiles, pre-school play figures intended for children under 36 months
having
a) a round, spherical or hemispherical end with tapered neck attached to a simple cylindrical shape without
appendages, and
b) an overall length not exceeding 64 mm (see Figure 7),
shall be designed so that the rounded end shall not be capable of entering and penetrating past the full depth
of the cavity of the test template when tested in accordance with 5.6 (test for pre-school play figures). The
requirement applies to figures with added or moulded features such as hats or hair, which retain the rounded
shape of the end.
Figure 7 — Examples of pre-school play figures
4.5.5 Toy pacifiers
Toy pacifiers attached to or sold with toys intended for children under 36 months shall have a nipple length no
longer than 16 mm. This dimension shall be measured from the nipple side of the shield to the end of the
nipple.
NOTE Real pacifiers attached to or sold with toys shall comply with national regulations for real pacifiers.
4.5.6 Balloons
See also 4.10, 4.25 d) and Clause E.10.
Balloons made of rubber latex shall carry a warning (see B.2.4 for guidance).
4.5.7 Marbles
The packaging of marbles and toys containing removable marbles or marbles liberated after testing according
to 5.24 (reasonably foreseeable abuse tests) shall carry a warning [see B.2.5 b) for guidance].
14 © ISO 2009 – All rights reserved

4.5.8 Hemispheric-shaped toys
See Clause E.40.
The requirements for hemispheric-shaped toys apply to cup-shaped, bowl-shaped or one-half-of-an-egg-
shaped toys having a nearly round, oval or elliptical opening with the dimensions of minor and major axes
between 64 mm and 102 mm, a volume of less than 177 ml, a depth greater than 13 mm, and intended for
children under 36 months.
Cup-shaped, bowl-shaped or one-half-of-an-egg-shaped toys shall, as a minimum, comply with at least one of
the requirements in 4.5.8 a), b), c) or d).
a) The object shall have at least two openings which are at least 13 mm from the rim as measured along the
outside contour:
⎯ if the openings are placed in the base of the object, at least two of the openings shall be at least
13 mm apart; see Figure 8 a);
⎯ if the openings are not placed in the base of the object, at least two of the openings shall be placed
at least 30° but not more than 150° apart; see Figure 8 b).
b) The plane of the opening to the cup shape shall be interrupted at the centre by some type of divider which
extends to 6 mm or less from the plane of the opening. An example of an interruption includes a rib
...
