ISO 7824:1986
(Main)Shipbuilding and marine structures - Lubrication nipples - Cone and flat types
Shipbuilding and marine structures - Lubrication nipples - Cone and flat types
Specifies the types of hydraulic lubrication nipples and lays down their dimensions. To facilitate the lubrication of machine parts, it is recommended that the number of types and dimensions of nipples be limited in order to avoid the use of too great a number of grease-pumps.
Construction navale et structures maritimes — Graisseurs — Types coniques et type plat
General Information
- Status
- Published
- Publication Date
- 16-Dec-1986
- Technical Committee
- ISO/TC 8/SC 4 - Outfitting and deck machinery
- Drafting Committee
- ISO/TC 8/SC 4/WG 2 - Deck machinery
- Current Stage
- 9093 - International Standard confirmed
- Start Date
- 21-Aug-2022
- Completion Date
- 13-Dec-2025
Relations
- Consolidated By
ISO 8968-4:2001 - Milk - Determination of nitrogen content - Part 4: Determination of non-protein-nitrogen content - Effective Date
- 06-Jun-2022
Overview
ISO 7824:1986 is an international standard established by the International Organization for Standardization (ISO) that specifies the design and dimensions of lubrication nipples used in shipbuilding and marine structures. The standard focuses on two main types of hydraulic lubrication nipples-cone and flat types-which are essential for the effective lubrication of machine parts on marine vessels. By standardizing nipple types and dimensions, ISO 7824 helps reduce the variety of grease-pumps required, improving maintenance efficiency and ensuring compatibility across shipbuilding applications.
Key Topics
Scope and Purpose
ISO 7824 is aimed at defining the dimensions and types of lubrication nipples suitable for hydraulic systems in shipbuilding and marine structures. Limiting nipple variations helps streamline lubrication processes and equipment usage.Types of Lubrication Nipples
- Cone Type Nipples (Types 1, 2, 3):
These have tapered threads and are designed for general lubrication use. Their dimensions are derived from ISO 3799, which covers hydraulic lubrication fittings in textile machinery but is applicable here for marine purposes. Cone nipples are sometimes referred to as "hydraulic grease nipples." - Flat Type Nipples (Type 4):
Also known as "buttonhead nipples," flat type nipples are recommended where larger lubricant spaces need to be filled, such as lifting appliances.
- Cone Type Nipples (Types 1, 2, 3):
Dimensions and Specifications
- Cone Type Nipples: Dimensions include width across flats, screw thread size (M10 x 1 metric thread standard as per ISO 261), length, gauge diameter, and lateral distance.
- Flat Type Nipples: Characterized by detailed measurements such as width across flats, screw thread, chamfer dimensions, height, and length, also conforming to ISO metric screw thread standards.
Material and Finish
Lubrication nipples and springs are typically made from steel, with electroplating via electrolytic galvanization for corrosion resistance. Alternative materials like phosphor bronze or brass for body, ball, and spring components may be specified with manufacturer agreement.Designation and Identification
The standard defines a structured system for designating lubrication nipples that includes:- The term “lubrication nipple”
- The ISO number (ISO 7824 for flat types, ISO 3799 for cone types)
- The nipple type number (1–4)
- Screw thread size (where applicable)
- Material description
- Surface finish information (if other than galvanized)
Applications
ISO 7824:1986 lubrication nipples are highly relevant for:
- Shipbuilding Industry: Facilitating proper hydraulic lubrication of ship machinery, deck equipment, and marine structures ensures operational reliability and reduces maintenance downtime.
- Marine Maintenance and Repair: Standardized nipples ease inventory management for grease pumps and replacement parts onboard vessels and in shipyards.
- Industrial Hydraulic Systems: Although developed for shipbuilding, the standard’s nipple types can also be useful in other heavy machinery requiring reliable lubrication fittings.
- Safety and Compliance: Using standardized nipples ensures conformity with international marine equipment regulations and promotes safety by preventing incorrect part usage.
Related Standards
- ISO 3799: Covers hydraulic lubrication fittings for textile machinery; provides the dimensional basis for cone-type nipples referenced in ISO 7824.
- ISO 261: Defines metric screw threads standards used for the screw thread dimensions in lubrication nipples.
- ISO 7924: Relates to flat-type lubrication nipples and applies when designating flat nipple types under ISO 7824.
Practical Value
Adhering to ISO 7824:1986 provides practical benefits in terms of:
- Enhanced interchangeability of lubrication nipples across different marine vessels and equipment.
- Streamlined maintenance processes by limiting the variety of grease guns and pumps required.
- Improved durability and corrosion resistance through specified materials and finishes.
- Facilitated supply chain management with clear designation and dimension standards for lubrication fittings.
Integrating ISO 7824 standards contributes to the robust design and upkeep of hydraulic lubrication systems essential for reliable ship operation and marine structural integrity.
ISO 7824:1986 - Shipbuilding and marine structures -- Lubrication nipples -- Cone and flat types
ISO 7824:1986 - Construction navale et structures maritimes -- Graisseurs -- Types coniques et type plat
ISO 7824:1986 - Construction navale et structures maritimes -- Graisseurs -- Types coniques et type plat
Frequently Asked Questions
ISO 7824:1986 is a standard published by the International Organization for Standardization (ISO). Its full title is "Shipbuilding and marine structures - Lubrication nipples - Cone and flat types". This standard covers: Specifies the types of hydraulic lubrication nipples and lays down their dimensions. To facilitate the lubrication of machine parts, it is recommended that the number of types and dimensions of nipples be limited in order to avoid the use of too great a number of grease-pumps.
Specifies the types of hydraulic lubrication nipples and lays down their dimensions. To facilitate the lubrication of machine parts, it is recommended that the number of types and dimensions of nipples be limited in order to avoid the use of too great a number of grease-pumps.
ISO 7824:1986 is classified under the following ICS (International Classification for Standards) categories: 47.020.05 - Materials and components for shipbuilding. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 7824:1986 has the following relationships with other standards: It is inter standard links to ISO 8968-4:2001. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ISO 7824:1986 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
International Standard
INTERNATIONAL ORGANIZATION FOR STANDARDlZATION@MEIKKLZYHAPOfiHAR OPrAHM3AlJMR fl0 CTAH~APTM3AL&Wl~ORGANISATlON INTERNATIONALE DE NORMALISATlON
Shipbuilding and marine structures - Lubrication
Cone and flat types
nipples -
Construction navale et structures maritimes - Graisseurs - Types coniques et type plat
First edition - 1986-12-15
Ref. No. ISO 7824-1986 (EI
UDC 629.12-72
Descriptors : shipbuilding, lubrication Systems, grease-nipples, dimensions, designation.
Price based on 4 pages
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of
national Standards bodies (ISO member bodies). The work of preparing International
Standards is normally carried out through ISO technical committees. Esch member
body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, govern-
mental and non-governmental, in liaison with ISO, also take part in the work.
Draft International Standards adopted by the technical committees are circulated to
the member bodies for approval before their acceptance as International Standards by
the ISO Council. They are approved in accordance with ISO procedures requiring at
least 75 % approval by the member bodies voting.
International Standard ISO 7824 was prepared by Technical Committee ISO/TC 8,
Shipbuilding and marine structures.
Users should note that all International Standards undergo revision from time to time
and that any reference made herein to any other International Standard implies its
latest edition, unless otherwise stated.
0 International Organkation for Standardkation, 1986 0
Printed in Switzerland
ISO 78244986 (EI
INTERNATIONAL STANDARD
Shipbuilding and marine structures - Lubrication
Cone and flat types
nipples -
ISO 3799, Textile machinety and accessories - Hydraulic
Scope and field of application
lubrica tion fittings for textile machinery.
This International Standard specifies the types of hydraulic
lubrication nipples for shipbuilding and marine structures, and
lays down their dimensions.
3 Dimensions
To facilitate the lubrication of machine Parts, it is recom-
mended that the number of types and dimensions of nipples be
limited in Order to avoid the use of too great a number of
3.1 Cone types
grease-Pumps (grease-guns).
Cone lubrication nipples types 1, 2 and 3, the dimensions of
which are taken from ISO 3799, are suitable for general use.
2 References
(See figure 1 and table 1.)
ISO 261, ISO generalpurpose metric screw threads - General
NOTE - Cone type nipples are also commonly known as “hydraulic
plan.
grease nipples”.
ISO 7824-1986 (EI
Dimensions in millimetres
Type 3
Type 2
Type 1
-
-
- -
Sd6,5&

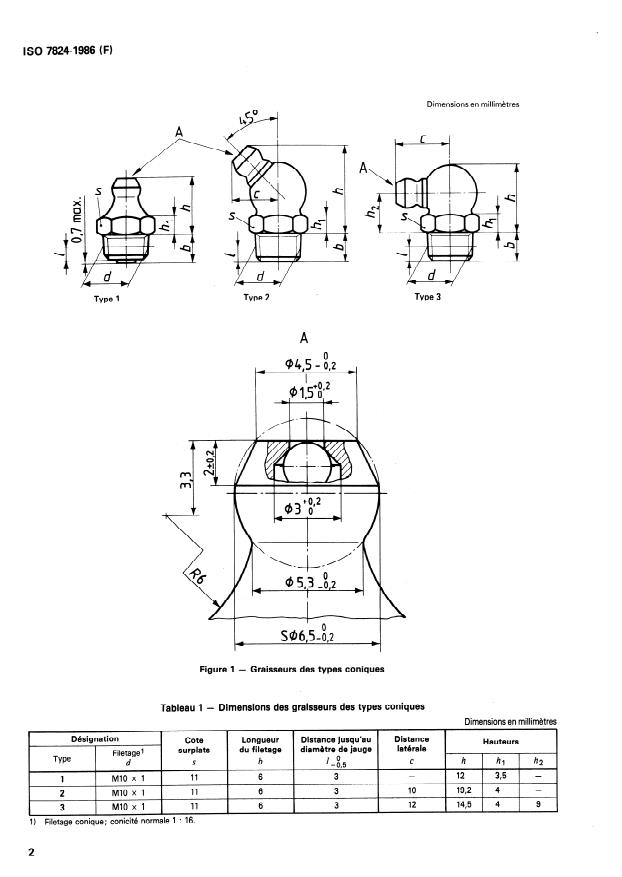

Figure 1 - Cone type nipple
...
Norme internationale
INTERNATIONAL ORGANIZATION FOR STANDARDIZATION.MEXt(L1YHAPO~HAfl OPfAHM3Al.&lfl Il0 CTAH,QAPTM3ALWl~ORGANISATlON INTERNATIONALE DE NORMALISATION
Construction navale et structures maritimes -
- Types coniques et type plat
Graisseurs
Shipbuilding and marine structures - L ubrication nipples - Cane and flat types
Première édition - 1986-12-15
~~
Réf. no : ISO 7824-1986 (FI
G: CDU 629.12-72
Descripteurs : construction navale, systéme de lubrification, graisseur, dimension, désignation.
v, Prix bas6 sur 4 pages

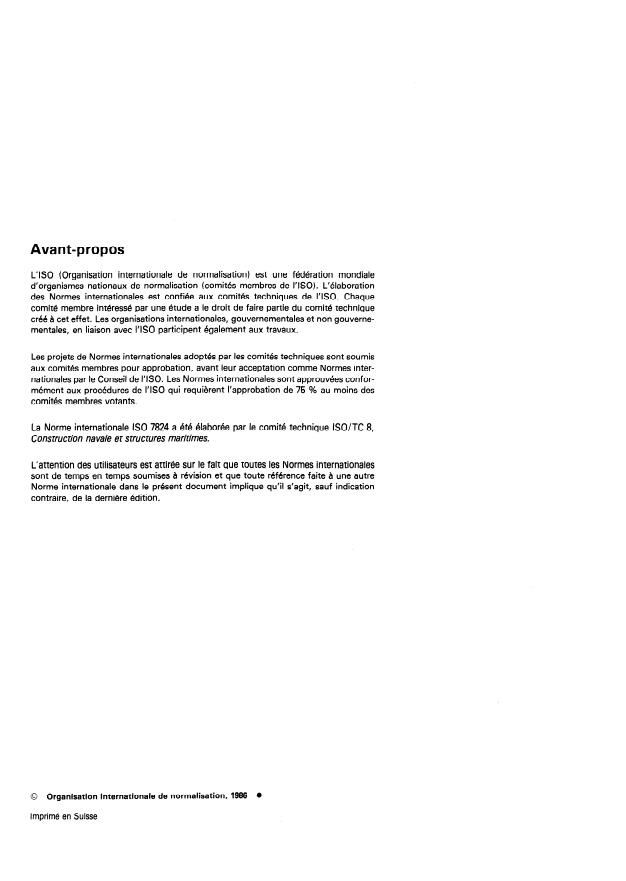

Avant-propos

L’ISO (Organisation internationale de normalisation) est une fédération mondiale
d’organismes nationaux de normalisation (comités membres de I’ISO). L’élaboration
des Normes internationales est confiée aux comités techniques de I’ISO. Chaque
comité membre intéresse par une etude a le droit de faire partie du comité technique
créé à cet effet. Les organisations internationales, gouvernementales et non gouverne-
mentales, en liaison avec I’ISO participent également aux travaux.
Les projets de Normes internationales adoptés par les comités techniques sont soumis
aux comités membres pour approbation, avant leur acceptation comme Normes inter-
nationales par le Conseil de I’ISO. Les Normes internationales sont approuvées confor-
mément aux procédures de I’ISO qui requiérent l’approbation de 75 % au moins des
comités membres votants.
La Norme internationale ISO 7824 a été elaborée par le comité technique ISO/TC 8,
Cons truc tion na vale et s truc turcs maritimes.
L’attention des utilisateurs est attirée sur le fait que toutes les Normes internationales
sont de temps en temps soumises à révision et que toute référence faite à une autre
Norme internationale dans le présent document implique qu’il s’agit, sauf indication
contraire, de la derniere édition.
l
0 Organisation internationale de normalisation, 1986
Imprimé en Suisse
ISO 7824-1986 (FI
NORME INTERNATIONALE
Construction navale et structures maritimes -
- Types coniques et type plat
Graisseurs
1 Objet et domaine d’application I SO 3799, Matériel pour rindustrie textile - Graisseurs à
accrochage axial de type hydraulique pour machines textiles.
La présente Norme internationale spécifie les types de
graisseurs de type hydraulique pour la construction navale et
les structures maritimes et fixe leurs dimensions.
Pour faciliter la lubrification des machines, il est recommandé
de limiter le nombre de types de graisseurs et de dimensions,
3 Dimensions
afin d’éviter l’emploi d’un trop grand nombre de pompes de
graissage.
3.1 Types coniques
2 Références
Les graisseurs des types coniques 1,2 et 3, dont les dimensions
sont extraites de I’ISO 3799, sont indiqués pour tous les usages
ISO 261, Filetages métriques /SO pour usages généraux - Vue
en général. (Voir figure 1 et tableau 1.)
d’ensemble.
IsO 78244986 (FI
Dimensions en millimètres
d
- --
Type 2 +vw3
Type 1
Figure 1 - Graisseurs des types coniques
Dimensions des gra
...
