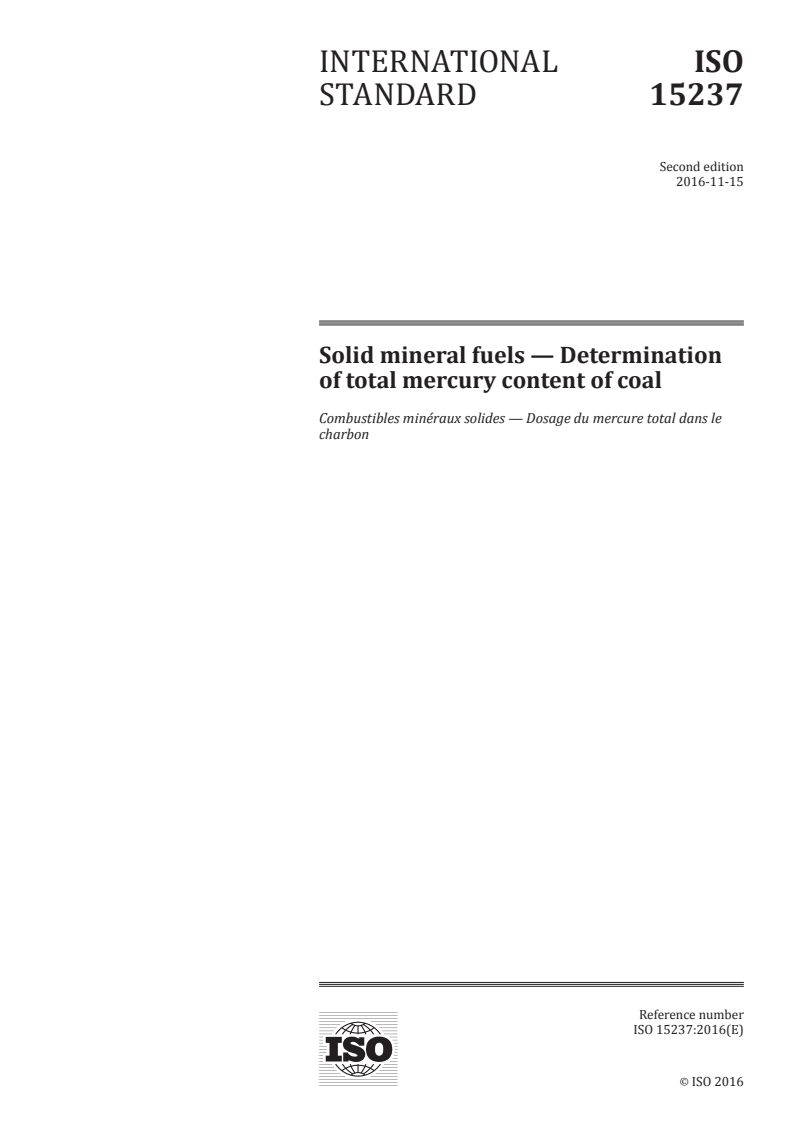

ISO 15237:2016

INTERNATIONAL ISO
STANDARD 15237
Second edition
2016-11-15
Solid mineral fuels — Determination
of total mercury content of coal
Combustibles minéraux solides — Dosage du mercure total dans le
charbon
Reference number
ISO 15237:2016(E)
©
ISO 2016

---------------------- Page: 1 ----------------------
ISO 15237:2016(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2016, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2016 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 15237:2016(E)

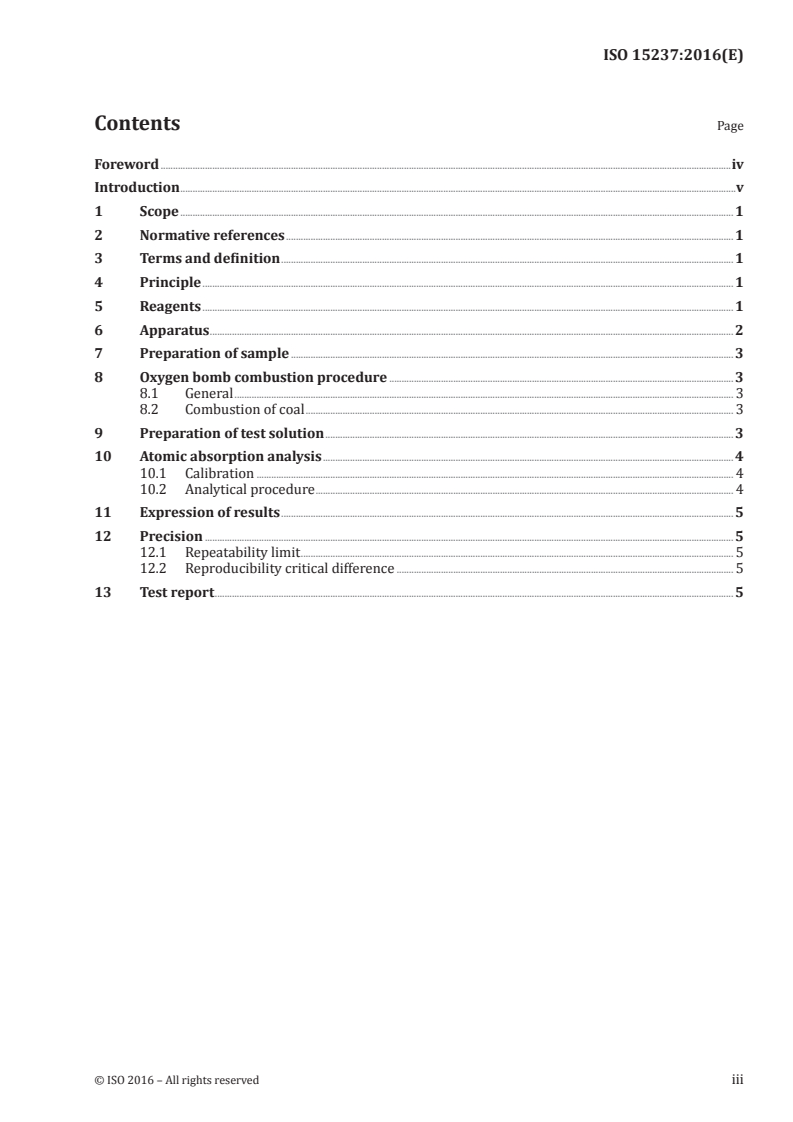

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definition . 1
4 Principle . 1
5 Reagents . 1
6 Apparatus . 2
7 Preparation of sample . 3
8 Oxygen bomb combustion procedure . 3
8.1 General . 3
8.2 Combustion of coal . 3
9 Preparation of test solution . 3
10 Atomic absorption analysis . 4
10.1 Calibration . 4
10.2 Analytical procedure . 4
11 Expression of results . 5
12 Precision . 5
12.1 Repeatability limit . 5
12.2 Reproducibility critical difference . 5
13 Test report . 5
© ISO 2016 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 15237:2016(E)

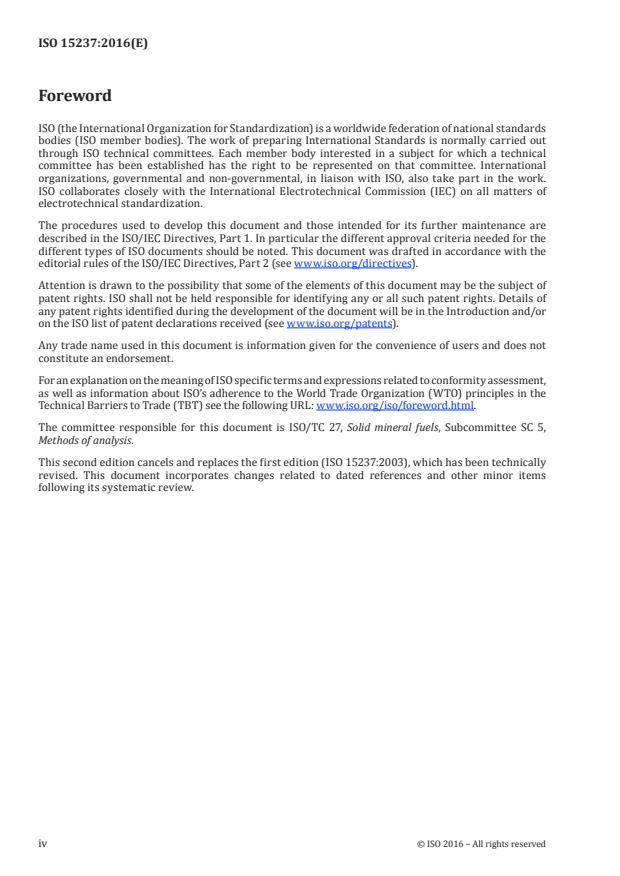

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity assessment,
as well as information about ISO’s adherence to the World Trade Organization (WTO) principles in the
Technical Barriers to Trade (TBT) see the following URL: www.iso.org/iso/foreword.html.
The committee responsible for this document is ISO/TC 27, Solid mineral fuels, Subcommittee SC 5,
Methods of analysis.
This second edition cancels and replaces the first edition (ISO 15237:2003), which has been technically
revised. This document incorporates changes related to dated references and other minor items
following its systematic review.
iv © ISO 2016 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 15237:2016(E)

Introduction
Mercury occurs naturally in coal. It is an element that can be released during the combustion process.
The determination of the total mercury content of coal cannot be accomplished satisfactorily by
traditional ashing and digestion procedures because of the volatility of the element.
Quantitive recovery can be achieved by strict adherence to the procedure set out in this document.
Instrumental methods for a more rapid determination of total mercury content are available. If such a
method is to be used, it is important to demonstrate that the method is free from bias, when compared
with this reference method and will give levels of repeatability and reproducibility which are the same,
or better than, those quoted for the reference method (see Clause 10).
© ISO 2016 – All rights reserved v

---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 15237:2016(E)
Solid mineral fuels — Determination of total mercury
content of coal
1 Scope
This document specifies a procedure for the determination of the total mercury content of coal.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 1170, Coal and coke — Calculation of analyses to different bases
ISO 1928, Solid mineral fuels — Determination of gross calorific value by the bomb calorimetric method
and calculation of net calorific value
ISO 3696, Water for analytical laboratory use — Specification and test methods
ISO 5068-2, Brown coals and lignites — Determination of moisture content — Part 2: Indirect gravimetric
method for moisture in the analysis sample
ISO 5069-2, Brown coals and lignites — Principles of sampling — Part 2: Sample preparation for
determination of moisture content and for general analysis
ISO 13909-4, Hard coal and coke — Mechanical sampling — Part 4: Coal — Preparation of test samples
3 Terms and definition
No terms and definitions are defined in this document.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
4 Principle
The sample is burned in an oxygen bomb, the mercury species formed during combustion being
absorbed in water. The mercury species present in the water are reduced by stannous chloride and
quantified by flameless cold vapour atomic absorption spectroscopy.
It is reported that lithium borohydride (LiBH ) and sodium borohydride (NaBH ) are satisfactory for
4 4
the reduction instead of stannous chloride; laboratories using these reductants should demonstrate
that the performance is equivalent to that using stannous chloride.
5 Reagents
WARNING — Care should b
...
