ISO/IEC 27032:2012

INTERNATIONAL ISO/IEC
STANDARD 27032
First edition
2012-07-15
Information technology — Security
techniques — Guidelines for
cybersecurity
Technologies de l’information — Techniques de sécurité — Lignes
directrices pour la cybersécurité
Reference number
©
ISO/IEC 2012

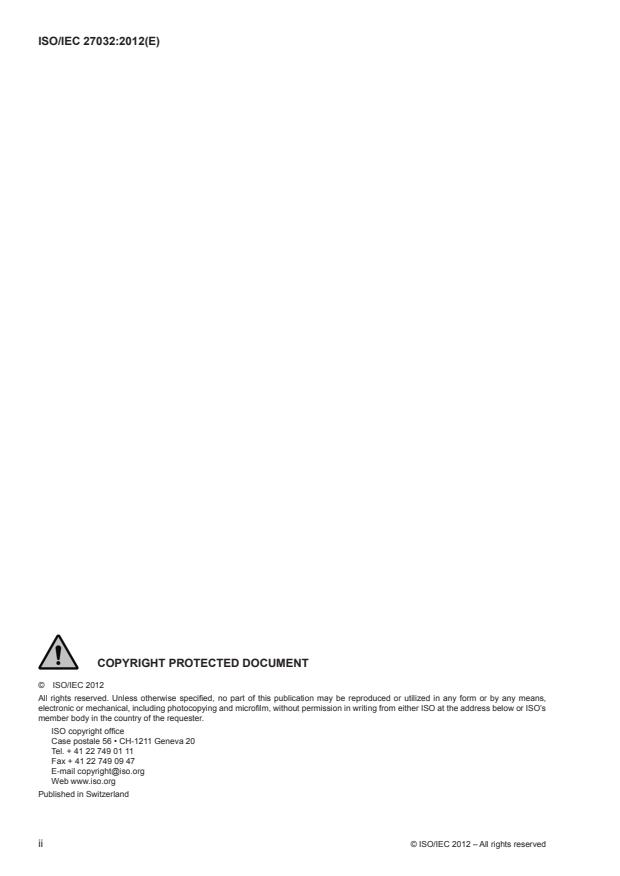

© ISO/IEC 2012
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO’s
member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2012 – All rights reserved

Contents Page
Foreword . v
Introduction .vi
1 Scope . 1
2 Applicability . 1
2.1 Audience . 1
2.2 Limitations . 1
3 Normative references . 2
4 Terms and definitions . 2
5 Abbreviated terms . 8
6 Overview . 9
6.1 Introduction . 9
6.2 The nature of the Cyberspace .10
6.3 The nature of Cybersecurity .10
6.4 General model . 11
6.5 Approach .13
7 Stakeholders in the Cyberspace .14
7.1 Overview .14
7.2 Consumers .14
7.3 Providers .14
8 Assets in the Cyberspace .15
8.1 Overview .15
8.2 Personal assets .15
8.3 Organizational assets .15
9 Threats against the security of the Cyberspace .16
9.1 Threats .16
9.2 Threat agents .17
9.3 Vulnerabilities .17
9.4 Attack mechanisms .18
10 Roles of stakeholders in Cybersecurity .20
10.1 Overview .20
10.2 Roles of consumers .20
10.3 Roles of providers .21
11 Guidelines for stakeholders .22
11.1 Overview .22
11.2 Risk assessment and treatment .22
11.3 Guidelines for consumers .23
11.4 Guidelines for organizations and service providers .25
12 Cybersecurity controls .28
12.1 Overview .28
12.2 Application level controls .28
12.3 Server protection .29
12.4 End-user controls .29
12.5 Controls against social engineering attacks .30
12.6 Cybersecurity readiness .33
12.7 Other controls .33
13 Framework of information sharing and coordination.33
13.1 General .33
13.2 Policies .34
13.3 Methods and processes .35
© ISO/IEC 2012 – All rights reserved iii

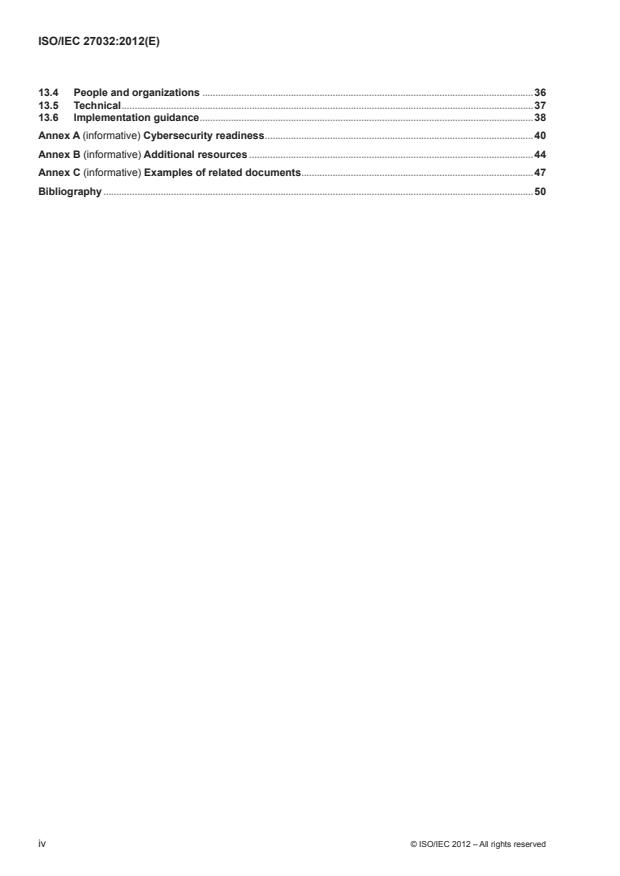

13.4 People and organizations .36
13.5 Technical .37
13.6 Implementation guidance .38
Annex A (informative) Cybersecurity readiness .40
Annex B (informative) Additional resources .44
Annex C (informative) Examples of related documents .47
Bibliography .50
iv © ISO/IEC 2012 – All rights reserved

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical Commission)
form the specialized system for worldwide standardization. National bodies that are members of ISO or IEC
participate in the development of International Standards through technical committees established by the
respective organization to deal with particular fields of technical activity. ISO and IEC technical committees
collaborate in fields of mutual interest. Other international organizations, governmental and non-governmental,
in liaison with ISO and IEC, also take part in the work. In the field of information technology, ISO and IEC have
established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
ISO/IEC 27032 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 27, IT Security techniques.
© ISO/IEC 2012 – All rights reserved v

Introduction
The Cyberspace is a complex environment resulting from the interaction of people, software and services on
the Internet, supported by worldwide distributed physical information and communications technology (ICT)
devices and connected networks. However there are security issues that are not covered by current information
security, Internet security, network security and ICT security best practices as there are gaps between these
domains, as well as a lack of communication between organizations and providers in the Cyberspace. This is
because the devices and connected networks that have supported the Cyberspace have multiple owners, each
with their own business, operational and regulatory concerns. The different focus placed by each organization
and provider in the Cyberspace on relevant security domains where little or no input is taken from another
organization or provider has resulted in a fragmented state of security for the Cyberspace.
As such, the first area of focus of this International Standard is to address Cyberspace security or Cybersecurity
issues which concentrate on bridging the gaps between the different security domains in the Cyberspace. In particular
this International Standard provides technical guidance for addressing common Cybersecurity risks, including:
— social engineering attacks;
— hacking;
— the proliferation of malicious software (“malware”);
— spyware; and
— other potentially unwanted software.
The technical guidance provides controls for addressing these risks, including controls for:
— preparing for attacks by, for example, malware, individual miscreants, or criminal organizations on the Internet;
— detecting and monitoring attacks; and
— responding to attacks.
The second area of focus of this International Standard is collaboration, as there is a need for efficient and
effective information sharing, coordination and incident handling amongst stakeholders in the Cyberspace.
This collaboration must be in a secure and reliable manner that also protects the privacy of the individuals
concerned. Many of these stakeholders can reside in different geographical locations and time zones, and are
likely to be governed by different regulatory requirements. Stakeholders include:
— consumers, which can be various types of organizations or individuals; and
— providers, which include service providers.
Thus, this International Standard also provides a framework for
— information sharing,
— coordination, and
— incident handling.
The framework includes
— key elements of considerations for establishing trust,
— necessary processes for collaboration and information exchange and sharing, as well as
— technical requirements for systems integration and interoperability between different stakeholders.
Given the scope of this International Standard, the controls provided are necessarily at a high level. Detailed
technical specification standards and guidelines applicable to each area are referenced within this International
Standard for further guidance.
vi © ISO/IEC 2012 – All rights reserved

INTERNATIONAL STANDARD ISO/IEC 27032:2012(E)
Information technology — Security techniques — Guidelines for
cybersecurity
1 Scope
This International Standard provides guidance for improving the state of Cybersecurity, drawing out the unique
aspects of that activity and its dependencies on other security domains, in particular:
— information security,
— network security,
— internet security, and
— critical information infrastructure protection (CIIP).
It covers the baseline security practices for stakeholders in the Cyberspace. This International Standard provides:
— an overview of Cybersecurity,
— an explanation of the relationship between Cybersecurity and other types of security,
— a definition of stakeholders and a description of their roles in Cybersecurity,
— guidance for addressing common Cybersecurity issues, and
— a framework to enable stakeholders to collaborate on resolving Cybersecurity issues.
2 Applicability
2.1 Audience
This International Standard is applicable to providers of services in the Cyberspace. The audience, however,
includes the consumers that use these services. Where organizations provide services in the Cyberspace to people
for use at home or other organizations, they may need to prepare guidance based on this International Standard that
contains additional explanations or examples sufficient to allow the reader to understand and act on it.
2.2 Limitations
This International Standard does not address:
— Cybersafety,
— Cybercrime,
— CIIP,
— Internet safety, and
— Internet related crime.
It is recognized that relationships exist between the domains mentioned and Cybersecurity. It is, however,
beyond the scope of this International Standard to address these relationships, and the sharing of controls
between these domains.
It is important to note that the concept of Cybercrime, although mentioned, is not addressed. This International
Standard does not provide guidance on law-related aspects of the Cyberspace, or the regulation of Cybersecurity.
© ISO/IEC 2012 – All rights reserved 1

The guidance in this International Standard is limited to the realization of the Cyberspace on the Internet,
including the endpoints. However, the extension of the Cyberspace to other spatial representations through
communication media and platforms are not addressed, nor the physical security aspects of them.
EXAMPLE 1 Protection of the infrastructure elements, such as communications bearers, which underpin the
Cyberspace are not addressed.
EXAMPLE 2 The physical security of mobile telephones that connect to the Cyberspace for content download and/or
manipulation is not addressed.
EXAMPLE 3 Text messaging and voice chat functions provided for mobile telephones are not addressed.
3 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced document
(including any amendments) applies.
ISO/IEC 27000, Information technology — Security techniques — Information security management systems —
Overview and vocabulary
4 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 27000, and the following apply.
4.1
adware
application which pushes advertising to users and/or gathers user online behaviour
NOTE The application may or may not be installed with the user’s knowledge or consent or forced onto the user via
licensing terms for other software.
4.2
application
IT solution, including application software, application data and procedures, designed to help an organization’s users
perform particular tasks or handle particular types of IT problems by automating a business process or function
[ISO/IEC 27034-1:2011]
4.3
application service provider
operator who provides a hosted software solution that provides application services which includes web based
or client-server delivery models
EXAMPLE Online game operators, office application providers and online storage providers.
4.4
application services
software with functionality delivered on-demand to subscribers through an online model which includes web
based or client-server applications
4.5
application software
software designed to help users perform particular tasks or handle particular types of problems, as distinct
from software that controls the computer itself
[ISO/IEC 18019]
2 © ISO/IEC 2012 – All rights reserved

4.6
asset
anything that has value to an individual, an organization or a government
NOTE Adapted from ISO/IEC 27000 to make provision for individuals and the separation of governments from
organizations (4.37).
4.7
avatar
representation of a person participating in the Cyberspace
NOTE 1 An avatar can also be referred to as the person’s alter ego.
NOTE 2 An avatar can also be seen as an “object” representing the embodiment of the user.
4.8
attack
attempt to destroy, expose, alter, disable, steal or gain unauthorized access to or make unauthorized use of an asset
[ISO/IEC 27000:2009]
4.9
attack potential
perceived potential for success of an attack, should an attack be launched, expressed in terms of an attacker’s
expertise, resources and motivation
[ISO/IEC 15408-1:2005]
4.10
attack vector
path or means by which an attacker can gain access to a computer or network server in order to deliver a
malicious outcome
4.11
blended attack
attack that seeks to maximize the severity of damage and speed of contagion by combining multiple
attacking methods
4.12
bot
robot
automated software program used to carry out specific tasks
NOTE 1 The word is often used to describe programs, usually run on a server, that automate tasks such as forwarding
or sorting e-mail.
NOTE 2 A bot is also described as a program that operates as an agent for a user or another program or simulates a
human activity. On the Internet, the most ubiquitous bots are the programs, also called spiders or crawlers, which access
websites and gather their content for search engine indexes.
4.13
botnet
remote control software, specifically a collection of malicious bots, that run autonomously or automatically on
compromised computers
4.14
cookie
capability or ticket in an access control system
4.15
cookie
data exchanged by ISAKMP to prevent certain Denial-of-Service attacks during the establishment of
a security association
© ISO/IEC 2012 – All rights reserved 3

4.16
cookie
data exchanged between an HTTP server and a browser to store state information on the client side
and retrieve it later for server use
NOTE A web browser can be a client or a server.
4.17
control
countermeasure
means of managing risk, including policies, procedures, guidelines, practices or organizational structures,
which can be administrative, technical, management, or legal in nature
[ISO/IEC 27000:2009]
NOTE ISO Guide 73:2009 defines control as simply a measure that is modifying risk.
4.18
Cybercrime
criminal activity where services or applications in the Cyberspace are used for or are the target of a crime, or
where the Cyberspace is the source, tool, target, or place of a crime
4.19
Cybersafety
condition of being protected against physical, social, spiritual, financial, political, emotional, occupational,
psychological, educational or other types or consequences of failure, damage, error, accidents, harm or any
other event in the Cyberspace which could be considered non-desirable
NOTE 1 This can take the form of being protected from the event or from exposure to something that causes health or
economic losses. It can include protection of people or of assets.
NOTE 2 Safety in general is also defined as the state of being certain that adverse effects will not be caused by some
agent under defined conditions.
4.20
Cybersecurity
Cyberspace security
preservation of confidentiality, integrity and availability of information in the Cyberspace
NOTE 1 In addition, other properties, such as authenticity, accountability, non-repudiation, and reliability can also be involved.
NOTE 2 Adapted from the definition for information security in ISO/IEC 27000:2009.
4.21
the Cyberspace
complex environment resulting from the interaction of people, software and services on the Internet by means
of technology devices and networks connected to it, which does not exist in any physical form
4.22
Cyberspace application services
application services (4.4) provided over the Cyberspace
4.23
cyber-squatter
individuals or organizations that register and hold on to URLs that resemble references or names of other
organizations in the real world or in the Cyberspace
4.24
deceptive software
software which performs activities on a user’s computer without first notifying the user as to exactly what the
software will do on the computer, or asking the user for consent to these actions
EXAMPLE 1 A program that hijacks user configurations.
4 © ISO/IEC 2012 – All rights reserved

EXAMPLE 2 A program that causes endless popup advertisements which cannot be easily stopped by the user.
EXAMPLE 3 Adware and spyware.
4.25
hacking
intentionally accessing a computer system without the authorization of the user or the owner
4.26
hactivism
hacking for a politically or socially motivated purpose
4.27
information asset
knowledge or data that has value to the individual or organization
NOTE Adapted from ISO/IEC 27000:2009.
4.28
internet
internetwork
collection of interconnected networks
NOTE 1 Adapted from ISO/IEC 27033-1:2009
NOTE 2 In this context, reference would be made to “an internet”. There is a difference between the definition of “an
internet” and “the Internet”.
4.29
the Internet
global system of inter-connected networks in the public domain
[ISO/IEC 27033-1:2009]
NOTE There is a difference between the definition of “an internet” and “the Internet”.
4.30
Internet crime
criminal activity where services or applications in the Internet are used for or are the target of a crime, or where
the Internet is the source, tool, target, or place of a crime
4.31
Internet safety
condition of being protected against physical, social, spiritual, financial, political, emotional, occupational,
psychological, educational or other types or consequences of failure, damage, error, accidents, harm or any
other event in the Internet which could be considered non-desirable
4.32
Internet security
preservation of confidentiality, integrity and availability of information in the Internet
4.33
Internet services
services delivered to a user to enable access to the Internet via an assigned IP address, which typically include
authentication, authorization and domain name services
4.34
Internet service provider
organization that provides Internet services to a user and enables its customers access to the Internet
NOTE Also sometimes referred to as an Internet access provider.
© ISO/IEC 2012 – All rights reserved 5

4.35
malware
malicious software
software designed with malicious intent containing features or capabilities that can potentially cause harm
directly or indirectly to the user and/or the user’s computer system
EXAMPLES Viruses, worms, trojans.
4.36
malicious contents
applications, documents, files, data or other resources that have malicious features or capabilities embedded,
disguised or hidden in them
4.37
organization
group of people and facilities with an arrangement of responsibilities, authorities and relationships
[ISO 9000:2005]
NOTE 1 In the context of this International Standard, an individual is distinct from an organization.
NOTE 2 In general, a government is also an organization. In the context of this International Standard, governments
can be considered separately from other organizations for clarity.
4.38
phishing
fraudulent process of attempting to acquire private or confidential information by masquerading as a trustworthy
entity in an electronic communication
NOTE Phishing can be accomplished by using social engineering or technical deception.
4.39
physical asset
asset that has a tangible or material existence
NOTE Physical assets usually refer to cash, equipment, inventory and properties owned by the individual or
organization. Software is considered an intangible asset, or a non-physical asset.
4.40
potentially unwanted software
deceptive software, including malicious and non-malicious software, that exhibits the characteristics of
deceptive software
4.41
scam
fraud or confidence trick
4.42
spam
abuse of electronic messaging systems to indiscriminately send unsolicited bulk messages
NOTE While the most widely recognized form of spam is e-mail spam, the term is applied to similar abuses in other
media: instant messaging spam, Usenet newsgroup spam, web search engine spam, spam in blogs, wiki spam, mobile
phone messaging spam, Internet forum spam and junk fax transmissions.
4.43
spyware
deceptive software that collects private or confidential information from a computer user
NOTE Information can include matters such as websites most frequently visited or more sensitive information such
as passwords.
6 © ISO/IEC 2012 – All rights reserved

4.44
stakeholder
person or organization that can affect, be affected by, or perceive themselves to be
affected by a decision or activity
[ISO Guide 73:2009]
4.45
stakeholder
individual or organization having a right, share, claim or interest in a system or in its possession of
characteristics that meet their needs and expectations
[ISO/IEC 12207:2008]
4.46
threat
potential cause of an unwanted incident, which may result in harm to a system, individual or organization
NOTE Adapted from ISO/IEC 27000:2009.
4.47
trojan
trojan horse
malware that appears to perform a desirable function
4.48
unsolicited email
email that is not welcome, or was not requested, or invited
4.49
virtual asset
representation of an asset in the Cyberspace
NOTE In this context, currency can be defined as either a medium of exchange or a property that has value in a
specific environment, such as a video game or a financial trading simulation exercise.
4.50
virtual currency
monetary virtual assets
4.51
virtual world
simulated environment accessed by multiple users through an online interface
NOTE 1 The simulated environments are often interactive.
NOTE 2 The physical world in which people live, and the related characteristics, will be referred to as the “real world”
to differentiate it from a virtual world.
4.52
vulnerability
weakness of an asset or control that can be exploited by a threat
[ISO/IEC 27000:2009]
© ISO/IEC 2012 – All rights reserved 7

4.53
zombie
zombie computer
drone
computer containing hidden software that enables the machine to be controlled remotely, usually to perform
an attack on another computer
NOTE Generally, a compromised machine is only one of many in a botnet, and will be used to perform malicious
activities under remote direction.
5 Abbreviated terms
The following abbreviated terms are used in this International Standard.
AS Autonomous System
AP Access Point
CBT Computer Based Training
CERT Computer Emergency Response Team
CIRT Computer Incident Response Team
CSIRT Computer Security Incident Response Team
CIIP Critical Information Infrastructure Protection
DoS Denial-of-Service
DDoS Distributed Denial-of-Service
HIDS Host-based Intrusion Detection System
IAP Independent Application Provider
ICMP Internet Control Message Protocol
ICT Information and Communications Technology
IDS Intrusion Detection System
IP Internet Protocol
IPO Information Providing Organization
IPS Intrusion Prevention System
IRO Information Receiving Organization
ISP Internet Service Provider
ISV Independent Software Vendor
IT Information Technology
MMORPG Massively Multiplayer Online Role-Playing Game
NDA Non-Disclosure Agreement
SDLC Software Development Life-cycle
SSID Service Set Identifier
8 © ISO/IEC 2012 – All rights reserved

TCP Transmission Control Protocol
UDP User Datagram Protocol
URI Uniform Resource Identifier
URL Uniform Resource Locator
6 Overview
6.1 Introduction
Security on the Internet and in the Cyberspace has been a subject of growing concern. Stakeholders have been
establishing their presence in the Cyberspace through websites and are now attempting to further leverage the
virtual world provided by the Cyberspace.
EXAMPLE Increasing numbers of individuals spend increasing amounts of time with their virtual avatars on MMORPGs.
While some individuals are careful in managing their online identity, most people are uploading details of their
personal profiles to share with others. Profiles on many sites, in particular social networking sites and chat
rooms, can be downloaded and stored by other parties. This can lead to the creation of a digital dossier of
personal data that can be misused, disclosed to other parties, or used for secondary data collection. While
the accuracy and integrity of this data are questionable, they create links to individuals and organizations that
often cannot be completely erased. These developments in the communication, entertainment, transportation,
shopping, financial, insurance, and healthcare domains create new risks to stakeholders in the Cyberspace.
Thus, risks can be associated with loss of privacy.
The convergence of information and communication technologies, the ease of getting into the Cyberspace,
and the narrowing of personal space between individuals are gaining the attention of individual miscreants and
criminal organizations. These entities are using existing mechanisms, such as phishing, spam and spyware, as
well as developing newer attack techniques, to exploit any weaknesses they can discover in the Cyberspace.
In recent years, security attacks in the Cyberspace have evolved from hacking for personal fame to organized
crime, or Cybercrime. A plethora of tools and processes previously observed in isolated Cybersecurity
incidents are now being used together in multi-blended attacks, often with far reaching malicious objectives.
These objectives range from personal attacks, identity theft, financial frauds or thefts, to political hactivism.
Specialist forums to highlight potential security issues have also served to showcase attack techniques and
criminal opportunities.
The multiple modes of business transactions that are carried out in the Cyberspace are becoming the target
of Cybercrime syndicates. Ranging from business-to-business, business-to-consumer to consumer-to-
consumer services, the risks posed are inherently complex. Concepts such as what constitute a transaction or
an agreement are dependent on the interpretation of the law and how each party in the relationship manages
their liability. Often, the issue of usage of data collected during the transaction or relationship is not addressed
adequately. This can eventually lead to security concerns such as the leakage of information.
The legal and technical challenges posed by these Cybersecurity issues are far-reaching and global in nature.
The challenges can only be addressed by having the information security technical community, legal community,
nations and community of nations coming together through a coherent strategy. This strategy should take into
account the role of each stakeholder and existing initiatives, within a framework of international cooperation.
EXAMPLE An example of a challenge sprouts from the fact that the Cyberspace affords virtual anonymity and stealth
of attack, making detection difficult. This makes it increasingly difficult for individuals and organizations to establish trust
and transact, as well as for law enforcement agencies to enforce related policies. Even if the source of attack can be
determined, cross-border legal issues often prevent further progress for any investigation or legal repatriation.
Current progress to address these challenges has been hampered by many issues, and Cybersecurity issues
are increasing and continuing to evolve.
© ISO/IEC 2012 – All rights reserved 9

While there is no lack of Cybersecurity threats, and as many, albeit not standardized, ways to counter them, the
focus of this International Standard is on the following key issues:
— attacks by malicious and potentially unwanted software;
— social engineering attacks; and
— information sharing and coordination.
In addition, some Cybersecurity tools will be discussed briefly in this International Standard. These tools and
areas closely relate to Cybercrime prevention, detection, response, and investigation. Further details can be
found in Annex A.
6.2 The nature of the Cyberspace
The Cyberspace can be described as a virtual environment, which does not exist in any physical form, but rather,
a complex environment or space resulting from the emergence of the Internet, plus the people, organizations,
and activities on all sort of technology devices and networks that are connected to it. Cyberspace security, or
Cybersecurity, is about the security of this virtual world.
Many virtual worlds have a virtual currency, such as used to purchase in-game items. There is an associated
real world value to the virtual currency and even in-game items. These virtual items are frequently traded for real
currency on online auction sites and some games even have an official channel with published virtual or real
currency exchange rates for the monetization of virtual items. It is often these monetization channels which make
these virtual worlds a target for attack, usually by phishing or other techniques for stealing account information.
6.3 The nature of Cybersecurity
Stakeholders in the Cyberspace have to play an active role, beyond protecting their own assets, in order for
the usefulness of the Cyberspace to prevail. The applications within the Cyberspace are expanding beyond the
business-to-consumers, and consumers-to-consumers models, to a form of many-to-many interactions and
transactions. The requirements are expanding for individuals and organizations to be prepared to address the
emerging security risks and challenges to effectively prevent and respond to misuse and criminal exploitations.
Cybersecurity relates to actions that stakeholders should be taking to establish and maintain security in
the Cyberspace.
Cybersecurity relies on information security, application security, network security, and Internet security as
fundamental building blocks. Cybersecurity is one of the activities necessary for CIIP, and, at the same time,
adequate protection of critical infrastructure services contributes to the basic security needs (i.e., security,
reliability and availability of critical infrastructure) for achieving the goals of Cybersecurity.
Cybersecurity is, however, not synonymous with Internet security, network security, application security,
information security, or CIIP. It has a unique scope requiring stakeholders to play an active role in order to
maintain, if not improve the usefulness and trustworthiness of the Cyberspace. This International Standard
differentiates Cybersecurity and the other domains of security as follows:
— Information security is concerned with the protection of confidentiality, integrity, and availability of
information in general, to serve the needs of the applicable information user.
— Application security is a process performed to apply controls and measurements to an organization’s
applications in order to manage the risk of using them. Controls and measurements may be applied to the
application itself (its processes, components, software and results), to its data (configuration data, user
data, organization data), and to all technology, processes and actors involved in the application’s life cycle.
— Network security is concerned with the design, implementation, and operation of networks for achieving the
purposes of information security on networks within organizations, between organizations, and between
organizations and users.
10 © ISO/IEC 2012 – All rights reserved

— Internet security is concerned with protecting Internet-related services and related ICT systems and
networks as an extension of network security in organizations and at home, to achieve the purpose of
security. Internet security also ensures the availability and reliability of Internet services.
— CIIP is concerned with protecting the systems that are provided or operated by critical infrastructure
providers, such as energy, telecommunication, and water departments. CIIP ensures that those systems
and networks are protected and resilient against information security risks, network security risks, Internet
security risks, as well as Cybersecurity risks.
Figure 1 summarizes the relationship between Cybersecurity and other security domains. The relationship
between these security domains and Cybersecurity is complex. Some of the critical infrastructure services, for
example water and transportation, need not impact the state of Cybersecurity directly or significantly. However,
the lack of Cybersecurity can have a negative impact on the availability of critical information infrastructure
systems provided by the critical infrastructure providers.
Cybercrime Cybersafety
Informaon Security
Applicaon Security
Cybersecurity
Network Internet
Security Security
Crical Informaon Infrastructure Protecon
Figure 1 — Relationship between Cybersecurity and other security domains
On the other hand, the availability and reliability of the Cyberspace in many ways rely on the availability and
reliability of related critical infrastructure services, such as the telecommunications network infrastructure. The
security of the Cyberspace is also closely related to the security of the Internet, enterprise/home networks
and information security in general. It should be noted that the security domains identified in this section have
their own objectives and scope of focus. To deal with Cybersecurity issues, therefore requires substantial
communications and coordination between different private and public entities from different countries
and organizations. Critical infrastructure services are regarded by some governments as national security
related services, and therefore may not be discussed or disclosed openly. Furthermore, knowledge of critical
infrastructure weaknesses, if not used appropriately, can have a direct implication on national security. A basic
framework for information sharing and issue or incident coordination is therefore necessary to bridge the gaps
and provide adequate assurance to the stakeholders in the Cyberspace.
6.4 General model
6.4.1 Introduction
This clause presents a general model used throughout this International Standard. This clause assumes some
knowledge of security and does not propose to act as a tutorial in this area.
© ISO/IEC 2012 – All rights reserved 11

This International Standard discusses security using a set of security concepts and terminology. An
understanding of these concepts and the terminology is a prerequisite to the effective use of this International
Standard. However, the concepts themselves are quite general and are not intended to restrict the class of IT
security problems to which this International Standard is applicable.
6.4.2 General security context
Security is concerned with the protection of assets from threats, where threats are categorised as the potential
for abuse of protected assets. All categories of threats should be considered; but in the domain of security
greater attention is given to those threats that are related to malicious or other human activities. Figure 2
illustrates these high level concepts and relationships.
NOTE Figure 2 is adapted from ISO/IEC 15408-1:2005, Information technology — Security techniques — Evaluation
criteria for IT security — Part 1: Introduction and general model.
value
Stakeholders
wish to minimize
impose
to reduce
controls
that may
that may be
possess
reduced by
vulnerabilities
may be aware of
leading to
Threat
agents
risk
that exploit
give
rise to to
that increase
threats assets
to
wish to abuse and/or may damage
Figure 2 — Security concepts and relationships
Safeguarding assets of interest is the responsibility of stakeholders who place value on those assets. Actual or
presumed threat agents may also place value on the assets and seek to abuse assets in a manner contrary to the
interests of the applicable stakeholders. Stakeholders will perceive such threats as potential for impairment of
the assets such that the value of the assets to the stakeholders would be reduced. Security specific impairment
commonly includes, but is not limited to, damaging disclosure of the asset to unauthorised recipients (loss
of confidentiality), damage to the asset through unauthorised modification (loss of integrity), or
...
