ISO 6042:2015

INTERNATIONAL ISO
STANDARD 6042
Third edition
2015-09-01
Ships and marine technology —
Weathertight single-leaf steel doors
Navires et technologie maritime — Portes en acier à un seul battant,
étanches aux intempéries
Reference number
ISO 6042:2015(E)
©
ISO 2015

---------------------- Page: 1 ----------------------
ISO 6042:2015(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2015, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2015 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 6042:2015(E)

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Doors, door frames, door plates, and accessories . 1
3.1 Opening direction . 1
3.2 Door types . 2
3.3 Door frames (see Figure 3) . 4
3.4 Door plates . 5
3.5 Fittings . 7
3.5.1 Location of door clips and hinges. 7
3.5.2 Wedges (see Figure 6) . 8
3.5.3 Hinges (see Figure 7) . 9
3.5.4 Door seal .10
4 Materials .11
5 Quality of manufacture .12
6 Testing of weather tightness .12
7 Designation .12
© ISO 2015 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 6042:2015(E)

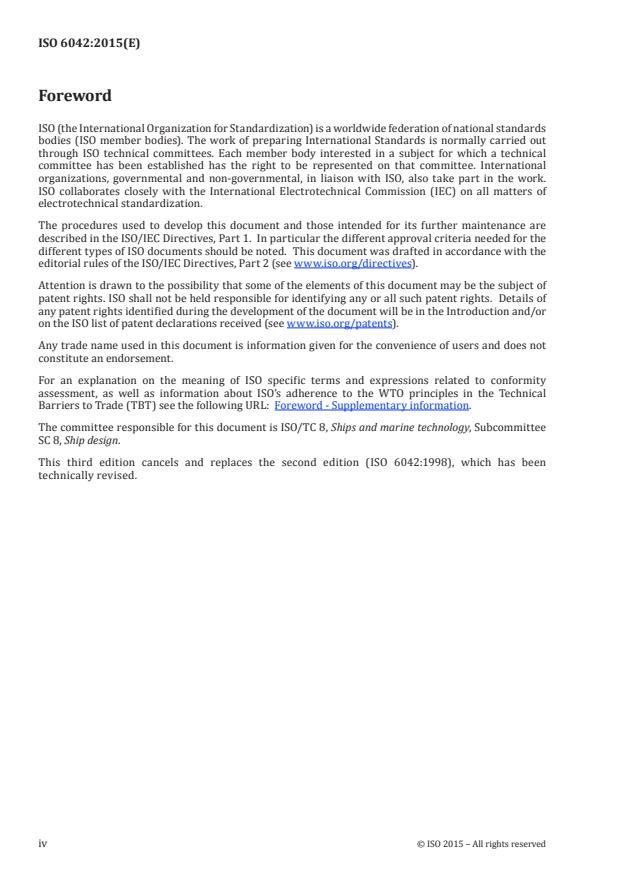

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information.
The committee responsible for this document is ISO/TC 8, Ships and marine technology, Subcommittee
SC 8, Ship design.
This third edition cancels and replaces the second edition (ISO 6042:1998), which has been
technically revised.
iv © ISO 2015 – All rights reserved

---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 6042:2015(E)
Ships and marine technology — Weathertight single-leaf
steel doors
1 Scope
This International Standard specifies the main dimensions, materials, quality and conditions of
manufacture for weathertight single-leaf steel doors for application on board ships, in order to ensure
interchangeability of the steel doors. The remaining dimensions, welding, and other details are left to
the manufacturer.
These doors generally conform to the requirements of the International Convention on Load Lines
1966 (ICLL66). The possibility for application of the doors to position 1 and position 2 has to be
considered for each situation and, where necessary, the doors shall be provided with additional
stiffening (see also Table 1).
Users of this International Standard should note that while observing the requirements of this
International Standard they should, at the same time, ensure compliance with such statutory
requirements, rules, and regulations as may be applicable to the individual ship concerned.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 3796, Ships and marine technology — Clear openings for external single-leaf doors
3 Doors, door frames, door plates, and accessories
3.1 Opening direction
For the definitions of left-hand door and right-hand door, see Figure 1.
Doors in accordance with this International Standard can be used for both opening directions (left-
hand or right-hand) before they are installed in bulkhead plates.
11
R
L
Key
1 hinge
L left-hand
R right-hand
Figure 1 — Opening direction
© ISO 2015 – All rights reserved 1

---------------------- Page: 5 ----------------------
ISO 6042:2015(E)

3.2 Door types
The types of doors shall conform to the detail of Table 1 and Figure 2. The nominal sizes (height
L × width B) given i
...
