ISO/IEC 14496-12:2008/Amd 1:2009

INTERNATIONAL ISO/IEC
STANDARD 14496-12
Third edition
2008-10-15
AMENDMENT 1
2009-11-15
Information technology — Coding of
audio-visual objects —
Part 12:
ISO base media file format
AMENDMENT 1: General improvements
including hint tracks, metadata support and
sample groups
Technologies de l'information — Codage des objets audiovisuels —
Partie 12: Format ISO de base pour les fichiers médias
AMENDEMENT 1: Améliorations générales comprenant «hint tracks»,
support de métadonnées et groupes d'échantillons

Reference number
ISO/IEC 14496-12:2008/Amd.1:2009(E)
©
ISO/IEC 2009
ISO/IEC 14496-12:2008/Amd.1:2009(E)

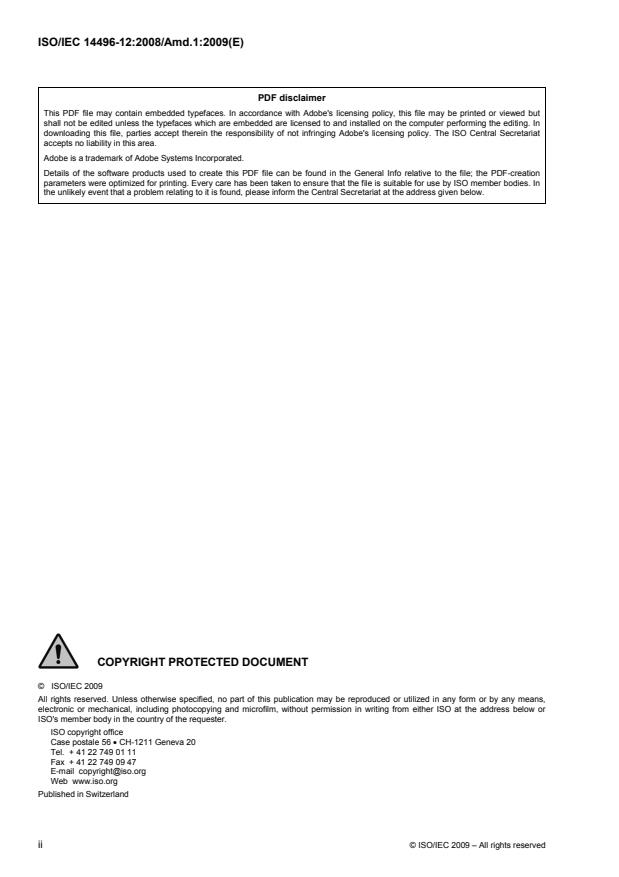

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO/IEC 2009
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2009 – All rights reserved

ISO/IEC 14496-12:2008/Amd.1:2009(E)
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
Amendment 1 to ISO/IEC 14496-12:2008 was prepared by Joint Technical Committee ISO/IEC JTC 1,
Information technology, Subcommittee SC 29, Coding of audio, picture, multimedia and hypermedia
information.
This Amendment provides a number of new hint track formats and improvements in other areas, including
metadata support.
© ISO/IEC 2009 – All rights reserved iii

ISO/IEC 14496-12:2008/Amd.1:2009(E)

Information technology — Coding of audio-visual objects —
Part 12:
ISO base media file format
AMENDMENT 1: General improvements including hint tracks,
metadata support and sample groups
Reformat the table of contents, including the new subclauses and revised page numbers.
Add the following normative references to Clause 2:
ISO/IEC 23002-3, Information technology — MPEG video technologies — Part 3: Representation of auxiliary
video streams and supplemental information
IETF RFC 5052, Forward Error Correction (FEC) Building Block, WATSON, M. et al., August 2007
In 6.2.3, Table 1, add the following line after ‘tref’:
trgr   8.3.4 track grouping indication

In 6.2.3, Table 1, add the following line after ‘ctts’:
cslg 8.6.1.4 composition to decode timeline mapping

In 6.2.3, add the following after ‘paen’:
fire  8.13.7 file reservoir
In 6.2.3, Table 1, add the following lines after ‘tsel’:
idat   8.11.11 item data
iref   8.11.12 item reference

After 6.2.3, add the following new subclause:
6.2.4 URIs as type indicators
When URIs are used as a type indicator (e.g. in a sample entry or for un-timed meta-data), the URI must be
absolute, not relative and the format and meaning of the data must be defined by the URI in question. This
identification may be hierarchical, in that an initial sub-string of the URI might identify the overall nature or
family of the data (e.g. urn:oid: identifies that the metadata is labelled by an ISO-standard object identifier).
© ISO/IEC 2009 – All rights reserved 1

ISO/IEC 14496-12:2008/Amd.1:2009(E)
The URI should be, but is not required to be, de-referencable. It may be string compared by readers with the
set of URI types it knows and recognizes. URIs provide a large non-colliding non-registered space for type
identifiers.
If the URI contains a domain name (e.g. it is a URL), then it should also contain a month-date in the form
mmyyyy. That date must be near the time of the definition of the extension, and it must be true that the URI
was defined in a way authorized by the owner of the domain name at that date. (This avoids problems when
domain names change ownership).
Replace Clause 7 with the following:
7 Streaming Support
7.1 Handling of Streaming Protocols
The file format supports streaming of media data over a network as well as local playback. The process of
sending protocol data units is time-based, just like the display of time-based data, and is therefore suitably
described by a time-based format. A file or ‘movie’ that supports streaming includes information about the data
units to stream. This information is included in additional tracks of the file called “hint” tracks. Hint tracks may
also be used to record a stream; these are called Reception Hint Tracks, to differentiate them from plain (or
server, or transmission) hint tracks.
Transmission or server hint tracks contain instructions to assist a streaming server in the formation of packets
for transmission. These instructions may contain immediate data for the server to send (e.g. header
information) or reference segments of the media data. These instructions are encoded in the file in the same
way that editing or presentation information is encoded in a file for local playback. Instead of editing or
presentation information, information is provided which allows a server to packetize the media data in a
manner suitable for streaming using a specific network transport.
The same media data is used in a file that contains hints, whether it is for local playback, or streaming over a
number of different protocols. Separate ‘hint’ tracks for different protocols may be included within the same file
and the media will play over all such protocols without making any additional copies of the media itself. In
addition, existing media can be easily made streamable by the addition of appropriate hint tracks for specific
protocols. The media data itself need not be recast or reformatted in any way.
This approach to streaming and recording is more space efficient than an approach that requires that the
media information be partitioned into the actual data units that will be transmitted for a given transport and
media format. Under such an approach, local playback requires either re-assembling the media from the
packets, or having two copies of the media — one for local playback and one for streaming. Similarly,
streaming such media over multiple protocols using this approach requires multiple copies of the media data
for each transport. This is inefficient with space, unless the media data has been heavily transformed for
streaming (e.g. by the application of error-correcting coding techniques, or by encryption).
Reception hint tracks may be used when one or more packet streams of data are recorded. Reception hint
tracks indicate the order, reception timing, and contents of the received packets among other things.
NOTE 1: Players may reproduce the packet stream that was received based on the reception hint tracks and process
the reproduced packet stream as if it was newly received.
7.2 Protocol ‘hint’ tracks
Support for streaming is based upon the following three design parameters:
• The media data is represented as a set of network-independent standard tracks, which may
be played, edited, and so on, as normal;
2 © ISO/IEC 2009 – All rights reserved

ISO/IEC 14496-12:2008/Amd.1:2009(E)
• There is a common declaration and base structure for hint tracks; this common format is
protocol independent, but contains the declarations of which protocol(s) are described in the
hint track(s);
• There is a specific design of the hint tracks for each protocol that may be transmitted; all
these designs use the same basic structure. For example, there may be designs for RTP (for
the Internet) and MPEG-2 transport (for broadcast), or for new standard or vendor-specific
protocols.
The resulting streams, sent by the servers under the direction of the server hint tracks or reconstructed from
the reception hint tracks, need contain no trace of file-specific information. This design does not require that
the file structures or declaration style, be used either in the data on the wire or in the decoding station. For
example, a file using ITU-T H.261 video and DVI audio, streamed under RTP, results in a packet stream that
is fully compliant with the IETF specifications for packing those codings into RTP.
7.3 Hint Track Format
Hint tracks are used to describe elementary stream data in the file. Each protocol or each family of related
protocols has its own hint track format. A server hint track format and a reception hint track format for the
same protocol are distinguishable from the associated four-character code of the sample description entry. In
other words, a different four-character code is used for a server hint track and a reception hint track of the
same protocol. The syntax of the server hint track format and the reception hint track format for the same
protocol should be the same or compatible so that a reception hint track can be used for re-sending of the
stream provided that the potential degradations of the received streams are handled appropriately. Most
protocols will need only one sample description format for each track.
Servers find their hint tracks by first finding all hint tracks, and then looking within that set for server hint tracks
using their protocol (sample description format). If there are choices at this point, then the server chooses on
the basis of preferred protocol or by comparing features in the hint track header or other protocol-specific
information in the sample descriptions. Particularly in the absence of server hint tracks, servers may also use
reception hint tracks of their protocol. However, servers should handle potential degradations of the received
stream described by the used reception hint track appropriately.
Tracks having the track_in_movie flag set are candidates for playback, regardless of whether they are media
tracks or reception hint tracks.
Hint tracks construct streams by pulling data out of other tracks by reference. These other tracks may be hint
tracks or elementary stream tracks. The exact form of these pointers is defined by the sample format for the
protocol, but in general they consist of four pieces of information: a track reference index, a sample number,
an offset, and a length. Some of these may be implicit for a particular protocol. These ‘pointers’ always point
to the actual source of the data. If a hint track is built ‘on top’ of another hint track, then the second hint track
must have direct references to the media track(s) used by the first where data from those media tracks is
placed in the stream.
All hint tracks use a common set of declarations and structures.
• Hint tracks are linked to the elementary stream tracks they carry, by track references of type
‘hint’
• They use a handler-type of ‘hint’ in the Handler Reference Box
• They use a Hint Media Header Box
• They use a hint sample entry in the sample description, with a name and format unique to the
protocol they represent.
Server hint tracks are usually marked as disabled for local playback, with their track header
track_in_movie and track_in_preview flags set to 0.
Hint tracks may be created by an authoring tool, or may be added to an existing presentation by a hinting tool.
Such a tool serves as a ‘bridge’ between the media and the protocol, since it intimately understands both. This
© ISO/IEC 2009 – All rights reserved 3

ISO/IEC 14496-12:2008/Amd.1:2009(E)
permits authoring tools to understand the media format, but not protocols, and for servers to understand
protocols (and their hint tracks) but not the details of media data.
Hint tracks do not use separate composition times; the ‘ctts’ table is not present in hint tracks. The process
of hinting computes transmission times correctly as the decoding time.
NOTE 1: Servers using reception hint tracks as hints for sending of the received streams should handle the potential
degradations of the received streams, such as transmission delay jitter and packet losses, gracefully and
ensure that the constraints of the protocols and contained data formats are obeyed regardless of the
potential degradations of the received streams.
NOTE 2: Conversion of received streams to media tracks allows existing players compliant with earlier versions of
the ISO base media file format to process recorded files as long as the media formats are supported.
However, most media coding standards only specify the decoding of error-free streams, and consequently
it should be ensured that the content in media tracks can be correctly decoded. Players may utilize
reception hint tracks for handling of degradations caused by the transmission, i.e., content that may not be
correctly decoded is located only within reception hint tracks. The need for having a duplicate of the correct
media samples in both a media track and a reception hint track can be avoided by including data from the
media track by reference into the reception hint track.
In 8.3.2.1, change:
Hint tracks should have the track header flags set to 0, so that they are ignored for local playback and
preview.
to:
Server hint tracks should have the track_in_movie and track_in_preview track header flags set to 0,
so that they are ignored for local playback and preview.
In 8.3.3.3 (Track Reference Box, Semantics), replace the definition of reference_type as follows:
The reference_type shall be set to one of the following values, or a value registered or from a derived
specification or registration:
• ‘hint’ the referenced track(s) contain the original media for this hint track
• ‘cdsc‘ this track describes the referenced track.
• ‘hind‘ this track depends on the referenced hint track, i.e., it should only be used if the
referenced hint track is used.
• ‘vdep’ this track contains auxiliary depth video information for the referenced video track
• ‘vplx’ this track contains auxiliary parallax video information for the referenced video track
After 8.3.3, add the following new subclause:
8.3.4 Track Group Box
8.3.4.1 Definition
Box Type: ‘trgr’
Container: Track Box (‘trak’)
Mandatory: No
Quantity: Zero or one
This box enables indication of groups of tracks, where each group shares a particular characteristic or the
tracks within a group have a particular relationship. The box contains zero or more boxes, and the particular
4 © ISO/IEC 2009 – All rights reserved

ISO/IEC 14496-12:2008/Amd.1:2009(E)
characteristic or the relationship is indicated by the box type of the contained boxes. The contained boxes
include an identifier, which can be used to conclude the tracks belonging to the same track group. The tracks
that contain the same type of a contained box within the Track Group Box and have the same identifier value
within these contained boxes belong to the same track group.
Track groups shall not be used to indicate dependency relationships between tracks. Instead, the Track
Reference Box is used for such purposes.
8.3.4.2 Syntax
aligned(8) class TrackGroupBox('trgr') {
}
aligned(8) class TrackGroupTypeBox(unsigned int(32) track_group_type) extends
FullBox(track_group_type, version = 0, flags = 0)
{
unsigned int(32) track_group_id;
// the remaining data may be specified for a particular track_group_type
}
8.3.4.3 Semantics
track_group_type indicates the grouping type and shall be set to one of the following values, or a value
registered, or a value from a derived specification or registration:
• 'msrc' indicates that this track belongs to a multi-source presentation. The tracks that
have the same value of track_group_id within a Group Type Box of track_group_type
'msrc' are mapped as being originated from the same source. For example, a recording of a
video telephony call may have both audio and video for both participants, and the value of
track_group_id associated with the audio track and the video track of one participant
differs from value of track_group_id associated with the tracks of the other participant.
The pair of track_group_id and track_group_type identifies a track group within the file. The tracks
that contain a particular track group type box having the same value of track_group_id belong to the same
track group.
In 8.4.3.1, (Handler Reference Box, definition), before the NOTEs, add the following paragraph:
An auxiliary video track is coded the same as a video track, but uses this different handler type, and is not
intended to be visually displayed (e.g. it contains depth information, or other monochrome or color two-
dimensional information). Auxiliary video tracks are usually linked to a video track by an appropriate track
reference.
In 8.4.3.3, after the line for ‘meta’ add the following line:
‘auxv’ Auxiliary Video track
At the end of 8.5.2.1 (Sample Description, Definition), add the following:
The URIMetaSampleEntry entry contains, in a box, the URI defining the form of the metadata, and optional
initialization data. The format of both the samples and of the initialization data is defined by all or part of the
URI form.
An optional bitrate box may be used in the URIMetaSampleEntry entry, as usual.
It may be the case that the URI identifies a format of metadata that allows there to be more than one ‘stated
fact’ within each sample. However, all metadata samples in this format are effectively ‘I frames’, defining the
entire set of metadata for the time interval they cover. This means that the complete set of metadata at any
© ISO/IEC 2009 – All rights reserved 5

ISO/IEC 14496-12:2008/Amd.1:2009(E)
instant, for a given track, is contained in (a) the time-aligned samples of the track(s) (if any) describing that
track, plus (b) the track metadata (if any), the movie metadata (if any) and the file metadata (if any).
If incrementally-changed metadata is needed, the MPEG-7 framework provides that capability.
Information on URI forms for some metadata systems can be found in Annex G.
In 8.5.2.2, add before “// Visual Sequences”:
aligned(8) class URIBox
extends FullBox(‘uri ’, version = 0, 0) {
string theURI;
}
aligned(8) class URIInitBox
extends FullBox(‘uriI’, version = 0, 0) {
unsigned int(8) uri_initialization_data[];
}
class URIMetaSampleEntry() extends MetaDataSampleEntry (’urim‘) {
URIbox  the_label;
URIInitBox init; // optional
MPEG4BitRateBox (); // optional
}
At the end of 8.5.2.3, add the following:
theURI is a URI formatted according to the rules in 6.2.4;
uri_initialization_data is opaque data whose form is defined in the documentation of the URI
form.
In 8.6.1.3.1 (Composition Time to Sample, Definition), replace the body text with the following:
This box provides the offset between decoding time and composition time. In version 0 of this box the
decoding time must be less than the composition time, and the offsets are expressed as unsigned numbers
such that CT(n) = DT(n) + CTTS(n) where CTTS(n) is the (uncompressed) table entry for sample n. In version
1 of this box, the composition timeline and the decoding timeline are still derived from each other, but the
offsets are signed. It is recommended that for the computed composition timestamps, there is exactly one with
the value 0 (zero).
For either version of the box, each sample must have a unique composition timestamp value, that is, the
timestamp for two samples shall never be the same.
It may be true that there is no frame to compose at time 0; the handling of this is unspecified (systems might
display the first frame for longer, or a suitable fill colour).
When version 1 of this box is used, the CompositionToDecodeBox may also be present in the sample table to
relate the composition and decoding timelines. When backwards-compatibility or compatibility with an
unknown set of readers is desired,, version 0 of this box should be used when possible. In either version of
this box, but particularly under version 0, if it is desired that the media start at track time 0, and the first media
sample does not have a composition time of 0, an edit list may be used to ‘shift’ the media to time 0.
The composition time to sample table is optional and must only be present if DT and CT differ for any
samples.
Hint tracks do not use this box.
Move the table and its header ‘For example in Table 2’ from 8.6.1.3.2 to the end of 8.6.1.3.1
6 © ISO/IEC 2009 – All rights reserved

ISO/IEC 14496-12:2008/Amd.1:2009(E)
Replace 8.6.1.3.2 with the following:
8.6.1.3.2 Syntax
aligned(8) class CompositionOffsetBox
extends FullBox(‘ctts’, version = 0, 0) {
unsigned int(32) entry_count;
int i;
if (version==0) {
for (i=0; i < entry_count; i++) {
unsigned int(32) sample_count;
unsigned int(32) sample_offset;
}
}
else if (version == 1) {
for (i=0; i < entry_count; i++) {
unsigned int(32) sample_count;
signed  int(32) sample_offset;
}
}
}
In 8.6.1.3.3, replace the following line with this revised definition:
sample_offset is an integer that gives the offset between CT and DT, such that CT(n) = DT(n) +
CTTS(n).
After 8.6.1.3, add the following:
8.6.1.4 Composition to Decode Box
8.6.1.4.1 Definition
Box Type: ‘cslg’
Container: Sample Table Box (‘stbl’)
Mandatory: No
Quantity: Zero or one
When signed composition offsets are used, this box may be used to relate the composition and decoding
timelines, and deal with some of the ambiguities that signed composition offsets introduce.
Note that all these fields apply to the entire media (not just that selected by any edits). It is recommended that
any edits, explicit or implied, not select any portion of the composition timeline that does not map to a sample.
For example, if the smallest composition time is 1000, then the default edit from 0 to the media duration
leaves the period from 0 to 1000 associated with no media sample. Player behaviour, and what is composed
in this interval, is undefined under these circumstances. It is recommended that the smallest computed CTS
be zero, or match the beginning of the first edit.
The composition duration of the last sample in a track might be (often is) ambiguous or unclear; the field for
composition end time can be used to clarify this ambiguity and, with the composition start time, establish a
clear composition duration for the track.
© ISO/IEC 2009 – All rights reserved 7

ISO/IEC 14496-12:2008/Amd.1:2009(E)
8.6.1.4.2 Syntax
class CompositionToDecodeBox extends FullBox(‘cslg’, version=0, 0) {
signed int(32) compositionToDTSShift;
signed int(32) leastDecodeToDisplayDelta;
signed int(32) greatestDecodeToDisplayDelta;
signed int(32) compositionStartTime;
signed int(32) compositionEndTime;
}
8.6.1.4.3 Semantics
compositionToDTSShift: if this value is added to the composition times (as calculated by the CTS
offsets from the DTS), then for all samples, their CTS is guaranteed to be greater than or equal to
their DTS, and the buffer model implied by the indicated profile/level will be honoured; if
leastDecodeToDisplayDelta is positive or zero, this field can be 0; otherwise it should be at least
(- leastDecodeToDisplayDelta)
leastDecodeToDisplayDelta: the smallest composition offset in the CompositionTimeToSample box
in this track
greatestDecodeToDisplayDelta: the largest composition offset in the CompositionTimeToSample
box in this track
compositionStartTime: the smallest computed composition time (CTS) for any sample in the media
of this track
compositionEndTime: the composition time plus the composition duration, of the sample with the
largest computed composition time (CTS) in the media of this track
In 8.6.4.1 (Independent and Disposable Samples, Definition), add the following paragraph before the
penultimate paragraph (starting “The size of the table”):
A leading sample (usually a picture in video) is defined relative to a reference sample, which is the
immediately prior sample that is marked as “sample_depends_on” having no dependency (an I picture). A
leading sample has both a composition time before the reference sample, and possibly also a decoding
dependency on a sample before the reference sample. Therefore if, for example, playback and decoding were
to start at the reference sample, those samples marked as leading would not be needed and might not be
decodable. A leading sample itself must therefore not be marked as having no dependency.
Replace 8.6.4.2 with the following:
8.6.4.2 Syntax
aligned(8) class SampleDependencyTypeBox
extends FullBox(‘sdtp’, version = 0, 0) {
for (i=0; i < sample_count; i++){
unsigned int(2) is_leading;
unsigned int(2) sample_depends_on;
unsigned int(2) sample_is_depended_on;
unsigned int(2) sample_has_redundancy;
}
}
Add the following to the beginning of 8.6.4.3:
is_leading takes one of the following four values:
0: the leading nature of this sample is unknown;
1: this sample is a leading sample that has a dependency before the referenced I-picture (and is
therefore not decodable);
2: this sample is not a leading sample;
3: this sample is a leading sample that has no dependency before the referenced I-picture (and is
therefore decodable);
8 © ISO/IEC 2009 – All rights reserved

ISO/IEC 14496-12:2008/Amd.1:2009(E)
In 8.8.3.1 (Track Extends, definition), replace the code and the following paragraph, with the following:
bit(4) reserved=0;
unsigned int(2) is_leading;
unsigned int(2) sample_depends_on;
unsigned int(2) sample_is_depended_on;
unsigned int(2) sample_has_redundancy;
bit(3) sample_padding_value;
bit(1) sample_is_difference_sample;
// i.e. when 1 signals a non-key or non-sync sample
unsigned int(16) sample_degradation_priority;
The is_leading, sample_depends_on, sample_is_depended_on and sample_has_redundancy
values are defined as documented in the Independent and Disposable Samples Box.
In 8.9.1 (Sample Group Structures, Introduction), add the following before the final paragraph (that starts “One
example”):
A grouping of a particular grouping type may use a parameter in the sample to group mapping; if so, the
meaning of the parameter must be documented with the group. An example of this might be documented the
sync points in a multiplex of several video streams; the group definition might be ‘Is an I frame’, and the group
parameter might be the identifier of each stream. Since the sample to group box occurs once for each stream,
it is now both compact, and informs the reader about each stream separately.
Add the following to the end of 8.9.2.1 (Sample to Group, Definition):
Version 1 of this box should only be used if a grouping type parameter is needed.
Replace 8.9.2.2 as follows:
8.9.2.2 Syntax
aligned(8) class SampleToGroupBox
extends FullBox(‘sbgp’, version, 0)
{
unsigned int(32) grouping_type;
if (version == 1) {
unsigned int(32) grouping_type_parameter;
}
unsigned int(32) entry_count;
for (i=1; i <= entry_count; i++)
{
unsigned int(32) sample_count;
unsigned int(32) group_description_index;
}
}
Replace the first two paragraphs (preceding “entry_count”) of 8.9.2.3 with the following:
version is an integer that specifies the version of this box, either 0 or 1.
grouping_type is an integer that identifies the type (i.e. criterion used to form the sample groups) of
the sample grouping and links it to its sample group description table with the same value for grouping
type. At most one occurrence of this box with the same value for grouping_type (and, if used,
grouping_type_parameter) shall exist for a track.
grouping_type_parameter is an indication of the sub-type of the grouping

© ISO/IEC 2009 – All rights reserved 9

ISO/IEC 14496-12:2008/Amd.1:2009(E)
Replace 8.11.1.2 and 8.11.1.3 (Meta Box, Syntax and Semantics) with the following:
8.11.1.2 Syntax
aligned(8) class MetaBox (handler_type)
extends FullBox(‘meta’, version = 0, 0) {
HandlerBox(handler_type) theHandler;
PrimaryItemBox  primary_resource; // optional
DataInformationBox file_locations;  // optional
ItemLocationBox item_locations;  // optional
ItemProtectionBox protections;  // optional
ItemInfoBox  item_infos;   // optional
IPMPControlBox  IPMP_control;  // optional
ItemReferenceBox item_refs;   // optional
ItemDataBox  item_data;   // optional
Box other_boxes[];     // optional
}
8.11.1.3 Semantics
The structure or format of the metadata is declared by the handler. In the case that the primary data is
identified by a primary item, and that primary item has an item information entry with an item_type,
the handler type may be the same as the item_type.
Replace 8.11.3 with the following:
8.11.3 The Item Location Box
8.11.3.1 Definition
Box Type: ‘iloc’
Container: Meta box (‘meta’)
Mandatory: No
Quantity: Zero or one
The item location box provides a directory of resources in this or other files, by locating their containing file,
their offset within that file, and their length. Placing this in binary format enables common handling of this data,
even by systems which do not understand the particular metadata system (handler) used. For example, a
system might integrate all the externally referenced metadata resources into one file, re-adjusting file offsets
and file references accordingly.
The box starts with three or four values, specifying the size in bytes of the offset field, length field,
base_offset field, and, in version 1 of this box, the extent_index fields, respectively. These values must
be from the set {0, 4, 8}.
The construction_method field indicates the ‘construction method’ for the item:
i) file_offset: by the usual absolute file offsets into the file at data_reference_index;
(construction_method == 0)
ii) idat_offset: by box offsets into the idat box in the same meta box; neither the
data_reference_index nor extent_index fields are used; (construction_method == 1)
iii) item_offset: by item offset into the items indicated by a new extent_index field, which is only used
(currently) by this construction method. (construction_method == 2).
The extent_index is only used for the method item_offset; it indicates the 1-based index of the item reference
with referenceType ‘iloc’ linked from this item. If index_size is 0, then the value 1 is implied; the value 0 is
reserved.
10 © ISO/IEC 2009 – All rights reserved

ISO/IEC 14496-12:2008/Amd.1:2009(E)
Items may be stored fragmented into extents, e.g. to enable interleaving. An extent is a contiguous subset of
the bytes of the resource; the resource is formed by concatenating the extents. If only one extent is used
(extent_count = 1) then either or both of the offset and length may be implied:
• If the offset is not identified (the field has a length of zero), then the beginning of the source (offset 0
into the file, idat box, or other item) is implied.
• If the length is not specified, or specified as zero, then the entire length of the source is implied.
References into the same file as this metadata, or items divided into more than one extent, should
have an explicit offset and length, or use a MIME type requiring a different interpretation of the file, to
avoid infinite recursion.
The size of the item is the sum of the extent lengths.
NOTE Extents may be interleaved with the chunks defined by the sample tables of tracks.
The data-reference index may take the value 0, indicating a reference into the same file as this metadata, or
an index into the data-reference table.
Some referenced data may itself use offset/length techniques to address resources within it (e.g. an MP4 file
might be ‘included’ in this way). Normally such offsets are relative to the beginning of the containing file. The
field ‘base offset’ provides an additional offset for offset calculations within that contained data. For example, if
an MP4 file is included within a file formatted to this specification, then normally data-offsets within that MP4
section are relative to the beginning of file; the base offset adds to those offsets.
If an item is constructed from other items, and those source items are protected, the offset and length
information apply to the source items after they have been de-protected. That is, the target item data is formed
from unprotected source data.
For maximum compatibility, version 0 of this box should be used in preference to version 1 with
construction_method==0, when possible.
8.11.3.2 Syntax
aligned(8) class ItemLocationBox extends FullBox(‘iloc’, version, 0) {
unsigned int(4) offset_size;
unsigned int(4) length_size;
unsigned int(4) base_offset_size;
if (version == 1)
unsigned int(4) index_size;
else
unsigned int(4) reserved;
unsigned int(16) item_count;
for (i=0; i unsigned int(16) item_ID;
if (version == 1) {
unsigned int(12) reserved = 0;
unsigned int(4) construction_method;
}
unsigned int(16) data_reference_index;
unsigned int(base_offset_size*8) base_offset;
unsigned int(16) extent_count;
for (j=0; j if ((version == 1) && (index_size > 0)) {
unsigned int(index_size*8) extent_index;
}
unsigned int(offset_size*8) extent_offset;
unsigned int(length_size*8) extent_length;
}
}
}
© ISO/IEC 2009 – All rights reserved 11

ISO/IEC 14496-12:2008/Amd.1:2009(E)
8.11.3.3 Semantics
offset_size is taken from the set {0, 4, 8} and indicates the length in bytes of the offset field.
length_size is taken from the set {0, 4, 8} and indicates the length in bytes of the length field.
base_offset_size is taken from the set {0, 4, 8} and indicates the length in bytes of the base_offset
field.
index_size is taken from the set {0, 4, 8} and indicates the length in bytes of the extent_index field.
item_count counts the number of resources in the following array.
item_ID is an arbitrary integer ‘name’ for this resource which can be used to refer to it (e.g. in a URL).
construction_method is taken from the set 0 (file), 1 (idat) or 2 (item)
data-reference-index is either zero (‘this file’) or a 1-based index into the data references in the data
information box.
base_offset provides a base value for offset calculations within the referenced data. If
base_offset_size is 0, base_offset takes the value 0, i.e. it is unused.
extent_count provides the count of the number of extents into which the resource is fragmented; it
must have the value 1 or greater
extent_index provides an index as defined for the construction method
extent_offset provides the absolute offset in bytes from the beginning of the containing file, of this
item. If offset_size is 0, offset takes the value 0
extent_length provides the absolute length in bytes of this metadata item. If length_size is 0,
length takes the value 0. If the value is 0, then length of the item is the length of the entire
referenced file.
Replace 8.11.6 with the following:
8.11.6 Item Information Box
8.11.6.1 Definition
Box Type: ‘iinf’
Container: Meta Box (‘meta’)
Mandatory: No
Quantity: Zero or one
The Item information box provides extra information about selected items, including symbolic (‘file’) names. It
may optionally occur, but if it does, it must be interpreted, as item protection or content encoding may have
changed the format of the data in the item. If both content encoding and protection are indicated for an item, a
reader should first un-protect the item, and then decode the item’s content encoding. If more control is
needed, an IPMP sequence code may be used.
This box contains an array of entries, and each entry is formatted as a box. This array is sorted by increasing
item_ID in the entry records.
Three versions of the item info entry are defined. Version 1 includes additional information to version 0 as
specified by an extension type. For instance, it shall be used with extension type 'fdel' for items that are
referenced by the file partition box ('fpar'), which is defined for source file partitionings and applies to file
delivery transmissions. Version 2 provides an alternative structure in which metadata item types are indicated
by a 32-bit (typically 4-character) registered or defined code; two of these codes are defined to indicate a
MIME type or metadata typed by a URI.
If no extension is desired, the box may terminate without the extension_type field and the extension; if, in
addition, content_encoding is not desired, that field also may be absent and the box terminate before it. If
an extension is desired without an explicit content_encoding, a single null byte, signifying the empty string,
must be supplied for the content_encoding, before the indication of extension_type.
If file delivery item information is needed and a version 2 ItemInfoEntry is used, then the file delivery
information is stored (a) as a separate item of type ‘fdel’) (b) linked by an item reference from the item, to the
file delivery information, of type ‘fdel’. There must be exactly one such reference if file delivery information is
needed.
12 © ISO/IEC 2009 – All rights reserved

ISO/IEC 14496-12:2008/Amd.1:2009(E)
It is possible that there are valid URI forms for MPEG-7 metadata (e.g. a schema URI with a fragment
identifying a particular element), and it may be possible that these structures could be used for MPEG-7.
However, there is explicit support for MPEG-7 in ISO base media file format family files, and this explicit
support is preferred as it allows, among other things:
a) incremental update of the metadata (logically, I/P coding, in video terms) whereas this draft is ‘I-frame
only’;
b) binarization and thus compaction;
c) the use of multiple schemas.
Therefore, the use of these structures for MPEG-7 is deprecated (and undocumented).
Information on URI forms for some metadata systems can be found in Annex G.
8.11.6.2 Syntax
aligned(8) class ItemInfoExtension(unsigned int(32) extension_type)
{
}
aligned(8) class FDItemInfoExtension() extends ItemInfoExtension (’fdel’)
{
string   content_location;
string  content_MD5;
unsigned int(64) content_length;
unsigned int(64) transfer_length;
unsigned int(8) entry_count;
for (i=1; i <= entry_count; i++)
unsigned int(32) group_id;
}
aligned(8) class ItemInfoEntry
extends FullBox(‘infe’, version, 0) {
if ((version == 0) || (version == 1)) {
unsigned int(16) item_ID;
unsigned int(16) item_protection_index
string  item_name;
string  content_type;
string  content_encoding; //optional
}
if (version == 1) {
unsigned int(32) extension_type; //optional
ItemInfoExtension(extension_type); //optional
}
if (version == 2) {
unsigned int(16) item_ID;
unsigned int(16) item_protection_index;
unsigned int(32) item_type;
string  item_name;
if (item_type==’mime’) {
string  content_type;
string  content_encoding; //optional
} else if (item_type == ‘uri ‘) {
string  item_uri_type;
}
}
}
aligned(8) class ItemInfoBox
extends FullBox(‘iinf’, version = 0, 0) {
unsigned int(16) entry_count;
ItemInfoEntry[ entry_count ] item_infos;
}
© ISO/IEC 2009 – All rights reserved 13

ISO/IEC 14496-12:2008/Amd.1:2009(E)
8.11.6.3 Semantics
item_id contains either 0 for the primary resource (e.g., the XML contained in an ‘xml ‘ box) or the ID
of the item for which the following information is defined.
item_protection_index contains either 0 for an unprotected item, or the one-based index into the
item protection box defining the protection applied to this item (the first box in the item protection box
has the index 1).
item_name is a null-terminated string in UTF-8 characters containing a symbolic name of the item
(source file for file delivery transmissions).
item_type is a 32-bit value, typically 4 printable characters, that is a defined valid item type indicator,
such as ‘mime’
content_type is a null-terminated string in UTF-8 characters with the MIME type of the item. If the item
is content encoded (see below), then the content type refers to the item after content decoding.
item_uri_type is a string that is an absolute URI, that is used as a type indicator.
content_encoding is an optional null-terminated string in UTF-8 characters used to indicate that the
binary file is encoded and needs to be decoded before interpreted. The values are as defined for
Content-Encoding for HTTP/1.1. Some possible values are “gzip”, “compress” and “deflate”. An empty
string indicates no content encoding. Note that the item is stored after the content encoding has been
applied.
extension_type is a printable four-character code that identifies the extension fields of version 1 with
respect to version 0 of the Item information entry.
content_location is a null-terminated string in UTF-8 characters containing the URI of the file as
defined in HTTP/1.1 (RFC 2616).
content_MD5 is a null-terminated string in UTF-8 characters containing an MD5 digest of the file. See
HTTP/1.1 (RFC 2616) and RFC 1864.
content_length gives the total length (in bytes) of the (un-encoded) file.
transfer_length gives the total length (in bytes) of the (encoded) file. Note that transfer length is
equal to content length if no content encoding is applied (see above).
entry_count provides a count of the number of entries in the following array.
group_ID indicates a file group to which the file item (source file) belongs. See 3GPP TS 26.346 for
more details on file groups.
Add the following to the end of 8.11:
8.11.11 Item Data Box
8.11.11.1 Definition
Box Type: ‘idat’
Container: Metadata box (‘meta’)
Mandatory: No
Quantity: Zero or one
This box contains the data of metadata items that use the construction method indicating that an item’s data
extents are store
...
