Textiles - Quantitative chemical analysis - Part 13: Mixtures of certain chlorofibres with certain other fibres (method using carbon disulfide/acetone)

This document specifies a method, using carbon disulfide/acetone, to determine the mass percentage of chlorofibre, after removal of non-fibrous matter, in textiles made of mixtures of - certain chlorofibres, with - wool, animal hair, silk, cotton, viscose, cupro, modal, lyocell, polyamide, polyester, elastomultiester, acrylic, melamine, polypropylene, polypropylene/polyamide bicomponent, polyacrylate and glass fibres. It is also possible to analyse mixtures containing chlorofibres by using the test methods described in ISO 1833-17 or ISO 1833-21.

Textiles — Analyse chimique quantitative — Partie 13: Mélanges de certaines chlorofibres avec certaines autres fibres (méthode au sulfure de carbone/acétone)

Le présent document spécifie une méthode de détermination, au sulfure de carbone/acétone, de la masse exprimée en pourcentage de chlorofibres, après élimination des matières non fibreuses, dans les textiles composés de mélanges de: — certaines chlorofibres avec — laine, poils animaux, soie, coton, viscose, cupro, modal, lyocell, polyamide, polyester, élastomultiester, acrylique, mélamine, polypropylène, bicomposant polypropylène/polyamide, polyacrylate et fibres de verre. Il est également possible d'analyser les mélanges contenant des chlorofibres à l'aide des méthodes d'essai décrites dans l'ISO 1833‑17 ou l'ISO 1833‑21.

General Information

Status
Published
Publication Date
03-Oct-2019
Technical Committee
ISO/TC 38 - Textiles
Current Stage
9093 - International Standard confirmed
Start Date
11-Jul-2025
Completion Date
13-Dec-2025

Relations

Effective Date
11-Nov-2017

Overview

ISO 1833-13:2019 defines a quantitative chemical analysis method for determining the mass percentage of chlorofibre in textile mixtures using an azeotropic mixture of carbon disulfide (CS2) and acetone. The procedure is applicable after removal of non‑fibrous matter and covers mixtures of certain chlorofibres with a broad range of fibres including wool, silk, cotton, viscose, cupro, modal, lyocell, polyamide, polyester, acrylic, melamine, polypropylene, polyacrylate and glass fibres. The method yields repeatable results suitable for laboratory quality control and compliance verification.

The principle is straightforward: the chlorofibre is dissolved from a known dry mass using the CS2/acetone reagent, the insoluble residue is collected, washed, dried and weighed, and the chlorofibre content is calculated by difference. The standard includes procedural checks (e.g., solubility verification) and safety warnings for the toxic solvent system.

Key Topics

  • Scope and applicability: quantitative determination of chlorofibre mass % in specified fibre mixtures.
  • Reagent: azeotropic mixture prepared by mixing 555 ml carbon disulfide with 445 ml acetone; ethanol (min. 92 % by volume) used for washing.
  • Sample handling: remove non‑fibrous matter prior to analysis; check solubility of the chlorofibre in reagent.
  • Procedure highlights:
    • Add 100 ml of reagent per gram of specimen;
    • Shake (20 ± 1) min on a mechanical shaker, decant and repeat until extraction is complete;
    • Collect residue on a weighed filter crucible, wash with ethanol and water, dry and weigh.
  • Notes: mixtures with >25 % wool or silk should use ISO 1833-4; mixtures with >25 % polyamide should use ISO 1833-7.
  • Calculation: follow ISO 1833-1 general instructions; d = 1.00 (d = 1.01 for melamine and polyacrylate).
  • Precision: confidence limits on homogeneous mixtures are ±1 percentage point at 95 % confidence.
  • Safety: carbon disulfide is toxic and flammable; follow laboratory safety and ventilation requirements.

Applications

  • Quality control and acceptance testing of blended textiles.
  • Material composition verification for labeling and regulatory compliance.
  • Troubleshooting and failure analysis where accurate quantification of chlorofibre is required.
  • Research and development of fibre blends and recycling feedstock characterisation.

Related Standards

  • ISO 1833-1 - General principles of quantitative chemical testing.
  • ISO 1833-4 - Protein fibre mixtures (hypochlorite) - use when wool/silk >25 %.
  • ISO 1833-7 - Polyamide mixtures (formic acid) - use when polyamide >25 %.
  • ISO 1833-17 and ISO 1833-21 - Alternative methods for analysing mixtures containing chlorofibres.

This standard provides a practical, reproducible method for laboratories performing quantitative textile analysis and supports robust QC and compliance workflows when working with chlorofibre-containing blends.

Standard

ISO 1833-13:2019 - Textiles — Quantitative chemical analysis — Part 13: Mixtures of certain chlorofibres with certain other fibres (method using carbon disulfide/acetone) Released:10/4/2019

English language
4 pages
sale 15% off
Preview
sale 15% off
Preview
Standard

ISO 1833-13:2019 - Textiles — Analyse chimique quantitative — Partie 13: Mélanges de certaines chlorofibres avec certaines autres fibres (méthode au sulfure de carbone/acétone) Released:10/15/2019

French language
4 pages
sale 15% off
Preview
sale 15% off
Preview

Frequently Asked Questions

ISO 1833-13:2019 is a standard published by the International Organization for Standardization (ISO). Its full title is "Textiles - Quantitative chemical analysis - Part 13: Mixtures of certain chlorofibres with certain other fibres (method using carbon disulfide/acetone)". This standard covers: This document specifies a method, using carbon disulfide/acetone, to determine the mass percentage of chlorofibre, after removal of non-fibrous matter, in textiles made of mixtures of - certain chlorofibres, with - wool, animal hair, silk, cotton, viscose, cupro, modal, lyocell, polyamide, polyester, elastomultiester, acrylic, melamine, polypropylene, polypropylene/polyamide bicomponent, polyacrylate and glass fibres. It is also possible to analyse mixtures containing chlorofibres by using the test methods described in ISO 1833-17 or ISO 1833-21.

This document specifies a method, using carbon disulfide/acetone, to determine the mass percentage of chlorofibre, after removal of non-fibrous matter, in textiles made of mixtures of - certain chlorofibres, with - wool, animal hair, silk, cotton, viscose, cupro, modal, lyocell, polyamide, polyester, elastomultiester, acrylic, melamine, polypropylene, polypropylene/polyamide bicomponent, polyacrylate and glass fibres. It is also possible to analyse mixtures containing chlorofibres by using the test methods described in ISO 1833-17 or ISO 1833-21.

ISO 1833-13:2019 is classified under the following ICS (International Classification for Standards) categories: 59.060.01 - Textile fibres in general. The ICS classification helps identify the subject area and facilitates finding related standards.

ISO 1833-13:2019 has the following relationships with other standards: It is inter standard links to ISO 1833-13:2006. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.

ISO 1833-13:2019 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

Standards Content (Sample)


INTERNATIONAL ISO
STANDARD 1833-13
Second edition
2019-10
Textiles — Quantitative chemical
analysis —
Part 13:
Mixtures of certain chlorofibres with
certain other fibres (method using
carbon disulfide/acetone)
Textiles — Analyse chimique quantitative —
Partie 13: Mélanges de certaines chlorofibres avec certaines autres
fibres (méthode au sulfure de carbone/acétone)
Reference number
©
ISO 2019

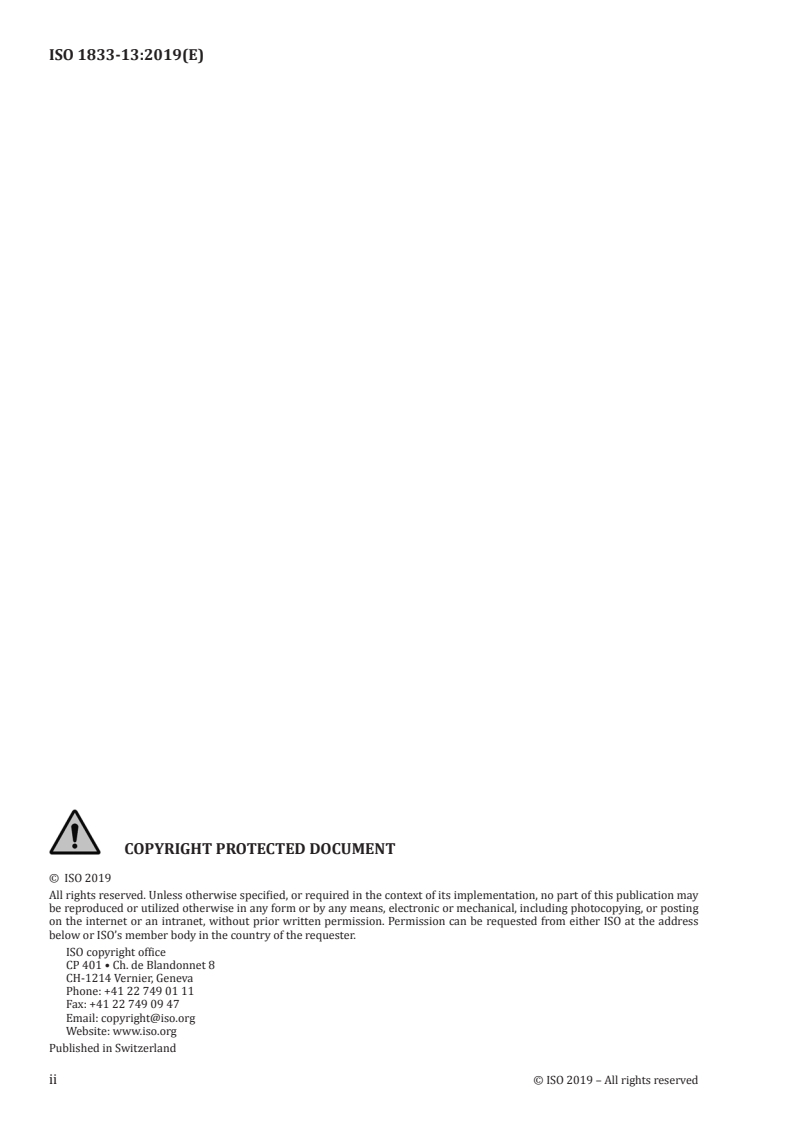

© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 1
5 Reagents . 2
6 Apparatus . 2
7 Test procedure . 2
8 Calculation and expression of results . 3
9 Precision . 3
Bibliography . 4

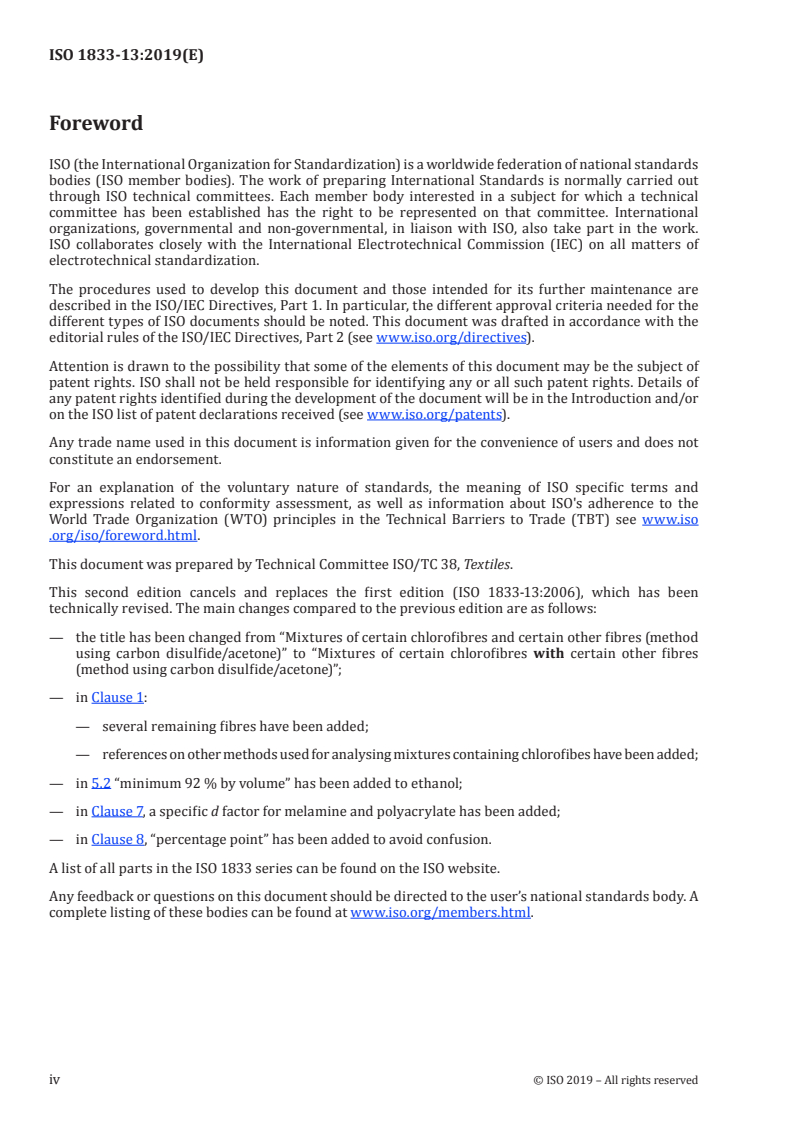

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso
.org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 38, Textiles.
This second edition cancels and replaces the first edition (ISO 1833-13:2006), which has been
technically revised. The main changes compared to the previous edition are as follows:
— the title has been changed from “Mixtures of certain chlorofibres and certain other fibres (method
using carbon disulfide/acetone)” to “Mixtures of certain chlorofibres with certain other fibres
(method using carbon disulfide/acetone)”;
— in Clause 1:
— several remaining fibres have been added;
— references on other methods used for analysing mixtures containing chlorofibes have been added
...


NORME ISO
INTERNATIONALE 1833-13
Deuxième édition
2019-10
Textiles — Analyse chimique
quantitative —
Partie 13:
Mélanges de certaines chlorofibres
avec certaines autres fibres (méthode
au sulfure de carbone/acétone)
Textiles — Quantitative chemical analysis —
Part 13: Mixtures of certain chlorofibres with certain other fibres
(method using carbon disulfide/acetone)
Numéro de référence
©
ISO 2019

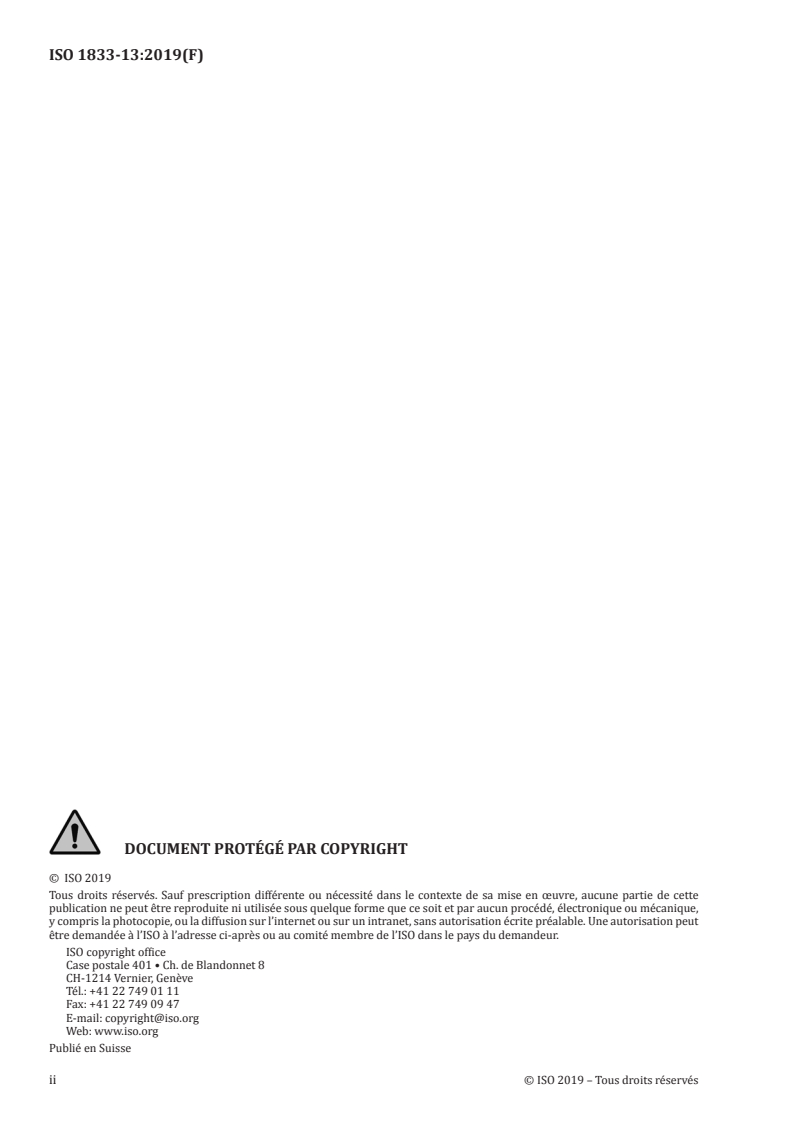

DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2019
Tous droits réservés. Sauf prescription différente ou nécessité dans le contexte de sa mise en œuvre, aucune partie de cette
publication ne peut être reproduite ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique,
y compris la photocopie, ou la diffusion sur l’internet ou sur un intranet, sans autorisation écrite préalable. Une autorisation peut
être demandée à l’ISO à l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Case postale 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Genève
Tél.: +41 22 749 01 11
Fax: +41 22 749 09 47
E-mail: copyright@iso.org
Web: www.iso.org
Publié en Suisse
ii © ISO 2019 – Tous droits réservés

Sommaire Page
Avant-propos .iv
1 Domaine d’application . 1
2 Références normatives . 1
3 Termes et définitions . 1
4 Principe . 1
5 Réactifs . 2
6 Appareillage . 2
7 Mode opératoire d’essai. 2
8 Calcul et expression des résultats . 3
9 Fidélité . 3
Bibliographie . 4

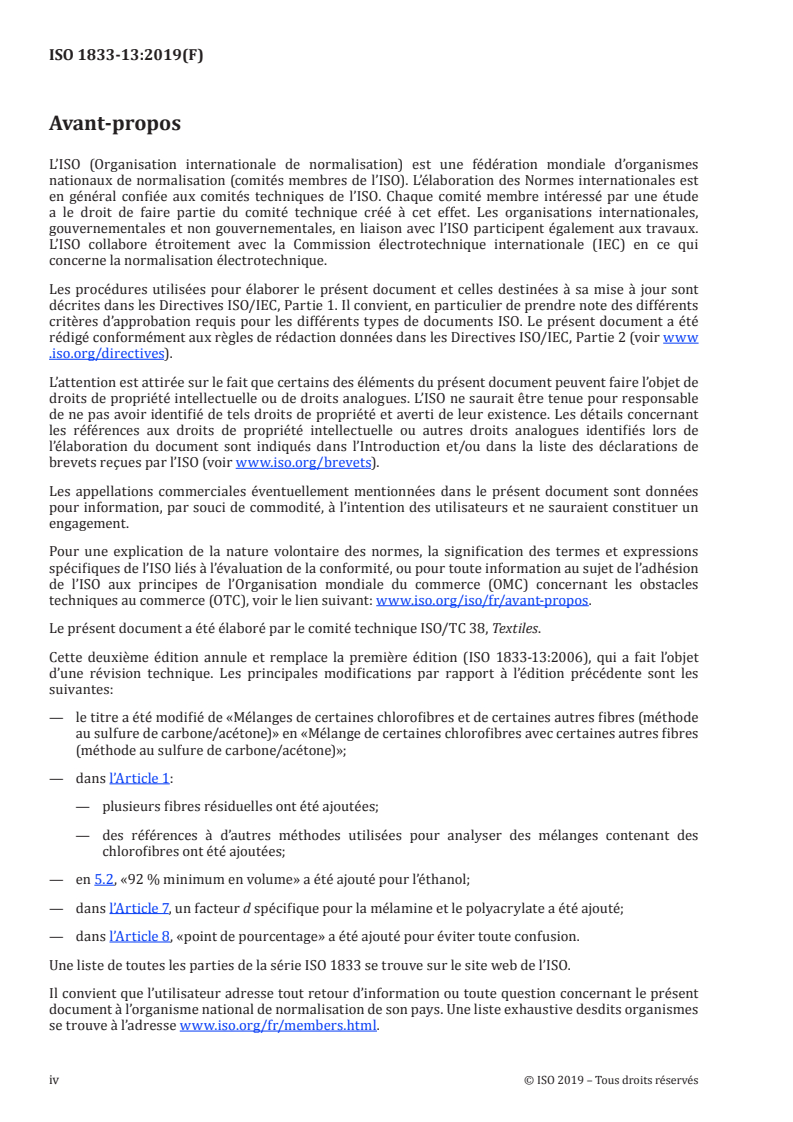

Avant-propos
L’ISO (Organisation internationale de normalisation) est une fédération mondiale d’organismes
nationaux de normalisation (comités membres de l’ISO). L’élaboration des Normes internationales est
en général confiée aux comités techniques de l’ISO. Chaque comité membre intéressé par une étude
a le droit de faire partie du comité technique créé à cet effet. Les organisations internationales,
gouvernementales et non gouvernementales, en liaison avec l’ISO participent également aux travaux.
L’ISO collabore étroitement avec la Commission électrotechnique internationale (IEC) en ce qui
concerne la normalisation électrotechnique.
Les procédures utilisées pour élaborer le présent document et celles destinées à sa mise à jour sont
décrites dans les Directives ISO/IEC, Partie 1. Il convient, en particulier de prendre note des différents
critères d’approbation requis pour les différents types de documents ISO. Le présent document a été
rédigé conformément aux règles de rédaction données dans les Directives ISO/IEC, Partie 2 (voir www
.iso .org/directives).
L’attention est attirée sur le fait que certains des éléments du présent document peuvent faire l’objet de
droits de propriété intellectuelle ou de droits analogues. L’ISO ne saurait être tenue pour responsable
de ne pas avoir identifié de tels droits de propriété et averti de leur existence. Les détails concernant
les références aux droits de propriété intellectuelle ou autres droits analogues identifiés lors de
l’élaboration du document sont indiqués dans l’Introduction et/ou dans la liste des déclarations de
brevets reçues par l’ISO (voir www .iso .org/brevets).
Les appellations commerciales éventuellement mentionnées dans le présent document sont données
pour information, par souci de commodité, à l’intention des utilisateurs et ne sauraient constituer un
engagement.
Pour une explication de la nature volontaire des normes, la signification des termes et expressions
spécifiques de l’ISO liés à l’évaluation de la conformité, ou pour toute information au sujet de l’adhésion
de l’ISO aux principes de l’Organisation mondiale du commerce (OMC) concernant les obstacles
techniques au commerce (OTC), voir le lien suivant: www .iso .org/iso/fr/avant -propos.
Le présent document a été élaboré par le comité technique ISO/TC 38, Textiles.
Cette deuxième édition annule et remplace la première édition (ISO 1833-13:2006), qui a fait l’objet
d’une révision technique. Les principales modifications par rapport à l’édition précédente sont les
suivantes:
— le titre a été modifié de «Mélanges de certaines chlorofibres et de certaines autres fibres (méthode
au sulfure de carbone/acétone)» en «Mélange de certaines chlorofibres avec certaines autres fibres
(méthode au sulfure de carbone/acétone)»;
— dans l’Article 1:
— plusieurs fibres résiduelles ont été ajoutées;
— des références à d’autres méthodes utilisées pour analyser des mélanges contenant des
chlorofibres ont été ajoutées;
— en 5.2, «92 % minimum en volume» a été ajouté pour l’éthanol;
— dans l’Article 7, un facteur d spécifique po
...
