ISO 21746:2019

INTERNATIONAL ISO
STANDARD 21746
First edition
2019-04
Composites and metal assemblies —
Galvanic corrosion tests of carbon
fibre reinforced plastics (CFRPs)
related bonded or fastened
structures in artificial atmospheres
— Salt spray tests
Assemblages composites et métal — Essais de corrosion galvanique des
structures en plastiques renforcés de fibres de carbone (CFRP) jointes
ou fixées en atmosphères artificielles — Essais au brouillard salin
Reference number
©
ISO 2019
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Test solutions . 2
4.1 Preparation of the sodium chloride solution . 2
4.2 pH adjustment . 3
4.2.1 pH of the salt solution . 3
4.2.2 Neutral salt spray test (NSS) . 3
4.2.3 Acetic acid salt spray test (AASS) . 3
4.2.4 Copper-accelerated acetic acid salt spray test (CASS) . 3
4.3 Filtration . 3
5 Apparatus . 4
6 Method for evaluating cabinet corrosivity . 5
6.1 General . 5
6.2 Reference specimens . 5
6.3 Arrangement of the reference specimens. 6
6.4 Duration of tests . 6
6.5 Determination of mass loss (mass per area) . 6
6.6 Satisfactory performance of cabinet . 6
7 Test specimens. 7
8 Arrangement of the test specimens . 7
9 Operating conditions . 8
10 Duration of tests . 8
11 Treatment of specimens after test . 9
11.1 General . 9
11.2 Non-organic coated specimens: metallic and/or inorganic coated . 9
11.3 Organic coated specimens . 9
11.3.1 Scribed organic coated specimens . 9
11.3.2 Organic coated but not scribed specimens . 9
12 Evaluation of results . 9
13 Test report .10
Annex A (informative) Example schematic diagram of one possible design of spray cabinet
for galvanic corrosion test with means for optional treating fog exhaust and drain .11
Annex B (informative) Complementary method for evaluating galvanic corrosion test
cabinet corrosivity using zinc reference specimens .13
Annex C (normative) Preparation of galvanic corrosion test panels with organic coatings .15
Annex D (normative) Required supplementary information for testing galvanic corrosion
test panels with organic coatings .16
Annex E (informative) Recommended specimen geometries — Salt spray tests to metal and
CFRP assemblies .17
Bibliography .19

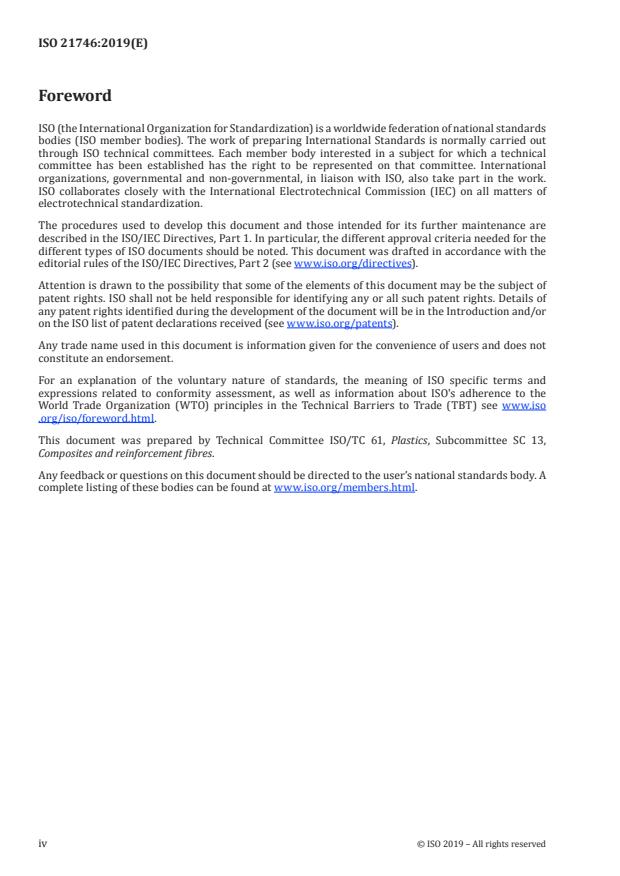

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso
.org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 61, Plastics, Subcommittee SC 13,
Composites and reinforcement fibres.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO 2019 – All rights reserved

Introduction
This document specifies the testing method for galvanic corrosion of composites and metal assemblies
subject to salt spray environment using a bonded or fastened specimen.
The potential benefits to CFRP-metal users of implementing a galvanic corrosion test based on this
document are:
a) addressing corrosion risks relating CFRPs of drastically nobler galvanic potential than metals to
form a global cell between CFRP and metal – new risks drastically exceeding the scope of ISO 9227
for a local cell of isolated metal – utilizing the resources of ISO 9227;
b) expanding CFRP applications to the fields of corrosive environments that still require the
combinations with metallic components;
c) the detection or the prevention of galvanic current insulation loss, such as ion migration and
time-related degradation in sealant film, injected calking layer and glass fibre reinforced plastics
(GFRPs) layer;
d) demonstrating the conformity to specified conditions for type certification requirements in the
engineering such as aircraft developments;
e) evaluating the corrosion related procedures for maintenance, repair and overhaul (MRO) in the
engineering operations such of CFRP aircrafts.
It is not the intent of this document to imply the need for:
— omitting relevant field tests for CFRP related engineering;
— generally specifying the dimensions of test specimen to represent CFRPs related bonded or fastened
structures;
— superimposing test results for specific applications of the parameters that exceed the range of this
document;
— comparative testing as a means of ranking different protections with respect to corrosion resistance.
INTERNATIONAL STANDARD ISO 21746:2019(E)
Composites and metal assemblies — Galvanic corrosion
tests of carbon fibre reinforced plastics (CFRPs) related
bonded or fastened structures in artificial atmospheres —
Salt spray tests
1 Scope
This document specifies the apparatus, the reagents and the procedure to be used in conducting the
neutral salt spray (NSS), acetic acid salt spray (AASS) and copper-accelerated acetic acid salt spray
(CASS) tests for assessment of the galvanic corrosion resistance of joints and bonded structures
between carbon fibre reinforced plastics (CFRPs) and metallic materials, with or without permanent or
temporary insulation for the galvanic current.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 1514, Paints and varnishes — Standard panels for testing
ISO 2808, Paints and varnishes — Determination of film thickness
ISO 3574, Cold-reduced carbon steel sheet of commercial and drawing qualities
ISO 6361-2, Wrought aluminium and aluminium alloys — Sheets, strips and plates — Part 2: Mechanical
properties
ISO 8044, Corrosion of metals and alloys — Basic terms and definitions
ISO 8407, Corrosion of metals and alloys — Removal of corrosion products from corrosion test specimens
ISO 17872, Paints and varnishes — Guidelines for the introduction of scribe marks through coatings on
metallic panels for corrosion testing
3 Terms and definitions
For
...
