ISO 5273:2025

International
Standard
ISO 5273
First edition
Passenger car tyres — Preparation
2025-01
method for an artificially worn state
for wet grip testing
Pneus pour voitures particulières — Méthode de préparation
d'une usure artificielle pour les essais d'adhérence sur revêtement
mouillé
Reference number
© ISO 2025
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Equipment and instrumentation . 3
5 Preparation for buffing . . 3
6 Buffing conditions . 6
7 Buffing procedure . 6
8 Buffing qualification determination rules . 7
8.1 General .7
8.2 Requirements .7
Annex A (informative) Example report of an artificially worn state for a passenger car tyre . 9
Annex B (informative) Examples of unqualified cutter, grinding, and buffing results .11
Bibliography .12

iii

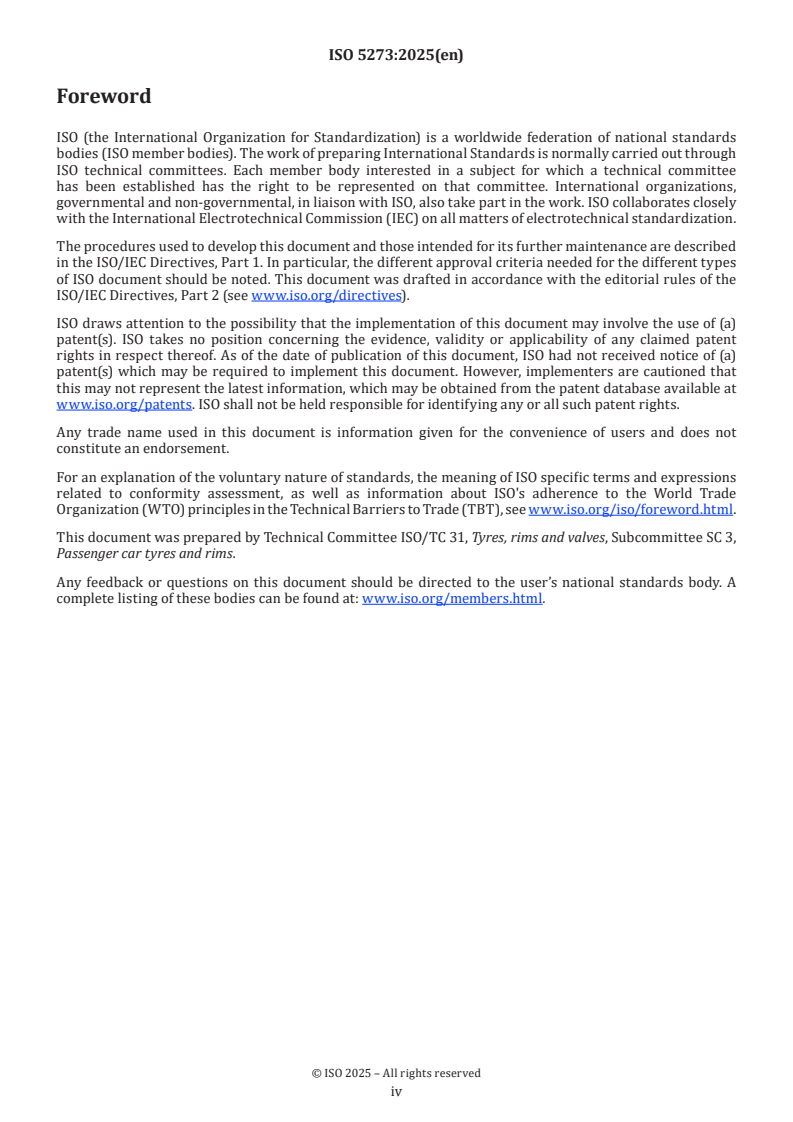

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 31, Tyres, rims and valves, Subcommittee SC 3,
Passenger car tyres and rims.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at: www.iso.org/members.html.

iv
International Standard ISO 5273:2025(en)
Passenger car tyres — Preparation method for an artificially
worn state for wet grip testing
1 Scope
This document specifies the preparation of artificially worn tyres by tread rubber removal (e.g. cutter,
buffing, grinding, etc.) for subsequent wet grip performance tests. This document applies to new passenger
car tyres.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 4000-1, Passenger car tyres and rims — Part 1: Tyres (metric series)
ISO 4223-1, Definitions of some terms used in the tyre industry — Part 1: Pneumatic tyres
ISO 21920-2, Geometrical product specifications (GPS) — Surface texture: Profile — Part 2: Terms, definitions
and surface texture parameters
ASTM F421, Standard Test Method for Measuring Groove and Void Depth in Passenger Car Tires
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 4000-1, ISO 4223-1, ISO 21920-2,
ASTM F421, and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
tyre contour
geometrical shape of tyre shoulder and tread
Note 1 to entry: An example of tyre contour is shown in Figure 1.
Figure 1 — Tyre contour
Note 2 to entry: Tyre contour should be obtained, e.g. by scan method.

3.2
groove
void volume between two adjacent ribs or blocks in the tread pattern
3.3
groove depth
vertical distance between the lowest point at bottom of tread pattern and tangent line of tyre surface
3.4
centre line
line dividing the overall width of the tyre in two equal parts
3.5
mould parting line
border circumference in which mould tread pattern segments connects with mould sidewall plates
Note 1 to entry: If no mould parting line is visible on the tyre, a virtual mould parting line shall be considered as the
circumferential line in the equivalent position at the end of the shoulder grooves.
3.6
reference tread width
C
tyre tread width as calculated by:
1,001
Ca=−()1,,075 0 005 rs
where:
ar is the nominal aspect ratio;
s is the nominal section width on measuring rim.
Note 1 to entry: Reference tread width is as shown in Figure 2.
Figure 2 — Reference tread width (C)
3.7
central part of the tread
CP
75 % of reference tread width in the central tread, symmetrically measured from the centre line

3.8
tread pattern limit points
points in the tread which are 15 mm away from the mould parting line on the tread shoulder profile towards
centre line
Note 1 to entry: The left limit point is marked with L , and the right is marked with L (see Figure 4).
i e
3.9
shoulder control area of the tread
shoulder area between the edge of the central part of the tread and the tread pattern limit points
3.10
target groove depth
target vertical distance between the lowest point at bottom of tread pattern and tangent line of tread surface
after artificially prepared
3.11
groove depth after buffing
actual vertical distance between the lowest point at bottom of tread pattern and tangent line of tread surface
after artificially prepared
3.12
groove average depth
average of all tyre groove
...
