Standards Content (Sample)


INTERNATIONAL ISO
STANDARD 21914
First edition
2019-07
Test methods for fibre-reinforced
cementitious composites — Bending
moment — Curvature curve by four-
point bending test
Méthodes d'essai des composites à base de ciment renforcés par
des fibres — Moment de flexion — Courbe de courbure par essai de
flexion quatre points
Reference number
©
ISO 2019
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 2
3 Terms and definitions . 2
4 Symbols . 2
5 Test specimens. 3
5.1 Geometry . 3
5.2 Fabrication of specimen . 3
5.3 Loading of specimen . 4
6 Test equipment. 4
6.1 Testing machine . 4
6.2 Loading apparatus . 4
6.3 Measuring device for average curvature . 5
7 Test procedure . 6
8 Calculations. 7
9 Test report . 7
Annex A (informative) Method of estimating tensile strength and average ultimate tensile strain .9
Bibliography .11
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso
.org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 71, Concrete, reinforced concrete and pre-
stressed concrete, Subcommittee SC 6, Non-traditional reinforcing materials for concrete structures.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO 2019 – All rights reserved

INTERNATIONAL STANDARD ISO 21914:2019(E)
Test methods for fibre-reinforced cementitious
composites — Bending moment — Curvature curve by
four-point bending test
1 Scope
This document specifies the test method for obtaining bending moment-curvature curves of fibre-
reinforced cementitious composites (FRCCs) through four-point bending test of prism specimens.
It is applicable to FRCCs that show separated multiple cracks under pure bending before maximum load.
NOTE Separated multiple cracks means two or more independent cracks visible to the eye occurring in the
constant moment span from the bottom side over half depth of the specimen before maximum load is observed, as
shown in Figure 1. For the purpose of confirmation of cracks, spraying up the specimen surface using an alcohol
solution or acetone makes observations easier. The formation of multiple cracks is associated with deflection
hardening behaviour. For FRCCs that do not show separated multiple cracks, see ISO 19044.
a)  Applicable b)  Not applicable
Key
1 constant moment span
2 crack visible to the eye
3 crack
4 crack (out of constant moment span)
P applied load
Figure 1 — Cracking in FRCCs covered by this document
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
1)
ISO 1920-3:— , Testing of concrete — Part 3: Making and curing test specimens
2)
ISO 1920-4:— , Testing of concrete — Part 4: Strength of hardened concrete
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at http: //www .electropedia .org/
3.1
fibre-reinforced cementitious composite
FRCC
concrete or mortar containing short discrete fibres distributed throughout matrix
Note 1 to entry: Fibres include man-made fibres (e.g., metallic fibres, inorganic fibres, synthetic fibres) and
natural fibres.
3.2
average strain
ratio of axial deformation to gauge length
3.3
average curvature
gradient of average strains (3.2) in constant moment span
4 Symbols
See Table 1.
Table 1 — Symbols
Symbol Unit Description Subclause
b mm width of cross-section of specimen 5.1
D mm depth of cross-section of specimen 5.1
d mm distance between two LVDTs 6.4
L mm overall length of specimen 5.1
M N·mm bending moment 8
P N applied load 8
S mm specimen span 6.2
average strain calculated by measured displacement of
ε — 8
upper LVDT
average strain calculated by measured displacement of
ε — 8
lower LVDT
1) Under preparation. (Stage at the time of publication: ISO/DIS 1920-3:2018.)
2) Under preparation. (Stage at the time of publication: ISO/DIS 1920-4:2018.)
2 © ISO 2019 – All rights reserved

Tabl
...


INTERNATIONAL ISO
STANDARD 21914
First edition
2019-07
Test methods for fibre-reinforced
cementitious composites — Bending
moment — Curvature curve by four-
point bending test
Méthodes d'essai des composites à base de ciment renforcés par
des fibres — Moment de flexion — Courbe de courbure par essai de
flexion quatre points
Reference number
©
ISO 2019
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 2
3 Terms and definitions . 2
4 Symbols . 2
5 Test specimens. 3
5.1 Geometry . 3
5.2 Fabrication of specimen . 3
5.3 Loading of specimen . 4
6 Test equipment. 4
6.1 Testing machine . 4
6.2 Loading apparatus . 4
6.3 Measuring device for average curvature . 5
7 Test procedure . 6
8 Calculations. 7
9 Test report . 7
Annex A (informative) Method of estimating tensile strength and average ultimate tensile strain .9
Bibliography .11

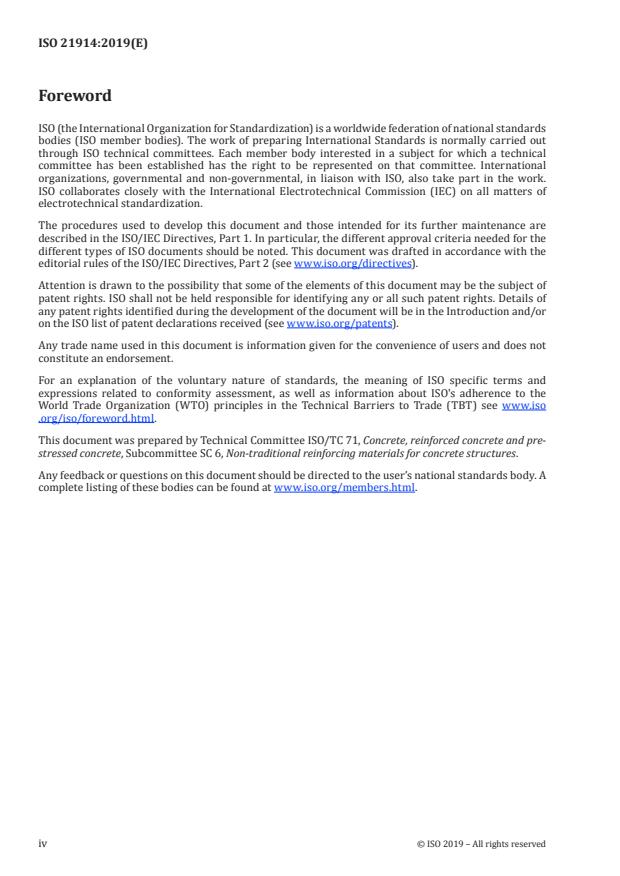

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso
.org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 71, Concrete, reinforced concrete and pre-
stressed concrete, Subcommittee SC 6, Non-traditional reinforcing materials for concrete structures.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO 2019 – All rights reserved

INTERNATIONAL STANDARD ISO 21914:2019(E)
Test methods for fibre-reinforced cementitious
composites — Bending moment — Curvature curve by
four-point bending test
1 Scope
This document specifies the test method for obtaining bending moment-curvature curves of fibre-
reinforced cementitious composites (FRCCs) through four-point bending test of prism specimens.
It is applicable to FRCCs that show separated multiple cracks under pure bending before maximum load.
NOTE Separated multiple cracks means two or more independent cracks visible to the eye occurring in the
constant moment span from the bottom side over half depth of the specimen before maximum load is observed, as
shown in Figure 1. For the purpose of confirmation of cracks, spraying up the specimen surface using an alcohol
solution or acetone makes observations easier. The formation of multiple cracks is associated with deflection
hardening behaviour. For FRCCs that do not show separated multiple cracks, see ISO 19044.
a)  Applicable b)  Not applicable
Key
1 constant moment span
2 crack visible to the eye
3 crack
4 crack (out of constant moment span)
P applied load
Figure 1 — Cracking in FRCCs covered by this document
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
1)
ISO 1920-3:— , Testing of concrete — Part 3: Making and curing test specimens
2)
ISO 1920-4:— , Testing of concrete — Part 4: Strength of hardened concrete
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at http: //www .electropedia .org/
3.1
fibre-reinforced cementitious composite
FRCC
concrete or mortar containing short discrete fibres distributed throughout matrix
Note 1 to entry: Fibres include man-made fibres (e.g., metallic fibres, inorganic fibres, synthetic fibres) and
natural fibres.
3.2
average strain
ratio of axial deformation to gauge length
3.3
average curvature
gradient of average strains (3.2) in constant moment span
4 Symbols
See Table 1.
Table 1 — Symbols
Symbol Unit Description Subclause
b mm width of cross-section of specimen 5.1
D mm depth of cross-section of specimen 5.1
d mm distance between two LVDTs 6.4
L mm overall length of specimen 5.1
M N·mm bending moment 8
P N applied load 8
S mm specimen span 6.2
average strain calculated by measured displacement of
ε — 8
upper LVDT
average strain calculated by measured displacement of
ε — 8
lower LVDT
1) Under preparation. (Stage at the time of publication: ISO/DIS 1920-3:2018.)
2) Under preparation. (Stage at the time of publication: ISO/DIS 1920-4:2018.)
2 © ISO 2019 – All rights reserved

Tabl
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
