ISO/IEC 29128:2011

INTERNATIONAL ISO/IEC
STANDARD 29128
First edition
2011-12-15
Information technology — Security
techniques — Verification of
cryptographic protocols
Technologies de l'information — Techniques de sécurité — Vérification
des protocoles cryptographiques

Reference number
©
ISO/IEC 2011
©  ISO/IEC 2011
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56  CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2011 – All rights reserved

Contents Page
Foreword . v
Introduction . vi
1 Scope . 1
2 Terms and definitions . 1
3 Symbols and notation. . 2
4 General . 3
5 Specifying cryptographic protocols . 5
5.1 Objectives . 5
5.2 The abstraction levels . 5
5.3 The specification of security protocols . 5
5.3.1 General . 5
5.3.2 The symbolic messages . 5
5.3.3 Observing messages . 6
5.3.4 Algebraic properties . 7
5.3.5 Protocol roles . 7
5.4 The specification of adversarial model . 8
5.4.1 Network specification . 8
5.4.2 The attacker . 8
5.4.3 The scenario . 9
5.5 The specification of security properties . 10
5.5.1 General . 10
5.5.2 Trace properties . 11
6 Cryptographic protocol assurance levels . 12
6.1 General . 12
6.2 Protocol Assurance Level 1 . 13
6.3 Protocol Assurance Level 2 . 13
6.4 Protocol Assurance Level 3 . 14
6.5 Protocol Assurance Level 4 . 14
6.6 Difference among Protocol Assurance Levels . 14
6.7 Corresponding assurance levels in ISO/IEC 15408 . 15
7 Security Assessment and Verification . 16
7.1 Protocol specification . 16
7.1.1 PPS_SEMIFORMAL . 16
7.1.2 PPS_FORMAL . 17
7.1.3 PPS_MECHANIZED . 17
7.2 Adversarial model . 18
7.2.1 PAM INFORMAL . 18
7.2.2 PAM_FORMAL . 18
7.2.3 PAM_MECHANIZED . 19
7.3 Security properties . 20
7.3.1 General . 20
7.3.2 PSP_INFORMAL . 21
7.3.3 PSP_FORMAL . 21
7.3.4 PSP_MECHANIZED . 22
7.4 Self-assessment evidence for verification. 23
7.4.1 General . 23
7.4.2 PEV_ARGUMENT . 23
7.4.3 PEV_HANDPROVEN . 23
7.4.4 PEV_BOUNDED . 24
7.4.5 PEV_UNBOUNDED .24
© ISO/IEC 2011 – All rights reserved iii

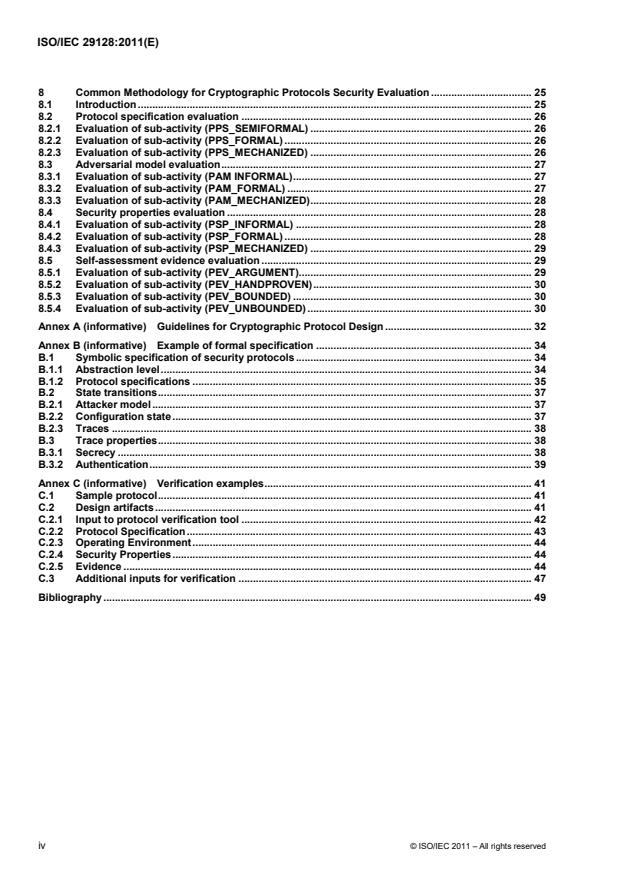

8 Common Methodology for Cryptographic Protocols Security Evaluation . 25
8.1 Introduction . 25
8.2 Protocol specification evaluation . 26
8.2.1 Evaluation of sub-activity (PPS_SEMIFORMAL) . 26
8.2.2 Evaluation of sub-activity (PPS_FORMAL) . 26
8.2.3 Evaluation of sub-activity (PPS_MECHANIZED) . 26
8.3 Adversarial model evaluation . 27
8.3.1 Evaluation of sub-activity (PAM INFORMAL) . 27
8.3.2 Evaluation of sub-activity (PAM_FORMAL) . 27
8.3.3 Evaluation of sub-activity (PAM_MECHANIZED) . 28
8.4 Security properties evaluation . 28
8.4.1 Evaluation of sub-activity (PSP_INFORMAL) . 28
8.4.2 Evaluation of sub-activity (PSP_FORMAL) . 28
8.4.3 Evaluation of sub-activity (PSP_MECHANIZED) . 29
8.5 Self-assessment evidence evaluation . 29
8.5.1 Evaluation of sub-activity (PEV_ARGUMENT) . 29
8.5.2 Evaluation of sub-activity (PEV_HANDPROVEN) . 30
8.5.3 Evaluation of sub-activity (PEV_BOUNDED) . 30
8.5.4 Evaluation of sub-activity (PEV_UNBOUNDED) . 30
Annex A (informative) Guidelines for Cryptographic Protocol Design . 32
Annex B (informative) Example of formal specification . 34
B.1 Symbolic specification of security protocols . 34
B.1.1 Abstraction level . 34
B.1.2 Protocol specifications . 35
B.2 State transitions . 37
B.2.1 Attacker model . 37
B.2.2 Configuration state . 37
B.2.3 Traces . 38
B.3 Trace properties . 38
B.3.1 Secrecy . 38
B.3.2 Authentication . 39
Annex C (informative) Verification examples . 41
C.1 Sample protocol . 41
C.2 Design artifacts . 41
C.2.1 Input to protocol verification tool . 42
C.2.2 Protocol Specification . 43
C.2.3 Operating Environment . 44
C.2.4 Security Properties . 44
C.2.5 Evidence . 44
C.3 Additional inputs for verification . 47
Bibliography . 49

iv © ISO/IEC 2011 – All rights reserved

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
ISO/IEC 29128 was prepared by -RLQWTechnical Committee ISO/IEC JTC 1, Information Wechnology,
Subcommittee SC 27, ,7Security Wechniques.
v
© ISO/IEC 2011 – All rights reserved

Introduction
The security of digital communications is dependHnt on a number of aspects, where cryptographic
mechanisms play an increasingly important role. When such mechanisms are being used, there are a number
of security concerns such as the strength of the cryptographic algorithms, the accuracy and correctness of the
implementation, the correct operation and use of cryptographic systems, and the security of the deployed
cryptographic protocols.
Standards already exist for the specification of cryptographic algorithms, and for the implementation and test
of cryptographic devices and modules. However, there are no standards or generally accepted processes for
the assessment of the specification of protocols used in such communication. The goal of this International
Standard is to establish means for verification of cryptographic protocol specifications to provide defined levels
of confidence concerning the security of the specification of cryptographic protocols.
vi
© ISO/IEC 2011 – All rights reserved

INTERNATIONAL STANDARD     ISO/IEC 29128:2011(E)

Information technology — Security techniques — Verification of
cryptographic protocols
1 Scope
This International Standard establishes a technical base for the security proof of the specification of
cryptographic protocols. This International Standard specifies design evaluation criteria for these protocols, as
well as methods to be applied in a verification process for such protocols. This International Standard also
provides definitions of different protocol assurance levels consistent with evaluation assurance components in
ISO/IEC 15408.
2 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
2.1
arity
number of arguments
2.2
cryptographic protocol
protocol which performs a security-related function using cryptography
2.3
formal methods
techniques based on well-established mathematical concepts for modelling, calculation, and predication used
in the specification, design, analysis, construction, and assurance of hardware and software systems
2.4
formal description
description whose syntax and semantics are defined on the basis of well-established mathematical concepts
2.5
formal language
language for modelling, calculation, and predication in the specification, design, analysis, construction, and
assurance of hardware and software systems whose syntax and semantics are defined on the basis of well-
established mathematical concepts
© ISO/IEC 2011 – All rights reserved

2.6
adversarial model
description of the powers of adversaries who can try to defeat the protocol
NOTE It includes restriction on available resources, ability of adversaries, etc.
2.7
security property
formally or informally defined property which a cryptographic protocol is designed to assure such as secrecy,
authenticity, or anonymity
2.8
self-assessment evidence
evidence that the developer uses to verify whether a specified protocol fulfils its designated security properties
NOTE It includes cryptographic protocol specification, adversarial model and output (transcripts) of formal verification
tool.
2.9
protocol model
specification of a protocol and its behaviour with respect to an adversarial model
2.10
protocol specification
all formal and informal descriptions of a specified protocol
NOTE It includes all processes by each protocol participant, all communications between them and their order
2.11
secrecy
security property for a cryptographic protocol stating that a message or data should not be learned by
unauthorized entities
2.12
variadic
property of a function whose arity is variable
3 Symbols and QRWDWLRQ
For the purposes of this document, the following symbols and notation apply.
 security property of a protocol model
© ISO/IEC 2011 – All rights reserved

A,B role names
m message
r random nonce
k key
c communication channel
enc encryption function
dec decryption function
<.,…> paring operator
Send sending process
Receive receiving process
4 General
Verification of a cryptographic protocol involves checking the following artifacts:
a) specification of the cryptographic protocol;
b) specification of the adversarial model;
c) specification of the security objectives and properties;
d) self-assessment evidence that the specification of the cryptographic protocol in its adversarial model
achieves and satisfies its objectives and properties.
The artifacts shall clearly state parameters or properties relevant for the verification. Examples include the
bound used in bounded verification as later descibed in Clause7.4.4.1 or assumed algebraic properties of
cryptographic operators used in the protocol as described in Clause7.1.2.3 and Clause5.3.4.
The different Protocol Assurance Levels will lead to different requirements for these four artifacts. The stated
requirements are only for design verification not implementation verification.
NOTE 1 For verifying an implementation, additional assurance requirements should be supplied and satisfied.
This International Standard does not specify precisely what proof methods or tools shall be used, but instead
only specifes their properties. This encourages protocol designers to use the state-of-the-art for protocol
verification in terms of models, methods, and tools.
© ISO/IEC 2011 – All rights reserved

Verification tools shall fulfil the following conditions.
a) The verification tools are sound.
The protocol designer or possibly an independent third party shall provide evidence of the correctness of the
verification tool used. This may, for example, be in terms of a pencil-and-paper proof of the soundness of the
calculus used or, in some cases, in terms of code inspection to see that the tool properly implements the
calculus.
NOTE 2 This step is nontrivial, yet it is essential if machine checked proofs are to provide greater confidence than hand
proofs. In theory, this can be done once and for all for a verification tool, although in practice, tools evolve over time.
b) The results of verification tools are documented in such a way that they are repeatable.
The protocol designer shall provide adequate documentation, including all inputs needed for the tool to
construct a proof or (in the case of decision procedures) determine provability.
c) The verification tools are available for outside evaluation and use.
The protocol designer shall indicate all necessary tools to independently check the proofs.
NOTE 3 At least in theory, protocol verification canbe carried out by hand proofs, using paper and pencil. However, given
the substantial amount of detail typically involved in security protocol verification, especially for the high Protocol
Assurance Levels, confidence in the results is substantially increased by using mechanized tools such as model checkers
and theorem provers. Thus, proofs only with paper-and-pencil are treated as lower assurance level (i.e. PAL2) than
mechanized proof in this International Standard.
© ISO/IEC 2011 – All rights reserved

5 Specifying cryptographic protocols
5.1 Objectives
The goal of this part is to provide guidelines and minimal requirements for specifying cryptographic protocols.
5.2 The abstraction levels
The protocols can be specified at several levels of abstraction, each corresponding to a computation model.
At the most abstract level, messages are terms constructed from symbols and the attacker is also modelled as
a formal process. We will call this abstraction the symbolic level. In such a model, the resources (both time
and space resources) are not considered.
Any other model can be defined as a refinement of a symbolic model. For instance we can interpret the
symbols used in the symbolic model as functions on bitstrings, that can be computed in polynomial time.
Therefore, any cryptographic protocol consists in a symbolic specification and an interpretation in a given
domain (e.g. bitstrings or structured data, or even material-dependent formats) of all the symbols, together
with assumptions on their interpretation. Such hypotheses can ensure some correspondence between the
properties at various abstraction levels.
NOTE In this International Standard, we only consider the symbolic specification of security protocols.
Further documents are required for the specification of other (lower) abstraction levels. Typically, it will be
necessary to explain how to specify the interpretation domain and how to carry security guarantees across
levels of abstraction.
5.3 The specification of security protocols
5.3.1 General
As explained, a symbolic specification is the necessary first part towards the full specification of a protocol.
We list below the minimal mandatory parts in a symbolic protocol specification.
5.3.2 The symbolic messages
The first part consists in specifying what are the possible (valid) messages.
In this clause, the cryptographic primitives used in the protocol must be listed. Since we are talking about a
symbolic specification, this part consists of providing with
1. a set of function symbols 𝓕
Each function symbol has either a fixed arity, that has to be specified, or it is variadic (in which case it
has also to be specified).
© ISO/IEC 2011 – All rights reserved
2. a set of name symbols 𝓝 that may be split into various syntactic categories that have to be specified.
3. a set of variable symbols 𝓧.
4. a formal description of valid rules allowing to build messages using the function symbols.
A (non exhaustive) list of possible ways to specify such a language is:
 Nothing: all terms that are built with the function symbols and following the arity restrictions are valid
messages
 Some arguments are restricted to names: some of the arguments of function symbols are restricted
to belong to some name categories
 Sorts: a type discipline is defined and only well-typed terms correspond to messages.
The set of valid terms (or messages) is written (𝓕, 𝓝) (or (𝓕, 𝓝, 𝓧) when variables are involved)
EXAMPLE A typical example is encryption, that can be modeled by a symbol enc, whose arity is 2 or 3 (or 4),
depending on whether the random seed is explicit or not (and whether the encryption algorithm is explicit or not). A
specification has to make precise what is the arity of enc and what are the assumed types of its arguments. Typically, enc
has an arity 3. As possible name categories there are the random seeds, whose symbols will start with 𝑟, the keys, whose
symbols will start with 𝑘, the algorithms, whose symbols will start with  , and so on. If enc has been specified as being an
arity 3 symbol, we can additionally restrict its arguments, specifying for instance that the first argument must be a key and
the last one must be a random. In that case, enc(𝑘, 𝑘, 𝑟), enc(𝑘, enc(𝑘, 𝑟 , 𝑟 ), 𝑟 ), are valid terms while enc(enc(𝑘, 𝑘 ,
1 2 1
𝑟), 𝑘 , 𝑟 ) and enc(𝑟, 𝑘, 𝑟 )are not valid terms. Examples of symbols that can be considered as variadicinclude the
exclusive or ⊕, the arithmetic multiplication × or the concatenation ‖.
5.3.3 Observing messages
This part consists of specifying some comparison predicates between messages.
Only the equality predicate is mandatory, since other predicates could be seen as Boolean functions and
specified within the equality definition. It might however be useful to distinguish later between the computation
abilities and the observation abilities. Moreover, in many current specification languages, properties of the
function symbols are specified equationally (see clause 5.3.4), while it might be impossible to specify
equationally the observation abilities.
This part consists in listing predicate symbols, together with their arity. Typical examples include typing
predicates, equality, and same_length (that checks that its two arguments have the same length),
same_key (that checks whether two ciphertexts are encrypted with the same key).
© ISO/IEC 2011 – All rights reserved

5.3.4 Algebraic properties
This part specifies when two valid terms represent the same message and, more generally, what are the
interpretations of the predicate symbols listed in the previous clause.
For instance, when function symbols include both (symmetric) encryption and decryption, we might wish to
state that dec(𝑘, enc(𝑘, 𝑥, 𝑟))= 𝑥 where 𝑟 is a symbol for a random seed to express probabilistic encryption:
these are two term representations of the same message. We might also wish to state that, 𝑥 ⨁ 𝑥 = 0 if we are
using a symbol ⨁ meant to represent exclusive or.
As usual, we assume that any two terms that are not specified to be equal are different. The same rule applies
to the predicates: everything that has not been specified to be true is, by default, false.

5.3.5 Protocol roles
A role is an interactive program that receives some input from the environment and sends messages to the
environment. This is the atomic program component of a protocol: there is no communication that takes place
inside a role.
Specifying a role requires to provide with:
1. A role name;
2. A finite list of formal parameters: these are the data, that can be used by the program without being
generated or received from the environment;
3. A (usually finite, but this is not mandatory) set of control states;
4. A finite set of local variables and local names;
5. A specification of the sending and receiving abilities, as well as state transitions;
Receive(c,m)
Sendc,m
6. Formally, this amounts to specify two relations and , a
q,vq',v' q,vq',v'
communication channel  and a message .
Such a specification does not commit to any particular programming language or any particular way to
perform tests or moves. It only requires the specification of import/export data and communications with the
environment.
EXAMPLE This is a possible specification of the responder role in the public key Needham-Schroeder protocol. We
assume a single communication channel, which is omitted below.
© ISO/IEC 2011 – All rights reserved
1. role name: 𝐵;
2. parameters: the identity 𝑏 of the agent running the instance of this role, the identity 𝑎, the private key of 𝑏, the
public key of 𝑎 ;
3. local states: there are only three local states: 𝑞 , 𝑞 , 𝑞 ;
0 1 𝑓
4. local variables and names: 𝑛 , 𝑟 are local names and 𝑥, 𝑦 are local variables
𝐵
A specification of the transitions. Any other formally defined language can be substituted here:

Receive 𝑚
𝑞 ,𝑛 ,𝑟,𝑥 = 0,y = 0                    𝑞 ,𝑛 ,𝑟,𝑥 = 𝑚,𝑦 = 0
0 𝐵 1 𝐵
′
Send enc pub 𝑎 , m ,n ,r
′
𝑞 ,𝑛 ,𝑟,𝑥 = 𝑚,𝑦 = 0              𝑞 ,𝑛 ,𝑥 = 𝑚,𝑦 = 𝑚
1 𝐵 𝑓 𝐵
′
if 𝑎 = 𝜋 dec priv b ,𝑥 ,𝑚 = 𝜋 (dec(priv(𝑏),𝑥) )
1 2
We use here a ternary encryption symbol enc, a decryption symbol dec, a pairing symbol _,_ and projections symbols 𝜋 ,
𝜋 .
NOTE In such an example, the transition is not specified when the test fails, meaning that there is no transition in this
case: the program is stacked in state 𝑞 . There are of course many other possible designs.
Sessions A role instance is a specific copy of a role, together with its actual parameters. This is sometimes
called a session. As the same identity can run concurrently several copies of the same role, it might be
convenient to include in the parameters an identifier also called sometimes session number, that will allow
different role instances to be distinguished.
5.4 The specification of adversarial model
5.4.1 Network specification
This part specifies what are the (symbolic) communications devices and their reliability.
Typically, a list of channels (terms or symbols) is given, each of which with its own properties. For instance,
one could specify a single public communication channel 𝑐 which is under complete control of the attacker
(who can intercept messages and send fake messages). But it could be refined further, distinguishing a more
(or less!) secure proxy communication channel or a wireless channel that can only be eavesdropped, or even
a private channel that is completely out of control of the attacker.
5.4.2 The attacker
This part specifies the computational abilities of the symbolic attacker. In other words, it specifies the
messages 𝑚 that can be computed from a set of messages 𝑆.
© ISO/IEC 2011 – All rights reserved

Typical specifications use inference systems such as the ―Dolev-Yao inference system‖. These rules might
depend on whether there is an explicit decryption symbol or not, for instance. The simplest specification
consists in having all function symbols explicit and public. Then the attacker, when given a set of names 𝒩, is
able to compute any term built on 𝓕 and 𝒩.
In addition, the attacker can use the predicate symbols of clause 5.3.3, even though such predicates are not
used in the definition of the roles. Attacker's other capabilities are specified in clause 5.4.1 and depend on the
reliability of the various channels.
From this clause and the previous one, it should be possible to define formally what are the possible execution
traces.
NOTE 1 Typical attacks can be formally described as follows.
Eavesdropping attack is a typical security risk posed to networks. In some network environment, messages are
broadcasted to everyone. This often can cause a problem that important messages such as passwords and credit card
numbers might be delivered to unintended person. This attack can be formally described as a subset of the model in
clause 5.4.1. That is, given a list of channels {𝑐}, an attacker has no control on the channels {𝑐} but can listen to all
messages 𝑆 exchanged over the channels. Then, the whole knowledge of the attacker is any term which can be computed
from a set of messages 𝑆.
Replay attack is another type of risk. In open networks like Internet, messages can be exchanged via routers which is
under control of malicious person. In such an environment, messages such as passwords or credit card numbers
exchanged over a network might be maliciously repeated or delayed by them. This often can cause a problem that
unintended person impersonates a legitimate one by repeating the stored password as a proof of identity. This attack can
be formally described as the model in clause 5.4.1 and a subset of the model in clause 5.4.1. That is, given a list of
channels {𝑐} and a set of messages 𝑆 exchanged over the channels {𝑐}, an attacker has complete control on the channels
{𝑐} and listen to all messages 𝑆. Thus, the whole knowledge of the attacker is any term which can be computed from a set
of messages 𝑆. But, in replay attack, he uses only the elements of 𝑆 and tries to impersonate some role.
NOTE 2 Extension of the model is required to describe a series of attacks such as denial-of-service attack and relay
attack. Since these attacks are related to the physical properties of an actual system such as processing time of
operations and communication speed via physical media, in order to describe such attacks, such physical properties
should be somehow included in the extended model.
5.4.3 The scenario
The last part in the protocol specification consists in describing the execution environments that are
considered.
This includes in particular the following important features:
© ISO/IEC 2011 – All rights reserved
 The attacker's initial knowledge: a set of messages.
 How roles (and more generally composed processes) are composed.
In typical examples, the roles can run concurrently. Hence a parallel composition operator is used. But
other situations might be relevant: there can be some phases/modes as in E-voting protocols, or contract
signing, in which case sequential compositions or even conditional composition might be required.
 How roles (and more generally composed processes) can be replicated or dynamically created.
By ―replication of 𝑃‖ we mean that an unbounded number of copies of 𝑃 may run concurrently. This
may, or not, be allowed in the considered scenario and has to be precised. Similar constraints on the
number of distinct identities must be specified.
 The hiding or sharing of names.
This part specifies where the data are generated and how they are inherited. For instance, assume that a
role 𝑃 depend on a parameter 𝑘 (a key). There is a big difference between generate 𝑘 (replicate
𝑃(𝑘)) and replicate (generate 𝑘 𝑃(𝑘)). In the former case, each replicated copy of 𝑃 holds the
same key 𝑘. In the latter case, each copy of 𝑃 generates its own key 𝑘. The name generation construction
not only provides with a name scoping, but also acts as a binder: within that scope, the name can be
substituted with a new one. This is necessary in distinguishing instances that generate locally the names.
Later, for the specification of security properties, we will need to distinguish between honest agents, dishonest
agents, agents that can be corrupted and so on. The corruption ability may also be specified in the scenario,
but also right from the beginning in the categories of names and the different role executions, depending on
whether they are played by a corrupted agent or not.
5.5 The specification of security properties
5.5.1 General
In view of the huge variety of security properties (at all levels of abstractions), it seems not possible at the time
being to give a general way of describing security properties. Furthermore, there is currently no way to specify
(even simple) security properties, independently of the protocol specification language.
Two classes of properties seem mature enough for a formal specification:
 Trace properties: they basically express that, in any possible execution, nothing bad can happen. This is
the classical case of model checking linear time properties.
 Equivalence properties: they state that the attacker cannot get any relevant information on a given data.
Such properties are formalised using two experiments, each of which corresponds to the same roles, but
© ISO/IEC 2011 – All rights reserved

to a different scenario. The attacker should be unable to distinguish between the two experiments. Such
an indistinguishability property corresponds to the classical notion of observational equivalence in
concurrency theory.
We investigate briefly for trace properties some of the main features and relevant information for the
specification.
5.5.2 Trace properties
At any time, the global state of the network can be described using the collection of configurations of each role
instance, the current scenario, and the sequence 𝑆 of all messages that have been sent so far on channels
that can be eavesdropped.
An instantaneous property is a predicate on such global states. For instance, ( ): ―a specific message  is
computable from  by the attacker‖. Such properties may be referred to as events.
A temporal property is a combination of instantaneous properties, using temporal modalities. For instance
ϕ( ): ― ( ) never happens‖, or ―Each time ( ) happens, then there was before an event ( )‖.
A trace property is defined by a quantified temporal property: ―for any names ,…, ϕ( )‖. More complex
quantifications might be necessary.
Specifying trace properties require then to
1. Specify one or several (parameterized) events;
2. Specify a set of schedules of such events;
3. Specify for which values of the parameters the temporal property must hold.
EXAMPLE Let us specify first informally and then more formally an agreement property. We wish to say that in any
instance of the responder role in the Needham-Shroeder protocol, if the variable  of that instance is set to  at some
point, and if both identities that are parameters of that role are honest, then, before that event,  must have generated
for .
Formally, we are using two events: ( , , ) and ( , , ). The first event holds when there is a role
instance whose name is  and parameters include the two identities ,  and such that the local variable  is
assigned . The second event hold when there is a role instance whose name is  and parameters include
the two identities ,  and such that the local variable  is assigned .
The temporal property then states that ¬ ( , , )  ( , , ): there is no event ( , , ) until an event ( ,
, ) occurs. Finally, the authentication (agreement) property states that this holds for any message  and for
© ISO/IEC 2011 – All rights reserved
any two honest identities 𝑎, 𝑏. Honest (resp. dishonest) identities are here assumed to be distinct name
categories.
More complex agreement properties might require the reference to session numbers and are not reported
here.
6 Cryptographic protocol assurance levels
6.1 General
The purpose of this International Standards to evaluate the security of cryptographic protocols at a
specification-level. This leads to prepare the environment where cryptographic protocols can be used as a
part of a whole system, while the part can be regarded as a security-certified black-box.
In ISO/IEC 15408 [13,14,15], when evaluating generic IT products, it is not generally required to prove the
security of a standard cryptographic protocol used in the products, while a proprietary cryptographic protocol
used in the products is required to show in the framework of ISO/IEC 15408 that they satisfy their security
properties described in the Security Target. While the framework of ISO/IEC 15408 does not only require for
the designer to show the security feature of the specification, but also requires the correctness of the
implementation, it often takes a lot of task. Therefore, this International Standard provides the common basis
for verification of security feature of specification. It gives high-level assurance on the specification of a
proprietary protocol based on rigorous verification methods so that it enables a proprietary cryptographic
protocol to be used in a system as a security-certified black-box as confident as commonly-used standard
cryptographic protocols.
NOTE Each of four artifacts in this International Standard corresponds to ISO/IEC 15408 and ISO/IEC 18045 as
follows: (1) Specification of the cryptographic protocol can be recognized as a part of TOE Security Functionality (TSF). (2)
Adversarial model can be recognized as a part of Operating Environment in which the protocol is executed possibly
interacting with an attacker whose ability is specified in the model. (3) Security property can be recognized as a part of
formal or informal Security Policy Model (SPM) based on Security Functional Requirement (SFR) which the protocol
should satisfy, such as secrecy of exchanged key and authenticity of communicating party, etc. (4) Self-assessment
evidence can be recognized as a part of Evidence, that is, what the protocol designer described in the protocol
specification as a part of TSF satisfies the security property specified as a part of SPM in the adversarial model specified
as a part of Operating Environment.
Followings are three levels of assurance requirements on the design artifacts, which provide increasingly
strong guarantees about the security of cryptographic protocols. These levels have associated requirements.
© ISO/IEC 2
...
