ISO 22034-2:2016
(Main)Steel wire and wire products - Part 2: Tolerances on wire dimensions
Steel wire and wire products - Part 2: Tolerances on wire dimensions
ISO 22034-2:2016 specifies the tolerances on the diameter of round wire and, where applicable, on the length of round wire cut to length, for bright (i.e. uncoated) steel wire, metallic-coated steel wire and non-metallic-coated steel wire. ISO 22034-2:2016 applies to round wires in the diameter range 0,050 mm to 25,00 mm.
Fil produits de fil en acier — Partie 2: Tolérances sur les dimensions des fils
General Information
- Status
- Published
- Publication Date
- 31-Mar-2016
- Technical Committee
- ISO/TC 17/SC 17 - Steel wire rod and wire products
- Drafting Committee
- ISO/TC 17/SC 17 - Steel wire rod and wire products
- Current Stage
- 9093 - International Standard confirmed
- Start Date
- 17-Sep-2021
- Completion Date
- 13-Dec-2025
Relations
- Effective Date
- 01-Sep-2012
Overview
ISO 22034-2:2016 - "Steel wire and wire products - Part 2: Tolerances on wire dimensions" defines dimensional tolerances for round steel wire. The standard covers bright (uncoated), metallic‑coated (e.g., zinc), and non‑metallic/organic‑coated round wires in the diameter range 0.050 mm to 25.00 mm. It specifies acceptable limits for wire diameter, out‑of‑roundness (ovality), coating thickness and concentricity (for organic coatings), cut‑length tolerances and straightness, and guidance on determining coil length by weight.
Key topics and technical requirements
- Diameter tolerances: Defined by tolerance classes T1–T5. Classes are calculated proportionally where T1 = 0.035 × d, T2 = 0.027 × d, T3 = 0.021 × d, T4 = 0.015 × d, T5 = 0.010 × d (d = measured diameter in mm). Table 1 in the standard maps these classes to specific diameter ranges.
- Out‑of‑roundness (ovality): The difference between maximum and minimum diameter at any cross‑section shall not exceed one‑half of the total diameter tolerance from Table 1.
- Organic‑coated wire: Table 2 gives tolerances on the overall diameter D, minimum coating thickness (different for extruded vs. sintered coatings), and minimum concentricity. Example values: for D ≤ 1.00 mm the overall tolerance is ±0.10 mm; minimum coating thickness typically 0.20 mm (extruded) or 0.12 mm (sintered); concentricity requirements commonly 75% (extruded) and 65% (sintered).
- Cut‑length tolerances and straightness: The purchaser selects among three length tolerance classes depending on nominal length. Straightness is classified (1–3) with defined out‑of‑straightness limits and a rolling test for classes 1 and 2 (e.g., class 1: for 500 mm test length a = 0.5 mm; for 1 000 mm a = 2 mm; will roll down an incline of 1 in 10).
- Coil length calculation: Length of wire in a coil may be determined by weighing and calculating length from known size and density.
Applications and users
- Manufacturers and producers of steel wire (bright, galvanized, coated)
- Quality control and metrology teams ensuring compliance with dimensional tolerances
- Purchasing and procurement professionals specifying wire tolerances for components and assemblies
- Designers and engineers in fasteners, springs, fencing, automotive parts, and wire‑forming industries requiring predictable dimensional performance
- Test laboratories performing acceptance checks against international tolerances
Related standards
- ISO 22034‑1 - Steel wire and wire products - General test methods (related part for testing procedures)
- ISO 6929 - Steel products - Vocabulary (terms and definitions referenced)
Keywords: ISO 22034-2, tolerances on wire dimensions, steel wire tolerances, wire diameter tolerances, cut lengths, coated wire, out‑of‑roundness, straightness, wire specification.
Frequently Asked Questions
ISO 22034-2:2016 is a standard published by the International Organization for Standardization (ISO). Its full title is "Steel wire and wire products - Part 2: Tolerances on wire dimensions". This standard covers: ISO 22034-2:2016 specifies the tolerances on the diameter of round wire and, where applicable, on the length of round wire cut to length, for bright (i.e. uncoated) steel wire, metallic-coated steel wire and non-metallic-coated steel wire. ISO 22034-2:2016 applies to round wires in the diameter range 0,050 mm to 25,00 mm.
ISO 22034-2:2016 specifies the tolerances on the diameter of round wire and, where applicable, on the length of round wire cut to length, for bright (i.e. uncoated) steel wire, metallic-coated steel wire and non-metallic-coated steel wire. ISO 22034-2:2016 applies to round wires in the diameter range 0,050 mm to 25,00 mm.
ISO 22034-2:2016 is classified under the following ICS (International Classification for Standards) categories: 77.140.65 - Steel wire, wire ropes and link chains. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 22034-2:2016 has the following relationships with other standards: It is inter standard links to ISO 22034-2:2007. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ISO 22034-2:2016 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
DRAFT INTERNATIONAL STANDARD
ISO/DIS 22034-2
ISO/TC 17/SC 17 Secretariat: SAC
Voting begins on: Voting terminates on:
2015-01-26 2015-04-26
Steel wire and wire products —
Part 2:
Tolerances on wire dimensions
Fil produits de fil en acier —
Partie 2: Tolérances sur les dimensions des fils
ICS: 77.140.65
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENT AND APPROVAL. IT IS
THEREFORE SUBJECT TO CHANGE AND MAY
NOT BE REFERRED TO AS AN INTERNATIONAL
STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
Reference number
NATIONAL REGULATIONS.
ISO/DIS 22034-2:2014(E)
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
©
PROVIDE SUPPORTING DOCUMENTATION. ISO 2014
ISO/DIS 22034-2:2014(E)
© ISO 2014
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2014 – All rights reserved
ISO/DIS 22034-2:2014(E)
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Wire diameter tolerances . 2
4.1 General . 2
4.2 Tolerances on diameter of uncoated and metallic-coated round steel wire . 2
4.3 Out-of-roundness (ovality) . 3
4.4 Tolerances on diameter of organic coated wire . 4
5 Tolerance on cut lengths . 5
5.1 Length tolerances . 5
5.2 Straightness tolerances . 5
6 Length of wire in coil . 6
ISO/DIS 22034-2:2014(E)

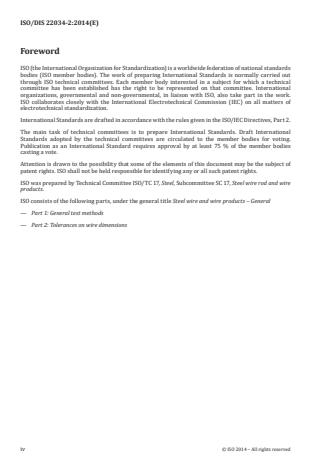

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International
Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies
casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO was prepared by Technical Committee ISO/TC 17, Steel, Subcommittee SC 17, Steel wire rod and wire
products.
ISO consists of the following parts, under the general title Steel wire and wire products – General
— Part 1: General test methods
— Part 2: Tolerances on wire dimensions
iv © ISO 2014 – All rights reserved
DRAFT INTERNATIONAL STANDARD ISO/DIS 22034-2:2014(E)
Steel wire and wire products —
Part 2:
Tolerances on wire dimensions
1 Scope
This part of ISO 22034 specifies the tolerances on the diameter of round wire and, where applicable, on
the length of round wire cut to length, for bright (i.e. uncoated) steel wire, metallic-coated steel wire
and non-metallic-coated steel wire.
This part of ISO 22034 applies to round wires in the diameter range 0,050mm to 25,00 mm.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 6929, Steel products — Vocabulary
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
wire
See ISO 6929
Note 1 to entry: Wire can be supplied with a metallic or non-metallic coating, or with both, or without a coating.
3.2
cut length
straightened piece of wire cut to a specified length
...
INTERNATIONAL ISO
STANDARD 22034-2
Second edition
2016-04-01
Steel wire and wire products —
Part 2:
Tolerances on wire dimensions
Fil produits de fil en acier —
Partie 2: Tolérances sur les dimensions des fils
Reference number
©
ISO 2016
© ISO 2016, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2016 – All rights reserved
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Wire diameter tolerances . 2
4.1 General . 2
4.2 Tolerances on diameter of uncoated and metallic-coated round steel wire . 2
4.3 Out-of-roundness (ovality) . 3
4.4 Tolerances on diameter of organic coated wire . 4
4.4.1 General. 4
4.4.2 Extruded organic coatings . 4
4.4.3 Sintered organic coatings . 4
5 Tolerance on cut lengths . 5
5.1 Length tolerances . 5
5.2 Straightness tolerances . 5
6 Length of wire in coil . 6

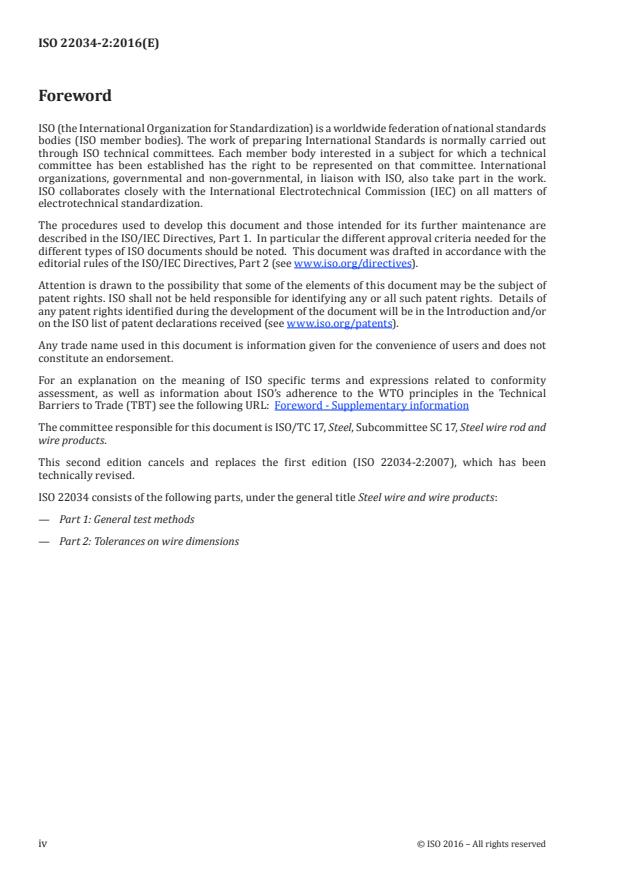

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 17, Steel, Subcommittee SC 17, Steel wire rod and
wire products.
This second edition cancels and replaces the first edition (ISO 22034-2:2007), which has been
technically revised.
ISO 22034 consists of the following parts, under the general title Steel wire and wire products:
— Part 1: General test methods
— Part 2: Tolerances on wire dimensions
iv © ISO 2016 – All rights reserved
INTERNATIONAL STANDARD ISO 22034-2:2016(E)
Steel wire and wire products —
Part 2:
Tolerances on wire dimensions
1 Scope
This part of ISO 22034 specifies the tolerances on the diameter of round wire and, where applicable, on
the length of round wire cut to length, for bright (i.e. uncoated) steel wire, metallic-coated steel wire
and non-metallic-coated steel wire.
This part of ISO 22034 applies to round wires in the diameter range 0,050 mm to 25,00 mm.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 6929, Steel products — Vocabulary
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 6929 and the following apply.
3.1
wire
product of constant cross section along its length, obtained by drawing a
...
