ISO 17940:2015 specifies the classification, marking and requirements for packaging, storage and transportation of hinged watertight doors (hereinafter referred to as watertight doors). ISO 17940:2015 is applicable to the design, fabrication and acceptance of the watertight doors capable of bearing the pressure from both inside and outside due to a headwater up to 10 m.
Navires et technologie maritime — Portes étanches à charnières
General Information
Relations
Overview
ISO 17940:2015 - Ships and marine technology - Hinged watertight doors - specifies classification, marking and requirements for the design, fabrication, packaging, storage, transportation and acceptance of hinged watertight doors. The standard applies to watertight doors capable of resisting pressure from either side corresponding to a headwater up to 10 m, and sets out structural, material, testing and marking rules to ensure reliable performance in marine environments.
Key topics and technical requirements
- Scope and purpose: Classification, marking, packaging, storage, transport, design, fabrication and acceptance for hinged watertight doors for ships.
- Classification & marking:
- Opening direction: Type L (left-hand) and Type R (right-hand).
- Designation format example: “Hinged watertight door ISO 17940 L H 1600×600”.
- Structure & dimensions:
- Main dimensional guidance and nominal sizes referenced to ISO 3796.
- Typical components: door plate, frame, clips, hinges, closing device, seals, limit switches and notice plates.
- Closing device types (H and W) and connecting rod arrangements illustrated.
- Materials & mechanical properties:
- Door plates: steel with minimum yield stress 355 N/mm².
- Door frames and hinges: shipbuilding-quality steel with minimum yield stress 235 N/mm².
- Closing devices: corrosion-resistant steel with minimum yield stress 315 N/mm².
- Sealing materials suitable for marine service.
- Quality of manufacture:
- Surface finish free from burrs, sharp edges and defects; weld quality requirements; derusting grade Sa2½ or St3 per ISO 8501-1; anti-corrosion primer.
- Testing & acceptance:
- Watertightness pressure test: 0.1 MPa for 5 minutes; hose test at ≥0.2 MPa with nozzle ≥12.5 mm and flushing distance ≤1.5 m.
- Powder contact test: contact width ≥5 mm, compression depth ≤4 mm.
- 15° inclined test: door manually inclined ±15° to confirm closed–open–closed operation.
- Status display & electrical protection:
- Local and remote indicators (red = open, green = closed); clip-loose visual alert; remote indicator to central console.
- Electrical equipment protection rating IP67 per IEC 60529.
Applications and users
ISO 17940 is intended for:
- Shipbuilders, shipyards and manufacturers of watertight doors and hardware.
- Naval architects and marine designers specifying compartmentation and flooding protection.
- Classification societies, flag administrations and surveyors for acceptance tests.
- Maintenance teams and ship operators performing repairs, retrofits and safety compliance checks. Practical benefits include standardized acceptance testing, consistent installation quality and clear marking for operational safety and SALVAGE/abandonment planning.
Related standards
- ISO 3796 - Clear openings for external single-leaf doors (nominal sizes reference)
- ISO 8501-1 - Surface cleanliness (derusting grades)
- IEC 60529 - Degrees of protection by enclosures (IP Code)
- SOLAS (cited in bibliography) - overarching international safety regulations
Keywords: ISO 17940, hinged watertight doors, watertight doors, shipbuilding, marine safety, watertightness testing, IP67, ISO 3796, ISO 8501-1.
Frequently Asked Questions
ISO 17940:2015 is a standard published by the International Organization for Standardization (ISO). Its full title is "Ships and marine technology - Hinged watertight doors". This standard covers: ISO 17940:2015 specifies the classification, marking and requirements for packaging, storage and transportation of hinged watertight doors (hereinafter referred to as watertight doors). ISO 17940:2015 is applicable to the design, fabrication and acceptance of the watertight doors capable of bearing the pressure from both inside and outside due to a headwater up to 10 m.
ISO 17940:2015 specifies the classification, marking and requirements for packaging, storage and transportation of hinged watertight doors (hereinafter referred to as watertight doors). ISO 17940:2015 is applicable to the design, fabrication and acceptance of the watertight doors capable of bearing the pressure from both inside and outside due to a headwater up to 10 m.
ISO 17940:2015 is classified under the following ICS (International Classification for Standards) categories: 47.020.10 - Hulls and their structure elements. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 17940:2015 has the following relationships with other standards: It is inter standard links to ISO/TS 20451:2017. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase ISO 17940:2015 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of ISO standards.
Standards Content (Sample)

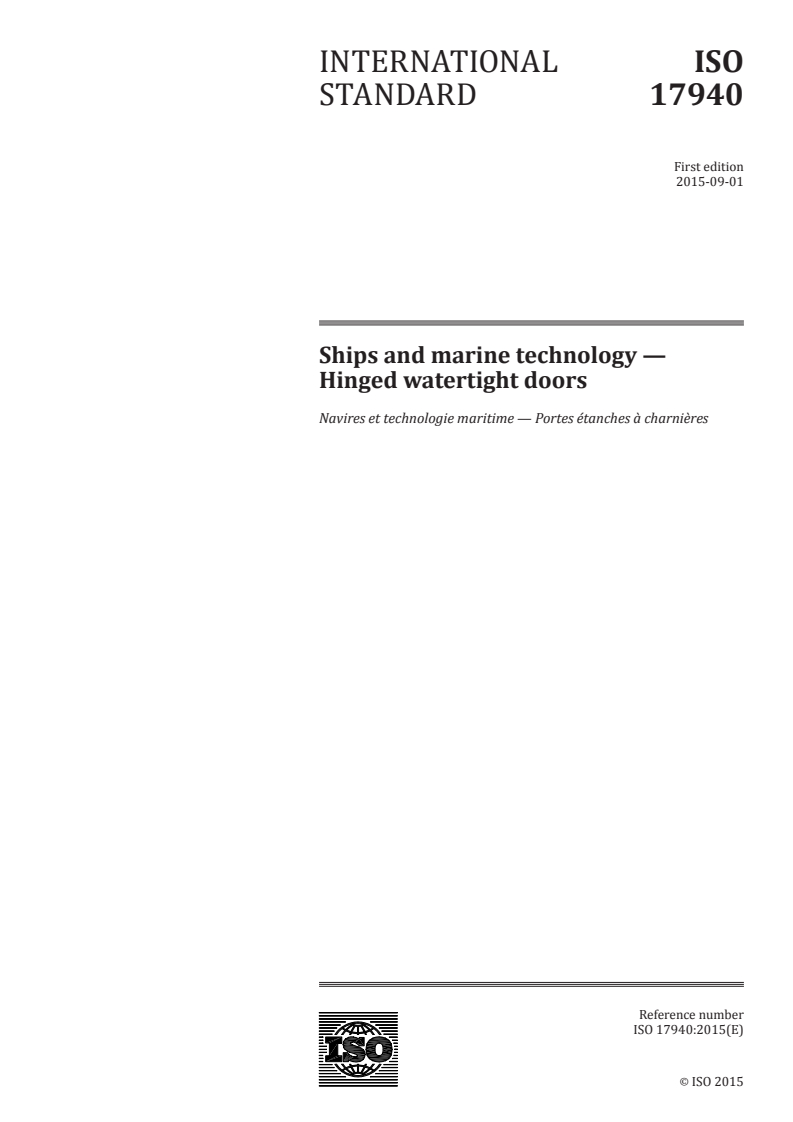

INTERNATIONAL ISO
STANDARD 17940
First edition
2015-09-01
Ships and marine technology —
Hinged watertight doors
Navires et technologie maritime — Portes étanches à charnières
Reference number
©
ISO 2015
© ISO 2015, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2015 – All rights reserved

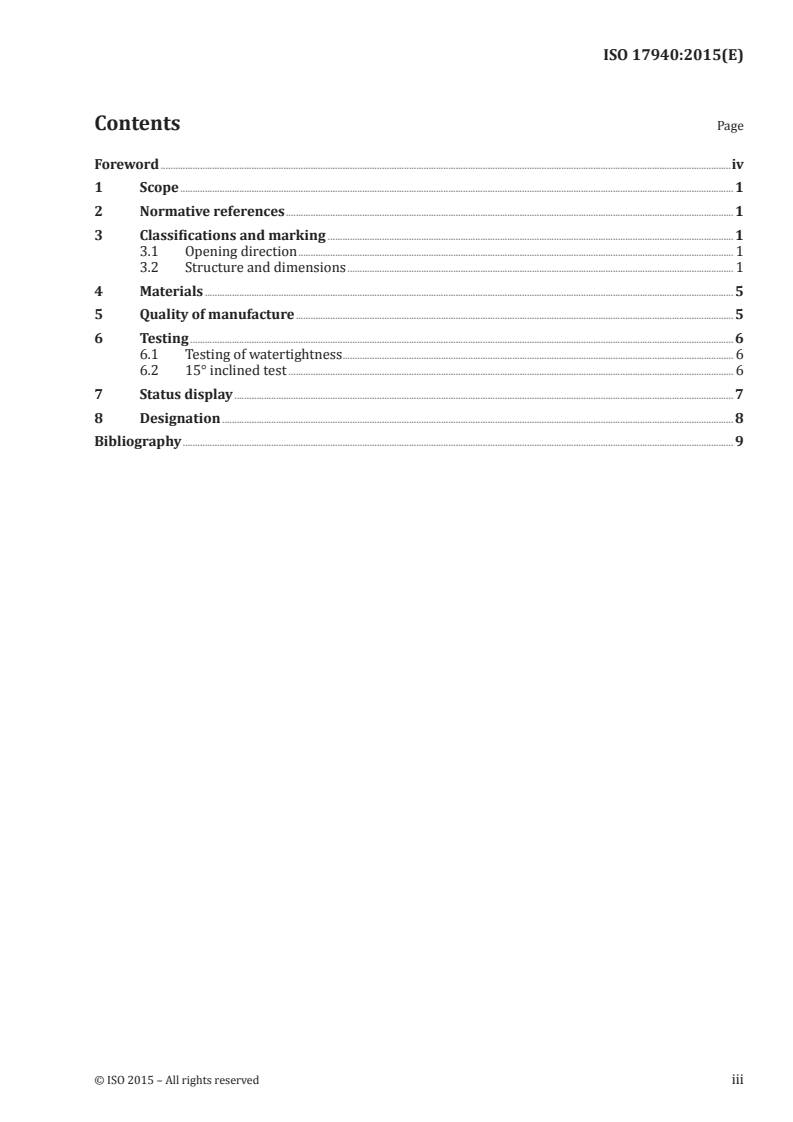

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Classifications and marking . 1
3.1 Opening direction . 1
3.2 Structure and dimensions . 1
4 Materials . 5
5 Quality of manufacture . 5
6 Testing . 6
6.1 Testing of watertightness . 6
6.2 15° inclined test . 6
7 Status display . 7
8 Designation . 8
Bibliography . 9

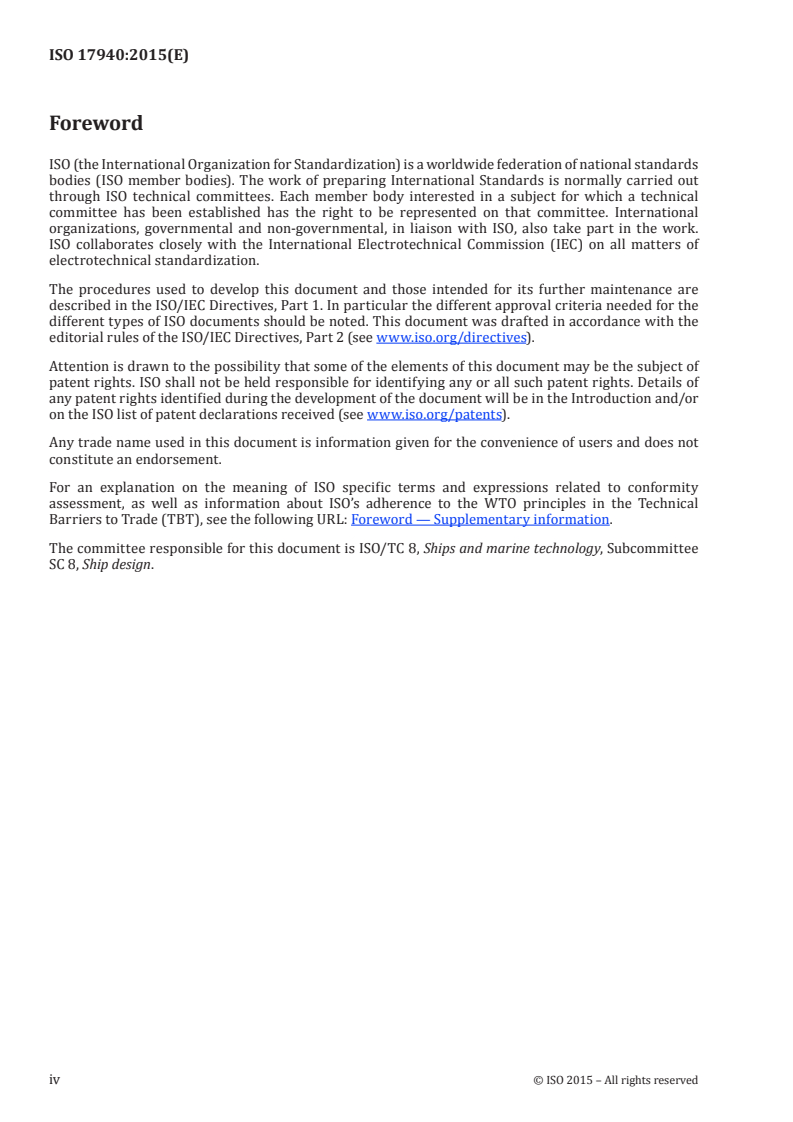

Foreword
