ISO 11724:2004

SLOVENSKI STANDARD
SIST ISO 11724:2005
01-november-2005
7UGDPLQHUDOQDJRULYD±'RORþHYDQMHFHORWQHJDIOXRUDYSUHPRJXNRNVXLQ
HOHNWURILOWUVNHPSHSHOX
Solid mineral fuels -- Determination of total fluorine in coal, coke and fly ash
Combustibles minéraux solides -- Détermination de la teneur totale en fluor dans le
charbon, le coke et les cendres
Ta slovenski standard je istoveten z: ISO 11724:2004
ICS:
75.160.10 Trda goriva Solid fuels
SIST ISO 11724:2005 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST ISO 11724:2005

---------------------- Page: 2 ----------------------

SIST ISO 11724:2005


INTERNATIONAL ISO
STANDARD 11724
First edition
2004-11-01

Solid mineral fuels — Determination of
total fluorine in coal, coke and fly ash
Combustibles minéraux solides — Détermination de la teneur totale en
fluor dans le charbon, le coke et les cendres




Reference number
ISO 11724:2004(E)
©
ISO 2004

---------------------- Page: 3 ----------------------

SIST ISO 11724:2005
ISO 11724:2004(E)

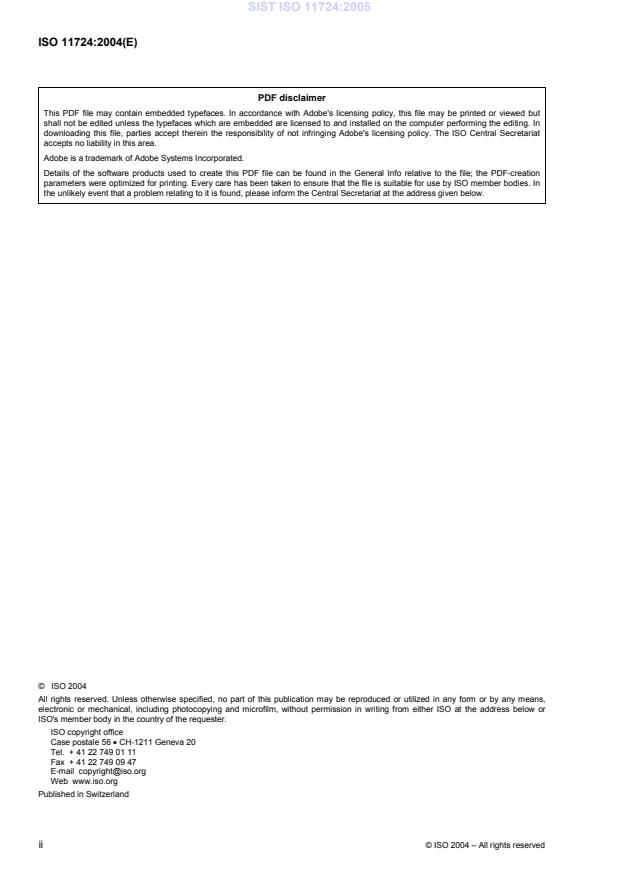

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


©  ISO 2004
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO 2004 – All rights reserved

---------------------- Page: 4 ----------------------

SIST ISO 11724:2005
ISO 11724:2004(E)
Contents Page
Foreword. iv
1 Scope. 1
2 Normative references . 1
3 Principle . 1
4 Reagents . 1
5 Apparatus. 2
6 Sample. 4
6.1 Coal and coke. 4
6.2 Fly ash. 5
7 Procedure. 5
7.1 Number of determinations . 5
7.2 Preparation of test sample. 5
7.3 Blank tests . 5
7.4 Pyrohydrolysis procedure. 5
7.5 Solution measurement . 6
8 Calculations. 7
8.1 General. 7
8.2 Direct-comparison ISE method . 8
8.3 Analyte-addition ISE method . 8
8.4 IC method. 9
9 Expression of result. 9
10 Precision . 9
10.1 Repeatability limit . 9
10.2 Reproducibility critical difference . 10
11 Test report. 10
Bibliography . 11

© ISO 2004 – All rights reserved iii

---------------------- Page: 5 ----------------------

SIST ISO 11724:2005
ISO 11724:2004(E)

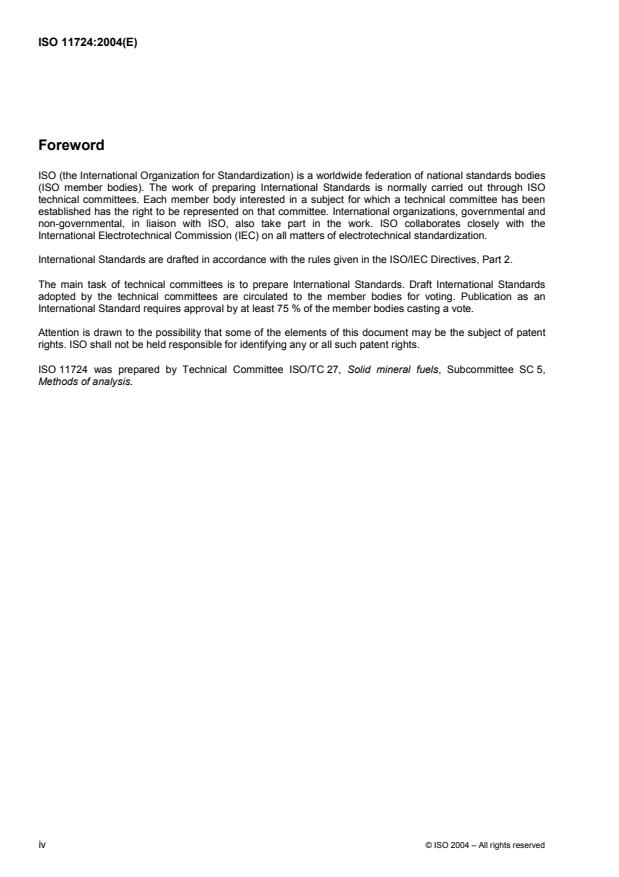

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 11724 was prepared by Technical Committee ISO/TC 27, Solid mineral fuels, Subcommittee SC 5,
Methods of analysis.
iv © ISO 2004 – All rights reserved

---------------------- Page: 6 ----------------------

SIST ISO 11724:2005
INTERNATIONAL STANDARD ISO 11724:2004(E)

Solid mineral fuels — Determination of total fluorine in coal,
coke and fly ash
1 Scope
This International Standard specifies a method for the determination of total fluorine in coal, coke and fly ash.
From measurement of the total fluorine alone, it is not possible to estimate the amount of fluorine released to the
environment by utilization of the coal and subsequent disposal of the ash residue.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 589:2003, Hard coal — Determination of total moisture
ISO 687:1974, Coke — Determination of moisture in the analysis sample
ISO 5068:1983, Brown coals and lignites — Determination of moisture content — Indirect gravimetric method
ISO 5069-2:1983, Brown coals and lignites — Principles of sampling — Part 2: Sample preparation for
determination of moisture content and for general analysis
ISO 11722:1999, Solid mineral fuels — Hard coal — Determination of moisture in the general analysis test
sample by drying in nitrogen
ISO 13909-4:2001, Hard coal and coke — Mechanical sampling — Part 4: Coal — Preparation of test
samples
ISO 13909-6:2001, Hard coal and coke — Mechanical sampling — Part 6: Coke — Preparation of test
samples
3 Principle
Mixing of the sample of coal, coke or fly ash with silica, and pyrohydrolysis in a tube furnace at approximately
1 200 °C in an atmosphere of oxygen and water vapour. Absorption of the volatilized fluorine compounds in a
suitable solution and processing for determination by ion-selective electrode (ISE) or ion chromatographic (IC)
techniques.
4 Reagents
CAUTION — Care must be exercised when handling reagents, some of which are toxic and corrosive.
During the analysis, use only reagents of recognized analytical grade and only distilled water, or water of
equivalent purity.
© ISO 2004 – All rights reserved 1

---------------------- Page: 7 ----------------------

SIST ISO 11724:2005
ISO 11724:2004(E)
4.1 Silica of top size 75 µm, ignited at 1 000 °C for 1 h.
CAUTION — Fine silica is dangerous to health if inhaled.
4.2 Solutions for ISE measurement
4.2.1 Standard fluorine solution (1 g contains 200 µg of F).
a) For direct-comparison method
Dissolve 0,221 0 ± 0,000 2 g of dry (110 °C for 1 h) sodium fluoride in approximately 400 ml of water
contained in a tared plastic bottle, dilute to 500 g ± 0,5 g net with water, and mix.
b) For analyte-addition method
Dissolve 0,221 0 ± 0,000 2 g of dry (110 °C for 1 h) sodium fluoride in a tared plastic bottle containing 150 ml
of water and 100 g of buffer (4.2.3). Dilute to 500 g ± 0,5 g net with water, and mix.
4.2.2 Absorption solution (0,025 mol/l NaOH).
Dissolve 2,0 g of sodium hydroxide in about 500 ml of water. Transfer to a tared 2,5 litre plastic bottle, dilute to
2 000 g net with water, and mix.
4.2.3 Buffer (pH 6,5).
Dissolve 10,0 g of potassium nitrate, 5 g of 1,2-cyclohexylenedinitrilotetraacetic acid (CDTA) and 115 g of
ammonium acetate in 350 ml of water. Adjust the pH to 6,5 with glacial acetic acid. Dilute to 500 g net with
water, and mix.
4.2.4 Solution for conditioning fluoride ISE.
Weigh 20 g of water, 20 g of absorption solution (4.2.2) and 10 g of buffer (4.2.3) into a polystyrene vial (5.2).
Add approximately 200 mg of standard fluorine solution [of 4.2.1 a) or 4.2.1 b)], and mix.
4.3 Solutions for IC measurement
4.3.1 Standard fluorine solution (1 g contains 200 µg of F).
Dissolve 0,221 0 ± 0,000 2 g of dry (110 °C for 1 h) sodium fluoride in approximately 400 ml of water
contained in a tared plastic bottle, dilute to 500 g ± 0,5 g net with water, and mix.
4.3.2 Absorption solution for IC measurement.
Dissolve 0,300 g of sodium hydrogen carbonate and 1,120 g of sodium carbonate in approximately 500 ml of
water and dilute to 2 litres.
4.4 Oxygen, compressed.
5 Apparatus
5.1 Vials, made of glass or polystyrene, of capacity 10 ml to 30 ml with tightly fitting snap-on plastic caps.
5.2 Polypropylene bottles or polystyrene vials, tared, of capacity 125 ml, wide necked with linerless
leakproof screw caps.
5.3 Balances: a balance capable of weighing to the nearest 0,000 1 g; a balance capable of weighing
approximately 200 g to the nearest 0,001 g; a balance capable of weighing 600 g to the nearest 0,01 g; and a
balance capable of weighing 3 000 g to the nearest 0,1 g.
2 © ISO 2004 – All rights reserved

---------------------- Page: 8 ----------------------

SIST ISO 11724:2005
ISO 11724:2004(E)
5.4 Polyethylene dispensing bottles, for the standard fluorine solution (4.2.1), absorption solution (4.2.2)
and buffer (4.2.3).
5.5 Micropipette, of variable volume, ranging to at least 1 ml.
This is a satisfactory alternative to the 250 ml polyethylene dispensing bottle (5.4) for delivery of small
weighed volumes of standard fluorine solution (4.2.1).
5.6 Apparatus for tube-furnace pyrohydrolysis (see Figure 1).
5.6.1 Steam generator, consisting of the following:
a) round-bottom flask, 2 litre capacity;
b) heating mantle, 2 litre capacity;
c) Y-piece, glass, 10 mm diameter;
d) oxygen distribution tube, porosity 0;
e) stopcocks, one three-way and one two-way.
5.6.2 Silica-tube furnace and accessories
The apparatus is similar to that used in ISO 351.
a) Silica tube, made of translucent pure silica (25 mm outer diameter, 20 mm inner diameter), of length
(typically 700 mm) appropriate to the particular furnace used (generally of an approximate length of 400 mm).
Preferably, the gas outlet end should be narrowed to a tubule of approximately 7 mm diameter.
NOTE Combustion tubes of alternative refractory compositions do not have adequate thermal stress characteristics for
operation with this method.
b) Silicone stoppers, 20 mm diameter, positioned at inlet end (and outlet, if applicable) of the silica tube
described in a).
c) Combustion boats, made of high-alumina unglazed porcelain (approximately 97 mm × 16 mm × 12 mm),
preignited at 1 000 °C for 1 h.
d) Silica pusher and T-tube, comprising a silica push rod (5 mm diameter and 500 mm long) fused at one
end to provide a flat disc surface of 10 mm to 12 mm diameter, and having a piece of magnetic steel affixed to
the other end by epoxy resin. The T-tube (500 mm long) is composed of borosilicate glass and protrudes
10 mm into the silica tube a) through a stopper b). The stem of the T-tube is connected to the steam generator
by way of the three-way stopcock [5.6.1 e)]. A magnet is used to move the pusher inside the T-tube.
e) Combustion furnace, capable of reaching a temperature of at least 1 200 °C.
5.6.3 Absorption vessel: Dreschel gas washing bottle or equivalent, of capacity 125 ml, with gas-
distribution tube fitted with a sintered glass disc of 15 µm to 40 µm pore size [5.6.1 d)] bent at 90°,
approximately 60 mm from the top.
5.6.4 Water jacket, suitable for containing the absorption vessel.
© ISO 2004 – All rights reserved 3

---------------------- Page: 9 ----------------------

SIST ISO 11724:2005
ISO 11724:2004(E)

Key
1 stopcock 8 combustion boat 15 heating mantle
2 Y-piece 9 silica tube 16 oxygen in
3 round-bottom flask 10 cooling water 17 three-way stopcock
4 stopcock 11 absorption vessel 18 steam distribution tube
5 T-piece 12 water jacket 19 to sink
6 silica pusher 13 thermocouple
7 furnace 14 silicone stopper
Figure 1 — Sche
...
