ISO 24894:2026

International
Standard
ISO 24894
First edition
Analysis of natural gas —
2026-01
Determination of sulfur compounds
— Determination of hydrogen
sulfide by laser absorption
spectroscopy
Analyse du gaz naturel — Détermination des composés soufrés
— Détermination du sulfure d’hydrogène par spectroscopie par
absorption laser
Reference number
© ISO 2026
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii

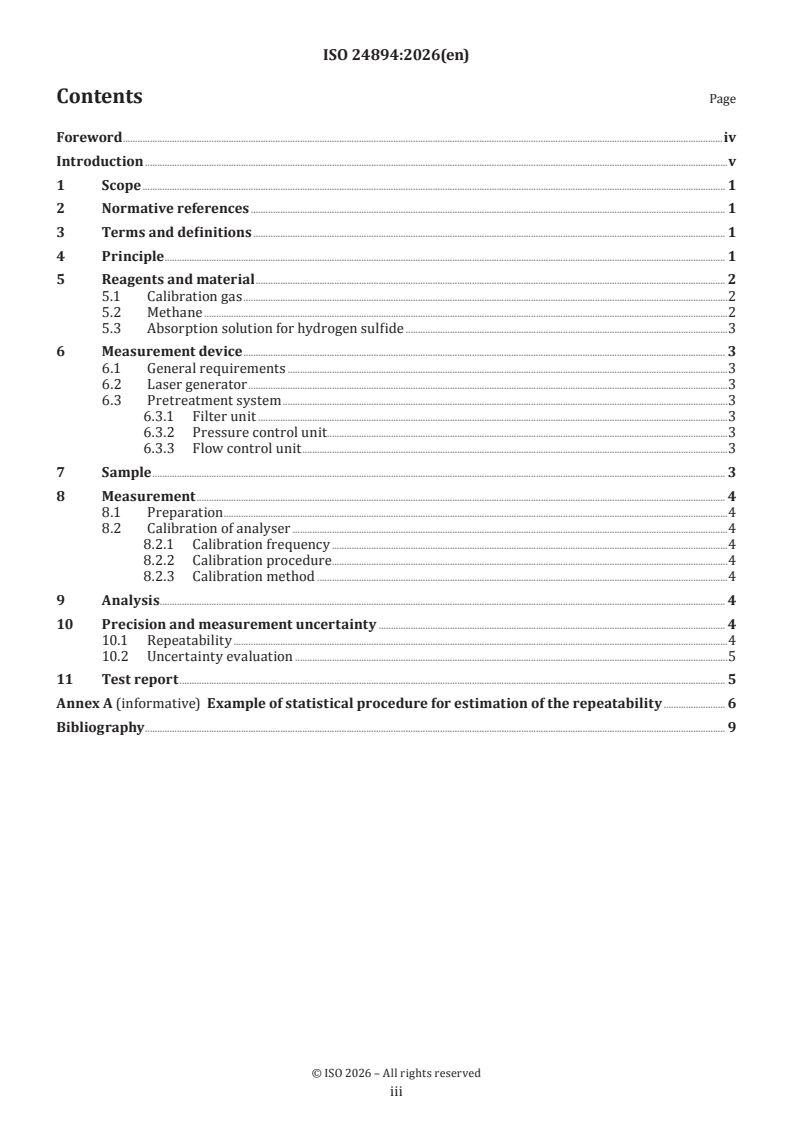

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 1
5 Reagents and material . 2
5.1 Calibration gas .2
5.2 Methane .2
5.3 Absorption solution for hydrogen sulfide .3
6 Measurement device . 3
6.1 General requirements .3
6.2 Laser generator .3
6.3 Pretreatment system .3
6.3.1 Filter unit .3
6.3.2 Pressure control unit .3
6.3.3 Flow control unit .3
7 Sample . 3
8 Measurement . 4
8.1 Preparation .4
8.2 Calibration of analyser .4
8.2.1 Calibration frequency .4
8.2.2 Calibration procedure.4
8.2.3 Calibration method .4
9 Analysis . . 4
10 Precision and measurement uncertainty . 4
10.1 Repeatability .4
10.2 Uncertainty evaluation .5
11 Test report . 5
Annex A (informative) Example of statistical procedure for estimation of the repeatability . 6
Bibliography . 9

iii

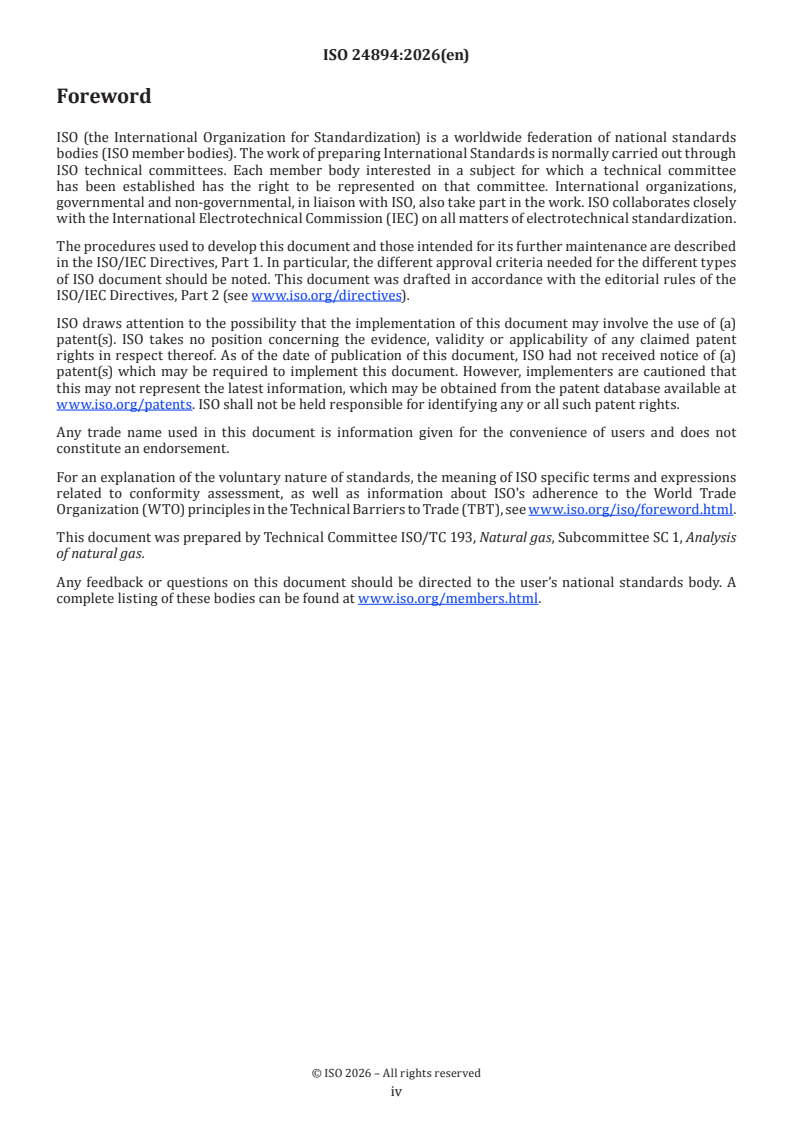

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 193, Natural gas, Subcommittee SC 1, Analysis
of natural gas.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
Introduction
Five methods for determination of sulfur compounds in natural gas already exist as International Standards:
ISO 16960, ISO 19739, ISO 20729, ISO 20676, ISO 11626.
Laser absorption spectroscopy is a more efficient method compared with chemical titration because it is
an optical and instrumental method. It offers a more convenient and more stable means to analyse H S in
natural gas.
v
International Standard ISO 24894:2026(en)
Analysis of natural gas — Determination of sulfur compounds
— Determination of hydrogen sulfide by laser absorption
spectroscopy
1 Scope
This document describes a method for the online determination of hydrogen sulfide content in natural gas
by laser absorption spectroscopy. The analytical range expressed as mole fraction is 1 μmol/mol to 50 μmol/
mol.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 6143, Gas analysis — Comparison methods for determining and checking the composition of calibration gas
mixtures
ISO 10715, Natural gas — Gas sampling
ISO 12963, Gas analysis — Comparison methods for the determination of the composition of gas mixtures based
on one- and two-point calibration
ISO 14532, Natural gas — Vocabulary
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 14532 apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
4 Principle
A sketch of the measuring principle is shown in Figure 1. The semiconductor laser generator generates a
laser beam: the laser beam goes through the sample in a gas chamber and reflects many times between the
high reflectivity mirrors at both ends. Then, the laser beam is detected by the photoelectric sensor. The
energy of the laser beam is attenuated because of the absorption by the test sample. The absorbance obeys
the Beer-Lambert law. which describes the relationship between the absorbance and the mole fraction of (in
this case) hydrogen sulfide.
Al ·· c (1)
where
A is the absorbance;
-1 -1
εε
is the molar absorption coefficient (M cm );
l is the optical path length (cm);
c is the molar concentration (mol/L or M).

Key
1 analytical unit
2 laser generator
3 mirror
4 gas chamber
5 sensor
a
Gas input.
b
Gas output.
Figure 1 — Working principle of the hydrogen sulfide laser absorption analyser
5 Reagents and material
5.1 Calibration gas
Calibration shall be performed in accordance with ISO 6143. Hydroge
...
