ISO/IEC 18028-2:2006

INTERNATIONAL ISO/IEC
STANDARD 18028-2
First edition
2006-02-01
Information technology — Security
techniques ― IT network security —
Part 2:
Network security architecture
Technologies de l'information — Techniques de sécurité — Sécurité de
réseaux TI —
Partie 2: Architecture de sécurité de réseau

Reference number
©
ISO/IEC 2006
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO/IEC 2006
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2006 – All rights reserved

Contents Page
Foreword. iv
Introduction . v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions. 1
4 Abbreviations . 2
5 Reference Architecture for network security.3
6 Security Dimensions . 3
6.1 Access Control Security Dimension. 4
6.2 Authentication Security Dimension. 4
6.3 Non-repudiation Security Dimension . 4
6.4 Data Confidentiality Security Dimension . 4
6.5 Communication Flow Security Dimension. 4
6.6 Data Integrity Security Dimension . 4
6.7 Availability Security Dimension . 4
6.8 Privacy Security Dimension . 5
7 Security Layers . 5
7.1 The Infrastructure Security Layer . 6
7.2 The Services Security Layer. 6
7.3 The Applications Security Layer . 6
8 Security Planes . 6
8.1 The Management Security Plane. 7
8.2 The Control Security Plane. 7
8.3 The End-User Security Plane. 7
9 Security threats. 8
10 Description of the objectives achieved by application of Security Dimensions to Security
Layers . 9
10.1 Infrastructure Security Layer. 11
10.2 Services Security Layer . 14
10.3 Applications Security Layer . 17
Bibliography . 21

© ISO/IEC 2006 – All rights reserved iii

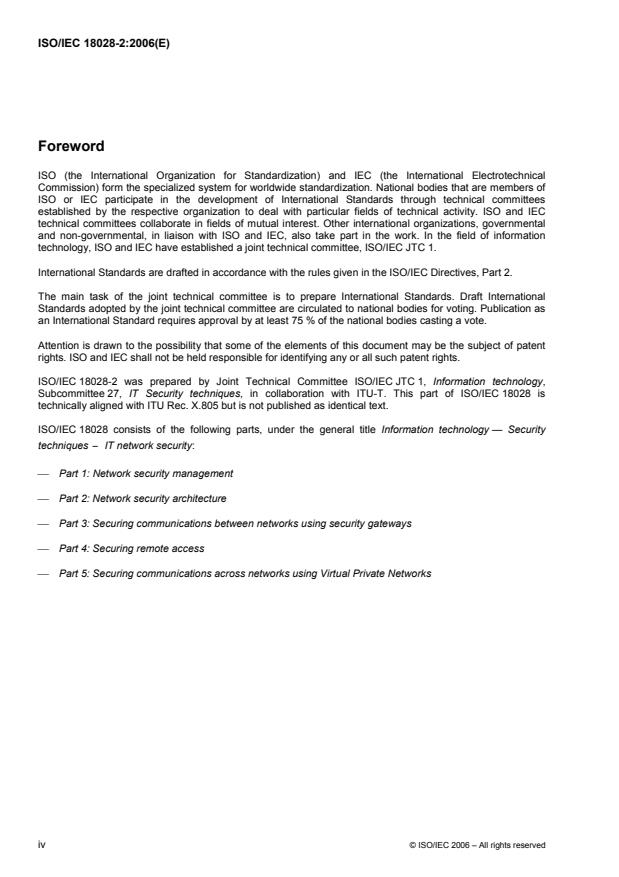

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
ISO/IEC 18028-2 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee 27, IT Security techniques, in collaboration with ITU-T. This part of ISO/IEC 18028 is
technically aligned with ITU Rec. X.805 but is not published as identical text.
ISO/IEC 18028 consists of the following parts, under the general title Information technology — Security
techniques ― IT network security:
⎯ Part 1: Network security management
⎯ Part 2: Network security architecture
⎯ Part 3: Securing communications between networks using security gateways
⎯ Part 4: Securing remote access
⎯ Part 5: Securing communications across networks using Virtual Private Networks

iv © ISO/IEC 2006 – All rights reserved

Introduction
The telecommunications and information technology industries are seeking cost-effective comprehensive
security solutions. A secure network should be protected against malicious and inadvertent attacks, and
should meet the business requirements for confidentiality, integrity, availability, non-repudiation, accountability,
authenticity and reliability of information and services. Securing a network is also essential for maintaining the
accuracy of billing or usage information as appropriate. Security capabilities in products are crucial to overall
network security (including applications and services). However, as more products are combined to provide
total solutions, the interoperability, or the lack thereof, will define the success of the solution. Security must not
only be a thread of concern for each product or service, but must be developed in a manner that promotes the
interweaving of security capabilities in the overall end-to-end security solution. Thus, the purpose of
ISO/IEC 18028 is to provide detailed guidance on the security aspects of the management, operation and use
of IT networks, and their inter-connections. Those individuals within an organization that are responsible for IT
security in general, and IT network security in particular, should be able to adapt the material in
ISO/IEC 18028 to meet their specific requirements. Its main objectives are as follows:
• in ISO/IEC 18028-1, to define and describe the concepts associated with, and provide management
guidance on, network security – including on how to identify and analyse the communications related
factors to be taken into account to establish network security requirements, with an introduction to the
possible control areas and the specific technical areas (dealt with in subsequent parts of ISO/IEC 18028);
• in ISO/IEC 18028-2, to define a standard security architecture, which describes a consistent framework to
support the planning, design and implementation of network security;
• in ISO/IEC 18028-3, to define techniques for securing information flows between networks using security
gateways;
• in ISO/IEC 18028-4, to define techniques for securing remote access;
• in ISO/IEC 18028-5, to define techniques for securing inter-network connections that are established
using virtual private networks (VPN).
ISO/IEC 18028-1 is relevant to anyone involved in owning, operating or using a network. This includes senior
managers and other non-technical managers or users, in addition to managers and administrators who have
specific responsibilities for Information Security (IS) and/or network security, network operation, or who are
responsible for an organization's overall security programme and security policy development.
ISO/IEC 18028-2 is relevant to all personnel who are involved in the planning, design and implementation of
the architectural aspects of network security (for example IT network managers, administrators, engineers,
and IT network security officers).
ISO/IEC 18028-3 is relevant to all personnel who are involved in the detailed planning, design and
implementation of security gateways (for example IT network managers, administrators, engineers and IT
network security officers).
ISO/IEC 18028-4 is relevant to all personnel who are involved in the detailed planning, design and
implementation of remote access security (for example IT network managers, administrators, engineers, and
IT network security officers).
ISO/IEC 18028-5 is relevant to all personnel who are involved in the detailed planning, design and
implementation of VPN security (for example IT network managers, administrators, engineers, and IT network
security officers).
© ISO/IEC 2006 – All rights reserved v

INTERNATIONAL STANDARD ISO/IEC 18028-2:2006(E)

Information technology — Security techniques ― IT network
security —
Part 2:
Network security architecture
1 Scope
This part of ISO/IEC 18028 defines a network security architecture for providing end-to-end network security.
The architecture can be applied to various kinds of networks where end-to-end security is a concern and
independently of the network's underlying technology. The objective of this part of ISO/IEC 18028 is to serve
as a foundation for developing the detailed recommendations for the end-to-end network security.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 7498-2:1989, Information processing systems — Open Systems Interconnection — Basic Reference
Model — Part 2: Security Architecture
CCITT Recommendation X.800 (1991), Security architecture for Open Systems — Interconnection for CCITT
applications
3 Terms and definitions
For the purposes of this document, the following terms defined in ISO 7498-2:1989 ⎟ CCIT Rec. X.800 apply.
3.1
access control
prevention of unauthorized use of a resource, including the prevention of use of a resource in an unauthorized
manner
3.2
data origin authentication
corroboration that the source of data received is as claimed
3.3
peer-entity authentication
corroboration that a peer entity in an association is the one claimed
3.4
availability
property of being accessible and useable upon demand by an authorized entity
© ISO/IEC 2006 – All rights reserved 1

3.5
confidentiality
property that information is not made available or disclosed to unauthorized individuals, entities, or processes
3.6
data integrity
property that data has not been altered or destroyed in an unauthorized manner
3.7
non-repudiation with proof of origin
security service in which the recipient of data is provided with proof of the origin of data
NOTE 1 This will protect against any attempt by the sender to falsely deny sending the data or its contents.
NOTE 2 Adapted from ISO 7498-2 ⎟ CCIT Rec. X.800.
3.8
non-repudiation with proof of delivery
security service in which the sender of data is provided with proof of delivery of data
NOTE 1 This will protect against any subsequent attempt by the recipient to falsely deny receiving the data or its
contents.
NOTE 2 Adapted from ISO 7498-2 ⎟ CCIT Rec. X.800.
3.9
privacy
right of individuals to control or influence what information related to them may be collected and stored and by
whom and to whom that information may be disclosed
4 Abbreviations
ASP Application Service Provider
ATM Asynchronous Transfer Mode
DHCP Dynamic Host Configuration Protocol
DS-3 Digital Signal level 3
IPsec IP Security protocol
MD5 Message Digest Version 5
OAM&P Operations Administration Maintenance and Provisioning
OSI Open Systems Interconnection
PSTN Public Switched Telephone Network
PVC Permanent Virtual Circuit
SHA-1 Secure Hash Algorithm
SIP Session Initiation Protocol
SMTP Simple Mail Transfer Protocol
SONET Synchronous Optical Network
2 © ISO/IEC 2006 – All rights reserved

SS7 Signalling System #7
SSL Secure Socket Layer (encryption and authentication protocol)
TLS Transport Layer Security (encryption and authentication protocol)
VLAN Virtual Local Area Network
5 Reference Architecture for network security
The Reference Architecture was created to address the global security challenges of Service Providers,
enterprises, and consumers and is applicable to wireless, optical and wire-line voice, data and converged
networks. In context of this document the word “reference” in conjuncture with the word “architecture” is used
to convey that the specification presents an example of high-level security architecture that could serve as a
base for designing more detailed security solutions for various networks. This Reference Architecture
addresses security concerns for the management, control, and use of network infrastructure, services, and
applications. The Reference Architecture provides a comprehensive, top-down, end-to-end perspective of
network security and can be applied to network elements, services, and applications in order to predict, detect,
and correct security vulnerabilities.
The Reference Architecture logically divides a complex set of end-to-end network security-related features
into separate architectural components. This separation allows for a systematic approach to end-to-end
security that can be used for planning of new security solutions as well as for assessing the security of the
existing networks.
The Reference Architecture addresses the network security needs covering following essential questions:
1. What kind of information needs to be protected?
2. What are the security risks, and what kind of protection is needed to manage these risks?
3. What are the distinct types of network activities that need to be protected?
4. What are the distinct types of network equipment and facility groupings that need to be protected?
A risk assessment should be conducted to prioritize the protection requirements and help to determine the
appropriate security measures for security architecture.
These questions are addressed by three architectural components – Security Dimensions, Security Planes
and Security Layers.
The principles described by the multifaceted Reference Architecture can be applied to a wide variety of
networks independent of the network's technology or location in the protocol stack.
The following sections describe in detail the architectural elements and their functions with respect to the
major security threats.
6 Security Dimensions
Typically within a risk management process, appropriate security measures are identified to manage or
mitigate assessed risks. The security dimensions introduce a grouping of security measures that are used to
implement particular aspects of network security. The concept of security dimensions is not limited to
networks, but is also usable in the context of application or end-user information. In addition, the Security
Dimensions apply to Service Providers or enterprises offering security services to their customers. The
Security Dimensions are: (1) Access Control, (2) Authentication, (3) Non-repudiation, (4) Data Confidentiality,
(5) Communication Flow Security, (6) Data Integrity, (7) Availability, and (8) Privacy.
Properly designed and implemented Security Dimensions support security policy that is defined for a particular
network and facilitate the rules set by the security management.
© ISO/IEC 2006 – All rights reserved 3

6.1 Access Control Security Dimension
The Access Control Security Dimension provides authorization for the use of the network resources. Access
Control ensures that only authorized personnel or devices are allowed access to network elements, stored
information, information flows, services and applications. For example, Role-Based Access Control (RBAC)
provides different access levels to guarantee that individuals and devices can only gain access to and perform
operations on network elements, stored information, and information flows for which they are authorized.
6.2 Authentication Security Dimension
The Authentication Security Dimension serves to confirm the identities or other authorizing attributes of
communicating entities. Authentication ensures the validity of the claimed identities when used by
authorization or Access Control of the entities participating in communication (e.g. person, device, service or
application) and provides assurance that an entity is not attempting a masquerade or unauthorized replay of a
previous communication. Authentication methods that employ techniques based on user identification and
password pair, two-factor authentication (e.g. token), biometrics are among widely used methods.
6.3 Non-repudiation Security Dimension
The Non-repudiation Security Dimension provides technical means for preventing an individual or entity from
denying having performed a particular action related to data by making available proof of various network-
related actions (such as proof of obligation, intent, or commitment; proof of data origin, proof of ownership,
proof of resource use). It helps to ensure the availability of evidence that can be presented to a third party as
technical proof that some kind of event or action has taken place. Note, however, that non-repudiation
provided by technical means does not lead to a necessary conclusion of law. Cryptographic methods are often
used for providing non-repudiation.
6.4 Data Confidentiality Security Dimension
The Data Confidentiality Security Dimension protects data from unauthorized disclosure. Encryption is a
method often used to ensure data confidentiality. Access control lists, and file permissions are methods that
help to keep data confidential.
6.5 Communication Flow Security Dimension
The Communication Flow Security Dimension ensures that information flows only between the authorized end
points (the information is not diverted or intercepted as it flows between these end points). Security
mechanisms of Communication Flow Security Dimension do not protect against modification/corruption; this is
a function of Data Integrity. MPLS tunnels, VLANs, and VPNs are examples of technologies that can provide
communication flow security.
6.6 Data Integrity Security Dimension
The Data Integrity Security Dimension ensures the correctness or accuracy (i.e., data are only processed by
authorized processes or actions of authorized people or devices) of data. The data is protected against
unauthorized modification, deletion, creation, and replication and provides an indication of these unauthorized
activities. Hashed Message Authentication Code methods (e.g. MD5, SHA-1) often used for ensuring data
integrity.
6.7 Availability Security Dimension
The Availability Security Dimension ensures that there is no denial of authorized access to network elements,
stored information, information flows, services and applications due to events impacting the network. Disaster
recovery solutions are included in this category.
4 © ISO/IEC 2006 – All rights reserved

6.8 Privacy Security Dimension
The Privacy Security Dimension provides for the protection of any information (identity of a party to
communications or any data – including packet headers – pertaining to any activity carried by this party) that
might be derived from the observation of network activities. Examples of this information include web-sites
that a user has visited, a user's geographic location, and the IP addresses and DNS names of devices in a
Service Provider network. Network Address Translation (NAT) and application proxies are examples of the
techniques that can be used for privacy protection. Depending on the respective national privacy and data
protection legislations and regulations, this Privacy Security Dimension should also provide the appropriate
protection structure and controls for collection, processing and dissemination of personal information.
7 Security Layers
In order to provide an end-to-end security solution, the Security Dimensions described in the previous section
must be applied to a hierarchy of network equipment and facility groupings, which are referred to as Security
Layers. This Reference Architecture defines three Security Layers – the Infrastructure Security Layer, the
Services Security Layer, and the Applications Security Layer, which build on one another to provide network-
based solutions.
The Security Layers are a series of enablers for secure network solutions: the Infrastructure Security Layer
enables the Services Security Layer and the Services Security Layer enables the Applications Security Layer.
The Reference Architecture addresses the fact that each layer has different security vulnerabilities and offers
the flexibility of countering the potential threats in a way most suited for a particular security layer. The
decision of whether the higher levels must assume that lower level security has functioned as intended or
whether they should contain processes to detect failures is left to implementations.
It should be noted that Security Layers (as defined above) have different than the OSI layers meaning.
The Security Layers identify where security must be addressed in products and solutions by providing a
sequential perspective of network security. For example, first security vulnerabilities are addressed for the
Infrastructure Security Layer, then – for the Services Security Layer, and finally security vulnerabilities are
addressed for the Applications Security Layer. Security Dimensions identify areas that need to be addressed
in each Security Layer. Figure 1 depicts how the mechanisms within each Security Dimension are applied to
Security Layers in order to diminish vulnerabilities that exist at each layer and thus mitigate security attacks.

Figure 1 — Applying Security Dimensions to Security Layers
© ISO/IEC 2006 – All rights reserved 5

7.1 The Infrastructure Security Layer
The Infrastructure Security Layer consists of the network transmission facilities as well as individual network
elements protected by the mechanisms that are implemented for the Security Dimensions. The Infrastructure
Security Layer represents the fundamental building blocks of networks, their services and applications.
Examples of components that belong to the Infrastructure Security Layer are individual routers, switches and
servers as well as the communication links between individual routers, switches and servers.
7.2 The Services Security Layer
The Services Security Layer addresses security of services that Service Providers provide to their customers.
These services range from basic transport and connectivity to service enablers like those that are necessary
for providing Internet access (e.g. authentication, authorization, and accounting services, dynamic host
configuration services, domain name services, etc.) to value-added services such as freephone service, QoS,
VPN, Location Services, Instant Messaging, etc. The Services Security Layer is used to protect the Service
Providers and their customers, both of which are potential targets of security threats. For example, the
attackers may attempt to deny the Service Provider's ability to offer the services, or they may attempt to
disrupt service for an individual customer of the Service Provider (e.g., a corporation).
7.3 The Applications Security Layer
The Applications Security Layer focuses on security of the network-based applications accessed by Service
Provider customers. These applications are enabled by network services and include basic file transport
(e.g., FTP) and web browsing applications, fundamental applications such as directory assistance, network-
based voice messaging, and email, as well as high-end applications such as customer relationship
management, electronic/mobile-commerce, network-based training, video collaboration, etc. Network-based
applications may be provided by third-party Application Service Providers (ASPs), Service Providers acting
also as ASPs, or by enterprises hosting them in their own (or leased) data centers. At this layer there are four
potential targets for security attacks: the application user, the application provider, the middleware provided by
third-party integrators (e.g., web-hosting services), and the Service Provider.
8 Security Planes
A Security Plane is a certain type of network activity protected by the mechanisms that are implemented for
the Security Dimensions. This Reference Architecture defines three Security Planes to represent the three
types of protected activities that take place on a network. The Security Planes are: (1) the Management
Security Plane, (2) the Control Security Plane, and (3) the End-User Security Plane. These Security Planes
address specific security needs associated with network management activities, network control or signalling
activities, and end-user activities correspondingly.
Networks should be designed in such a way that events on one Security Plane are kept as much as possible
and as appropriate isolated from the other Security Planes. For example, a flood of DNS lookups on the End-
User Security Plane, initiated by end-user requests, should not lock out the OAM&P interface in the
Management Security Plane that would allow an administrator to correct the problem.
Figure 2 illustrates the Reference Architecture with the Security Planes included. Each type of the described
network activities has its own specific security needs. The concept of Security Planes allows the differentiation
of the specific security concerns associated with those activities and the ability to address them independently.
Consider, for example, a VoIP Service, which is addressed by the Services Security layer. Securing the
management of the VoIP service (e.g., provisioning users) has to be independent of securing the control of
the service (e.g., protocols such as SIP) and also has to be independent of securing the end-user data being
transported by the service (e.g., the user's voice).
6 © ISO/IEC 2006 – All rights reserved

Figure 2 — Security Planes Reflect the Different Types of Network Activities
8.1 The Management Security Plane
The Management Security Plane is concerned with the protection of OAM&P functions of the network
elements, transmission facilities, back-office systems (Operations Support Systems, Business Support
Systems, Customer Care Systems, etc.), and Data Centers. The Management Security Plane supports the
Fault, Capacity, Administration, Provisioning, and Security (FCAPS) functions. It should be noted that the
network carrying the traffic for these activities may be in-band or out-of-band with respect to the Service
Provider's user traffic.
8.2 The Control Security Plane
The Control Security Plane is concerned with protection of the activities that enable the efficient delivery of
information, services and applications across the network. It typically involves machine-to-machine
communications of information that allows the machines (e.g., switches or routers) to determine- how to best
route or switch traffic across the underlying transport network. This type of information is sometimes referred
to as control or signaling information. The network carrying these types of messages may be in-band or out-
of-band with respect to the Service Provider's user traffic. For example, IP networks carry their control
information in-band; whereas, the PSTN carries its control information in a separate out-of-band signaling
network (the SS7 network). Example traffic of this type includes routing protocols, DNS, SIP, SS7,
Megaco/H.248, etc.
8.3 The End-User Security Plane
The End-User Security Plane addresses security of access and use of the Service Provider's network by
customers. This plane is also concerned with the protection of the actual end-user data flows. End-users may
use a network that only provides connectivity, they may use it for value-added services such as VPNs, or they
may use it to access network-based applications.
© ISO/IEC 2006 – All rights reserved 7

9 Security threats
The Reference Architecture defines a plan and set of principles that describe a security structure for the end-
to-end security solution. The architecture identifies security issues that need to be addressed in order to
prevent both intentional threats as well as accidental threats. The following threats are described in
ISO 7498-2:1989 ⎟ CCIT Rec. X.800 (1991):
• destruction of information and/or other resources,
• corruption or modification of information,
• theft, removal or loss of information and/or other resources,
• disclosure of information,
• interruption of services.
The intersection of each Security Layer with each Security Plane represents a security perspective where
Security Dimensions are applied to counteract the threats. Table 1 provides a mapping of Security
Dimensions to the security threats. The mapping is the same for each security perspective.
The letter “Y” in a cell formed by the intersection of the table's columns and rows designate that a particular
security threat is opposed by a corresponding Security Dimension.
Table 1 — Mapping Security Dimensions to security threats
Security Threat
Destruction of Corruption or Theft, Removal or
Security
Information Modification Loss of
Disclosure of Interruption of
Dimension
or Other of Information and Information Services
Resources Information Other Resources
Y Y Y Y
Access Control
Authentication  Y Y
Non-repudiation Y Y Y Y Y
Data
Y Y
Confidentiality
Communication
Y Y
Flow Security
Y Y
Data Integrity
Y  Y
Availability
Privacy  Y
8 © ISO/IEC 2006 – All rights reserved

Figure 3 illustrates the Reference Architecture with the architectural elements shown and indicates the
security threats described above. The figure depicts the concept of protecting a network by Security
Dimensions at each Security Plane of each Security Layer in order to provide a comprehensive security
solution. It should be noted that, depending on a given network's security requirements, it might not be
necessary to have all architectural elements implemented (that is to have a complete set of the Security
Dimensions, Security Layers and Security Planes).

Figure 3 — Reference Architecture for End-to-End Network Security
10 Description of the objectives achieved by application of Security Dimensions to
Security Layers
The Reference Architecture can be applied to all aspects and phases of a Security Program as depicted in
Figure 4. As can be seen from Figure 4, a Security Program consists of policies and procedures in addition to
technology, and progresses through three phases over the course of its lifetime: (1) the Definition and
Planning phase, (2) the Implementation phase, and (3) the Maintenance phase. The Reference Architecture
along with the guidelines of ISO/IEC 13335 can be applied to security policies and procedures, as well as
technology, across all three phases of a Security Program.
Based on business requirements, the network architecture, policy definitions, incident response and recovery
plans are determined. In this process the Reference Architecture can guide the development of
comprehensive security policy definitions, incident response and recovery plans, and technology architectures
by taking into account each Security Dimension at each Security Layer and Plane during the definition and
planning phase. The Reference Architecture can also be used as the basis of a security assessment that
would examine how the implementation of the Security Program addresses the Security Dimensions, Layers
and Planes as policies and procedures are rolled out and technology is deployed. Once a Security Program
has been deployed it must be maintained in order to keep current in the ever-changing security environment.
The Reference Architecture can assist in the management of security policies and procedures, incident
response and recovery plans, and technology architectures by ensuring that modifications to the Security
Program address each Security Dimension at each Security Layer and Plane.
© ISO/IEC 2006 – All rights reserved 9

10 © ISO/IEC 2006 – All rights reserved

Figure 4 — Applying the Reference Security Architecture to Security Programs

In addition, the Reference Architecture can be applied to any type of network at any level of the protocol stack.
For example, in an IP network, which resides at layer three of the protocol stack, the Infrastructure Security
Layer refers to the individual routers, the point-to-point communications links between the routers
(e.g., SONET, ATM PVCs, etc.), and server platforms used to provide the support services required by an IP
network. The Services Security Layer refers to the basic IP service itself (e.g., Internet connectivity), the IP
support services (e.g., AAA, DNS, DHCP, etc.), and advanced value-added services offered by the Service
Provider (e.g., VoIP, QoS, VPN, etc.). Finally the Applications Security Layer refers to the security of user
applications that are to be accessed via the IP network (such as email, etc.).
Likewise, for an ATM network, which resides at layer two of the protocol stack, the Infrastructure Security
Layer refers to the individual switches, and the point-to-point communications links between the switches
(carrier facilities, for example DS-3). The Services Security Layer refers to the different classes of transport
provided by an ATM service offering (Constant Bit Rate, Variable Bit Rate – Real Time, Variable Bit Rate –
non-Real Time, Available Bit Rate, and Unspecified Bit Rate). Finally, the Applications Security Layer refers to
the applications the end-user is using the ATM network to access, such as a video conferencing application.
Figure 5 presents the Reference Architecture in a tabular form and illustrates a methodical approach to
securing a network. As can be seen from the figure, the intersection of a Security Layer with a Security Plane
represents a unique perspective for consideration of the eight Security Dimensions. Each of the nine modules
combines the eight Security Dimensions that are applied to a particular Security Layer at a particular Security
Plane. It should be noted that the Security Dimensions of different modules may have different objectives and,
consequently, may comprise different sets of security measures. The tabular form gives a convenient way of
describing the objectives of the Security Dimensions for each module.

Figure 5 — Reference Architecture in a tabular form
It should be noted that the concept of protection used in the tables below encompasses creating the
mechanisms to detect where control mechanisms fail and to ensure that either the event is reported for action
and/or the devices/processes in place rectify any consequences of such failure.
10.1 Infrastructure Security Layer
Securing the Management Security Plane of the Infrastructure Security Layer is concerned with securing the
operations, administration, maintenance, and provisioning (OAM&P) as well as configuration of the individual
network elements, communication links, and server platforms that comprise the network. An example of
infrastructure management that needs to be secured is the configuration of an individual router or switch by
© ISO/IEC 2006 – All rights reserved 11

network operations personnel. Table 2 describes the objectives of applying the Security Dimensions to the
Infrastructure Security Layer, Management Security Plane.
Table 2 — Applying Security Dimensions to the Infrastructure Security Layer, Management Security
Plane
Module 1: Infrastructure Security Layer, Management Security Plane
Security
Security Objectives
Dimension
Ensure that only authorized personnel or devices (e.g., in the case of SNMP managed devices)
are allowed to perform or attempt to perform administrative or management activities on the
Access Control
network device or communications link. This applies to both direct management of the device
via a craft port and remote management of the device.
Verify the identity of the person or device performing the administrative or management
activity on the network device or communications link. Authentication techniques may be
Authentication
required as part of Access Control.
Provide a record identifying the individual or device that performed each administrative or
management activity on the network device or communications link and the action that was
Non-repudiation
performed. This record can be used as proof of the originator of the administrative or
management activity.
Protect the network device or communications link configuration information from
unauthorized access or viewing. This applies to configuration information resident in the
network device or communications link, configuration information being transmitted to the
network device or communications link as well as backup configuration information stored
Data
offline.
Confidentiality
Protect the administrative authentication information (e.g., administrator identifications and
passwords) from unauthorized access or viewing.
Techniques used to address Access Control may contribute to providing Data Confidentiality.
In the case of remote management of a network device or communications link, ensure that
the management information only flows between the remote management stations and the
devices or communication links that are being managed. The management information is not
Communication
diverted or intercepted as it flows between these endpoints.
Flow Security
The same type of consideration is applied to administrative authentication information
(e.g., administrator identifications and passwords).
Protect the configuration information of network devices and communications links against
unauthorized modification. This protection applies to configuration information resident in
the network device or communications link, as well as configuration information that is in
Data Integrity
transit or stored in offline systems.
The same type of consideration is applied to administrative authentication information
(e.g., administrator identifications and passwords).
Ensure that the ability to manage the network device or communications link by authorized
personnel or devices cannot be denied. This includes protection against active attacks such as
Availability Denial of Service (DoS) attacks as well as protection against passive attacks such as the
modification or deletion of the administrative authentication information (e.g., administrator
identifications and passwords).
Ensure that information that can be used to identify the network device or communications
link is not available to unauthorized personnel or devices. Examples of this type of
information include a network device's IP address or DNS domain name. For example, being
Privacy
able to identify the network device provides targeting information to attackers. Ensure that
personal information is collected, processed and disseminated through the network in
accordance with local data protection legislation and regulation.

12 © ISO/IEC 2006 – All rights reserved

Securing the Control Security Plane of the Infrastructure Security Layer consists of securing the control or
signaling information that resides in the network elements and server platforms that comprise the network as
well as securing the receipt and transmission of control or signaling information by the network elements and
server platforms. For example, the switching tables residing in network switches need to be protected from
tampering or unauthorized disclosure. In another example, routers need to be protected from r
...
