ISO 10639:2004

INTERNATIONAL ISO
STANDARD 10639
First edition
2004-02-01

Plastics piping systems for pressure and
non-pressure water supply — Glass-
reinforced thermosetting plastics (GRP)
systems based on unsaturated polyester
(UP) resin
Systèmes de canalisation en matières plastiques pour l'alimentation
en eau avec ou sans pression — Systèmes en plastiques
thermodurcissables renforcés de verre (PRV) à base de résine de
polyester non saturé (UP)




Reference number
ISO 10639:2004(E)
©
ISO 2004

---------------------- Page: 1 ----------------------
ISO 10639:2004(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


©  ISO 2004
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO 2004 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 10639:2004(E)
Contents Page
Foreword. iv
1 Scope. 1
2 Normative references. 2
3 Terms and definitions. 3
4 General. 13
4.1 Classification. 13
4.2 Materials. 14
4.3 Wall construction. 15
4.4 Appearance. 16
4.5 Reference conditions for testing. 16
4.6 Elapsed time, x, for determination of long-term properties. 16
4.7 Joints. 16
4.8 Effect on water quality. 17
5 Pipes. 18
5.1 Geometrical characteristics. 18
5.2 Mechanical characteristics. 25
5.3 Resistance of pressure pipes to cyclic internal pressure . 35
5.4 Marking. 35
6 Fittings. 36
6.1 All types. 36
6.2 Bends. 37
6.3 Branches. 42
6.4 Reducers. 45
6.5 Saddles. 49
6.6 Flanged adaptors. 50
6.7 Marking. 53
7 Joint performance. 54
7.1 General. 54
7.2 Flexible joints. 54
7.3 Rigid joints. 57
Annex A (normative) Principles used to establish the design requirements based on regression
testing and consideration of the variability of the product . 63
Annex B (informative) Guidance on leaktightness testing. 71

© ISO 2004 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 10639:2004(E)

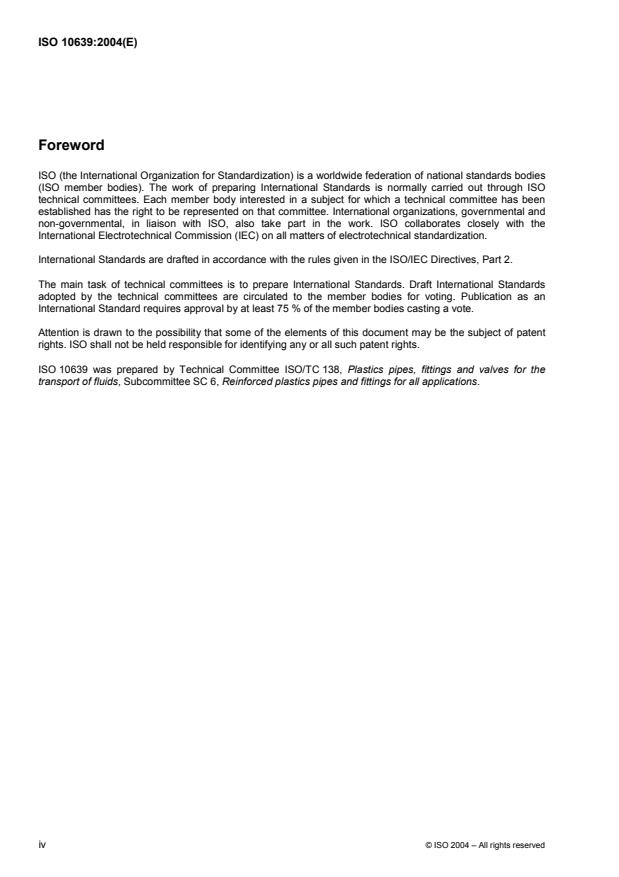

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 10639 was prepared by Technical Committee ISO/TC 138, Plastics pipes, fittings and valves for the
transport of fluids, Subcommittee SC 6, Reinforced plastics pipes and fittings for all applications.

iv © ISO 2004 – All rights reserved

---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 10639:2004(E)

Plastics piping systems for pressure and non-pressure water
supply — Glass-reinforced thermosetting plastics (GRP)
systems based on unsaturated polyester (UP) resin
1 Scope
This International Standard specifies the properties of piping system components made from glass-reinforced
thermosetting plastics (GRP) based on unsaturated polyester resin (UP) for water supply with or without
pressure, as well as the properties of the system itself.
This International Standard is applicable to GRP-UP piping systems, with flexible or rigid joints with or without
end thrust load-bearing capability, primarily intended for use in buried installations.
NOTE Piping systems conforming to this International Standard can also be used for non-buried applications
provided the influence of the environment and the supports are considered in the design of the pipes, fittings and joints.
This International Standard is applicable to pipes, fittings and their joints of nominal sizes from DN 50 to
DN 4000 which are intended to be used for the conveyance of water at temperatures up to 50 °C, with or
without pressure. In a pipework system, pipes and fittings of different nominal pressure and stiffness ratings
may be used together.
Clause 4 specifies the general aspects of GRP-UP piping systems intended to be used in the field of water
supply with or without pressure.
Clause 5 specifies the characteristics of pipes made from GRP-UP with or without aggregates and/or fillers.
The pipes may have a thermoplastics or thermosetting resin liner. Clause 5 also specifies the test parameters
for the test methods referred to in this International Standard.
Clause 6 specifies the characteristics of fittings made from GRP-UP, with or without a thermoplastics or
thermosetting resin liner, intended to be used in the field of water supply. Clause 6 specifies the dimensional
and performance requirements for bends, branches, reducers, saddles and flanged adaptors. Clause 6 is
applicable to fittings made using any of the following techniques:
a) fabrication from straight pipes;
b) moulding by
1) filament winding,
2) tape winding,
3) contact moulding,
4) hot or cold compression moulding.
© ISO 2004 – All rights reserved 1

---------------------- Page: 5 ----------------------
ISO 10639:2004(E)
Clause 7 is applicable to the joints to be used in GRP-UP piping systems to be used for the conveyance of
water, both buried and non-buried. It covers requirements to prove the design of the joint. Clause 7 specifies
type test performance requirements for the following joints as a function of the declared nominal pressure
rating of the pipeline or system:
a) socket-and-spigot (including double-socket) joints or mechanical joints;
b) locked socket-and-spigot joints;
c) cemented or wrapped joints;
d) bolted flange joints.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 75-2:2003, Plastics — Determination of temperature of deflection under load — Part 2: Plastics and
ebonite
ISO 161-1, Thermoplastics pipes for the conveyance of fluids — Nominal outside diameters and nominal
pressures — Part 1: Metric series
ISO 527-4, Plastics — Determination of tensile properties — Part 4: Test conditions for isotropic and
orthotropic fibre-reinforced plastic composites
ISO 527-5, Plastics — Determination of tensile properties — Part 5: Test conditions for unidirectional fibre-
reinforced plastic composites
ISO 2078, Textile glass — Yarns — Designation
ISO 2531, Ductile iron pipes, fittings, accessories and their joints for water or gas applications
ISO 3126, Plastics piping systems — Plastics components — Determination of dimensions
ISO 4200, Plain end steel tubes, welded and seamless — General tables of dimensions and masses per unit
length
ISO 7432:2002, Glass-reinforced thermosetting plastics (GRP) pipes and fittings — Test methods to prove the
design of locked socket-and-spigot joints, including double-socket joints, with elastomeric seals
ISO 7509, Plastics piping systems — Glass-reinforced thermosetting plastics (GRP) pipes — Determination of
time to failure under sustained internal pressure
ISO 7511:1999, Plastics piping systems — Glass-reinforced thermosetting plastics (GRP) pipes and fittings —
Test methods to prove the leaktightness of the wall under short-term internal pressure
ISO 7685, Plastics piping systems — Glass-reinforced thermosetting plastics (GRP) pipes — Determination of
initial specific ring stiffness
ISO 8483:2003, Glass-reinforced thermosetting plastics (GRP) pipes and fittings — Test methods to prove the
design of bolted flange joints
2 © ISO 2004 – All rights reserved

---------------------- Page: 6 ----------------------
ISO 10639:2004(E)
ISO 8513:2000, Plastics piping systems — Glass-reinforced thermosetting plastics (GRP) pipes —
Determination of longitudinal tensile properties
ISO 8521:1998, Plastics piping systems — Glass-reinforced thermosetting plastics (GRP) pipes —
Determination of the apparent initial circumferential tensile strength
ISO 8533:2003, Glass-reinforced thermosetting plastics (GRP) pipes and fittings — Test methods to prove the
design of cemented or wrapped joints
ISO 8639:2000, Glass-reinforced thermosetting plastics (GRP) pipes and fittings — Test methods for
leaktightness of flexible joints
ISO/TR 10465-3, Underground installation of flexible glass-reinforced thermosetting resin (GRP) pipes —
Part 3: Installation parameters and application limits
ISO 10466, Plastics piping systems — Glass-reinforced thermosetting plastics (GRP) pipes — Test method to
prove the resistance to initial ring deflection
ISO 10468, Glass-reinforced thermosetting plastics (GRP) pipes — Determination of the long-term specific
ring creep stiffness under wet conditions and calculation of the wet creep factor
ISO 10471, Glass-reinforced thermosetting plastics (GRP) pipes — Determination of the long-term ultimate
bending strain and the long-term ultimate relative ring deflection under wet conditions
ISO 10928:1997, Plastics piping systems — Glass-reinforced thermosetting plastics (GRP) pipes and
fittings — Methods for regression analysis and their use
ISO 11922-1, Thermoplastics pipes for the conveyance of fluids — Dimensions and tolerances — Part 1:
Metric series
ISO 14828, Glass-reinforced thermosetting plastics (GRP) pipes — Determination of the long-term specific
ring relaxation stiffness under wet conditions and calculation of the wet relaxation factor
ISO 15306, Glass-reinforced thermosetting plastics (GRP) pipes — Determination of the resistance to cyclic
internal pressure
EN 681-1, Elastomeric seals — Materials requirements for pipe joint seals used in water and drainage
applications — Part 1: Vulcanized rubber
EN 681-2, Elastomeric seals — Materials requirements for pipe joint seals used in water and drainage
applications — Part 2: Thermoplastic elastomers
JIS A 5350, Fibreglass reinforced plastic mortar pipes
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
nominal size
DN
alphanumerical designation of size, which is common to all components in a piping system, which is a
convenient round number for reference purposes and is related to the internal diameter in millimetres
NOTE The designation for reference or marking purposes consists of the letters DN plus a number.
© ISO 2004 – All rights reserved 3

---------------------- Page: 7 ----------------------
ISO 10639:2004(E)
3.2
declared diameter
diameter which a manufacturer states to be the mean internal or external diameter produced in respect of a
particular nominal size (DN)
3.3
nominal stiffness
SN
alphanumerical designation of stiffness classification purposes, which has the same numerical value as the
2
minimum initial value required, when expressed in newtons per square metre (N/m ) (see 4.1.3)
NOTE The designation for reference or marking purposes consists of the letters SN plus a number.
3.4
specific ring stiffness
S
measure of the resistance, in newtons per square metre, of a pipe to ring deflection per metre length under
external load as defined by Equation (1):
E × I
S = (1)
3
d
m
where
E is the apparent modulus of elasticity as determined in a ring stiffness test, in newtons per square
2
metre (N/m );
I is the second moment of area in the longitudinal direction per metre length, in metres to the fourth
4
power per metre (m /m), i.e.
3
e
I = (2)
12
e being the wall thickness, in metres (m);
d is the mean diameter of the pipe, in metres (m) (see 3.5)
m
3.5
mean diameter
d
m
diameter of the circle corresponding to the middle of the pipe wall cross-section and given, in metres (m), by
either Equation (3) or (4)
d = d + e (3)
m i
d = d – e (4)
m e
where
d is the internal diameter, in metres (m);
i
d is the external diameter, in metres (m);
e
e is the wall thickness of the pipe, in metres (m)
4 © ISO 2004 – All rights reserved

---------------------- Page: 8 ----------------------
ISO 10639:2004(E)
3.6
initial specific ring stiffness
S
0
2
value of S obtained when determined in accordance with ISO 7685, in newtons per square metre (N/m )
3.7
wet creep factor
α
x, wet, creep
ratio of the long-term specific ring stiffness, S , at x years (see 4.6), determined under sustained loading in
x, wet
wet conditions in accordance with ISO 10468, to the initial specific ring stiffness, S , both measured at the
0
same position referred to as reference position 1
NOTE It is given by Equation (5):
S
x, 1, wet
α = (5)
x, wet, creep
S
0, 1
3.8
wet relaxation factor
α
x, wet, relax
ratio of the long-term specific ring stiffness, S , at x years (see 4.6), determined under sustained deflection
x, wet
in wet conditions in accordance with ISO 14828, to the initial specific ring stiffness, S , both measured at the
0
same position, referred to as reference position 1
NOTE It is given by Equation (6):
S
x, 1, wet
α = (6)
x, wet, relax
S
0, 1
3.9
calculated long-term specific ring stiffness
S
x, wet
calculated value of S (see 4.6) at x years, obtained by Equation (7):
SS=×α (7)
xx, wet 0 , wet
where
x is the elapsed time, in years, specified in this International Standard (see 4.6);
α is either the wet creep factor (see 3.7) or the wet relaxation factor (see 3.8);
x, wet
2
S is the initial specific ring stiffness, in newtons per square metre (N/m ) (see 3.6).
0
3.10
rerating factor
R
RF
multiplication factor that quantifies the relation between a mechanical, physical or chemical property under the
service conditions compared to the respective value at 23 °C and 50 % relative humidity (R.H.)
© ISO 2004 – All rights reserved 5

---------------------- Page: 9 ----------------------
ISO 10639:2004(E)
3.11
nominal pressure
PN
alphanumeric designation for pressure classification purposes which is numerically equal to the resistance of
1)
a component of a piping system to internal pressure, expressed in bars
NOTE The designation for reference or marking purposes consists of the letters PN plus a number.
3.12
type test
test carried out in order to assess the fitness for purpose of a product or assembly of components to fulfil its or
their function(s) in accordance with the product specification
3.13
nominal length
numerical designation of pipe length which is equal to the laying length (see 3.15), expressed in metres (m),
rounded to the nearest whole number
3.14
total length
distance between two planes normal to the pipe axis and passing through the extreme end points of the pipe,
expressed in metres (m)
3.15
laying length
total length of a pipe minus, where applicable, the manufacturer's recommended insertion depth of the
spigot(s) in the socket
3.16
normal service conditions
conveyance of surface water or sewage in the temperature range 2 °C to 50 °C, with or without pressure, for
50 years
NOTE At temperatures above 35 °C, it may be necessary to rerate the pipe.
3.17
working pressure
p
w
internal pressure, excluding surge, at which a system is to be continuously operated, expressed in bars
3.18
maximum working pressure
maximum internal pressure, excluding surge, at which a system can be continuously operated, expressed in
bars
3.19
surge
rapid change in internal pressure, either positive or negative, caused by a change in the flow velocity
NOTE It is expressed in bars.
3.20
surge allowance
value, expressed in bars or as a percentage of the maximum working pressure of a pipe, that can be added to
the maximum working pressure to allow for occasional fluctuations in pressure
NOTE The value may vary depending upon the anticipated frequency of the surge conditions.

5 2
1) 1 bar = 10 N/m = 100 kPa (or = 0,1 MPa)
6 © ISO 2004 – All rights reserved

---------------------- Page: 10 ----------------------
ISO 10639:2004(E)
3.21
static design pressure
maximum working pressure of a system, taking into account current and future use, fixed by the designer
NOTE It is expressed in bars.
3.22
maximum design pressure
maximum working pressure, including surge, that the designer anticipates in a system
NOTE It is expressed in bars.
3.23
non-pressure pipe or fitting
pipe or fitting subjected to an internal pressure not greater than 1 bar
3.24
pressure pipe or fitting
pipe or fitting having a nominal pressure classification, expressed in bars, greater than 1 bar and which is
intended to be used at internal pressures up to its nominal pressure in bars
3.25
buried pipeline
pipeline which is subjected to the external pressure transmitted from soil loading, including traffic and
superimposed loads and possibly the pressure of a head of water
3.26
non-buried pipeline
pipeline which is subjected to negative and positive pressure, forces resulting from its supports, environmental
conditions, e.g. snow and wind, and possibly the pressure of a head of water
3.27
sub-aqueous pipeline
pipeline which is subjected to an external pressure arising from a head of water and conditions such as drag
and lift caused by current and wave action
3.28
design service temperature
maximum sustained temperature at which a system is expected to operate, expressed in degrees Celsius (°C)
3.29
variance
measure of dispersion based on the mean square deviation from the arithmetic mean
3.30
standard deviation
σ
positive square root of the variance
3.31
coefficient of variation
Y
ratio of the standard deviation to the absolute value of the arithmetic mean [see Equation (8)]:
Standard deviation of the population
Y = (8)
Mean of the population
NOTE In this International Standard, it is expressed as a percentage.
© ISO 2004 – All rights reserved 7

---------------------- Page: 11 ----------------------
ISO 10639:2004(E)
3.32
acceptable quality level
AQL
quality level which, for the purposes of sampling inspection of a continuous series of lots, is the limit of a
satisfactory process-average percent nonconforming
3.33
projected failure pressure at 6 min
p
6
value at 6 min derived from the pressure regression line obtained from long-term pressure tests performed in
accordance with ISO 7509 and analysed in accordance with ISO 10928
3.34
projected failure pressure at 50 years
p
50
value at 50 years derived from the pressure regression line obtained from long-term pressure tests performed
in accordance with ISO 7509 and analysed in accordance with ISO 10928
3.35
pressure regression ratio
R
R, p
ratio of the projected failure pressure at 50 years, p , to the projected failure pressure at 6 min, p , obtained
50 6
from long-term pressure tests performed in accordance with ISO 7509 [see Equation (9)] and analysed in
accordance with ISO 10928
p
50
R = (9)
R, p
p
6
3.36
initial failure pressure
p
0
pressure at which failure occurs with specimens subjected to short-term tests performed in accordance with
ISO 8521
3.37
minimum failure pressure at 50 years
p
50, 97,5 % LCL, min
failure pressure at 50 years which 97,5 % of products are required to exceed [see Equation (10)]:
p = PN × η (10)
50, 97,5 % LCL, min t, PN, 97,5 % LCL, min

3.38
minimum failure pressure at 6 min
p
6, min
failure pressure at 6 min which 97,5 % of products are required to exceed [see Equation (11)]:
p
50, 97,5 % LCL, min
p = (11)
6, min
R
R, p
3.39
correction factor for initial failure pressure
C
factor used to convert projected 6-min values, p , to initial failure pressure values, p [see Equation (12)]:
6 0
p
0
C = (12)
p
6
8 © ISO 2004 – All rights reserved

---------------------- Page: 12 ----------------------
ISO 10639:2004(E)
3.40
minimum initial failure pressure
p
0, min
initial failure pressure, determined in accordance with ISO 8521, which 97,5 % of products are required to
exceed [see Equation (13)]:
PP=×C (13)
0, min 6, min
3.41
minimum design pressure
p
0, d
design initial failure pressure to ensure 97,5 % of products will exceed p [see Equation (14)]:
0, min
1
(14)
pp=×
0, d 0, min
1−×Y 0,01×1,96
()
3.42
minimum mean failure pressure at 50 years
p
50, mean, min
failure pressure at 50 years which 50 % of products are required to exceed [see Equation (15)]:
p = PN × η (15)
50, mean, min t, PN, mean

where PN is expressed in bars
3.43
AQL multiplier
MPL
test
multiplier, whose value is dependent upon the specified AQL (see 3.32), that is used with the coefficient of
variation (see 3.31)
EXAMPLES If the AQL = 6,5 %, then MPL = 1,51. If the AQL = 2,5 %, then MPL = 1,96.
tes test
t
3.44
tensile safety factor
η
t
safety factor which is applied to the tensile strength of a product
3.45
tensile safety factor related to p
50, 97,5 % LCL, min
η
t, PN, 97,5 %, min
safety factor which is applied to the nominal pressure (PN) to ensure that 97,5 % of products when installed in
the ground can operate at a working pressure, p (see 3.17), equal to PN without failure for at least 50 years
w
NOTE For further information, see ISO/TR 10465-3.
3.46
relative ring deflection
y/d
m
ratio of the change in diameter of a pipe, y, in metres, to its mean diameter, d (see 3.5)
m
NOTE It is derived as a percentage from Equation (16):
y
Relative ring deflection=×100 (16)
d
m
© ISO 2004 – All rights reserved 9

---------------------- Page: 13 ----------------------
ISO 10639:2004(E)
3.47
projected initial relative ultimate ring deflection
y /d
2 m
projected deflection value at 2 min derived from the ultimate deflection regression line obtained from long-term
ultimate deflection tests performed in accordance with ISO 10471 and analysed in accordance with ISO 10928
NOTE It is expressed as a percentage by multiplying by 100.
3.48
minimum initial relative specific ring deflection before bore cracking occurs
(y /d )
2, bore m min
initial relative deflection at 2 min which a test piece is required to pass without bore cracking when tested in
accordance with ISO 10466
NOTE It is expressed as a percentage by multiplying by 100.
3.49
minimum initial relative specific ring deflection before structural failure occurs
(y /d )
2, struct m min
initial relative deflection at 2 min which a test piece is required to pass without structural failure when tested in
accordance with ISO 10466
NOTE It is expressed as a percentage by multiplying by 100.
3.50
extrapolated long-term relative ultimate ring deflection
y /d
u, wet, x m
deflection value at x years (see 4.6) derived from the ultimate deflection regression line obtained from long-
term deflection tests performed under wet conditions in accordance with ISO 10471 and analysed in
accordance with ISO 10928
NOTE It is expressed as a percentage by multiplying by 100.
3.51
minimum long-term relative ultimate ring deflection
(y /d )
u, wet, x m min

required minimum extrapolated value at x years (see 4.6) derived from the ultimate deflection regression line
obtained from long-term deflection tests performed under wet conditions in accordance with ISO 10471
NOTE It is expressed as a percentage by multiplying by 100.
3.52
ultimate deflection regression ratio
R
R, dv
ratio of the extrapolated long-term relative ultimate ring deflection at x years (see 4.6), y /d (see 3.50),
u, wet, x m
to the projected initial ultimate ring deflection, y /d (see 3.47), obtained from long-term ultimate ring
2 m
deflection tests performed in accordance with ISO 10471 [see Equation (17)] and analysed in accordance with
ISO 10928
yd/
u, wet, x m
R = (17)
R, dv
yd/
2m
3.53
angular deflection
δ
angle between the axes of two consecutive pipes (see Figure 1), expressed in degrees (°)
10 © ISO 2004 – All rights reserved

---------------------- Page: 14 ----------------------
ISO 10639:2004(E)
3.54
draw
D
longit
...
