Overview
ISO 11093-5:2016 - Paper and board - Testing of cores - Part 5: Determination of characteristics of concentric rotation specifies a laboratory method to measure the rotational geometry of cylindrical board cores (mandrins). The standard applies to cores with a minimum wall thickness of 5 mm, minimum external diameter of 60 mm and maximum sample length of 3 200 mm. It defines apparatus, sampling/conditioning references, measurement procedures and reporting requirements for circularity and rectitude (concentric rotation characteristics).
Key topics and technical requirements
- Scope limits: wall thickness ≥ 5 mm; external diameter ≥ 60 mm; sample length ≤ 3 200 mm (full core or extracted specimen 1 200–3 200 mm where applicable).
- Measurement principles:
- Circularity (three-point method): measure between three points in a plane perpendicular to the core axis where two points are fixed and the third is the measurement point. Rotate the core 360° and record minimum and maximum dial-indicator readings; difference = circularity f_R (mm).
- Rectitude (five-point method): measure between five points in perpendicular planes where four points are fixed (two pairs) and the fifth is in the mid plane. Rotate core 360°, record min/max; rectitude f_S = (x/2) where x is the measured difference (mm). Convert to mm/m using f' = f_S × 1000 / S_l (S_l = distance between supports in mm).
- Apparatus requirements:
- Two supports (pairs of free-rotating rollers) and a sliding frame with two measurement heads.
- Roller diameter (85 ± 1) mm, width (19 ± 1) mm (example: bearing 6209).
- Measurement feet: flat 10 mm diameter, load ≈ 1.2 N; dial indicators graduated 0.01 mm with accuracy at least 0.005 mm.
- Support geometry: tangents between roller supports form 120° ± 5°; support spacing equals core length minus (200 ± 10) mm.
- Sampling & conditioning: sampling per ISO 11093-1; conditioning per ISO 11093-2.
- Quality data: calculate mean and standard deviation of circularity and rectitude to 0.01 mm precision. Measurement fidelity is adequate for rectitude ≥ 0.3 mm/m.
- Reporting: include ISO reference, core type, sampling/test dates and locations, specimen count and dimensions, test length, mean and SD for f_R and f_S, signature, and any deviations.
Applications and users
ISO 11093-5 is used for quality control, supplier acceptance, production process control and R&D for manufacturers and users of paperboard cores and mandrins. Typical users include:
- Core and tube manufacturers
- Converters and rewinders (winding paper, film, foil, nonwovens)
- Independent test laboratories and QA departments
- Product engineers validating core geometry and concentric rotation
Related standards
- ISO 11093-1 - Sampling
- ISO 11093-2 - Conditioning of samples for test
- Other parts of ISO 11093 series (dimensions, moisture, bending, compression, modal analysis) provide complementary test methods for cores.
Keywords: ISO 11093-5, testing of cores, concentric rotation, circularity, rectitude, paper and board, mandrins, core testing, measurement apparatus.
ISO 11093-5:2016 - Paper and board — Testing of cores — Part 5: Determination of characteristics of concentric rotation Released:1/19/2016
ISO 11093-5:2016 - Papier et carton — Essais des mandrins — Partie 5: Détermination des caractéristiques de rotation Released:1/19/2016
Frequently Asked Questions
ISO 11093-5:2016 is a standard published by the International Organization for Standardization (ISO). Its full title is "Paper and board - Testing of cores - Part 5: Determination of characteristics of concentric rotation". This standard covers: ISO 11093:2016 specifies a method for determining the characteristics of concentric rotation of cylindrical board cores which meet the following criteria: - minimum wall thickness: 5 mm; - minimum external diameter: 60 mm; - maximum sample length: 3 200 mm.
ISO 11093:2016 specifies a method for determining the characteristics of concentric rotation of cylindrical board cores which meet the following criteria: - minimum wall thickness: 5 mm; - minimum external diameter: 60 mm; - maximum sample length: 3 200 mm.
ISO 11093-5:2016 is classified under the following ICS (International Classification for Standards) categories: 85.060 - Paper and board. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 11093-5:2016 has the following relationships with other standards: It is inter standard links to ISO 11093-5:2009. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase ISO 11093-5:2016 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of ISO standards.
Standards Content (Sample)

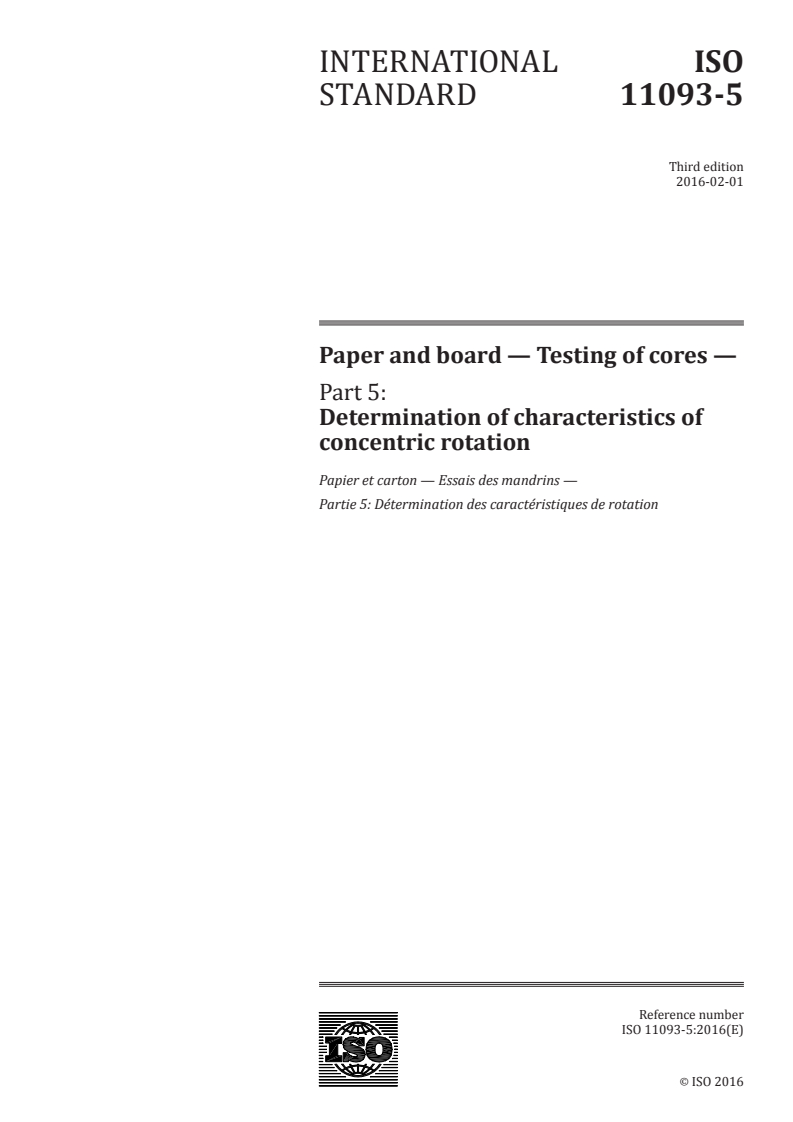

INTERNATIONAL ISO
STANDARD 11093-5
Third edition
2016-02-01
Paper and board — Testing of cores —
Part 5:
Determination of characteristics of
concentric rotation
Papier et carton — Essais des mandrins —
Partie 5: Détermination des caractéristiques de rotation
Reference number
©
ISO 2016
© ISO 2016, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2016 – All rights reserved
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Principles . 1
3.1 Determination of roundness deviation (f ) by three-point measurement . 1
R
3.2 Determination of the straightness deviation (f ) by five-point measurement . 1
S
4 Apparatus . 1
5 Preparation of test pieces . 2
5.1 Sampling . 2
5.2 Test pieces . 2
5.3 Conditioning of test pieces . 2
6 Measuring procedure . 3
6.1 General . 3
6.2 Positioning of the support . 3
6.3 Measuring of roundness deviation . 3
6.4 Measuring of straightness deviation . 3
6.4.1 Straightness deviation. 3
6.4.2 Precision of the measurement system . 3
7 Calculation . 4
8 Test report . 4

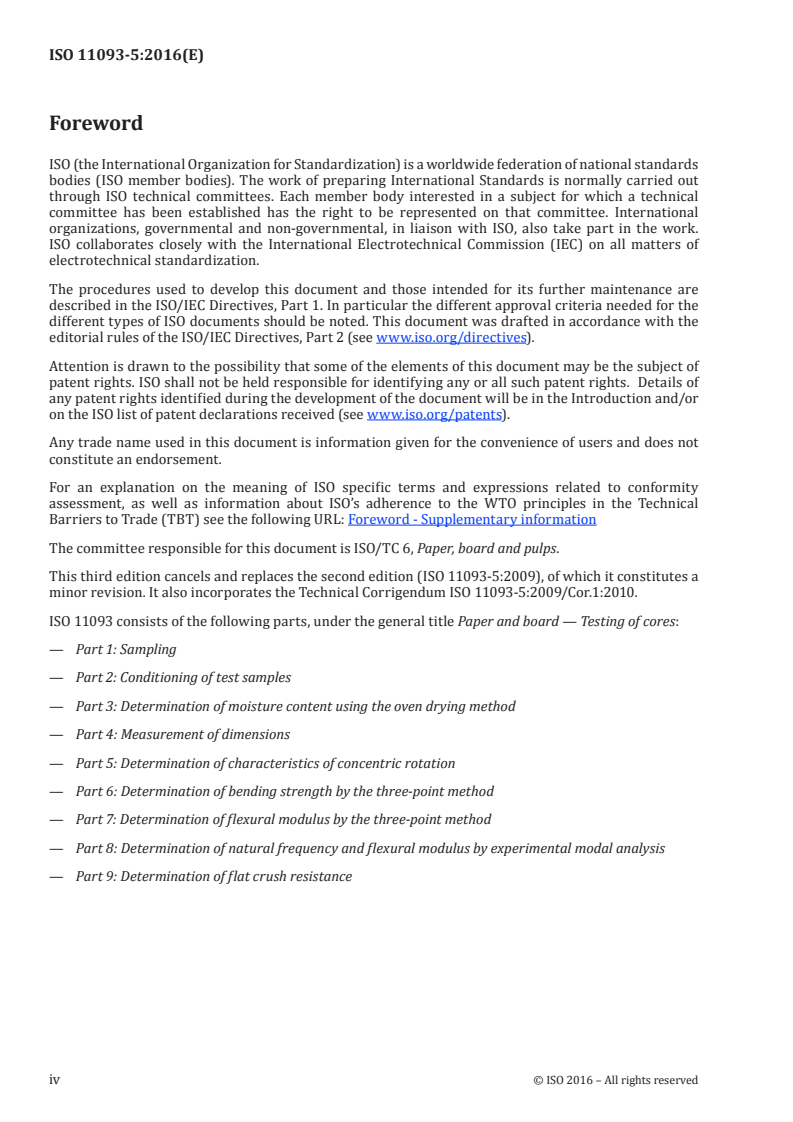

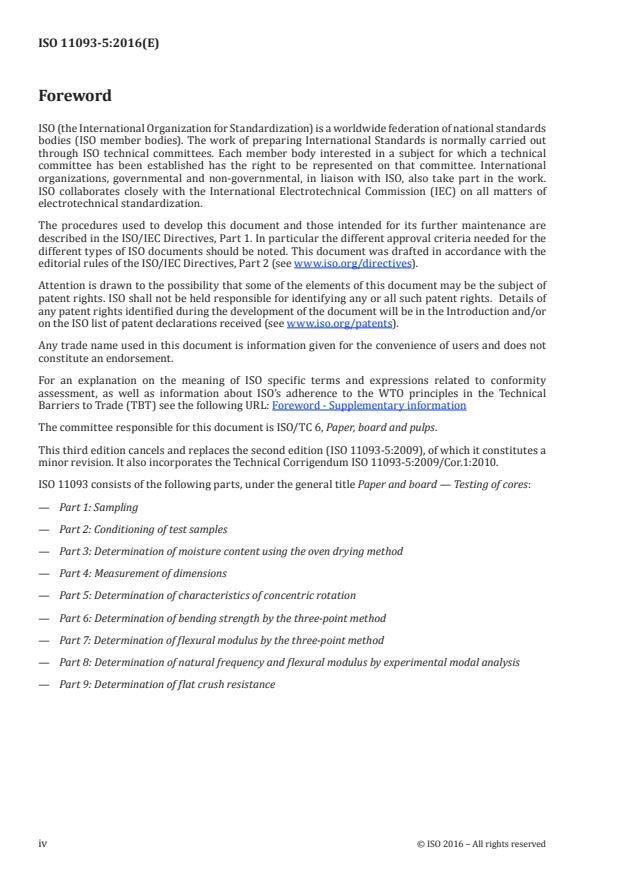

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 6, Paper, board and pulps.
This third edition cancels and replaces the second edition (ISO 11093-5:2009), of which it constitutes a
minor revision. It also incorporates the Technical Corrigendum ISO 11093-5:2009/Cor.1:2010.
ISO 11093 consists of the following parts, under the general title Paper and board — Testing of cores:
— Part 1: Sampli
...

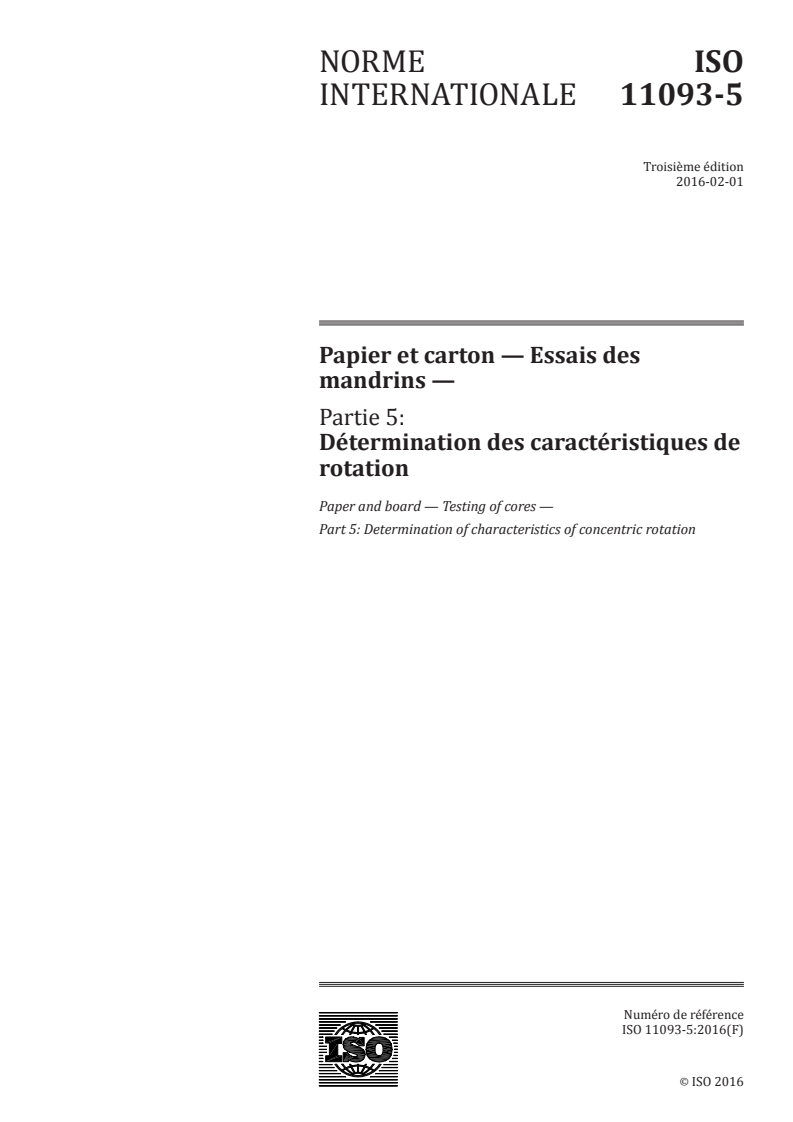

NORME ISO
INTERNATIONALE 11093-5
Troisième édition
2016-02-01
Papier et carton — Essais des
mandrins —
Partie 5:
Détermination des caractéristiques de
rotation
Paper and board — Testing of cores —
Part 5: Determination of characteristics of concentric rotation
Numéro de référence
©
ISO 2016
DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2016, Publié en Suisse
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni utilisée
sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie, l’affichage sur
l’internet ou sur un Intranet, sans autorisation écrite préalable. Les demandes d’autorisation peuvent être adressées à l’ISO à
l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2016 – Tous droits réservés

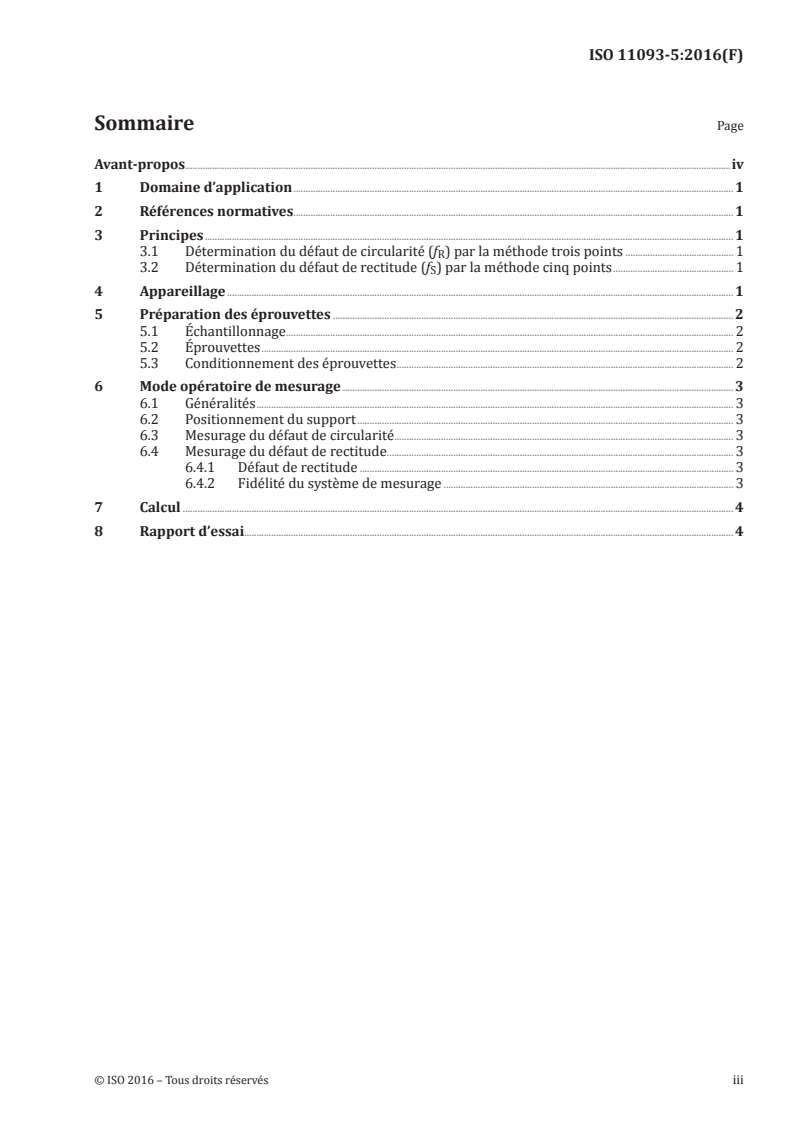

Sommaire Page
Avant-propos .iv
1 Domaine d’application . 1
2 Références normatives . 1
3 Principes . 1
3.1 Détermination du défaut de circularité (f ) par la méthode trois points . 1
R
3.2 Détermination du défaut de rectitude (f ) par la méthode cinq points . 1
S
4 Appareillage . 1
5 Préparation des éprouvettes . 2
5.1 Échantillonnage . 2
5.2 Éprouvettes . 2
5.3 Conditionnement des éprouvettes . 2
6 Mode opératoire de mesurage . 3
6.1 Généralités . 3
6.2 Positionnement du support . 3
6.3 Mesurage du défaut de circularité . 3
6.4 Mesurage du défaut de rectitude . 3
6.4.1 Défaut de rectitude . 3
6.4.2 Fidélité du système de mesurage . 3
7 Calcul . 4
8 Rapport d’essai . 4

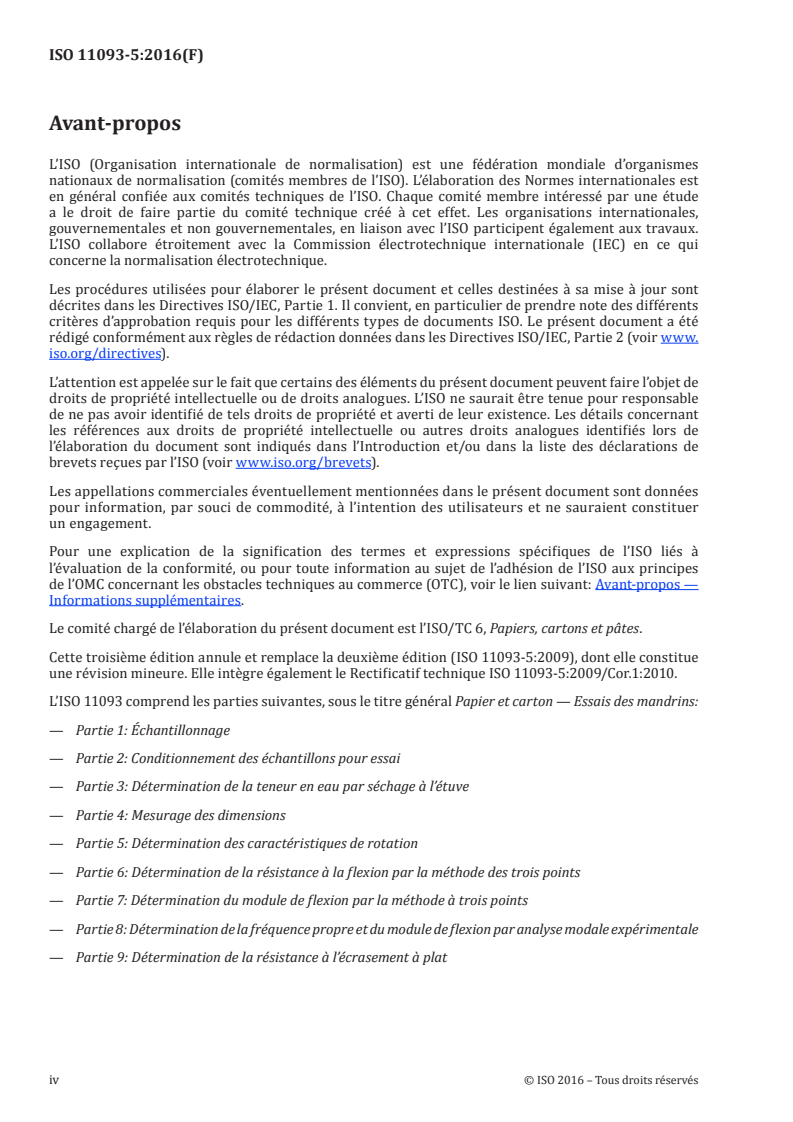

Avant-propos
