ISO/PAS 19451-2:2016

PUBLICLY ISO/PAS
AVAILABLE 19451-2
SPECIFICATION
First edition
Application of ISO 26262:2011-2012
to semiconductors —
Part 2:
Application of hardware qualification
Application de l’ISO 26262:2011-2012 aux semi-conducteurs —
Partie 2: Application de la qualification du matériel
PROOF/ÉPREUVE
Reference number
ISO/PAS 19451-2:2016(E)
©
ISO 2016

---------------------- Page: 1 ----------------------
ISO/PAS 19451-2:2016(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2016, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2016 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/PAS 19451-2:2016(E)

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Hardware qualification . 1
5 How is “standard qualification” differentiated from ISO 26262 hardware qualification? .1
5.1 Standard qualification . 1
5.2 ISO 26262 hardware qualification . 2
6 Why is ISO 26262 hardware qualification applied? . 2
6.1 Hardware qualification as a method of design verification of allocated
safety requirements . 2
6.2 Hardware qualification as a method to justify the use of components or parts
which have not been developed according to ISO 26262 . 4
6.3 Hardware qualification as a method to enable robustness validation . 5
7 When is ISO 26262 hardware qualification applied? . 5
7.1 Considering ISO 26262-8, Table 6 . 5
7.2 Standard qualification . 6
7.3 Hardware qualification according to ISO 26262 . 6
8 Challenges in application of ISO 26262 hardware qualification . 7
8.1 Impact of complexity on hardware qualification . 7
8.2 Impact of hardware part vs. hardware component taxonomy on hardware qualification . 8
8.3 Conclusion . 9
Annex A (informative) Excerpts from an example standard qualification plan .10
Bibliography .11
© ISO 2016 – All rights reserved PROOF/ÉPREUVE iii

---------------------- Page: 3 ----------------------
ISO/PAS 19451-2:2016(E)

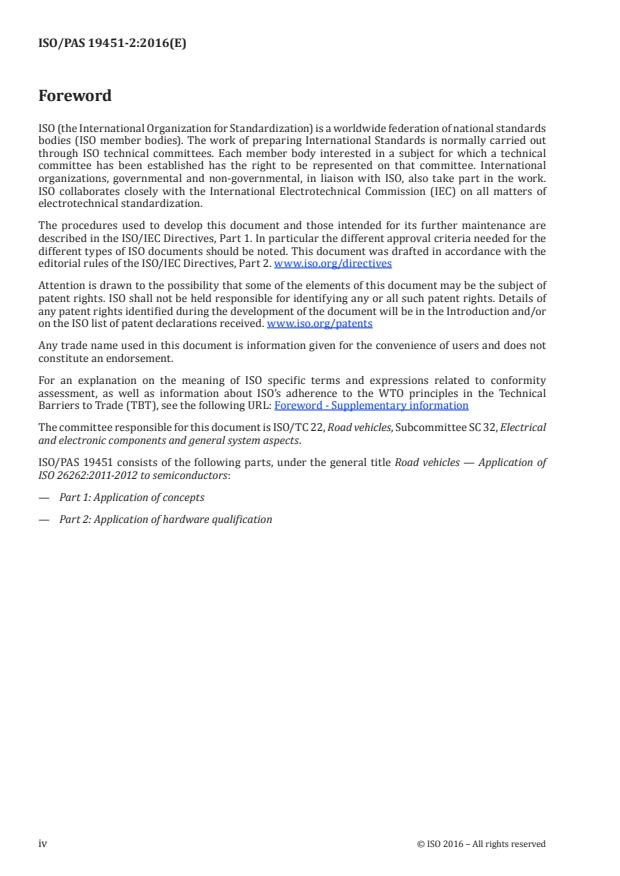

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2. www.iso.org/directives
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received. www.iso.org/patents
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT), see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 22, Road vehicles, Subcommittee SC 32,
Electrical and electronic components and general system aspects.
ISO/PAS 19451 consists of the following parts, under the general title Road vehicles — Application of
ISO 26262:2011-2012 to semiconductors:
— Part 1: Application of concepts
— Part 2: Application of hardware qualification
iv PROOF/ÉPREUVE © ISO 2016 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/PAS 19451-2:2016(E)

Introduction
This document is an informative guideline which provides users of the ISO 26262:2011-2012
standard recommendations and best practices which can be utilized when applying ISO 26262 to
semiconductor components and parts. This document was created by a group of industry experts
including semiconductor developers, system developers, and vehicle manufacturers in order to clarify
concerns seen after the initial release of the ISO 26262 standard and when possible to align on common
interpretations of the standard.
This document serves to augment the existing normative and informative guidance in the ISO 26262
standard. The approach is similar to that taken in writing the ISO 26262-10:2012, Annex A, “ISO 26262 and
microcontrollers,” with extension to additional types of semiconductor technologies and relevant topics.
© ISO 2016 – All rights reserved PROOF/ÉPREUVE v

---------------------- Page: 5 ----------------------
PUBLICLY AVAILABLE SPECIFICATION ISO/PAS 19451-2:2016(E)
Application of ISO 26262:2011-2012 to semiconductors —
Part 2:
Application of hardware qualification
1 Scope
This document is applicable to developers who are evaluating the use of hardware qualification for
semiconductor elements according to ISO 26262-8:2011, Clause 13.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 16750-1, Road vehicles — Environmental conditions and testing for electrical and electronic
equipment — Part 1: General
ISO 26262-1, Road vehicles — Functional safety — Part 1: Vocabulary
ISO 26262-4, Road vehicles — Functional safety — Part 4: Product development at the system level
ISO 26262-5:2011, Road vehicles — Functional safety — Part 5: Product development at the hardware level
ISO 26262-8:2011, Road vehicles — Functional safety — Part 8: Supporting processes
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 26262-1 apply.
4 Hardware qualification
Hardware qualification is a process in which it is determined if the hardware can fulfil the allocated
requirements of a given design. There are multiple ways in which hardware qualification can be defined
and applied. Unfortunately ISO 26262-1 does not include a formal definition of hardware qualification.
Due to the variety of usages of the phrase “hardware qualification” there can be perceived ambiguity in
ISO 26262-8:2011, Clause 13 dependent on the background of the reader.
Throughout the remainder of this document the phrase “hardware qualification” is used to reference
“Qualification of Hardware Components” according to ISO 26262-8:2011, Clause 13. Activities used to
qualify hardware for compliance to relevant automotive quality standards for safety related or non-
safety related hardware components and parts are described as “standard qualification.”
5 How is “standard qualification” differentiated from ISO 26262 hardware
qualification?
5.1 Standard qualification
ISO 26262-8:2011, Clause 13 does not specify a particular standard or set of standards which should be
applied for standard qualification. Several examples are listed as understood to be relevant to current
© ISO 2016 – All rights reserved PROOF/ÉPREUVE 1

---------------------- Page: 6 ----------------------
ISO/PAS 19451-2:2016(E)

state of the art. The user of the standard should take care to ensure that any standard or set of standards
to be applied for hardware qualification are considered state of the art at the time of development.
ISO 16750-1 is one of the references suggested to carry out a standard qualification. It gives requirements
to qualify suitability of a product for automotive applications. Tests proposed by ISO 16750-1 are meant
to stress the product at the boundaries of an automotive scenario to ensure its robustness in terms
of e.g. temperature and voltage ranges. Qualification according to ISO 16750-1 is meant for generic
automotive usage.
[7]
AEC-Q100 provides details of a number of accelerated test methods which could be applied to perform
standard qualification. The main AEC-Q100 document is supplemented by multiple annexes which each
focus on a specific test method for accelerated testing of particular failure modes. The Automotive
Electronics Council provides other standards focusing on discrete semiconductors (AEC-Q101 series)
and passive components (AEC-Q200 series) which may be relevant dependent on the type of element
under consideration.
Annex A provides excerpts from an example standard qualification plan used by a supplier of
semiconductors to the automotive market. Tests have been selected from a number of quality standards
in order to demonstrate suitability for use in automotive applications. In this example qualification tests
from AEC, JEDEC, and US military standards are referenced. Exact contents of a standard qualification
plan will vary from supplier to supplier and should be based on testing of specific failure modes relevant
to the type of circuitry implemented and the specific technology used.
NOTE If experimental data from standard qualification is to be used as a source for failure rates in calculation
of functional safety metrics according to ISO 26262-5:2011, 8.4.3 then appropriate failure mechanisms and
sample sizes are considered.
5.2 ISO 26262 hardware qualification
Qualification according to ISO 26262-8:2011, Clause 13 requires that a dedicated qualification argument
(report) should be provided for the hardware component or part with respect to the allocated safety
requirements. The qualification argument demonstrates that the applied analyses and tests provide
sufficient evidence of compliance with the allocated safety requirement(s). The relevant failure modes
and failure mode distributions are also included in order to evaluate the validity of the argument.
Some results of standard qualification may satisfy the requirements of the hardware qualification
activity. A gap analysis could be performed to identify requirements of hardware qualification which are
not satisfied by standard qualification. If no gap is identified, this analysis should be a sufficient argument
to claim compliance with ISO 26262-8:2011, Clause 13. This is supported by ISO 26262-8:2011, 13.4.5.
In some cases data generated from standard qualification activities can be used to provide failure rates
and failure distributions for a part or component. If this approach is taken, it is done in accordance
with ISO 26262-5:2011, 8.4.3. If additional testing is used to develop failure rates for safety analysis the
developer can consult a relevant industry publication such as the ZVEI or SAE Handbook of Robustness
[9][10]
Validation of Semiconductor Devices in Automotive Applications for suggestions in the selection
and application of relevant tests.
The qualification according to ISO 26262-8:2011, Clause 13 may also include verification and testing
plans for the functional aspects of the hardware component and part. These verification activities are
not always performed by the supplier, particularly in the case of COTS or SEooC parts or components. If
performed, these activities are part of the qualification and safety case argumentation.
6 Why is ISO 26262 hardware qualification applied?
6.1 Hardware qualification as a method of design verification of allocated safety
requirements
As stated in the NOTE of ISO 26262-4:2011, 7.4.5.2, hardware qualification according to
ISO 26262-8:2011, Clause 13 may provide evidence of compliance to allocated safety requirements.
2 PROOF/ÉPREUVE © ISO 2016 – All rights reserved

---------------------- Page: 7 ----------------------
ISO/PAS 19451-2:2016(E)

In this context the output of the hardware qualification activity can be used as an input to the item
integration and test activity.
ISO 26262-5:2011, 6.4.6 states that hardware qualification is an accepted method for design verification
of the hardware of the item or element, including environmental conditions, specific operational
environment, and component specific requirements.
As stated in ISO 26262-5:2011, 10.2, hardware qualification and associated testing is not the same as
hardware integration and testing.
As both ISO 26262-5:2011, Clause 10 and ISO 26262-4:2011, Clause 8 have as an objective to ensure by
testing the compliance of the developed hardware and integrated elements with the (allocated) safety
requirements, qualification is an alternative or specific means to testing. It can be used for hardware
components and parts lower in the design hierarchy and in cases where it can be a sufficient means
to provide evidence of the compliance to the allocated safety requirements, while further integration
tests may be needed at higher levels in the design hierarchy.
Figure 1 illustrates how hardware qualification interacts with other verification activities in the
context of ISO 26262. According to ISO 26262-5:2011, 6.4.6 there are multiple options to provide design
verification, including by hardware qualification (see ISO 26262-8:2011, Clause 13) and by hardware
integration and testing (see ISO 26262-5:2011, Clause 10). The planning of the verification activity
is illustrated as occurring before initiation of the hardware design (see ISO 26262-5:2011, Clause 7).
The results of the hardware qualification activity then become inputs to the hardware integration
and testing activity (see ISO 26262-5:2011, Clause 10) or the item integration and testing activity
(ISO 26262-4:2011, Clause 8), dependent on the level of hierarchy of the element under qualification.
The standard qualification report, though not directly a work product of hardware qualification
according to ISO 26262-8:2011, Clause 13, is used as an input to the initiation of product development
at the hardware level (ISO 26262-5:2011, Clause 5) if available when product development at hardware
level is initiated.
© ISO 2016 – All rights reserved PROOF/ÉPREUVE 3

---------------------- Page: 8 ----------------------
ISO/PAS 19451-2:2016(E)

Figure 1 — Interactions with hardware qualification
6.2 Hardware qualif
...
