ISO 26262-10:2018

INTERNATIONAL ISO
STANDARD 26262-10
Second edition
2018-12
Road vehicles — Functional safety —
Part 10:
Guidelines on ISO 26262
Véhicules routiers — Sécurité fonctionnelle —
Partie 10: Lignes directrices relatives à l'ISO 26262
Reference number
©
ISO 2018
© ISO 2018
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2018 – All rights reserved

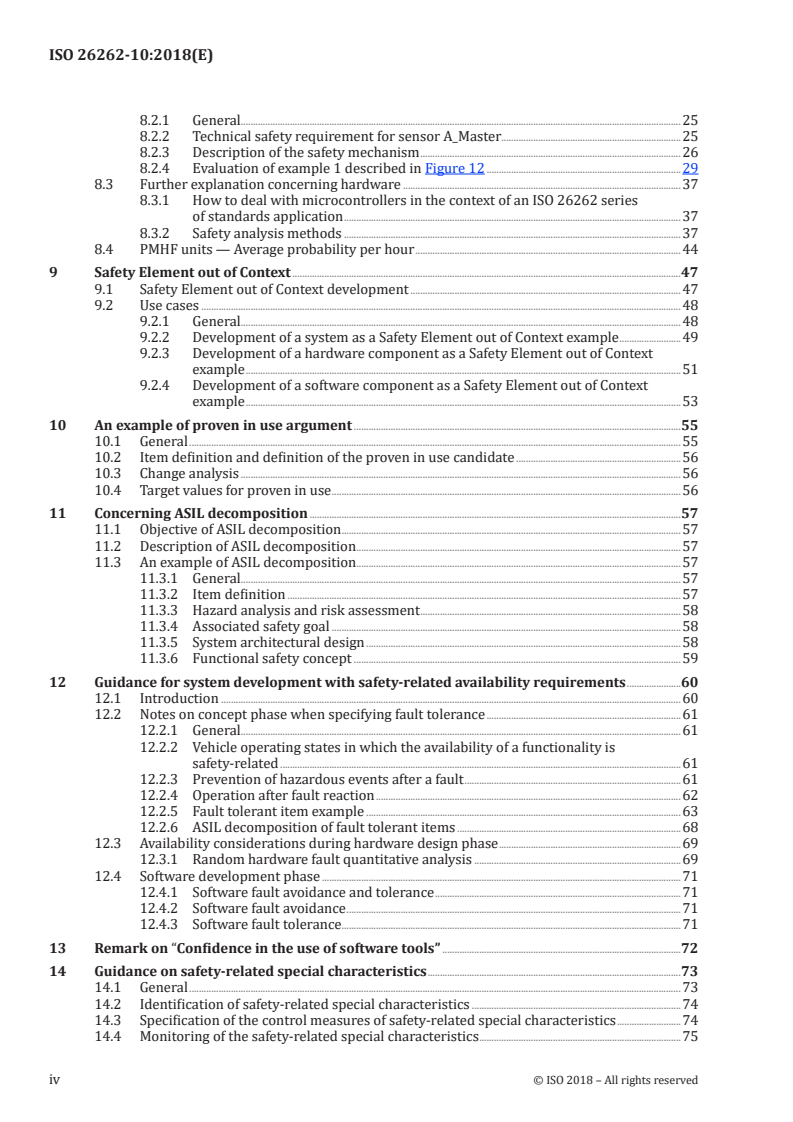

Contents Page
Foreword .vi
Introduction .viii
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Key concepts of ISO 26262 . 2
4.1 Functional safety for automotive systems (relationship with IEC 61508[1]) . 2
4.2 Item, system, element, component, hardware part and software unit . 4
4.3 Relationship between faults, errors and failures . 5
4.3.1 Progression of faults to errors to failures. 5
4.4 FTTI and emergency operation tolerant time interval . 6
4.4.1 Introduction . 6
4.4.2 Timing model — Example control system . 7
5 Selected topics regarding safety management. 9
5.1 Work product . 9
5.2 Confirmation measures . 9
5.2.1 General. 9
5.2.2 Functional safety assessment .10
5.3 Understanding of safety cases .12
5.3.1 Interpretation of safety cases .12
5.3.2 Safety case development lifecycle .13
6 Concept phase and system development .13
6.1 General .13
6.2 Example of hazard analysis and risk assessment .13
6.2.1 General.13
6.2.2 HARA example 1 .13
6.2.3 HARA example 2 .14
6.3 An observation regarding controllability classification .14
6.4 External measures .15
6.4.1 General.15
6.4.2 Example of vehicle dependent external measures 1.15
6.4.3 Example of vehicle dependent external measures 2.15
6.5 Example of combining safety goals .16
6.5.1 Introduction .16
6.5.2 General.16
6.5.3 Function definition.16
6.5.4 Safety goals applied to the same hazard in different situations .16
7 Safety process requirement structure — Flow and sequence of the safety requirements .17
8 Concerning hardware development .19
8.1 The classification of random hardware faults .19
8.1.1 General.19
8.1.2 Single-point fault .19
8.1.3 Residual fault .20
8.1.4 Detected dual-point fault .20
8.1.5 Perceived dual-point fault .20
8.1.6 Latent dual-point fault .21
8.1.7 Safe fault .21
8.1.8 Flow diagram for fault classification and fault class contribution calculation .21
8.1.9 How to consider the failure rate of multiple-point faults related to
software-based safety mechanisms addressing random hardware failures .25
8.2 Example of residual failure rate and local single-point fault metric evaluation .25
8.2.1 General.25
8.2.2 Technical safety requirement for sensor A_Master .25
8.2.3 Description of the safety mechanism .26
8.2.4 Evaluation of example 1 described in Figure 12 .29
8.3 Further explanation concerning hardware .37
8.3.1 How to deal with microcontrollers in the context of an ISO 26262 series
of standards application .37
8.3.2 Safety analysis methods .37
8.4 PMHF units — Average probability per hour .44
9 Safety Element out of Context .47
9.1 Safety Element out of Context development .47
9.2 Use cases .48
9.2.1 General.48
9.2.2 Development of a system as a Safety Element out of Context example .49
9.2.3 Development of a hardware component as a Safety Element out of Context
example .51
9.2.4 Development of a software component as a Safety Element out of Context
example .53
10 An example of proven in use argument .55
10.1 General .55
10.2 Item definition and definition of the proven in use candidate .56
10.3 Change analysis .56
10.4 Target values for proven in use .56
11 Concerning ASIL decomposition .57
11.1 Objective of ASIL decomposition .57
11.2 Description of ASIL decomposition .57
11.3 An example of ASIL decomposition . .57
11.3.1 General.57
11.3.2 Item definition .57
11.3.3 Hazard analysis and risk assessment .58
11.3.4 Associated safety goal .58
11.3.5 System architectural design .58
11.3.6 Functional safety concept .59
12 Guidance for system development with safety-related availability requirements .60
12.1 Introduction .60
12.2 Notes on concept phase when specifying fault tolerance .61
12.2.1 General.61
12.2.2 Vehicle operating states in which the availability of a functionality is
safety-related .61
12.2.3 Prevention of hazardous events after a fault .61
12.2.4 Operation after fault reaction .62
12.2.5 Fault tolerant item example .63
12.2.6 ASIL decomposition of fault tolerant items .68
12.3 Availability considerations during hardware design phase .69
12.3.1 Random hardware fault quantitative analysis .69
12.4 Software development phase .71
12.4.1 Software fault avoidance and tolerance .71
12.4.2 Software fault avoidance .71
12.4.3 Software fault tolerance .71
13 Remark on “Confidence in the use of software tools” .72
14 Guidance on safety-related special characteristics .73
14.1 General .73
14.2 Identification of safety-related special characteristics .74
14.3 Specification of the control measures of safety-related special characteristics .74
14.4 Monitoring of the safety-related special characteristics .75
iv © ISO 2018 – All rights reserved

Annex A (informative) Fault tree construction and applications .76
Bibliography .79
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www .iso .org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 22, Road vehicles Subcommittee SC 32,
Electrical and electronic components and general system aspects.
This edition of ISO 26262 series of standards cancels and replaces the edition ISO 26262:2011 series of
standards, which has been technically revised and includes the following main changes:
— requirements for trucks, buses, trailers and semi-trailers;
— extension of the vocabulary;
— more detailed objectives;
— objective oriented confirmation measures;
— management of safety anomalies;
— references to cyber security;
— updated target values for hardware architecture metrics;
— guidance on model based development and software safety analysis;
— evaluation of hardware elements;
— additional guidance on dependent failure analysis;
— guidance on fault tolerance, safety related special characteristics and software tools;
— guidance for semiconductors;
— requirements for motorcycles; and
— general restructuring of all parts for improved clarity.
vi © ISO 2018 – All rights reserved

NOTE The first edition of this document was published in 2012, therefore this document cancels and
replaces ISO 26262-10:2012.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
A list of all parts in the ISO 26262 series can be found on the ISO website.
Introduction
The ISO 26262 series of standards is the adaptation of IEC 61508 series of standards to address the
sector specific needs of electrical and/or electronic (E/E) systems within road vehicles.
This adaptation applies to all activities during the safety lifecycle of safety-related systems comprised
of electrical, electronic and software components.
Safety is one of the key issues in the development of road vehicles. Development and integration of
automotive functionalities strengthen the need for functional safety and the need to provide evidence
that functional safety objectives are satisfied.
With the trend of increasing technological complexity, software content and mechatronic
implementation, there are increasing risks from systematic failures and random hardware failures,
these being considered within the scope of functional safety. ISO 26262 series of standards includes
guidance to mitigate these risks by providing appropriate requirements and processes.
To achieve functional safety, the ISO 26262 series of standards:
a) provides a reference for the automotive safety lifecycle and supports the tailoring of the activities
to be performed during the lifecycle phases, i.e., development, production, operation, service and
decommissioning;
b) provides an automotive-specific risk-based approach to determine integrity levels [Automotive
Safety Integrity Levels (ASILs)];
c) uses ASILs to specify which of the requirements of ISO 26262 are applicable to avoid unreasonable
residual risk;
d) provides requirements for functional safety management, design, implementation, verification,
validation and confirmation measures; and
e) provides requirements for relations between customers and suppliers.
The ISO 26262 series of standards is concerned with functional safety of E/E systems that is achieved
through safety measures including safety mechanisms. It also provides a framework within which
safety-related systems based on other technologies (e.g. mechanical, hydraulic and pneumatic) can be
considered.
The achievement of functional safety is influenced by the development process (including such
activities as requirements specification, design, implementation, integration, verification, validation
and configuration), the production and service processes and the management processes.
Safety is intertwined with common function-oriented and quality-oriented activities and work
products. The ISO 26262 series of standards addresses the safety-related aspects of these activities and
work products.
Figure 1 shows the overall structure of the ISO 26262 series of standards. The ISO 26262 series of
standards is based upon a V-model as a reference process model for the different phases of product
development. Within the figure:
— the shaded “V”s represent the interconnection among ISO 26262-3, ISO 26262-4, ISO 26262-5,
ISO 26262-6 and ISO 26262-7;
— for motorcycles:
— ISO 26262-12:2018, Clause 8 supports ISO 26262-3;
— ISO 26262-12:2018, Clauses 9 and 10 support ISO 26262-4;
— the specific clauses are indicated in the following manner: “m-n”, where “m” represents the number
of the particular part and “n” indicates the number of the clause within that part.
viii © ISO 2018 – All rights reserved

EXAMPLE “2-6” represents ISO 26262-2:2018, Clause 6.
Figure 1 — Overview of the ISO 26262 series of standards
INTERNATIONAL STANDARD ISO 26262-10:2018(E)
Road vehicles — Functional safety —
Part 10:
Guidelines on ISO 26262
1 Scope
This document is intended to be applied to safety-related systems that include one or more electrical
and/or electronic (E/E) systems and that are installed in series production road vehicles, excluding
mopeds. This document does not address unique E/E systems in special vehicles such as E/E systems
designed for drivers with disabilities.
NOTE Other dedicated application-specific safety standards exist and can complement the ISO 26262 series
of standards or vice versa.
Systems and their components released for production, or systems and their components already under
development prior to the publication date of this document, are exempted from the scope of this edition.
This document addresses alterations to existing systems and their components released for production
prior to the publication of this document by tailoring the safety lifecycle depending on the alteration.
This document addresses integration of existing systems not developed according to this document and
systems developed according to this document by tailoring the safety lifecycle.
This document addresses possible hazards caused by malfunctioning behaviour of safety-related E/E
systems, including interaction of these systems. It does not address hazards related to electric shock,
fire, smoke, heat, radiation, toxicity, flammability, reactivity, corrosion, release of energy and similar
hazards, unless directly caused by malfunctioning behaviour of safety-related E/E systems.
This document describes a framework for functional safety to assist the development of safety-
related E/E systems. This framework is intended to be used to integrate functional safety activities
into a company-specific development framework. Some requirements have a clear technical focus to
implement functional safety into a product; others address the development process and can therefore
be seen as process requirements in order to demonstrate the capability of an organization with respect
to functional safety.
This document does not address the nominal performance of E/E systems.
This document provides an overview of the ISO 26262 series of standards, as well as giving additional
explanations, and is intended to enhance the understanding of the other parts of the ISO 26262 series
of standards. It has an informative character only and describes the general concepts of the ISO 26262
series of standards in order to facilitate comprehension. The explanation expands from general
concepts to specific contents.
In the case of inconsistencies between this document and another part of the ISO 26262 series of
standards, the requirements, recommendations and information specified in the other part of the
ISO 26262 series of standards apply.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 26262-1, Road vehicles — Functional safety — Part 1: Vocabulary
3 Terms and definitions
For the purposes of this document, the terms, definitions and abbreviated terms given in
ISO 26262-1 apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http: //www .electropedia .org/
— ISO Online browsing platform: available at https: //www .iso .org/obp
4 Key concepts of ISO 26262
4.1 Functional safety for automotive systems (relationship with IEC 61508[1])
IEC 61508, Functional Safety of electrical/electronic/programmable electronic safety-related systems, is
designated by IEC as a generic standard and a basic safety publication. This means that industry sectors
will base their own standards for functional safety on the requirements of IEC 61508.
In the automotive industry, there are a number of issues with applying IEC 61508 directly. Some of
these issues and corresponding differences in the ISO 26262 series of standards are described below.
IEC 61508 is based upon the model of “equipment under control”, for example an industrial plant that
has an associated control system as follows:
a) A hazard analysis identifies the hazards associated with the equipment under control (including the
equipment control system), to which risk reduction measures will be applied. This can be achieved
through electrical/electronic/programmable electronic (E/E/PE) systems, or other technology
safety-related systems (e.g. a safety valve), or external measures (e.g. a physical containment of
the plant). The ISO 26262 series of standards contains a normative automotive scheme for hazard
classification based on severity, probability of exposure and controllability.
b) Risk reduction allocated to E/E/PE systems is achieved through safety functions, which are
designated as such. These safety functions are either part of a separate protection system, or can be
incorporated into the plant control. It is not always possible to make this distinction in automotive
systems. The safety of a vehicle depends on the behaviour of the control systems themselves.
The ISO 26262 series of standards uses the notion of safety goals and a safety concept as follows:
— a hazard analysis and risk assessment identifies hazards and hazardous events that need to be
prevented, mitigated, or controlled;
— at least one safety goal is associated with each hazardous event that has been classified as ASIL A,
B, C or D;
— an Automotive Safety Integrity Level (ASIL) is associated with each safety goal;
— the functional safety concept is a statement of the functionality to achieve the safety goal(s);
— the technical safety concept is a statement of how this functionality is implemented on the system
level by hardware and software; and
— software safety requirements and hardware safety requirements state the specific safety
requirements which will be implemented as part of the software and hardware design.
EXAMPLE The airbag system.
— One of the hazards is unintended deployment.
— An associated safety goal is that the airbag only deploys when a crash occurs that requires the deployment.
— The functional safety concept can specify a redundant function to detect whether the vehicle is in a collision.
2 © ISO 2018 – All rights reserved

— The technical safety concept can specify the implementation of two independent accelerometers with
different axial orientations and two independent firing circuits. The squib deploys if both are closed.
IEC 61508 is aimed at singular or low volume systems. The system is built and tested, then installed
in the plant, and then safety validation is performed. For mass-market systems such as road vehicles,
safety validation is performed before the release for volume (series) production. Therefore, the order
of lifecycle activities in the ISO 26262 series of standards is different. Related to this, ISO 26262-7
addresses requirements for production. These are not covered in IEC 61508.
IEC 61508 does not address specific requirements for managing development across multiple
organizations and supply chains. Because automotive systems are produced by vehicle manufacturers
themselves, by one or more suppliers to the manufacturer or by collaboration between manufacturer
and supplier(s), the ISO 26262 series of standards includes requirements to explicitly address this issue,
including the Development Interface Agreement (DIA) (see ISO 26262-8:2018, Clause 5).
IEC 61508 does not contain normative requirements for hazard classification. The ISO 26262 series
of standards contains an automotive scheme for hazard classification. This scheme recognises that a
hazard in an automotive system does not necessarily lead to an accident. The outcome will depend on
whether the persons at risk are actually exposed to the hazard in the situation in which it occurs; and
whether the involved people are able to take steps to control the outcome of the hazard. An example
of this concept, applied to a failure which affects the controllability of a moving vehicle, is given in
Figure 2.
NOTE This concept is intended only to demonstrate that there is not necessarily a direct correlation between
a failure occurring and the accident. It is not a representation of the hazard analysis and risk assessment process,
although the parameters evaluated in this process are related to the probabilities of the state transitions shown
in the figure.
Figure 2 — State machine model of automotive risk
The requirements for hardware development (ISO 26262-5) and software development (ISO 26262-6)
are adapted for the state-of-the-art in the automotive industry. For the methods listed in the ISO 26262
series of standards specific goals are provided. To achieve these goals, the provided methods can be
applied or a rationale that alternative methods can also achieve the goal is provided.
Safety requirements in the ISO 26262 series of standards are assigned an ASIL (Automotive Safety
Integrity Level) rather than a SIL (Safety Integrity Level). The main motivation for this is that the SIL
in IEC 61508 is stated in probabilistic terms (see IEC 61508-1:2010, Table 3). IEC 61508 acknowledges
that qualitative judgement is often required in respect of systematic safety integrity while requiring
quantitative techniques for hardware safety integrity. An ASIL in ISO 26262 is primarily concerned
with requirements for achieving systematic safety in the system, hardware and software; however,
there are probabilistic targets associated with compliance to the requirements of an ASIL with respect
to random hardware failures.
4.2 Item, system, element, component, hardware part and software unit
The terms item, system, element, component, hardware part and software unit are defined in
ISO 26262-1:2018. Figure 3 shows the relationship of item, system, component, hardware part and
software unit. Figure 4 shows an example of item dissolution. A divisible element can be labelled as
a system or a component. A divisible element that meets the criteria of a system can be labelled as a
system. A component is a non-system level, logically and technically separable element. Often the term
component is applied to an element that is only comprised of parts and units, but can also be applied to
an element comprised of lower-level elements from a specific technology area e.g. electrical / electronic
technology (see Figure 4). A hardware part can be further hierarchically composed of hardware
subparts and hardware elementary subparts as applicable.
NOTE 1 Depending on the context, the term “element” can apply to the entities “system”, “component”,
“hardware part” and “software unit” in this chart, according to ISO 26262-1:2018, 3.41.
NOTE 2 The system, as it is defined in ISO 26262-1:2018, 3.163, relates at least a sensor, a controller, and an
actuator with one another. The related sensor or actuator can be included in the system, or can be external to
the system.
NOTE 3 *means N are possible.
Figure 3 — Relationship of item, system, component, hardware part and software unit
4 © ISO 2018 – All rights reserved

Figure 4 — Example item dissolution
4.3 Relationship between faults, errors and failures
4.3.1 Progression of faults to errors to failures
The terms fault, error and failure are defined in ISO 26262-1:2018. Figure 5 depicts the progression of
faults to errors to failures from three different types of causes: systematic software issues, random
hardware issues and systematic hardware issues. Systematic faults (see ISO 26262-1:2018, 3.165) are
due to design or specification issues; software faults and a subset of hardware faults are systematic.
At the component level, each different type of fault can lead to different failures. However, failures at
the component level are faults at the item level. Note that in this example, at the vehicle level, faults
from different causes can lead to the same failure. A subset of failures at the item level will be hazards
(see ISO 26262-1:2018, 3.75) if additional environmental factors permit the failure to contribute to an
accident scenario.
EXAMPLE If unexpected behaviour of the vehicle occurs while the vehicle is starting to cross an intersection,
a crash can occur, e.g. the risk of the hazardous event “vehicle bucking when starting to cross intersection” is
assessed for severity, exposure and controllability ("bucking" refers to making sudden jerky movements).
Figure 5 — Example of faults leading to failures
NOTE 1 Possible implemented error detection and control on component or item level is not depicted in
Figure 5.
NOTE 2 The failure of the component is the fault on the item level (indicated by the dot dot dashed arrow).
4.4 FTTI and emergency operation tolerant time interval
4.4.1 Introduction
ISO 26262-3:2018, 6.4.4.3 states in the NOTE that the FTTI can be included as part of a safety goal.
Furthermore, ISO 26262-4:2018, 6.4.2.2 specifies that the FTTI and emergency operation tolerance
time interval are to be taken into account in the definition of fault handling time interval for each safety
mechanism.
NOTE Fault handling time interval is a characteristic for a given safety mechanism. Fault tolerant time
interval (FTTI) is a characteristic of an item.
As a part of the process of determining safety goals and functional safety requirements at concept
phase, the FTTI is specified on vehicle level based on vehicle functionality. This time span can be taken
into consideration during product development, leading to the determination of the maximum fault
handling time interval (i.e. sum of the fault detection time interval and the fault reaction time interval as
described in ISO 26262-1:2018, Figure 5) needed to avoid a hazardous event. FTTI is a necessary value
in order to design the response time of a safety mechanism. Within the FTTI, the fault is controlled by
a safety mechanism and the occurrence of a hazardous event can be prevented. This is achieved when
the sum of the fault detection time interval and the fault reaction time interval is shorter than the FTTI.
An emergency operation (ISO 26262-4:2018, 6.4.2.2) is specified when a safe state cannot be reached
within the FTTI. The emergency operation is an operating mode defined as part of the warning and
degradation strategy. Emergency operation is initiated prior to the end of the FTTI and is maintained
until the safe state is reached prior to the end of the emergency operation tolerance time interval. To
6 © ISO 2018 – All rights reserved

meet the safety goal, a safe state has to be reached before the end of the emergency operation tolerance
time interval.
4.4.2 Timing model — Example control system
4.4.2.1 Control system description
This sub-clause applies the concepts of fault detection time interval (FDTI), fault tolerant time interval
(FTTI), fault reaction time interval (FRTI), emergency operation tolerance time interval (EOTTI) and
diagnostic test time interval (DTTI) to a valve control system example. The system consists of a valve,
position sensor, controller and an electrical motor. The function of the system is to control the valve to
a desired position using the electric motor.
A hazardous event resulting from an unintended flow can occur if the valve is opened a percentage
more than intended. As a fault reaction, the motor is de-energized by a separate circuit in combination
with a mechanical spring which pulls the valve to a default fixed opening position. This fixed opening
position limits the flow resulting in a safe state for the item.
4.4.2.2 Application of timing model to example control system
The specific failure mode considered in this example is a motor fault which drives the valve to its
maximum opening position. This condition can be the result of motor shorted to power or other motor
control issues. Four scenarios are considered.
— Scenario 1: System without any safety mechanism preventing the violation of the safety goal.
A short in the motor occurs resulting in the valve reaching its maximum position. Because no safety
mechanism is in place a hazardous event can occur once the FTTI is exceeded.
— Scenario 2: System with implemented safety mechanism without emergency operation and a safe
state is achieved within FTTI.
A short in the motor occurs resulting in the valve reaching its maximum position. The implemented
safety mechanism de-energizes the valve motor and the mechanical spring returns the valve to
a low flow position within the FTTI, preventing a hazardous event. The safety mechanism (the
spring) is designed to operate indefinitely and the safe state can be infinite.
— Scenario 3: System with implemented safety mechanism which prevents a hazardous event within
the FTTI, but emergency operation is needed to transit to a safe state. The safe state is achieved
within the emergency operation tolerance time interval by restricting the vehicle operating state.
A short in the motor occurs resulting in the valve reaching its maximum position. The implemented
safety mechanism de-energizes the valve motor and the mechanical spring returns the valve to a
low flow position within the FTTI. The safety mechanism (the spring) is only designed to operate
for a limited amount of time, the EOTTI. Prior to the expiration of the EOTTI, the vehicle operating
state is restricted such that the flow from the valve cannot cause a hazardous event.
— Scenario 4: System with implemented safety mechanism which prevents a hazardous event is
within the FTTI but emergency operation is needed to transit to a safe state. However, the transition
time takes longer than the EOTTI. As a consequence, the cumulated risk becomes unacce
...
