ISO 10110-10:2004

(Main)

Optics and photonics — Preparation of drawings for optical elements and systems — Part 10: Table representing data of optical elements and cemented assemblies

Optics and photonics — Preparation of drawings for optical elements and systems — Part 10: Table representing data of optical elements and cemented assemblies

ISO 10110-10:2004 specifies a format for indicating the dimensions, permissible deviations and material imperfections of optical elements and cemented assemblies in tabular form as part of specification of the presentation of design and functional requirements for optical elements and systems in technical drawings used for manufacturing and inspection.

Optique et photonique — Préparation des dessins pour éléments et systèmes optiques — Partie 10: Tableau représentant les données d'éléments optiques et d'assemblages collés

L'ISO 10110-10:2003 spécifie un tableau type pour indiquer les dimensions, les écarts admissibles et les imperfections d'un élément optique ou d'un assemblage collé, cela en tant que partie des spécifications de la représentation des exigences de conception fonctionnelles des éléments et systèmes optiques, sur les dessins techniques utilisés pour la fabrication et le contrôle.

General Information

Status
Withdrawn
Publication Date
08-Feb-2004
Withdrawal Date
08-Feb-2004
ICS
01.100.20 - Mechanical engineering drawings
37.020 - Optical equipment
Technical Committee
ISO/TC 172/SC 1 - Fundamental standards
Drafting Committee
ISO/TC 172/SC 1/WG 2 - Preparation of drawings for optical elements and systems
Current Stage
9599 - Withdrawal of International Standard
Completion Date
10-Oct-2019
Ref Project

Relations

Revised
ISO 10110-1:2019 - Optics and photonics — Preparation of drawings for optical elements and systems — Part 1: General
Effective Date
04-Nov-2017
Revises
ISO 10110-10:1996 - Optics and optical instruments — Preparation of drawings for optical elements and systems — Part 10: Table representing data of a lens element
Effective Date
15-Apr-2008

Buy Standard

ISO 10110-10:2004 - Optics and photonics -- Preparation of drawings for optical elements and systemsISO 10110-10:2004 - Optics and photonics -- Preparation of drawings for optical elements and systems
PreviousNext
Standard
ISO 10110-10:2004 - Optics and photonics -- Preparation of drawings for optical elements and systems
English language
11 pages
sale 15% off
Preview
sale 15% off
Preview
ISO 10110-10:2004 - Optique et photonique -- Préparation des dessins pour éléments et systemes optiquesISO 10110-10:2004 - Optique et photonique -- Préparation des dessins pour éléments et systemes optiques
PreviousNext
Standard
ISO 10110-10:2004 - Optique et photonique -- Préparation des dessins pour éléments et systemes optiques
French language
11 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 10110-10
Second edition
2004-02-15

Optics and photonics — Preparation of
drawings for optical elements and
systems —
Part 10:
Table representing data of optical
elements and cemented assemblies
Optique et photonique — Préparation des dessins pour éléments et
systèmes optiques —
Partie 10: Tableau représentant les données d'éléments optiques et
d'assemblages collés




Reference number
ISO 10110-10:2004(E)
©
ISO 2004

---------------------- Page: 1 ----------------------
ISO 10110-10:2004(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


©  ISO 2004
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO 2004 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 10110-10:2004(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 10110-10 was prepared by Technical Committee ISO/TC 172, Optics and photonics, Subcommittee SC 1,
Fundamental standards.
This second edition cancels and replaces the first edition (ISO 10110-10:1996) which has been technically
revised to expand the scope from only single optical elements to single optical elements and cemented
assemblies.
ISO 10110 consists of the following parts, under the general title Optics and photonics — Preparation of
drawings for optical elements and systems:
 Part 1: General
 Part 2: Material imperfections — Stress birefringence
 Part 3: Material imperfections — Bubbles and inclusions
 Part 4: Material imperfections — Inhomogeneity and striae
 Part 5: Surface form tolerances
 Part 6: Centring tolerances
 Part 7: Surface imperfection tolerances
 Part 8: Surface texture
 Part 9: Surface treatment and coating
 Part 10: Table representing data of optical elements and cemented assemblies
 Part 11: Non-toleranced data
 Part 12: Aspheric surfaces
 Part 14: Wavefront deformation tolerance
 Part 17: Laser irradiation damage threshold
© ISO 2004 – All rights reserved iii

---------------------- Page: 3 ----------------------
INTERNATIONAL STANDARD ISO 10110-10:2004(E)

Optics and photonics — Preparation of drawings for optical
elements and systems —
Part 10:
Table representing data of optical elements and cemented
assemblies
1 Scope
ISO 10110 specifies the presentation of design and functional requirements for optical elements and systems
in technical drawings used for manufacturing and inspection.
This part of ISO 10110 specifies a format for indicating the dimensions, permissible deviations and material
imperfections of optical elements and cemented assemblies in tabular form.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 10110-2, Optics and optical instruments — Preparation of drawings for optical elements and systems —
Part 2: Material imperfections — Stress birefringence
ISO 10110-3, Optics and optical instruments — Preparation of drawings for optical elements and systems —
Part 3: Material imperfections — Bubbles and inclusions
ISO 10110-4, Optics and optical instruments — Preparation of drawings for optical elements and systems —
Part 4: Material imperfections — Inhomogeneity and striae
ISO 10110-5, Optics and optical instruments — Preparation of drawings for optical elements and systems —
Part 5: Surface form tolerances
ISO 10110-6, Optics and optical instruments — Preparation of drawings for optical elements and systems —
Part 6: Centring tolerances
ISO 10110-7, Optics and optical instruments — Preparation of drawings for optical elements and systems —
Part 7: Surface imperfections tolerances
ISO 10110-8, Optics and optical instruments — Preparation of drawings for optical elements and systems —
Part 8: Surface texture
ISO 10110-9, Optics and optical instruments — Preparation of drawings for optical elements and systems —
Part 9: Surface treatment and coating
ISO 10110-11, Optics and optical instruments — Preparation of drawings for optical elements and systems —
Part 11: Non-toleranced data
© ISO 2004 – All rights reserved 1

---------------------- Page: 4 ----------------------
ISO 10110-10:2004(E)
ISO 10110-17, Optics and photonics — Preparation of drawings for optical elements and systems — Part 17:
Laser irradiation damage threshold
3 Format
3.1 General
The drawing shall consist of the following three fields (see Figures 1 and 2):
 drawing field in accordance with 3.2;
 table field in accordance with 3.3;
 title field in accordance with 3.4.
3.2 Drawing field
In this field, a schematic drawing of the optical element or cemented assembly shall be given, together with all
information not given in the table field. It is not necessary that the drawing be true-to-scale; if a drawing scale
factor is indicated, the drawing shall be a true-to-scale technical drawing.
The datum axis for centring and the surface texture specification (see ISO 10110-6 and ISO 10
...

NORME ISO
INTERNATIONALE 10110-10
Deuxième édition
2004-02-15


Optique et photonique — Préparation des
dessins pour éléments et systèmes
optiques —
Partie 10:
Tableau représentant les données
d'éléments optiques et d'assemblages
collés
Optics and photonics — Preparation of drawings for optical elements
and systems —
Part 10: Table representing data of optical elements and cemented
assemblies




Numéro de référence
ISO 10110-10:2004(F)
©
ISO 2004

---------------------- Page: 1 ----------------------
ISO 10110-10:2004(F)
PDF – Exonération de responsabilité
Le présent fichier PDF peut contenir des polices de caractères intégrées. Conformément aux conditions de licence d'Adobe, ce fichier
peut être imprimé ou visualisé, mais ne doit pas être modifié à moins que l'ordinateur employé à cet effet ne bénéficie d'une licence
autorisant l'utilisation de ces polices et que celles-ci y soient installées. Lors du téléchargement de ce fichier, les parties concernées
acceptent de fait la responsabilité de ne pas enfreindre les conditions de licence d'Adobe. Le Secrétariat central de l'ISO décline toute
responsabilité en la matière.
Adobe est une marque déposée d'Adobe Systems Incorporated.
Les détails relatifs aux produits logiciels utilisés pour la création du présent fichier PDF sont disponibles dans la rubrique General Info
du fichier; les paramètres de création PDF ont été optimisés pour l'impression. Toutes les mesures ont été prises pour garantir
l'exploitation de ce fichier par les comités membres de l'ISO. Dans le cas peu probable où surviendrait un problème d'utilisation,
veuillez en informer le Secrétariat central à l'adresse donnée ci-dessous.


©  ISO 2004
Droits de reproduction réservés. Sauf prescription différente, aucune partie de cette publication ne peut être reproduite ni utilisée sous
quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les microfilms, sans l'accord écrit
de l'ISO à l'adresse ci-après ou du comité membre de l'ISO dans le pays du demandeur.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax. + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Publié en Suisse

ii © ISO 2004 – Tous droits réservés

---------------------- Page: 2 ----------------------
ISO 10110-10:2004(F)
Avant-propos
L'ISO (Organisation internationale de normalisation) est une fédération mondiale d'organismes nationaux de
normalisation (comités membres de l'ISO). L'élaboration des Normes internationales est en général confiée
aux comités techniques de l'ISO. Chaque comité membre intéressé par une étude a le droit de faire partie du
comité technique créé à cet effet. Les organisations internationales, gouvernementales et non
gouvernementales, en liaison avec l'ISO participent également aux travaux. L'ISO collabore étroitement avec
la Commission électrotechnique internationale (CEI) en ce qui concerne la normalisation électrotechnique.
Les Normes internationales sont rédigées conformément aux règles données dans les Directives ISO/CEI,
Partie 2.
La tâche principale des comités techniques est d'élaborer les Normes internationales. Les projets de Normes
internationales adoptés par les comités techniques sont soumis aux comités membres pour vote. Leur
publication comme Normes internationales requiert l'approbation de 75 % au moins des comités membres
votants.
L'attention est appelée sur le fait que certains des éléments du présent document peuvent faire l'objet de
droits de propriété intellectuelle ou de droits analogues. L'ISO ne saurait être tenue pour responsable de ne
pas avoir identifié de tels droits de propriété et averti de leur existence.
L'ISO 10110-10 a été élaborée par le comité technique ISO/TC 172, Optique et photonique, sous-comité SC 1,
Normes fondamentales.
Cette deuxième édition annule et remplace la première édition (ISO 10110-10:1996), qui a fait l'objet d'une
révision technique ayant pour but d'étendre le domaine d'application de «éléments optiques» à «éléments
optiques et assemblages collés»
L'ISO 10110 comprend les parties suivantes, présentées sous le titre général Optique et photonique —
Préparation des dessins pour éléments et systèmes optiques:
 Partie 1: Généralités
 Partie 2: Imperfections des matériaux ― Biréfringence sous contrainte
 Partie 3: Imperfections des matériaux ― Bulles et inclusions
 Partie 4: Imperfections des matériaux ― Hétérogénéités et stries
 Partie 5: Tolérances de forme de surface
 Partie 6: Tolérances de centrage
 Partie 7: Tolérances d’imperfection de surface
 Partie 8: État de surface
 Partie 9: Traitement de surface et revêtement
 Partie 10: Tableau représentant les données d'éléments optiques et d'assemblages collés
 Partie 11: Données non tolérancées
 Partie 12: Surfaces asphériques
© ISO 2004 – Tous droits réservés iii

---------------------- Page: 3 ----------------------

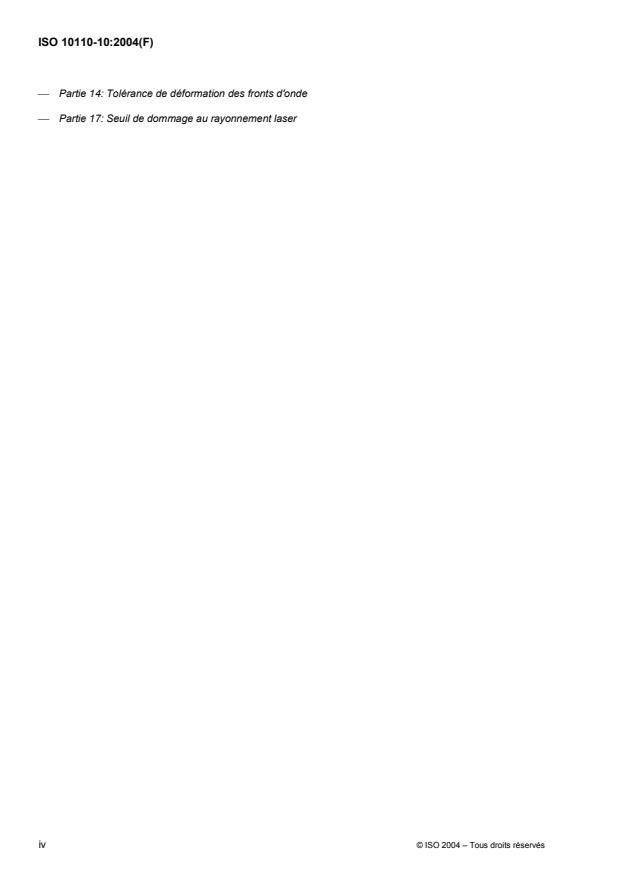

ISO 10110-10:2004(F)
 Partie 14: Tolérance de déformation des fronts d'onde
 Partie 17: Seuil de dommage au rayonnement laser
iv © ISO 2004 – Tous droits réservés

---------------------- Page: 4 ----------------------
NORME INTERNATIONALE ISO 10110-10:2004(F)

Optique et photonique — Préparation des dessins pour
éléments et systèmes optiques —
Partie 10:
Tableau représentant les données d'éléments optiques et
d'assemblages collés
1 Domaine d'application
L'ISO 10110 spécifie la représentation des exigences de conception fonctionnelles des éléments et systèmes
optiques, sur les dessins techniques utilisés pour la fabrication et le contrôle.
La présente partie de l'ISO 10110 spécifie un tableau type pour indiquer les dimensions, les écarts
admissibles et les imperfections d'un élément optique ou d'un assemblage collé.
2 Références normatives
Les documents de référence suivants sont indispensables pour l'application du présent document. Pour les
références datées, seule l'édition citée s'applique. Pour les références non datées, la dernière édition du
document de référence s'applique (y compris les éventuels amendements).
ISO 10110-2, Optique et instruments d'optique — Indications sur les dessins pour éléments et systèmes
optiques — Partie 2: Imperfections des matériaux — Biréfringence sous contrainte
ISO 10110-3, Optique et instruments d'optique — Indications sur les dessins pour éléments et systèmes
optiques — Partie 3: Imperfections des matériaux — Bulles et inclusions
ISO 10110-4, Optique et instruments d'optique — Indications sur les dessins pour éléments et systèmes
optiques — Partie 4: Imperfections des matériaux — Hétérogénéités et stries
ISO 10110-5, Optique et instruments d'optique — Indications sur les dessins pour éléments et systèmes
optiques — Partie 5: Tolérances de forme de surface
ISO 10110-6, Optique et instruments d'optique — Indications sur les dessins pour éléments et systèmes
optiques — Partie 6: Tolérances de centrage
ISO 10110-7, Optique et instruments d'optique — Indications sur les dessins pour éléments et systèmes
optiques — Partie 7: Tolérances d'imperfection de surface
ISO 10110-8, Optique et instruments d'optique — Indications sur les dessins pour éléments et systèmes
optiques — Partie 8: État de surface
ISO 10110-9, Optique et instruments d'optique — Indications sur les dessins pour éléments et systèmes
optiques — Partie 9: Traitement de surface et revêtements
ISO 10110-11, Optique et instruments d'optique — Indications sur les dessins pour éléments et systèmes
optiques — Partie 11: Données non tolérancées
© ISO 2004 – Tous droits réservés 1

---------------------- Page: 5 ----------------------
ISO 10110-10:2004(F)
ISO 10110-17, Optique et photonique — Préparation des dessins pour éléments et systèmes optiques —
Partie 17: Seuil de dommage au rayonnement laser
3 Format
3.1 Généralités
Le dessin doit comprendre les trois champs suivants (voir Figures 1 et 2):
 partie dessin conformément à 3.2;
 partie tableau conformément à 3.3;
 cartouche conformément à 3.4.
3.2 Partie dessin
Dans cette partie, un dessin schématique d'élément optique ou d'assemblage collé doit être donné, avec
toutes les informations ne fig
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

This May Also Interest You

ISO
ISO 10110-16:2023(Main)
Optics and photonics — Preparation of drawings for optical elements and systems — Part 16: Diffractive surfaces

This document provides general methods of describing surfaces adding a diffractive optical function on optical surfaces, such as planes, spheres, aspheres or general optical surfaces, in the ISO 10110 series, which standardizes drawing indications for optical elements and systems. The subject of this document is the presentation, description and dimensioning of diffractive surfaces in technical drawings. This document does not apply to diffractive surfaces with random surface texture, for example stochastic antireflective structures. Also not addressed by this document are all types of 3-dimensionally extended diffractive structures: Bragg gratings, volume holograms (HOE) and acousto-optic modulators. This document does not address the methods to test and qualify the specifications. This document does not address tools and methods for manufacturing diffractive surfaces.

  • Standard
    29 pages
    English language
    sale 15% off
  • Standard
    30 pages
    French language
    sale 15% off
  • Draft
    30 pages
    English language
    sale 15% off
  • Draft
    36 pages
    French language
    sale 15% off
ISO
ISO 10110-12:2019(Main)
Optics and photonics — Preparation of drawings for optical elements and systems — Part 12: Aspheric surfaces

This document specifies rules for presentation of aspheric surfaces and surfaces with low order symmetry such as cylinders and toroids in the ISO 10110 series, which standardizes drawing indications for optical elements and systems. It also specifies sign conventions and coordinate systems. This document does not apply to off-axis aspheric and discontinuous surfaces such as Fresnel surfaces or gratings. NOTE For off-axis aspheric and non-symmetric surfaces, see ISO 10110-19. This document does not specify the method by which conformity with the specifications is tested.

  • Standard
    26 pages
    English language
    sale 15% off
  • Standard
    26 pages
    French language
    sale 15% off
ISO
ISO 10110-8:2019(Main)
Optics and photonics — Preparation of drawings for optical elements and systems — Part 8: Surface texture

This document specifies rules for the indication of the surface texture of optical elements, in the ISO 10110 series, which standardizes drawing indications for optical elements and systems. Surface texture is the characteristic of a surface that can be effectively described with statistical methods. Typically, surface texture is associated with high spatial frequency errors (roughness) and mid-spatial frequency errors (waviness). This document is primarily intended for the specification of polished optics. This document describes a method for characterizing the residual surface that is left after detrending by subtracting the surface form. The control of the surface form specified in ISO 10110-5, ISO 10110-12, and ISO 10110-19 is not specified in this document.

  • Standard
    23 pages
    English language
    sale 15% off
  • Standard
    24 pages
    French language
    sale 15% off
ISO
ISO 10110-1:2019(Main)
Optics and photonics — Preparation of drawings for optical elements and systems — Part 1: General

This document specifies the general layout of drawings and provides examples of indications in the ISO 10110 series, which standardizes drawing indications for optical elements and systems. This document specifies the presentation in drawings of the characteristics, including the tolerances, of optical elements and systems. This document also includes the popular tabular format, formerly presented in ISO 10110‑10. This tabular format, now described in 5.1, is the preferred format for ISO 10110 drawings. Rules for preparation of technical drawings as well as for dimensioning and tolerancing are given in various ISO Standards. These general standards apply to optical elements and systems only if the necessary rules are not given in the various parts of ISO 10110.

  • Standard
    45 pages
    English language
    sale 15% off
  • Standard
    45 pages
    English language
    sale 15% off
  • Standard
    46 pages
    French language
    sale 15% off
ISO
ISO 10110-18:2018(Main)
Optics and photonics — Preparation of drawings for optical elements and systems — Part 18: Stress birefringence, bubbles and inclusions, homogeneity, and striae

This document specifies the indication of tolerances for four categories of imperfections within optical materials — stress birefringence, bubbles and inclusions, homogeneity, and striae — in the ISO 10110 series, which standardizes drawing indications for optical elements and systems. Tolerances are applied either to a finished optical part, a finished system of optical parts, or to the raw material used to manufacture an optical part.

  • Standard
    22 pages
    English language
    sale 15% off
  • Standard
    23 pages
    French language
    sale 15% off
ISO
ISO 10110-14:2018(Main)
Optics and photonics — Preparation of drawings for optical elements and systems — Part 14: Wavefront deformation tolerance

This document specifies rules for the indication of the permissible deformation of a wavefront transmitted through or, in the case of reflective optics, reflected from an optical element or assembly in the ISO 10110 series, which standardizes drawing indications for optical elements and systems. This document is also applicable when using optical systems with general surfaces (ISO 10110-19). The deformation of the wavefront refers to its departure from the desired shape. The tilt of the wavefront with respect to a given reference surface is excluded from this document. There is no requirement that a tolerance for wavefront deformation is indicated.

  • Standard
    12 pages
    English language
    sale 15% off
  • Standard
    12 pages
    English language
    sale 15% off
  • Standard
    13 pages
    French language
    sale 15% off
  • Standard
    13 pages
    French language
    sale 15% off
ISO
ISO 10110-7:2017(Main)
Optics and photonics — Preparation of drawings for optical elements and systems — Part 7: Surface imperfections

ISO 10110 (all parts) specifies the presentation of design and functional requirements for single optical elements and for optical assemblies in technical drawings used for their manufacture and inspection. ISO 10110-7:2017 specifies the indication of the level of acceptability of surface imperfections within a test region on individual optical elements and optical assemblies. These include localized surface imperfections, edge chips and long scratches. The acceptance level for imperfections is specified, taking into account functional effects (affecting image formation or durability of the optical element), as well as cosmetic (appearance) effects. ISO 10110-7:2017 applies to transmitting and reflecting surfaces of finished optical elements, whether or not they are coated, and to optical assemblies. It allows permissible imperfections to be specified according to the area affected by imperfections, or alternatively by the visibility of imperfections, on components or in optical assemblies.

  • Standard
    12 pages
    English language
    sale 15% off
  • Standard
    12 pages
    French language
    sale 15% off
ISO
ISO 10110-9:2016(Main)
Optics and photonics — Preparation of drawings for optical elements and systems — Part 9: Surface treatment and coating

ISO 10110-9:2016 specifies the presentation of design and functional requirements for optical elements and systems in technical drawings used for manufacturing and inspection. It specifies rules for indicating the treatments and coatings applied to optical surfaces for functional and/or protective purposes.

  • Standard
    9 pages
    English language
    sale 15% off
  • Standard
    9 pages
    English language
    sale 15% off
  • Standard
    12 pages
    French language
    sale 15% off
  • Standard
    12 pages
    French language
    sale 15% off
ISO
ISO 10110-11:2016(Main)
Optics and photonics — Preparation of drawings for optical elements and systems — Part 11: Non-toleranced data

ISO 10110-11:2016 specifies the presentation of design and functional requirements for optical elements and systems in technical drawings used for manufacturing and inspection. It specifies the permissible deviations and material imperfections when these are not explicitly indicated.

  • Standard
    3 pages
    English language
    sale 15% off
  • Standard
    3 pages
    English language
    sale 15% off
  • Standard
    3 pages
    French language
    sale 15% off
  • Standard
    3 pages
    French language
    sale 15% off
ISO
ISO 10110-5:2015(Main)
Optics and photonics — Preparation of drawings for optical elements and systems — Part 5: Surface form tolerances

ISO 10110-5:2015 specifies the presentation of design and functional requirements for optical elements and systems in technical drawings used for manufacturing and inspection. ISO 10110-5:2015 specifies rules for indicating the tolerance for surface form deviation. NOTE The terminology of interferometry employing the unit "fringe spacings" is widely used for the specification of tolerances. However, the usage of non-interferometric methods for testing of optical parts has recently become more important. Therefore, unlike in the earlier versions of this part of ISO 10110, nanometres shall now be the preferred and standard unit to express surface form deviations. The usage of fringe spacings is still permitted given that the base wavelength is explicitly stated. ISO 10110-5:2015 applies to surfaces of plano, spherical, aspheric, circular and non-circular cylindric, and toric form as well as to surfaces of other non-spherical shape such as generally described surfaces. It does not apply to diffractive surfaces, Fresnel surfaces, and micro-optical surfaces.

  • Standard
    20 pages
    English language
    sale 15% off
  • Standard
    21 pages
    French language
    sale 15% off
