ISO 14737:2015

INTERNATIONAL ISO
STANDARD 14737
Second edition
2015-12-15
Carbon and low alloy cast steels for
general applications
Aciers moulés au carbone et faiblement alliés d’usage général
Reference number
©
ISO 2015
© ISO 2015, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2015 – All rights reserved

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 General conditions for delivery . 1
4 Chemical composition . 1
5 Heat treatment . 1
6 Mechanical properties . 1
7 Test methods . 1
8 Supplementary requirements . 2
9 Marking . 2
Annex A (informative) Guidance data for welding . 7
Annex B (informative) UNS cast grades similar to ISO cast grades . 8
Bibliography . 9

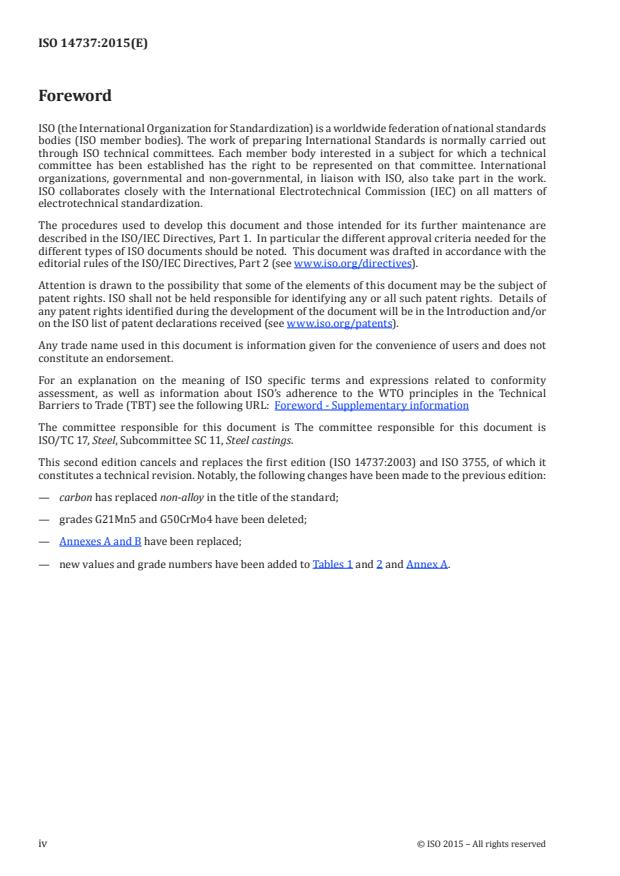

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is The committee responsible for this document is
ISO/TC 17, Steel, Subcommittee SC 11, Steel castings.
This second edition cancels and replaces the first edition (ISO 14737:2003) and ISO 3755, of which it
constitutes a technical revision. Notably, the following changes have been made to the previous edition:
— carbon has replaced non-alloy in the title of the standard;
— grades G21Mn5 and G50CrMo4 have been deleted;
— Annexes A and B have been replaced;
— new values and grade numbers have been added to Tables 1 and 2 and Annex A.
iv © ISO 2015 – All rights reserved

INTERNATIONAL STANDARD ISO 14737:2015(E)
Carbon and low alloy cast steels for general applications
1 Scope
This International Standard specifies requirements for carbon and low alloy cast steel grades for
general applications.
NOTE Annex B gives information on ISO grade designation and available UNS numbers which are similar to
the ISO grade designation.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 148-1, Metallic materials — Charpy pendulum impact test — Part 1: Test method
ISO 4990, Steel castings — General technical delivery requirements
ISO 6892-1, Metallic materials — Tensile testing — Part 1: Method of test at room temperature
3 General conditions for delivery
Steel castings supplied in accordance with this International Standard shall conform to the applicable
requirements of ISO 4990, including the supplementary requirements that are indicated in the inquiry
and purchase order.
4 Chemical composition
The chemical composition shall conform to the values given in Table 1.
5 Heat treatment
The type of heat treatment is left to the discretion of the manufacturer unless otherwise agreed
upon at the time of inquiry and order. The information for heat treatment described in Table 2 is for
information only.
6 Mechanical properties
Mechanical properties are given in Table 2 and shall be subject to an agreement at the time of
inquiry and order.
Unless otherwise specified (see ISO 4990), the thickness of the test block shall be 28 mm minimum.
Properties at thicknesses greater than the maximum thickness in Table 2 may be lower and are subject
to an agreement between manufacturer and purchaser.
7 Test methods
7.1 The tensile test shall be performed in accordance with ISO 6892-1.
7.2 The impact test shall be performed in accordance with ISO 148-1.
8 Supplementary requirements
A list of supplementary requirements which may be used at the option of the purchaser is given in
ISO 4990.
9 Marking
Marking shall be as specified in ISO 4990.
2 © ISO 2015 – All rights reserved

Table 1 — Chemical composition, % (m/m)
Grade designation
C Si Mn P S Cr Mo Ni V Cu
Name Number
GE 200 1.0420 — — — 0,035 0,030 0,30 0,12 0,40 0,03 0,30
GS 200 1.0449 0,18 0,60 1,20 0,030 0,025 0,30 0,12 0,40 0,03 0,30
GE 240 1.0446 — — — 0,035 0,030 0,30 0,12 0,40 0,03 0,30
GS 240 1.0455 0,23 0,60 1,20 0,030 0,025 0,30 0,12 0,40 0,03 0,30
a a a a a
GS 270 1.0454 0,24 0,60 1,30 0,030 0,025 0,30 0,12 0,40 0,03 0,30
a a a a a
GS 340 1.0467 0,30 0,60 1,50 0,030 0,025 0,30 0,12 0,40 0,03 0,30
G28Mn6 1.1165 0,25 to 0,32 0,60 1,20 to 1,80 0,035 0,030 0,30 0,15 0,40 0,05 0,30
G28MnMo6 1.5433 0,25 to 0,32 0,60 1,20
...
