ISO 11093-2:1994
(Main)Paper and board - Testing of cores - Part 2: Conditioning of test samples
Paper and board - Testing of cores - Part 2: Conditioning of test samples
Specifies the conditioning atmospheres to be used for conditioning and testing cores, the apparatus and the procedure used.
Papier et carton — Essais des mandrins — Partie 2: Conditionnement des échantillons pour essai
La présente partie de l'ISO 11093, basée sur l'ISO 187, prescrit les conditions atmosphériques pour le conditionnement et les essais des mandrins.
General Information
- Status
- Published
- Publication Date
- 07-Dec-1994
- Technical Committee
- ISO/TC 6 - Paper, board and pulps
- Drafting Committee
- ISO/TC 6/WG 7 - Cores for reels of paper
- Current Stage
- 9599 - Withdrawal of International Standard
- Start Date
- 27-Oct-2025
- Completion Date
- 13-Dec-2025
Relations
- Effective Date
- 27-Apr-2024
Overview
ISO 11093-2:1994 - "Paper and board - Testing of cores - Part 2: Conditioning of test samples" specifies the conditioning atmospheres, apparatus and procedures for preparing cores (spool cores, paperboard cores) prior to physical testing. Based on ISO 187, this part of ISO 11093 defines how to bring test specimens to a stable moisture equilibrium so that subsequent measurements (dimensional, strength, flat crush, etc.) are repeatable and comparable.
Key topics and technical requirements
- Conditioning atmospheres: The standard defines standard atmospheres (e.g., the preferred 23 °C ±1 and 50 % RH ±2, with an alternate atmosphere around 27 °C/65 % RH as shown in the table) to be used for conditioning and testing cores.
- Climatic chamber and instrumentation: Conditioning must take place in a climatic chamber equipped with automatic control and air circulation to maintain uniform temperature and relative humidity at relevant points in the chamber. Monitoring follows procedures in ISO 187 (and ISO 554 for tolerance specifications).

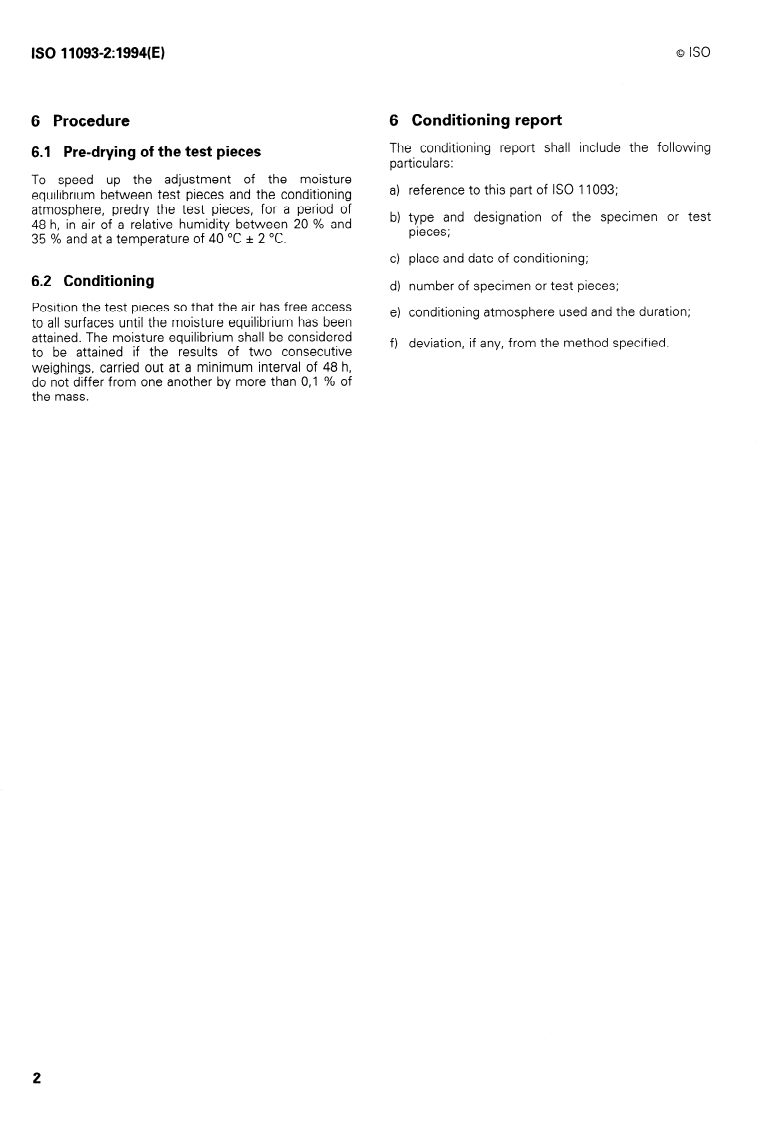

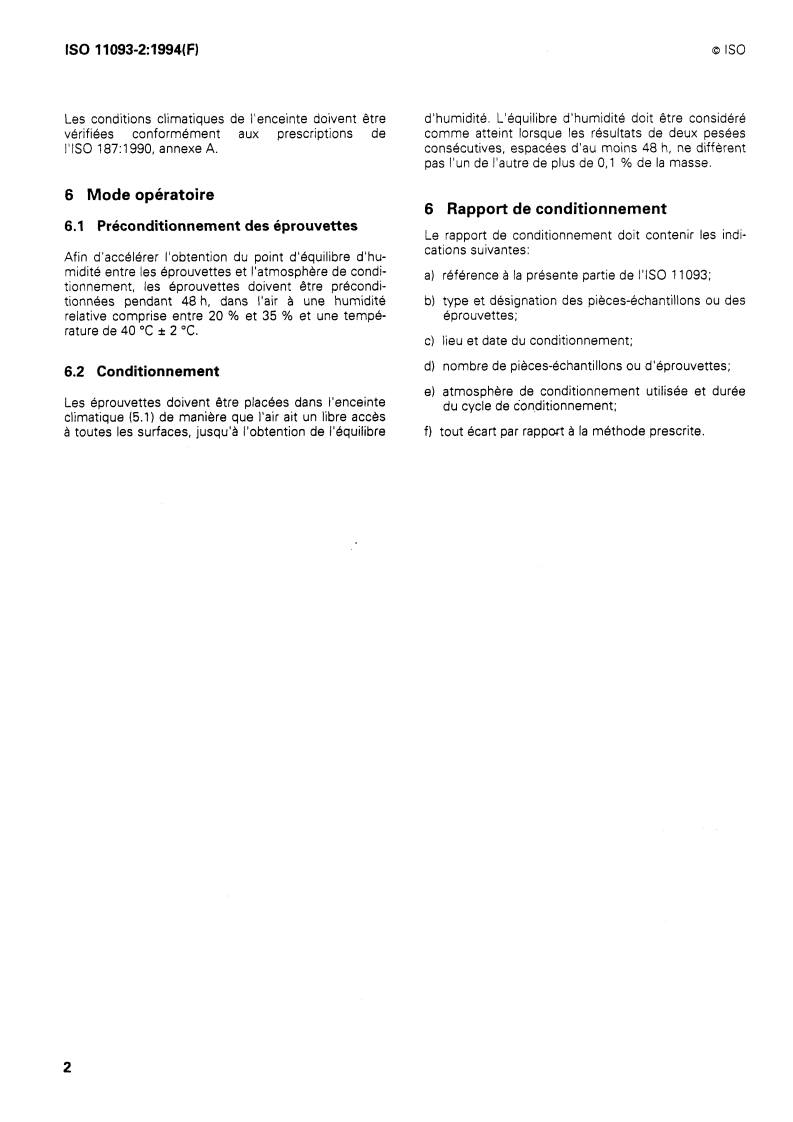

- Pre-drying: To accelerate moisture equilibration, specimens may be pre-dried for 48 h in air at 40 °C ±2 °C and at 20–35 % RH before conditioning.
- Equilibrium criterion: Moisture equilibrium is reached when two consecutive weighings, at least 48 h apart, differ by no more than 0.1 % of mass.
- Specimen placement: Test pieces must be arranged to give air free access to all surfaces during conditioning.
- Conditioning report: Test records must include reference to the standard, specimen type, place/date of conditioning, number of specimens, conditioning atmosphere and duration, and any deviations from the method.
Applications and users
ISO 11093-2 is used by:
- Quality control and testing laboratories assessing paperboard and spool/core performance.
- Paper and board manufacturers and converters who need consistent test conditions for cores.
- Packaging engineers and R&D teams who evaluate core properties (dimensional stability, moisture-related behaviour) under standard atmospheres.
- Certification and compliance bodies requiring standard conditioning before mechanical or dimensional tests.
Practical benefits include improved repeatability of core tests, reduced variability from moisture differences, and consistent reporting for contractual or regulatory comparisons.
Related standards
- ISO 187:1990 - Standard atmosphere for conditioning and testing, and monitoring procedures (normative reference).
- ISO 554:1976 - Standard atmospheres for conditioning and/or testing - tolerances (referenced for tolerances).
- Other parts of ISO 11093 cover sampling, moisture content, dimensional measurements, and specific mechanical tests (Parts 3–9).
Keywords: ISO 11093-2, conditioning of test samples, paper and board cores, conditioning atmosphere, climatic chamber, moisture equilibrium, ISO 187.
ISO 11093-2:1994 - Paper and board — Testing of cores — Part 2: Conditioning of test samples Released:12/8/1994
ISO 11093-2:1994 - Papier et carton — Essais des mandrins — Partie 2: Conditionnement des échantillons pour essai Released:12/8/1994
Frequently Asked Questions
ISO 11093-2:1994 is a standard published by the International Organization for Standardization (ISO). Its full title is "Paper and board - Testing of cores - Part 2: Conditioning of test samples". This standard covers: Specifies the conditioning atmospheres to be used for conditioning and testing cores, the apparatus and the procedure used.
Specifies the conditioning atmospheres to be used for conditioning and testing cores, the apparatus and the procedure used.
ISO 11093-2:1994 is classified under the following ICS (International Classification for Standards) categories: 85.060 - Paper and board. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 11093-2:1994 has the following relationships with other standards: It is inter standard links to ISO 11093-2:2025. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase ISO 11093-2:1994 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of ISO standards.
Standards Content (Sample)

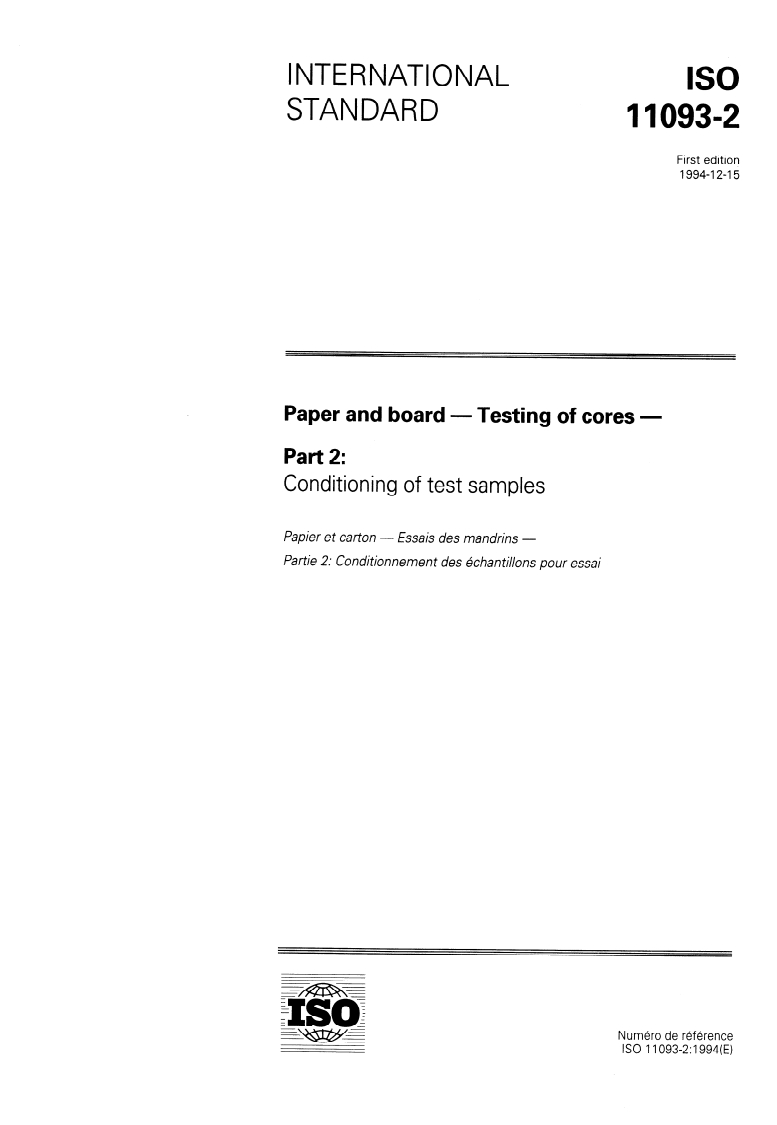

INTERNATIONAL
ISO
STANDARD
11093-2
First edition
1994-12-15
Paper and board - Testing of cores -
Part 2:
Conditioning of test samples
Papier et carton
- Essais des mandrins -
Partie 2: Conditionnement des khantillons pour essai
Num6ro de refbence
ISO 11093-2: 1994(E)
ISO 11093=2:1994(E)

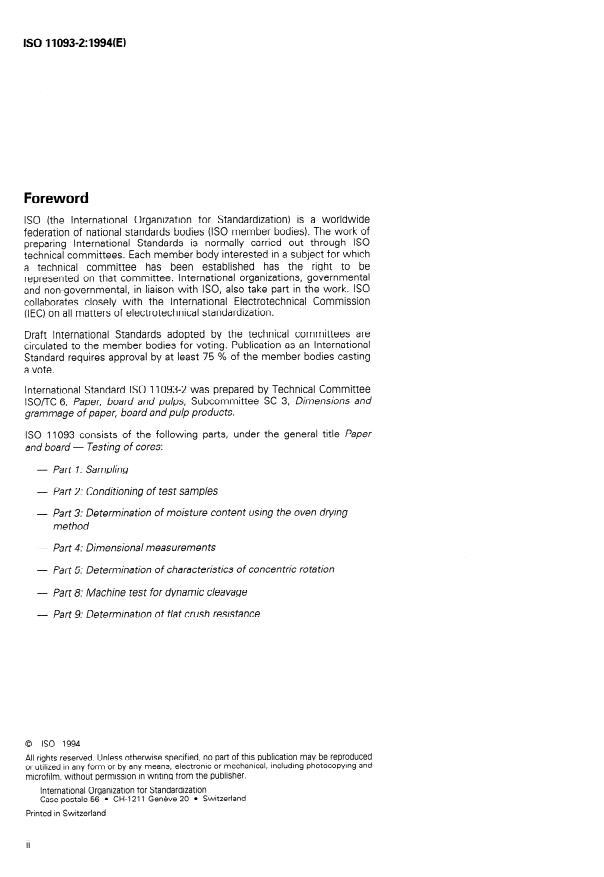

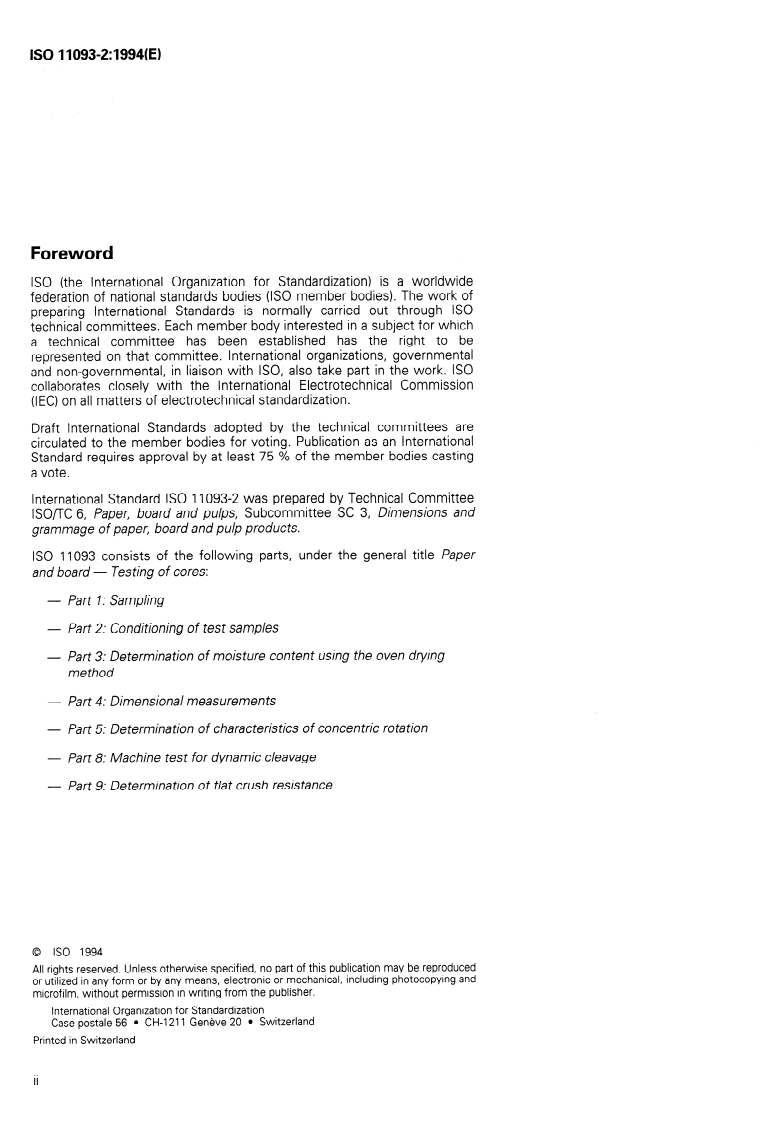

Foreword
ISO (the International Organization for Standardization) is a worldwide
federation of national Standards bodies (ISO member bodies). The work of
preparing International Standards is normally carried out through ISO
technical committees. Esch member body interested in a subject for which
a technical committee has been established has the right to be
represented on that committee. International organizations, governmental
and non-governmental, in liaison with ISO, also take part in the work. ISO
collaborates closely with the International Electrotechnical Commission
(IEC) on all matters of electrotechnical standardization.
Draft International Standards adopted by the technical committees are
circulated to the member bodies for voting. Publication as an International
Standard requires approval by at least 75 % of the member bodies casting
a vote.
International Standard ISO 11093-2 was prepared by Technical Committee
lSO/TC 6, Paper, board and pulps, Subcommittee SC 3, Dimensions and
grammage of Paper, board and pulp products.
ISO 11093 consists of the following Parts, under the general title Paper
and board - Testing of cores:
- Part 7: Sampling
- Part 2: Conditioning o f test samples
- Part 3: Determination of mois ture con ten t using the oven drying
method
- Part 4: Dimensional measurements
- Part 5: Determination of characteristics of concentric rotation
- Part 8: Machine test for dynamic cleavage
- Part 9: Determination of flat crush resistance
0 ISO 1994
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced
or utilized in any form or by any means, electronie or mechanical, including photocopying and
microfilm, without Permission in writing from the publisher.
for Standardization
International Organization
11 Geneve 20 l Switzerl and
Case postale 56 l CH-l 2
Printed in Switzerland
INTERNATIONAL STANDARD o ISO ISO 11093=2:1994(E)

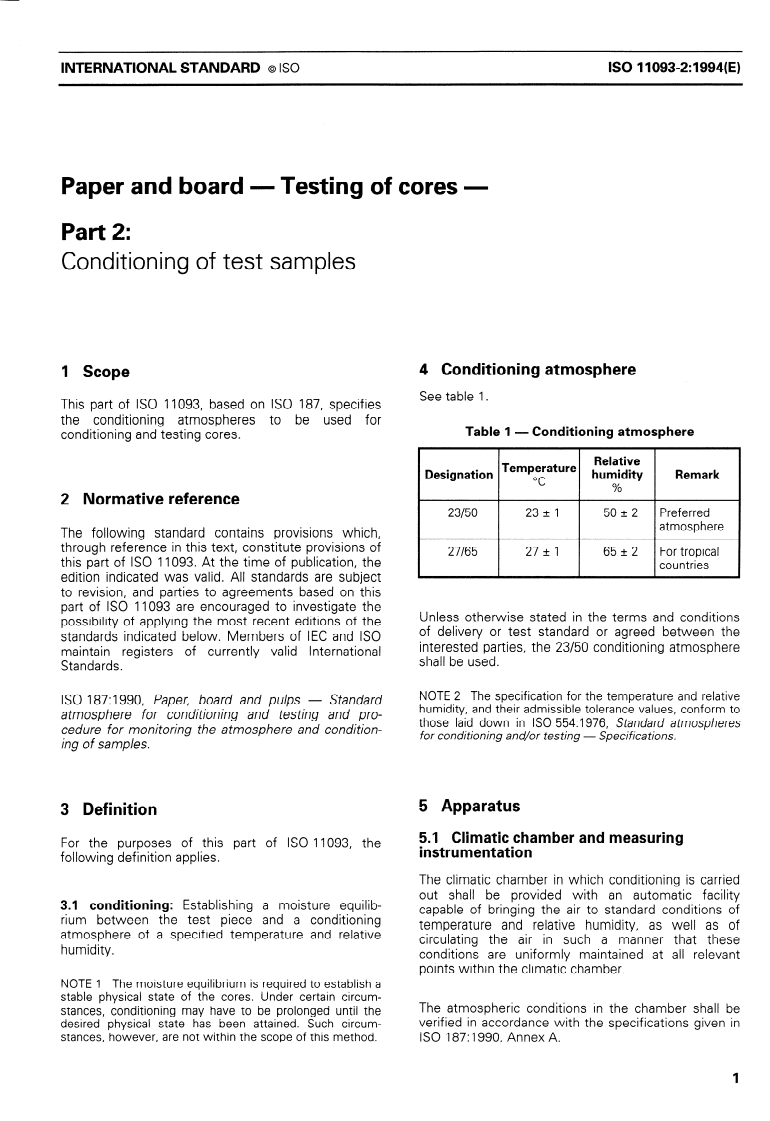

Paper and board - Testing of cores -
Part 2:
Conditioning of test samples
4 Conditioning atmosphere
1 Scope
See table 1.
This part of ISO 11093, based on ISO 187, specifies
the conditioning atmospheres to be used for
Table 1 - Conditioning atmosphere
conditioning and testing cores.
Relative
Temperature humidity
Designation Remark
“C
%
2 Normative reference
23150 23 iz 1 50 + 2 Preferred
atmosphere
The following Standard contains provisions which,
through reference in this text, constitute provisions of
27165 27kl 1 65+2 /~~l%;;i~;al )
this part of ISO 11093. At the time of publication, the
I
edition indicated was valid. All Standards are subject
to revision, and Parties to agreements based on this
part of ISO 11093 are encouraged to investigate the
Unless otherwise stated in the terms and conditions
possibility of applying the most recent editions of the
of delivery or test Standard or agreed between the
Standards i
...

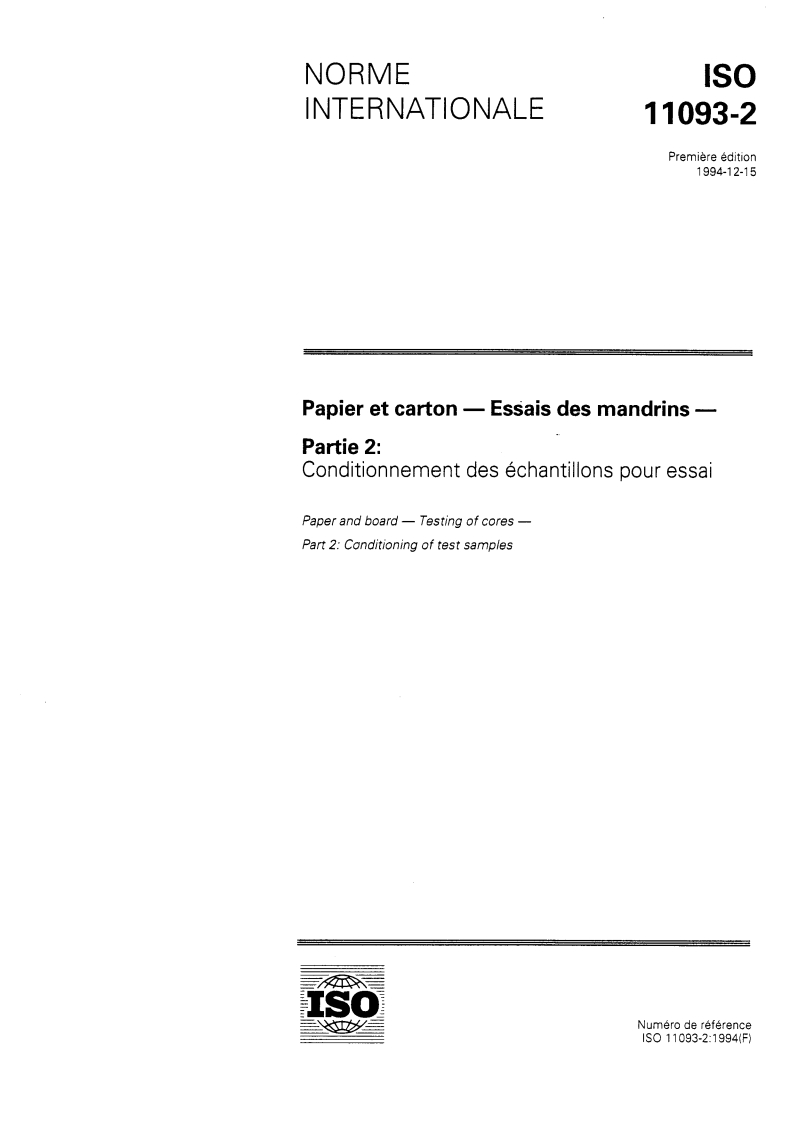

NORME
IS0
I NT E R NAT I O N AL E
I 1093-2
Premiere édition
1994-1 2-1 5
Papier et carton - Essais des mandrins -
Partie 2:
Conditionnement des échantillons pour essai
Paper and board - Testing of cores -
Part 2: Cunditioning of test samples
Numéro de référence
IS0 11 093-211 994(F)
IS0 11093-2:1994(F)

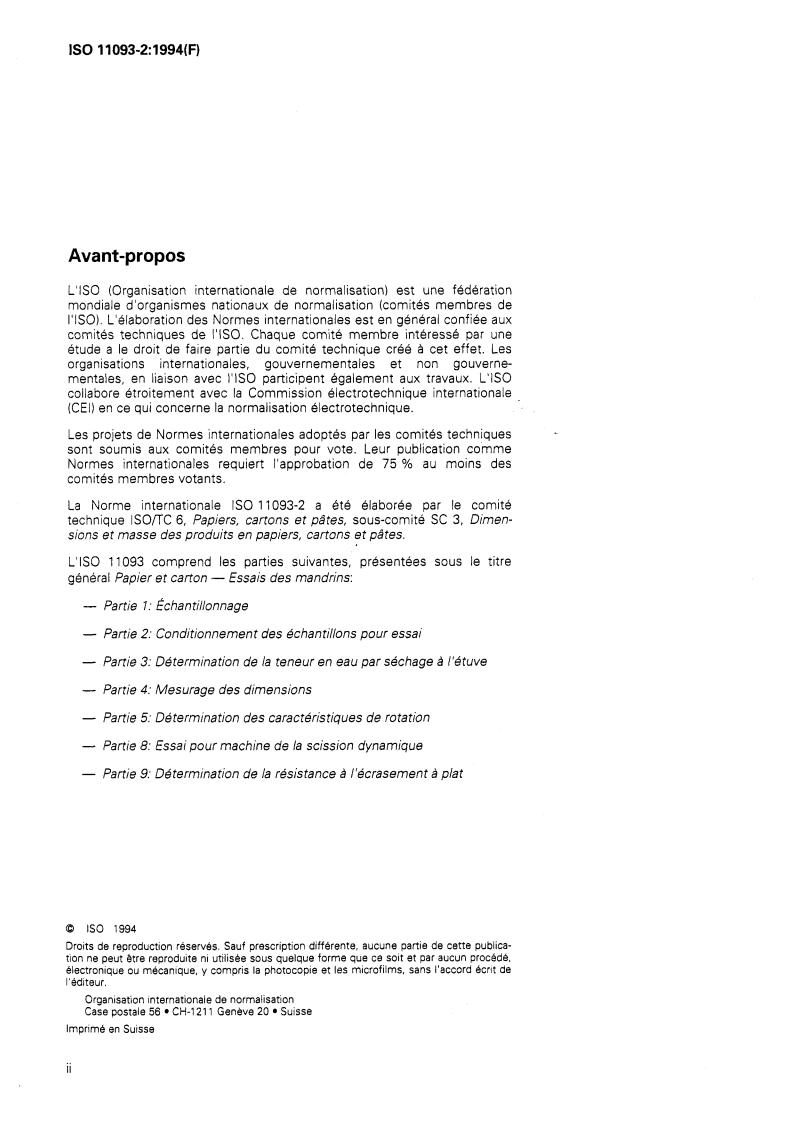

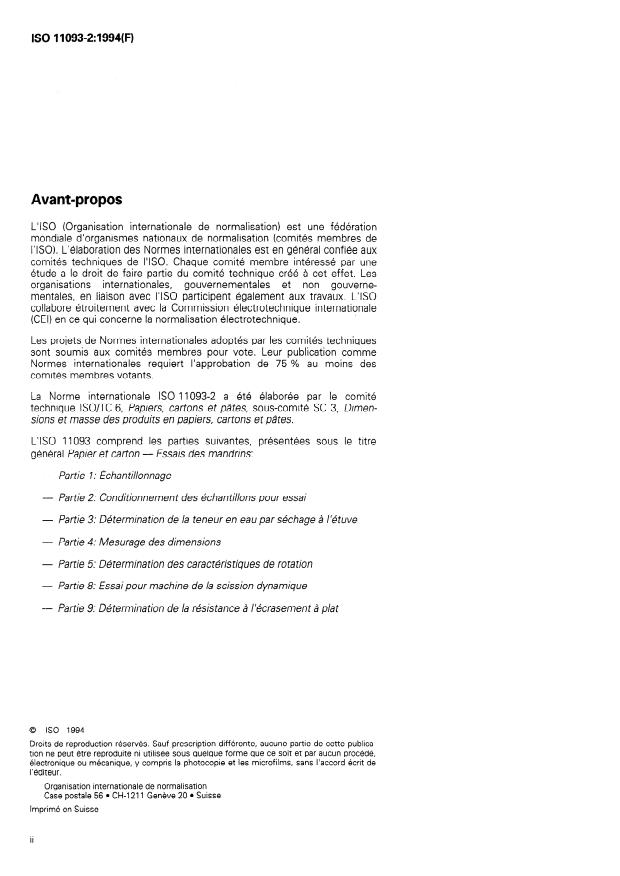

Avant-propos
L'ISO (Organisation internationale de normalisation) est une fédération
mondiale d'organismes nationaux de normalisation (comités membres de
I'ISO). L'élaboration des Normes internationales est en général confiée aux
comités techniques de I'ISO. Chaque comité membre intéressé par une
étude a le droit de faire partie du comité technique créé à cet effet. Les
organisations internationales, gouvernementales et non gouverne-
mentales, en liaison avec I'ISO participent bgalement aux travaux. L'ISO
collabore étroitement avec la Commission électrotechnique internationale
(CEI) en ce qui concerne la normalisation électrotechnique.
Les projets de Normes internationales adoptés par les comités techniques
sont soumis aux comités membres pour vote. Leur publication comme
Normes internationales requiert l'approbation de 75 % au moins des
comités membres votants.
La Norme internationale IS0 11093-2 a été élaborée par le comité
technique ISO/TC 6, Papiers, cartons et pâtes, sous-comité SC 3, Dimen-
sions et masse des produits en papiers, cartons et pâtes.
L'ISO 11093 comprend les parties suivantes, présentées sous le titre
général Papier et carton - Essais des mandrins:
- Partie I: Échantillonnage
- Partie 2: Conditionnement des échantillons pour essai
- Partie 3: Détermination de la teneur en eau par séchage à 1'étuve
- Partie 4: Mesurage des dimensions
- Partie 5: Détermination des caractéristiques de rotation
- Partie 8: Essai pour machine de la scission dynamique
- Partie 9: Détermination de la résistance à l'écrasement à plat
(B IS0 1994
Droits de reproduction réservés. Sauf prescription différente, aucune partie de cette publica-
tion ne peut etre reproduite ni utilisée sous quelque forme que ce soit et par aucun procédé,
électronique ou mécanique, y compris la photocopie et les microfilms, sans l'accord écrit de
I'éditeur.
Organisation internationale de normalisation
Case postale 56 CH-1 21 1 Genève 20 Suisse
Imprim6 en Suisse
II
IS0 11093-2:1994(F)
NORME INTERNATIONALE CI IS0

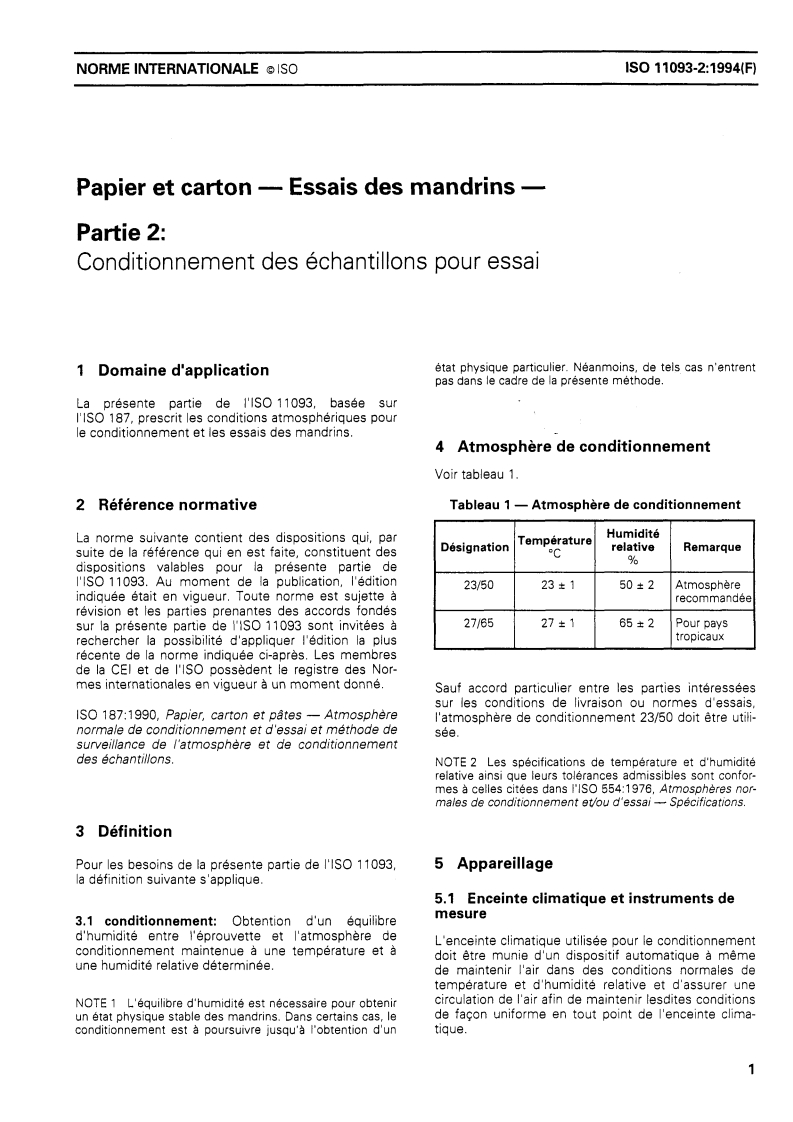

Papier et carton - Essais des mandrins -
Partie 2:
Conditionnement des échantillons pour essai
état physique particulier. Néanmoins, de tels cas n'entrent
1 Domaine d'application
pas dans le cadre de la présente méthode.
La présente partie de I'ISO 11093, basée sur
I'ISO 187, prescrit les conditions atmosphériques pour
le conditionnement et les essais des mandrins.
4 Atmosphère de conditionnement
Voir tableau 1.
Tableau 1 - Atmosphère de conditionnement
2 Référence normative
t I l l i
Humidité
La norme suivante contient des dispositions q,ui, par
1 Désignation 1 Température oc 1 relzi2ve 1 Remarque 1
suite de la référence qui en est faite, constituent des
dispositions valables pour la présente partie de
I'ISO 11093. Au moment de la publication, Ilédition
23/50 23 f 1 50 * 2 Atmosphère
indiquée était en vigueur. Toute norme est sujette à
recommandée
~~~ ~- ~ ~~
révision et les parties prenantes des accords
...
