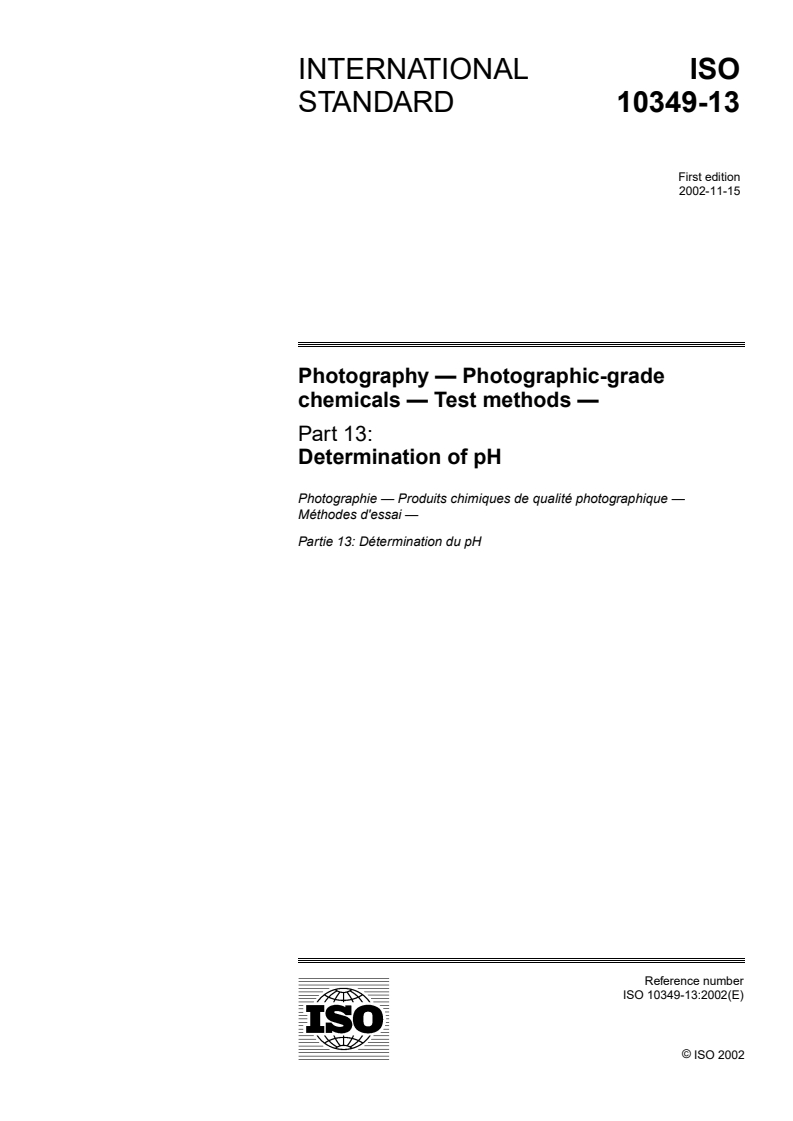

ISO 10349-13:2002

INTERNATIONAL ISO
STANDARD 10349-13
First edition
2002-11-15
Photography — Photographic-grade
chemicals — Test methods —
Part 13:
Determination of pH
Photographie — Produits chimiques de qualité photographique —
Méthodes d'essai —
Partie 13: Détermination du pH

Reference number
ISO 10349-13:2002(E)
© ISO 2002

---------------------- Page: 1 ----------------------
ISO 10349-13:2002(E)

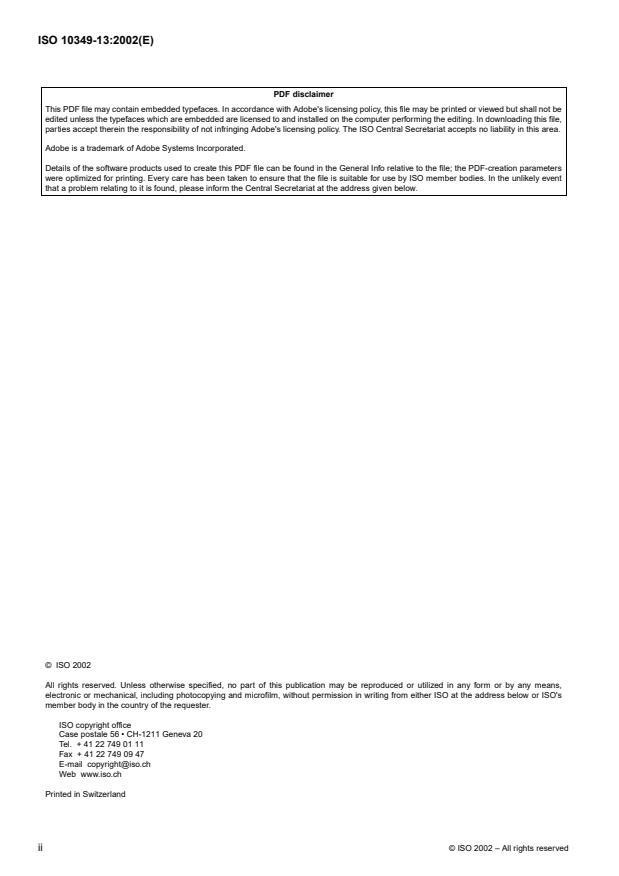

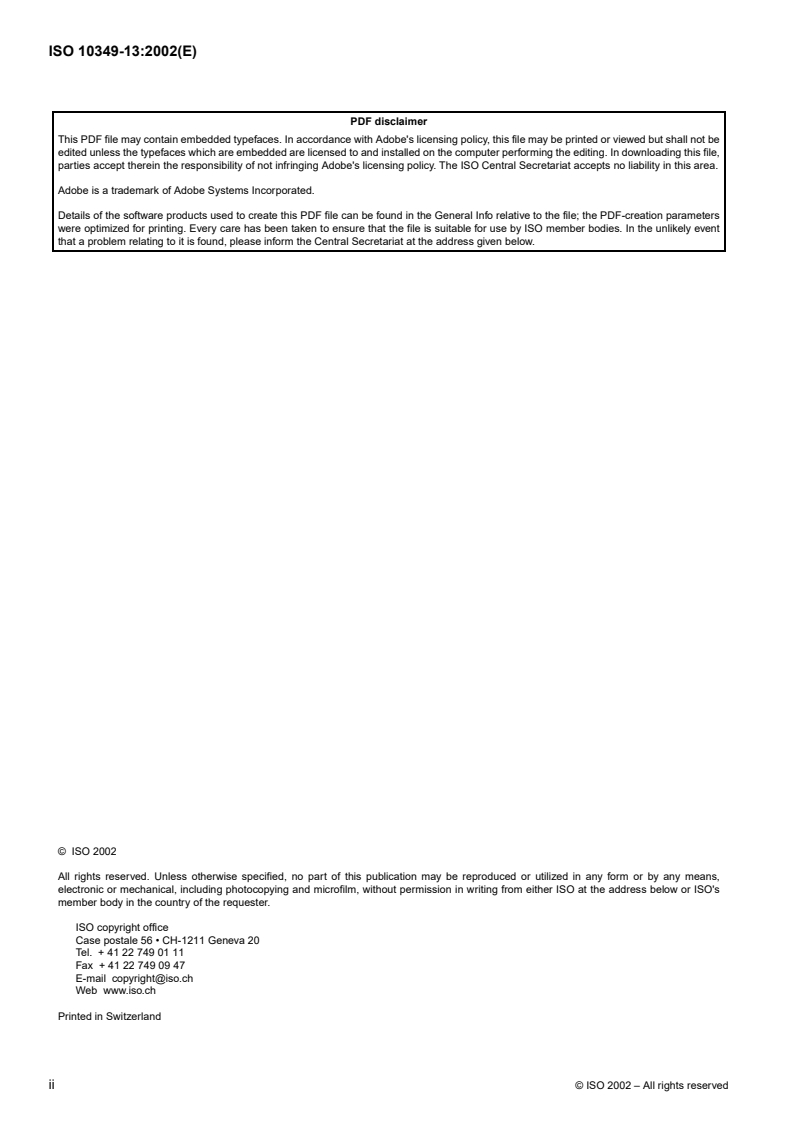

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not be
edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this file,
parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters
were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event
that a problem relating to it is found, please inform the Central Secretariat at the address given below.
© ISO 2002
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's
member body in the country of the requester.
ISO copyright office
Case postale 56  CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.ch
Web www.iso.ch
Printed in Switzerland
©
ii ISO 2002 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 10349-13:2002(E)

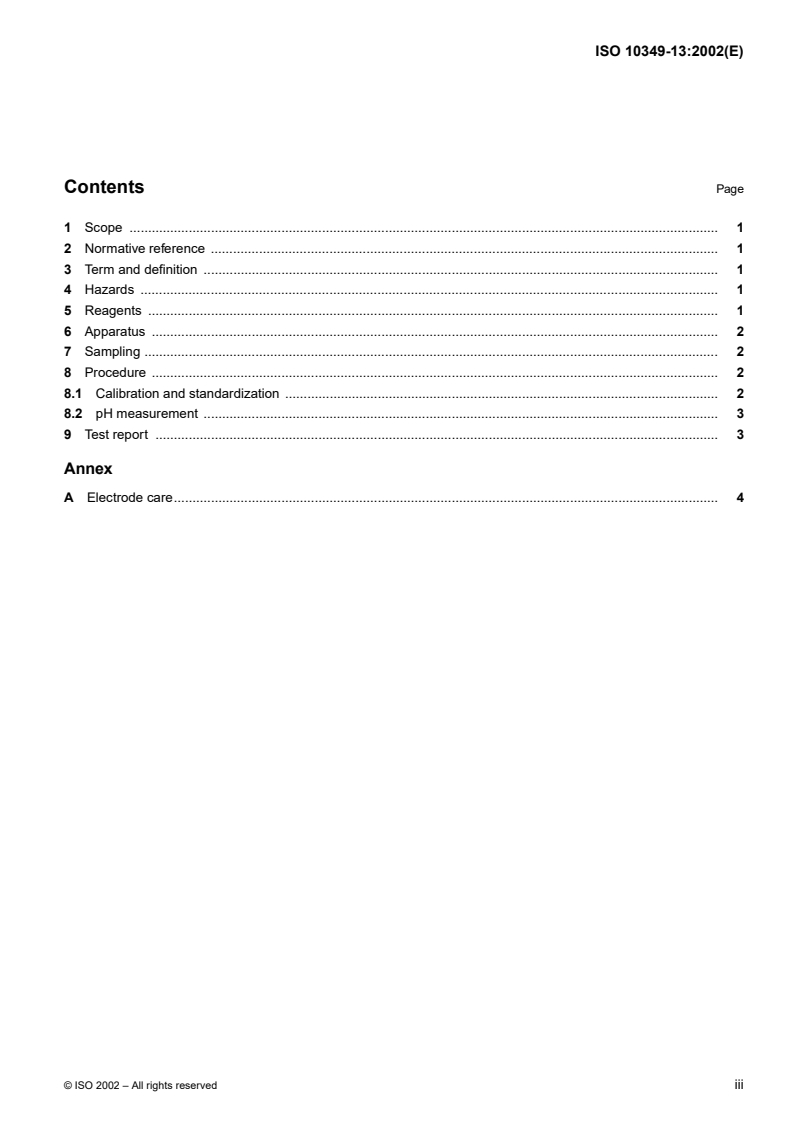

Contents Page
1 Scope . 1
2 Normative reference . 1
3 Term and definition . 1
4 Hazards . 1
5 Reagents . 1
6 Apparatus . 2
7 Sampling . 2
8 Procedure . 2
8.1 Calibration and standardization . 2
8.2 pH measurement . 3
9 Test report . 3
Annex
A Electrode care. 4
©
ISO 2002 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 10349-13:2002(E)

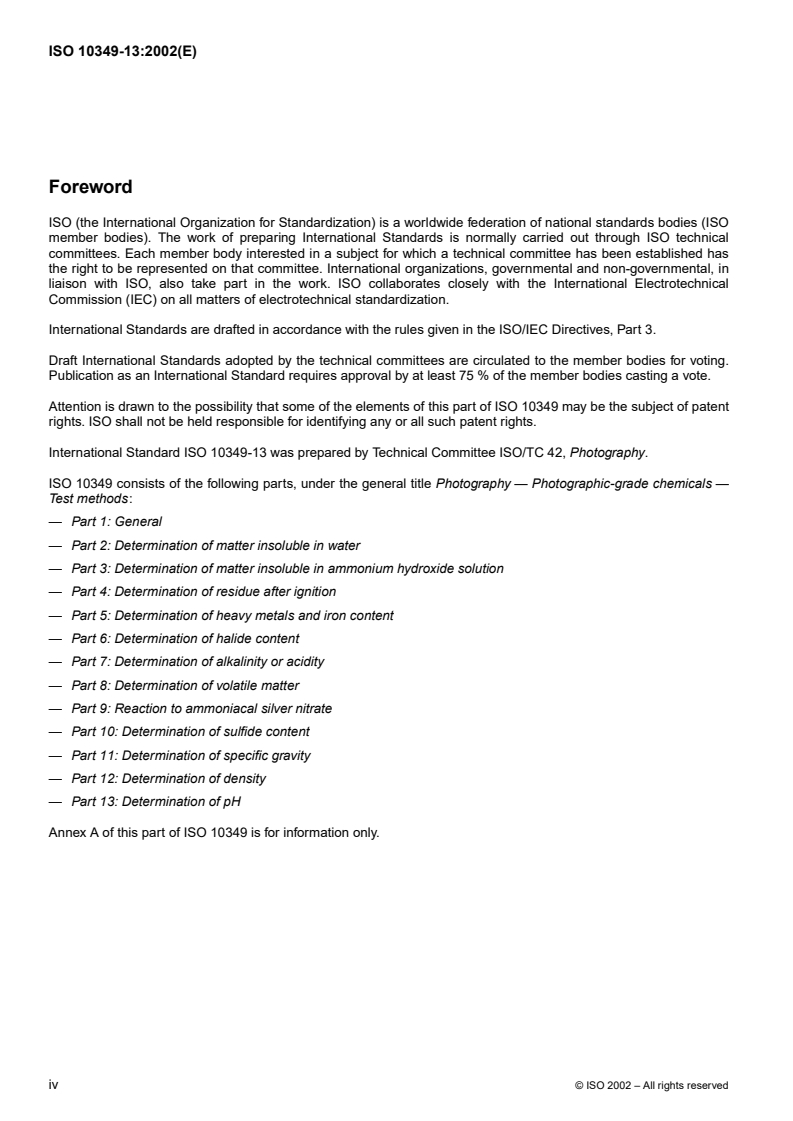

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
Draft International Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this part of ISO 10349 may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
International Standard ISO 10349-13 was prepared by Technical Committee ISO/TC 42, Photography.
ISO 10349 consists of the following parts, under the general title Photography — Photographic-grade chemicals —
Test methods:
— Part 1: General
— Part 2: Determination of matter insoluble in water
— Part 3: Determination of matter insoluble in ammonium hydroxide solution
— Part 4: Determination of residue after ignition
— Part 5: Determination of heavy metals and iron content
— Part 6: Determination of halide content
— Part 7: Determination of alkalinity or acidity
— Part 8: Determination of volatile matter
— Part 9: Reaction to ammoniacal silver nitrate
— Part 10: Determination of sulfide content
— Part 11: Determination of specific gravity
— Part 12: Determination of density
— Part 13: Determination of pH
Annex A of this part of ISO 10349 is for information only.
©
iv ISO 2002 – All rights reserved

---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 10349-13:2002(E)
Photography — Photographic-grade chemicals — Test methods —
Part 13:
Determination of pH
1 Scope
This part of ISO 10349 specifies a general test method for the determination of pH of solutions of photographic-grade
± 0,1 pH
chemicals to within units.
This method is not intended to monitor the pH of formulated solutions used directly in photographic processing, e.g.
developers.
2 Normative reference
The following normative document contains provisions which, through reference in this text, constitute provisions of
this part of ISO 10349. For dated references, subsequent amendments to, or revisions of, this publication do not
apply. However, parties to agreements based on this part of ISO 10349 are encouraged to investigate the possibility
of applying the most recent edition of the normative document indicated below. For undated references, the latest
edition of the normative document referred to applies. Members of ISO and IEC maintain registers of currently valid
International Standards.
1)
ISO 10349-1:— , Photography — Photographic-grade chemicals — Test methods — Part 1: General
3 Term and definition
For the purposes of this part of ISO 10349, the following term and definition apply.
3.1
calibration buffers
materials, purchased from various chemical supply sources, that are used to calibrate the pH meter in preparation for
measuring samples
4 Hazards
General hazard warnings for the handling of chemicals are specified in ISO 10349-1.
5Reagents
5.1 Calibration buffers
5.1.1 pH 4,0 buffer solution
Potassium hydrogen phthalate based, with an accuracy of ± 0,01 pH units. Available from several vendors.
1) To be published. (Revision of ISO 10349-1:1992)
©
ISO 2002 – All rights reserved 1

---------------------- Page: 5 ----------------------
ISO 10349-13:2002(E)
5.1.2 pH 7,0 buffer solution
Potassium/sodium phosphate based, with an accuracy of ± 0,01 pH units. Available from several vendors.
5.1.3 pH 10,0 buffer solution
Potassium carbonate/borate hydroxide based, with an accuracy of ± 0,01 pH units. Available from several vendors.
6 Apparatus
2)
All glassware subject to heating shall be of heat-resistant borosilicate glass .
Pipettes and other volumetric glassware shall meet the requirements specified in ISO 10349-1.
6.1 pH meter, with resolution/accuracy of at least ± 0,01 pH units.
6.2 Electrodes, pH glass electrode with a range of 0 to 14; an accuracy of ± 0,02 pH units minimum; a sodium
error of ± 0,05 pH units minimum; and a suitable reference electrode with appropriate filling solutions.
The choice of the reference electrode can be critical to the application and shall be chosen accordingly.
For routine measurements of solutions with a pH value greater than 10, a sodium-corrected electrode is strongly
recommended.
NOTE A combination electrode may be used in place of a glass/reference pair. The same con
...
