ISO/IEC 23008-1:2014/FDAmd 2

FINAL
ISO/IEC
AMENDMENT
DRAFT
23008-1:2014
FDAM 2
ISO/IEC JTC 1/SC 29
Information technology — High
Secretariat: JISC
efficiency coding and media delivery
Voting begins
on: 2015-06-24 in heterogeneous environments —
Voting terminates
Part 1:
on: 2015-08-24
MPEG media transport (MMT)
AMENDMENT 2: Header Compression
and Cross Layer Interface
Technologies de l’information — Codage à haute efficacité et livraison
des medias dans des environnements hétérogènes —
Partie 1: Transport des médias MPEG
AMENDEMENT 2: .
RECIPIENTS OF THIS DRAFT ARE INVITED TO
SUBMIT, WITH THEIR COMMENTS, NOTIFICATION
OF ANY RELEVANT PATENT RIGHTS OF WHICH
THEY ARE AWARE AND TO PROVIDE SUPPOR TING
DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
Reference number
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO-
ISO/IEC 23008-1:2014/FDAM 2:2015(E)
LOGICAL, COMMERCIAL AND USER PURPOSES,
DRAFT INTERNATIONAL STANDARDS MAY ON
OCCASION HAVE TO BE CONSIDERED IN THE
LIGHT OF THEIR POTENTIAL TO BECOME STAN-
DARDS TO WHICH REFERENCE MAY BE MADE IN
©
NATIONAL REGULATIONS. ISO/IEC 2015

ISO/IEC 23008-1:2014/FDAM 2:2015(E)

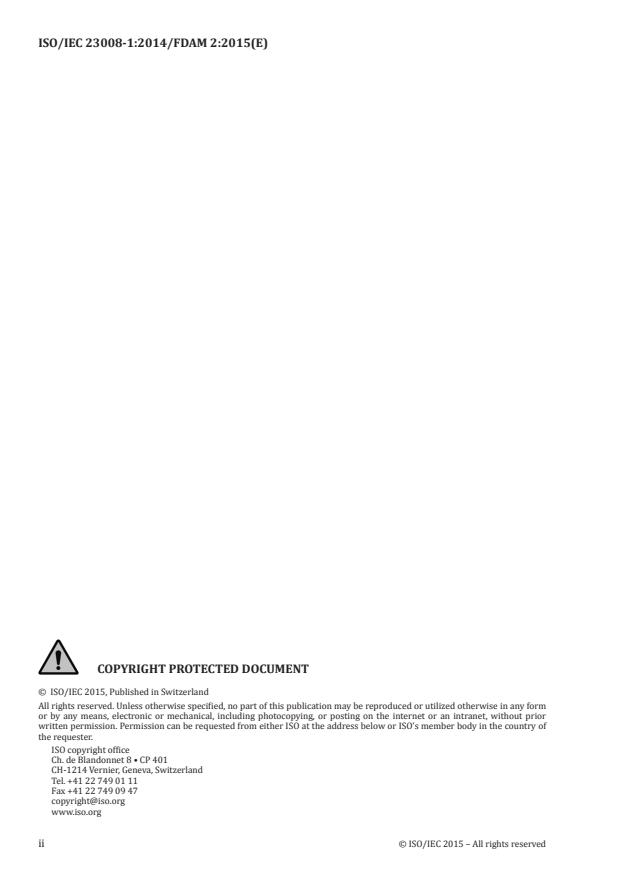

© ISO/IEC 2015, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO/IEC 2015 – All rights reserved

ISO/IEC 23008-1:2014/FDAM 2:2014(E)
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
Amendment 2 to ISO/IEC 23008-1:2014 was prepared by Joint Technical Committee ISO/IEC JTC 1,
Information technology, Subcommittee SC 29, Coding of audio, picture, multimedia and hypermedia
information.
⎯ Part 1: MPEG media transport (MMT)
⎯ Part 2: High efficiency video coding (HEVC)
⎯ Part 3: 3D Audio
⎯ Part 10: FEC Codes
⎯ Part 11 : Composition Information (CI)

iii
© ISO/IEC 2014 – All rights reserved

ISO/IEC 23008-1:2014/FDAM 2:2014(E)

Information technology — High efficiency coding and media
delivery in heterogeneous environments — Part 1: MPEG media
transport (MMT)), AMENDMENT 2: Header Compression and
Cross Layer Interface
The following instructions apply to the (re-organized) first edition of 23008-1

Add the following definitions to clause 3.1, suitable numbered
3.1.37
network abstraction for media
parameter that is used for an interface between media application layer and underlying network layer

Replace the following definition in 3.1.12,
3.1.12
FEC source packet
MMTP packet along with source FEC payload identifier
to
3.1.12
FEC source packet
MMTP packet protected by an FEC encoding

Add the following abbreviated terms to clause 3.2, suitable numbered
CLI  cross layer interface
NAM network abstraction for media

Replace the following Table 2 in 8.2.3,
Table 2 - FEC_types
Value Description
0 MMTP packet without AL-FEC protection
© ISO/IEC 2014 – All rights reserved 1

ISO/IEC 23008-1:2014/FDAM 2:2014(E)
It provides two types of headers as follows
⎯ Full size headers are sent regularly and may be used as a reference for reduced-size headers.
⎯ Reduced size headers contain differential information with regards to the last full size header received
that is marked as a reference header.

Therefore, by sending only differential information instead of full information, bits savings can be achieved.
Additionally, a link to the reference header packet is added in all compressed packets to make sure that the
last full header (reference) packets received is indeed the one that shall be used as a reference. Such
robustness mechanism is needed as reference packets may actually be lost.
Header compression method applies on the MMTP packet header. For this, a bit (B) is introduced at the
beginning of the original header (or at least in the initial fixed part of the header that is common to full size
header and reduced size header) to simply inform whether or not the present header is full size or reduced
size.
Then many fields present in the full-size headers are either removed or replaced by much smaller fields that
contain enough information for the receiver to reconstruct the original full-size header field.
In order to let the receiver know that a full size header will be used as a reference by further reduced size
header, an extra bit (I) is also added at the beginning of the full size header in order to mark headers that will
be used as a reference later.
Since packet losses may also happen in the network, it is important that even when reduced size headers are
used, it is still possible to detect and identify packet losses. Thus, a smaller sequence number is introduced
for MMTP packets and mandates that the full-size header is used in place of the reduced size header
whenever the reduced sequence number is about to wrap around its initial value.
Similarly, although it is costly in number of bits, the timestamp information associated to packets must be
preserved. For this, only the last 19 bits of the full size 32 bits NTP timestamp are used. This allows keeping
the same timestamp precision with a wrap around duration of 8 seconds. Consequently, a full size header
must be present at least every 8 seconds.
8.4.4.2  Syntax
0          1          2          3
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|V=1|B|I|C|FEC|P|X|R|Q|F|R|E|typ|      packet_id      |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|              timestamp             |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|            packet_sequence_number         |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|              packet_counter           |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| TB | DS | TP | flow_label |   private_user_data    |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|             header_extension         .
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|             payload_data           .
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|           source_FEC_payload_ID           |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
Figure AMD2. 1 Structure of MMTP packet with full header (B=0)
0          1          2          3
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
© ISO/IEC 2014 – All rights reserved 3

|B|C|FEC|P|X|Q|F|R|E|typ|  Ref  |    delta_timestamp
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|reduced_pckt_id|reduced_SeqNum |reduced_PckCnt | .
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| TB | DS | TP | flow_label |   private_user_data    |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|            header_extension          .
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|             payload_data           .
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|           source_FEC_payload_ID           |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
Figure AMD2. 2 MMTP with reduced header (B=1)

8.4.4.3 Semantics
The full size MMTP packet header introduces new fields with their own semantic:
Compression_flag (B: 1bit) — This field is added at the beginning of the header in order to
indicate whether or not header Compression is used. When set to 0, the full size header is used;
when set to 1, the reduced size header is used.
Indicator_flag (I: 1bit) — This field is added to tell the receiver whether or not the current
full header will later be used as a reference. This field shall be set to 1 when the full header will be
used as a reference. This allows receivers discovering that this header information shall be stored as
it will be later used as a reference by packets with reduced headers.

The reduced size MMTP packet header introduces new fields with their own semantic:
⎯ The delta_timestamp field contains the difference between the timestamp field of the reference
full size header and the value that would be in current packet timestamp field if full size header was
used. This difference is coded in a way similar to the 19 least significant bits of an NTP timestamp. If
the difference between these two timestamps is larger than 8 seconds (and therefore goes beyond
the maximum duration that can be coded on 19 bits) then a packet with full header shall be sent in
order to provide a new timestamp reference value for further packets with reduced size header.
⎯ The reduced_pckt_id field contains the 8 least significant bits of the packet_id field that would
be in the header if full size header was used. Therefore, this reduction from 16 bits long packet ids to
8 bits long ids restricts the use of the header compression for streams whose packet_id is between 0
and 255. In other words, header reduction mechanism can only be used on assets with a packet_id
between 0 and 255.
⎯ The reduced_SeqNum field contains the 8 least significant bits of the packet_sequence_number
field that would be in the header if full size header was used. Since this new field is coded on 8 bits,
MMT receiving entity shall take into account the number of times this field wrapped around 0 to
compute the original packet_sequence_number value.
⎯ The reduced_PckCnt field contains the 8 least significant bits of the packet_counter field that
would be in the header if full size header was used. Since this new field is coded on 8 bits, MMT
receiving entity shall take into account the number of times this field wrapped around 0 to compute the
original packet_counter value.
⎯ The RefSeqNum(Ref)field contains the 5 bits preceded the last 8bits of the packet sequence
number (the value set to “reduced sequence number” filed) of the MMTP packet whose full header is
used as a reference. This brings additional robustness by allowing the MMT receiving entity to check
if the last full header received is actually the one that shall be used as a reference for the current
reduced size header. Since MMTP packet may be dropped, RefSeqNum field allows making sure that
MMT receiving entity will not try to improperly decode the reduced header when full header for
reference has not been received.

The reduced size MMTP packet header also suppresses fields that are present in full size header:
⎯ The version field is suppressed as reduced size headers shall have the same version as their
referenced header.
4 © ISO/IEC 2014 – All rights reserved

ISO/IEC 23008-1:2014/FDAM 2:2014(E)
⎯ The I field is suppressed as only full size headers shall be used as a reference.
⎯ The RAP_flag is removed as full size headers shall be sent whenenver the payload contains a
Random Access Point
8.4.4.4 MMTP packet header compression rules and normative aspects
A packet with full MMTP header shall at least be sent when one of the following conditions is met:
1) The difference between the timestamps of the current packet and the reference packet is larger than 8
seconds (and therefore cannot be coded on the 19bits long delta_timestamp field),
2) Packet_id is not in the range 0-255,
3) The packet contains a Random Access Point (RAP)

Packet header compression is optional on MMTP sending entities and MMTP receiving entities. Consequently,
MMT receivers shall ignore packets with B field set to 1 if they do not support MMTP header compression.
MMTP receiving entities shall not try to decode reduced size header for which the full reference header has
not been received, whether because the receiver has just joined the stream or the packet with full reference
header has been lost. MMTP receiving entities shall always wait for packets with a reference header (I field
set to 1) before they can start or re-start (in case of packet loss of reference header) the header decoding.

Replace the following figure with figure 17. in 9.4

Figure AMD2.3 — Structure of the Signalling Messages for MMT Delivery

Add the following sub-clause as an 9.4.7

9.4.7 NAM Feedback (NAMF message)
9.4.7.1 Syntax
The syntax for the NAM feedback is shown in Table AMD2. 2.
© ISO/IEC 2014 – All rights reserved 5

Table AMD2. 2 — NAM_Feedback Message Syntax
Values
Syntax No. of bits Mnemonic
NAMF_message ( ) {
message_id 16 unsigned short
version 8 unsigned char
length 16 unsigned short
NAM_flag 1 unsigned integer
reserved 7 unsigned integer
if(NAM_flag == 0)
{ 8 unsigned integer
message_payload{  8 float
CLI_id 8 float
relative_available_bitrate 8 float
relative_buffer_fullness 16 unsigned integer
relative_peak_bitrate 32 float
average_bitrate_period 32 float
current_delay 32 float
generation_time
BER
}
}
else if(NAM_flag == 1)
{
message_payload{
CLI_id 8 unsigned integer
available_bitrate 32 float
buffer_fullness 32 float
peak_bitrate 32 float
current_delay 32 float
average_bitrate_period 16 unsigned interger
SDU_size 32 unsigned integer
SDU _loss_ratio 8 unsigned integer
generation_time 32 float
BER 32 float
6 © ISO/IEC 2014 – All rights reserved

ISO/IEC 23008-1:2014/FDAM 2:2014(E)

}
}
}
9.4.7.2 Semantics
message_id – It indicates NAMF message ID. The length of this field is 16 bits.
version – It indicates the version of NAMF messages. MMT receiving entity may check whether the
received message is new or not. The length of this field is 8 bits.
length – It indicates the length of NAMF messages. The length of this field is 16 bits. It indicates the
length of the NAM Feedback message counted in bytes starting from the next field to the last byte of
the NAM Feedback message. The value ‘0’ shall not be used.
NAM_flag – It indicates whether NAMF message contains absolute NAM information or relative NAM
information. The value ‘1’ should be set, if NAMF message contains absolute NAM information.
CLI_id - The CLI_id is an arbitrary integer number to identify this NAM among the underlying network.
relative_available_bitrate - The available bitrate change ratio(%) between the current NAM
information and the previous NAM information.
relative_buffer_fullness - The remaining buffer fullness change ratio(%) between the current
NAM information and the previous NAM information.
relative_peak_bitrate - The peak bitrate change ratio(%) between the current NAM information
and the previous NAM information.
available_bitrate - the available_bitrate is bitrate that the scheduler of the underlying
network can guarantee to the MMT stream. The available_bitrate is expressed in kilobits per
second. Overhead for the protocols of the underlying network is not included.
buffer_fullness - the buffer is used to absorb excess bitrate higher than the available_bitrate.
The buffer_fullness is expressed in bytes.
peak_bitrate - the peak_bitrate is maximum allowable bitrate that the underlying network can
assign to the MMT stream. The peak_bitrate is expressed in kilobits per second. Overhead for the
protocols of the underlying network is not included.
current_delay - the current_delay parameter indicates the last hop transport delay. The
current_delay expressed in milliseconds.
average_bitrate_period – It provides the period of time over which the average bitrate of the input of
MMT procotol session that carries the MMTP packet shall be calculated. The
average_bitrate_period is provided in units of milliseconds.
SDU_size - SDU (Service Data Unit) is data unit in which the underlying network delivers the MMT data.
The SDU_size specifies the length of the SDU and is expressed in bits. Overhead for the protocols
of the underlying network is not included.
SDU_loss_rate - The SDU_loss_ratio is fraction of SDUs lost or detected as errorneous. Loss ratio
of MMT packets can be calculated as a function of SDU_loss_ratio and SDU_size. The
SDU_loss_ratio is expressed in percentile.
generation_time - The time when the parameters are generated. The generation_time is
expressed in milliseconds.
BER - Bit Error Rate obtained from PHY or MAC layer. For BER from PHY layer, this value is presented
as a positive value. For BER from MAC layer, this value is presented as a negative value which can be
used as an absolute value.
Add the following sub-clause as an 9.4.8

© ISO/IEC 2014 – All rights reserved 7

9.4.8 Low Delay Consumption (LDC) message
9.4.8.1 Introduction
The LDC Message provides information required to decode and present media data by the MMT receiving
entity before it receives metadata such as movie fragment headers. This message indicates that the duration
of each sample is fixed as signaled by default_sample_duration in Track Extends Box. and the coding
dependency structure is fixed across an Asset. When this message is used, the value of decoding time of the
first sample of MPU is smaller than the presentation time of the first sample of the MPU by the sum of
base_presentation_time_offset and the largest value of
sample_composition_time_offset_value paired sample_composition_time_offset_sign is
‘1.’
9.4.8.2 Syntax
The syntax for Low Delay Consumption Message is shown in Table AMD2. 3.
Table AMD 2. 3 — Low Delay Consumption Message Syntax
Syntax Values No. of bits Mnemonic
LDC_message ( ){
message_id 16
Version 8
Length 16
base_presentation_time_offset 31
coding_dependency_structure_flag 1
if (coding_dependency_structure_flag == 1){
period_of_intra_coded_sample N1 8
for (i=0 ; i sample_composition_time_offset_sign 1
sample_composition_time_offset_value 31
}
}
}
9.4.8.3 Semantics
message_id - indicates the identifier of the LDC Message.
version - version of the LDC messages. An MMT receiving entity can use this field to check the
version of the received LDC message.
length - length of the LDC messages in bytes, counting from the first byte of the next field to the last
byte of the LDC message. The value ‘0’ is not valid for this field.
base_presentation_time_offset - provides information about the time difference between
decoding time and presentation time in microseconds. Presentation time of each sample shall be
8 © ISO/IEC 2014 – All rights reserved

ISO/IEC 23008-1:2014/FDAM 2:2014(E)
greater than decoding time with this value. This shall not include any difference between decoding
time and presentation time of samples incurred due to reordering of decoded media data
coding_dependency_structure_flag - provides indication that decoding order and presentation
order of samples are different each other. If this flag is set to ‘0’, decoding order shall be same with
presentation order of samples. If this flag is set to ‘1’, decoding order shall be different from
presentation order of samples and detailed composition time offset shall be provided in this message
for the client to calculate appropriate decoding time and presentation time of the samples.
period_of_intra_coded_sample - provides the number of samples between two independently
coded samples.
sample_composition_time_offset_sign - provides the arithmetic sign of offset added to the
difference between decoding time and composition time of sample.
sample_composition_time_offset_value - provides the value of the offset added to the
difference between the decoding time and the composition time. If the value of
sample_composition_time_offset_sign is ‘0’, then the difference between value of
composition time and the value of decoding time is decreased in microseconds. If the value of
sample_composition_time_offset_sign is ‘1’, then the difference between value of
composition time and the value of decoding time is increased in microseconds.

9.4.9 Hypothetical Receiver Buffer Model (HRBM) Removal Message
9.4.9.1 Introduction
The HRBM Removal Message provides information on the management of MMT de-capsulation buffer
depending operation mode of the client specified in clause10. This message provides information required to
calculate both the initial delay before starting removal of data from MMTP de-capsulation buffer and the rate of
removing data from MMTP de-capsulation buffer. If this message is signaled, the client shall choose one of
operation modes with the maximum required buffer size signaled by this message to prevent overflow or
underflow of MMTP de-capsulation buffer. Depending the mode chosen by the client either a complete MPU,
a movie fragment, or a single MFU is recovered and the reconstructed data is forwarded to the upper layer
such as media engine.
9.4.9.2 Syntax
Table 1 — HRBM Message Syntax
Values
Syntax No. of bits Mnemonic
HRBM_Data_Removal ( ){
message_id 16
Version 8
Length 16
number_of_operation_modes 8
for(i=0; i data_removal_type 8
max_decapsulation_buffer_size 32
}
buffer_management_valid  1
© ISO/IEC 2014 – All rights reserved 9

reserved 7
}
9.4.9.3 Semantics
message_id - indicates the identifier of the HRBM_Data_Removal message.
version - version of the HRBM_Data_Removal messages. An MMT receiving can use this field to
check the version of the received HRBM_Data_Removal message.
length - length of the HRBM_Data_Removal messages in bytes, counting from the first byte of the next
field to the last byte of the HRBM_Data_Removal message. The value ‘0’ is not valid for this field.
number_of_operation_modes - provides number of operation modes client can choose to operate
data_removal_type - provides information for the type of operation mode of client removing data
reconstructed at the MMTP De-capsulation buffer defined in HRMB in clause 10. For each mode,
required buffer size is provided.
Table 1. data_removal_type Values
Value Description
0x00 Reserved
0x01 Client can remove complete MPUs (MPU mode)
0x02 Client can remove complete movie fragments (movie fragment mode)
0x03 Client can remove complete MFUs (MFU mode)
0x04 ~ 0x9F reserved for ISO use
0xA0 ~0xFF reserved for private use

max_decapsulation_buffer_size - provides information for the required maximum size of MMTP
de-capsulation buffer in bytes of MMT Assets.

buffer_management_valid - provides information whether buffer management mechanism defined
for an Asset is applied. If this flag is set to ‘0’, no restriction to both the initial delay before starting
removal of data from MMTP de-capsulation buffer and the rate of removing data from MMTP de-
capsulation buffer are applied. Reconstructed data shall be available at the MMTP De-capsulation
buffer until the buffer becomes full. Reconstructed data shall be removed from the oldest one
according to the operation mode chosen by the client when the buffer is full to add newly recovered
data. If this flag is set to ‘1’, appropriate information to calculate both the initial delay before starting
removal of data from MMTP de-capsulation buffer and the rate of removing data from MMTP de-
capsulation buffer shall be carried in the media data based on external specification.

Add the following clause as clause 11:

11. Cross Layer Interface (CLI)
11.1 Introduction
Cross Layer Interface provides the means within single MMT entity to support QoS by exchanging QoS-
related information between application layer and underlying layers including MAC/PHY layer. Application
layer provides information about media characteristics as top-down QoS information while underlying layers
provide bottom-up QoS information such as network channel condition.
10 © ISO/IEC 2014 – All rights reserved

ISO/IEC 23008-1:2014/FDAM 2:2014(E)
CLI provides the unified interface between application layer and various network layers including IEEE 802.11
WiFi, IEEE 802.16 WiMAX, 3G, 4G LTE, etc. Common network parameters of popular network standards are
abstracted as the NAM for static and dynamic QoS control of real-time media
...
