ISO 10303-101:1994/Cor.1:1999(E)

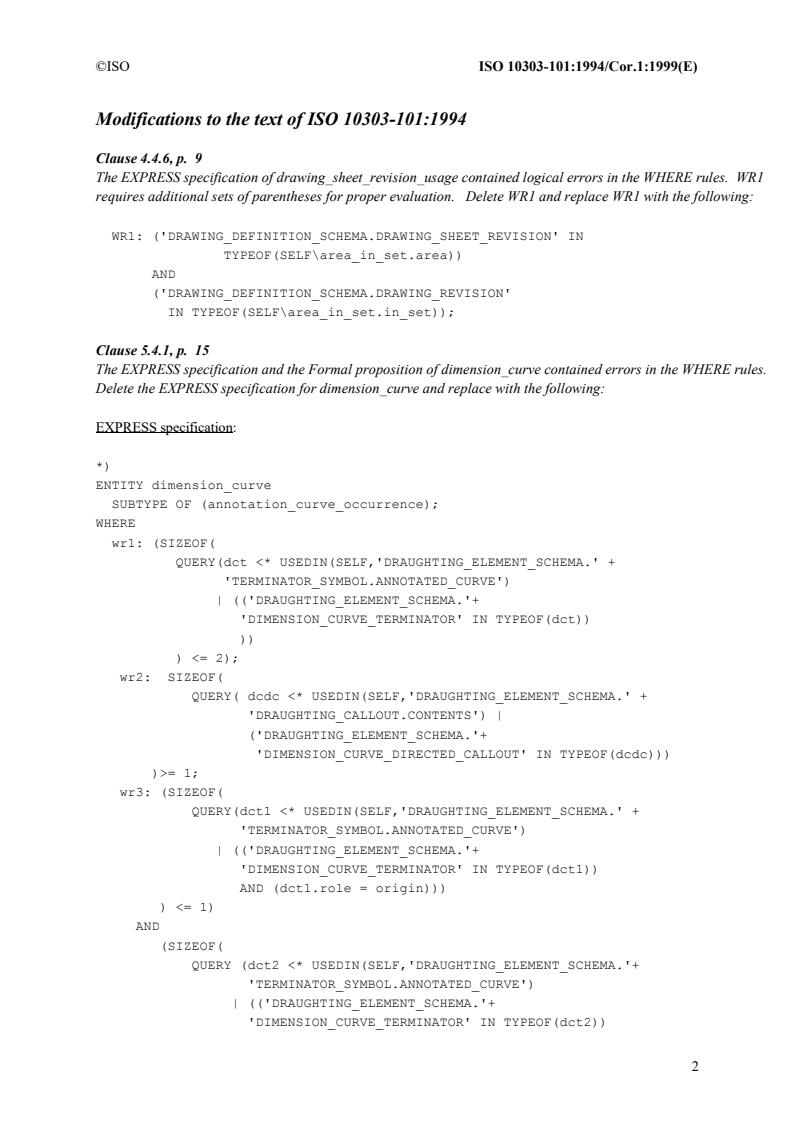

Modifications to the text of ISO 10303-101:1994
Clause 4.4.6, p. 9
The EXPRESS specification of drawing_sheet_revision_usage contained logical errors in the WHERE rules.
requires additional sets of parentheses for proper evaluation.  Delete WR1 and replace WR1 with the following:
WR1: ('DRAWING_DEFINITION_SCHEMA.DRAWING_SHEET_REVISION' IN
TYPEOF(SELF\area_in_set.area))
AND
('DRAWING_DEFINITION_SCHEMA.DRAWING_REVISION'
IN TYPEOF(SELF\area_in_set.in_set));
Clause 5.4.1, p. 15
The EXPRESS specification and the Formal proposition of dimension_curve contained errors in the WHERE rules.
Delete the EXPRESS specification for dimension_curve and replace with the following:
:
*)
ENTITY dimension_curve
SUBTYPE OF (annotation_curve_occurrence);
WHERE
wr1: (SIZEOF(
QUERY(dct <* USEDIN(SELF,'DRAUGHTING_ELEMENT_SCHEMA.' +
'TERMINATOR_SYMBOL.ANNOTATED_CURVE')
| (('DRAUGHTING_ELEMENT_SCHEMA.'+
'DIMENSION_CURVE_TERMINATOR' IN TYPEOF(dct))
))
) <= 2);
wr2: SIZEOF(
QUERY( dcdc <* USEDIN(SELF,'DRAUGHTING_ELEMENT_SCHEMA.' +
'DRAUGHTING_CALLOUT.CONTENTS') |
('DRAUGHTING_ELEMENT_SCHEMA.'+
'DIMENSION_CURVE_DIRECTED_CALLOUT' IN TYPEOF(dcdc)))
)>= 1;
wr3: (SIZEOF(
QUERY(dct1 <* USEDIN(SELF,'DRAUGHTING_ELEMENT_SCHEMA.' +
'TERMINATOR_SYMBOL.ANNOTATED_CURVE')
| (('DRAUGHTING_ELEMENT_SCHEMA.'+
'DIMENSION_CURVE_TERMINATOR' IN TYPEOF(dct1))
AND (dct1.role = origin)))
) <= 1)
AND
(SIZEOF(
QUERY (dct2 <* US
...
