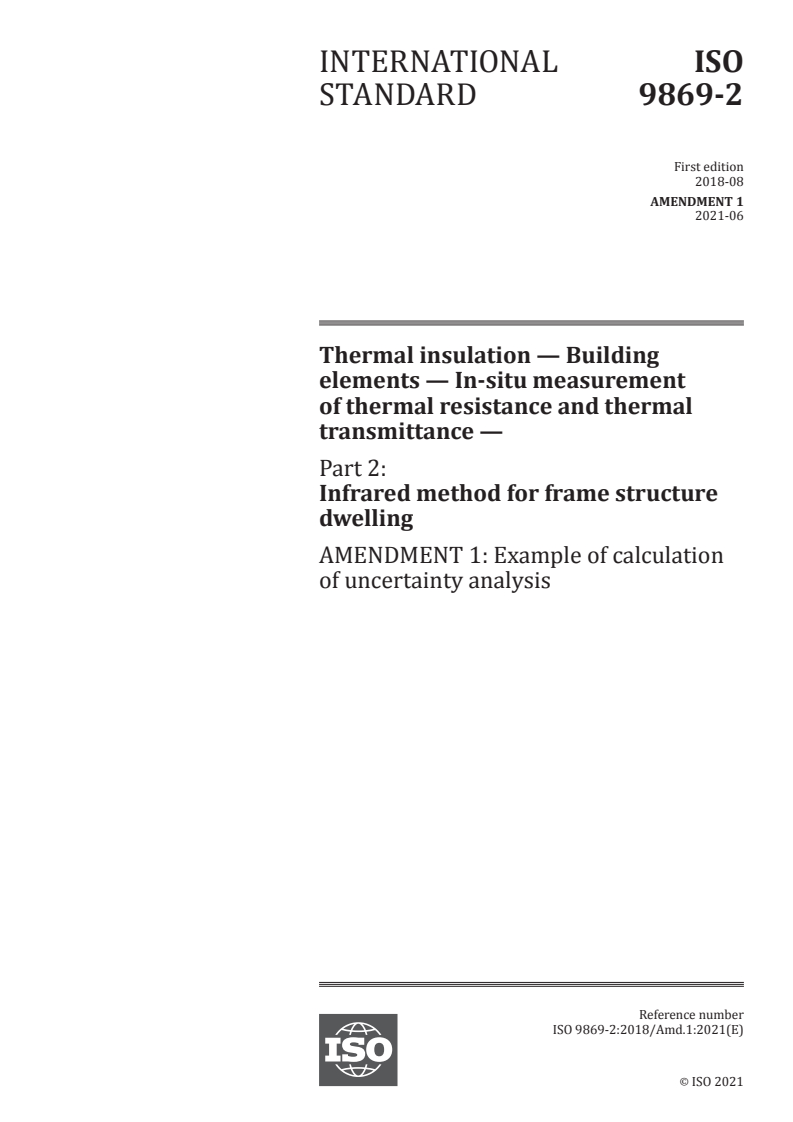

ISO 9869-2:2018/Amd 1:2021

INTERNATIONAL ISO
STANDARD 9869-2
First edition
2018-08
AMENDMENT 1
2021-06
Thermal insulation — Building
elements — In-situ measurement
of thermal resistance and thermal
transmittance —
Part 2:
Infrared method for frame structure
dwelling
AMENDMENT 1: Example of calculation
of uncertainty analysis
Reference number
ISO 9869-2:2018/Amd.1:2021(E)
©
ISO 2021
ISO 9869-2:2018/Amd.1:2021(E)
© ISO 2021
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2021 – All rights reserved

ISO 9869-2:2018/Amd.1:2021(E)

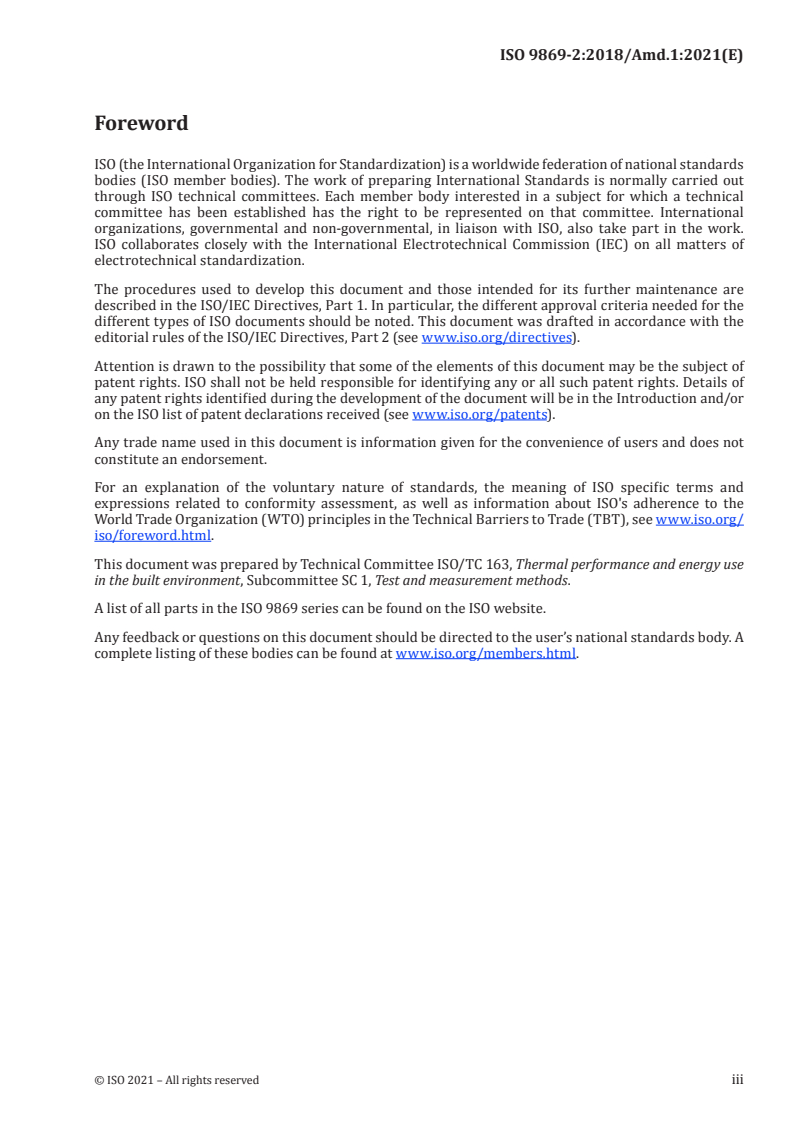

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/
iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 163, Thermal performance and energy use
in the built environment, Subcommittee SC 1, Test and measurement methods.
A list of all parts in the ISO 9869 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
ISO 9869-2:2018/Amd.1:2021(E)
Thermal insulation — Building elements — In-situ
measurement of thermal resistance and thermal
transmittance —
Part 2:
Infrared method for frame structure dwelling
AMENDMENT 1: Example of calculation of uncertainty analysis

Annex E
Replace Annex E with the following annex:
ISO 9869-2:2018/Amd.1:2021(E)
Annex E
(informative)
The calculation example of uncertainty analysis
NOTE This is a simplified uncertainty analysis example for illustrative purpose.
E.1 Listing of uncertainty factors
Table E.1 shows the listing of uncertainty factors.
Table E.1 — Uncertainty factors in measuring the thermal transmittance
Measurement of heat Difference in temperature between Measurement IR camera Whichever is
transfer coefficient the heat transfer coefficient sensor of surface specification greater of 2 %,
and environmental temperature temperature measurement
(ET sensor) value or ±2 °C
Thermo-couple ±0,2 °C
specification
Measurement of heat flow meter Measurement Data logger ±6 μV
output of the heat transfer of voltage specification
coefficient sensor
Heat flow rate Difference in temperature between Measurement IR camera Whichever is
the surface temperature of the heat of surface specification greater of 2 %,
transfer coefficient sensor and temperature measurement
environmental temperature value or ±2 °C
(ET sensor)
Thermo-couple ±0,2 °C
specification
Measurement of heat flow meter Measurement Data logger ±6 μV
output of the heat transfer of voltage specification
coefficient sensor
Measurement of surface Measurement IR camera ±2 % of meas-
temperature of the wall of surface specification urement value
temperature
Thermal Difference in temperature between Measurement IR camera Whichever is
transmittance the surface temperature of the heat of surface specification greater of 2 %,
transfer coefficient sensor and temperature measurement
environmental temperature value or ±2 °C
(ET sensor)
Thermo-couple ±0,2 °C
specification
Measurement of environmental Measurement IR camera Whichever is
temperature (measurement of of surface specification greater of 2 %,
surface temper
...
