IEC 60335-2-84
Edition 2.0 2002-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-84: Particular requirements for toilets

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-84: Règles particulières pour les toilettes

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
R
CODE PRIX
ICS 91.140.70 ISBN 2-8318-8051-3
– 2 – 60335-2-84 © CEI:2002

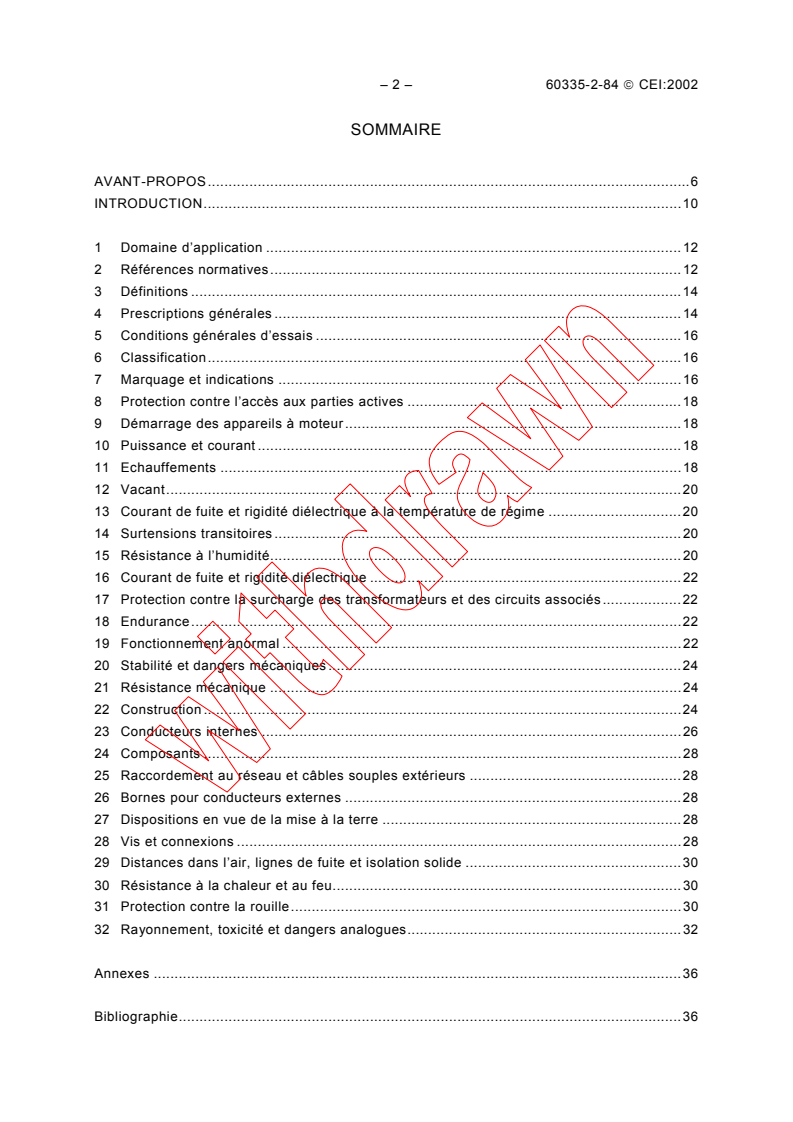

SOMMAIRE
AVANT-PROPOS.6

INTRODUCTION.10

1 Domaine d’application .12

2 Références normatives.12

3 Définitions .14

4 Prescriptions générales .14
5 Conditions générales d’essais .16
6 Classification.16
7 Marquage et indications .16
8 Protection contre l’accès aux parties actives .18
9 Démarrage des appareils à moteur.18
10 Puissance et courant .18
11 Echauffements .18
12 Vacant.20
13 Courant de fuite et rigidité diélectrique à la température de régime .20
14 Surtensions transitoires.20
15 Résistance à l’humidité.20
16 Courant de fuite et rigidité diélectrique .22
17 Protection contre la surcharge des transformateurs et des circuits associés.22
18 Endurance.22
19 Fonctionnement anormal .22
20 Stabilité et dangers mécaniques .24
21 Résistance mécanique .24
22 Construction .24
23 Conducteurs internes .26
24 Composants .28
25 Raccordement au réseau et câbles souples extérieurs .28

26 Bornes pour conducteurs externes .28
27 Dispositions en vue de la mise à la terre .28
28 Vis et connexions .28
29 Distances dans l’air, lignes de fuite et isolation solide .30
30 Résistance à la chaleur et au feu.30
31 Protection contre la rouille.30
32 Rayonnement, toxicité et dangers analogues.32

Annexes .36

Bibliographie.36

60335-2-84 © IEC:2002 – 3 –

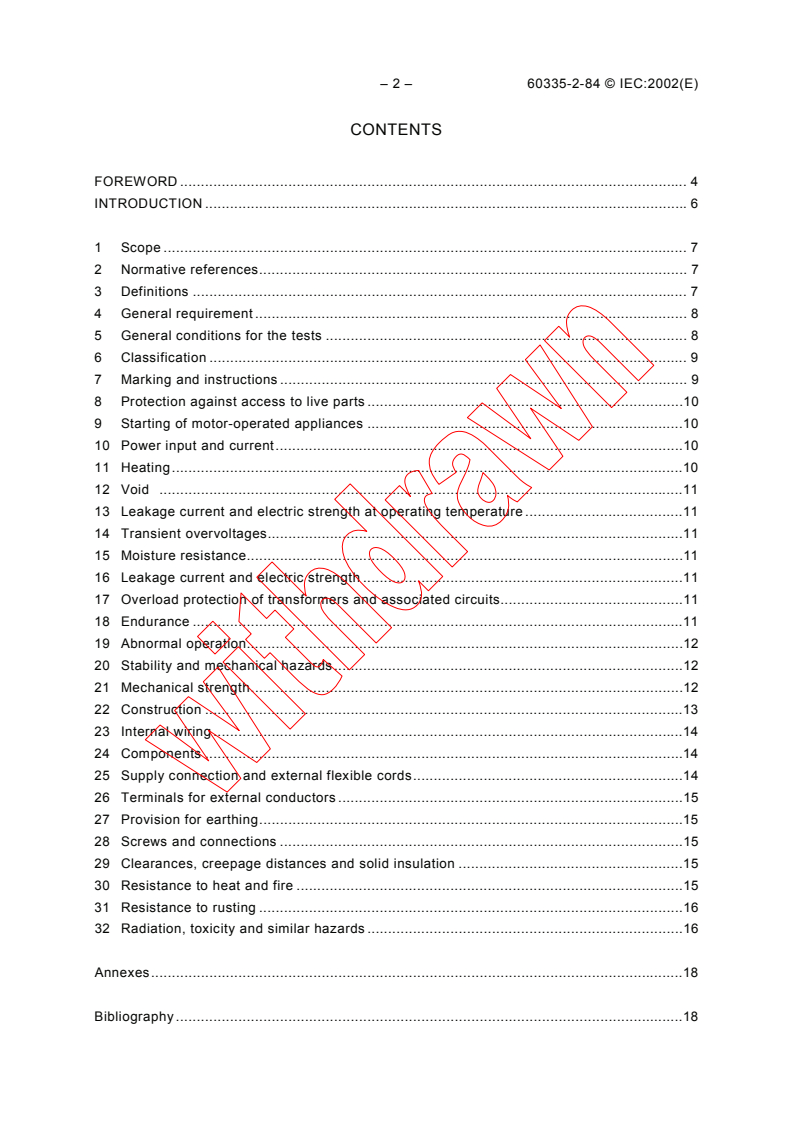

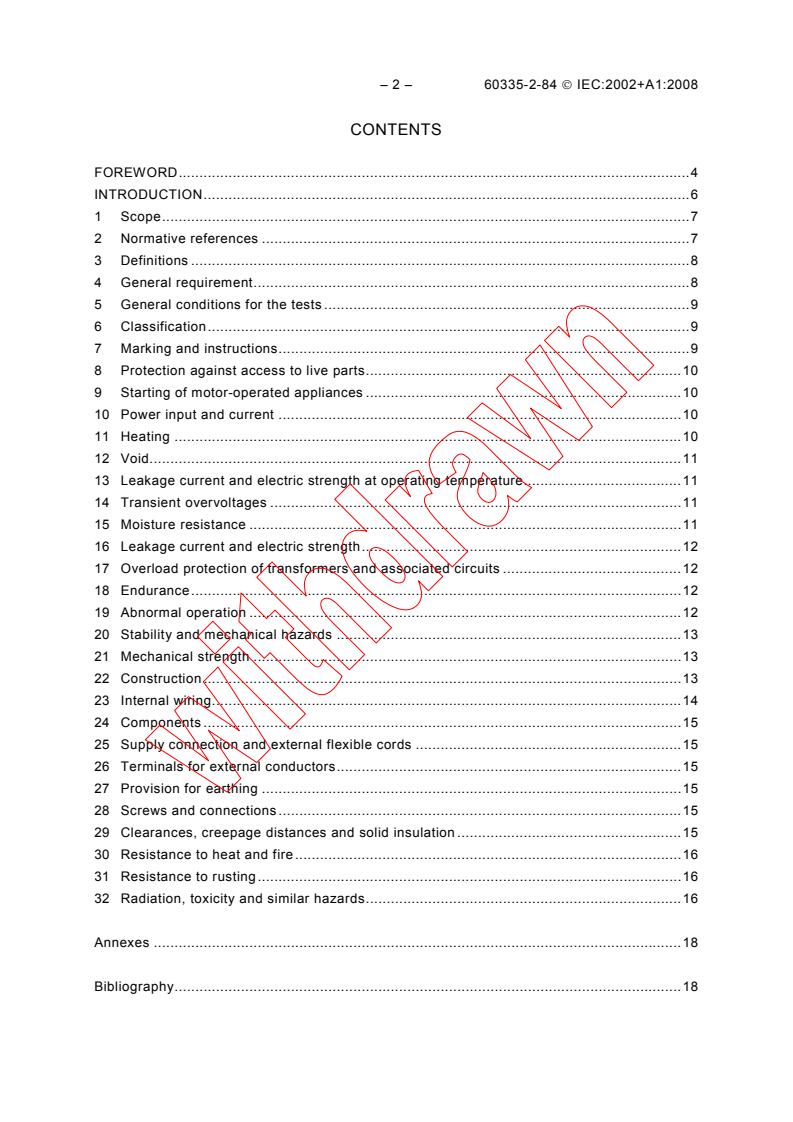

CONTENTS
FOREWORD.7

INTRODUCTION.11

1 Scope.13

2 Normative references .13

3 Definitions .15

4 General requirement.15
5 General conditions for the tests .17
6 Classification.17
7 Marking and instructions.17
8 Protection against access to live parts.19
9 Starting of motor-operated appliances .19
10 Power input and current .19
11 Heating .19
12 Void.21
13 Leakage current and electric strength at operating temperature.21
14 Transient overvoltages .21
15 Moisture resistance .21
16 Leakage current and electric strength.23
17 Overload protection of transformers and associated circuits .23
18 Endurance.23
19 Abnormal operation .23
20 Stability and mechanical hazards .25
21 Mechanical strength .25
22 Construction .25
23 Internal wiring.27
24 Components .29
25 Supply connection and external flexible cords .29

26 Terminals for external conductors.29
27 Provision for earthing .29
28 Screws and connections .29
29 Clearances, creepage distances and solid insulation .31
30 Resistance to heat and fire.31
31 Resistance to rusting.31
32 Radiation, toxicity and similar hazards.33

Annexes .37

Bibliography.37

– 4 – 60335-2-84 © CEI:2002
Figure 101 – Schéma pour la mesure du courant de fuite pour les chauffe-eau à

éléments chauffants nus .34

Tableau 101 – Echauffements normaux maximaux.20

Tableau 102 – Echauffements maximaux anormaux.22

60335-2-84 © IEC:2002 – 5 –
Figure 101 – Diagram for leakage current measurement for water heaters having bare

heating elements .35

Table 101 – Maximum normal temperature rises .21

Table 102 – Maximum abnormal temperature rises .23

– 6 – 60335-2-84 © CEI:2002
COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE

____________
APPAREILS ÉLECTRODOMESTIQUES ET ANALOGUES –

SÉCURITÉ –
Partie 2-84: Règles particulières pour les toilettes

AVANT-PROPOS
1) La Commission Electrotechnique Internationale (CEI) est une organisation mondiale de normalisation
composée de l'ensemble des comités électrotechniques nationaux (Comités nationaux de la CEI). La CEI a
pour objet de favoriser la coopération internationale pour toutes les questions de normalisation dans les
domaines de l'électricité et de l'électronique. A cet effet, la CEI – entre autres activités – publie des Normes
internationales, des Spécifications techniques, des Rapports techniques, des Spécifications accessibles au
public (PAS) et des Guides (ci-après dénommés "Publication(s) de la CEI"). Leur élaboration est confiée à des
comités d'études, aux travaux desquels tout Comité national intéressé par le sujet traité peut participer. Les
organisations internationales, gouvernementales et non gouvernementales, en liaison avec la CEI, participent
également aux travaux. La CEI collabore étroitement avec l'Organisation Internationale de Normalisation (ISO),
selon des conditions fixées par accord entre les deux organisations.
2) Les décisions ou accords officiels de la CEI concernant les questions techniques représentent, dans la mesure
du possible, un accord international sur les sujets étudiés, étant donné que les Comités nationaux de la CEI
intéressés sont représentés dans chaque comité d’études.
3) Les Publications de la CEI se présentent sous la forme de recommandations internationales et sont agréées
comme telles par les Comités nationaux de la CEI. Tous les efforts raisonnables sont entrepris afin que la CEI
s'assure de l'exactitude du contenu technique de ses publications; la CEI ne peut pas être tenue responsable
de l'éventuelle mauvaise utilisation ou interprétation qui en est faite par un quelconque utilisateur final.
4) Dans le but d'encourager l'uniformité internationale, les Comités nationaux de la CEI s'engagent, dans toute la
mesure possible, à appliquer de façon transparente les Publications de la CEI dans leurs publications
nationales et régionales. Toutes divergences entre toutes Publications de la CEI et toutes publications
nationales ou régionales correspondantes doivent être indiquées en termes clairs dans ces dernières.
5) La CEI n’a prévu aucune procédure de marquage valant indication d’approbation et n'engage pas sa
responsabilité pour les équipements déclarés conformes à une de ses Publications.
6) Tous les utilisateurs doivent s'assurer qu'ils sont en possession de la dernière édition de cette publication.
7) Aucune responsabilité ne doit être imputée à la CEI, à ses administrateurs, employés, auxiliaires ou
mandataires, y compris ses experts particuliers et les membres de ses comités d'études et des Comités
nationaux de la CEI, pour tout préjudice causé en cas de dommages corporels et matériels, ou de tout autre
dommage de quelque nature que ce soit, directe ou indirecte, ou pour supporter les coûts (y compris les frais
de justice) et les dépenses découlant de la publication ou de l'utilisation de cette Publication de la CEI ou de
toute autre Publication de la CEI, ou au crédit qui lui est accordé.
8) L'attention est attirée sur les références normatives citées dans cette publication. L'utilisation de publications
référencées est obligatoire pour une application correcte de la présente publication.
9) L’attention est attirée sur le fait que certains des éléments de la présente Publication de la CEI peuvent faire
l’objet de droits de propriété intellectuelle ou de droits analogues. La CEI ne saurait être tenue pour
responsable de ne pas avoir identifié de tels droits de propriété et de ne pas avoir signalé leur existence.

La présente partie de la Norme internationale CEI 60335 a été établie par le comité d'études
61 de la CEI: Sécurité des appareils électrodomestiques et analogues.
Cette deuxième édition annule et remplace la première édition parue en 1998, dont elle
constitue une révision technique.
Cette version bilingue, publiée en 2005-06, correspond à la version anglaise.
Le texte anglais de cette norme est issu des documents 61/2227/FDIS et 61/2302/RVD. Le
rapport de vote 61/2302/RVD donne toute information sur le vote ayant abouti à l’approbation
de cette norme.
60335-2-84 © IEC:2002 – 7 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –

SAFETY –
Part 2-84: Particular requirements for toilets

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This part of International Standard IEC 60335 has been prepared by IEC technical committee
61: Safety of household and similar electrical appliances.
This second edition cancels and replaces the first edition published in 1998. It constitutes a
technical revision.
This bilingual version, published in 2005-06, corresponds to the English version.
The text of this part of IEC 60335 is based on the following documents:
FDIS Report on voting
61/2227/FDIS 61/2302/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.

– 8 – 60335-2-84  CEI:2005
La version française de cette norme n’a pas été soumise au vote.

La présente partie 2 doit être utilisée conjointement avec la dernière édition de la CEI 60335-1
et ses amendements. Elle a été établie sur la base de la quatrième édition (2001) de cette
norme.
NOTE 1 L’expression “Partie 1” utilisée dans la présente norme fait référence à la CEI 60335-1.

La présente partie 2 complète ou modifie les articles correspondants de la CEI 60335-1, de

façon à transformer cette publication en norme CEI: Règles de sécurité pour les toilettes
électriques.
Lorsqu'un paragraphe particulier de la Partie 1 n'est pas mentionné dans cette partie 2, ce
paragraphe s'applique pour autant qu’il est raisonnable. Lorsque la présente norme spécifie
“addition”, “modification” ou “remplacement”, le texte correspondant de la Partie 1 doit être
adapté en conséquence.
NOTE 2 Le système de numérotation suivant est utilisé:
– paragraphes, tableaux et figures: ceux qui sont numérotés à partir de 101 sont complémentaires à ceux de la
Partie 1;
– notes: à l’exception de celles qui sont dans un nouveau paragraphe ou de celles qui concernent des notes de
la Partie 1, les notes sont numérotées à partir de 101, y compris celles des articles ou paragraphes qui sont
modifiés ou remplacés;
– annexes: les annexes supplémentaires sont appelées AA, BB, etc.
NOTE 3 Les caractères d'imprimerie suivants sont utilisés:
– exigences: caractères romains;
– modalités d'essais: caractères italiques;
– notes: petits caractères romains.
Les mots en gras dans le texte sont définis à l'Article 3. Lorsqu'une définition concerne un adjectif, l'adjectif et le
nom associé figurent également en gras.

Le comité a décidé que le contenu de cette publication ne sera pas modifié avant la date de maintenance indiquée
sur le site web de la CEI sous «http://webstore.iec.ch» dans les données relatives à la publication recherchée.
A cette date, la publication sera
• reconduite;
• supprimée;
• remplacée par une édition révisée, ou
• amendée.
Les différences suivantes existent dans les pays indiqués ci-après.
– 3.1.9: Le fonctionnement normal est différent (USA).
– 6.1: Les appareils comportant des chauffe-eau à éléments chauffants nus ne sont pas autorisés (Grèce).
– 6.2: Les sièges chauffants IPX3 sont autorisés (Japon).
– 22.103: L’essai est différent (USA).
Le contenu du corrigendum d'août 2003 a été pris en considération dans cet exemplaire.

60335-2-84  IEC:2005 – 9 –
The French version of this standard has not been voted upon.

This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its
amendments. It was established on the basis of the fourth edition (2001) of that standard.

NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.

This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to

convert that publication into the IEC standard: Safety requirements for electric toilets.

When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies

as far as is reasonable. When this standard states “addition”, “modification” or “replacement”,
the relevant text in Part 1 is to be adapted accordingly.
NOTE 2 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including
those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 3 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the
associated noun are also in bold.
The following differences exist in the countries indicated below.
– 3.1.9: Normal operation is different (USA).
– 6.1: Appliances incorporating water heaters having bare heating elements are not allowed (Greece).
– 6.2: IPX3 heated seats are allowed (Japan).
– 22.103: The test is different (USA).

The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or

• amended.
The contents of the corrigendum of August 2003 have been included in this copy.

– 10 – 60335-2-84 © CEI:2002
INTRODUCTION
Il a été considéré en établissant la présente Norme internationale que l'exécution de ses

dispositions était confiée à des personnes expérimentées et ayant une qualification

appropriée.
Cette norme reconnaît le niveau de protection internationalement accepté contre les risques

électriques, mécaniques, thermiques, liés au feu et au rayonnement des appareils, lorsqu'ils

fonctionnent comme en usage normal en tenant compte des instructions du fabricant. Elle

couvre également les situations anormales auxquelles on peut s'attendre dans la pratique.

Cette norme tient compte autant que possible des exigences de la CEI 60364, de façon à
rester compatible avec les règles d'installation quand l’appareil est raccordé au réseau
d’alimentation. Cependant, des règles nationales d'installation peuvent être différentes.
Si un appareil compris dans le domaine d’application de cette norme comporte également des
fonctions qui sont couvertes par une autre partie 2 de la CEI 60335, la partie 2
correspondante est appliquée à chaque fonction séparément, dans la limite du raisonnable.
Si cela est applicable, on tient compte de l’influence d’une fonction sur les autres fonctions.
Cette norme est une norme de famille de produits traitant de la sécurité d’appareils et a
préséance sur les normes horizontales et génériques couvrant le même sujet.
Un appareil conforme au texte de la présente norme ne sera pas nécessairement jugé
conforme aux principes de sécurité de la norme si, lorsqu'il est examiné et soumis aux essais,
il apparaît qu'il présente d'autres caractéristiques qui compromettent le niveau de sécurité
visé par ces exigences.
Un appareil utilisant des matériaux ou présentant des modes de construction différents de
ceux décrits dans les exigences de cette norme peut être examiné et essayé en fonction de
l'objectif poursuivi par ces exigences et, s'il est jugé pratiquement équivalent, il peut être
estimé conforme aux principes de sécurité de la norme.

60335-2-84 © IEC:2002 – 11 –
INTRODUCTION
It has been assumed in the drafting of this International Standard that the execution of its

provisions is entrusted to appropriately qualified and experienced persons.

This standard recognizes the internationally accepted level of protection against hazards such

as electrical, mechanical, thermal, fire and radiation of appliances when operated as in

normal use taking into account the manufacturer's instructions. It also covers abnormal

situations that can be expected in practice.

This standard takes into account the requirements of IEC 60364 as far as possible so that

there is compatibility with the wiring rules when the appliance is connected to the supply
mains. However, national wiring rules may differ.
If an appliance within the scope of this standard also incorporates functions that are covered
by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as
far as is reasonable. If applicable, the influence of one function on the other is taken into
account.
This standard is a product family standard dealing with the safety of appliances and takes
precedence over horizontal and generic standards covering the same subject.
An appliance that complies with the text of this standard will not necessarily be considered to
comply with the safety principles of the standard if, when examined and tested, it is found to
have other features that impair the level of safety covered by these requirements.
An appliance employing materials or having forms of construction differing from those detailed
in the requirements of this standard may be examined and tested according to the intent of
the requirements and, if found to be substantially equivalent, may be considered to comply
with the standard.
– 12 – 60335-2-84 © CEI:2002
APPAREILS ÉLECTRODOMESTIQUES ET ANALOGUES –

SÉCURITÉ –
Partie 2-84: Règles particulières pour les toilettes

1 Domaine d’application
L’article de la Partie 1 est remplacé par l’article ci-après.
La présente Norme internationale traite de la sécurité des toilettes électriques, dans
lesquelles les excréments sont stockés, séchés ou détruits, dont la tension assignée n'est
pas supérieure à 250 V.
NOTE 101 Les toilettes électriques peuvent être utilisées pour traiter les déchets tels que le papier et les déchets
alimentaires.
La présente norme s'applique également aux équipements électriques destinés aux toilettes
conventionnelles.
NOTE 102 Comme exemples de tels équipements électriques, on peut citer:
– les dispositifs pour couvrir automatiquement le siège;
– les unités pour broyer;
– les sièges chauffants;
– les unités pour pomper;
– les chauffe-eau pour les dispositifs de douche.
Dans la mesure du possible, la présente norme traite des risques ordinaires présentés par les
appareils, encourus par tous les individus à l'intérieur et autour de l'habitation. Cependant,
elle ne tient en général pas compte de l’emploi de l’appareil comme jouet par des jeunes
enfants.
NOTE 103 L’attention est attirée sur le fait que
– pour les appareils destinés à être utilisés dans des véhicules ou à bord de navires ou d’avions, des exigences
supplémentaires peuvent être nécessaires;
– dans de nombreux pays, des exigences supplémentaires sont spécifiées par les organismes nationaux de la
santé, par les organismes nationaux responsables de la protection des travailleurs, par les organismes
nationaux responsables de l'alimentation en eau et par des organismes similaires.
NOTE 104 La présente norme ne s’applique pas

– aux appareils destinés à être utilisés dans des locaux présentant des conditions particulières, telles que la
présence d'une atmosphère corrosive ou explosive (poussière, vapeur ou gaz);
– aux toilettes chimiques;
– aux toilettes dans lesquelles les excréments sont détruits par combustion.
2 Références normatives
L’article de la Partie 1 est applicable avec l’exception suivante.
Addition:
CEI 60068-2-52, Essais d'environnement – Partie 2: Méthodes d’essais – Essai Kb: Brouillard
salin, essai cyclique (solution de chlorure de sodium)

60335-2-84 © IEC:2002 – 13 –
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –

SAFETY –
Part 2-84: Particular requirements for toilets

1 Scope
This clause of Part 1 is replaced by the following.
This International Standard deals with the safety of electric toilets in which excrement is
stored, dried or destructed, their rated voltage being not more than 250 V.
NOTE 101 Electric toilets may be used to process garbage such as paper and food waste.
This standard also applies to electric equipment for use with conventional toilets.
NOTE 102 Examples of such electric equipment are
– automatic seat covering devices;
– chopping units;
– heated seats;
– pumping units;
– water heaters for shower units.
As far as is practicable, this standard deals with the common hazards presented by
appliances that are encountered by all persons in and around the home. However, in general,
it does not take into account young children playing with the appliance.
NOTE 103 Attention is drawn to the fact that
– for appliances intended to be used in vehicles or on board ships or aircraft, additional requirements may be
necessary;
– in many countries additional requirements are specified by the national health authorities, the national
authorities responsible for the protection of labour, the national water supply authorities and similar authorities.
NOTE 104 This standard does not apply to
– appliances intended to be used in locations where special conditions prevail, such as the presence of a
corrosive or explosive atmosphere (dust, vapour or gas);
– chemical toilets;
– toilets in which excrement is destructed by combustion.

2 Normative references
This clause of Part 1 is applicable except as follows.
Addition:
IEC 60068-2-52, Environmental testing – Part 2: Test methods – Test Kb: Salt mist, cyclic
(sodium chloride solution)
– 14 – 60335-2-84 © CEI:2002
3 Définitions
L’article de la Partie 1 est applicable avec l’exception suivante.

3.1.9 Remplacement:
conditions de fonctionnement normal

fonctionnement de l’appareil dans les conditions suivantes

Les appareils sont mis en fonctionnement suivant des cycles, le début de chaque cycle ayant

lieu toutes les 10 min, les abattants étant ouverts ou fermés suivant la condition la plus

défavorable. Si le cycle ne se termine pas automatiquement, l'appareil est mis en
fonctionnement pendant 15 s ou pendant la période spécifiée dans les instructions, suivant la
durée la plus longue.
Si de l’air chaud est fourni pour sécher, le cycle de séchage est initié immédiatement après la
fin du cycle de douche, à moins que la séquence ne soit automatique.
Le réservoir à excréments des toilettes à désagrégation est vide ou rempli de tourbe,
suivant la condition la plus défavorable.
Les toilettes à empaquetage sont pourvues en sacs.
Pour les toilettes cryogéniques, une quantité d’eau de 0,3 l ayant une température de 37 °C
est ajoutée à chaque cycle, les dispositifs de commande étant réglés sur la température la
plus basse. Elles sont également mises en fonctionnement sans eau.
Les dispositifs de douche sont alimentés avec de l'eau à la pression la plus défavorable qui
permette une aspersion effective.
3.101
toilette à désagrégation
appareil dans lequel les excréments sont traités par séchage
3.102
toilette à empaquetage
appareil dans lequel les excréments sont empaquetés dans des sacs et sont entreposés dans
un réservoir
3.103
toilette cryogénique
appareil dans lequel les excréments sont congelés et entreposés dans un réservoir

3.104
toilette à vide
appareil dans lequel les excréments sont évacués par dépression dans un réservoir
d'entreposage
3.105
dispositif de douche
dispositif, incorporé à l'appareil, qui projette de l'eau pour nettoyer des parties du corps
humain
NOTE Les dispositifs de douche peuvent par conséquent émettre de l'air chaud pour sécher. Les dispositifs
peuvent être incorporés au siège ou à la cuvette.
4 Exigences générales
L’article de la Partie 1 est applicable.

60335-2-84  IEC:2005 – 15 –
3 Definitions
This clause of Part 1 is applicable except as follows.

3.1.9 Replacement:
normal operation
operation of the appliance under the following conditions

Appliances are operated in cycles, each cycle being initiated every 10 min, bowl covers being
open or closed whichever is more unfavourable. If the cycle is not automatically terminated,

the appliance is operated for 15 s, or for the period specified in the instructions, whichever is
longer.
If warm air is provided for drying, the drying cycle is initiated immediately after the end of the
showering cycle, unless the sequence is automatic.
The excrement tank of mouldering toilets is empty or filled with peat, whichever is more
unfavourable.
Package toilets are provided with bags.
For freezing toilets, 0,3 l of water having a temperature of 37 °C is added each cycle,
controls being adjusted to the lowest temperature. They are also operated without water.
Shower units are supplied with water at the most unfavourable pressure that provides an
effective spray.
3.101
mouldering toilet
appliance in which excrement is processed by drying
3.102
package toilet
appliance in which excrement is packed in bags and stored in a tank
3.103
freezing toilet
appliance in which excrement is frozen and stored in a tank
3.104
vacuum toilet
appliance in which excrement is evacuated to a storage tank by negative pressure
3.105
shower unit
device incorporated in the appliance that sprays water for cleaning parts of the human body
NOTE Shower units may subsequently supply warm air for drying. The units may be incorporated in the seat or
bowl.
4 General requirement
This clause of Part 1 is applicable.

– 16 – 60335-2-84 © CEI:2002
5 Conditions générales d’essais

L’article de la Partie 1 est applicable avec l’exception suivante.

5.7 Addition:
La température de l'eau utilisée pour les essais est de 15 °C ± 5 °C.

6 Classification
L’article de la Partie 1 est applicable avec les exceptions suivantes.
6.1 Modification:
Les appareils comportant des chauffe-eau à éléments chauffants nus doivent être de la
classe I ou de la classe III.
6.2 Addition:
Les toilettes et les sièges chauffants doivent être au moins IPX4.
7 Marquage et instructions
L’article de la Partie 1 est applicable avec les exceptions suivantes.
7.12 Addition:
Les instructions doivent indiquer comment effectuer de façon sûre la vidange et le nettoyage
des toilettes. Elles doivent fournir des détails sur la façon d'éliminer les excréments ou leurs
résidus, à moins que les toilettes ne soient raccordées au système d'évacuation des eaux
usées.
7.12.1 Addition:
Les instructions d’installation pour les appareils de classe 0I et les appareils de classe I
doivent indiquer qu’ils doivent être mis à la terre.
Les instructions d’installation pour les appareils comportant des chauffe-eau à éléments

chauffants nus doivent comporter en substance les indications suivantes:
– la résistivité du système d'alimentation en eau ne doit pas être inférieure à …. Ωcm;
– l'appareil doit être raccordé de façon permanente aux canalisations fixes.
Les instructions d'installation doivent indiquer
– la pression maximale admissible de l'eau d'alimentation, en mégapascals, pour les
appareils destinés à être raccordés au réseau de distribution d'eau;
– la pression d'eau minimale admissible à l'entrée, en mégapascals, si cela est nécessaire
pour un fonctionnement correct de l'appareil.
Les instructions d'installation doivent indiquer que l'étiquette concernant les cigarettes
incandescentes doit être fixée en un endroit bien visible près des toilettes (à l’exception des
toilettes à chasse d’eau).
60335-2-84 © IEC:2002 – 17 –
5 General conditions for the tests

This clause of Part 1 is applicable except as follows.

5.7 Addition:
The temperature of the water used for the tests is 15 °C ± 5 °C.

6 Classification
This clause of Part 1 is applicable except as follows.
6.1 Modification:
Appliances incorporating water heaters having bare heating elements shall be class I or
class III.
6.2 Addition:
Toilets and heated seats shall be at least IPX4.
7 Marking and instructions
This clause of Part 1 is applicable except as follows.
7.12 Addition:
The instructions shall state how to empty and clean the toilet safely. They shall include details
about the final disposal of the excrement or its residue, unless the toilet is connected to the
sewage system.
7.12.1 Addition:
The installation instructions for class 0I appliances and class I appliances shall state that
they have to be earthed.
The installation instructions for appliances incorporati
...

IEC 60335-2-84
Edition 2.1 2008-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-84: Particular requirements for toilets

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-84: Règles particulières pour les toilettes

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by

any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or

IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.

Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette

publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 60335-2-84
Edition 2.1 2008-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-84: Particular requirements for toilets

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-84: Règles particulières pour les toilettes

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CF
CODE PRIX
ICS 91.140.70 ISBN 2-8318-9696-7
– 2 – 60335-2-84 © IEC:2002+A1:2008

CONTENTS
FOREWORD.4

INTRODUCTION.6

1 Scope.7

2 Normative references .7

3 Definitions .8

4 General requirement.8

5 General conditions for the tests .9
6 Classification.9
7 Marking and instructions.9
8 Protection against access to live parts.10
9 Starting of motor-operated appliances .10
10 Power input and current .10
11 Heating .10
12 Void.11
13 Leakage current and electric strength at operating temperature.11
14 Transient overvoltages .11
15 Moisture resistance .11
16 Leakage current and electric strength.12
17 Overload protection of transformers and associated circuits .12
18 Endurance.12
19 Abnormal operation .12
20 Stability and mechanical hazards .13
21 Mechanical strength .13
22 Construction .13
23 Internal wiring.14
24 Components .15
25 Supply connection and external flexible cords .15
26 Terminals for external conductors.15
27 Provision for earthing .15
28 Screws and connections .15
29 Clearances, creepage distances and solid insulation .15
30 Resistance to heat and fire.16
31 Resistance to rusting.16
32 Radiation, toxicity and similar hazards.16

Annexes .18

Bibliography.18

60335-2-84 © IEC:2002+A1:2008 – 3 –

Figure 101 – Diagram for leakage current measurement for water heaters having bare

heating elements .17

Table 101 – Maximum normal temperature rises .11

Table 102 – Maximum abnormal temperature rises .12

– 4 – 60335-2-84  IEC:2002+A1:2008

INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –

SAFETY –
Part 2-84: Particular requirements for toilets

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

This part of International Standard IEC 60335 has been prepared by IEC technical committee 61:
Safety of household and similar electrical appliances.
This consolidated version of IEC 60335-2-84 consists of the second edition (2002)
[documents 61/2227/FDIS and 61/2302/RVD], its corrigendum 1 (August 2003) and its
amendment 1 (2008) [documents 61/3350/CDV and 61/3464/RVC].
The technical content is therefore identical to the base edition and its amendment and has
been prepared for user convenience.
It bears the edition number 2.1.
A vertical line in the margin shows where the base publication has been modified by
amendment 1.
The French version of this standard has not been voted upon.

60335-2-84 © IEC:2002+A1:2008 – 5 –

This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its
amendments. It was established on the basis of the fourth edition (2001) of that standard.

NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.

This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to

convert that publication into the IEC standard: Safety requirements for electric toilets.

When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies

as far as is reasonable. When this standard states “addition”, “modification” or “replacement”,
the relevant text in Part 1 is to be adapted accordingly.

NOTE 2 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including
those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 3 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the
associated noun are also in bold.
The following differences exist in the countries indicated below.
– 3.1.9: Normal operation is different (USA).
– 6.1: Appliances incorporating water heaters having bare heating elements are not allowed (Greece).
– 6.2: IPX3 heated seats are allowed (Japan).
– 22.103: The test is different (USA).
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until the maintenance result date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date,
the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
NOTE 4 The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of the amendment 1 be adopted for implementation
nationally not earlier than 12 months from the date of publication.

– 6 – 60335-2-84 © IEC:2002+A1:2008

INTRODUCTION
It has been assumed in the drafting of this International Standard that the execution of its

provisions is entrusted to appropriately qualified and experienced persons.

This standard recognizes the internationally accepted level of protection against hazards such

as electrical, mechanical, thermal, fire and radiation of appliances when operated as in

normal use taking into account the manufacturer's instructions. It also covers abnormal

situations that can be expected in practice and takes into account the way in which

electromagnetic phenomena can affect the safe operation of appliances.

This standard takes into account the requirements of IEC 60364 as far as possible so that
there is compatibility with the wiring rules when the appliance is connected to the supply
mains. However, national wiring rules may differ.
If an appliance within the scope of this standard also incorporates functions that are covered
by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as
far as is reasonable. If applicable, the influence of one function on the other is taken into
account.
When a part 2 standard does not include additional requirements to cover hazards dealt with
in Part 1, Part 1 applies.
NOTE 1 This means that the technical committees responsible for the part 2 standards have determined that it is
not necessary to specify particular requirements for the appliance in question over and above the general
requirements.
This standard is a product family standard dealing with the safety of appliances and takes
precedence over horizontal and generic standards covering the same subject.
NOTE 2 Horizontal and generic standards covering a hazard are not applicable since they have been taken into
consideration when developing the general and particular requirements for the IEC 60335 series of standards. For
example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as
ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.
An appliance that complies with the text of this standard will not necessarily be considered to
comply with the safety principles of the standard if, when examined and tested, it is found to
have other features that impair the level of safety covered by these requirements.
An appliance employing materials or having forms of construction differing from those detailed
in the requirements of this standard may be examined and tested according to the intent of
the requirements and, if found to be substantially equivalent, may be considered to comply
with the standard.
60335-2-84 © IEC:2002+A1:2008 – 7 –

HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –

SAFETY –
Part 2-84: Particular requirements for toilets

1 Scope
This clause of Part 1 is replaced by the following.
This International Standard deals with the safety of electric toilets in which excrement is
stored, dried or destructed, their rated voltage being not more than 250 V.
NOTE 101 Electric toilets may be used to process garbage such as paper and food waste.
This standard also applies to electric equipment for use with conventional toilets.
NOTE 102 Examples of such electric equipment are
– automatic seat covering devices;
– chopping units;
– heated seats;
– pumping units;
– water heaters for shower units.
As far as is practicable, this standard deals with the common hazards presented by
appliances that are encountered by all persons in and around the home. However, in general,
it does not take into account young children playing with the appliance.
NOTE 103 Attention is drawn to the fact that
– for appliances intended to be used in vehicles or on board ships or aircraft, additional requirements may be
necessary;
– in many countries additional requirements are specified by the national health authorities, the national
authorities responsible for the protection of labour, the national water supply authorities and similar authorities.
NOTE 104 This standard does not apply to
– appliances intended to be used in locations where special conditions prevail, such as the presence of a
corrosive or explosive atmosphere (dust, vapour or gas);
– chemical toilets;
– toilets in which excrement is destructed by combustion.

2 Normative references
This clause of Part 1 is applicable except as follows.
Addition:
IEC 60068-2-52:1996, Environmental testing – Part 2-52: Tests – Test Kb: Salt mist, cyclic
(sodium chloride solution)
– 8 – 60335-2-84  IEC:2002+A1:2008

3 Definitions
This clause of Part 1 is applicable except as follows.

3.1.9 Replacement:
normal operation
operation of the appliance under the following conditions

Appliances are operated in cycles, each cycle being initiated every 10 min, bowl covers being
open or closed whichever is more unfavourable. If the cycle is not automatically terminated,

the appliance is operated for 15 s, or for the period specified in the instructions, whichever is
longer.
If warm air is provided for drying, the drying cycle is initiated immediately after the end of the
showering cycle, unless the sequence is automatic.
The excrement tank of mouldering toilets is empty or filled with peat, whichever is more
unfavourable.
Package toilets are provided with bags.
For freezing toilets, 0,3 l of water having a temperature of 37 °C is added each cycle,
controls being adjusted to the lowest temperature. They are also operated without water.
Shower units are supplied with water at the most unfavourable pressure that provides an
effective spray.
3.101
mouldering toilet
appliance in which excrement is processed by drying
3.102
package toilet
appliance in which excrement is packed in bags and stored in a tank
3.103
freezing toilet
appliance in which excrement is frozen and stored in a tank
3.104
vacuum toilet
appliance in which excrement is evacuated to a storage tank by negative pressure
3.105
shower unit
device incorporated in the appliance that sprays water for cleaning parts of the human body
NOTE Shower units may subsequently supply warm air for drying. The units may be incorporated in the seat or
bowl.
4 General requirement
This clause of Part 1 is applicable.

60335-2-84 © IEC:2002+A1:2008 – 9 –

5 General conditions for the tests

This clause of Part 1 is applicable except as follows.

5.7 Addition:
The temperature of the water used for the tests is 15 °C ± 5 °C.

6 Classification
This clause of Part 1 is applicable except as follows.
6.1 Modification:
Appliances incorporating water heaters having bare heating elements shall be class I or
class III.
6.2 Addition:
Toilets and heated seats shall be at least IPX4.
7 Marking and instructions
This clause of Part 1 is applicable except as follows.
7.12 Addition:
The instructions shall state how to empty and clean the toilet safely. They shall include details
about the final disposal of the excrement or its residue, unless the toilet is connected to the
sewage system.
Modification:
The instructions concerning persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge and children playing with the
appliance are not applicable.
7.12.1 Addition:
The installation instructions for class 0I appliances and class I appliances shall state that
they have to be earthed.
The installation instructions for appliances incorporating water heaters having bare heating
elements shall state the substance of the following:
– the resistivity of the water supply must not be less than …. Ωcm;
– the appliance must be permanently connected to fixed wiring.

The installation instructions shall state that the label concerning glowing cigarettes is to be
fixed in a conspicuous place beside the toilet (except flushing toilets).

– 10 – 60335-2-84 © IEC:2002+A1:2008

7.101 Toilets, except flushing toilets, shall be provided with a label stating that glowing
cigarettes and other burning materials must not be thrown into the toilet.

The label shall be suitable for permanent fixing.

NOTE The label may be fixed on the appliance if it is visible before using the toilet.

Compliance is checked by inspection.

8 Protection against access to live parts

This clause of Part 1 is applicable except as follows.
8.1.1 Addition:
Test probe 18 of IEC 61032 is also applied, as specified for test probe B.
8.2 Addition:
Test probe 18 of IEC 61032 is also applied, as specified for test probe B.
9 Starting of motor-operated appliances
This clause of Part 1 is not applicable.
10 Power input and current
This clause of Part 1 is applicable.
11 Heating
This clause of Part 1 is applicable except as follows.
11.3 Addition:
Thermocouples attached to the small blackened disks are also used for measuring the
temperature rise of warm air.
11.7 Replacement:
Shower units are operated for 2 min unless the water flow stops automatically. Other
appliances are operated until steady conditions are established.
11.8 Addition:
The temperature rises shall not exceed the values shown in Table 101.

60335-2-84 © IEC:2002+A1:2008 – 11 –

Table 101 – Maximum normal temperature rises

Part Temperature rise
K
Surfaces likely to be in contact with the skin:

– if of metal 15
– if of other material 25
a
Warm air for drying parts of the human body
Surfaces outside the bowl located within 250 mm of the seat
Interior of the excrement tank of mouldering toilets
Ducts through which excrement passes
a
The air temperature is measured 50 mm from the air outlet.

The temperature of the water supplied by shower units shall not exceed 45 °C.
12 Void
13 Leakage current and electric strength at operating temperature
This clause of Part 1 is applicable except as follows.
13.2 Addition:
Water heaters having bare heating elements are tested with water having the resistivity stated
in the instructions.
NOTE 101 The appropriate resistivity may be obtained by adding ammonium phosphate to the water.
For water heaters of class I having bare heating elements, the leakage current is measured
between a metal sieve positioned 10 mm from the spray head of the shower unit and the
earthing terminal. The terminals of the heating element are connected through the selector
switch to each pole of the supply in turn, as shown in Figure 101.
The leakage current shall not exceed 0,25 mA.
14 Transient overvoltages
This clause of Part 1 is applicable.

15 Moisture resistance
This clause of Part 1 is applicable except as follows.
15.1.1 Addition:
It may be necessary to use the spray nozzle described in subclause 14.2.4(b) of IEC 60529
for testing the inside of the bowl.

– 12 – 60335-2-84 © IEC:2002+A1:2008

16 Leakage current and electric strength

This clause of Part 1 is applicable except as follows.

16.2 Addition:
Water heaters having bare heating elements are tested with water having the resistivity stated

in the instructions.
17 Overload protection of transformers and associated circuits
This clause of Part 1 is applicable.
18 Endurance
This clause of Part 1 is not applicable.
19 Abnormal operation
This clause of Part 1 is applicable except as follows.
19.1 Addition:
Appliances incorporating automatic controls are also subjected to the test of 19.101.
19.2 Addition:
Water heaters are tested with or without water, whichever is more unfavourable.
19.13 Addition:
The temperature rises shall not exceed the values shown in Table 102.
Table 102 – Maximum abnormal temperature rises
Part Temperature rise
K
Surfaces likely to be in contact with the skin:
– if of metal 25
– if of other material 55
a
Warm air for drying parts of the human body
Surfaces outside the bowl located within 250 mm of the seat
Interior of the excrement tank of mouldering toilets
Ducts through which excrement passes
a
The air temperature is measured 50 mm from the air outlet.

The temperature of the water supplied by shower units shall not exceed 65 °C.

60335-2-84 © IEC:2002+A1:2008 – 13 –

19.101 The appliance is supplied at rated voltage and operated under normal operation.
Any fault conditions that can be expected in normal use are applied one at a time.

NOTE Examples of fault conditions are

– failure of thermostats;
– failure of relays;
– open-circuiting or short-circuiting of components;

– stopping programmers in any position.

20 Stability and mechanical hazards

This clause of Part 1 is applicable.
21 Mechanical strength
This clause of Part 1 is applicable except as follows.
21.1 Addition:
Compliance is also checked by the tests of 21.101 and 21.102.
21.101 The appliance is subjected to an evenly distributed force of 1 500 N applied
perpendicularly to the seat, the bowl cover being open, for 10 min.
The test is repeated with the bowl cover closed.
A force of 250 N is then applied to the front edge of the bowl cover or seat in a direction
parallel to the hinges, the bowl cover or seat being slowly raised and lowered. The test is
carried out five times.
The bowl cover or seat is then raised and the force of 250 N is applied for 1 min to its front
edge in a direction perpendicular to its plane.
The appliance shall not be damaged to such an extent that compliance with 8.1, 15.1, 16.3
and 27.5 is impaired.
21.102 The excrement tank is completely filled with water and the appliance placed in a
room having a temperature of approximately –15 °C. When the water is completely frozen, the
appliance is allowed to warm up until the ice has melted. The test is carried out three times.
The appliance shall not be damaged to such an extent that compliance with 8.1, 15.1, 16.3

and 27.5 is impaired.
22 Construction
This clause of Part 1 is applicable except as follows.
22.2 Modification:
Class I appliances shall not incorporate an appliance inlet.

– 14 – 60335-2-84 © IEC:2002+A1:2008

22.24 Replacement:
Appliances shall not incorporate bare heating elements located in excrement tanks.

Compliance is checked by inspection.

22.33 Modification:
Liquids may be in direct contact with live parts of bare heating elements and may be heated

using electrodes.
22.101 Toilets shall be fixed appliances.
Compliance is checked by inspection.
22.102 Metal parts in contact with the skin and which support the body in normal use shall
not be earthed.
Compliance is checked by inspection.
22.103 Appliances shall be constructed so that live parts are protected from exposure to
excrement.
Compliance is checked by inspection and, if rubber seals are used, by the following test.
The seal is immersed for 24 h in mineral oil having a temperature of 100 °C ± 2 °C. After the
test, the volume of the seal shall not have increased by more than 50 %.
NOTE The oil has the following properties:
– aniline point 93 °C ± 3 °C;
– viscosity (20 ± 1) cSt at 100 °C;
– flash point 245 °C ± 6 °C.
22.104 Vacuum toilets shall be constructed so that they cannot be flushed unless the bowl
cover is closed.
Compliance is checked by manual test.

23 Internal wiring
This clause of Part 1 is applicable except as follows.
23.3 Modification:
For heated seats, the number of flexings is 50 000.
23.5 Addition:
Internal wiring supplying parts in the excrement tank at safety extra-low voltage shall not be
lighter than ordinary polyvinyl chloride sheathed cord (code designation 60227 IEC 53).

60335-2-84 © IEC:2002+A1:2008 – 15 –

24 Components
This clause of Part 1 is applicable except as follows.

24.101 Thermal cut-outs incorporated in appliances for compliance with 19.4 or 19.101

shall not be self-resetting.
Compliance is checked by inspection.

25 Supply connection and external flexible cords
This clause of Part 1 is applicable except as follows.
25.3 Addition:
Appliances incorporating water heaters having bare heating elements shall only be provided
with means for connection to fixed wiring.
26 Terminals for external conductors
This clause of Part 1 is applicable.
27 Provision for earthing
This clause of Part 1 is applicable except as follows.
27.1 Addition:
For class I appliances incorporating water heaters having bare heating elements, the water
shall enter and leave through metal pipes that are permanently and reliably connected to the
earthing terminal or flow over metal parts that are similarly earthed.
NOTE 101 Examples of such metal parts are grids or rings.
NOTE 102 Parts that are liable to be in contact with excrement are considered to be accessible.
28 Screws and connections
This clause of Part 1 is applicable.
29 Clearances, creepage distances and solid insulation
This clause of Part 1 is applicable except as follows.
29.2 Addition:
The microenvironment is pollution degree 3 unless the insulation is enclosed or located so
that it is unlikely to be exposed to pollution during normal use of the appliance.

– 16 – 60335-2-84 © IEC:2002+A1:2008

30 Resistance to heat and fire

This clause of Part 1 is applicable except as follows.

30.2.2 Not applicable.
30.2.3.1 Modification:
The specified glow-wire flammability index is not applicable to water heaters having bare

heating elements.
30.2.3.2 Modification:
For water heaters having bare heating elements, the glow-wire test is carried out as specified
for other connections.
30.101 The bowl shall not incorporate combustible material.
Compliance is checked by subjecting non-metallic material to the needle-flame test of
Annex E.
The test is not carried out if the material is classified as V-0 according to IEC 60695-11-10,
provided that the test sample was no thicker than the relevant part.
31 Resistance to rusting
This clause of Part 1 is applicable except as follows.
Addition:
Compliance is checked by the salt mist test of IEC 60068-2-52, severity 2 being applicable.
Before the test, coatings are scratched by means of a hardened steel pin, the end of which
has the form of a cone with an angle of 40°. Its tip is rounded with a radius of
0,25 mm ± 0,02 mm. The pin is loaded so that the force exerted along its axis is 10 N ± 0,5 N.
The scratches are made by drawing the pin along the surface of the coating at a speed of
approximately 20 mm/s. Five scratches are made at least 5 mm apart and at least 5 mm from
the edges.
After the test, the appliance shall not have deteriorated to such an extent that compliance with
this standard, in particular with Clauses 8 and 27, is impaired. The coating shall not be broken
and shall not have loosened from the metal surface.
NOTE 101 It has to be ensured that metal parts in contact with excrement are exposed to the salt mist.
32 Radiation, toxicity and similar hazards
This clause of Part 1 is applicable.

60335-2-84 © IEC:2002+A1:2008 – 17 –

B
A
10 mm
D
G
F
E
C
L N
IEC  2719/02
Key
A Inlet pipe
B Spray head
C Circuit of Figure 4 of IEC 60990
D Metal sieve
E Earthing terminal
F Body of the water heater
G Selector switch
Figure 101 – Diagram for leakage current measurement for
water heaters having bare heating elements

– 18 – 60335-2-84 © IEC:2002+A1:2008

Annexes
The annexes of Part 1 are applicable.

Bibliography
The bibliography of Part 1 is applicable except as follows.

Addition:
ISO 13732-1, Ergonomics of the thermal environment – Methods for the assessment of human
responses to contact with surfaces – Part 1: Hot surfaces

––––––––––––
– 20 – 60335-2-84 © CEI:2002+A1:2008

SOMMAIRE
AVANT-PROPOS.22

INTRODUCTION.24

1 Domaine d’application .25

2 Références normatives.25

3 Définitions .26

4 Prescriptions générales .26

5 Conditions générales d’essais .27
6 Classification.27
7 Marquage et indications .27
8 Protection contre l’accès aux parties actives .28
9 Démarrage des appareils à moteur.28
10 Puissance et courant .28
11 Echauffements .28
12 Vacant.29
13 Courant de fuite et rigidité diélectrique à la température de régime .29
14 Surtensions transitoires.29
15 Résistance à l’humidité.29
16 Courant de fuite et rigidité diélectrique .30
17 Protection contre la surcharge des transformateurs et des circuits associés.30
18 Endurance.30
19 Fonctionnement anormal .30
20 Stabilité et dangers mécaniques .31
21 Résistance mécanique .31
22 Construction .31
23 Conducteurs internes .32
24 Composants .33
25 Raccordement au réseau et câbles souples extérieurs .33
26 Bornes pour conducteurs externes .33
27 Dispositions en vue de la mise à la terre .33
28 Vis et connexions .33
29 Distances dans l’air, lignes de fuite et isolation solide .34
30 Résistance à la chaleur et au feu.34
31 Protection contre la rouille.34
32 Rayonnement, toxicité et dangers analogues.35

Annexes .37

Bibliographie.37

60335-2-84 © CEI:2002+A1:2008 – 21 –

Figure 101 – Schéma pour la mesure du courant de fuite pour les chauffe-eau à

éléments chauffants nus .36

Tableau 101 – Echauffements normaux maximaux.29

Tableau 102 – Echauffements maximaux anormaux.30

– 22 – 60335-2-84  CEI:2002+A1:2008

COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE

____________
APPAREILS ÉLECTRODOMESTIQUES ET ANALOGUES –

SÉCURITÉ –
Partie 2-84: Règles particulières pour les toilettes

AVANT-PROPOS
1) La Commission Electrotechnique Internationale (CEI) est une organisation mondiale de normalisation
composée de l'ensemble des comités électrotechniques nationaux (Comités nationaux de la CEI). La CEI a
pour objet de favoriser la coopération internationale pour toutes les questions de normalisation dans les
domaines de l'électricité et de l'électronique. A cet effet, la CEI – entre autres activités – publie des Normes
internationales, des Spécifications techniques, des Rapports techniques, des Spécifications accessibles au
public (PAS) et des Guides (ci-après dénommés "Publication(s) de la CEI"). Leur élaboration est confiée à des
comités d'études, aux travaux desquels tout Comité national intéressé par le sujet traité peut participer. Les
organisations internationales, gouvernementales et non gouvernementales, en liaison avec la CEI, participent
également aux travaux. La CEI collabore étroitement avec l'Organisation Internationale de Normalisation (ISO),
selon des conditions fixées par accord entre les deux organisations.
2) Les décisions ou accords officiels de la CEI concernant les questions techniques représentent, dans la mesure
du possible, un accord in
...

IEC 60335-2-84 ®
Edition 2.2 2013-12
CONSOLIDATED
VERSION
VERSION
CONSOLIDÉE
colour
inside
Household and similar electrical appliances – Safety –
Part 2-84: Particular requirements for toilet appliances

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-84: Exigences particulières pour les appareils de toilettes

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,

please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les

microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.

Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette

publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: csc@iec.ch.

A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.

Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: csc@iec.ch.
IEC 60335-2-84 ®
Edition 2.2 2013-12
CONSOLIDATED
VERSION
VERSION
CONSOLIDÉE
colour
inside
Household and similar electrical appliances – Safety –

Part 2-84: Particular requirements for toilet appliances

Appareils électrodomestiques et analogues – Sécurité –

Partie 2-84: Exigences particulières pour les appareils de toilettes

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 91.140.70 ISBN 978-2-8322-1307-0

IEC 60335-2-84 ®
Edition 2.2 2013-12
REDLINE VERSION
VERSION REDLINE
Household and similar electrical appliances – Safety –
Part 2-84: Particular requirements for toilet appliances

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-84: Exigences particulières pour les appareils de toilettes

– 2 – 60335-2-84  IEC:2002+A1:2008

+A2:2013
CONTENTS
FOREWORD . 4

INTRODUCTION . 6

1 Scope . 7

2 Normative references . 7

3 Terms and Definitions . 8

4 General requirement . 9

5 General conditions for the tests . 9
6 Classification . 9
7 Marking and instructions . 9
8 Protection against access to live parts . 10
9 Starting of motor-operated appliances . 10
10 Power input and current . 10
11 Heating . 10
12 Void. 11
13 Leakage current and electric strength at operating temperature . 11
14 Transient overvoltages . 11
15 Moisture resistance . 12
16 Leakage current and electric strength . 12
17 Overload protection of transformers and associated circuits . 12
18 Endurance . 12
19 Abnormal operation . 12
20 Stability and mechanical hazards . 13
21 Mechanical strength . 13
22 Construction . 14
23 Internal wiring . 15
24 Components . 16
25 Supply connection and external flexible cords . 16
26 Terminals for external conductors . 16

27 Provision for earthing . 16
28 Screws and connections . 16
29 Clearances, creepage distances and solid insulation . 16
30 Resistance to heat and fire . 17
31 Resistance to rusting . 17
32 Radiation, toxicity and similar hazards . 18

Annexes . 19

Bibliography . 19

60335-2-84  IEC:2002+A1:2008 – 3 –

+A2:2013
Figure 101 – Diagram for leakage current measurement for water heaters having bare

heating elements . 18

Table 101 – Maximum normal temperature rises . 11

Table 102 – Maximum abnormal temperature rises . 13

– 4 – 60335-2-84  IEC:2002+A1:2008

+A2:2013
INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –

SAFETY –
Part 2-84: Particular requirements for toilets appliances

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

This Consolidated version of IEC 60335-2-84 bears the edition number 2.2. It consists of
the second edition (2002) [documents 61/2227/FDIS and 61/2302/RVD], its
corrigendum 1 (2003), its amendment 1 (2008) [documents 61/3350/CDV and
61/3464/RVC] and its amendment 2 (2013) [documents 61/4661/FDIS and 61/4681/RVD].
The technical content is identical to the base edition and its amendments.
In this Redline version, a vertical line in the margin shows where the technical content
is modified by amendments 1 and 2. Additions and deletions are displayed in red, with
deletions being struck through. A separate Final version with all changes accepted is
available in this publication.
This publication has been prepared for user convenience.

60335-2-84  IEC:2002+A1:2008 – 5 –

+A2:2013
This part of International Standard IEC 60335 has been prepared by IEC technical committee
61: Safety of household and similar electrical appliances.

The French version of this standard has not been voted upon.

This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its

amendments. It was established on the basis of the fourth edition (2001) of that standard.

NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.

This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to

convert that publication into the IEC standard: Safety requirements for electric toilets.

When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies
as far as is reasonable. When this standard states “addition”, “modification” or “replacement”,
the relevant text in Part 1 is to be adapted accordingly.
NOTE 2 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including
those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 3 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the
associated noun are also in bold.
The following differences exist in the countries indicated below.
– 3.1.9: Normal operation is different (USA).
– 6.1: Appliances incorporating water heaters having bare heating elements are not allowed (Greece).
– 6.2: IPX3 heated seats are allowed (Japan).
– 22.103: The test is different (USA).

The committee has decided that the contents of the base publication and its amendments will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
NOTE The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation
nationally not earlier than 12 months or later than 36 months from the date of publication.

IMPORTANT – The “colour inside” logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this publication using a colour printer.

– 6 – 60335-2-84  IEC:2002+A1:2008

+A2:2013
INTRODUCTION
It has been assumed in the drafting of this International Standard that the execution of its

provisions is entrusted to appropriately qualified and experienced persons.

This standard recognizes the internationally accepted level of protection against hazards such

as electrical, mechanical, thermal, fire and radiation of appliances when operated as in

normal use taking into account the manufacturer's instructions. It also covers abnormal

situations that can be expected in practice and takes into account the way in which

electromagnetic phenomena can affect the safe operation of appliances.

This standard takes into account the requirements of IEC 60364 as far as possible so that
there is compatibility with the wiring rules when the appliance is connected to the supply
mains. However, national wiring rules may differ.
If an appliance within the scope of this standard also incorporates functions that are covered
by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as
far as is reasonable. If applicable, the influence of one function on the other is taken into
account.
When a part 2 standard does not include additional requirements to cover hazards dealt with
in Part 1, Part 1 applies.
NOTE 1 This means that the technical committees responsible for the part 2 standards have determined that it is
not necessary to specify particular requirements for the appliance in question over and above the general
requirements.
This standard is a product family standard dealing with the safety of appliances and takes
precedence over horizontal and generic standards covering the same subject.
NOTE 2 Horizontal and generic standards covering a hazard are not applicable since they have been taken into
consideration when developing the general and particular requirements for the IEC 60335 series of standards. For
example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as
ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.
An appliance that complies with the text of this standard will not necessarily be considered to
comply with the safety principles of the standard if, when examined and tested, it is found to
have other features that impair the level of safety covered by these requirements.
An appliance employing materials or having forms of construction differing from those detailed
in the requirements of this standard may be examined and tested according to the intent of
the requirements and, if found to be substantially equivalent, may be considered to comply
with the standard.
60335-2-84  IEC:2002+A1:2008 – 7 –

+A2:2013
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –

SAFETY –
Part 2-84: Particular requirements for toilets appliances

1 Scope
This clause of Part 1 is replaced by the following.
This International Standard deals with the safety of electric toilets appliances having a rated
voltage being not more than 250 V, in which excrement is stored, dried or destructed, their
rated voltage being not more than 250 V or which wash or dry parts of the human body.
NOTE 101 Electric toilets may Examples of such electric toilets are the following and they can be used to process
garbage such as paper and food waste.
– mouldering toilets;
– package toilets;
– freezing toilets;
– vacuum toilets.
This standard also applies to electric equipment for use with conventional toilets.
NOTE 102 Examples of such electric equipment are
– automatic seat covering devices;
– chopping units;
– heated seats;
– pumping units;
– water heaters for shower units spray seats
– spray seats.
As far as is practicable, this standard deals with the common hazards presented by
appliances that are encountered by all persons in and around the home. However, in general,
it does not take into account young children playing with the appliance.
NOTE 103 Attention is drawn to the fact that
– for appliances intended to be used in vehicles or on board ships or aircraft, additional requirements may be
necessary;
– in many countries additional requirements are specified by the national health authorities, the national

authorities responsible for the protection of labour, the national water supply authorities and similar authorities.
NOTE 104 This standard does not apply to
– appliances intended to be used in locations where special conditions prevail, such as the presence of a
corrosive or explosive atmosphere (dust, vapour or gas);
– chemical toilets;
– toilets in which excrement is destructed by combustion.
2 Normative references
This clause of Part 1 is applicable except as follows.
Addition:
IEC 60068-2-52:1996, Environmental testing – Part 2-52: Tests methods – Test Kb: Salt mist,
cyclic (sodium chloride solution)

– 8 – 60335-2-84  IEC:2002+A1:2008

+A2:2013
3 Terms and definitions
This clause of Part 1 is applicable except as follows.

3.1.9 Replacement:
normal operation
operation of the appliance under the following conditions

Appliances are operated in cycles, each cycle being initiated every 10 min, bowl covers being

open or closed whichever is more unfavourable. If the cycle is not automatically terminated,

the appliance is operated for 15 s, or for the period specified in the instructions, whichever is
longer.
For spray seats, if the cycle is not automatically terminated, the appliance is operated for
30 s. If the cycle is automatically terminated, the appliance is operated for 30 s or automatic
operation time, whichever is shorter.
If warm air is provided for drying and if the cycle is not automatically terminated, the
appliance is operated for 1 min. If the cycle is automatically terminated, the appliance is
operated for 1 min or automatically terminating time, whichever is shorter.
If warm air is provided for drying, the drying cycle is initiated immediately after the end of the
showering cycle, unless the sequence is automatic.
The excrement tank of mouldering toilets is empty or filled with peat, whichever is more
unfavourable.
Package toilets are provided with bags.
For freezing toilets, 0,3 l of water having a temperature of 37 °C is added each cycle,
controls being adjusted to the lowest temperature. They are also operated without water.
Shower units Spray seats are supplied with water at the most unfavourable pressure that
provides an effective spray.
3.101
mouldering toilet
appliance in which excrement is processed by drying
3.102
package toilet
appliance in which excrement is packed in bags and stored in a tank

3.103
freezing toilet
appliance in which excrement is frozen and stored in a tank
3.104
vacuum toilet
appliance in which excrement is evacuated to a storage tank by negative pressure
3.105
shower unit spray seat
device incorporated in the appliance that sprays water for cleaning parts of the human body
NOTE 1 Shower units may subsequently supply warm air for drying. The units may be incorporated in the seat or
bowl. Spray seats can have functions such as heating the seat, drying, deodorizing or automatically
opening/closing the seat and the bowl cover.
NOTE 2 Spray seats can be integrated with a toilet.

60335-2-84  IEC:2002+A1:2008 – 9 –

+A2:2013
4 General requirement
This clause of Part 1 is applicable.

5 General conditions for the tests

This clause of Part 1 is applicable except as follows.

5.2 Addition:
The tests of 31.101 are not carried out on a separate appliance.
5.3 Addition:
The tests of 31.101 are carried out before the test of Clause 8.
5.7 Addition:
The temperature of the water used for the tests is 15 °C ± 5 °C.
6 Classification
This clause of Part 1 is applicable except as follows.
6.1 Modification:
Appliances incorporating water heaters having bare heating elements shall be class I or
class III.
Spray seats shall be class I, class II, or class III.
6.2 Addition:
Toilets, spray seats and heated seats shall be at least IPX4.
7 Marking and instructions
This clause of Part 1 is applicable except as follows.

7.12 Addition:
The instructions shall state how to empty and clean the toilet safely. They shall include details
about the final disposal of the excrement or its residue, unless the toilet is connected to the
sewage system.
Modification:
The instructions concerning persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge and children playing with the
appliance are not applicable.
– 10 – 60335-2-84  IEC:2002+A1:2008

+A2:2013
7.12.1 Addition:
The installation instructions for class 0I appliances and class I appliances shall state that

they have to be earthed.
The installation instructions for appliances incorporating water heaters having bare heating

elements shall state the substance of the following:

– the resistivity of the water supply must not be less than …. Ωcm;

– the appliance must be permanently connected to fixed wiring.

The installation instructions shall state
– the maximum permissible inlet water pressure, in megapascals, for appliances intended to
be connected to the water mains;
– the minimum permissible inlet water pressure, in megapascals, if this is necessary for the
correct operation of the appliance.
The installation instructions shall state that the label concerning glowing cigarettes is to be
fixed in a conspicuous place beside the toilet (except flushing toilets).
7.101 Toilets, except flushing toilets, shall be provided with a label stating that glowing
cigarettes and other burning materials must not be thrown into the toilet.
The label shall be suitable for permanent fixing.
NOTE The label may be fixed on the appliance if it is visible before using the toilet.
Compliance is checked by inspection.
8 Protection against access to live parts
This clause of Part 1 is applicable except as follows.
8.1.1 Addition:
Test probe 18 of IEC 61032 is also applied, as specified for test probe B.
8.2 Addition:
Test probe 18 of IEC 61032 is also applied, as specified for test probe B.

9 Starting of motor-operated appliances
This clause of Part 1 is not applicable.
10 Power input and current
This clause of Part 1 is applicable.
11 Heating
This clause of Part 1 is applicable except as follows.

60335-2-84  IEC:2002+A1:2008 – 11 –

+A2:2013
11.3 Addition:
Thermocouples attached to the small blackened disks are also used for measuring the

temperature rise of warm air.
11.7 Replacement:
Shower units Spray seats are operated for 2 min unless the water flow stops automatically.

Other appliances are operated until steady conditions are established.

11.8 Addition:
The temperature rises shall not exceed the values shown in Table 101.
Table 101 – Maximum normal temperature rises
Part Temperature rise
K
Surfaces likely to be in contact with the skin: 23
– if of metal 15
– if of other material 25
a
Warm air for drying parts of the human body
Surfaces outside the bowl located within 250 mm of the seat
Interior of the excrement tank of mouldering toilets
Ducts through which excrement passes
a
The air temperature is measured 50 mm from the air outlet.

The temperature of the water supplied by shower units spray seats shall not exceed 45 °C.
12 Void
13 Leakage current and electric strength at operating temperature
This clause of Part 1 is applicable except as follows.
13.2 Addition:
Water heaters having bare heating elements are tested with water having the resistivity stated
in the instructions.
NOTE 101 The appropriate resistivity may be obtained by adding ammonium phosphate to the water.
For water heaters of class I having bare heating elements, the leakage current is measured
between a metal sieve positioned 10 mm from the spray head of the shower unit spray seat
and the earthing terminal. The terminals of the heating element are connected through the
selector switch to each pole of the supply in turn, as shown in Figure 101.
The leakage current shall not exceed 0,25 mA.
14 Transient overvoltages
This clause of Part 1 is applicable.

– 12 – 60335-2-84  IEC:2002+A1:2008

+A2:2013
15 Moisture resistance
This clause of Part 1 is applicable except as follows.

15.1.1 Addition:
It may be necessary to use the spray nozzle described in subclause 14.2.4(b) of IEC 60529

for testing the inside of the bowl.

16 Leakage current and electric strength

This clause of Part 1 is applicable except as follows.
16.2 Addition:
Water heaters having bare heating elements are tested with water having the resistivity stated
in the instructions.
17 Overload protection of transformers and associated circuits
This clause of Part 1 is applicable.
18 Endurance
This clause of Part 1 is not applicable.
19 Abnormal operation
This clause of Part 1 is applicable except as follows.
19.1 Addition:
Appliances incorporating automatic controls are also subjected to the test of 19.101.
19.2 Addition:
Water heaters are tested with or without water, whichever is more unfavourable.

19.13 Addition:
The temperature rises shall not exceed the values shown in Table 102.

60335-2-84  IEC:2002+A1:2008 – 13 –

+A2:2013
Table 102 – Maximum abnormal temperature rises

Part Temperature rise
K
Surfaces likely to be in contact with the skin:

– if of metal 25 36
– if of other material 55
a
Warm air for drying parts of the human body
Surfaces outside the bowl located within 250 mm of the seat
Interior of the excrement tank of mouldering toilets
Ducts through which excrement passes
a
The air temperature is measured 50 mm from the air outlet.

The temperature of the water supplied by shower units spray seats shall not exceed 65 °C.
19.101 The appliance is supplied at rated voltage and operated under normal operation.
Any fault conditions that can be expected in normal use are applied one at a time.
NOTE Examples of fault conditions are
– failure of thermostats;
– failure of relays;
– open-circuiting or short-circuiting of components;
– stopping programmers in any position.
20 Stability and mechanical hazards
This clause of Part 1 is applicable.
21 Mechanical strength
This clause of Part 1 is applicable except as follows.
21.1 Addition:
Compliance is also checked by the tests of 21.101 and 21.102.
21.101 The appliance is subjected to an evenly distributed force of 1 500 N applied
perpendicularly to the seat, the bowl cover being open for 10 min.

The test is repeated with the bowl cover closed.
A force of 250 150 N is then applied for 5 s to the front edge of the bowl cover or seat in a
right or left direction parallel to the hinges, whichever is more unfavourable. Then the bowl
cover or seat being is slowly raised and lowered. The test is carried out five times.
The bowl cover or seat is then raised and the force of 250 150 N is applied for 1 min to its
front edge in a direction perpendicular to its plane. For spray seats and heated seats that are
installed onto the toilet bowl or integrated with the toilet bowl, the force of 150 N is applied,
and the bowl cover is lifted to less than an angle of 120°. If detachable parts are removed, no
more force is applied.
The appliance shall not be damaged to such an extent that compliance with 8.1, 15.1, 16.3
and, 27.5 and Clause 29 is impaired.

– 14 – 60335-2-84  IEC:2002+A1:2008

+A2:2013
21.102 The excrement tank is completely filled with water and the appliance placed in a

room having a temperature of approximately –15 °C. When the water is completely frozen, the

appliance is allowed to warm up until the ice has melted. The test is carried out three times.

The appliance shall not be damaged to such an extent that compliance with 8.1, 15.1, 16.3

and 27.5 is impaired.
21.103 Spray seats and heated seats, enclosures and seats shall have adequate

mechanical strength and be constructed to withstand repeated mechanical stresses that may
be expected to occur during normal use.

Compliance is checked by the test of 21.103.1 and 21.103.2.
21.103.1 The appliance is subjected to an evenly distributed force of 1 250 N applied
perpendicularly to the seat for 4 s by a rubber disc having a thickness of 10 mm, a diameter of
300 mm and a shore A hardness of 70°, with a steel disc having a thickness of 5 mm and a
diameter of 300 mm attached on its upper surface. The test is carried out 20 000 times.
The appliance shall not be damaged to such an extent that compliance with 8.1, 15.1, 16.3,
27.5 and Clause 29 is impaired.
21.103.2 The appliance is subjected to an evenly distributed force of 890 N applied
perpendicularly on each side of the seat for 1 s with a 0,5 s interval by a rubber disc having a
thickness of 19 mm, a diameter of 76 mm and a shore A hardness of 70°. The test is carried
out 10 000 cycles. One cycle consists of applying the force to one side and the other.
The appliance shall not be damaged to such an extent that compliance with 8.1, 15.1, 16.3,
27.5 and Clause 29 is impaired.
22 Construction
This clause of Part 1 is applicable except as follows.
22.2 Modification:
Class I appliances shall not incorporate an appliance inlet.
22.24 Replacement:
Appliances shall not incorporate bare heating elements located in excrement tanks or as

water heaters for spray seats.
Compliance is checked by inspection.
22.33 Modification:
Liquids may be in direct contact with live parts of bare heating elements and may be heated
using electrodes.
22.48 Addition:
If a dynamic backflow preventer is used, the critical level shall be located not less than 25 mm
above the fixture rim flood level.

60335-2-84  IEC:2002+A1:2008 – 15 –

+A2:2013
22.101 Toilets shall be fixed appliances.

Compliance is checked by inspection.

22.102 Metal parts in contact with the skin and which support the body in normal use shall

not be earthed of Class II construction.

This requirement does not apply if the metal parts in contact with skin and which support the

body in normal use are earthed and permanently connected to the fixed wiring.

Compliance is checked by inspection and if necessary by relevant tests.

22.103 Appliances shall be constructed so that live parts are protected from exposure to
excrement.
Compliance is checked by inspection and, if rubber seals are used, by the following test.
The seal is immersed for 24 h in mineral oil having a temperature of 100 °C ± 2 °C. After the
test, the volume of the seal shall not have increased by more than 50 %.
NOTE The oil has the following properties:
– aniline point 93 °C ± 3 °C;
– viscosity (20 ± 1) cSt at 100 °C;
– flash point 245 °C ± 6 °C.
22.104 Vacuum toilets shall be constructed so that they cannot be flushed unless the bowl
cover is closed.
Compliance is checked by manual test.
22.105 Appliances shall withstand the water pressure expected in normal use.
Compliance is checked by connecting the appliance to a water supply having a pressure
equal to twice the maximum permissible inlet water pressure or 1,2 MPa, whichever is higher,
for a period of 5 min.
There shall be no leakage.
23 Internal wiring
This clause of Part 1 is applicable except as follows.
23.3 Modification:
For heated seats, the number of flexings is 50 000.
23.5 Addition:
Internal wiring supplying parts in the excrement tank at safety extra-low voltage shall not be
lighter than ordinary polyvinyl chloride sheathed cord (code designation 60227 IEC 53).

– 16 – 60335-2-84  IEC:2002+A1:2008

+A2:2013
24 Components
This clause of Part 1 is applicable except as follows.

24.101 Thermal cut-outs incorporated in appliances for compliance with 19.4 or 19.101

shall not be self-resetting. This requirement is not applicable to spray seats when a thermal

link for compliance with 19.13 is connected in series with a thermal cut-out with an operating

temperature not exceeding 65 °C, in Subclause 19.13.

Compliance is checked by inspection.

25 Supply connection and external flexible cords
This clause of Part 1 is applicable except as follows.
25.3 Addition:
Appliances incorporating water heaters having bare heating elements shall only be provided
with means for connection to fixed wiring.
26 Terminals for external conductors
This clause of Part 1 is applicable.
27 Provision for earthing
This clause of Part 1 is applicable except as follows.
27.1 Addition:
For class I appliances incorporating water heaters having bare heating elements, the water
shall enter and leave through metal pipes that are permanently and reliably connected to the
earthing terminal or flow over metal parts that are similarly earthed.
NOTE 101 Examples of such metal parts are grids or rings.
NOTE 102 Parts that are liable to be in contact with excrement are considered to be accessible.
28 Screws and connections
This clause of Part 1 is applicable.
29 Clearances, creepage distances and solid insulation
This clause of Part 1 is applicable except as follows.
29.2 Addition:
The microenvironment is pollution degree 3 unless the insulation is enclosed or located so
that it is unlikely to be exposed to pollution during normal use of the appliance.

60335-2-84  IEC:2002+A1:2008 – 17 –

+A2:2013
30 Resistance to heat and fire

This clause of Part 1 is applicable except as follows.

30.2.2 Not applicable.
30.2.3.1 Modification:
The specified glow-wire flammability index is not applicable to water heaters having bare
heating elements.
30.2.3.2 Modification:
For water heaters having bare heating elements, the glow-wire test is carried out as specified
for other connections.
30.101 The bowl shall not incorporate combustible material.
Compliance is checked by subjecting non-metallic material to the needle-flame test of
Annex E.
The test is not carried out if the material is classified as V-0 according to IEC 60695-11-10,
provided that the test sample was no thicker than the relevant part.
31 Resistance to rusting
This clause of Part 1 is applicable except as follows.
Addition:
Compliance is checked by the salt mist test of IEC 60068-2-52, severity 2 being applicable.
Before the test, coatings are scratched by means of a hardened steel pin, the end of which
has the form of a cone with an angle of 40°. Its tip is rounded with a radius of
0,25 mm ± 0,02 mm. The pin is loaded so that the force exerted along its axis is 10 N ± 0,5 N.
The scratches are made by drawing the pin along the surface of the coating at a speed of
approximately 20 mm/s. Five scratches are made at least 5 mm apart and at least 5 mm from
the edges.
After the test, the appliance shall not have deteriorated to such an extent that compliance with
this standard, in particular with Clauses 8 and 27, is impaired. The coating shall not be broken
and shall not have loosened from the metal surface.
NOTE 101 It has to be ensured that metal parts in contact with excrement are exposed to the salt mist.
31.101 Toilet appliances shall have adequate resistance to cleaners and urine.
Compliance is checked by the following tests.
The following tests are separately applied to appliances unless electrical parts are enclosed
or located so that they are unlikely to be exposed to the pollution atmosphere.
The appliance is kept for 96 h in a 0,055 % ± 0,005 % intensity by volume ammoniac
atmosphere at room pressure.
– 18 – 60335-2-84  IEC:2002+A1:2008

+A2:2013
± 0,0002 % intensity by volume hydrochloric
The appliance is then kept for 96 h in a 0,0005 %

acid atmosphere at room pressure.

The appliance shall show no damage that could impair compliance with this standard.

32 Radiation, toxicity and similar hazards

This clause of Part 1 is applicable.

B
A
10 mm
D
G
F
E
C
L N
IEC  2719/02
Key
A Inlet pipe
B Spray head
C Circuit of Figure 4 of IEC 60990
D Metal sieve
E Earthing terminal
F Body of the water heater
G Selector switch
Figure 101 – Diagram for leakage current measurement for
water heaters having bare heating elements

60335-2-84  IEC:2002+A1:2008 – 19 –

+A2:2013
Annexes
The annexes of Part 1 are applicable.

Bibliography
The bibliography of Part 1 is applicable except as follows.

Addition:
ISO 13732-1, Ergonomics of the thermal environment – Methods for the assessment of human
responses to contact with surfaces – Part 1: Hot surfaces.

––––––––––––
