IEC 60966-3-1:2009

IEC 60966-3-1 ®
Edition 3.0 2009-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Radio frequency and coaxial cable assemblies –
Part 3-1: Blank detail specification for semi-flexible coaxial cable assemblies

Cordons coaxiaux et cordons pour fréquences radioélectriques –
Partie 3-1: Spécification particulière-cadre relative aux cordons coaxiaux semi-
flexibles

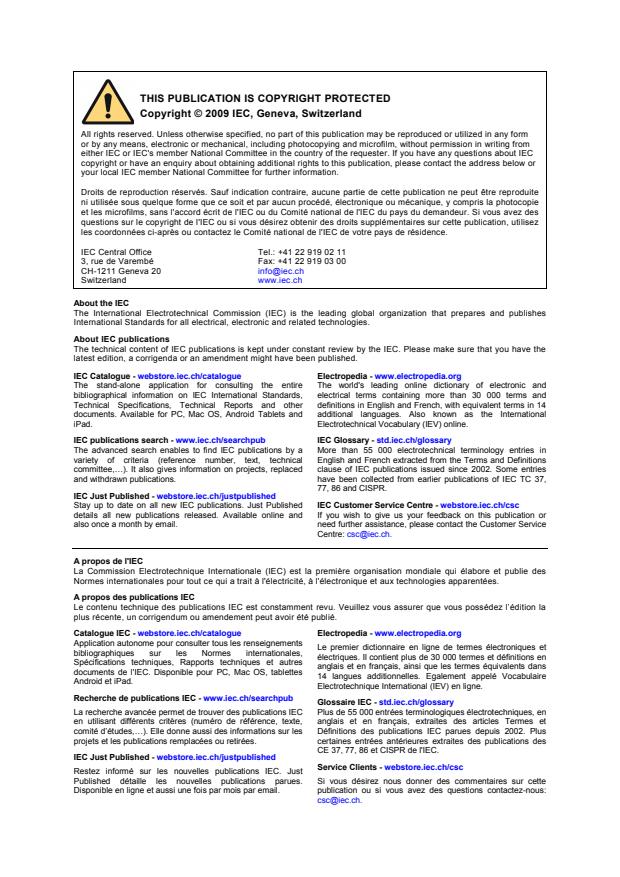

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 14
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 55 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
14 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
La recherche avancée permet de trouver des publications IEC Plus de 55 000 entrées terminologiques électrotechniques, en
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 60966-3-1 ®
Edition 3.0 2009-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Radio frequency and coaxial cable assemblies –

Part 3-1: Blank detail specification for semi-flexible coaxial cable assemblies

Cordons coaxiaux et cordons pour fréquences radioélectriques –

Partie 3-1: Spécification particulière-cadre relative aux cordons coaxiaux semi-

flexibles
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX K
ICS 33.120.10 ISBN 978-2-8322-1354-4

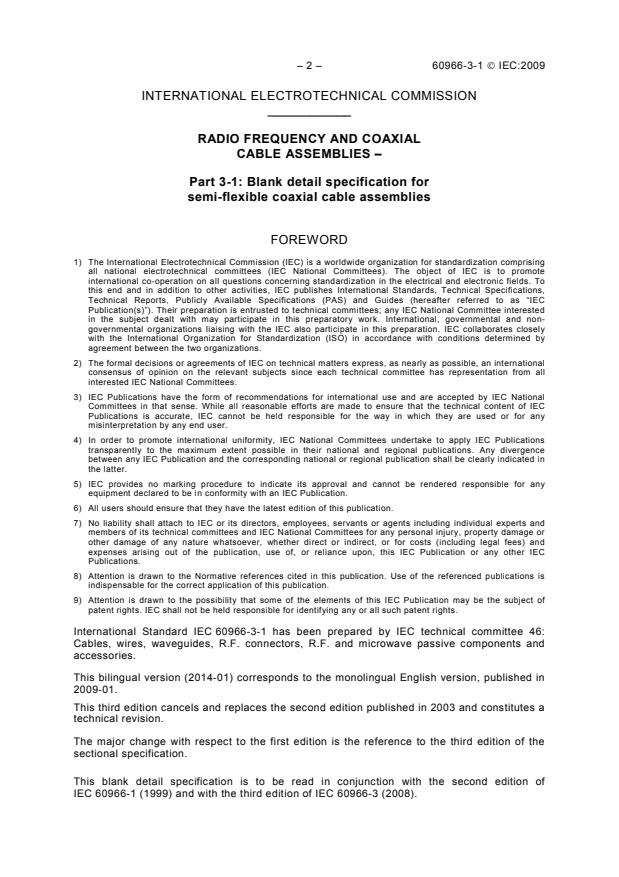

– 2 – 60966-3-1  IEC:2009
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RADIO FREQUENCY AND COAXIAL
CABLE ASSEMBLIES –
Part 3-1: Blank detail specification for
semi-flexible coaxial cable assemblies

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60966-3-1 has been prepared by IEC technical committee 46:
Cables, wires, waveguides, R.F. connectors, R.F. and microwave passive components and
accessories.
This bilingual version (2014-01) corresponds to the monolingual English version, published in
2009-01.
This third edition cancels and replaces the second edition published in 2003 and constitutes a
technical revision.
The major change with respect to the first edition is the reference to the third edition of the
sectional specification.
This blank detail specification is to be read in conjunction with the second edition of
IEC 60966-1 (1999) and with the third edition of IEC 60966-3 (2008).

60966-3-1  IEC:2009 – 3 –
The text of this standard is based on the following documents:
FDIS Report on voting
46/306/FDIS 46/318/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
The French version of this standard has not been voted upon.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of the IEC 60966 series, under the general title: Radio frequency and coaxial
cable assemblies, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 4 – 60966-3-1  IEC:2009
INTRODUCTION
This part of IEC 60966 is a blank detail specification that relates to semi-flexible coaxial cable
assemblies operating in the transverse electromagnetic mode (TEM).
The creation of a uniform layout and style of a detail specification is determined by the use of
a blank detail specification pro forma. The detail specification may be prepared by the
insertion of data into the pro forma by a national standards organization, by an approved
manufacturer or by a user (when prepared by a user, the detail specification shall be
submitted to the national authorized institution by an approved manufacturer).
Instructions to complete a blank detail specification:
Detail specifications should, as far as possible, be written in accordance with the pro forma
which has:
– a front page with a general description and a drawing or isometric sketch of the cable
assembly and its possible variants;
– ratings, characteristics and inspection requirements (those which are not required or
specified shall be omitted).
Under quality assessment, tests are divided into groups. Whenever possible, entire groups
are either specified or omitted.
These groups are:
Ba (basic) Visual and dimensional tests
Eb (electrical basic) Low-frequency operational tests
Eh (electrical high frequency) High-frequency tests
Ep (electrical phase) Electrical length tests
Ee (electrical screening effectiveness) Screening effectiveness tests
Ez (electrical impedance Z) Impedance uniformity tests
Et (electrical transmission) Power rating test
Mn (mechanical) Mechanical tests
Vc (environmental climatic) Climatic tests
Vv (environmental vibration) Vibration, bumps and shock tests
Vt (environmental temperature) Humidity, rapid change of temperature and
chemical tests
Vf (environmental flammability) Flammability, dust and water immersion tests

60966-3-1  IEC:2009 – 5 –
The numbers shown in brackets on this page correspond to the following items of required
information, which should be entered in the spaces provided.
[1] Name and address of the organization that has prepared the document.
[2] IEC document number, issue number and date of issue.
[3] Address of the organization from which the document is available.
[4] Related documents.
[5] Any other reference to the cable assembly, national reference, trade name, etc.
[6] A drawing of the cable assembly giving the outline and principal dimensions. The
dimensions are considered to be in millimetres unless otherwise specified.
NOTE The symbol "l" may be used to specify the cable length. In this case, the detail specification covers
cable assemblies of any length and "l" should then be specified in the order.
[7] Nominal characteristic impedance of the cable assembly.
[8] Frequency range of use of the cable assembly (DC may be used as a lower limit of
frequency, indicating that the cable assembly is capable of transmitting d.c., but at d.c.
a number of characteristics may neither apply nor be verified by inspection.)
[9] Weight, function of the length of the cable assembly.
[10] Minimum static inside bending radius of the cable assembly. Also minimum dynamic
inside bending radius of the cable assembly, i.e. the bending radius used for the
insertion loss and stability of electrical length tests.
[11] Climatic category of the cable assembly related to IEC 60068.
[12] The applicable quality assessment test groups according to Table 1 of the sectional
specification (for example, Ba, Eh, Eb).
[13] Description, of the components used for the manufacture of the cable assembly. When
the components do not conform with the relevant publication(s), their relevant materials
requirements shall be listed.
[14] Variants of the cable assembly may be listed in one detail specification. The variants
may differ by colour, connector material, connector sex or type. (Inspection for quality
conformance will be the same for all variants whereas the ratings and characteristics
can change.)
[15] Number of pages of the blank detail specification including the annexes.
[16] Ratings and characteristics of the cable assembly. The properties not specified should
be omitted.
[17] Reference to the appropriate subclause in the sectional and generic specifications.
[18] The value either guaranteed or used for the defined test.
[19] All information required by the sectional specification and any remarks considered as
important for understanding the test.
[20] Test groups (corresponding to box [12] on page 1 of the blank detail specification).
[21] Name of test and its subclause number in the sectional and generic specifications.
[22] Periodicity of the test. The periodic tests apply only in the case of qualification approval.
[23] Inspection level selected from IEC 60410.

– 6 – 60966-3-1  IEC:2009
[24] Acceptable quality level selected from IEC 60410.
[25] Sample size.
[26] Acceptance criteria.
[27] Test specimen length should be specified if the length is different from that given in
box [6] on page 1 of the blank detail specification or if the length in box [6] is left free
with the parameter "l".
Reference documents
IEC 60068 (all parts), Environmental testing
IEC 60410, Sampling plans and procedures for inspection by attributes

60966-3-1  IEC:2009 – 7 –
RADIO FREQUENCY AND COAXIAL
CABLE ASSEMBLIES –
Part 3-1: Blank detail specification for
semi-flexible coaxial cable assemblies

[1] Prepared by: [2] Document No.:
Issue:
Date:
[3] Available from: [4] Generic specification: IEC 60966-1
Sectional specification: IEC 60966-3
Blank detail specification: IEC 60966-3-1

[5] Additional references:
Detail specification for a semi-flexible coaxial cable assembly

NOTE Example diagram, manufacturer to insert actual diagram
[6]
[8] Frequency range: …… to …… GHz
[7] Characteristic impedance: …… Ω
[9] Weight: …… g+ …… g/m [10] Minimum inside radius
for static bending: …… mm
for dynamic bending: …… mm
[11] Climatic category: …/…/… [12] Applicable test groups: Ba, Eh, Eb, Ez, Ep, Ee,
Mn, Vv, Vc, Vt, Vf.
[13] Connector reference number ……
Series …… type …… sex …… of the connector
Reference no. …… type …… of the cable
Additional armour ……
Marking method ……
Marking text ……
[14] Variants:
[15] Page 1 of 7 pages
– 8 – 60966-3-1  IEC:2009
[16] [17] [18] [19]
Inspection values,
a
Subclause Value Remarks
ratings or characteristics
Electrical*
Reflection properties 8.1 > …… dB …… to …… GHz
From one or two ends
Uniformity of impedance 8.2 Rise time of pulse < ……ps
…. ± …. Ω
Insertion loss 8.3 ≥ .… dB .… dB/m …… to …… GHz

Propagation time 8.5 Frequency or rise time
.… ns ± …. ns/m
Stability of electrical length 8.6 …… /GHz …… to …… GHz
mandrel radius ……
Test method 1 or 2 for
bending test ……
Phase difference 8.7 + …. /GHz Frequency
Phase variation with temperature 8.8 …. /GHz …… to …… K
…… to …… GHz
Screening effectiveness 8.9 ≤ …. dB …… to …… MHz

Voltage proof 8.10 ≥ …. kV
Insulation resistance 8.11 Test voltage …… V
≥ …. MΩ
Inner and outer conductor 8.12 OK/no Voltage ……
continuity
Current ……
Frequency ……
Power rating 8.14 ≥ …. W
Mechanical*
Tensile 9.1 Interface Force …… N
OK/no
Duration …… s
Return loss …… dB
Cable assembly crushing 9.4 Interface Force …… N
OK/no
Return loss …… dB
Torque 9.5 Interface ≥…… Nm
OK/no
Return loss
Multiple bending 9.6 Interface Cycle ……
OK/no
Return loss …… dB
60966-3-1  IEC:2009 – 9 –
[16] [17] [18] [19]
Inspection values,
a
Subclause Value Remarks
ratings or characteristics
Environmental*
Vibration 10.2 OK/no …… m/s
…… to …… Hz
…… g
(see also 10.2.1.3)
Bumps 10.2 OK/no …… m/s
…… g
Shock 10.2 OK/no …… m/s
½ sine …… ns
…… g
Climatic sequence 10.3 .…/.…/…. Cycles ……
(connectors (un-)mated
Tests: 7.2, 8.3, 8.10, 8.11
Damp heat, steady state 10.4 OK/no Cycles ……
...
