IEC 61360-2:2002/AMD1:2003

INTERNATIONAL IEC
STANDARD 61360-2
2002-01
AMENDMENT 1
2003-12
Amendment 1
Standard data element types
with associated classification scheme
for electric components –
Part 2:
EXPRESS dictionary schema
 IEC 2003 Droits de reproduction réservés  Copyright - all rights reserved
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch Web: www.iec.ch
PRICE CODE
Commission Electrotechnique Internationale R

International Electrotechnical Commission
МеждународнаяЭлектротехническаяКомиссия
For price, see current catalogue

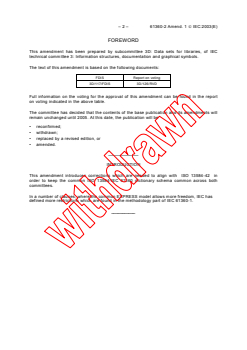

– 2 – 61360-2 Amend. 1  IEC:2003(E)
FOREWORD
This amendment has been prepared by subcommittee 3D: Data sets for libraries, of IEC
technical committee 3: Information structures, documentation and graphical symbols.
The text of this amendment is based on the following documents:
FDIS Report on voting
3D/117/FDIS 3D/126/RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until 2005. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
_____________
INTRODUCTION
This amendment introduces corrections which are needed to align with ISO 13584-42 in
order to keep the common ISO 13584-IEC 61360 dictionary schema common across both
committees.
In a number of clauses, where the common EXPRESS model allows more freedom, IEC has
defined more restrictions which are found in the methodology part of IEC 61360-1.
___________

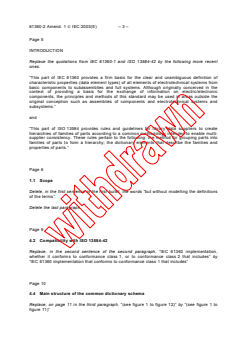

61360-2 Amend. 1  IEC:2003(E) – 3 –
Page 5
INTRODUCTION
Replace the quotations from IEC 61360-1 and ISO 13584-42 by the following more recent
ones:
“This part of IEC 61360 provides a firm basis for the clear and unambiguous definition of
characteristic properties (data element types) of all elements of electrotechnical systems from
basic components to subassemblies and full systems. Although originally conceived in the
context of providing a basis for the exchange of information on electric/electronic
components, the principles and methods of this standard may be used in areas outside the
original conception such as assemblies of components and electrotechnical systems and
subsystems.”
and
“This part of ISO 13584 provides rules and guidelines for library data suppliers to create
hierarchies of families of parts according to a common methodology intended to enable multi-
supplier consistency. These rules pertain to the following: the method for grouping parts into
families of parts to form a hierarchy; the dictionary elements that describe the families and
properties of parts.”
Page 6
1.1 Scope
Delete, in the first sentence of the first bullet, the words “but without modelling the definitions
of the terms”.
Delete the last paragraph.
Page 9
4.2 Compatibility with ISO 13584-42
Replace, in the second sentence of the second paragraph, “IEC 61360 implementation,
whether it conforms to conformance class 1, or to conformance class 2 that includes” by
“IEC 61360 implementation that conforms to conformance class 1 that includes”

Page 10
4.4 Main structure of the common dictionary schema
Replace, on page 11 in the third paragraph, “(see figure 1 to figure 12)” by “(see figure 1 to
figure 11)”

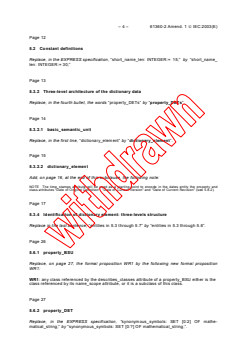

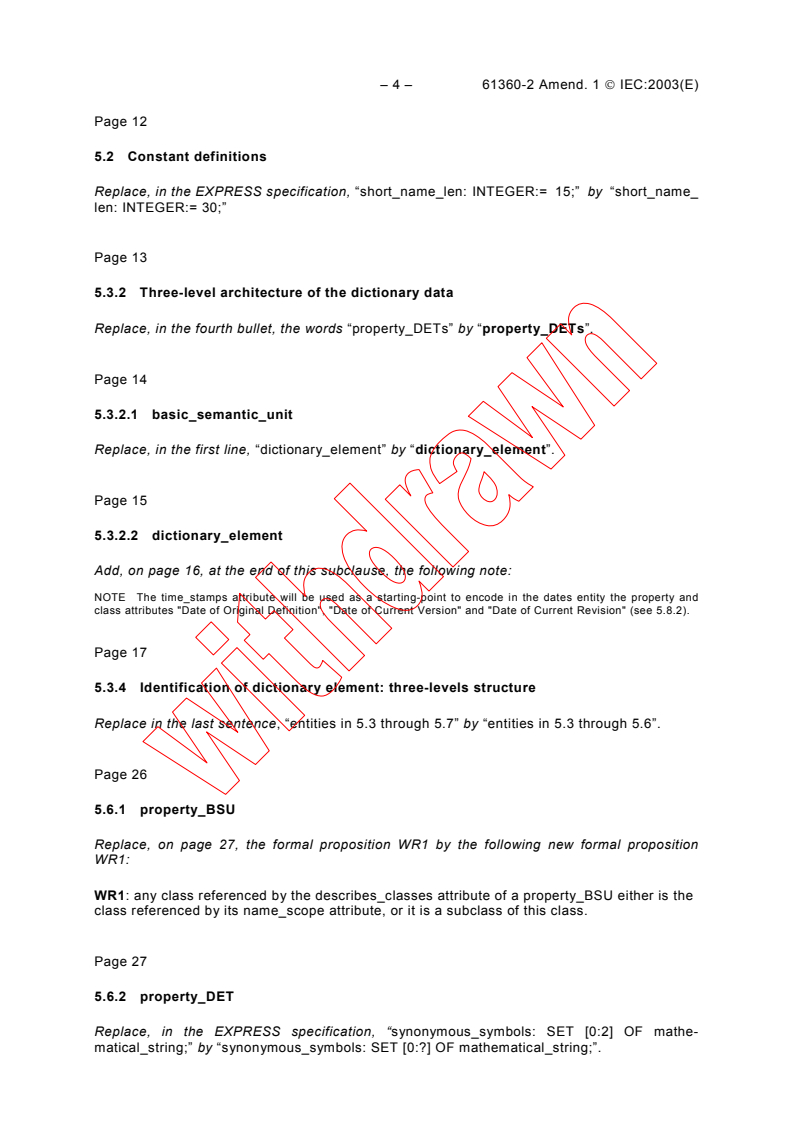

– 4 – 61360-2 Amend. 1  IEC:2003(E)
Page 12
5.2 Constant definitions
Replace, in the EXPRESS specification, “short_name_len: INTEGER:= 15;” by “short_name_
len: INTEGER:= 30;”
Page 13
5.3.2 Three-level architecture of the dictionary data
Replace, in the fourth bullet, the words “property_DETs” by “property_DETs”.

Page 14
5.3.2.1 basic_semantic_unit
Replace, in the first line, “dictionary_element” by “dictionary_element”.

Page 15
5.3.2.2 dictionary_element
Add, on page 16, at the end of this subclause, the following note:
NOTE The time_stamps attribute will be used as a starting-point to encode in the dates entity the property and
class attributes "Date of Original Definition", "Date of Current Version" and "Date of Current Revision" (see 5.8.2).

Page 17
5.3.4 Identification of dictionary element: three-levels structure
Replace in the last sentence, “entities in 5.3 through 5.7” by “entities in 5.3 through 5.6”.

Page 26
5.6.1 property_BSU
Replace, on page 27, the formal proposition WR1 by the following new formal proposition
WR1:
WR1: any class referenced by the describes_classes attribute of a property_BSU either is the
class referenced by its name_scope attribute, or it is a subclass of this class.

Page 27
5.6.2 property_DET
Replace, in the EXPRESS specification, “synonymous_symbols: SET [0:2] OF mathe-
matical_string;” by “synonymous_symbols: SET [0:?] OF mathematical_string;”.

61360-2 Amend. 1  IEC:2003(E) – 5 –

Page 29
5.6.3.2 dependent_DET
Replace the existing title of this subclause by the following new title:
5.6.3.2 dependent_P_DET
Page 30
5.6.3.3 non-dependent_DET
Replace the existing title of this subclause by the following new title:
5.6.3.3 non-dependent_P_DET”.
Page 32
5.7.1.1 data_type_BSU
Replace the fourth attribute definition (‘defining class’) by the following new definition:
defining_class: SET OF class FOR defined_types.

Page 41
Figure 11 – Overview of non-Quantitative data element types
Replace figure 11 by the following new figure:

– 6 – 61360-2 Amend. 1  IEC:2003(E)

support_resource_
(ABS) data_type
schema.identifier
INTEGER
(ABS)
document
value_code_type
integer_type
(ABS)
source_doc_of_
simple_type
value_domain
source_doc_of_
value
its_values L[2:?]
value_code
dic_value
string_type value_domain
value_type
meaning
domain
non_quantitative_code_
synonymous_names S[0:?]
type
preferred_name
STRING
STRING
item_names
short_name icon
(ABS) graphics
STRING
IEC  2856/03
Figure 11 – Overview of non-Quantitative data element types
Page 42
5.7.3.1 value_domain
Add, to the WHERE rules in the EXPRESS specification, the following:
WR3: EXISTS(languages) OR (QUERY(v <* its_values |
EXISTS(v.meaning.languages)) = []);
Replace the first attribute definition (‘its_values’) by the following new definition:
its_values: LIST [1:?] OF dic_value;
Add to the list of formal propositions:
WR3: if no languages are provided, the value meanings shall not be assigned any language.

Page 53
5.8.2.5 item_names
Replace WR1 and WR3 of the WHERE rules in the express specification by the following:
WR1: NOT (EXISTS(languages )) OR (
('ISO13584_IEC61360_LANGUAGE_RESOURCE_SCHEMA'
+ '.TRANSLATED_LABEL' IN TYPEOF(preferred_name) )
AND (languages :=: preferred_name\translated_label.languages)
AND (NOT (EXISTS(short_name) )

61360-2 Amend. 1  IEC:2003(E) – 7 –
OR ('ISO13584_IEC61360_LANGUAGE_RESOURCE_SCHEMA'
+ '.TRANSLATED_LABEL' IN TYPEOF(short_name) )
AND (languages :=: short_name\translated_label.languages ) )
AND (QUERY (s <* synonymous_names
| NOT ('ISO13584_IEC61360_DICTIONARY_SCHEMA'
+'.LABEL_WITH_LANGUAGE' IN TYPEOF(s) ) ) = [ ] ) );

WR3: EXISTS(languages) OR (('SUPPORT_RESOURCE_SCHEMA.LABEL' IN
TYPEOF(preferred_name)) AND (NOT(EXISTS(short_name)) OR
('SUPPORT_RESOURCE_SCHEMA.LABEL' IN
TYPEOF(short_name))) AND (QUERY(s <* synonymous_names |
'ISO13584_IEC61360_DICTIONARY_SCHEMA.LABEL_WITH_LANGUAGE' IN
TYPEOF(s)) = []));
Replace, in the list of attribute definitions, the third definition (‘short_name’) by the following
new definition:
short_name: OPTIONAL short_name_type;
Replace, in the list of formal propositions, WR3 by the following:
WR3: if no languages are provided, preferred_name, short_name and synonymous_names
shall not be translated.
Page 55
5.9.1 acyclic_superclass_relationship function
Replace, in the EXPRESS specification, “IF current.definition[1]\class IN visited THEN” by ‘IF
current.definition[1] IN visited THEN’.
Replace
IF EXISTS current.definition[1]\class.its_superclass)
THEN
RETURN (acyclic_superclass_relationship (current.definition[1]\class.its_superclass,
visited + current.definition[1]\class));
by
‘IF EXISTS (current.definition[1]\class.its_superclass)
THEN
RETURN (acyclic_superclass_relationship (current.definition[1]\class.its_superclass,
visited + current.definition[1])); ‘

5.9.2 at_most_two_synonyms_per_language function
Delete this Subclause and renumber the following Subclauses.

– 8 – 61360-2 Amend. 1  IEC:2003(E)
Page 56
5.9.4 codes_are_unique_function
Replace
ELSE
RETURN(UNKNOWN);
END_IF;
END_IF;
by:
’ ELSE
RETURN( ?);
END_IF;
END_IF; ‘
Page 61
5.9.11 all_class_descriptions_reachable function
Replace
IF NOT EXISTS(cl)
THEN
RETURN(UNKNOWN);
END_IF;
by:
’IF NOT EXISTS(cl)
THEN
RETURN(?);
END_IF; ‘
Page 65
6 IEC 61360 extensions to the common dictionary schema
Delete this Clause and renumber the following Clauses and Subclauses.

Page 71
8.1.3 Templates for property DET data
Replace the text of the second, third and fourth paragraphs of this Subclause by the following:
e_i_n=CONDITION_DET(identified_by: property_BSU, time_stamps: OPTIONAL dates,
revision: revision_type, names: item_names, definition: definition_type,
source_doc_of_definition: OPTIONAL document, note: OPTIONAL note_type, remark:
OPTIONAL remark_type, preferred_symbol: OPTIONAL mathematical_string,
synonymous_symbols: SET [ 0 : ? ] OF mathematical_string, figure: OPTIONAL graphics,
det_classification: OPTIONAL DET_classification_type, domain: data_type, formula:
OPTIONAL mathematical_string);

61360-2 Amend. 1  IEC:2003(E) – 9 –
e_i_n=DEPENDENT_P_DET(identified_by: property_BSU, time_stamps: OPTIONAL dates,
revision: revision_type, names: item_names, definition: definition_type,
source_doc_of_definition: OPTIONAL document, note: OPTIONAL note_type, remark:
OPTIONAL remark_type, preferred_symbol: OPTIONAL mathematical_string,
synonymous_symbols: SET [ 0 : ? ] OF mathematical_string, figure: OPTIONAL graphics,
det_classification: OPTIONAL DET_classification_type, domain: data_type, formula:
OPTIONAL mathematical_string, depends_on: SET [ 1 : ? ] OF property_BSU);
e_i_n=NON_DEPENDENT_P_DET(identified_by: property_BSU, time_stamps: OPTIONAL
dates, revision: revision_type, names: item_names, definition: definition_type,
source_doc_of_definition: OPTIONAL document, note: OPTIONAL note_type, remark:
OPTIONAL remark_type, preferred_symbol: OPTIONAL mathematical_string,
synonymous_symbols: SET [ 0 : ? ] OF mathematical_string, figure: OPTIONAL graphics,
det_classification: OPTIONAL DET_classification_type, domain: data_type, formula:
OPTIONAL mathematical_string);

Page 74
Annex A - Example Physical File
Replace the text of this Annex by the following new text:
‘ISO-10303-21;
HEADER;
FILE_DESCRIPTION(('Example physical file'), '2;1');
FILE_NAME('example.spf', '2001-01-29', ('IEC SC3D WG2'), (),
'Version 1', '', '');
FILE_SCHEMA(('example_schema'));
ENDSEC;
DATA;
/*
A.1 Supplier data
*/
#1=SUPPLIER_BSU('112/2///61360_4_1', *); /*according to ISO 13584-26*/
#2=SUPPLIER_ELEMENT(#1, #3, '01', #4, #5);
#3=DATES('1994-09-16', '1994-09-16', $);
#4=ORGANIZATION('IEC', 'IEC Maintenance Agency', 'The IEC Maintenance Agency as
described in IEC 61360-3: "Maintenance and Validation Procedures"');
#5=ADDRESS('to be determined', $, $, $, $, $, $, $, $, $, $, $);
#10=SUPPLIER_BSU('112/3///_00', *); /* ISO/IEC ICS */
/*
A.2 Root class data
The AAA000 IEC root class provides a name scope corresponding to the whole future IEC
61360-4 standard. It covers two trees, one for materials, one for components, therefore the
class is defined as an item_class. It is a subtype of ICS root.
*/
#90=CLASS_BSU('OO', '001', #10); /* ICS root */
#100=CLASS_BSU('AAA000', '001', #1);
#101=ITEM_CLASS(#100, #3, '01', #102, TEXT('IEC root class that provides a name scope
corresponding to the whole IEC 61360-4 standard. It covers two trees, one for materials, one
for components'), $, $, $, #90, (#110), (), $, (#110), (), $);
#102=ITEM_NAMES(LABEL('IEC root class'), (), LABEL('IEC root'), $, $);
#110=PROPERTY_BSU('AAE000', '001', #100);
#111=NON_DEPENDENT_P_DET(#110, #3, '01', #112, TEXT('the type of tree: material or
component'), $, $, $, $, (), $, $, #113, $);

– 10 – 61360-2 Amend. 1  IEC:2003(E)
#112=ITEM_NAMES(LABEL('type of tree'), (), LABEL('tree type'), $, $);
#113=NON_QUANTITATIVE_CODE_TYPE('A.8', #114);
#114=VALUE_DOMAIN((#120, #122), $, $, ());
#120=DIC_VALUE(VALUE_CODE_TYPE('MATERIAL'), #121, $);
#121=ITEM_NAMES(LABEL('material tree'), (), LABEL('mat tree'), $, $);
#122=DIC_VALUE(VALUE_CODE_TYPE('COMPONS'), #123, $);
#123=ITEM_NAMES(LABEL('component tree'), (), LABEL('comp tree'), $, $);
/*
A.3 Material data
*/
#200=CLASS_BSU('AAA218', '001', #1);
#201=MATERIAL_CLASS(#200, #3, '01', #202, TEXT('root class of the materials tree'), $, $,
$, #100, (#210, #230), (), $, (#210), (#205), 'MATERIAL');
#202=ITEM_NAMES(LABEL('materials root class'), (), LABEL('materials root'), $, $);
#205=CLASS_VALUE_ASSIGNMENT(#110, 'MATERIAL');
#210=PROPERTY_BSU('AAF311', '005', #100);
#211=NON_DEPENDENT_P_DET(#210, #3, '01', #212, TEXT('code of the type of material'),
$, $, $, $, (), $, 'A57', #213, $);
#212=ITEM_NAMES(LABEL('material type'), (), LABEL('material type'), $, $);
#213=NON_QUANTITATIVE_CODE_TYPE('M.3', #214);
#214=VALUE_DOMAIN((#220, #222, #224, #226), $, $, ());
#220=DIC_VALUE(VALUE_CODE_TYPE('ACO'), #221, $);
#221=ITEM_NAMES(LABEL('acoustical'), (), LABEL('acoustical'), $, $);
#222=DIC_VALUE(VALUE_CODE_TYPE('MG'), #223, $);
#223=ITEM_NAMES(LABEL('magnetic'), (), LABEL('magnetical'), $, $);
#224=DIC_VALUE(VALUE_CODE_TYPE('OP'), #225, $);
#225=ITEM_NAMES(LABEL('optical'), (), LABEL('optical'), $, $);
#226=DIC_VALUE(VALUE_CODE_TYPE('TH'), #227, $);
#227=ITEM_NAMES(LABEL('thermal-electric'), (), LABEL('th-electric'), $, $);
#230=PROPERTY_BSU('AAF286', '005', #100);
#231=NON_DEPENDENT_P_DET(#230, #3, '01', #232, TEXT('The nominal density (in
kg/m**3) of a material.'), $, $, $, #233, (), $, 'K02', #234, $);
#232=ITEM_NAMES(LABEL('density'), (), LABEL('density'), $, $);
#233=MATHEMATICAL_STRING('$r_d', 'ρ_{d ...}
