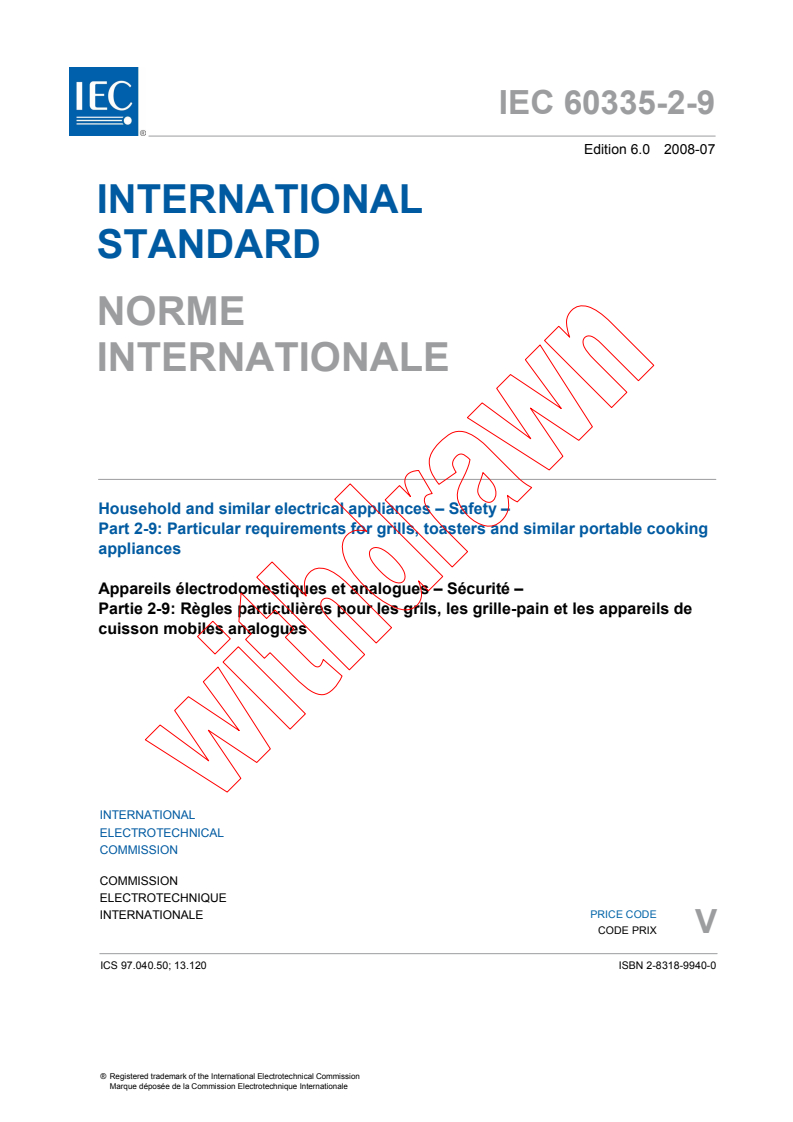

IEC 60335-2-9:2008

IEC 60335-2-9
Edition 6.0 2008-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-9: Particular requirements for grills, toasters and similar portable cooking
appliances
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-9: Règles particulières pour les grils, les grille-pain et les appareils de
cuisson mobiles analogues

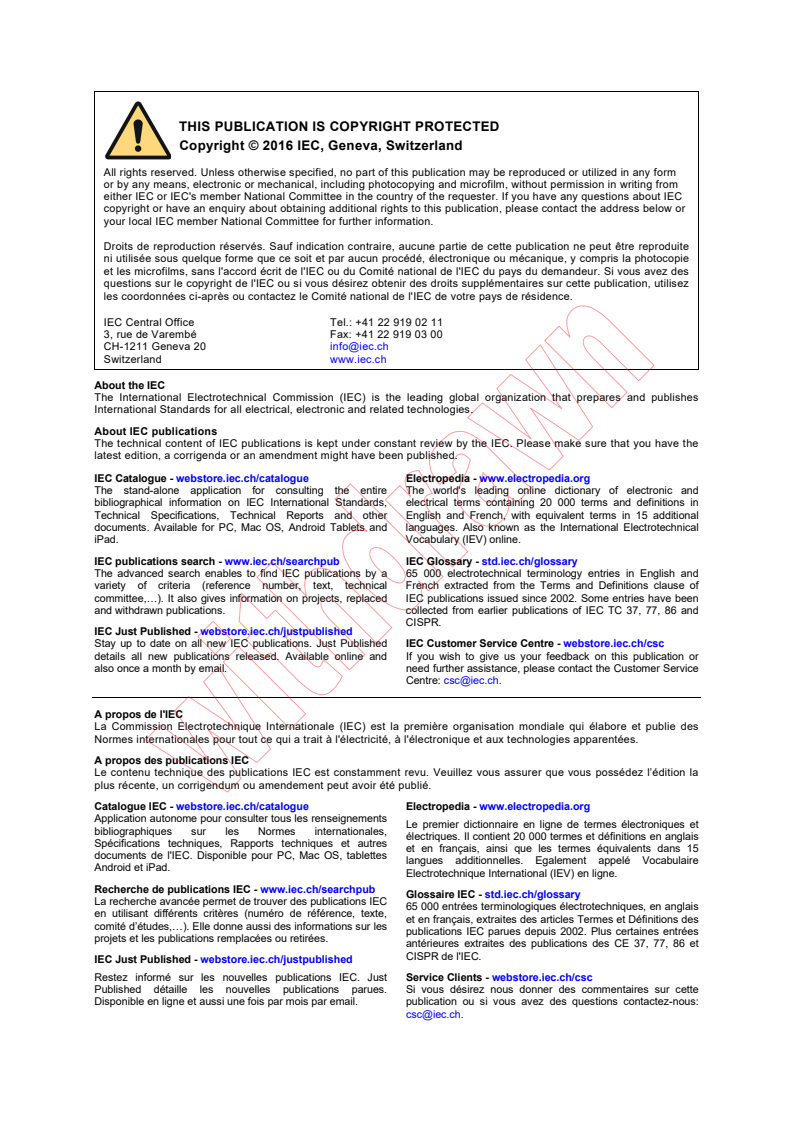

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by

any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or

IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.

Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette

publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 60335-2-9
Edition 6.0 2008-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-9: Particular requirements for grills, toasters and similar portable cooking
appliances
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-9: Règles particulières pour les grils, les grille-pain et les appareils de
cuisson mobiles analogues
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
V
CODE PRIX
ICS 97.040.50; 13.120 ISBN 2-8318-9940-0
– 2 – 60335-2-9 © IEC:2008

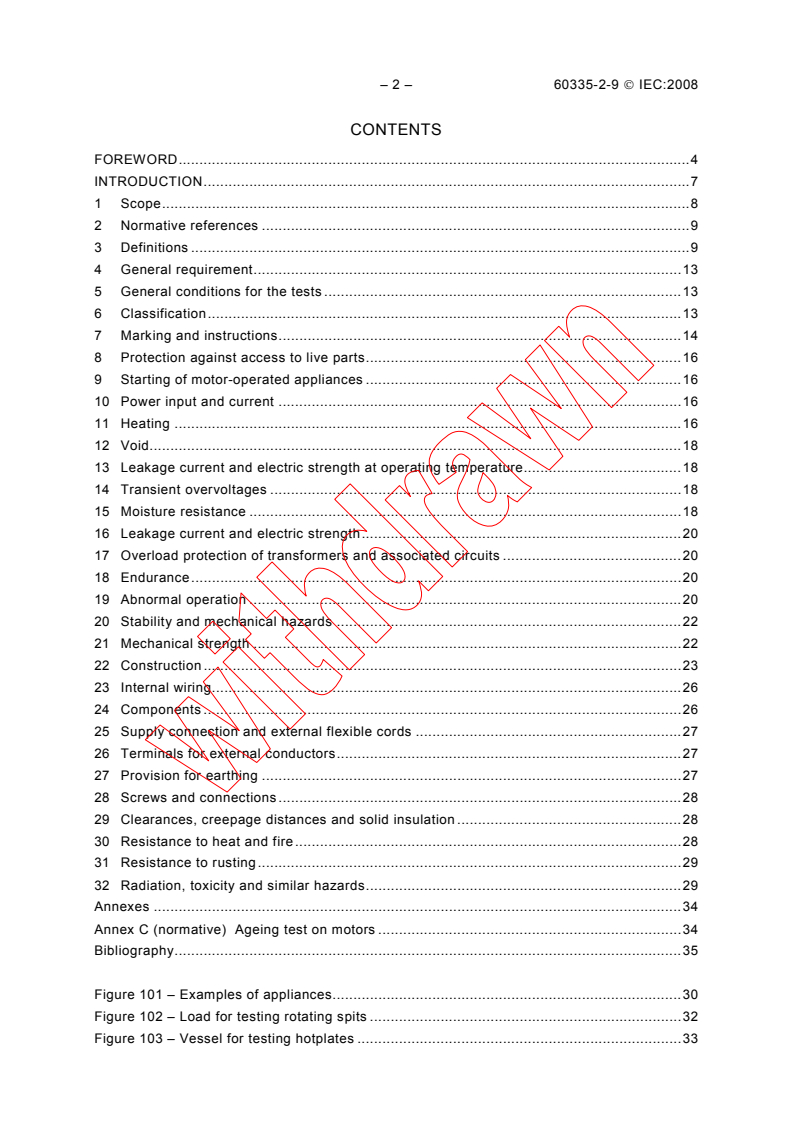

CONTENTS
FOREWORD.4

INTRODUCTION.7

1 Scope.8

2 Normative references .9

3 Definitions .9

4 General requirement.13

5 General conditions for the tests .13

6 Classification.13
7 Marking and instructions.14
8 Protection against access to live parts.16
9 Starting of motor-operated appliances .16
10 Power input and current .16
11 Heating .16
12 Void.18
13 Leakage current and electric strength at operating temperature.18
14 Transient overvoltages .18
15 Moisture resistance .18
16 Leakage current and electric strength.20
17 Overload protection of transformers and associated circuits .20
18 Endurance.20
19 Abnormal operation .20
20 Stability and mechanical hazards .22
21 Mechanical strength .22
22 Construction .23
23 Internal wiring.26
24 Components .26
25 Supply connection and external flexible cords .27
26 Terminals for external conductors.27
27 Provision for earthing .27

28 Screws and connections .28
29 Clearances, creepage distances and solid insulation .28
30 Resistance to heat and fire.28
31 Resistance to rusting.29
32 Radiation, toxicity and similar hazards.29
Annexes .
Annex C (normative) Ageing test on motors .34
Bibliography.35

Figure 101 – Examples of appliances.
Figure 102 – Load for testing rotating spits .32
Figure 103 – Vessel for testing hotplates .33

60335-2-9 © IEC:2008 – 3 –
Figure 104 – Vessel for testing induction hotplates .33

Table 101 – Quantity of liquid in the vessel.11

– 4 – 60335-2-9 © IEC:2008
INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –

SAFETY –
Part 2-9: Particular requirements for grills, toasters and

similar portable cooking appliances

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 60335-2-9 has been prepared by IEC technical committee 61:
Safety of household and similar electrical appliances.
This sixth edition cancels and replaces the fifth edition published in 2002 including its
Amendment 1 (2004) and Amendment 2 (2006). It constitutes a technical revision.
The principal changes in this edition as compared with the fifth edition of IEC 60335-2-9 are
as follows (minor changes are not listed):
– aligns the text with IEC 60335-1, Ed 4, and its Amendments 1 and 2;
– introduces requirements for pop-corn makers (3, 11.7, 19.106);
– clarifies the term household and similar purposes (1, 7.12).

60335-2-9 © IEC:2008 – 5 –
The text of this standard is based on the following documents:

FDIS Report on voting
61/3651/FDIS 61/3691/RVD
Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its

amendments. It was established on the basis of the fourth edition (2001) of that standard.
NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.
This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to
convert that publication into the IEC standard: Safety requirements for grills, toasters and
similar portable cooking appliances.
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies
as far as is reasonable. When this standard states "addition", "modification" or "replacement",
the relevant text in Part 1 is to be adapted accordingly.
NOTE 2 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including
those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 3 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the
associated noun are also in bold.
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until the maintenance result date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
NOTE 4 The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this standard be adopted for implementation
nationally not earlier than 12 months nor later than 36 months from the date of its publication.

– 6 – 60335-2-9 © IEC:2008
The following differences exist in the countries indicated below.

– 3.1.9: Different loads and test methods are used (Canada and USA).

– 5.101: If the appliance incorporates a motor, the motor is tested at rated voltage (USA).

– 7.12: Identification of the connector is to be marked on the appliance (Canada and USA).

– 11.2: 9,5 mm thick plywood is used for the test corner (USA).

– 11.7: The test duration is based on the quantity of food (USA).

– 11.8: The modification does not apply (Norway).

– 11.8: A temperature rise of 100 K is allowed for the wall of the test corner (USA).

– 11.101: There are no surface temperature limits on toasters having a metallic enclosure unless they are under

cabinet or wall mounted, in which case it is allowed that the temperatures may reach 100 °C if a proper
marking is provided (USA).
– 15.2: A different solution is used and the test is not carried out on ovens, hotplates or cookers (USA).
– 15.101: Appliances are immersed to the marked level only (USA).
– 19.2: A 300 mm deep simulated cabinet is located 400 mm above the countertop (Canada and USA).
– 19.2: The test is different. Additional tests are carried out on hotplates and cookers (USA):
– 19.101: Different test methods and numbers of cycles are used (Canada and USA).
– 19.102: A combustible cloth is placed above the toaster and the residual bread is left in place (Canada and USA).
– 19.104: Disks having different sizes are used (USA).
– 20.101: The test is not carried out (USA).
– 21.101: The test is different (USA).
– 22.105: The requirement is not applicable (USA).
– 22.108: The test is not carried out (USA).
– 22.109: The test is not carried out (USA).
– 22.110: The test is not carried out (USA).
– 24.1.3: The test is not carried out (USA).
– 24.101: The test is not carried out (USA).
– 25.7: The free length of the supply cord is specified; in some cases, it is 1,8 m to 2,1 m for appliances
intended to be connected to fixed socket-outlets, while in others it is 0,6 m to 2,1 m for appliances normally
used on a table or similar surface (Canada and USA).

60335-2-9 © IEC:2008 – 7 –
INTRODUCTION
It has been assumed in the drafting of this International Standard that the execution of its

provisions is entrusted to appropriately qualified and experienced persons.

This standard recognizes the internationally accepted level of protection against hazards such

as electrical, mechanical, thermal, fire and radiation of appliances when operated as in

normal use taking into account the manufacturer's instructions. It also covers abnormal

situations that can be expected in practice and takes into account the way in which

electromagnetic phenomena can affect the safe operation of appliances.

This standard takes into account the requirements of IEC 60364 as far as possible so that
there is compatibility with the wiring rules when the appliance is connected to the supply
mains. However, national wiring rules may differ.
If an appliance within the scope of this standard also incorporates functions that are covered
by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as
far as is reasonable. If applicable, the influence of one function on the other is taken into
account.
When a part 2 standard does not include additional requirements to cover hazards dealt with
in Part 1, Part 1 applies.
NOTE 1 This means that the technical committees responsible for the part 2 standards have determined that it is
not necessary to specify particular requirements for the appliance in question over and above the general
requirements.
This standard is a product family standard dealing with the safety of appliances and takes
precedence over horizontal and generic standards covering the same subject.
NOTE 2 Horizontal and generic standards covering a hazard are not applicable since they have been taken into
consideration when developing the general and particular requirements for the IEC 60335 series of standards. For
example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as
ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.
An appliance that complies with the text of this standard will not necessarily be considered to
comply with the safety principles of the standard if, when examined and tested, it is found to
have other features which impair the level of safety covered by these requirements.
An appliance employing materials or having forms of construction differing from those detailed
in the requirements of this standard may be examined and tested according to the intent of
the requirements and, if found to be substantially equivalent, may be considered to comply
with the standard.
– 8 – 60335-2-9 © IEC:2008
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –

SAFETY –
Part 2-9: Particular requirements for grills, toasters and

similar portable cooking appliances

1 Scope
This clause of Part 1 is replaced by the following.
This International Standard deals with the safety of electric portable appliances for
household and similar purposes that have a cooking function such as baking, roasting and
grilling, their rated voltage being not more than 250 V.
NOTE 101 Examples of appliances that are within the scope of this standard are
– barbecues for indoor use;
– breadmakers;
– contact grills (griddles);
– cookers;
– food dehydrators;
– hotplates;
– pop-corn makers;
– portable ovens;
– raclette grills;
– radiant grills;
– roasters;
– rotary grills;
– rotisseries;
– toasters;
– waffle irons;
Examples are illustrated in Figure 101.
Appliances intended for normal household and similar use and that may also be used by

laymen in shops, in light industry and on farms, are within the scope of this standard.
However, if the appliance is intended to be used professionally to process food for commercial
consumption, the appliance is not considered to be for household and similar use only.
As far as is practicable, this standard deals with the common hazards presented by
appliances that are encountered by all persons in and around the home. However, in general,
it does not take into account
– persons (including children) whose
• physical, sensory or mental capabilities; or
• lack of experience and knowledge
prevents them from using the appliance safely without supervision or instruction;
– children playing with the appliance.

60335-2-9 © IEC:2008 – 9 –
NOTE 102 Attention is drawn to the fact that

– for appliances intended to be used in vehicles or on board ships or aircraft, additional requirements may be
necessary;
– in many countries additional requirements are specified by the national health authorities, the national

authorities responsible for the protection of labour and similar authorities.

NOTE 103 This standard does not apply to

– stationary ovens and stationary grills (IEC 60335-2-6);

– warming plates (IEC 60335-2-12);

– frying pans and deep fat fryers (IEC 60335-2-13);

– microwave ovens (IEC 60335-2-25);

– barbecues for outdoor use (IEC 60335-2-78);
– appliances intended to burn charcoal or similar combustible fuels;
– appliances intended for commercial catering;
– appliances intended to be used in locations where special conditions prevail, such as the presence of a
corrosive or explosive atmosphere (dust, vapour or gas).
2 Normative references
This clause of part 1 is applicable except as follows.
Addition:
IEC 60068-2-52, Environmental testing – Part 2: Tests – Test Kb: Salt mist, cyclic (sodium
chloride solution)
ISO 3864-1, Graphical symbols – Safety colours and safety signs – Part 1: Design principles
for safety signs in workplaces and public areas
3 Definitions
This clause of Part 1 is applicable except as follows.
3.1.9 Replacement:
normal operation
operation of the appliance as specified in the following subclauses:
NOTE 101 Appliances not mentioned but which nevertheless perform one of the functions are operated as
specified for this function as far as possible.

3.1.9.101 Toasters are loaded with the maximum number of slices of white bread specified
in the instructions and operated in cycles, each cycle consisting of an operating period and a
rest period. The bread is approximately 24 h old and the dimensions of the slices are
approximately 100 mm × 100 mm × 10 mm. The rest periods have a duration of 30 s or the
minimum period needed for the resetting of a control, whichever is longer. The slices of bread
are replaced during each rest period. The operating period is established by adjusting
controls to give the bread a golden-brown colour. For toasters without a control, each
operating period is terminated as soon as the colour of the bread turns golden-brown.
Toasters incorporating a device for heating rolls are loaded with the maximum number of rolls
specified in the instructions. The toaster is operated in cycles, each cycle consisting of an
operating period followed by a rest period of 30 s when the rolls are turned or replaced. The
control is adjusted in accordance with the instructions. If instructions are not given, the control
is adjusted for the toasting operation.

– 10 – 60335-2-9 © IEC:2008
Sandwich-toasting attachments are loaded with one or more sandwiches that are positioned

in accordance with the instructions to produce the most unfavourable result. Each sandwich

comprises two slices of white bread filled with a single slice of suitable cheese having an area

equal to a slice of bread and a thickness of approximately 5 mm. The toaster is then operated

in accordance with the instructions in cycles, each cycle consisting of a toasting operation

followed by a rest period of 30 s, or the minimum period needed for the resetting of a control,

whichever is longer.
NOTE Processed cheese and other cheeses that readily melt when heated are suitable.

3.1.9.102 Rotary grills are operated with the load on the rotating spit shown in Figure 102.

3.1.9.103 Waffle irons having a thermostat are operated with the thermostat adjusted to
the highest setting. Other waffle irons are operated so that the temperature at the centre of
the heated surface is maintained at 210 °C ± 15 °C by switching the supply on and off.
3.1.9.104 Ovens are operated with the door closed. Ovens having a thermostat are
operated so that the mean temperature in the centre of the cavity is maintained at
240 °C ± 4 °C or at the value obtained with the thermostat adjusted to its highest setting, if
this results in a lower temperature. Other ovens are operated so that the temperature in the
centre of the cavity is maintained at 240 °C ± 15 °C by switching the supply on and off.
3.1.9.105 Roasters are operated with the lid closed. The mean temperature in the centre of
the container is maintained at 240 °C ± 4 °C, if necessary by switching the supply on and off.
3.1.9.106 Radiant grills and rotary grills are operated with the controls adjusted in
accordance with the instructions or, if instructions are not provided, with the controls adjusted
to the highest setting. Doors or lids are open unless otherwise specified in the instructions.
Contact grills having a thermostat are operated with the thermostat adjusted to the highest
setting. Other contact grills are operated so that the temperature at the centre of the heated
surface is maintained at 275 °C ± 15 °C by switching the supply on and off.
Raclette grills are operated with doors or lids open, unless otherwise specified in the
instructions. Controls are adjusted in accordance with the instructions, pans being in position
or removed, whichever is more unfavourable.
3.1.9.107 Barbecues are operated with food supports in the lowest position. Controls are
adjusted to the highest setting, any covers or shields being positioned in accordance with the
instructions.
NOTE Barbecues are operated without water even if the use of water is recommended.
3.1.9.108 Hotplates, other than induction hotplates, are operated with vessels containing
water. The vessels are made of unpolished commercial quality aluminium, have a flat bottom
and are covered with a lid. A suitable vessel is specified in Figure 103. Controls are adjusted
to their highest setting until the water boils and then adjusted so that the water simmers.
Water is added to maintain the level during boiling.
NOTE 1 The lid is positioned so that steam does not affect the test.
Induction hotplates are operated with vessels, as specified in Figure 104, containing cooking
oil. Controls are adjusted to their highest setting until the oil temperature reaches
180 °C ± 4 °C and are then adjusted so that this temperature is maintained. The oil
temperature is measured 1 cm above the centre of the bottom of the vessel.
For all hotplates, the diameter of the bottom of the vessel is approximately equal to the
diameter of the cooking zone and the quantity of liquid is specified in Table 101. The vessel
is positioned centrally on the cooking zone.

60335-2-9 © IEC:2008 – 11 –
Table 101 – Quantity of liquid in the vessel

Diameter of cooking zone Quantity of water or oil

mm l
0,6
≤110
1,0
>110 and ≤145
>145 and ≤180 1,5
>180 and ≤220 2,0
3,0
>220 and ≤300
NOTE 2 If several cooking zones are marked for one hotplate, the most unfavourable zone is used for the test.
NOTE 3 For non-circular cooking zones, the smallest non-circular vessel is used that will cover the cooking
zone as far as possible, taking into account the hob rim and other vessels. The quantity of liquid is determined on
the basis of the minor diameter of the cooking zone.
3.1.9.109 Raclette appliances are operated with the controls adjusted in accordance with
the instructions or, if instructions are not provided, with the controls adjusted to the highest
setting.
3.1.9.110 Food dehydrators are operated empty.
3.1.9.111 Breadmakers are operated using the most unfavourable cycle and ingredients
specified in the instructions.
NOTE The most unfavourable cycle may be for a function such as jam-making that allows the heating element
and the kneading motor to operate simultaneously.
3.1.9.112 Pop-corn makers are operated with the container filled with the maximum
quantity of corn seeds specified in the instructions and, where relevant, with the maximum
quantity of oil specified in the instructions.
3.101
toaster
appliance intended for toasting slices of bread by radiant heat
3.102
waffle iron
appliance having two heated hinged plates that are shaped to contain batter

3.103
oven
appliance having a heated cavity with a door and constructed so that food that may be in a
container can be placed on a shelf
3.104
roaster
appliance having a heated container with a lid and constructed so that food can be placed in it
3.105
rotary grill
appliance having a visibly glowing heating element and a rotating spit to support the food
NOTE A rotary grill is also known as a rotisserie.

– 12 – 60335-2-9 © IEC:2008
3.106
radiant grill
appliance having a visibly glowing heating element and a support on which food can be

placed
NOTE A radiant grill may be placed in a compartment with or without a door.

3.107
contact grill
appliance having a heated surface on which food is placed. It may have a second heated

surface to cover the food
NOTE A contact grill with only one heated surface is known as a griddle.
3.108
sandwich-toasting attachment
accessory for use with a toaster for toasting sandwiches
3.109
raclette grill
appliance for melting slices of cheese placed in small pans positioned under the heating
element
NOTE Raclette grills may have a surface that is used as a griddle.
3.110
raclette appliance
radiant grill for melting the surface of a large piece of cheese
3.111
barbecue
radiant grill having a heating element located under the food support
3.112
hotplate
appliance having one or more heating units on which vessels can be placed for cooking
purposes
NOTE Hotplates do not incorporate an oven or grill.
3.113
induction hotplate
hotplate that can heat at least one metallic vessel by means of eddy currents

NOTE The eddy currents are induced in the bottom of the vessel by the electromagnetic field of a coil.
3.114
cooker
appliance incorporating a hotplate and an oven
NOTE Cookers may incorporate a grill.
3.115
food dehydrator
appliance for dehydrating food by means of heated air
NOTE The appliance may incorporate a fan.
3.116
heating unit
part of the appliance that fulfils an independent cooking or warming function

60335-2-9 © IEC:2008 – 13 –
3.117
cooking zone
area marked on a hotplate where the vessel is placed for heating food

3.118
touch control
control actuated by contact or proximity of a finger, with little or no movement of the contact

surface
3.119
breadmaker
appliance intended for making bread comprising a heated compartment incorporating dough
kneading facilities
3.120
pop-corn maker
appliance for heating corn seeds until they pop
4 General requirement
This clause of Part 1 is applicable.
5 General conditions for the tests
This clause of Part 1 is applicable except as follows.
5.2 Addition:
NOTE 101 If the test of 15.101 has to be carried out, three additional samples are required.
5.3 Addition:
If it is evident from the construction of the appliance that the test of one function will produce
more favourable results than another, this function is not tested.
5.6 Addition:
If two or more cooking functions can be performed simultaneously, they are tested at the
same time.
5.101 Induction hotplates are operated as specified for motor-operated appliances. Other
appliances are tested as specified for heating appliances, even if they incorporate motors.
In appliances that incorporate induction hotplates in addition to other heating elements, the
induction hotplates are operated simultaneously and supplied separately.
6 Classification
This clause of Part 1 is applicable except as follows.
6.2 Addition:
Appliances intended for outdoor use shall be at least IPX4.

– 14 – 60335-2-9 © IEC:2008
7 Marking and instructions
This clause of Part 1 is applicable except as follows.

7.1 Addition:
The rated power input or rated current of induction hotplates shall also be marked.

Appliances intended to be partially immersed in water for cleaning shall be marked with the

maximum level of immersion and the substance of the following:

Do not immerse beyond this level.
If cookers, portable ovens and rotary grills have accessible metal surfaces, other than
working surfaces, that have a temperature rise exceeding 90 K during the test of Clause 11,
they shall be marked with symbol IEC 60417-5041(2002-10), the rules of ISO 3864-1 applying
except for the specified colours, or with the substance of the following:
CAUTION: Hot surface.
7.6 Addition:
[symbol IEC 60417-5041 (2002-10)] Caution, hot surface

7.12 Addition:
The instructions for appliances incorporating an appliance inlet, and intended to be partially or
fully immersed in water for cleaning, shall state that the connector must be removed before
the appliance is cleaned and that the appliance inlet must be dried before the appliance is
used again.
The instructions for appliances intended to be used with a connector incorporating a
thermostat shall state that only the appropriate connector must be used.
The instructions for appliances intended for outdoor use shall include the substance of the
following:
– the appliance is suitable for outdoor use;
– the supply cord should be regularly examined for signs of damage, and if the cord is

damaged, the appliance must not be used;
– the appliance must be supplied through a residual current device (RCD) having a rated
residual operating current not exceeding 30 mA;
– the appliance is to be connected to a socket-outlet having an earthing contact (for class I
appliances).
The instructions for appliances having accessible metal surfaces, other than working
surfaces, that have a temperature rise exceeding 90 K during the test of Clause 11, shall
include the substance of the following:
The temperature of accessible surfaces may be high when the appliance is operating.
If symbol IEC 60417-5041(2002-10) is marked on appliances, the instructions shall state that
the surfaces are liable to get hot during use.

60335-2-9 © IEC:2008 – 15 –
The instructions shall state that appliances are not intended to be operated by means of an

external timer or separate remote-control system.

The instructions shall include details on how to clean surfaces in contact with food. For

toasters, they shall include details on how to remove breadcrumbs, when applicable.

The instructions for toasters shall include the substance of the following:

The bread may burn, therefore do not use the toaster near or below combustible material,

such as curtains.
The instructions for barbecues shall include the substance of the following:
WARNING: Charcoal or similar combustible fuels must not be used with this appliance.
The instructions for barbecues intended to be used with water shall state the maximum
quantity of water to be poured into the appliance.
The instructions for hotplates having surfaces of glass-ceramic or similar material protecting
live parts shall include the substance of the following:
WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of
electric shock.
The instructions for induction hotplates shall include the substance of the following:
Metallic objects such as knives, forks, spoons and lids should not be placed on the
hotplate since they can get hot.
The instructions for breadmakers shall state the maximum quantities of flour and raising
agent that may be used.
The instructions shall include the substance of the following:
This appliance is intended to be used in household and similar applications such as:
– staff kitchen areas in shops, offices and other working environments;
– farm houses;
– by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments.

NOTE 101 If the manufacturer wants to limit the use of the appliance to less than the above, this must be clearly
stated in the instructions.
7.14 Addition:
The height of the triangle used with symbol IEC 60417-5041(2002-10) shall be at least
12 mm.
7.15 Addition:
The marking specified for hot surfaces shall be visible when the appliance is operated as in
normal use.
– 16 – 60335-2-9 © IEC:2008
8 Protection against access to live parts

This clause of Part 1 is applicable except as follows.

8.1.1 Addition:
For toasters having a crumb tray, the test finger is not applied through the crumb-tray

opening to live parts that are disconnected by the operation of a double pole switch.

However, it shall not be possible to touch these parts with test probe 41 of IEC 61032.

9 Starting of motor-operated appliances
This clause of Part 1 is not applicable.
10 Power input and current
This clause of Part 1 is applicable except as follows.
10.1 Addition:
The power input of induction hotplates is measured separately and the tolerances for
motor-operated appliances apply.
10.2 Addition:
The current of induction hotplates is measured separately and the tolerances for motor-
operated appliances apply.
11 Heating
This clause of Part 1 is applicable except as follows.
11.1 Addition:
Compliance for toasters is also checked by the test of 11.101.
11.2 Addition:
Radiant grills and raclette grills that are loaded from the front, rotary grills, ovens,
breadmakers, cookers and hotplates are placed with their backs as near as possible to one
of the walls of the test corner and away from the other wall. Other appliances are placed away
from the walls.
11.3 Addition:
NOTE 101 If the magnetic field of an induction hotplate unduly influences the results, the temperature rises can
be determined using platinum resistances with twisted connecting wires or any equivalent means.
11.4 Addition:
If the temperature rise limits are exceeded in appliances incorporating motors, transformers or
electronic circuits, and the power input is lower than the rated power input, the test is
repeated with the appliance supplied at 1,06 times rated voltage.

60335-2-9 © IEC:2008 – 17 –
11.7 Replacement:
Breadmakers are operated for one cycle.

Pop-corn makers are operated until steady conditions are established. If popping of more

than one container load of corn seed is required to reach steady conditions, the container is
refilled as quickly as possible and the test is then continued without a rest period.

Toasters are operated for 15 min. Unless they are constructed to toast only one slice of

bread, they are tested for a further 5 min with one slice of bread inserted in the most
unfavourable position.
Toasters incorporating a device for heating rolls are operated for five cycles.
Toasters having sandwich-toasting attachments are also tested for five cycles of operation.
They are also tested for one cycle of operation with the sandwich in the most unfavourable
position.
Radiant grills are operated for a period of 30 min, for the maximum period indicated in the
instructions or for the maximum period allowed by a timer, whichever is the longer.
Ovens, roasters and rotary grills are operated until steady conditions are established but for
not longer than 60 min. However, if a rotary grill has a timer, the timer is reset as many times
as necessary to establish steady conditions.
Contact
...

IEC 60335-2-9 ®
Edition 6.1 2012-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Household and similar electrical appliances – Safety –
Part 2-9: Particular requirements for grills, toasters and similar portable cooking
appliances
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-9: Règles particulières pour les grils, les grille-pain et les appareils de
cuisson mobiles analogues
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,

please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les

microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.

Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette

publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: csc@iec.ch.

A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.

Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: csc@iec.ch.
IEC 60335-2-9 ®
Edition 6.1 2012-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Household and similar electrical appliances – Safety –

Part 2-9: Particular requirements for grills, toasters and similar portable cooking

appliances
Appareils électrodomestiques et analogues – Sécurité –

Partie 2-9: Règles particulières pour les grils, les grille-pain et les appareils de

cuisson mobiles analogues
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 13.120; 97.040.50 ISBN 978-2-8322-0484-9

– 2 – 60335-2-9  IEC:2008+A1:2012

CONTENTS
FOREWORD . 4

INTRODUCTION . 7

1 Scope . 8

2 Normative references . 9

3 Terms and definitions . 9

4 General requirement . 13

5 General conditions for the tests . 13
6 Classification . 14
7 Marking and instructions . 14
8 Protection against access to live parts . 16
9 Starting of motor-operated appliances . 16
10 Power input and current . 16
11 Heating . 16
12 Void. 21
13 Leakage current and electric strength at operating temperature . 21
14 Transient overvoltages . 21
15 Moisture resistance . 21
16 Leakage current and electric strength . 23
17 Overload protection of transformers and associated circuits . 23
18 Endurance . 23
19 Abnormal operation . 23
20 Stability and mechanical hazards . 25
21 Mechanical strength . 26
22 Construction . 27
23 Internal wiring . 30
24 Components . 30
25 Supply connection and external flexible cords . 31
26 Terminals for external conductors . 31

27 Provision for earthing . 31
28 Screws and connections . 32
29 Clearances, creepage distances and solid insulation . 32
30 Resistance to heat and fire . 32
31 Resistance to rusting . 33
32 Radiation, toxicity and similar hazards . 33

Annexes . 40
Annex C (normative) Ageing test on motors . 40
Annex R (normative) Software evaluation . 40
Bibliography . 41

60335-2-9  IEC:2008+A1:2012 – 3 –

Figure 101 – Examples of appliances . 34

Figure 102 – Load for testing rotating spits . 36

Figure 103 – Vessel for testing hotplates . 37

Figure 104 – Vessel for testing induction hotplates . 37

Figure 105 – Probe for measuring surface temperatures . 38

Figure 106 – Front view of appliance with identification of excluded areas . 39

Table 101 – Quantity of liquid in the vessel . 11

Table 102 – Temperature rises for external surfaces . 19

– 4 – 60335-2-9  IEC:2008+A1:2012

INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –

SAFETY –
Part 2-9: Particular requirements for grills, toasters and

similar portable cooking appliances

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

This consolidated version of IEC 60335-2-9 consists of the sixth edition (2008)
[documents 61/3651/FDIS and 61/3691/RVD] and its amendment 1 (2012) [documents
61/4448/FDIS and 61/4501/RVD]. It bears the edition number 6.1.
The technical content is therefore identical to the base edition and its amendment and
has been prepared for user convenience. A vertical line in the margin shows where the
base publication has been modified by amendment 1. Additions and deletions are
displayed in red, with deletions being struck through.

60335-2-9  IEC:2008+A1:2012 – 5 –

International Standard IEC 60335-2-9 has been prepared by IEC technical committee 61:
Safety of household and similar electrical appliances.

The principal changes in this edition as compared with the fifth edition of IEC 60335-2-9 are

as follows (minor changes are not listed):

– aligns the text with IEC 60335-1, Ed 4, and its Amendments 1 and 2;

– introduces requirements for pop-corn makers (3, 11.7, 19.106);

– clarifies the term household and similar purposes (1, 7.12).

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its
amendments. It was established on the basis of the fourth edition (2001) of that standard.
NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.
This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to
convert that publication into the IEC standard: Safety requirements for grills, toasters and
similar portable cooking appliances.
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies
as far as is reasonable. When this standard states "addition", "modification" or "replacement",
the relevant text in Part 1 is to be adapted accordingly.
NOTE 2 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including
those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 3 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the
associated noun are also in bold.
The following differences exist in the countries indicated below.
– 3.1.9: Different loads and test methods are used (Canada and USA).

– 5.101: If the appliance incorporates a motor, the motor is tested at rated voltage (USA).
– 7.12: Identification of the connector is to be marked on the appliance (Canada and USA).
– 11.2: 9,5 mm thick plywood is used for the test corner (USA).
– 11.7: The test duration is based on the quantity of food (USA).
– 11.8: The modification does not apply (Norway).
– 11.8: A temperature rise of 100 K is allowed for the wall of the test corner (USA).
– 11.101: There are no surface temperature limits on toasters having a metallic enclosure unless they are under
cabinet or wall mounted, in which case it is allowed that the temperatures may reach 100 °C if a proper
marking is provided (USA).
– 15.2: A different solution is used and the test is not carried out on ovens, hotplates or cookers (USA).
– 15.101: Appliances are immersed to the marked level only (USA).
– 19.2: A 300 mm deep simulated cabinet is located 400 mm above the countertop (Canada and USA).
– 19.2: The test is different. Additional tests are carried out on hotplates and cookers (USA):
– 19.101: Different test methods and numbers of cycles are used (Canada and USA).
– 19.102: A combustible cloth is placed above the toaster and the residual bread is left in place (Canada and USA).

– 6 – 60335-2-9  IEC:2008+A1:2012

– 19.104: Disks having different sizes are used (USA).

– 20.101: The test is not carried out (USA).

– 21.101: The test is different (USA).

– 22.105: The requirement is not applicable (USA).

– 22.108: The test is not carried out (USA).

– 22.109: The test is not carried out (USA).

– 22.110: The test is not carried out (USA).

– 24.1.3: The test is not carried out (USA).

– 24.101: The test is not carried out (USA).

– 25.7: The free length of the supply cord is specified; in some cases, it is 1,8 m to 2,1 m for appliances

intended to be connected to fixed socket-outlets, while in others it is 0,6 m to 2,1 m for appliances normally
used on a table or similar surface (Canada and USA).
NOTE 4 The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this standard be adopted for implementation
nationally not earlier than 12 months nor later than 36 months from the date of its publication.
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The “colour inside” logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this publication using a colour printer.

The contents of the corrigendum of January 2013 have been included in this copy.

60335-2-9  IEC:2008+A1:2012 – 7 –

INTRODUCTION
It has been assumed in the drafting of this International Standard that the execution of its

provisions is entrusted to appropriately qualified and experienced persons.

This standard recognizes the internationally accepted level of protection against hazards such

as electrical, mechanical, thermal, fire and radiation of appliances when operated as in

normal use taking into account the manufacturer's instructions. It also covers abnormal

situations that can be expected in practice and takes into account the way in which

electromagnetic phenomena can affect the safe operation of appliances.

This standard takes into account the requirements of IEC 60364 as far as possible so that
there is compatibility with the wiring rules when the appliance is connected to the supply
mains. However, national wiring rules may differ.
If an appliance within the scope of this standard also incorporates functions that are covered
by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as
far as is reasonable. If applicable, the influence of one function on the other is taken into
account.
When a part 2 standard does not include additional requirements to cover hazards dealt with
in Part 1, Part 1 applies.
NOTE 1 This means that the technical committees responsible for the part 2 standards have determined that it is
not necessary to specify particular requirements for the appliance in question over and above the general
requirements.
This standard is a product family standard dealing with the safety of appliances and takes
precedence over horizontal and generic standards covering the same subject.
NOTE 2 Horizontal and generic standards covering a hazard are not applicable since they have been taken into
consideration when developing the general and particular requirements for the IEC 60335 series of standards. For
example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as
ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.
An appliance that complies with the text of this standard will not necessarily be considered to
comply with the safety principles of the standard if, when examined and tested, it is found to
have other features which impair the level of safety covered by these requirements.
An appliance employing materials or having forms of construction differing from those detailed
in the requirements of this standard may be examined and tested according to the intent of
the requirements and, if found to be substantially equivalent, may be considered to comply
with the standard.
– 8 – 60335-2-9  IEC:2008+A1:2012

HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –

SAFETY –
Part 2-9: Particular requirements for grills, toasters and

similar portable cooking appliances

1 Scope
This clause of Part 1 is replaced by the following.
This International Standard deals with the safety of electric portable appliances for
household and similar purposes that have a cooking function such as baking, roasting and
grilling, their rated voltage being not more than 250 V.
NOTE 101 Examples of appliances that are within the scope of this standard are
– barbecues for indoor use;
– breadmakers;
– candy floss appliances;
– contact grills (griddles);
– cookers;
– food dehydrators;
– hotplates;
– induction wok hotplates;
– pop-corn makers;
– portable ovens;
– raclette grills;
– radiant grills;
– roasters;
– rotary grills;
– rotisseries;
– toasters;
– waffle irons;
Examples are illustrated in Figure 101.

Appliances intended for normal household and similar use and that may also be used by
laymen in shops, in light industry and on farms, are within the scope of this standard.
However, if the appliance is intended to be used professionally to process food for commercial
consumption, the appliance is not considered to be for household and similar use only.
As far as is practicable, this standard deals with the common hazards presented by
appliances that are encountered by all persons in and around the home. However, in general,
it does not take into account
– persons (including children) whose
• physical, sensory or mental capabilities; or
• lack of experience and knowledge
prevents them from using the appliance safely without supervision or instruction;
– children playing with the appliance.

60335-2-9  IEC:2008+A1:2012 – 9 –

NOTE 102 Attention is drawn to the fact that

– for appliances intended to be used in vehicles or on board ships or aircraft, additional requirements may be
necessary;
– in many countries additional requirements are specified by the national health authorities, the national

authorities responsible for the protection of labour and similar authorities.

NOTE 103 This standard does not apply to

– stationary ovens and stationary grills (IEC 60335-2-6);

– warming plates (IEC 60335-2-12);

– frying pans and deep fat fryers (IEC 60335-2-13);

– microwave ovens (IEC 60335-2-25);

– barbecues for outdoor use (IEC 60335-2-78);
– appliances intended to burn charcoal or similar combustible fuels;
– appliances intended for commercial catering;
– appliances intended to be used in locations where special conditions prevail, such as the presence of a
corrosive or explosive atmosphere (dust, vapour or gas).
2 Normative references
This clause of part 1 is applicable except as follows.
Addition:
IEC 60068-2-52, Environmental testing – Part 2: Tests – Test Kb: Salt mist, cyclic (sodium
chloride solution)
IEC 60584-1, Thermocouples – Part 1: Reference tables
ISO 3864-1, Graphical symbols – Safety colours and safety signs – Part 1: Design principles
for safety signs in workplaces and public areas
3 Terms and definitions
This clause of Part 1 is applicable except as follows.
3.1.9 Replacement:
normal operation
operation of the appliance as specified in the following subclauses:

NOTE 101 Appliances not mentioned but which nevertheless perform one of the functions are operated as
specified for this function as far as possible.
3.1.9.101 Toasters are loaded with the maximum number of slices of white bread specified
in the instructions and operated in cycles, each cycle consisting of an operating period and a
rest period. The bread is approximately 24 h old and the dimensions of the slices are
approximately 100 mm × 100 mm × 10 mm. The rest periods have a duration of 30 s or the
minimum period needed for the resetting of a control, whichever is longer. The slices of bread
are replaced during each rest period. The operating period is established by adjusting
controls to give the bread a golden-brown colour. For toasters without a control, each
operating period is terminated as soon as the colour of the bread turns golden-brown.
Toasters incorporating a device for heating rolls are loaded with the maximum number of rolls
specified in the instructions. The toaster is operated in cycles, each cycle consisting of an
operating period followed by a rest period of 30 s when the rolls are turned or replaced. The
control is adjusted in accordance with the instructions. If instructions are not given, the control
is adjusted for the toasting operation.

– 10 – 60335-2-9  IEC:2008+A1:2012

Sandwich-toasting attachments are loaded with one or more sandwiches that are positioned

in accordance with the instructions to produce the most unfavourable result. Each sandwich

comprises two slices of white bread filled with a single slice of suitable cheese having an area

equal to a slice of bread and a thickness of approximately 5 mm. The toaster is then operated

in accordance with the instructions in cycles, each cycle consisting of a toasting operation

followed by a rest period of 30 s, or the minimum period needed for the resetting of a control,

whichever is longer.
NOTE Processed cheese and other cheeses that readily melt when heated are suitable.

3.1.9.102 Rotary grills are operated with the load on the rotating spit shown in Figure 102.

3.1.9.103 Waffle irons having a thermostat are operated with the thermostat adjusted to
the highest setting. Other waffle irons are operated so that the temperature at the centre of
the heated surface is maintained at 210 °C ± 15 °C by switching the supply on and off.
3.1.9.104 Ovens are operated with the door closed. Ovens having a thermostat are
operated so that the mean temperature in the centre of the cavity is maintained at
240 °C ± 4 °C or at the value obtained with the thermostat adjusted to its highest setting, if
this results in a lower temperature. Other ovens are operated so that the temperature in the
centre of the cavity is maintained at 240 °C ± 15 °C by switching the supply on and off.
3.1.9.105 Roasters are operated with the lid closed. The mean temperature in the centre of
the container is maintained at 240 °C ± 4 °C, if necessary by switching the supply on and off.
3.1.9.106 Radiant grills and rotary grills are operated with the controls adjusted in
accordance with the instructions or, if instructions are not provided, with the controls adjusted
to the highest setting. Doors or lids are open unless otherwise specified in the instructions.
Contact grills having a thermostat are operated with the thermostat adjusted to the highest
setting. Other contact grills are operated so that the temperature at the centre of the heated
surface is maintained at 275 °C ± 15 °C by switching the supply on and off.
Raclette grills are operated with doors or lids open, unless otherwise specified in the
instructions. Controls are adjusted in accordance with the instructions, pans being in position
or removed, whichever is more unfavourable.
3.1.9.107 Barbecues are operated with food supports in the lowest position. Controls are
adjusted to the highest setting, any covers or shields being positioned in accordance with the
instructions.
NOTE Barbecues are operated without water even if the use of water is recommended.
3.1.9.108 Hotplates, other than induction hotplates, are operated with vessels containing
water. The vessels are made of unpolished commercial quality aluminium, have a flat bottom
and are covered with a lid. A suitable vessel is specified in Figure 103. Controls are adjusted
to their highest setting until the water boils and then adjusted so that the water simmers.
Water is added to maintain the level during boiling.
NOTE 1 The lid is positioned so that steam does not affect the test.
Induction hotplates are operated with vessels, as specified in Figure 104, containing cooking
oil. Controls are adjusted to their highest setting until the oil temperature reaches
180 °C ± 4 °C and are then adjusted so that this temperature is maintained. The oil
temperature is measured 1 cm above the centre of the bottom of the vessel.
Induction wok hotplates are operated with a wok pan supplied by the manufacturer with the
induction wok hotplate at the point of sale.

60335-2-9  IEC:2008+A1:2012 – 11 –

For all hotplates, the diameter of the bottom of the vessel is approximately equal to the

diameter of the cooking zone and the quantity of liquid is specified in Table 101. The vessel

is positioned centrally on the cooking zone.

Table 101 – Quantity of liquid in the vessel

Diameter of cooking zone Quantity of water or oil

mm l
≤110 0,6
>110 and ≤145 1,0
1,5
>145 and ≤180
2,0
>180 and ≤220
3,0
>220 and ≤300
NOTE 2 If several cooking zones are marked for one hotplate, the most unfavourable zone is used for the test.
NOTE 3 For non-circular cooking zones, the smallest non-circular vessel is used that will cover the cooking
zone as far as possible, taking into account the hob rim and other vessels. The quantity of liquid is determined on
the basis of the minor diameter of the cooking zone.
3.1.9.109 Raclette appliances are operated with the controls adjusted in accordance with
the instructions or, if instructions are not provided, with the controls adjusted to the highest
setting.
3.1.9.110 Food dehydrators are operated empty.
3.1.9.111 Breadmakers are operated using the most unfavourable cycle and ingredients
specified in the instructions.
NOTE The most unfavourable cycle may be for a function such as jam-making that allows the heating element
and the kneading motor to operate simultaneously.
3.1.9.112 Pop-corn makers are operated with the container filled with the maximum
quantity of corn seeds specified in the instructions and, where relevant, with the maximum
quantity of oil specified in the instructions.
3.1.9.113 Candy floss appliances are operated without ingredients.
3.101
toaster
appliance intended for toasting slices of bread by radiant heat
3.102
waffle iron
appliance having two heated hinged plates that are shaped to contain batter
3.103
oven
appliance having a heated cavity with a door and constructed so that food that may be in a
container can be placed on a shelf
3.104
roaster
appliance having a heated container with a lid and constructed so that food can be placed in it

– 12 – 60335-2-9  IEC:2008+A1:2012

3.105
rotary grill
appliance having a visibly glowing heating element and a rotating spit to support the food

NOTE A rotary grill is also known as a rotisserie.

3.106
radiant grill
appliance having a visibly glowing heating element and a support on which food can be

placed
NOTE A radiant grill may be placed in a compartment with or without a door.

3.107
contact grill
appliance having a heated surface on which food is placed. It may have a second heated
surface to cover the food
NOTE A contact grill with only one heated surface is known as a griddle.
3.108
sandwich-toasting attachment
accessory for use with a toaster for toasting sandwiches
3.109
raclette grill
appliance for melting slices of cheese placed in small pans positioned under the heating
element
NOTE Raclette grills may have a surface that is used as a griddle.
3.110
raclette appliance
radiant grill for melting the surface of a large piece of cheese
3.111
barbecue
radiant grill having a heating element located under the food support
3.112
hotplate
appliance having one or more heating units on which vessels can be placed for cooking
purposes
NOTE Hotplates do not incorporate an oven or grill.
3.113
induction hotplate
hotplate that can heat at least one metallic vessel by means of eddy currents
NOTE The eddy currents are induced in the bottom of the vessel by the electromagnetic field of a coil.
3.114
cooker
appliance incorporating a hotplate and an oven
NOTE Cookers may incorporate a grill.
3.115
food dehydrator
appliance for dehydrating food by means of heated air

60335-2-9  IEC:2008+A1:2012 – 13 –

NOTE The appliance may incorporate a fan.

3.116
heating unit
part of the appliance that fulfils an independent cooking or warming function

3.117
cooking zone
area marked on a hotplate where the vessel is placed for heating food

3.118
touch control
control actuated by contact or proximity of a finger, with little or no movement of the contact
surface
3.119
breadmaker
appliance intended for making bread comprising a heated compartment incorporating dough
kneading facilities
3.120
pop-corn maker
appliance for heating corn seeds until they pop
3.121
induction wok hotplate
induction hotplate with a surface of an approximate spherical shape to accept a wok that is
supplied with the appliance at the point of sale
3.122
candy floss appliance
appliance comprised of a heater and a spinning head intended for preparing candy floss
3.123
hot functional surface
surface that is intentionally heated by an internal heat source and that has to be hot to carry
out the intended function of the appliance
4 General requirement
This clause of Part 1 is applicable.

5 General conditions for the tests
This clause of Part 1 is applicable except as follows.
5.2 Addition:
NOTE 101 If the test of 15.101 has to be carried out, three additional samples are required.
5.3 Addition:
If it is evident from the construction of the appliance that the test of one function will produce
more favourable results than another, this function is not tested.

– 14 – 60335-2-9  IEC:2008+A1:2012

5.6 Addition:
If two or more cooking functions can be performed simultaneously, they are tested at the
same time.
5.101 Induction hotplates are operated as specified for motor-operated appliances. Other
appliances are tested as specified for heating appliances, even if they incorporate motors.

In appliances that incorporate induction hotplates in addition to other heating elements, the
induction hotplates are operated simultaneously and supplied separately.

6 Classification
This clause of Part 1 is applicable except as follows.
6.2 Addition:
Appliances intended for outdoor use shall be at least IPX4.
7 Marking and instructions
This clause of Part 1 is applicable except as follows.
7.1 Addition:
The rated power input or rated current of induction hotplates shall also be marked.
Appliances intended to be partially immersed in water for cleaning shall be marked with the
maximum level of immersion and the substance of the following:
Do not immerse beyond this level.
If cookers, portable ovens and rotary grills have accessible metal surfaces, other than
working surfaces, that have a temperature rise exceeding 90 K during the test of Clause 11,
they If appliances have accessible surfaces, for which temperature rise limits are specified
in Table 102 and for which the provisions of footnote b to Table 102 apply, then the appliance
shall be marked with symbol IEC 60417-5041(2002-10), the rules of ISO 3864-1 applying
except for the specified colours, or with the substance of the following:

CAUTION: Hot surfaces.
7.6 Addition:
[symbol IEC 60417-5041 (2002-10)] Caution, hot surface

7.12 Addition:
The instructions for appliances incorporating an appliance inlet, and intended to be partially or
fully immersed in water for cleaning, shall state that the connector must be removed before
the appliance is cleaned and that the appliance inlet must be dried before the appliance is
used again.
The instructions for appliances intended to be used with a connector incorporating a
thermostat shall state that only the appropriate connector must be used.

60335-2-9  IEC:2008+A1:2012 – 15 –

The instructions for appliances intended for outdoor use shall include the substance of the

following:
– the appliance is suitable for outdoor use;

– the supply cord should be regularly examined for signs of damage, and if the cord is

damaged, the appliance must not be used;

– the appliance must be supplied through a residual current device (RCD) having a rated

residual operating current not exceeding 30 mA;

– the appliance is to be connected to a socket-outlet having an earthing contact (for class I

appliances).
The instructions for appliances having accessible metal surfaces, other than working
surfaces, that have a temperature rise exceeding 90 K during the test of Clause 11, shall
include the substance of the following:
The temperature of accessible surfaces may be high when the appliance is operating.
If symbol IEC 60417-5041(2002-10) is marked on appliances, the instructions shall state that
the surfaces are liable to get hot during use its meaning shall be explained.
The instructions shall state that appliances are not intended to be operated by means of an
external timer or separate remote-control system.
The instructions shall include details on how to clean surfaces in contact with food. For
toasters, they shall include details on how to remove breadcrumbs, when applicable.
The instructions for toasters shall include the substance of the following:
The bread may burn, therefore do not use the toaster near or below combustible material,
such as curtains.
The instructions for barbecues shall include the substance of the following:
WARNING: Charcoal or similar combustible fuels must not be used with this appliance.
The instructions for barbecues intended to be used with water shall state the maximum
quantity of water to be poured into the appliance.
The instructions for hotplates having surfaces of glass-ceramic or similar material protecting
live parts shall include the substance of the following:

WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of
electric shock.
The instructions for induction hotplates shall include the substance of the following:
Metallic objects such as knives, forks, spoons and lids should not be placed on the
hotplate since they can get hot.
The instructions for breadmakers shall state the maximum quantities of flour and raising
agent that may be used.
The instructions for candy floss appliances shall state the maximum quantities of sugar and
other ingredients that may be used.
The instructions shall include the substance of the following:

– 16 – 60335-2-9  IEC:2008+A1:2012

This appliance is intended to be used in household and similar applications such as:

– staff kitchen areas in shops, offices and other working environments;

– farm houses;
– by clients in hotels, motels and other residential type environments;

– bed and breakfast type environments.

NOTE 101 If the manufacturer wants to limit the use of the appliance to less than the above, this must be clearly

stated in the instructions.
7.14 Addition:
The height of the triangle used with symbol IEC 60417-5041(2002-10) shall be at least 12
20 mm.
7.15 Addition:
The marking specified for hot surfaces shall be visible when the appliance is operated as in
normal use, including when actuating any switch, adjusting any control or opening a lid or
door. It shall not be placed on a hot functional surface.
8 Protection against access to live parts
This clause of Part 1 is applicable except as follows.
8.1.1 Addition:
For toasters having a crumb tray, the test finger is not applied through the crumb-tray
opening to live parts that are disconnected by the operation of a double pole switch.
However, it shall not be possible to touch these parts with test probe 41 of IEC 61032.
9 Starting of motor-operated appliances
This clause of Part 1 i
...

IEC 60335-2-9 ®
Edition 6.2 2016-04
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Household and similar electrical appliances – Safety –
Part 2-9: Particular requirements for grills, toasters and similar portable cooking
appliances
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-9: Règles particulières pour les grils, les grille-pain et les appareils de
cuisson mobiles analogues
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 15
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
La recherche avancée permet de trouver des publications IEC
65 000 entrées terminologiques électrotechniques, en anglais
en utilisant différents critères (numéro de référence, texte,
et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les
publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées.
antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Restez informé sur les nouvelles publications IEC. Just Service Clients - webstore.iec.ch/csc
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 60335-2-9 ®
Edition 6.2 2016-04
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Household and similar electrical appliances – Safety –

Part 2-9: Particular requirements for grills, toasters and similar portable cooking

appliances
Appareils électrodomestiques et analogues – Sécurité –

Partie 2-9: Règles particulières pour les grils, les grille-pain et les appareils de

cuisson mobiles analogues
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 13.120, 97.040.20 ISBN 978-2-8322-3320-7

IEC 60335-2-9 ®
Edition 6.2 2016-04
CONSOLIDATED VERSION
REDLINE VERSION
VERSION REDLINE
colour
inside
Household and similar electrical appliances – Safety –
Part 2-9: Particular requirements for grills, toasters and similar portable cooking
appliances
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-9: Règles particulières pour les grils, les grille-pain et les appareils de
cuisson mobiles analogues
– 2 – IEC 60335-2-9:2008+AMD1:2012
+AMD2:2016 CSV  IEC 2016
CONTENTS
FOREWORD. 4
INTRODUCTION . 7
1 Scope . 8
2 Normative references . 9
3 Terms and definitions . 9
4 General requirement . 13
5 General conditions for the tests . 13
6 Classification . 14
7 Marking and instructions . 14
8 Protection against access to live parts . 16
9 Starting of motor-operated appliances . 16
10 Power input and current . 16
11 Heating . 17
12 Void . 21
13 Leakage current and electric strength at operating temperature . 21
14 Transient overvoltages . 22
15 Moisture resistance . 22
16 Leakage current and electric strength . 23
17 Overload protection of transformers and associated circuits . 23
18 Endurance . 23
19 Abnormal operation . 23
20 Stability and mechanical hazards . 25
21 Mechanical strength . 26
22 Construction . 27
23 Internal wiring . 30
24 Components . 30
25 Supply connection and external flexible cords . 31
26 Terminals for external conductors . 31
27 Provision for earthing. 31
28 Screws and connections . 32
29 Clearances, creepage distances and solid insulation . 32
30 Resistance to heat and fire . 32
31 Resistance to rusting . 33
32 Radiation, toxicity and similar hazards . 33
Annexes . 40
Annex C (normative) Ageing test on motors . 40
Annex R (normative) Software evaluation . 40
Bibliography . 41

Figure 101 – Examples of appliances . 34
Figure 102 – Load for testing rotating spits . 36

+AMD2:2016 CSV  IEC 2016
Figure 103 – Vessel for testing hotplates . 37
Figure 104 – Vessel for testing induction hotplates . 37
Figure 105 – Probe for measuring surface temperatures . 38
Figure 106 – Front view of appliance with identification of excluded areas . 39

Table 101 – Quantity of liquid in the vessel . 11
Table 102 – Temperature rises for external surfaces . 19

– 4 – IEC 60335-2-9:2008+AMD1:2012
+AMD2:2016 CSV © IEC 2016
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-9: Particular requirements for grills, toasters and
similar portable cooking appliances
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This consolidated version of the official IEC Standard and its amendments has been
prepared for user convenience.
IEC 60335-2-9 edition 6.2 contains the sixth edition (2008-07) [documents 61/3651/FDIS
and 61/3691/RVD], its amendment 1 (2012-11) [documents 61/4448/FDIS and 61/4501/
RVD] and its amendment 2 (2016-04) [documents 61/5107/FDIS and 61/5138/RVD].
In this Redline version, a vertical line in the margin shows where the technical content is
modified by amendments 1 and 2. Additions are in green text, deletions are in
strikethrough red text. A separate Final version with all changes accepted is available in
this publication.
+AMD2:2016 CSV  IEC 2016
International Standard IEC 60335-2-9 has been prepared by IEC technical committee 61:
Safety of household and similar electrical appliances.
The principal changes in this edition as compared with the fifth edition of IEC 60335-2-9 are
as follows (minor changes are not listed):
– aligns the text with IEC 60335-1, Ed 4, and its Amendments 1 and 2;
– introduces requirements for pop-corn makers (3, 11.7, 19.106);
– clarifies the term household and similar purposes (1, 7.12).
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its
amendments. It was established on the basis of the fourth edition (2001) of that standard.
NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.
This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to
convert that publication into the IEC standard: Safety requirements for grills, toasters and
similar portable cooking appliances.
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies
as far as is reasonable. When this standard states "addition", "modification" or "replacement",
the relevant text in Part 1 is to be adapted accordingly.
NOTE 2 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including
those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 3 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the
associated noun are also in bold.
The following differences exist in the countries indicated below.
– 3.1.9: Different loads and test methods are used (Canada and USA).
– 5.101: If the appliance incorporates a motor, the motor is tested at rated voltage (USA).
– 7.12: Identification of the connector is to be marked on the appliance (Canada and USA).
– 11.2: 9,5 mm thick plywood is used for the test corner (USA).
– 11.7: The test duration is based on the quantity of food (USA).
– 11.8: The modification does not apply (Norway).
– 11.8: A temperature rise of 100 K is allowed for the wall of the test corner (USA).
– 11.101: There are no surface temperature limits on toasters having a metallic enclosure unless they are under
cabinet or wall mounted, in which case it is allowed that the temperatures may reach 100 °C if a proper
marking is provided (USA).
– 15.2: A different solution is used and the test is not carried out on ovens, hotplates or cookers (USA).
– 15.101: Appliances are immersed to the marked level only (USA).
– 19.2: A 300 mm deep simulated cabinet is located 400 mm above the countertop (Canada and USA).
– 19.2: The test is different. Additional tests are carried out on hotplates and cookers (USA):
– 19.101: Different test methods and numbers of cycles are used (Canada and USA).
– 19.102: A combustible cloth is placed above the toaster and the residual bread is left in place (Canada and USA).

– 6 – IEC 60335-2-9:2008+AMD1:2012
+AMD2:2016 CSV  IEC 2016
– 19.104: Disks having different sizes are used (USA).
– 20.101: The test is not carried out (USA).
– 21.101: The test is different (USA).
– 22.105: The requirement is not applicable (USA).
– 22.108: The test is not carried out (USA).
– 22.109: The test is not carried out (USA).
– 22.110: The test is not carried out (USA).
– 24.1.3: The test is not carried out (USA).
– 24.101: The test is not carried out (USA).
– 25.7: The free length of the supply cord is specified; in some cases, it is 1,8 m to 2,1 m for appliances
intended to be connected to fixed socket-outlets, while in others it is 0,6 m to 2,1 m for appliances normally
used on a table or similar surface (Canada and USA).
NOTE 4 The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this standard be adopted for implementation
nationally not earlier than 12 months nor later than 36 months from the date of its publication.
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
+AMD2:2016 CSV  IEC 2016
INTRODUCTION
It has been assumed in the drafting of this International Standard that the execution of its
provisions is entrusted to appropriately qualified and experienced persons.
This standard recognizes the internationally accepted level of protection against hazards such
as electrical, mechanical, thermal, fire and radiation of appliances when operated as in
normal use taking into account the manufacturer's instructions. It also covers abnormal
situations that can be expected in practice and takes into account the way in which
electromagnetic phenomena can affect the safe operation of appliances.
This standard takes into account the requirements of IEC 60364 as far as possible so that
there is compatibility with the wiring rules when the appliance is connected to the supply
mains. However, national wiring rules may differ.
If an appliance within the scope of this standard also incorporates functions that are covered
by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as
far as is reasonable. If applicable, the influence of one function on the other is taken into
account.
When a part 2 standard does not include additional requirements to cover hazards dealt with
in Part 1, Part 1 applies.
NOTE 1 This means that the technical committees responsible for the part 2 standards have determined that it is
not necessary to specify particular requirements for the appliance in question over and above the general
requirements.
This standard is a product family standard dealing with the safety of appliances and takes
precedence over horizontal and generic standards covering the same subject.
NOTE 2 Horizontal and generic standards covering a hazard are not applicable since they have been taken into
consideration when developing the general and particular requirements for the IEC 60335 series of standards. For
example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as
ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.
An appliance that complies with the text of this standard will not necessarily be considered to
comply with the safety principles of the standard if, when examined and tested, it is found to
have other features which impair the level of safety covered by these requirements.
An appliance employing materials or having forms of construction differing from those detailed
in the requirements of this standard may be examined and tested according to the intent of
the requirements and, if found to be substantially equivalent, may be considered to comply
with the standard.
– 8 – IEC 60335-2-9:2008+AMD1:2012
+AMD2:2016 CSV  IEC 2016
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-9: Particular requirements for grills, toasters and
similar portable cooking appliances

1 Scope
This clause of Part 1 is replaced by the following.
This International Standard deals with the safety of electric portable appliances for
household and similar purposes that have a cooking function such as baking, roasting and
grilling, their rated voltage being not more than 250 V.
NOTE 101 Examples of appliances that are within the scope of this standard are
– barbecues for indoor use;
– breadmakers;
– candy floss appliances;
– contact grills (griddles);
– cookers;
– food dehydrators;
– hotplates;
– induction wok hotplates;
– pop-corn makers;
– portable ovens;
– raclette grills;
– radiant grills;
– roasters;
– rotary grills;
– rotisseries;
– toasters;
– waffle irons;
Examples are illustrated in Figure 101.
Appliances intended for normal household and similar use and that may also be used by
laymen in shops, in light industry and on farms, are within the scope of this standard.
However, if the appliance is intended to be used professionally to process food for commercial
consumption, the appliance is not considered to be for household and similar use only.
As far as is practicable, this standard deals with the common hazards presented by
appliances that are encountered by all persons in and around the home. However, in general,
it does not take into account
– persons (including children) whose
• physical, sensory or mental capabilities; or
• lack of experience and knowledge
prevents them from using the appliance safely without supervision or instruction;
– children playing with the appliance.

+AMD2:2016 CSV  IEC 2016
NOTE 102 Attention is drawn to the fact that
– for appliances intended to be used in vehicles or on board ships or aircraft, additional requirements may be
necessary;
– in many countries additional requirements are specified by the national health authorities, the national
authorities responsible for the protection of labour and similar authorities.
NOTE 103 This standard does not apply to
– stationary ovens and stationary grills (IEC 60335-2-6);
– warming plates (IEC 60335-2-12);
– frying pans and deep fat fryers (IEC 60335-2-13);
– microwave ovens (IEC 60335-2-25);
– barbecues for outdoor use (IEC 60335-2-78);
– appliances intended to burn charcoal or similar combustible fuels;
– appliances intended for commercial catering;
– appliances intended to be used in locations where special conditions prevail, such as the presence of a
corrosive or explosive atmosphere (dust, vapour or gas).
2 Normative references
This clause of part 1 is applicable except as follows.
Addition:
IEC 60068-2-52, Environmental testing – Part 2: Tests – Test Kb: Salt mist, cyclic (sodium
chloride solution)
IEC 60584-1, Thermocouples – Part 1: EMF specifications and tolerances
ISO 3864-1, Graphical symbols – Safety colours and safety signs – Part 1: Design principles
for safety signs in workplaces and public areas
3 Terms and definitions
This clause of Part 1 is applicable except as follows.
3.1.9 Replacement:
normal operation
operation of the appliance as specified in the following subclauses:
NOTE 101 Appliances not mentioned but which nevertheless perform one of the functions are operated as
specified for this function as far as possible.
3.1.9.101 Toasters are loaded with the maximum number of slices of white bread specified
in the instructions and operated in cycles, each cycle consisting of an operating period and a
rest period. The bread is approximately 24 h old and the dimensions of the slices are
approximately 100 mm × 100 mm × 10 mm. The rest periods have a duration of 30 s or the
minimum period needed for the resetting of a control, whichever is longer. The slices of bread
are replaced during each rest period. The operating period is established by adjusting
controls to give the bread a golden-brown colour. For toasters without a control, each
operating period is terminated as soon as the colour of the bread turns golden-brown.
Toasters incorporating a device for heating rolls are loaded with the maximum number of rolls
specified in the instructions. The toaster is operated in cycles, each cycle consisting of an
operating period followed by a rest period of 30 s when the rolls are turned or replaced. The
control is adjusted in accordance with the instructions. If instructions are not given, the control
is adjusted for the toasting operation.

– 10 – IEC 60335-2-9:2008+AMD1:2012
+AMD2:2016 CSV  IEC 2016
Sandwich-toasting attachments are loaded with one or more sandwiches that are positioned
in accordance with the instructions to produce the most unfavourable result. Each sandwich
comprises two slices of white bread filled with a single slice of suitable cheese having an area
equal to a slice of bread and a thickness of approximately 5 mm. The toaster is then operated
in accordance with the instructions in cycles, each cycle consisting of a toasting operation
followed by a rest period of 30 s, or the minimum period needed for the resetting of a control,
whichever is longer.
NOTE Processed cheese and other cheeses that readily melt when heated are suitable.
3.1.9.102 Rotary grills are operated with the load on the rotating spit shown in Figure 102.
3.1.9.103 Waffle irons having a thermostat are operated with the thermostat adjusted to
the highest setting. Other waffle irons are operated so that the temperature at the centre of
the heated surface is maintained at 210 °C ± 15 °C by switching the supply on and off.
3.1.9.104 Ovens are operated with the door closed. Ovens having a thermostat are
operated so that the mean temperature in the centre of the cavity is maintained at
240 °C ± 4 °C or at the value obtained with the thermostat adjusted to its highest setting, if
this results in a lower temperature. Other ovens are operated so that the temperature in the
centre of the cavity is maintained at 240 °C ± 15 °C by switching the supply on and off.
3.1.9.105 Roasters are operated with the lid closed. The mean temperature in the centre of
the container is maintained at 240 °C ± 4 °C, if necessary by switching the supply on and off.
3.1.9.106 Radiant grills and rotary grills are operated with the controls adjusted in
accordance with the instructions or, if instructions are not provided, with the controls adjusted
to the highest setting. Doors or lids are open unless otherwise specified in the instructions.
Contact grills having a thermostat are operated with the thermostat adjusted to the highest
setting. Other contact grills are operated so that the temperature at the centre of the heated
surface is maintained at 275 °C ± 15 °C by switching the supply on and off.
Raclette grills are operated with doors or lids open, unless otherwise specified in the
instructions. Controls are adjusted in accordance with the instructions, pans being in position
or removed, whichever is more unfavourable.
3.1.9.107 Barbecues are operated with food supports in the lowest position. Controls are
adjusted to the highest setting, any covers or shields being positioned in accordance with the
instructions.
NOTE Barbecues are operated without water even if the use of water is recommended.
3.1.9.108 Hotplates, other than induction hotplates, are operated with vessels containing
water. The vessels are made of unpolished commercial quality aluminium, have a flat bottom
and are covered with a lid. A suitable vessel is specified in Figure 103. Controls are adjusted
to their highest setting until the water boils and then adjusted so that the water simmers.
Water is added to maintain the level during boiling simmering.
NOTE 1 The lid is positioned so that steam does not affect the test.
Induction hot plates are operated with vessels, as specified in Figure 104, containing
cooking oil. Controls are adjusted to their highest setting until the oil temperature reaches
180 °C ± 4 °C, and are then adjusted so that this temperature is maintained. The oil
temperature is measured 1 cm above the centre of the bottom of the vessel. For appliances
which cannot heat the oil to 180 °C ± 4 °C, the control is maintained at its highest setting.
Induction wok hotplates are operated with a wok pan supplied by the manufacturer with the
induction wok hotplate at the point of sale.

+AMD2:2016 CSV  IEC 2016
For all hotplates, the diameter of the bottom of the vessel is approximately equal to the
diameter of the cooking zone and the quantity of liquid is specified in Table 101. The vessel
is positioned centrally on the cooking zone.
Table 101 – Quantity of liquid in the vessel
Diameter of cooking zone Quantity of water or oil
mm l
≤110 0,6
>110 and ≤145 1,0
>145 and ≤180 1,5
2,0
>180 and ≤220
3,0
>220 and ≤300
NOTE 2 1 If several cooking zones are marked for one hotplate, the most unfavourable zone is used for the
test.
NOTE 3 2 For non-circular cooking zones, the smallest non-circular vessel is used that will cover the cooking
zone as far as possible, taking into account the hob rim and other vessels. The quantity of liquid is determined on
the basis of the minor diameter of the cooking zone.
3.1.9.109 Raclette appliances are operated with the controls adjusted in accordance with
the instructions or, if instructions are not provided, with the controls adjusted to the highest
setting.
3.1.9.110 Food dehydrators are operated empty.
3.1.9.111 Breadmakers are operated using the most unfavourable cycle and ingredients
specified in the instructions.
NOTE The most unfavourable cycle may be for a function such as jam-making that allows the heating element
and the kneading motor to operate simultaneously.
3.1.9.112 Pop-corn makers are operated with the container filled with the maximum
quantity of corn seeds specified in the instructions and, where relevant, with the maximum
quantity of oil specified in the instructions.
3.1.9.113 Candy floss appliances are operated without ingredients.
3.101
toaster
appliance intended for toasting slices of bread by radiant heat
3.102
waffle iron
appliance having two heated hinged plates that are shaped to contain batter
3.103
oven
appliance having a heated cavity with a door and constructed so that food that may be in a
container can be placed on a shelf
3.104
roaster
appliance having a heated container with a lid and constructed so that food can be placed in it

– 12 – IEC 60335-2-9:2008+AMD1:2012
+AMD2:2016 CSV  IEC 2016
3.105
rotary grill
appliance having a visibly glowing heating element and a rotating spit to support the food
NOTE A rotary grill is also known as a rotisserie.
3.106
radiant grill
appliance having a visibly glowing heating element and a support on which food can be
placed
NOTE A radiant grill may be placed in a compartment with or without a door.
3.107
contact grill
appliance having a heated surface on which food is placed. It may have a second heated
surface to cover the food
Note 1 to entry: A contact grill with only one heated surface is known as a griddle.
Note 2 to entry: A sandwich maker is considered as a contact grill with two heated surfaces.
3.108
sandwich-toasting attachment
accessory for use with a toaster for toasting sandwiches
3.109
raclette grill
appliance for melting slices of cheese placed in small pans positioned under the heating
element
NOTE Raclette grills may have a surface that is used as a griddle.
3.110
raclette appliance
radiant grill for melting the surface of a large piece of cheese
3.111
barbecue
radiant grill having a heating element located under the food support
3.112
hotplate
appliance having one or more heating units on which vessels can be placed for cooking
purposes
NOTE Hotplates do not incorporate an oven or grill.
3.113
induction hotplate
hotplate that can heat at least one metallic vessel by means of eddy currents
NOTE The eddy currents are induced in the bottom of the vessel by the electromagnetic field of a coil.
3.114
cooker
appliance incorporating a hotplate and an oven
NOTE Cookers may incorporate a grill.

+AMD2:2016 CSV  IEC 2016
3.115
food dehydrator
appliance for dehydrating food by means of heated air
NOTE The appliance may incorporate a fan.
3.116
heating unit
part of the appliance that fulfils an independent cooking or warming function
3.117
cooking zone
area marked on a hotplate where the vessel is placed for heating food
3.118
touch control
control actuated by contact or proximity of a finger, with little or no movement of the contact
surface
3.119
breadmaker
appliance intended for making bread comprising a heated compartment incorporating dough
kneading facilities
3.120
pop-corn maker
appliance for heating corn seeds until they pop
3.121
induction wok hotplate
induction hotplate with a surface of an approximate spherical shape to accept a wok that is
supplied with the appliance at the point of sale
3.122
candy floss appliance
appliance comprised of a heater and a spinning head intended for preparing candy floss
3.123
hot functional surface
surface that is intentionally heated by an internal heat source and that has to be hot to carry
out the intended function of the appliance
4 General requirement
This clause of Part 1 is applicable.
5 General conditions for the tests
This clause of Part 1 is applicable except as follows.
5.2 Addition:
NOTE 101 If the test of 15.101 has to be carried out, three additional samples are required.
5.3 Addition:
– 14 – IEC 60335-2-9:2008+AMD1:2012
+AMD2:2016 CSV  IEC 2016
If it is evident from the construction of the appliance that the test of one function will produce
more favourable results than another, this function is not tested.
5.6 Addition:
If two or more cooking functions can be performed simultaneously, they are tested at the
same time.
5.101 Induction hotplates are operated as specified for motor-operated appliances. Other
appliances are tested as specified for heating appliances, even if they incorporate motors.
In appliances that incorporate induction hotplates in addition to other heating elements
units, the induction hotplates are operated simultaneously and supplied separately.
6 Classification
This clause of Part 1 is applicable except as follows.
6.2 Addition:
Appliances intended for outdoor use shall be at least IPX4.
7 Marking and instructions
This clause of Part 1 is applicable except as follows.
7.1 Addition:
The rated power input or rated current of induction hotplates shall also be marked.
Appliances intended to be partially immersed in water for cleaning shall be marked with the
maximum level of immersion and the substance of the following:
Do not immerse beyond this level.
If cookers, portable ovens and rotary grills have accessible metal surfaces, other than
working surfaces, that have a temperature rise exceeding 90 K during the test of Clause 11,
they If appliances have accessible surfaces, for which temperature rise limits are specified
in Table 102 and for which the provisions of footnote b to Table 102 apply, then the appliance
shall be marked with symbol IEC 60417-5041(2002-10), the rules of ISO 3864-1 applying
except for the specified colours, or with the substance of the following:
CAUTION: Hot surfaces.
7.6 Addition:
[symbol IEC 60417-5041 (2002-10)] Caution, hot surface

7.12 Addition:
The instructions for appliances incorporating an appliance inlet, and intended to be partially or
fully immersed in water for cleaning, shall state that the connector must be removed before
the appliance is cleaned and that the appliance inlet must be dried before the appliance is
used again.
+AMD2:2016 CSV  IEC 2016
The instructions for appliances intended to be used with a connector incorporating a
thermostat shall state that only the appropriate connector must be used.
The instructions for appliances intended for outdoor use shall include the substance of the
following:
– the appliance is suitable for outdoor use;
– the supply cord should be regularly examined for signs of damage, and if the cord is
damaged, the appliance must not be used;
– the appliance must be supplied through a residual current device (RCD) having a rated
residual operating current not exceeding 30 mA;
– the appliance is to be connected to a socket-outlet having an earthing contact (for class I
appliances).
The instructions for appliances having accessible metal surfaces, other than working
surfaces, that have a temperature rise exceeding 90 K during the test of Clause 11, shall
include the substance of the following:
The temperature of accessible surfaces may be high when the appliance is operating.
If symbol IEC 60417-5041(2002-10) is marked on appliances, the instructions shall state that
the surfaces are liable to get hot during use its meaning shall be explained.
The instructions shall state that appliances are not intended to be operated by means of an
external timer or separate remote-control system.
The instructions shall include details on how to clean surfaces in contact with food. For
toasters, they shall include details on how to remove breadcrumbs, when applicable.
The instructions for toasters shall include the substance of the following:
The bread may burn, therefore do not use the toaster near or below combustible material,
such as curtains.
The instructions for barbecues shall include the substance of the following:
WARNING: Charcoal or similar combustible fuels must not be used with this appliance.
The instructions for barbecues intended to be used with water shall state the maximum
quantity of water to be poured into the appliance.
The instructions for hotplates having surfaces of glass-ceramic or similar material protecting
live parts shall include the substance of the following:
WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of
elec
...
