IEC 61857-21:2009

IEC 61857-21 ®
Edition 3.0 2009-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electrical insulation systems – Procedures for thermal evaluation –
Part 21: Specific requirements for general-purpose models – Wire-wound
applications
Systèmes d'isolation électrique – Procédures d'évaluation thermique –
Partie 21: Exigences particulières pour les modèles d'usage général –
Applications aux enroulements à fil

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 61857-21 ®
Edition 3.0 2009-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electrical insulation systems – Procedures for thermal evaluation –
Part 21: Specific requirements for general-purpose models – Wire-wound
applications
Systèmes d'isolation électrique – Procédures d'évaluation thermique –
Partie 21: Exigences particulières pour les modèles d'usage général –
Applications aux enroulements à fil

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
P
CODE PRIX
ICS 29.080.30 ISBN 978-2-88910-582-3
– 2 – 61857-21 © IEC:2009

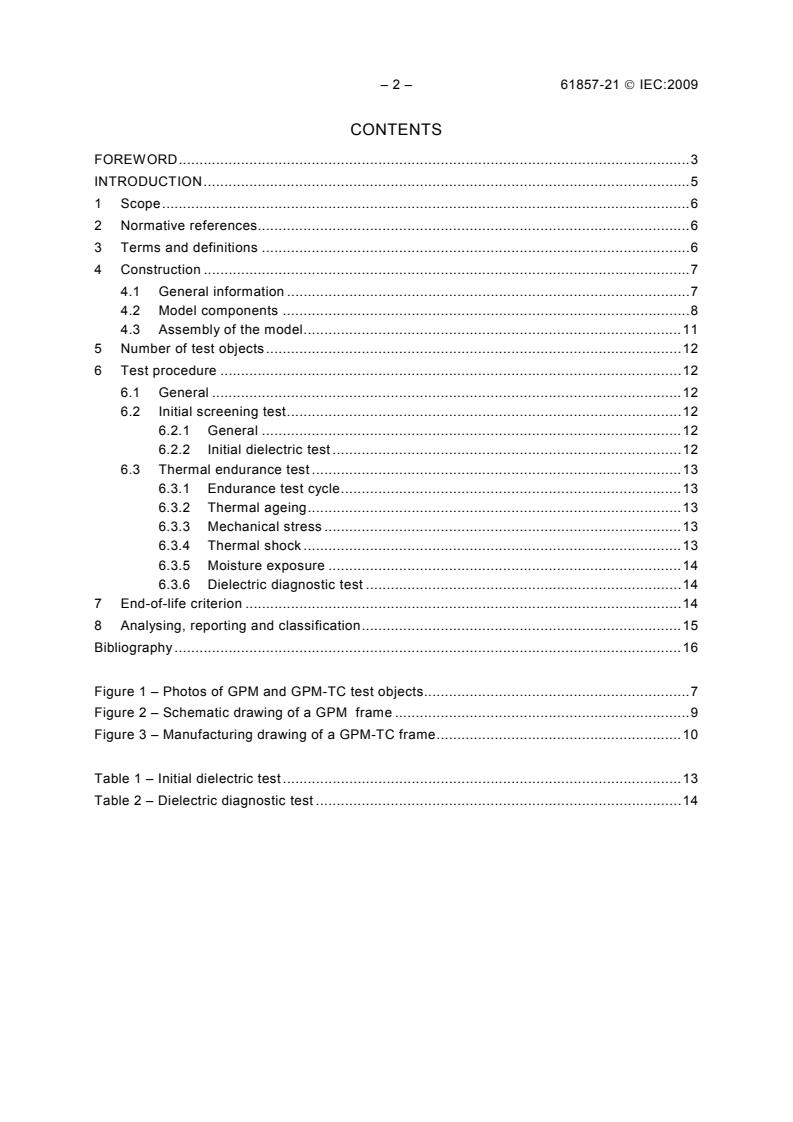

CONTENTS
FOREWORD.3
INTRODUCTION.5
1 Scope.6
2 Normative references.6
3 Terms and definitions .6
4 Construction .7
4.1 General information .7
4.2 Model components .8
4.3 Assembly of the model.11
5 Number of test objects.12
6 Test procedure .12
6.1 General .12
6.2 Initial screening test.12
6.2.1 General .12
6.2.2 Initial dielectric test .12
6.3 Thermal endurance test .13
6.3.1 Endurance test cycle.13
6.3.2 Thermal ageing.13
6.3.3 Mechanical stress .13
6.3.4 Thermal shock .13
6.3.5 Moisture exposure .14
6.3.6 Dielectric diagnostic test .14
7 End-of-life criterion .14
8 Analysing, reporting and classification.15
Bibliography .16

Figure 1 – Photos of GPM and GPM-TC test objects.
Figure 2 – Schematic drawing of a GPM frame .9
Figure 3 – Manufacturing drawing of a GPM-TC frame.10

Table 1 – Initial dielectric test.13
Table 2 – Dielectric diagnostic test .14

61857-21 © IEC:2009 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
___________
ELECTRICAL INSULATION SYSTEMS –
PROCEDURES FOR THERMAL EVALUATION –

Part 21: Specific requirements for general-purpose models –
Wire-wound applications
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61857-21 has been prepared by IEC technical committee 112:
Evaluation and qualification of electrical insulating materials and systems.
This third edition cancels and replaces the second edition published in 2004, and constitutes
editorial revisions to make this standard compatible with Parts 1 and 22.
The text of this standard is based on the following documents:
FDIS Report on voting
112/120/FDIS 112/126/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.

– 4 – 61857-21 © IEC:2009
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all the parts in the IEC 61857 series, under the general title Electrical insulation
systems – Procedures for thermal evaluation, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until the
maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
61857-21 © IEC:2009 – 5 –
INTRODUCTION
A series of parts that will make up IEC 61857 is currently being developed, each of which will
address a specific test object and/or application with an associated test procedure.

– 6 – 61857-21 © IEC:2009
ELECTRICAL INSULATION SYSTEMS –
PROCEDURES FOR THERMAL EVALUATION –

Part 21: Specific requirements for general-purpose models –
Wire-wound applications
1 Scope
This part of IEC 61857 describes a general-purpose model (GPM) and a tall channel alternative
model (GPM-TC) which can be used for the evaluation of wire-wound electrical insulation
systems (EIS) where specific electrotechnical products are not available or required.
2 Normative references
The following referenced documents are indispensable for the application of this document. For
dated references, only the edition cited applies. For undated references, the latest edition of
the referenced document (including any amendments) applies.
IEC 60455 (all parts), Resin based reactive compounds used for electrical insulation
IEC 60464: (all parts), Varnishes used for electrical insulation
IEC 60505, Evaluation and qualification of electrical insulation systems
IEC 61857-1, 2008, Electrical insulation systems – Procedures for thermal evaluation –
Part 1: General requirements – Low-voltage
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60505 and
IEC 61857-1, as well as the following definitions, apply.
3.1
earth
ground
make an electric connection between a given point in a system, an installation or in equipment
and a local earth
[IEV 195-01-08]
3.2
earth (ground) insulation
electrical insulating material (EIM) between a coil and earthed metal
3.3
coil
continuous winding of insulated wire
3.4
coil-to-coil insulation
electrical insulating material (EIM) between individual coils

61857-21 © IEC:2009 – 7 –
4 Construction
4.1 General information
General-purpose models are useful in evaluating the compatibility of the electrical insulation
materials (EIM) being used in a candidate electrical insulation system (EIS). A GPM is not
capable of simulating the influence of actual manufacturing processes such as winding
techniques. Consequently, the influence of the manufacturing processes will be minimal. A
GPM may be assembled by hand, using simple facilities.
The essential components of general-purpose models are either two coils (GPM) or three coils
(GPM-TC) mounted in the same pair of channels, thus representing the windings in the window
of a transformer, or the windings in the slots of a motor or generator, and EIM placed between
the pairing(s) of coils and the coil-to-frame location representing coil-to-coil insulation and
earth insulation, respectively (see Figure 1).
IEC  665/09
NOTE The additional height of the channel area in the GPM-TC allows for evaluation of three coils of winding wire
and the extra pair of stand-offs allows for electrical testing of the additional coil.
Figure 1 – GPM test object
The channels, representative of the laminations in an electrotechnical product, shall be formed of
stainless steel plates in an appropriate manner and fixed to the base. One or more EIM and/or
different thicknesses of EIM may be used as earth insulation in the construction. Two insulators
for each coil shall be fixed to the base.
The coils shall be wound with two winding wires in parallel (bifilar winding). The sets of
windings should fill the channels. Each coil may be wound with a different type of winding wire
and each type of winding wire shall be in contact with the earth insulation and coil-to-coil
insulation. The coils shall be connected to the insulators so as to facilitate the dielectric testing
from coil-to-frame, coil-to-coil and conductor-to-conductor.
Refer to Figure 2 for the principles of construction of the GPM and to Figure 3 for the principles
of construction of the GPM-TC.

– 8 – 61857-21 © IEC:2009
4.2 Model components
The components of the model are as follows:
a) Frame:
The frame consists of a rigid supporting metal base with suitable stand-off insulators of
porcelain or other appropriate material bolted to one end, and with two channels, formed by
an inner and outer sheet, bolted to the other end. See Figure 2 or 3 for specific dimensions.
The supporting base has holes for mounting the model during application of mechanical
stress (vibration). The assembled channel portion contains two or three coils insulated from
the frame by earth insulation, insulated from each other by coil-to-coil insulation and held in
place by channel wedges.
b) Coils:
Each coil shall be wound with parallel winding wires for the conductor-to-conductor
dielectric test. Coils may be machine-wound, or hand-wound on pins or forms. The ends of
the parallel windings shall be isolated to allow conductor-to-conductor testing.
When the GPM-TC is being used to evaluate more than one type of winding wire, the EIM
being evaluated as coil-to-coil insulation must be placed such that each EIM is in contact
with each type of winding wire.
c) Winding wire:
Heavy film-coated. A wire size with a nominal diameter of 1,0 mm to 1,12 mm is preferred.
d) EIM:
EIM is used as earth insulation in the channel and as coil-to-coil insulation. EIM qualified as
either earth insulation or coil-to-coil insulation in an EIS may be used in either case. EIM
shall represent the thickness to be evaluated. EIM placed between the coils shall be of
sufficient width to provide a complete insulation barrier between the coils. The EIM in the
semicircular section shall be shaped, by cutting or other technique, to follow the curve of
the coils and extend wider than the width of the wire wound coils. When the GPM-TC is
being used to evaluate the performance of two sets of EIM, it is essential for each type of
EIM to be in contact with each type of winding wire. If the EIM placed between the top and
middle coils is not the same as that placed between the middle and bottom coils, then the
winding wire placed into the top coil shall be the same as is placed into the bottom coil. The
middle coil may be wound with an alternate winding wire.
e) Channel wedge:
The wedges shall be of sufficient stiffness to contain the coils in the channel. One end of
the wedge shall be rounded to ensure easy passage through the channel.
f) Tie cord and/or electrical grade tape.
g) Electrical insulating varnish or resin, if a component of the EIS, shall conform to either
IEC 60455 or IEC 60464.
61857-21 © IEC:2009 – 9 –
Dimensions in millimetres ± 10 %

Drill four holes of 4 mm in
diameter for mounting Drill two holes of 4,5 mm in
insulators diameter for mounting frame
A
A
54 51
Stainless steel plate
Stainless steel plate
Hexagonal HD stainless steel
bolts and nuts – Two holes of
8 mm in diameter
Channel assembly of
5° 5°
1,6 mm stainless steel
45°
45 approximately
Remove all burrs and
grind all edges smooth
Section A-A
IEC  666/09
Figure 2 – Schematic drawing of a GPM frame

– 10 – 61857-21 © IEC:2009
Dimensions in millimetres ± 10 %
Drill six holes of 4 mm in Drill two holes of 4,5 mm in
diameter for mounting insulators diameter for mounting frame
A
9,5
25,4
9,5
19 A
54 51
Stainless steel plate
Stainless steel plate
Hexagonal head, stainless steel
bolts and nuts – Two holes
8 mm in diameter
Channel assembly of
1,6 mm stainless steel
5° 5°
45°
55 approximately
10 10 Remove all burrs and grind
all edges smooth
Section A-A
IEC  667/09
Figure 3 – Manufacturing drawing of a GPM-TC frame

61857-21 © IEC:2009 – 11 –
4.3 Assembly of the model
Assemble the model as follows:
a) Each coil shall be wound on a coil former with two parallel sides and with semicircles at
both ends. The parallel sides shall have a length of 65 mm and the semicircles shall have a
diameter of 45 mm. Each coil shall be composed of a sufficient number of turns of winding
wire to fill either half (GPM) or one-third (GPM-TC) of the channel, leaving room for the EIM
and the wedge. The unconnected ends shall be prepared by cutting off one end of each of
the bifilar wires, leaving a length of 5 mm from the coil near the middle of one of the
semicircles. The two unconnected ends shall be separated from each other and from the
coil by a minimum of 5 mm to ensure isolation and allow conductor-to-conductor dielectric
testing. A sufficient length of the other conductor ends shall be brought out from the
straight portion of the coil for attachment to the stand-off insulators. Individual coils shall be
secured with tie cord or electrical grade tape.
b) Before assembly, each metal component of the model shall be completely clean and dry.
These metal components shall be carefully assembled ensuring that the channels are equal
in width and the sides parallel. A simple procedure for this is to cut two wooden blocks
equal in width to the channel openings and to centre the channels by placing the blocks in
the channels prior to tightening the hold-down bolts.
c) The channel insulation shall be cut from a piece of the EIM of a thickness to be evaluated
as a 65 mm square for a GPM, or a 65 mm × 90 mm rectangle for a GPM-TC, and bent to
fit the channel. This allows the EIM to project out of the top of the channel so it can be
folded under the wedge and to project 5 mm from each end of the channel. If more than
one EIM is to be used on the channel, appropriately sized pieces shall be used to provide a
5 mm overlap of each ground insulation within the channel and allow the earth insulation to
project 5 mm from each end of the channel. Not more than three EIMs shall be placed into
a channel section.
d) When inserting the coils, the channel insulation shall be folded back over the top edge of
the channel to ensure that the winding wire is not nicked or abraded when being placed in
the channel. The bottom coil shall be inserted into the channel with the unconnected
conductor ends facing down and the leads at the top of the coil. After the bottom coil is in
place, a layer of coil-to-coil insulation shall then be inserted to ensure that the coil-to-coil
insulation within the channel completely covers the bottom coil, so to provide a complete
insulating barrier between coils. For a GPM-TC model, the middle coil shall then be
inserted with the unconnected ends on the opposite side from the unconnected ends of the
bottom coil, and a second layer of coil-to-coil insulation shall be inserted to completely
cover the middle coil. The top coil shall be inserted with the unconnected ends on the
opposite side from the unconnected ends of the adjacent coil. If more than one EIM is to be
evaluated in a coil-to-coil location, appropriately sized pieces shall be used to provide a
5 mm overlap of each EIM and to project 5 mm from the end of each channel. EIM placed
between the coils in the semicircular end sections shall overlap the EIM projecting from the
channel section. With the coils and coil-to-coil insulation in place, the ends of the channel
insulation shall be folded over the top of the top coil and the wedge inserted on top of the
channel insulation. The wedges shall be at least 10 mm wide and 75 mm long.
e) The leads shall be measured to terminate at the insulated terminals. An appropriate portion
of the leads shall be stripped of insulation and may be tinned at the end with solder before
connecting to the terminals. Each lead shall be connected to an individual terminal. When
appropriate, prior to any varnish or resin treatment, the coils may be checked for insulation
continuity by a conductor-to-conductor test according to 6.1.
f) When appropriate, the varnish or resin treatment shall be performed using the same
impregnating material as anticipated in production, and cured according to the
manufacturer's recommendations. Each test object should be dipped, drained, and cured in

– 12 – 61857-21 © IEC:2009
a vertical position. If more than one impregnation treatment is required to achieve sufficient
bonding, it shall be so stated in the test report.
g) For each exposure temperature, a set of test objects is bolted to a rack made of rigid
aluminium approximately 15 mm thick. The rack shall be constructed with large openings
between the test objects so that air circulation is not impeded. The rack should be sized to
fit the ovens and condensation chamber and be capable of being secured to the vibration
table.
5 Number of test objects
The minimum number of test objects in a group for each ageing temperature shall be ten.
6 Test procedure
6.1 General
All test objects shall be subjected to initial screening tests followed by repeated thermal
endurance test cycles consisting of subcycles in the following order:
a) a thermal ageing subcycle;
b) a subcycle of pre-diagnostic mechanical stress, thermal shock and moisture exposure, in
that order;
c) a dielectric diagnostic test.
6.2 Initial screening test
6.2.1 General
Prior to exposure to an elevated temperature on the first thermal ageing subcycle, all test
objects shall be subjected to initial screening tests in order to eliminate defective test objects.
The initial screening tests shall consist of the following steps and shall be conducted in the
order given:
a) visual inspection;
b) initial dielectric test (see 6.2.2);
c) mechanical stress (see 6.3.3);
d) thermal shock, as required (see 6.3.4 );
e) moisture exposure (see 6.3.5);
f) dielectric diagnostic test (see 6.3.6).
6.2.2 Initial dielectric test
An initial screening test utilizing dielectric techniques shall be performed on each test object
prior to application of other pre-diagnostic stresses and thermal ageing, see Table 1.

61857-21 © IEC:2009 – 13 –
Table 1 – Initial dielectric test
Voltage Acceptance criteria
Stressed EIM
V mA
Conductor-to-conductor 400 ± 40 ≤40
a
Coil-to-coil
2 000 ± 100 ≤40
Coil-to-frame
2 000 ± 100 ≤40
a
Test the top-to-middle coil separately from the middle-to-bottom coil on GPM-TC test objects.

The following procedure shall then be followed:
• an initial dielectric test voltage shall be applied for a minimum of 60 s;
• the frequency of the test voltage shall be between 48 Hz and 62 Hz.
NOTE Instantaneous application of full voltage is not recommended. It is recommended that surge protectors
be included in the test circuit to eliminate unintended high-voltage spikes.
For test objects evaluated by applied voltage, pre-calibrated electromechanical over-current
circuit-breakers with a trip time of 2 s to 3 s have been used successfully to detect failure.
The cause of failure shall be determined. When the failure is within the EIS, it shall eliminate
that test object from further testing. When the failure is not within the EIS and it can be
repaired without disturbing the EIS, that test object may be retested and returned to the test
programme if it passes.
6.3 Thermal endurance test
6.3.1 Endurance test cycle
Following the initial screening tests, all test objects shall be subjected to repeated thermal
endurance test cycles consisting of subcycles in the following order:
a) thermal ageing subcycle;
b) mechanical stress subcycle;
c) thermal shock subcycle;
d) moisture exposure subcycle;
e) dielectric diagnostic test.
6.3.2 Thermal ageing
Thermal ageing, comprising selection of ageing temperature, initial ageing periods and ageing
procedures, shall be conducted in accordance with 6.3 of IEC 61857-1:2008.
Ovens shall be used as the means of heating in accordance with 6.3.4 of IEC 61857-1:2008.
6.3.3 Mechanical stress
Mechanical stress shall be applied by mounting test objects on a vibration table and exposing
them for (60 ± 5) min of sinusoidal vibration at a frequency between 48 Hz to 62 Hz, with an
–2
. No voltage shall be applied during this period.
acceleration of (15 ± 3) ms
6.3.4 Thermal shock
Unless agreed to by all interested parties, both the reference and candidate EIS shall be
exposed to a low-temperature thermal shock. Thermal shock shall be applied by placing

– 14 – 61857-21 © IEC:2009
room temperature test objects into a low-temperature chamber at (–20 ± 5) °C for at least 2 h.
No voltage shall be applied during this period.
6.3.5 Moisture exposure
Moisture exposure, with visible condensation, shall be applied in accordance with 6.6 of
IEC 61857-1:2008.
6.3.6 Dielectric diagnostic test
Following each ageing cycle and set of subcycles, described in 6.3.3 through 6.3.5, evaluate
the test objects in accordance with the dielectric diagnostic test given in Table 2.
The surface of the test objects shall be wiped free of any water droplets immediately before
application of voltage.
Table 2 – Dielectric diagnostic test
Voltage End-of-life
Stressed EIM
V A
Conductor-to-conductor 0,5 to 0,75
110 ± 10
a
Coil-to-coil 600 ± 30 0,5 to 0,75
Coil-to-frame 0,5 to 0,75
600 ± 30
a
Test the top-to-middle coil separately from the middle-to-bottom coil on GPM-TC test objects.

The following steps shall then be taken:
• dielectric diagnostic test voltages shall be applied for a minimum of 10 min;
• failure shall be current flow as defined above prior to completion of the time period;
• the frequency of the test voltage shall be between 48 Hz and 62 Hz.
NOTE Instantaneous application of full voltage is not recommended. It is recommended that surge protectors be
included in the test circuit to eliminate unintended high voltage spikes.
For test objects evaluated by applied voltage, pre-calibrated electromechanical over-current
circuit-breakers with a trip time of 2 s to 3 s have been used successfully to detect failure.
In order to check the condition of the test objects and determine end-of-life, the dielectric
diagnostic test shall be applied after each successive exposure to moisture either while
the test objects are still in the condensation chamber or immediately after removal while still
wet with moisture.
7 End-of-life criterion
The end-of-life criterion for individual test specimens shall be failure of a test object to hold the
...
