IEC 62087-2:2015
(Main)Audio, video, and related equipment - Determination of power consumption - Part 2: Signals and media
Audio, video, and related equipment - Determination of power consumption - Part 2: Signals and media
IEC 62087-2:2015 specifies signals and media used in determination of the power consumption of audio, video, and related equipment, such as television sets and computer monitors. It also specifies signals for determining the peak luminance ratio that is sometimes associated with television power consumption measurement programs. In addition, this part specifies equipment, interfaces, and accuracy related to signal generation. This first edition of IEC 62087-2 together with IEC 62087-1 and IEC 62087-3 to IEC 62087-6 cancels and replaces IEC 62087:2011 in its entirety. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to Clause 11 of IEC 62087:2011. The signals included on the discs are now numbered generically, rather than being based on the subclause numbers within the text of the television test method. Video test patterns used to determine the peak luminance ratio are now included on the discs. Audio test signals are specified. The box and outline video signal has been added.
This publication is available in CD-ROM format only. The 5-disc package contains the publication on a CD and video files on two DVDs and two Blu-ray™ Discs.
Appareils audio, vidéo et matériel connexe - Détermination de la consommation de puissance - Partie 2: Signaux et supports
L'IEC 62087-2:2015 spécifie les signaux et supports utilisés pour déterminer la consommation de puissance des appareils audio, vidéo et du matériel connexe, tels que les téléviseurs et les moniteurs d'ordinateurs. Elle spécifie également des signaux pour déterminer le rapport de luminance de crête qui est parfois associé aux programmes de mesurage de la consommation de puissance des téléviseurs. En outre, la présente partie spécifie le matériel, les interfaces ainsi que la précision associés à la génération de ces signaux.
L'IEC 62087-2:2015 avec l'IEC 62087-1 et les IEC 62087-3 à IEC 62087-6, annule et remplace l'IEC 62087:2011 dans son intégralité. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l'Article 11 de l'IEC 62087:2011:
– Les signaux indiqués sur les disques sont désormais numérotés de façon générique; ils ne reposent plus sur les numéros de paragraphes utilisés dans le texte de la méthode d'essai des téléviseurs.
– Les modèles d'essai vidéo utilisés pour déterminer le rapport de luminance de crête sont désormais inclus sur les disques.
– Les signaux d'essai audio sont spécifiés.
– Le signal vidéo de boîte et de contour a été ajouté.
General Information
Relations
Standards Content (Sample)
IEC 62087-2 ®
Edition 1.0 2015-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Audio, video, and related equipment – Determination of power consumption –
Part 2: Signals and media
Appareils audio, vidéo et matériel connexe – Détermination de la consommation
de puissance –
Partie 2: Signaux et supports
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - IEC online collection - oc.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un
en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour
comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 000 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
16 langues additionnelles. Egalement appelé Vocabulaire
Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC 62087-2 ®
Edition 1.0 2015-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Audio, video, and related equipment – Determination of power consumption –
Part 2: Signals and media
Appareils audio, vidéo et matériel connexe – Détermination de la consommation
de puissance –
Partie 2: Signaux et supports
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.160.10 ISBN 978-2-8322-0000-0

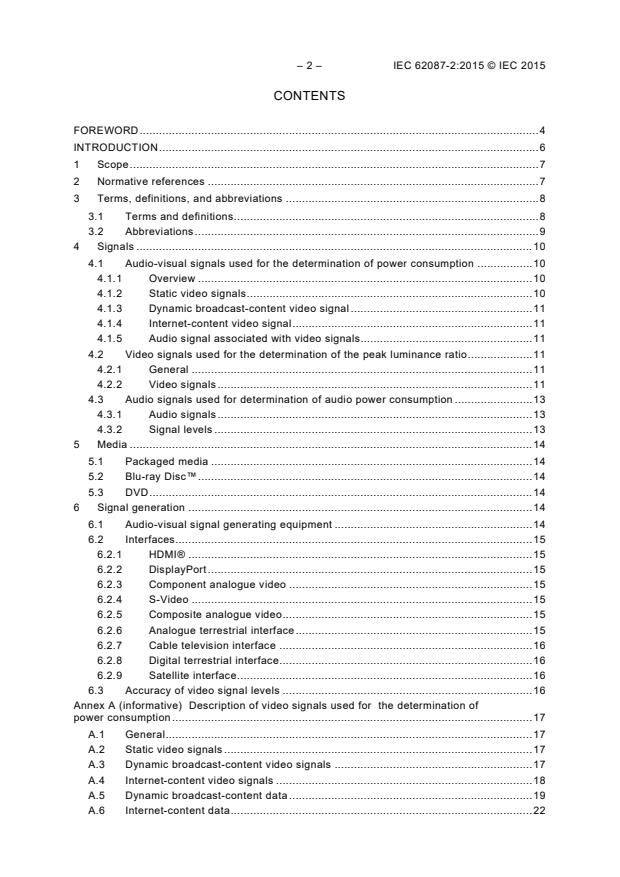

– 2 – IEC 62087-2:2015 © IEC 2015
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms, definitions, and abbreviations . 8
3.1 Terms and definitions . 8
3.2 Abbreviations . 9
4 Signals . 10
4.1 Audio-visual signals used for the determination of power consumption . 10
4.1.1 Overview . 10
4.1.2 Static video signals . 10
4.1.3 Dynamic broadcast-content video signal . 11
4.1.4 Internet-content video signal . 11
4.1.5 Audio signal associated with video signals . 11
4.2 Video signals used for the determination of the peak luminance ratio . 11
4.2.1 General . 11
4.2.2 Video signals . 11
4.3 Audio signals used for determination of audio power consumption . 13
4.3.1 Audio signals . 13
4.3.2 Signal levels . 13
5 Media . 14
5.1 Packaged media . 14
5.2 Blu-ray Disc™ . 14
5.3 DVD . 14
6 Signal generation . 14
6.1 Audio-visual signal generating equipment . 14
6.2 Interfaces . 15
6.2.1 HDMI® . 15
6.2.2 DisplayPort . 15
6.2.3 Component analogue video . 15
6.2.4 S-Video . 15
6.2.5 Composite analogue video . 15
6.2.6 Analogue terrestrial interface . 15
6.2.7 Cable television interface . 16
6.2.8 Digital terrestrial interface . 16
6.2.9 Satellite interface . 16
6.3 Accuracy of video signal levels . 16
Annex A (informative) Description of video signals used for the determination of
power consumption . 17
A.1 General . 17
A.2 Static video signals . 17
A.3 Dynamic broadcast-content video signals . 17
A.4 Internet-content video signals . 18
A.5 Dynamic broadcast-content data . 19
A.6 Internet-content data . 22
Annex B (informative) Description of video signals used for the determination of the
peak luminance ratio . 23
B.1 General . 23
B.2 Three bar video signal . 23
B.3 Box and outline video signal . 23
Bibliography . 24
Figure 1 – Gamma-corrected average picture level (APL′) . 9
Figure 2 – Box and outline video signal, including signal drive values . 12
Figure 3 – Box and outline video signal, outline dimensions . 12
Figure 4 –Box and outline video signal, box size . 12
Figure A.1 – Dynamic broadcast-content video signal APL′ . 18
Figure A.2 – Internet-content video signal APL′ . 19
Table 1 – Signal numbering . 14
Table A.1 – Dynamic broadcast-content data . 19
Table A.2 – Internet-content data . 22
– 4 – IEC 62087-2:2015 © IEC 2015
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
AUDIO, VIDEO, AND RELATED EQUIPMENT –
DETERMINATION OF POWER CONSUMPTION –
Part 2: Signals and media
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62087-2 has been prepared by technical area 12: AV energy
efficiency and smart grid applications, of IEC technical committee 100: Audio, video and
multimedia systems and equipment.
This first edition of IEC 62087-2 together with IEC 62087-1 and IEC 62087-3 to IEC 62087-6
cancels and replaces IEC 62087:2011 in its entirety. This edition constitutes a technical
revision.
This edition includes the following significant technical changes with respect to Clause 11 of
IEC 62087:2011.
– The signals included on the discs are now numbered generically, rather than being based
on the subclause numbers within the text of the television test method.
– Video test patterns used to determine the peak luminance ratio are now included on the
discs.
– Audio test signals are specified.
– The box and outline video signal has been added.
The text of this standard is based on the following documents:
FDIS Report on voting
100/2467/FDIS 100/2497/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
A list of all parts in the IEC 62087 series, published under the general title Audio, video, and
related equipment – Determination of power consumption, can be found on the IEC website.
This publication contains attached files in the form of DVDs and Blu-ray discs, as indicated in
the list of normative references. These files form an integral part of this standard.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 – IEC 62087-2:2015 © IEC 2015
INTRODUCTION
This standard identifies signals and media to be used to determine power consumption and
related characteristics specified in some other parts of IEC 62087:2015. The media include
Blu-ray Discs™ and DVDs.
IEC 62087:2008 (second edition) added methods for measuring On (average) mode power
consumption of televisions, based on three video signal sets. These include static, dynamic
broadcast-content, and Internet-content signals.
IEC 62087:2011 (third edition) revised methods for measuring power consumption of set top
boxes. The signals and media were not changed in this third edition.
This edition of IEC 62087 separates the standard into parts, including this signals and media
part which specifies signals that are to be used for determining power consumption and
related characteristics. The three original video signal sets (static, dynamic broadcast-
content, and Internet-content) are not changed. This edition adds signals for the purpose of
determining the peak luminance ratio that is sometimes associated with television power
consumption measurement programs.
IEC 62087 has been subdivided and currently consists of the following planned or published
parts:
– Part 1: General
– Part 2: Signals and media
– Part 3: Television sets
– Part 4: Video recording equipment
– Part 5: Set top boxes
– Part 6: Audio equipment
___________
IEC 62087:2008, Methods of measurement for the power consumption of audio, video and related equipment
IEC 62087:2011, Methods of measurement for the power consumption of audio, video and related equipment
AUDIO, VIDEO, AND RELATED EQUIPMENT –
DETERMINATION OF POWER CONSUMPTION –
Part 2: Signals and media
1 Scope
This part of IEC 62087 specifies signals and media used in determination of the power
consumption of audio, video, and related equipment, such as television sets and computer
monitors. It also specifies signals for determining the peak luminance ratio that is sometimes
associated with television power consumption measurement programs. In addition, this part
specifies equipment, interfaces, and accuracy related to signal generation.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60107-1:1997, Methods of measurement on receivers for television broadcast trans-
missions – Part 1: General conditions – Measurements at radio and video frequencies
IEC 60268-1:1985, Sound system equipment – Part 1: General
IEC 60268-1:1985/AMD1:1988-01
IEC 60268-1:1985/AMD2:1988-06
IEC 60958-1:2008, Digital audio interface – Part 1: General
IEC 60958-1:2008/AMD1:2014
IEC 60958-3:2006, Digital audio interface – Part 3: Consumer applications
IEC 60958-3:2006/AMD1:2009
IEC 61938:2013, Multimedia systems – Guide to the recommended characteristics of
analogue interfaces to achieve interoperability
IEC 62087-1:2015, Audio, video, and related equipment – Determination of power
consumption – Part 1: General
IEC 62087:2015, video_content_DVD_50, Video content for the IEC 62087:2015 series on
DVD, 50 Hz vertical scan frequency
IEC 62087:2015, video_content_DVD_60, Video content for the IEC 62087:2015 series on
DVD, 60 Hz vertical scan frequency
IEC 62087:2015, video_content_BD_50, Video content for the IEC 62087:2015 series on
Blu-ray™ Disc, 50 Hz vertical scan frequency
IEC 62087:2015, video_content_BD_60, Video content for the IEC 62087:2015 series on
Blu-ray™ Disc, 60 Hz vertical scan frequency
IEC 62216:2009, Digital terrestrial television receivers for the DVB-T system
– 8 – IEC 62087-2:2015 © IEC 2015
3 Terms, definitions, and abbreviations
3.1 Terms and definitions
For the purposes of this document, the terms, abbreviations, and definitions in
IEC 62087-1:2015, as well as the following apply.
3.1.1
average picture level
APL
average luminance level of an internal video signal after the inverse gamma correction within
display equipment, such as a television set or computer monitor
3.1.2
backlit display
display that generates light from a source behind the display panel, for instance a liquid-
crystal display (LCD)
3.1.3
component analogue video
baseband analogue video interface that carries a standard or high definition colour video
signal over three signal lines
Note 1 to entry: See CEA-770.3-E.
3.1.4
composite analogue video
baseband analogue video interface that carries a standard definition colour video signal over
a single signal line
Note 1 to entry: See SMPTE ST 170M:2004 for the 59,94 Hz version and ITU-R BT.470-5 for the 50 Hz version.
3.1.5
digital visual interface
DVI
video interface that is capable of carrying analogue or digital uncompressed video
3.1.6
DisplayPort
digital display interface developed by the Video Electronics Standards Association
3.1.7
emissive display
display that generates light directly from each sub-pixel, for instance a PDP or OLED display
3.1.8
gamma-corrected average picture level
APL′
average luma (Y′) level of an external video input signal that may be applied to display
equipment, such as a television set or computer monitor
Note 1 to entry: APL′ is determined during the active scanning time integrated over a frame period, defined as a
percentage of the range between reference black and reference white level.
Note 2 to entry: This is not a measure of the inverse gamma-corrected signal that might be available inside of
some display equipment and delivered to the display device. The external and internal video signals are shown in
Figure 1.
Display equipment
Internal
External
Inverse video
Display
video
gamma
device
signal Y′
circuit
Used to measure
Not used for
gamma-corrected
measuring APL′
average picture
level (APL′)
IEC
Figure 1 – Gamma-corrected average picture level (APL′)
3.1.9
high definition multimedia interface
HDMI®
audio-visual interface that is capable of carrying uncompressed video data, compressed or
uncompressed digital audio data, and other information
Note 1 to entry: See HDMI specification.
3.1.10
luma
Y′
gamma-corrected video signal that represents brightness
3.1.11
S-video
baseband analogue video interface that carries a standard definition colour video signal using
two signal lines
Note 1 to entry: See IEC 60933-5.
3.2 Abbreviations
′ Prime
AM Amplitude Modulation
APL Average Picture Level
APL′ Gamma-Corrected Average Picture Level
AV Audio-visual
BD Blu-ray Disc™
BER Bit Error Ratio
DAB Digital Audio Broadcast
dB decibel
DVD Digital Versatile Disc
EPA Environmental Protection Agency
FM Frequency Modulation
Hz Hertz
___________
HDMI® is a registered trade mark of HDMI Licensing, LLC. This information is given for the convenience of
users of this document and does not constitute an endorsement by IEC of the product named.
Blu-ray Disc™ is a trade mark of the Blu-ray Disc Association. This information is given for the convenience of
users of this document and does not constitute an endorsement by IEC of the product named.
– 10 – IEC 62087-2:2015 © IEC 2015
HDMI® High Definition Multimedia Interface
JEITA Japan Electronics and Information Technology industries Association
LCD Liquid Crystal Display
NTSC National Television Standards Committee
OLED Organic Light-Emitting Diode
OOI Acoustic Onset Of Impairment
PAL Phase Alternating Line
PDP Plasma Display Panel
RF Radio Frequency
rms root mean square
SECAM Séquentiel Couleur à Mémoire
SMPTE Society of Motion Picture and Television Engineers
US United States of America
4 Signals
4.1 Audio-visual signals used for the determination of power consumption
4.1.1 Overview
A general description of the video signals is provided in Annex A.
4.1.2 Static video signals
4.1.2.1 General
The media include four static video signals: black, white, full field colour bar, and three bar
video signals. Additional information is available in Clause A.2.
4.1.2.2 Black level video signal
In this case the entire part of the signal representing the active picture shall be black (0 %),
as defined in IEC 60107-1:1997, 3.2.1.5.
4.1.2.3 White level video signal
In this case the entire part of the signal representing the active picture shall be white (100 %),
as defined in IEC 60107-1:1997, 3.2.1.5.
4.1.2.4 Full field colour bar video signal
In this case the active part of the signal shall be a full field colour bar signal. For 50 Hz
systems, the (100/0/75/0) colour bar signal for PAL and SECAM receivers as defined in
IEC 60107-1:1997, 3.2.1.2 shall be used. In the case of a 60 Hz system the top section of the
(75/0/75/0) colour bar signal for NTSC defined in IEC 60107-1:1997, 3.2.1.2 shall be used and
shall cover the full field of the display.
NOTE The 50 Hz signal has eight bars (including black), and the 60 Hz signal has seven bars (white, yellow,
cyan, green, magenta, red and blue, in this order).
4.1.2.5 Three bar video signal
In this case the active picture area of the signal shall be three bars of white (100 %) over a
black (0 %) background as defined in IEC 60107-1:1997, 3.2.1.3.
4.1.3 Dynamic broadcast-content video signal
The media include a dynamic broadcast-content video signal.
The dynamic broadcast-content video signal shall be generated from one of the discs
available from IEC in a format compatible with the input terminal type under test. These discs
include IEC 62087-2:2015 video_content_DVD_50 through IEC 62087-2:2015
video_content_BD_60. The duration of the audio-visual signal is 10 min.
Additional information is available in Clause A.3.
4.1.4 Internet-content video signal
The media include an Internet-content video signal.
The Internet-content video signal shall be generated from one of the discs available from IEC
in a format compatible with the input terminal type under test. These discs include
The duration of the audio-visual signal is 10 min.
Additional information is available in Clause A.4.
4.1.5 Audio signal associated with video signals
Sine-wave signals at a frequency of 1 kHz, or if 1 kHz cannot be used, signals at the centre
frequency of the transfer range, as specified by the manufacturer of the UUT. For digital
inputs the level of the signal shall be 18 dB below full scale. For analogue inputs the signal
shall be 20 dB below reference level or greater with a suggested signal level of 500 mV rms.
The video signals described in 4.1.2, 4.1.3, and 4.1.4 are stored on the associated discs with
an accompanying 1 kHz tone with a level of 18 dB below full scale.
4.2 Video signals used for the determination of the peak luminance ratio
4.2.1 General
The use of signals defined in 4.2.2 shall be limited to determining the peak luminance ratio
between picture settings and should not be used for determining absolute screen luminance.
NOTE 1 Such luminance comparisons are sometimes associated with TV energy efficiency programs.
NOTE 2 For more information about choosing the signal for determining the peak luminance ratio, see Annex B.
4.2.2 Video signals
4.2.2.1 Three bar video signal
The three bar video signal is specified in 4.1.2.5.
4.2.2.2 Box and outline video signal
The box and outline video signal includes a white (100 %) square on a grey (33 %)
background, with a black (0 %) bar near the outer part of the picture. An overview of the
picture with signal levels (and drive values) is shown in Figure 2. The width of the white block
is 2/16 times the nominal horizontal width (W) of the picture. The height of the white block is
2/9 times the nominal vertical height (H) of the picture. The width of the black bar is W/128
pixels and the height of the black bar is H/72 lines. The position of the black bar is 1/16 times
the nominal horizontal width (W) from the picture edge and 1/9 times the nominal vertical
height (H) from the picture edge. The dimensions of the outline are shown in Figure 3. The
size of the white box is shown in Figure 4.
– 12 – IEC 62087-2:2015 © IEC 2015
White (100%)
235 for video
255 in PC mode
Grey (33%)
89 for video
Black (0%)
85 in PC mode
16 for video
0 in PC mode
IEC
Figure 2 – Box and outline video signal, including signal drive values
W/16 H/72 W/16
H/9
W/128
H/9
IEC
Figure 3 – Box and outline video signal, outline dimensions
7W/16 2W/16 7W/16
7H/18
2H/9
7H/18
IEC
Figure 4 –Box and outline video signal, box size
4.3 Audio signals used for determination of audio power consumption
4.3.1 Audio signals
4.3.1.1 Sine wave signal
The signal shall be a sine-wave at a frequency of 1 kHz or, if 1 kHz cannot be used, the sine
wave frequency shall be at the centre of the frequency range specified by the manufacturer.
4.3.1.2 Simulated programme signal
A simulated programme signal shall have a mean power spectral density that closely
resembles the average of mean power spectral densities of a wide range of programme
material, according to IEC 60268-1.
Such a signal may be obtained from pink noise, band-limited by a filter whose response
conforms to that given in IEC 60268-1. The crest factor of a noise source should fall between
3 and 4 to avoid clipping of amplifiers.
The simulated programme signal is not included in the media supplied in Clause 5.
4.3.2 Signal levels
4.3.2.1 Audio signal level, analogue
For baseband analogue inputs, the input signal shall be at a level of 500 mV rms, according to
the rated source e.m.f of IEC 61938.
4.3.2.2 Audio signal level, digital
For digital inputs, the input signal shall be at a level of 12 dB below reference full scale,
according to IEC 61938, IEC 60958-1 and IEC 60958-3.
4.3.2.3 Audio signal level, RF
For FM radio tuners, the input signal shall be at an aerial input terminal at a level of 40 dB
(pW). The modulation factor shall be 54 %, according to IEC 61938.
For AM radio tuners, the input signal shall be at an aerial input terminal with an induced
electromagnetic field (e.m.f.) of 1 mV. The modulation factor shall be 30 %, according to
IEC 61938.
In the case of non-detachable aerial antennas the RF signal level for FM and AM radio tuners
shall be high enough to reproduce a noise-free audio signal.
For DAB and DAB+ the OOI point is sharply defined as the receiver C/N (carrer to noise ratio)
degrades and BER increases, so this may be used as a means to assess the signal
requirement of the receiver. The OOI method may be implemented so that it is equivalent to a
–4
BER of 10 . The method involves monitoring (by a human observer or if available, automated
equipment) of an encoded 1 kHz audio sinewave from the audio output source (speaker,
headphone, etc) and setting the RF signal level where the onset of audio defects (dropouts,
burbles, “chirps”, etc.) can just be heard in the sinewave in a 10 second listening period. This
RF level is the OOI threshold for sensitivity.
In the case of a non-detachable aerial antenna the RF signal level shall be high enough to
reproduce an audibly defect-free audio signal for DAB and DAB+.
NOTE ETSI EN 300 401, Clause 7 and ETSI TS 102 563 provide additional information about DAB and DAB+.
– 14 – IEC 62087-2:2015 © IEC 2015
5 Media
5.1 Packaged media
The packaged media includes four discs: a 50 Hz BD, a 60 Hz BD, a 50 Hz DVD, and a 60 Hz
DVD. For all four discs, the signals are numbered as shown in Table 1.
Table 1 – Signal numbering
Subclause Number on Description
discs
4.1.2.2 1.1.1 Black level video signal
4.1.2.3 1.1.2 White level video signal
4.1.2.4 1.1.3 Full field colour bar video signal
4.1.2.5 1.1.4 Three bar video signal
4.1.3 1.2 Dynamic broadcast-content video signal
4.1.4 1.3 Internet-content video signal
4.2.2.1 2.1 Three bar video signal
4.2.2.2 2.2 Box and outline video signal
4.2.2.1 3.1 Three bar video signal
4.1.2.4 3.2 Full field colour bar video signal
N/A 3.3 SMPTE colour bar signal (60 Hz only)
NOTE In addition to the three bar and full field colour bar signals, the 60 Hz DVD and 60 Hz BD attached to the
present standard include the SMPTE colour bar signal (SMPTE EG 1:1990) for the user’s convenience in
calibrating equipment output levels.
5.2 Blu-ray Disc™
Two Blu-ray Discs™ are attached to the present standard, one authorized for 50 Hz systems,
the other for 60 Hz systems. The 50 Hz BD is labelled IEC 62087-2:2015
video_content_BD_50. The 60 Hz BD is labelled IEC 62087-2:2015 video_content_BD_60.
Both discs contain the signals defined in Clause 4.
5.3 DVD
Two DVDs are attached to the present standard, one authorized for 50 Hz systems, the other
for 60 Hz systems. The 50 Hz DVD is labelled IEC 62087-2:2015 video_content_DVD_50. The
60 Hz DVD is labelled IEC 62087-2:2015 video_content_DVD_60. Both discs contain the
signals defined in Clause 4.
6 Signal generation
6.1 Audio-visual signal generating equipment
The audio-visual signal generating equipment used during the test shall be capable of playing
the media specified in this standard and shall be calibrated to conform with the accuracy
required in 6.3. Depending on the input terminals used during the measuring procedure, the
audio-visual signal generating devices shall provide the signals as specified in 6.2.
If connecting a particular model of audio-visual signal generating equipment to the UUT
causes any settings of the UUT to change, an alternate model shall be used during the
measuring procedure.
Some video sources with HDMI outputs have been shown to lead to anomalous television
power consumption readings. Two possible causes have been identified: miscommunication
between source and sink, and proprietary communications between source and sink.
To reduce the possibility of miscommunication, multiple models of signal generating
equipment may be connected and a spot check of the power consumption may be performed
with a static image. A model of signal generating equipment that produces anomalous results
should not be used.
To reduce the likelihood of unwanted proprietary communications, signal generating
equipment from a different manufacturer than that of the UUT should be used.
6.2 Interfaces
6.2.1 HDMI®
The version of any HDMI® source and HDMI® cable used for the purposes of this standard
and its related parts shall be compatible with the HDMI® terminal of the UUT. It is
recommended that the source device supports the latest available version of HDMI®
compatible with the UUT.
NOTE At the time of preparation of this standard, the current version of HDMI® is HDMI Specification Ver. 2.0,
which is backward compatible with all previous versions of the HDMI® specification.
6.2.2 DisplayPort
The version of any DisplayPort source and DisplayPort cable used for the purposes of this
standard and its related parts shall be compatible with the DisplayPort terminal of the UUT. It
is recommended that the source device supports the latest available version of DisplayPort
compatible with the UUT.
6.2.3 Component analogue video
Any component analogue video source and component analogue video cable used for the
purposes of this standard and its related parts shall be compatible with the component
analogue video terminal of the UUT.
6.2.4 S-Video
Any S-Video source and S-Video cable used for the purposes of this standard and its related
parts shall be compatible with the S-Video terminal of the UUT. It is recommended that the
source device supports the latest available version of S-Video compatible with the UUT.
6.2.5 Composite analogue video
Any composite analogue video source and composite analogue video cable used for the
purposes of this standard and its related parts shall be compatible with the composite
analogue video terminal of the UUT.
6.2.6 Analogue terrestrial interface
In the case that the UUT is being tested with an analogue terrestrial RF input signal, the
signals used shall conform to IEC 60107-1:1997, 3.3, and shall have the input signal level set
at –39 dB(mW) when terminated with a 75 Ω resistor or at a level to provide a perceptually
noise free and error free picture.
NOTE –39 dB(mW) corresponds to 70 dB(µV).
– 16 – IEC 62087-2:2015 © IEC 2015
6.2.7 Cable television interface
In the case that the UUT is being tested with a cable television RF input signal, the signals
used shall conform to the cable television specifications for the region, and shall have the
input signal level set at –49 dB(mW) with the termination of a 75 Ω resistor or at a level to
provide a perceptually noise free and error free picture for analogue signals.
NOTE –49 dB(mW) corresponds to 60 dB(µV).
6.2.8 Digital terrestrial interface
In the case that the UUT is being tested with a digital terrestrial RF input signal, the signals
used shall conform to the broadcast specifications for the region, and shall have the input
signal level set at –49 dB(mW) with the termination of a 75 Ω resistor or at a level to provide
better than the picture failure point (PF) as defined in IEC 62216:2009 or a perceptually noise free
picture.
6.2.9 Satellite interface
6.2.9.1 General
In the case that the UUT is being tested with a satellite input, the input signal level shall be
set at –49 dB(mW) with the termination of a 75 Ω resistor or at a level to provide better than
the picture failure point (PF) as defined in IEC 62216:2009 for digital signals or a perceptually
noise free and error free picture for analogue signals.
6.2.9.2 Other interfaces
Signals provided to other input terminals of the UUT shall conform to the specifications for
those inputs.
6.3 Accuracy of video signal levels
Analogue video signals provided by the signal generating device shall be accurate within 2 %
of the full range of the video signal when terminated with a 75 Ω load. The accuracy of the
black and white levels shall be confirmed with the three bar video signal specified in 4.1.2.5.
The accuracy of the colour levels shall be confirmed with the full field colour bar video signal
specified in 4.1.2.4. The accuracy may be confirmed with an oscilloscope, waveform monitor,
vector scope or other appropriate measuring device.
Digital input signal levels shall be accurate within the resolution of the signal source
equipment used.
NOTE In addition to the three bar and full field colour bar signals, the 60 Hz DVD and 60 Hz BD include the
SMPTE colour bar signal (SMPTE EG 1:1990) for the user’s convenience.
Annex A
(informative)
Description of video signals used for
the determination of power consumption
A.1 General
Power consumption of some equipment, such as television sets, may vary depending on the
APL′ of the displayed images.
Three video signals are available. These include:
– static video signals (4.1.2);
– dynamic broadcast-content video signals (4.1.3);
– Internet-content video signals (4.1.4).
Either the static video signals or the dynamic broadcast-content video signals are intended to
be used when determining power consumption of equipment that typically uses broadcast-
type video content, such as television sets. The Internet-content video signal is intended to
emulate static, non-video content from the Internet.
NOTE The Internet-content video signal is not intended to emulate dynamic video material that is often
downloaded or streamed from the Internet. Dynamic video is best represented by the dynamic broadcast-content
video signal specified in 4.1.3.
A.2 Static video signals
The static video signal method was initially developed by JEITA in Japan for determining
television power consumption.
Measurement of power consumption based on the static video signals might be chosen for the
simplicity of the test. The static signals may also be appropriate for use with equipment that
typically does not have a video input or is typically not capable of playing video streams.
Power consumption measurements using static signals can often be performed directly by
means of a wattmeter.
A.3 Dynamic broadcast-content video signals
The APL′ of the dynamic broadcast-content video signal was chosen to best emulate actual
APL′ determined internationally. During development of IEC 62087:2008, the project members
measured at least 40 h of typical broadcast content, including a variety of genres from a
variety of broadcast stations in Australia, Japan, the Netherlands, the United Kingdom and the
United States. The captured APL′ curves were averaged to create a target APL′ curve, known
as t
...
