IEC 62087-3:2015

IEC 62087-3 ®
Edition 1.0 2015-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Audio, video, and related equipment – Determination of power consumption –
Part 3: Television sets
Appareils audio, vidéo et matériel connexe – Détermination de la consommation
de puissance –
Partie 3: Téléviseurs
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 21 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC -
Glossaire IEC - std.iec.ch/glossary
webstore.iec.ch/advsearchform
67 000 entrées terminologiques électrotechniques, en anglais
La recherche avancée permet de trouver des publications IEC et en français, extraites des articles Termes et Définitions des
en utilisant différents critères (numéro de référence, texte, publications IEC parues depuis 2002. Plus certaines entrées
comité d’études,…). Elle donne aussi des informations sur les antérieures extraites des publications des CE 37, 77, 86 et
projets et les publications remplacées ou retirées. CISPR de l'IEC.

IEC Just Published - webstore.iec.ch/justpublished Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just Si vous désirez nous donner des commentaires sur cette
Published détaille les nouvelles publications parues. publication ou si vous avez des questions contactez-nous:
Disponible en ligne et aussi une fois par mois par email. sales@iec.ch.

IEC 62087-3 ®
Edition 1.0 2015-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Audio, video, and related equipment – Determination of power consumption –

Part 3: Television sets
Appareils audio, vidéo et matériel connexe – Détermination de la consommation

de puissance –
Partie 3: Téléviseurs
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.160.10 ISBN 978-2-8322-5511-7

– 2 – IEC 62087-3:2015 © IEC 2015

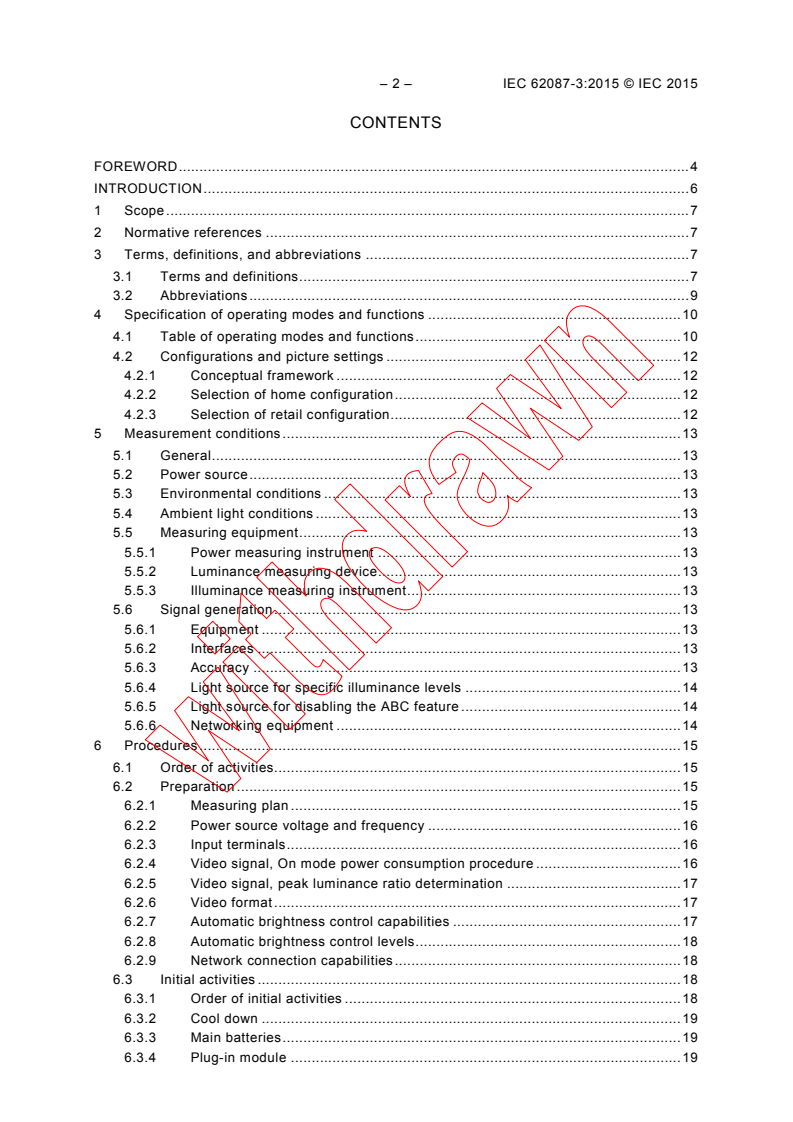

CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms, definitions, and abbreviations . 7
3.1 Terms and definitions . 7
3.2 Abbreviations . 9
4 Specification of operating modes and functions . 10
4.1 Table of operating modes and functions . 10
4.2 Configurations and picture settings . 12
4.2.1 Conceptual framework . 12
4.2.2 Selection of home configuration . 12
4.2.3 Selection of retail configuration . 12
5 Measurement conditions . 13
5.1 General . 13
5.2 Power source . 13
5.3 Environmental conditions . 13
5.4 Ambient light conditions . 13
5.5 Measuring equipment . 13
5.5.1 Power measuring instrument . 13
5.5.2 Luminance measuring device . 13
5.5.3 Illuminance measuring instrument . 13
5.6 Signal generation . 13
5.6.1 Equipment . 13
5.6.2 Interfaces . 13
5.6.3 Accuracy . 13
5.6.4 Light source for specific illuminance levels . 14
5.6.5 Light source for disabling the ABC feature . 14
5.6.6 Networking equipment . 14
6 Procedures . 15
6.1 Order of activities. 15
6.2 Preparation . 15
6.2.1 Measuring plan . 15
6.2.2 Power source voltage and frequency . 16
6.2.3 Input terminals . 16
6.2.4 Video signal, On mode power consumption procedure . 16
6.2.5 Video signal, peak luminance ratio determination . 17
6.2.6 Video format . 17
6.2.7 Automatic brightness control capabilities . 17
6.2.8 Automatic brightness control levels . 18
6.2.9 Network connection capabilities . 18
6.3 Initial activities . 18
6.3.1 Order of initial activities . 18
6.3.2 Cool down . 19
6.3.3 Main batteries . 19
6.3.4 Plug-in module . 19

6.3.5 Installation . 19
6.3.6 Application of input signals . 20
6.3.7 Luminance measuring device setup . 20
6.3.8 Light source setup . 20
6.3.9 Power on . 21
6.3.10 TV settings . 21
6.4 Determination of power consumption, On mode . 22
6.4.1 Order of activities . 22
6.4.2 Stabilization . 23
6.4.3 Television sets without automatic brightness control enabled by default . 24
6.4.4 Television sets with automatic brightness control enabled by default . 24
6.4.5 Power measurement . 24
6.5 Determination of peak luminance ratio and power factor . 26
6.5.1 General . 26
6.5.2 Activities for peak luminance ratio and power factor determination . 26
6.6 Determination of power consumption, Partial On mode . 28
6.6.1 General . 28
6.6.2 Order of activities . 29
6.6.3 AV inputs . 29
6.6.4 Standby-passive . 29
6.6.5 Standby-active, low . 29
6.7 Determination of power consumption, Off mode . 30
6.7.1 Connections and networking . 30
6.7.2 Availability . 31
6.7.3 Measurement . 31
Annex A (informative) Considerations for On mode television set power measurements . 32
A.1 General . 32
A.2 Illuminance levels for automatic brightness control . 32
A.3 Weighting of automatic brightness control levels . 32
A.4 Calculating On mode power consumption . 33
A.5 Picture level adjustments . 34
Annex B (normative) Test report . 35
Annex C (informative) Example test report template. 36
Bibliography . 39

Figure 1 – Configurations and picture settings, conceptual framework . 12
Figure 2 – Recommended order of activities . 15
Figure 3 – Order of initial activities. 19
Figure 4 – Light source configuration . 21
Figure 5 – Order of activities for determining power consumption, On mode . 23
Figure 6 – Order of activities for determining peak luminance ratio and power factor . 27
Figure 7 – Order of activities for determining the power consumption, Partial On mode . 29

Table 1 – Operating modes and functions . 11

– 4 – IEC 62087-3:2015 © IEC 2015
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
AUDIO, VIDEO, AND RELATED EQUIPMENT –
DETERMINATION OF POWER CONSUMPTION –

Part 3: Television sets
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62087-3 has been prepared by technical area 12: AV energy
efficiency and smart grid applications, of IEC technical committee 100: Audio, video and
multimedia systems and equipment.
This bilingual version (2018-04) corresponds to the monolingual English version, published in
2015-06.
This first edition of IEC 62087-3 cancels and replaces Clauses 6 and 11 and Annex B of
IEC 62087:2011. This standard together with IEC 62087-1 to IEC 62087-2 and IEC 62087-4 to
IEC 62087-6 cancels and replaces IEC 62087:2011 in its entirety. This edition constitutes a
technical revision.
This edition includes the following significant technical changes with respect to Clauses 6 and
11 and Annex B of IEC 62087:2011.

– For TVs with an automatic brightness control feature, power may now be measured at
multiple specific illumination levels.
– A method has been defined for determining the ratio of peak luminance expected in the
home versus the peak luminance expected in the retail environment.
– Sections related to general measuring conditions and procedures are now in
IEC 62087-1:2015.
– Sections related to signals and media are now in IEC 62087-2:2015.
– The titles have changed in order to comply with the current directives and to accommodate
the multipart structure.
The text of this standard is based on the following documents:
FDIS Report on voting
100/2468/FDIS 100/2498/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
The French version of this standard has not been voted upon.
A list of all parts in the IEC 62087 series, published under the general title Audio, video, and
related equipment – Determination of power consumption, can be found on the IEC website.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 6 – IEC 62087-3:2015 © IEC 2015
INTRODUCTION
This standard specifies the determination of the power consumption of television sets for
consumer use. It is used in conjunction with IEC 62087-2:2015, which specifies signals and
media.
This standard includes measuring procedures for the determination of power consumption in
the On (operation) mode, which was identified as “On (average) mode” in previous editions of
IEC 62087. Additionally, it specifies measuring procedures for the determination of power
consumption in the Off mode and Partial On mode. This standard also defines the
determination of the peak luminance ratio for use associated with television set power
consumption evaluation as well as the power factor.
A verification procedure to assess product compliance is described in Annex A of
IEC 62087-1:2015.
IEC 62087 has been subdivided and currently consists of the following planned or published
parts:
– Part 1: General
– Part 2: Signals and media
– Part 3: Television sets
– Part 4: Video recording equipment
– Part 5: Set top boxes
– Part 6: Audio equipment
AUDIO, VIDEO, AND RELATED EQUIPMENT –
DETERMINATION OF POWER CONSUMPTION –

Part 3: Television sets
1 Scope
This part of IEC 62087 specifies the determination of the power consumption and related
characteristics of television sets. Television sets include, but are not limited to, those with
CRT, LCD, PDP, OLED, or projection technologies.
The operating modes and functions, as they specifically apply to television sets, are defined
in detail in this part of IEC 62087.
This standard is limited to television sets that can be connected to an external power source.
Television sets that include a non-removable, main battery are not covered by this standard.
Television sets may include any number of auxiliary batteries.
The measuring conditions in this standard represent the normal use of the equipment and
may differ from specific conditions, for example as specified in safety standards.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 62087-1:2015, Audio, video, and related equipment – Determination of power
consumption – Part 1: General
IEC 62087-2:2015, Audio, video, and related equipment – Determination of power
consumption – Part 2: Signals and media
IEC 62301:2011, Household electrical appliances – Measurement of standby power
3 Terms, definitions, and abbreviations
3.1 Terms and definitions
For the purposes of this document, the terms, definitions and abbreviations, in
IEC 62087-1:2015, IEC 62087-2:2015, and the following apply.
3.1.1
additional functions
functions that are not required for the basic operation of the device
Note 1 to entry: Examples of additional functions include, but are not limited to, a VCR unit, a DVD unit, an HDD
unit, an FM-radio unit, a memory card-reader unit, or an ambient lighting unit.

– 8 – IEC 62087-3:2015 © IEC 2015
3.1.2
brightest selectable preset picture setting
user selectable, preset picture setting that produces the highest luminance picture in the
home or default configuration
Note 1 to entry: See Figure 1.
3.1.3
conditional access
encryption, decryption, and authorization techniques employed to protect content from
unauthorized viewing
3.1.4
conditional access module
plug-in module that enables conditional access
3.1.5
category 5e cable
twisted pair cable used for computer networks
Note 1 to entry: See IEC 61156-5 and IEC 61156-6.
3.1.6
default configuration
configuration for television sets without a forced menu
Note 1 to entry: See Figure 1.
3.1.7
default picture setting
out-of-the-box picture setting for television sets in the home or default configuration
Note 1 to entry: See Figure 1.
3.1.8
forced menu
configuration selection required of the user when a television set is turned on for the first time
that forces the user to choose between the home configuration and the retail configuration
Note 1 to entry: See Figure 1.
3.1.9
home configuration
forced menu selection most likely to be chosen for home use
Note 1 to entry: Subclause 4.2.2 describes the selection of home configuration from the forced menu. This
configuration selection is generally named “home”, “standard”, or equivalent.
Note 2 to entry: See Figure 1.
3.1.10
neutral density filter
ND filter
optical device that reduces the light intensity in the visible wavelength region
3.1.11
overall brightest preset picture setting
either the retail picture setting or the brightest selectable preset picture setting, whichever
produces the highest luminance picture
Note 1 to entry: See Figure 1.

3.1.12
plug-in module
device that plugs into television sets to provide additional functionality
3.1.13
point of deployment module
conditional access module for digital signal reception
3.1.14
quick start
feature that, when enabled, presents sound and picture quickly when switching from Partial
On mode to On mode
3.1.15
retail configuration
forced menu selection most likely to be chosen for use in a retail environment
Note 1 to entry: Subclause 4.2.3 describes the selection of retail configuration from the forced menu. This
configuration selection is generally recommended by the manufacturer for presentation in a public space when the
television set is offered for sale and might be named “retail”, “store”, “shop”, or equivalent.
Note 2 to entry: See Figure 1.
3.1.16
retail picture setting
out-of-the-box picture setting for television sets with a forced menu in the retail configuration
Note 1 to entry: See Figure 1.
3.1.17
selectable preset picture setting
TV picture setting that is selectable by a user from a set of manufacturer-defined picture
settings
Note 1 to entry: See Figure 1.
3.1.18
special functions
functions that are related to, but not required for, the basic operation of the device
Note 1 to entry: Examples of special functions include, but are not limited to, special sound processing, power
saving functions (e.g. automatic brightness control).
3.1.19
television set
TV
equipment for the reception and display of television broadcast and similar services for
terrestrial, cable, satellite and broadband network transmission of analogue and/or digital
signals
Note 1 to entry: A television set may include additional functions that are not required for its basic operation.
3.2 Abbreviations
ABC Automatic Brightness Control
AV Audio-visual
BD Blu-ray Disc™
___________
Blu-ray Disc™ is a trade mark of the Blue-ray Disc Association. This information is given for the convenience of
users of this document and does not constitute an endorsement by IEC of the product named.

– 10 – IEC 62087-3:2015 © IEC 2015
CRT Cathode Ray Tube
DVD Digital Versatile Disc
DHCP Dynamic Host Configuration Protocol
DVI Digital Visual Interface
FM Frequency Modulation
HDD Hard Disk Drive
HDMI® High Definition Multimedia Interface
IP Internet Protocol
LAN Local Area Network
LCD Liquid Crystal Display
LMD Luminance Measuring Device
LNB Low Noise Block
NAT Network Address Translation
ND Neutral Density
OLED Organic Light-Emitting Diode
PC Personal Computer
PDP Plasma Display Panel
RF Radio Frequency
SCR Silicon Controlled Rectifier
STB Set Top Box
SSID Service Set IDentifier
TV TeleVision set
UUT Unit Under Test
VCR Video Cassette Recorder
VGA Video Graphics Array
WAN Wide Area Network
WLAN Wireless Local Area Network
WOL Wake-On-LAN
WoWLAN Wake on Wireless LAN
WPA Wi-Fi Protected Access
WPA2 Wi-Fi Protected Access 2
4 Specification of operating modes and functions
4.1 Table of operating modes and functions
Table 1 describes the various operating modes and functions for television sets.
For all modes, main batteries, if any, shall be removed for the duration of the measurement
procedure. (IEC 62087-1:2015, 5.1.1.1.)
___________
HDMI® is a registered trade mark of HDMI Licensing, LLC. This information is given for the convenience of
users of this document and does not constitute an endorsement by IEC of the product named.

Table 1 – Operating modes and functions
Power Mode Sub-mode Function(s) Functional description for TV
0 W Disconnected Disconnected – Disconnected from power The television set is disconnected
source or galvanically isolated from all
external power sources.
≥0 W Off Off – Off The television set is connected to
an external power source and
does not produce picture or sound
and does not provide any other
function that depends on an
external power source. The
television set cannot be switched
into any other mode with the
remote control unit, or an external
or internal signal. Note that some
power may be consumed if an
EMC filter or other components
exist on the source side of the
power switch.
Partial On Standby- – Wake on The television set is connected to
>0 W
passive an external power source and
• remote control
does not provide picture or sound.
• internal signal
The television set can be switched
into another mode with the remote
control unit or an internal signal,
but not with an external signal.
Standby- – Wake on The television set is connected to
active, low an external power source and
• remote control
does not provide picture or sound.
• internal signal
The television set can be switched
• external signal
into another mode with the remote
control unit or an internal signal
and can additionally be switched
into another mode with an
external signal.
NOTE When in Standby-active,
low mode, a television may be
able to be switched into the On
mode, the Off mode, the Standby-
passive, or the Standby-active,
high mode.
Standby- – Wake on The television set is connected to
active, high an external power source and
• remote control
does not provide picture or sound.
• internal signal
The television set can be switched
• external signal into another mode with the remote
control unit, an internal signal, or
– Data communications
an external signal. Additionally,
the television set is exchanging/
receiving data with/from an
external source.
Determination of power
consumption in this sub-mode is
not specified by this standard.
On Operation – Operation The television set is connected to
an external power source and
provides picture and, if possible,
sound.
– 12 – IEC 62087-3:2015 © IEC 2015
4.2 Configurations and picture settings
4.2.1 Conceptual framework
Figure 1 shows a conceptual framework that includes the various configurations and picture
settings for television sets.
TV with TV without
forced menu forced menu
3.1.8
“Home” “Retail”
forced
menu
3.1.9 home 3.1.15 retail 3.1.6 default
configuration configuration configuration
3.1.17
3.1.17
selectable preset selectable preset

picture setting
picture setting
No Adjustments unless otherwise directed in this standard
3.1.7 default 3.1.2 brightest 3.1.7 default 3.1.2 brightest
3.1.16 retail
picture setting selectable preset picture setting picture setting selectable preset
picture setting picture setting
3.1.11 overall 3.1.11 overall
brightest preset brightest preset
picture setting picture setting
IEC
Figure 1 – Configurations and picture settings, conceptual framework
4.2.2 Selection of home configuration
When directed in this standard, the home configuration shall be selected from the forced
menu by choosing the configuration that is recommended for normal home use and, if not
clearly defined, it shall be selected by choosing the first configuration listed in the forced
menu.
If the UUT has no forced menu, it shall remain in the default configuration.
NOTE A factory reset might be required in order to enter the home configuration after the retail configuration has
been previously selected.
4.2.3 Selection of retail configuration
When directed in this standard, retail configuration shall be selected from the forced menu by
choosing the configuration that, without any other adjustments, results in the highest display
luminance.
If the UUT has no forced menu, it shall remain in the default configuration.
NOTE A factory reset might be required in order to enter the retail configuration after the home configuration has
been previously selected.
5 Measurement conditions
5.1 General
The measurement conditions clause specifies requirements that are independent of the
equipment to be evaluated. When setting up a test laboratory, these requirements shall be
taken into account.
The requirements of this clause apply to the procedures specified in Clause 6.
5.2 Power source
Defined in IEC 62087-1:2015, 5.1.1.
5.3 Environmental conditions
Defined in IEC 62087-1:2015, 5.1.2.
5.4 Ambient light conditions
For determining On mode power consumption for television sets with ABC enabled, ≤1 lx shall
be confirmed at the surface of the ABC sensor assembly with the light sources (5.6.4, 5.6.5)
off and the UUT in the Off or Disconnected mode.
For determining the peak luminance ratio with a non-contact LMD, ≤5 lx shall be confirmed at
the nominal centre of the display area of the UUT in Off or Disconnected mode. This
requirement applies whether or not a light source (5.6.5) is applied to disable the ABC
feature.
A dark room and/or shroud may be necessary in order to achieve the required ambient light
conditions.
5.5 Measuring equipment
5.5.1 Power measuring instrument
Defined in IEC 62087-1:2015, 5.1.5.
5.5.2 Luminance measuring device
Defined in IEC 62087-1:2015, 5.1.7.
5.5.3 Illuminance measuring instrument
Defined in IEC 62087-1:2015, 5.1.8.
5.6 Signal generation
5.6.1 Equipment
Defined in IEC 62087-2:2015, 6.1.
5.6.2 Interfaces
Defined in IEC 62087-2:2015, 6.2.
5.6.3 Accuracy
Defined in IEC 62087-2:2015, 6.3.

– 14 – IEC 62087-3:2015 © IEC 2015
5.6.4 Light source for specific illuminance levels
The light source used for illuminating the ABC sensor to specific illuminance levels shall use a
dimmable halogen lamp in a sealed reflector and shall have a diameter of 120 mm or less.
The rated correlated colour temperature shall be 2 800 K ± 300 K at its rated voltage. The
front surface of the lamp shall be clear (i.e., not coloured or coated with a spectrum modifying
material) and may have a smooth or granular front surface. The lamp assembly shall not
modify the spectrum of the halogen source, including the IR and UV bands.
The lamp shall be capable of providing the highest illumination level chosen in 6.2.8 within the
range of 70 % to 110 % of its rated voltage when configured as specified in 6.3.8.
For luminance levels below 10 lx, a 2 stop ND filter (3.1.10) shall be used. No ND filter shall
be used for luminance levels at or above 10 lx. The ND filter shall be of the absorptive type
and shall be large enough to cover the entire light acceptance area of the ABC sensor
assembly with a margin of at least 5 mm on all sides. The ND filter shall have an average
transmission of 25 % ± 2,5 % within the visible range, which is 400 nm to 700 nm, without
selectively absorbing light at specific wavelengths.
Specific illuminance levels shall be obtained by controlling the voltage and/or duty cycle to the
above light source.
The model of the lamp used for illuminating the ABC sensor to specific illuminance levels
shall be reported.
Some lighting controllers, such as those with SCR-based circuits, may introduce current
spikes into the power source. Such controllers should be avoided or otherwise isolated from
the power source for the UUT.
5.6.5 Light source for disabling the ABC feature
The light source used for disabling the ABC feature shall use a dimmable halogen lamp in a
sealed reflector and shall have a diameter of 120 mm or less. The rated correlated colour
temperature shall be 2 800 K ± 300 K at its rated voltage. The front surface of the lamp shall
be clear (i.e., not coloured or coated with a spectrum modifying material) and may have a
smooth or granular front surface. The lamp assembly shall not modify the spectrum of the
halogen source, including the IR and UV bands. The light source shall be capable of providing
300 lx or greater when applied directly to the ABC sensor assembly.
The model of the lamp used for disabling the ABC feature shall be reported.
5.6.6 Networking equipment
For wireless connectivity, a Wi-Fi wireless access point that is compatible with
IEEE 802.11-2007 shall be used.
For wired connectivity, a category 5e or better cable and an Ethernet switch or router that
supports IEEE 802.3 shall be used. If the UUT supports Energy Efficient Ethernet
(IEEE 802.3az-2010), the Ethernet router shall also support IEEE 802.3az-2010. The
networking equipment shall support the highest and lowest data speeds of the UUT’s network
function.
The networking equipment shall not be connected to a wide area network (WAN).

6 Procedures
6.1 Order of activities
The following order of activities is recommended (also represented in Figure 2):
– preparation (6.2),
– initial activities (6.3),
– determination of power consumption, On mode (6.4),
– determination of peak luminance ratio and power factor (6.5),
– determination of power consumption, Partial On mode (6.6),
– determination of power consumption, Off mode (6.7).
The above order is chosen to ensure proper stabilization prior to the taking of each
measurement. The technician performing the activities may vary the order as needed.
However, the stabilization process prior to the taking of each measurement shall effectively
be the same as if the recommended order had been followed.
Start
6.2 Preparation
6.3 Initial activities (Figure 3)
6.4 Determination of power
consumption, On mode (Figure 5)
6.5 Determination of peak luminance
ratio and power factor (Figure 6)
6.6 Determination of
power consumption,
Partial On mode (Figure 7)
6.7 Determination of
power consumption,
Off mode
End
IEC
Figure 2 – Recommended order of activities
6.2 Preparation
6.2.1 Measuring plan
Before the UUT has been installed, a measuring plan should be developed based on the
specifications of the UUT and the region in which the results are to be reported. The

– 16 – IEC 62087-3:2015 © IEC 2015
measuring plan is based on the decision points in 6.2.2 through 6.2.9. These decision points
include:
– power source voltage and frequency (6.2.2),
– input terminals (6.2.3),
– video signal, On mode power consumption procedure (6.2.4),
– video signal, peak luminance ratio procedure (6.2.5),
– video format (6.2.6),
– automatic brightness control capabilities (6.2.7),
– automatic brightness control levels (6.2.8),
– network connection capabilities (6.2.9).
When these decisions have been taken, the following activities can be expected to be
deterministic.
6.2.2 Power source voltage and frequency
Whether the UUT is to be powered by an included external power supply (IEC 62087-1:2015,
5.1.1.2), mains power (IEC 62087-1:2015, 5.1.1.3), and/or power from other than the mains
(IEC 62087-1:2015, 5.1.1.4) shall be determined and shall be described in the report.
The voltage and frequency of the power source shall be reported.
6.2.3 Input terminals
A single set of input terminals shall be selected for use during the procedure. If the power
consumption of the UUT is to be determined with multiple video input terminal types for
comparison purposes, the entire procedure should be performed multiple times, each time
with a single set of input terminals selected, to ensure proper stability under each condition.
If available, an HDMI input shall be selected. Selection of the video input terminal shall be
prioritized in the following order: HDMI, component analogue, S-Video, composite analogue,
other AV or RF input. DVI, VGA, and other inputs that are primarily used for connections with
computers (as compared to AV equipment) shall not be used.
For HDMI inputs, only inputs intended for standard AV sources, such as STBs or BD players
shall be used. HDMI inputs intended for other sources, such as “PC” or “Game”, shall not be
used.
The selected input terminals shall be reported.
6.2.4 Video signal, On mode power consumption procedure
A video signal shall be selected for use during the On mode power consumption determination
procedure. The selection shall be made from one of the three following signals:
– static video signals (IEC 62087-2:2015, 4.1.2),
– dynamic broadcast-content video signal (IEC 62087-2:2015, 4.1.3),
– Internet-content video signal (IEC 62087-2:2015, 4.1.4).
The video signal selected for determining On mode power consumption shall be reported.
NOTE Information regarding the selection of the video signal for the On mode power consumption measurement
is available in IEC 62087-2:2015, Annex A.
...
