Amendment 2 - Household and similar electrical appliances - Safety - Part 2-107: Particular requirements for robotic battery powered electrical lawnmowers

General Information

Status
Published
Publication Date
18-Nov-2021
Drafting Committee
WG 10 - TC 116/WG 10
Current Stage
PPUB - Publication issued
Start Date
19-Nov-2021
Completion Date
13-Dec-2021

Relations

Effective Date
05-Sep-2023

Overview

IEC 60335-2-107:2017/AMD2:2021 is an important international amendment issued by the International Electrotechnical Commission (IEC) focusing on the safety requirements specific to robotic battery powered electrical lawnmowers. This amendment updates Part 2-107 of the IEC 60335 series, which addresses household and similar electrical appliances, emphasizing enhanced safety protocols for advanced autonomous lawn care devices. As robotic lawnmowers become increasingly popular, adhering to global safety standards like this amendment ensures reliable, secure operation with emphasis on user protection and device reliability.

Key Topics

  • Obstruction Sensors: A critical safety feature requiring robotic lawnmowers to be equipped with obstruction sensors that are fully functional in all operating positions and travel directions. These sensors must detect and respond to physical obstacles, ensuring the machine stops or reroutes to prevent injury or damage.

  • Force Limits on Impact: The machine’s force when encountering an obstruction is strictly limited to a maximum of 260 N during the first 0.5 seconds and 130 N thereafter, reducing potential harm or damage.

  • Stop and Restart Protocols: Upon detecting an obstacle, the lawnmower’s traction drive must stop within a calculated stopping time, then restart in a different direction within 3 seconds to move away from the obstacle. Extended sensor activation beyond 3 seconds triggers cutting tool shutdown to ensure safety.

  • Non-contact Sensor Criteria: The amendment allows the use of non-contact sensors under specific, validated conditions with detailed mechanical and environmental specifications to ensure reliable obstacle detection without physical contact.

  • Testing and Compliance: The amendment defines rigorous test procedures utilizing force-measuring instruments and simulated obstacles that robotic lawnmowers must pass to verify compliance with obstruction sensor performance, stopping times, and safety measures.

  • Fault Handling and Software Controls: Electronic and programmable circuits integrated into the lawnmower must be resilient to fault conditions as described in the document, with software controls conforming to IEC requirements for error management.

Applications

This standard applies directly to manufacturers, testing agencies, and certification bodies involved with:

  • Design and Production of robotic battery powered lawnmowers, ensuring devices meet stringent international safety standards before market release.

  • Safety Testing and Certification to evaluate whether lawnmowers comply with obstruction sensor requirements, force limits during collision, and software reliability under fault conditions.

  • Quality Assurance and Risk Management during the development and post-production phases to minimize hazards associated with autonomous operation of lawn care robots.

  • Regulatory Compliance for companies aiming for global markets, facilitating product acceptance by fulfilling IEC’s internationally recognized safety criteria.

Adoption of IEC 60335-2-107:2017/AMD2:2021 helps reduce accidents, liability risks, and enhances consumer trust in robotic lawnmower technology.

Related Standards

  • IEC 60335 Series: Foundation standards related to the safety of household and similar electrical appliances.

  • ISO/TS 15066: Technical specification referenced for guidance on maximum force values in human-robot interactions.

  • IEC 60335-2-107:2017: The base edition for particular requirements of robotic battery powered electrical lawnmowers before Amendment 2 updates.

  • Relevant IEC and ISO Directives: Providing standardized processes for the preparation, development, and maintenance of electrotechnical standards and software fault tolerance (Annex R).

Summary

IEC 60335-2-107:2017/AMD2:2021 amendment sets forth specialized safety requirements for robotic battery powered electrical lawnmowers, focusing on precise obstruction detection, controlled impact forces, reliable stop-and-restart mechanisms, and robust fault handling. This amendment guides manufacturers and testing bodies towards global safety compliance, helping to safeguard users while promoting innovation in autonomous lawn care technology. For anyone involved in design, certification, or regulation of robotic lawnmowers, this IEC amendment is essential for ensuring safe and market-ready products.

Standard

IEC 60335-2-107:2017/AMD2:2021 - Amendment 2 - Household and similar electrical appliances - Safety - Part 2-107: Particular requirements for robotic battery powered electrical lawnmowers

English language
5 pages
sale 15% off
Preview
sale 15% off
Preview

Frequently Asked Questions

IEC 60335-2-107:2017/AMD2:2021 is a standard published by the International Electrotechnical Commission (IEC). Its full title is "Amendment 2 - Household and similar electrical appliances - Safety - Part 2-107: Particular requirements for robotic battery powered electrical lawnmowers". This standard covers: Amendment 2 - Household and similar electrical appliances - Safety - Part 2-107: Particular requirements for robotic battery powered electrical lawnmowers

Amendment 2 - Household and similar electrical appliances - Safety - Part 2-107: Particular requirements for robotic battery powered electrical lawnmowers

IEC 60335-2-107:2017/AMD2:2021 is classified under the following ICS (International Classification for Standards) categories: 65.060.70 - Horticultural equipment. The ICS classification helps identify the subject area and facilitates finding related standards.

IEC 60335-2-107:2017/AMD2:2021 has the following relationships with other standards: It is inter standard links to IEC 60335-2-107:2017. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.

IEC 60335-2-107:2017/AMD2:2021 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

Standards Content (Sample)


IEC 60335-2-107 ®
Edition 2.0 2021-11
INTERNATIONAL
STANDARD
AMENDMENT 2
Household and similar electrical appliances – Safety –
Part 2-107: Particular requirements for robotic battery powered electrical
lawnmowers
IEC 60335-2-107:2017-12/AMD2:2021-11(en)

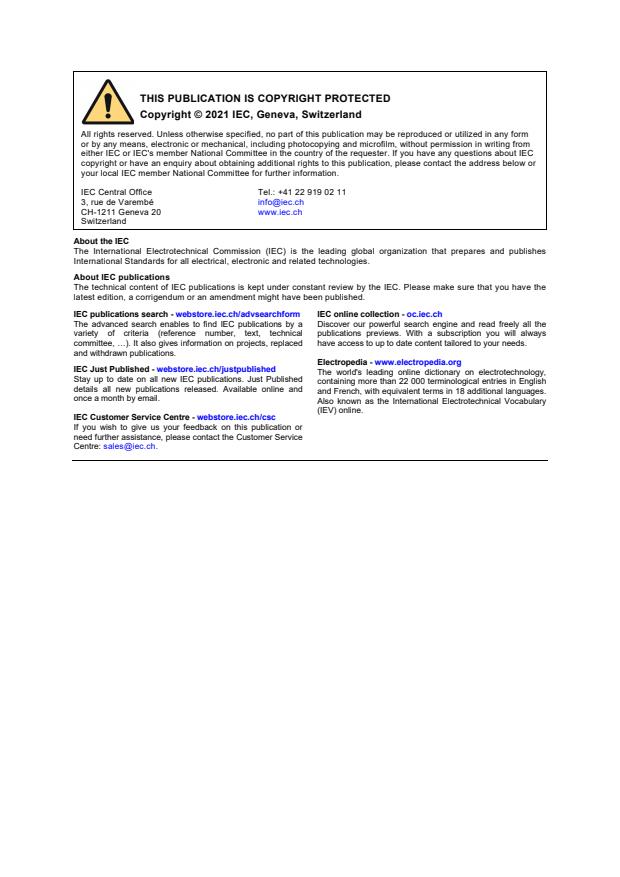

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc

If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
IEC 60335-2-107 ®
Edition 2.0 2021-11
INTERNATIONAL
STANDARD
AMENDMENT 2
Household and similar electrical appliances – Safety –

Part 2-107: Particular requirements for robotic battery powered electrical

lawnmowers
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 65.060.70 ISBN 978-2-8322-1049-9

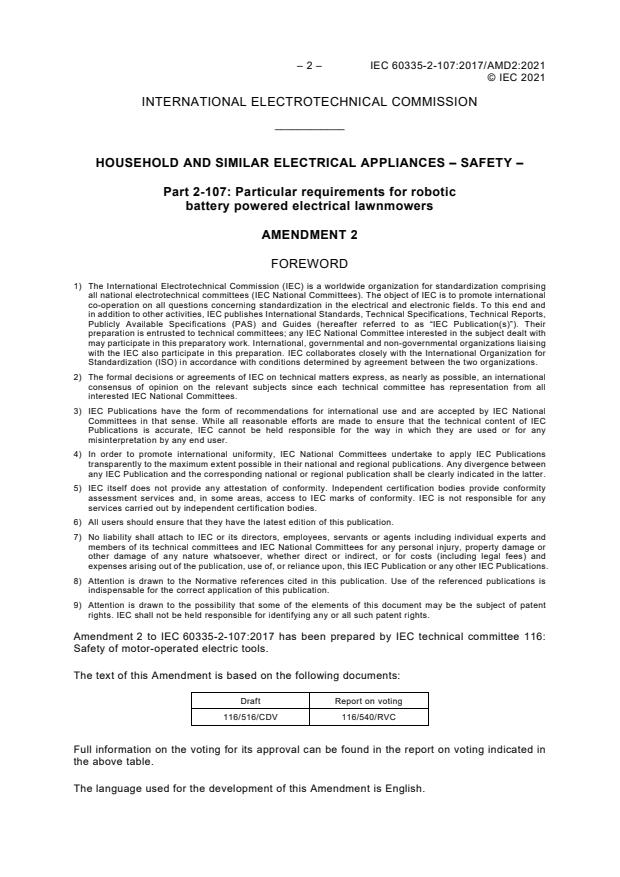

– 2 – IEC 60335-2-107:2017/AMD2:2021
© IEC 2021
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES – SAFETY –

Part 2-107: Particular requirements for robotic
battery powered electrical lawnmowers

AMENDMENT 2
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
Amendment 2 to IEC 60335-2-107:2017 has been prepared by IEC technical committee 116:
Safety of motor-operated electric tools.
The text of this Amendment is based on the following documents:
Draft Report on voting
116/516/CDV 116/540/RVC
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this Amendment is English.

IEC 60335-
...
