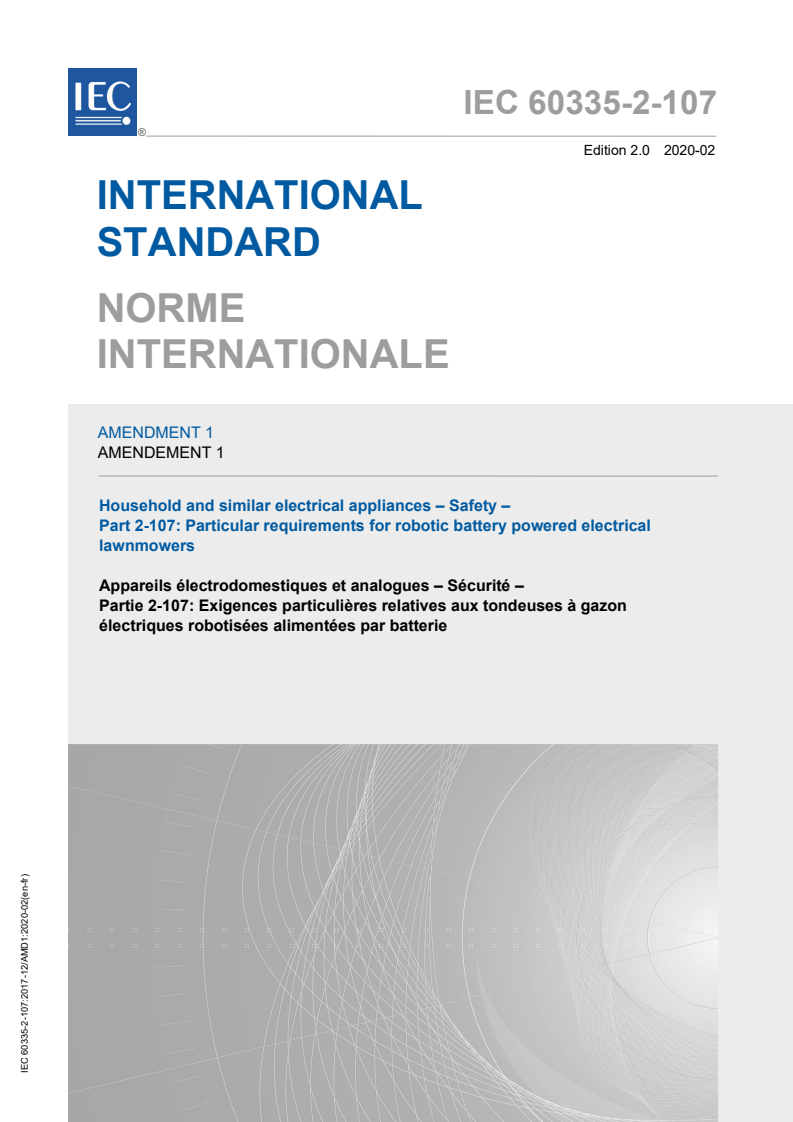

IEC 60335-2-107:2017/AMD1:2020

IEC 60335-2-107 ®
Edition 2.0 2020-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 1
AM ENDEMENT 1
Household and similar electrical appliances – Safety –
Part 2-107: Particular requirements for robotic battery powered electrical
lawnmowers
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-107: Exigences particulières relatives aux tondeuses à gazon
électriques robotisées alimentées par batterie

IEC 60335-2-107:2017-12/AMD1:2020-02(en-fr)

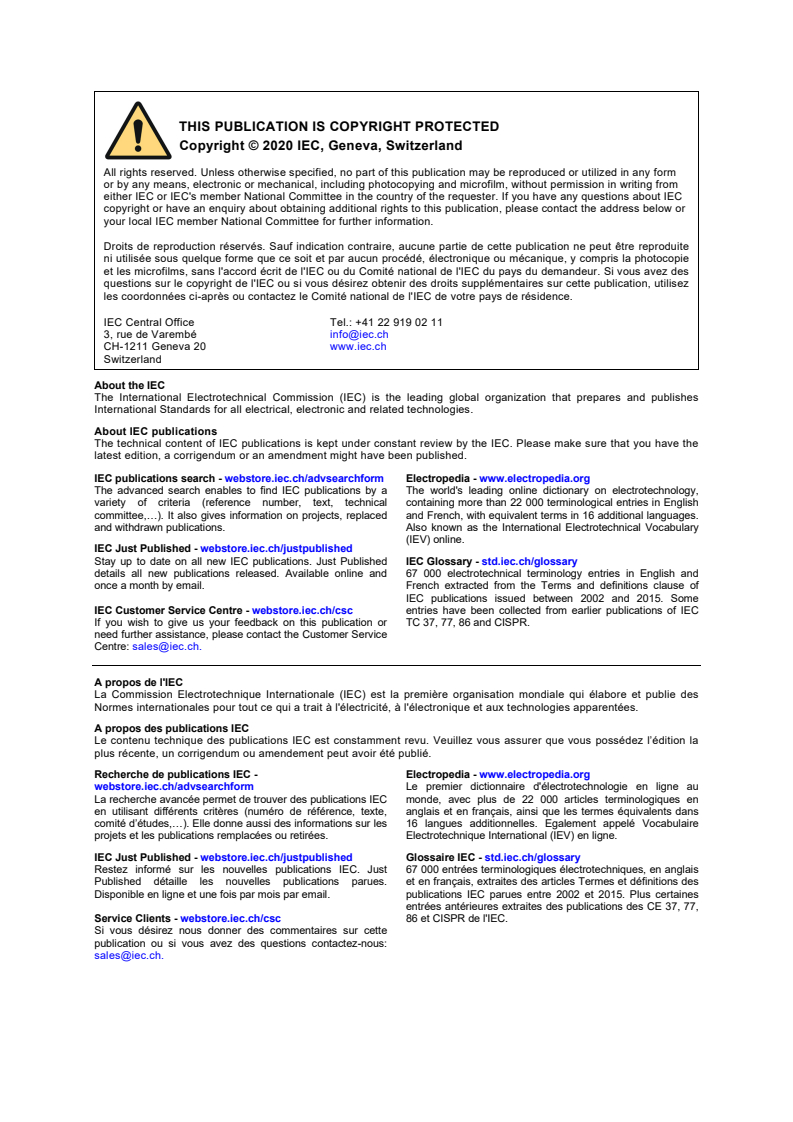

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and definitions clause of
IEC publications issued between 2002 and 2015. Some
IEC Customer Service Centre - webstore.iec.ch/csc entries have been collected from earlier publications of IEC
If you wish to give us your feedback on this publication or TC 37, 77, 86 and CISPR.

need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Electropedia - www.electropedia.org
webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au
La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en
en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans
comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire
projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary
Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais
Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et définitions des
Disponible en ligne et une fois par mois par email. publications IEC parues entre 2002 et 2015. Plus certaines
entrées antérieures extraites des publications des CE 37, 77,
Service Clients - webstore.iec.ch/csc 86 et CISPR de l'IEC.

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.

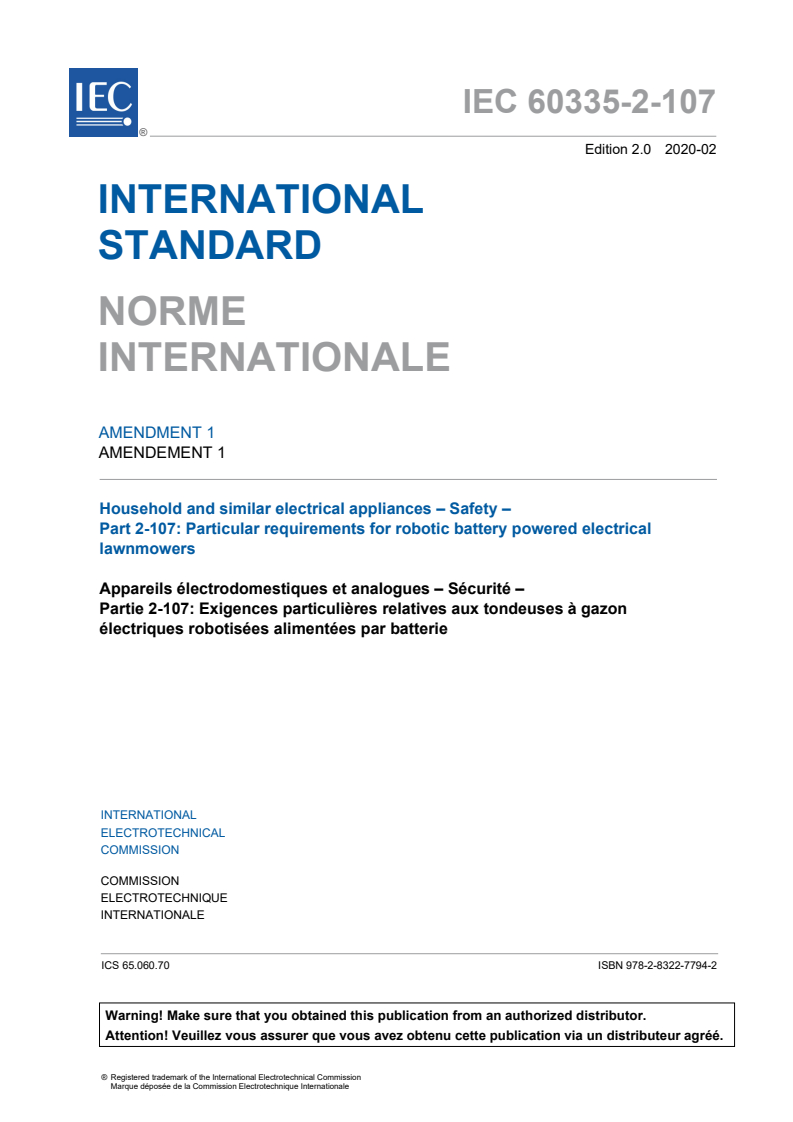

IEC 60335-2-107 ®
Edition 2.0 2020-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 1
AM ENDEMENT 1
Household and similar electrical appliances – Safety –

Part 2-107: Particular requirements for robotic battery powered electrical

lawnmowers
Appareils électrodomestiques et analogues – Sécurité –

Partie 2-107: Exigences particulières relatives aux tondeuses à gazon

électriques robotisées alimentées par batterie

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 65.060.70 ISBN 978-2-8322-7794-2

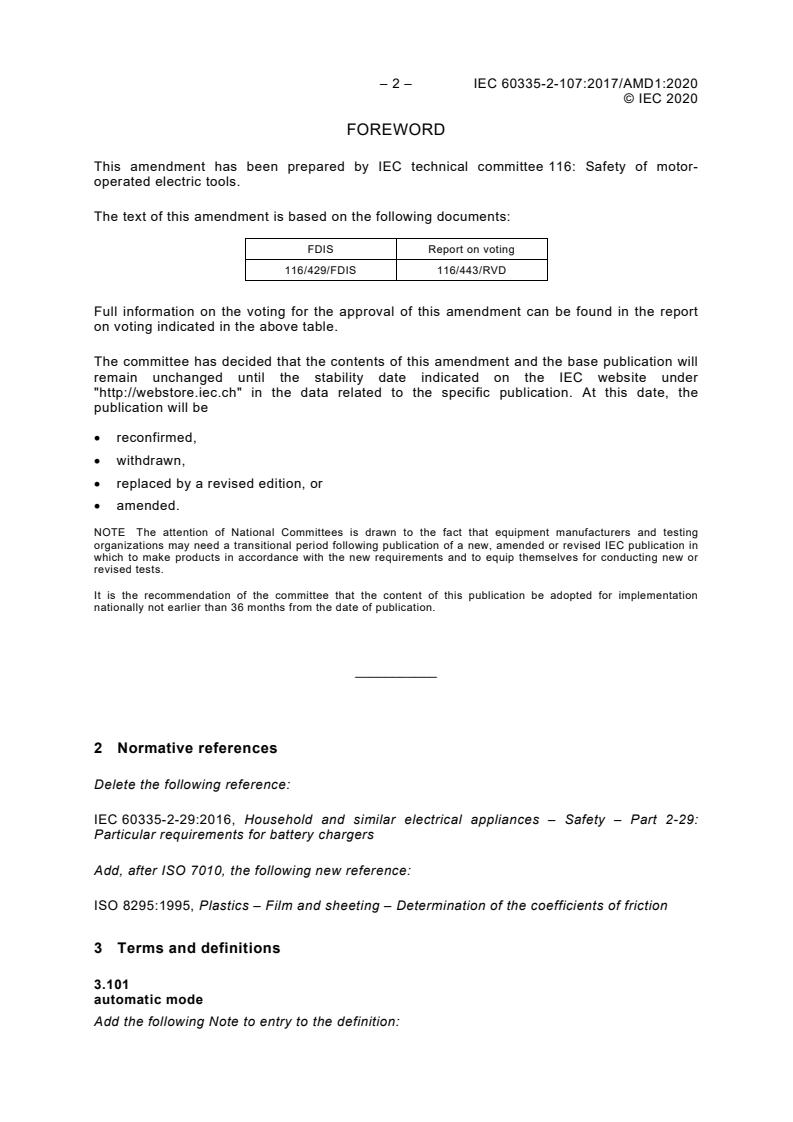

– 2 – IEC 60335-2-107:2017/AMD1:2020
© IEC 2020
FOREWORD
This amendment has been prepared by IEC technical committee 116: Safety of motor-
operated electric tools.
The text of this amendment is based on the following documents:
FDIS Report on voting
116/429/FDIS 116/443/RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC website under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
NOTE The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation
nationally not earlier than 36 months from the date of publication.

___________
2 Normative references
Delete the following reference:
IEC 60335-2-29:2016, Household and similar electrical appliances – Safety – Part 2-29:
Particular requirements for battery chargers
Add, after ISO 7010, the following new reference:
ISO 8295:1995, Plastics – Film and sheeting – Determination of the coefficients of friction
3 Terms and definitions
3.101
automatic mode
Add the following Note to entry to the definition:

© IEC 2020
Note 1 to entry: Operation of the machine without the use of a manual controller and without the cutting means
operating during set up of the working area is considered not to be operation in automatic mode.
Replace the existing Definition 3.128 with the following:
3.128
peripherals
equipment additional to the machine itself that is provided by the manufacturer for intended
use of the machine, e.g. charging station(s), manual controller, signal source for perimeter
delimiter
Add, at the end of Clause 3, the following new definitions:
3.138
switched circuit
circuit that is a low-power circuit when the power switch is in the “off” position
Note 1 to entry: The requirements for a low-power circuit are given in 19.11.1.
3.139
power switch
device that electrically activates the cutting means and/or traction drive of the machine in
the “on” position and deactivates the same function of the machine in its “off” position
Note 1 to entry: The device is comprised of all primary and ancillary components (e.g. tactile switch, relays, load
switches) of the electrical control circuit that activates the cutting means and/or traction drive of the machine.
6 Classification
Replace the existing Subclause 6.1 with the following:
6.1 Replacement:
This subclause is not applicable for machines and non-mains-powered peripherals.
NOTE Machines and non-mains-powered peripherals covered by this standard are limited to those where the
only power source is a battery and are therefore considered not to be a class I appliance, class II appliance, or
a class III appliance and are not required to have basic insulation, supplementary insulation or reinforced
insulation. Electric shock hazard is considered to exist only between parts of opposite polarity where hazardous
voltage is present.
Mains-powered peripherals shall be of one of the following classes with respect to protection
against electric shock:
– class II appliance;
– class III appliance.
Compliance is checked by inspection and by the relevant tests.
Replace the existing Subclause 6.2 with the following:
6.2 Addition:
Enclosures of machines shall be at least IPX1, except enclosures containing parts having a
working voltage that is a hazardous voltage, which shall be at least IPX4. Enclosures of
charging stations and other peripherals intended to be installed outdoors (e.g. a signal
source for a perimeter delimiter) shall be at least IPX1 if of class III construction.
Constructions other than class III construction shall be at least IPX4.

– 4 – IEC 60335-2-107:2017/AMD1:2020
© IEC 2020
7 Marking and instructions
7.1
Replace the existing text of Note 8 with the following new text:
NOTE 8 Void
Replace the existing text of Note 11 with the following new text:
NOTE 11 Void
20 Stability and mechanical hazards
Delete the third dashed item of 20.102.2 (“rollover sensor”).
Replace the existing Subclause 20.102.4.1.1 with the following:
20.102.4.1.1 General
Inadvertent access to the cutting means by the feet during operation shall be prevented, so
far as reasonably practicable by the cutting means enclosure.
Compliance is checked by the tests of 20.102.4.1.2, 20.102.4.1.3 and 20.102.4.1.4.
The tests are made with the cutting means in the most unfavourable cutting position. If the
cutting means path height is different at different cutting means speeds, the test is
conducted so as to include the extremes of cutting means height.
Replace the existing Subclauses 20.102.4.1.2 and 20.102.4.1.3 with the following:
20.102.4.1.2 Adult foot probe test
The machine shall be placed on a hard, flat surface. The guards shall be in the normal
operating position on the cutting means enclosure and the machine support members in
contact with the supporting surface. Components of machines, such as wheels and frames,
are where relevant considered as part of the cutting means enclosure for the purpose of
these tests. The tests are conducted under static conditions.
The foot probe of Figure 102 shall be inserted towards the cutting means around the
machine’s external enclosure. The base of the probe is held horizontally at any height and
then inclined up to 15° forward or backward from the horizontal (see Figure 102). The probe is
applied around the entire machine as described in Figure 102 until a horizontal force of 20 N
maximum is reached, or until the machine’s enclosure lifts or moves from the original position,
or until contact is made with the cutting means path, whichever occurs first.
The test probe shall not enter the path of the cutting means assembly.
20.102.4.1.3 Foot probe test for standing child
The machine shall be placed on a hard, flat surface. The guards shall be in the normal
operating position on the cutting means enclosure and the machine support members in
contact with the supporting surface. Components of machines, such as wheels and frames,
are where relevant considered as part of the cutting means enclosure for the purpose of
these tests. The tests are conducted under static conditions.

© IEC 2020
The foot probe of Figure 107 shall be inserted towards the cutting means around the
machine’s external enclosure. The base of the probe is held horizontally at any height and
then inclined up to 15° forward or backward from the horizontal (see Figure 102). The probe is
applied around the entire machine as described in Figure 102 until a horizontal force of 20 N
maximum is reached, or until the machine’s enclosure lifts or moves from the original position,
or until contact is made with the cutting means path, whichever occurs first.
The test probe shall not enter the path of the cutting means assembly.
Add the following new subclause:
20.102.4.1.4 Foot probe test for kneeling child
The machine is placed on a test surface as described in Annex CC, except that
– the minimum size as described in Clause CC.2 shall be such that the machine is capable
of attaining its maximum traction drive speed in automatic mode during normal use with
the cutting means operating; and
– an injection tube as shown in Figure CC.1 need not be incorporated into the test surface.
The machine is tested by means of the foot probe shown in Figure 109. The sole of the foot
probe shall be constructed of a material with a 70 Shore A hardness (nominal) and a
thickness of (3 ± 0,5) mm. The sole of the foot probe shall be free from dust and grease. Prior
to the series of tests, the sole of the foot probe in Figure 109 shall be checked to ensure a
dynamic coefficient of friction of (0,6 ± 0,06) with respect to the same material surface in
accordance with ISO 8295:1995.
The machine is operated in automatic mode with the cutting means operating. While the
machine is operating, the foot probe of Figure 109 is placed in each of the ten test positions
shown in Figure 110, as applicable to the anticipated movement of the machine, such that
– the foot probe is aligned with the direction of the machine’s movement with the toe
pointing toward the machine; and
– the foot probe is placed on the test surface and care is taken that foot probe movement is
minimised if the machine comes into contact with the foot probe;
NOTE A spike or other feature located on the knee of the probe has been shown to be helpful in minimising
movement of the foot probe during the test.
– an injection tube, if any, in the coconut matting does not influence the test result.
If, in automatic mode, it is not possible for the machine to move in accordance with any of the
test positions shown in Figure 110, then it is not necessary to conduct the test for those test
positions.
The foot probe remains in place at each test position until
– the machine has moved completely away from the foot probe; or
– the foot probe has been in place for 20 s; or
– the machine stops such that a manual reset is required,
whichever occurs first.
For each test position, the foot probe shall not contact the cutting means whilst the cutting
means is rotating. If the sole of the foot probe is damaged during the test, it shall be repaired
or replaced as necessary.
Replace the text of the first paragraph of 20.102.4.2.2.1 with the following new text:

– 6 – IEC 60335-2-107:2017/AMD1:2020
© IEC 2020
A mechanical test probe as shown in Figure 111 is used for the test. The joints shall be
locked firmly into their straight positions or replaced by a solid portion.
NOTE The probe of Figure 111 is similar to test probe B of IEC 61032 but having a circular stop face with a
diameter of 50 mm, instead of the non-circular face.
Replace the text of the first paragraph of 20.102.4.2.2.2 with the following new text:
Test probe 18 (Figure 12) of IEC 61032:1997 shall be used, but with the extension handle
attached throughout the test. The joints shall be allowed to articulate.
Replace the subclause number of 20.102.4.2.2.3 with the following new subclause number:
20.102.4.2.3
Replace the text of the third paragraph of 20.102.4.2.2.3 with the following new text:
A mechanical test probe as shown in Figure 111 is used for the test.
Replace the first three paragraphs of 20.102.5.1 with the following new text:
The machine shall be provided with a means to stop the traction drive when a stopping
command is generated from any of the following:
– manual stop;
– manual controller;
– lift sensor;
– tilt sensor;
– obstruction sensor (when activated for more than 10 s according to 22.105.2).
Compliance is checked by 20.102.5.2 for the manual stop and manual controller, by
20.102.5.3 for the lift sensor and tilt sensor and by 22.105.2 for the obstruction sensor.
If compliance relies on the operation of an electronic circuit, the test of 20.102.5.2 and
20.102.5.3, as applicable, is repeated under the following condition:
Replace the existing text of 20.102.5.4 with the following new text:
20.102.5.4 Void
21 Mechanical strength
Replace the existing text of the last dashed item of 21.1 with the following new text:
– power supplies or battery chargers that are covered by a separate end product standard.
21.101.4.1 General
Replace the existing text of the test specification by the following:
Compliance is checked by the test described in 21.101.4.2 to 21.101.4.4. During the test,
personnel should be protected against possible thrown objects.

© IEC 2020
22 Construction
Add the following new subclause:
22.46
NOTE 101 Hazards that can be created due to the loss of functional control are addressed in the relevant
subclauses. Other electronic fault conditions of 19.11.2 that result in dangerous malfunction are understood to not
require an evaluation of software using Annex R.
Replace the existing Subclause 22.105.4 with the following:
22.105.4 Rollover sensor
A rollover sensor shall be provided on all machines. The rollover sensor shall prevent the
traction drive and cutting means starting when the machine is inverted.
NOTE The machine does not have to incorporate discrete sensing devices for each sensor requirement. The
various sensing functions can be achieved by fewer devices that respond to multiple stimuli. Sensing requirements
can also be fulfilled by mechanical devices instead of electrical circuits.
Compliance is checked by inspection and the following test.
The machine shall be inverted and placed on a flat level surface, within 1 m either side of the
working area. It shall not be possible to start the traction drive and/or the cutting means.
For the purposes of this test, the machine shall not be moved from its inverted resting position.
If compliance relies on the operation of an electronic circuit, the test is repeated under the
following conditions applied separately:
1) the fault conditions in a) to g) of 19.11.2 applied one at a time to the electronic circuit;
2) the electromagnetic phenomena tests of 19.11.4.1 and 19.11.4.2 applied to the machine
when the rollover sensor has been activated for more than 10 s.
If the electronic circuit is programmable, the software shall contain measures to control the
fault/error conditions specified in Table R.1 and is evaluated in accordance with the relevant
requirements of Annex R.
For machines equipped with a manual controller, it shall not be possible to start the traction
drive and/or the cutting means when the operator is able to use the manual controller.
If the machine is placed back in its correct orientation, the cutting means and traction drive
may only be restarted by fulfilling the requirements of the restart procedure in 20.102.6.
Compliance is checked by inspection and by practical tests.
Replace the existing Subclause 22.112 with the following:
22.112 Obstruction sensor contact surfaces
The surface contacted when striking an obstruction shall be designed to minimize the risk of
injury and shall not have a perpendicular protrusion greater than 5 mm unless the protrusion
has
– a surface area greater than 20 mm ; and
– a minor dimension greater than 5 mm.
All protrusions shall have rounded edges.

– 8 – IEC 60335-2-107:2017/AMD1:2020
© IEC 2020
The surface contacted when striking an obstruction shall be located at a height not greater
than 150 mm from the ground plane.
Compliance is checked by inspection and by measurement.
29 Clearances, creepage distances and solid insulation
Replace the existing text of 29.101 with the following new text:
29.101 For the machine and non-mains-powered peripherals, creepage distances and
clearances shall not be less than the values in millimetres shown in Table 102. The
clearances specified do not apply to the air gap between the contacts of thermal controls,
overload protection devices, switches of micro-gap construction, and the like, or to the air gap
between the current-carrying members of such devices where the clearances vary with the
movement of the contacts. Creepage distances and clearances also do not apply to the
construction of battery cells or the interconnections between cells in a battery pack. The
values specified in Table 102 do not apply to cross-over points of motor windings.
The values in Table 102 are equal or larger than the values required by IEC 60664-1, when
– an overvoltage category I;
– a material group III;
– a pollution degree 3;
– inhomogeneous electric field
are applied.
Protection against deposition of dirt may be achieved through the use of
– encapsulation with a minimum thickness of 0,5 mm; or
– protective coatings that prevent the combined deposition of fine particles and moisture on
surfaces between conductors. Requirements for these types of protective coatings are
described in IEC 60664-3; or
– enclosures that prevent the ingress of dust by means of filters or seals, provided that no
dust is generated within the enclosure itself.
NOTE 1 An example of encapsulation is potting.
For parts of different potential in switched circuits only, clearance and creepage distances
less than those given in Table 102 are acceptable if the shorting of the two parts does not
result in the machine starting.
NOTE 2 The risk of fire due to spacings below the required values is covered by the requirements of KK.19.4.

© IEC 2020
Table 102 – Minimum creepage distances and clearances
between parts of different potential
Dimensions in millimetres
Working Working Working Working Working
voltage voltage voltage voltage voltage
≤ 15 V > 15 V and > 32 V and > 130 V and > 280 V and
≤ 32 V ≤ 130 V ≤ 280 V ≤ 480 V
Conditions
Cree- Clear- Cree- Clear- Cree- Clear- Cree- Clear- Cree- Clear-
page ance page ance page ance page ance page ance
dis- dis- dis- dis- dis-
tance tance tance tance tance
Protected against
deposition of dirt
– Switched circuits 0,8 0,8 1,0 1,0 1,0 1,0 2,0 2,0 2,0 2,0
– Non-switched circuits 0,8 0,8 1,5 1,5 1,5 1,5 2,0 2,0 2,0 2,0
Not protected against 1,1 0,8 1,5 1,5 2,5 1,5 4,0 2,5 8,0 3,0
deposition of dirt
For conductive patterns on printed circuit boards, except at their edges, providing functional
insulation, the values given in Table 102 between parts of different potential may be reduced,
as long as the peak value of the working voltage does not exceed:
– 150 V per mm with a minimum distance of 0,2 mm, if protected against the deposition of
dirt;
– 100 V per mm with a minimum distance of 0,5 mm, if not protected against the deposition
of dirt.
When the limits mentioned above lead to higher values than those of the Table 102, the
values of Table 102 apply.
NOTE 3 The above values are equal or larger than the values required by IEC 60664-3.
For parts having a hazardous voltage between them, the sum total of the measured
distances between each of these parts and their nearest accessible surface shall not be less
than the values shown in Table 103.
NOTE 4 Figure 109 provides clarification on the measurement method.
Table 103 – Minimum total sum of creepage distances and clearances
to accessible surfaces for hazardous voltages
Dimensions in millimetres
Hazardous voltage with a working voltage of
≤ 130 V > 130 V and ≤ 280 V > 280 V and ≤ 480 V
Creepage Clearance Creepage Clearance Creepage Clearance
distance distance distance
5,0 1,5 8,0 3,0 16,0 4,0
– 10 – IEC 60335-2-107:2017/AMD1:2020
© IEC 2020
Compliance is checked by measurement.
Distances through slots or openings in external parts of insulating material are measured to
the metal foil in contact with the accessible surface; the foil is pushed into corners and the
like by means of the standard test probe B of IEC 61032:1997, but is not pressed into
openings.
The sum total of distances measured between parts operating at working voltage that is a
hazardous voltage and accessible surfaces is determined by measuring the distance from
each part to the accessible surface. The distances are to be added together to determine the
sum total. See Figure 109.
In addition, one of the creepage distances or clearances to the nearest accessible surface
shall be at least 1 mm.
If necessary, a force is applied to any point on bare conductors and to the outside of metal
enclosures, in an endeavour to reduce the creepage distances and clearances while taking
the measurements.
The force is applied by means of the test probe B of IEC 61032:1997 and has a value of:
– 2 N for bare conductors;
– 30 N for enclosures.
© IEC 2020
Figures
Replace the existing Figure 105 with the following new figure:

Key
1 machine external enclosure
2 cutting means
3 mechanical test probe
4 axis of the test probe held horizontally
Figure 105 – Finger probe test – Illustrations showing application of probe,
insertion depth limited according to the geometry of the enclosure

– 12 – IEC 60335-2-107:2017/AMD1:2020
© IEC 2020
Add the following new Figures 109, 110 and 111:
Dimensions in millimetres
Key
1 sole
2 toe
Figure 109 – Foot probe for kneeling child

© IEC 2020
Key
1 test position between undriven supports
2 test position aligned with undriven support
3 test position aligned with undriven support
4 test position between traction drive wheel and undriven support
5 test position aligned with traction drive wheel
6 test position between traction drive wheels
7 test position aligned with traction drive wheel
8 test position between traction drive wheel and undriven support
9 test position aligned with undriven support
10 test position aligned with undriven support
a) Example of foot probe for kneeling child test positions (two undriven supports)

– 14 – IEC 60335-2-107:2017/AMD1:2020
© IEC 2020
Key
1 test position aligned with undriven support
2 test position aligned to the side of undriven support
3 test position aligned with undriven support
4 test position between traction drive wheel and undriven support
5 test position aligned with traction drive wheel
6 test position between traction drive wheels
7 test position aligned with traction drive wheel
8 test position between traction drive wheel and undriven support
9 test position aligned with undriven support
10 test position aligned to the side of undriven support
b) Example of foot probe for kneeling child test positions (one front support)
NOTE 1 The arrows in the above examples represent the direction of machine movement.
NOTE 2 The above examples can be used as a guide for other machine configurations.
Figure 110 – Foot probe for kneeling child test positions

© IEC 2020
Linear dimensions in millimetres

Key
A handle
B guard
C insulating material
D joints
E stop face
F chamfer all edges
Material: Metal, except where otherwise specified
Both joints shall permit movement in the same plane and the same direction through an angle of 90° with a 0° to
+10° tolerance.
– 16 – IEC 60335-2-107:2017/AMD1:2020
© IEC 2020
Tolerances except where otherwise specified:
Angles:
º
−10
Linear dimensions up to 25 mm:
mm
−0,05
Linear dimensions over 25 mm: ± 0,2 mm

Figure 111 – Test probe for the tests of 20.102.4.2.2.1 and 20.102.4.2.3
Annex FF – Noise test code – Engineering method (grade 2)
Replace the existing Clause FF.3 with the following:
FF.3 A-weighted sound pressure level measurement
The A-weighted emission sound pressure level at the robotic electrical battery-powered
lawnmower, L , shall be determined in accordance with ISO 11203:1995 as follows:
pA
L = L −Q
, in dB
pA WA
where
Q = 8, in dB.
NOTE This value of Q has been determined, during experimental investigations, to be applicable to robotic
electrical battery-powered lawnmowers. The resulting A-weighted emission sound pressure level at the robotic
electrical battery-powered lawnmowers is equivalent to the value of the surface sound pressure level at a
distance of 1 m from the robotic electrical battery-powered lawnmowers. This distance has been
...
