IEC 60384-15:2017
(Main)Fixed capacitors for use in electronic equipment - Part 15: Sectional specification: Fixed tantalum capacitors with non-solid or solid electrolyte
Fixed capacitors for use in electronic equipment - Part 15: Sectional specification: Fixed tantalum capacitors with non-solid or solid electrolyte
IEC 60384-15:2017 applies to through-hole/leaded polar and bipolar tantalum electrolyte capacitors with solid and non‑solid electrolyte for use in electronic equipment. It includes capacitors for long‑life applications and capacitors for general‑purpose applications.
This document prescribes preferred ratings and characteristics and to select from IEC 60384‑1:2016 the appropriate quality assessment procedures, tests and measuring methods and to give general performance requirements for this type of capacitor.
This edition includes the following significant technical changes with respect to the previous edition:
a) Revision of the structure in accordance with ISO/IEC Directives, Part 2:2016 (seventh edition) to the extent practicable, and harmonization between other similar kinds of documents.
b) In addition, Clause 4 and all the tables have been reviewed in order to prevent duplications and contradictions.
Condensateurs fixes utilisés dans les équipements électroniques - Partie 15: Spécification intermédiaire - Condensateurs fixes au tantale, à électrolyte non solide ou solide
L’IEC 60384-15:2017 s’applique aux condensateurs au tantale à montage par trous/au plomb, polarisés et bipolaires, à électrolyte solide et à électrolyte non solide, utilisés dans les équipements électroniques. Elle comprend les condensateurs utilisés dans des applications de longue durée de vie et les condensateurs utilisés dans des applications d’usage général. Les condensateurs pour des applications d’usage spécial peuvent nécessiter des exigences supplémentaires.
Le présent document couvre deux sous-familles fondamentales:
- Sous-famille 1: Condensateurs fixes au tantale, à électrolyte non solide et à anode poreuse.
- Sous-famille 2: Condensateurs fixes au tantale, à électrolyte solide et à anode poreuse.
Le présent document a pour objet de spécifier les valeurs assignées et caractéristiques préférentielles, de sélectionner, en se référant à l’IEC 60384-1:2016, les procédures d’assurance de la qualité, les essais et les méthodes de mesure appropriés et de donner les exigences de performance générales pour ce type de condensateur.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l’édition précédente:
a) La structure a été révisée selon les Directives ISO/IEC, Partie 2:2016 (septième édition) dans la mesure du possible, et harmonisée avec d’autres types de documents similaires.
b) En outre, l'Article 4 et tous les tableaux ont été revus afin d'éviter les doubles emplois et les contradictions.
General Information
- Status
- Published
- Publication Date
- 21-May-2017
- Technical Committee
- TC 40 - Capacitors and resistors for electronic equipment
- Drafting Committee
- MT 60384-15 - TC 40/MT 60384-15
- Current Stage
- PPUB - Publication issued
- Start Date
- 22-May-2017
- Completion Date
- 26-May-2017
Overview
IEC 60384-15:2017 is the sectional specification in the IEC 60384 series that defines requirements for fixed tantalum capacitors (through‑hole/leaded) using solid or non‑solid electrolyte. It applies to both polar and bipolar tantalum electrolyte capacitors intended for electronic equipment, covering general‑purpose and long‑life application classes. The document prescribes preferred ratings and characteristics and references IEC 60384‑1:2016 for selecting the appropriate quality‑assessment procedures, tests and measuring methods.
This edition (2017) revises the structure to align with ISO/IEC Directives, Part 2 and updates Clause 4 and the tables to remove duplications and contradictions.
Key Topics
- Scope and definitions for tantalum fixed capacitors (solid/non‑solid electrolyte, leaded/through‑hole, polar/bipolar).
- Preferred ratings and characteristics: nominal capacitance, tolerances, rated voltage, category voltage, surge and reverse voltages, rated temperature.
- Quality assessment procedures: primary manufacture checks, qualification approval, conformance inspection and sampling plans.
- Comprehensive test and measurement procedures, including:
- Leakage current, capacitance and dissipation factor (tan δ)
- Impedance and insulation resistance
- Robustness of terminations, solderability and resistance to soldering heat
- Environmental and mechanical tests: rapid temperature change, vibration, shock, bump
- Climatic sequence, damp heat (steady state and cyclic), endurance and surge voltage tests
- Reverse voltage, charge/discharge behavior and solvent/marking resistance
- Marking, packaging and information required for detail specifications and product identification.
Applications
IEC 60384‑15 is used to:
- Specify performance and reliability for tantalum capacitors in consumer, industrial and telecommunications electronics.
- Define test programs for component qualification and lot acceptance during manufacturing.
- Ensure compliance for capacitors intended for long‑life or general‑purpose circuits where stability, leakage and robustness matter (power supplies, timing circuits, filtering).
Who should use this standard
- Electronic component manufacturers producing tantalum capacitors
- Design engineers selecting fixed capacitors for PCB applications
- Quality, reliability and test engineers in component test labs
- Purchasing and compliance teams verifying supplier specifications
Related standards
- IEC 60384‑1:2016 (general requirements for fixed capacitors) - referenced for selecting tests and measuring methods
- Other parts of the IEC 60384 series covering different capacitor technologies and package types
Keywords: IEC 60384-15, tantalum capacitors, fixed capacitors, solid electrolyte, non-solid electrolyte, through-hole capacitors, quality assessment, capacitor testing, rated voltage, surge voltage.
IEC 60384-15:2017 - Fixed capacitors for use in electronic equipment - Part 15: Sectional specification: Fixed tantalum capacitors with non-solid or solid electrolyte
IEC 60384-15:2017 - Fixed capacitors for use in electronic equipment - Part 15: Sectional specification: Fixed tantalum capacitors with non-solid or solid electrolyte
Frequently Asked Questions
IEC 60384-15:2017 is a standard published by the International Electrotechnical Commission (IEC). Its full title is "Fixed capacitors for use in electronic equipment - Part 15: Sectional specification: Fixed tantalum capacitors with non-solid or solid electrolyte". This standard covers: IEC 60384-15:2017 applies to through-hole/leaded polar and bipolar tantalum electrolyte capacitors with solid and non‑solid electrolyte for use in electronic equipment. It includes capacitors for long‑life applications and capacitors for general‑purpose applications. This document prescribes preferred ratings and characteristics and to select from IEC 60384‑1:2016 the appropriate quality assessment procedures, tests and measuring methods and to give general performance requirements for this type of capacitor. This edition includes the following significant technical changes with respect to the previous edition: a) Revision of the structure in accordance with ISO/IEC Directives, Part 2:2016 (seventh edition) to the extent practicable, and harmonization between other similar kinds of documents. b) In addition, Clause 4 and all the tables have been reviewed in order to prevent duplications and contradictions.
IEC 60384-15:2017 applies to through-hole/leaded polar and bipolar tantalum electrolyte capacitors with solid and non‑solid electrolyte for use in electronic equipment. It includes capacitors for long‑life applications and capacitors for general‑purpose applications. This document prescribes preferred ratings and characteristics and to select from IEC 60384‑1:2016 the appropriate quality assessment procedures, tests and measuring methods and to give general performance requirements for this type of capacitor. This edition includes the following significant technical changes with respect to the previous edition: a) Revision of the structure in accordance with ISO/IEC Directives, Part 2:2016 (seventh edition) to the extent practicable, and harmonization between other similar kinds of documents. b) In addition, Clause 4 and all the tables have been reviewed in order to prevent duplications and contradictions.
IEC 60384-15:2017 is classified under the following ICS (International Classification for Standards) categories: 31.060.40 - Tantalum electrolytic capacitors. The ICS classification helps identify the subject area and facilitates finding related standards.
You can purchase IEC 60384-15:2017 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of IEC standards.
Standards Content (Sample)
IEC 60384-15 ®
Edition 2.0 2017-05
INTERNATIONAL
STANDARD
Fixed capacitors for use in electronic equipment –
Part 15: Sectional specification: Fixed tantalum capacitors with non-solid or
solid electrolyte
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.
IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and
CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
IEC 60384-15 ®
Edition 2.0 2017-05
INTERNATIONAL
STANDARD
Fixed capacitors for use in electronic equipment –
Part 15: Sectional specification: Fixed tantalum capacitors with non-solid or
solid electrolyte
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 31.060.40 ISBN 978-2-8322-4319-0

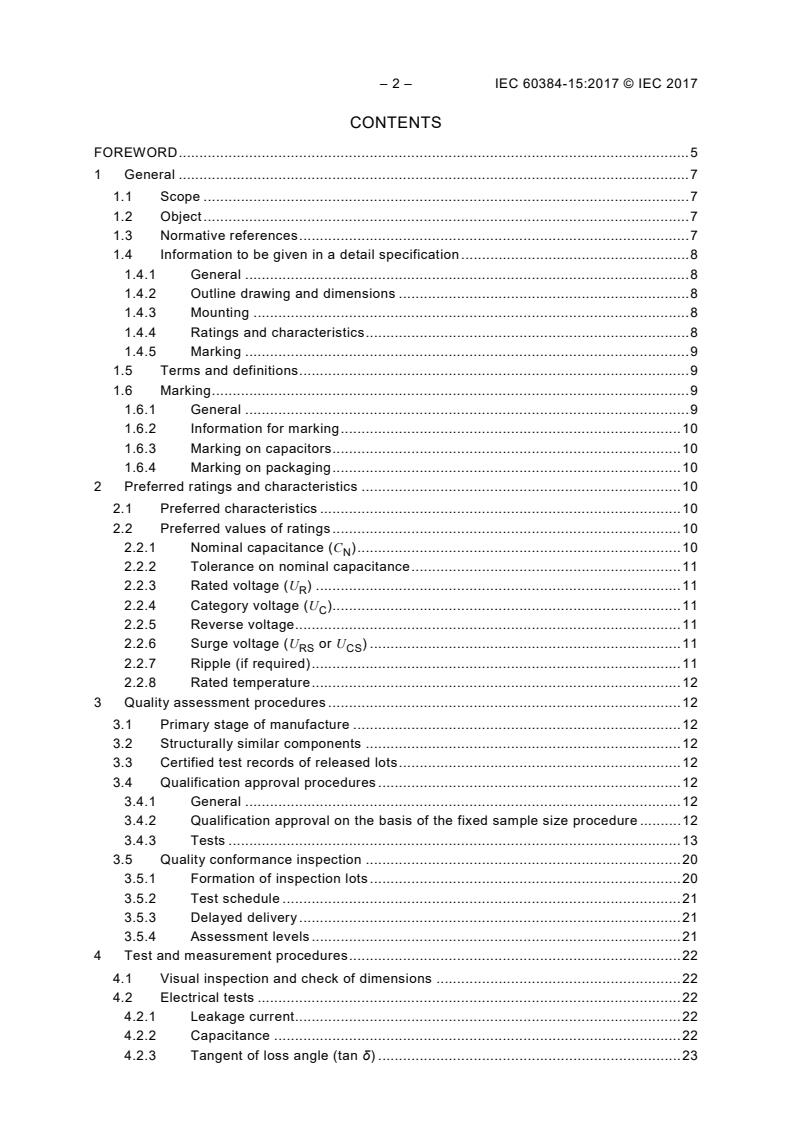

– 2 – IEC 60384-15:2017 © IEC 2017
CONTENTS
FOREWORD . 5
1 General . 7
1.1 Scope . 7
1.2 Object . 7
1.3 Normative references . 7
1.4 Information to be given in a detail specification . 8
1.4.1 General . 8
1.4.2 Outline drawing and dimensions . 8
1.4.3 Mounting . 8
1.4.4 Ratings and characteristics . 8
1.4.5 Marking . 9
1.5 Terms and definitions . 9
1.6 Marking . 9
1.6.1 General . 9
1.6.2 Information for marking . 10
1.6.3 Marking on capacitors . 10
1.6.4 Marking on packaging . 10
2 Preferred ratings and characteristics . 10
2.1 Preferred characteristics . 10
2.2 Preferred values of ratings . 10
2.2.1 Nominal capacitance (C ) . 10
N
2.2.2 Tolerance on nominal capacitance . 11
2.2.3 Rated voltage (U ) . 11
R
2.2.4 Category voltage (U ). 11
C
2.2.5 Reverse voltage . 11
2.2.6 Surge voltage (U or U ) . 11
RS CS
2.2.7 Ripple (if required) . 11
2.2.8 Rated temperature . 12
3 Quality assessment procedures . 12
3.1 Primary stage of manufacture . 12
3.2 Structurally similar components . 12
3.3 Certified test records of released lots . 12
3.4 Qualification approval procedures . 12
3.4.1 General . 12
3.4.2 Qualification approval on the basis of the fixed sample size procedure . 12
3.4.3 Tests . 13
3.5 Quality conformance inspection . 20
3.5.1 Formation of inspection lots . 20
3.5.2 Test schedule . 21
3.5.3 Delayed delivery . 21
3.5.4 Assessment levels . 21
4 Test and measurement procedures . 22
4.1 Visual inspection and check of dimensions . 22
4.2 Electrical tests . 22
4.2.1 Leakage current . 22
4.2.2 Capacitance . 22
4.2.3 Tangent of loss angle (tan δ) . 23
4.2.4 Impedance (if required) . 23
4.2.5 Insulation resistance of the external insulation (if required) . 24
4.2.6 Voltage proof of the external insulation (if required) . 24
4.3 Robustness of terminations . 25
4.3.1 General . 25
4.3.2 Initial inspection. 25
4.3.3 Test Ua1, Ub and Uc applicable. 25
4.3.4 Special bending test . 25
4.4 Resistance to soldering heat . 26
4.4.1 General . 26
4.4.2 Conditions . 26
4.4.3 Final inspections and requirements . 26
4.5 Solderability . 26
4.5.1 General . 26
4.5.2 Test conditions . 26
4.5.3 Final inspections and requirements . 26
4.6 Rapid change of temperature . 26
4.6.1 General . 26
4.6.2 Initial inspection. 27
4.6.3 Test conditions . 27
4.6.4 Recovery . 27
4.6.5 Final inspections and requirements . 27
4.7 Vibration . 27
4.7.1 General . 27
4.7.2 Test condition . 27
4.7.3 Final inspections and requirements . 27
4.8 Bump . 27
4.8.1 General . 27
4.8.2 Mounting . 28
4.8.3 Test conditions . 28
4.8.4 Final inspections and requirements . 28
4.9 Shock . 28
4.9.1 General . 28
4.9.2 Mounting . 28
4.9.3 Test conditions . 28
4.9.4 Final inspections and requirements . 29
4.10 Climatic sequence. 29
4.10.1 General . 29
4.10.2 Initial inspection. 29
4.10.3 Dry heat . 29
4.10.4 Damp heat, cyclic, Test Db, first cycle . 29
4.10.5 Cold. 29
4.10.6 Low air pressure (if required) . 29
4.10.7 Damp heat, cyclic, Test Db, remaining cycles . 29
4.10.8 Recovery . 29
4.10.9 Sealing (if required) . 30
4.10.10 Final inspections and requirements . 30
4.11 Damp heat, steady state . 30
4.11.1 General . 30
– 4 – IEC 60384-15:2017 © IEC 2017
4.11.2 Initial inspection. 30
4.11.3 Final inspections and requirements . 30
4.12 Endurance . 30
4.12.1 General . 30
4.12.2 Initial inspection. 30
4.12.3 Test conditions . 30
4.12.4 Recovery . 31
4.12.5 Final inspections and requirements . 31
4.13 Surge voltage . 31
4.13.1 General . 31
4.13.2 Initial inspection. 31
4.13.3 Test conditions . 31
4.13.4 Final inspections and requirements . 31
4.14 Reverse voltage (if required) . 32
4.14.1 General . 32
4.14.2 Initial inspection. 32
4.14.3 Test conditions . 32
4.14.4 Final inspections and requirements . 32
4.15 Characteristics at high and low temperature . 32
4.15.1 General . 32
4.15.2 Final inspections and requirements . 32
4.16 Charge and discharge (if required) . 32
4.16.1 General . 32
4.16.2 Initial inspection. 32
4.16.3 Test conditions . 33
4.16.4 Recovery . 33
4.16.5 Final inspections and requirements . 33
4.17 Component solvent resistance . 33
4.18 Solvent resistance of the marking . 33
4.19 High surge current (if required) . 33
4.19.1 General . 33
4.19.2 Initial inspection. 33
4.19.3 Final inspections and requirements . 33
Bibliography . 34
Figure 1 – Apparatus of special bending test . 25
Table 1 – Rated, category and surge voltages . 11
Table 2 – Sampling plan for qualification approval tests . 14
Table 3 – Test schedule for qualification approval . 15
Table 4 – Lot-by-Lot inspection . 21
Table 5 – Periodic Inspection . 22
Table 6 – Vibration test frequencies . 27
Table 7 – Shock peak acceleration/pulse duration . 28
Table 8 – Test temperature . 31
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIXED CAPACITORS FOR USE IN ELECTRONIC EQUIPMENT –
Part 15: Sectional specification:
Fixed tantalum capacitors with non-solid or solid electrolyte
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60384-15 has been prepared by IEC technical committee 40:
Capacitors and resistors for electronic equipment.
This second edition cancels and replaces the first edition published in 1982,
Amendment 1:1987 and Amendment 2:1992, and constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) Revision of the structure in accordance with ISO/IEC Directives, Part 2:2016 (seventh
edition) to the extent practicable, and harmonization between other similar kinds of
documents.
b) In addition, Clause 4 and all the tables have been reviewed in order to prevent duplications
and contradictions.
– 6 – IEC 60384-15:2017 © IEC 2017
The text of this International Standard is based on the following documents:
FDIS Report on voting
40/2523/FDIS 40/2535/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
The list of all parts of the IEC 60384 series, under the general title Fixed capacitors for use in
electronic equipment, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.
FIXED CAPACITORS FOR USE IN ELECTRONIC EQUIPMENT –
Part 15: Sectional specification:
Fixed tantalum capacitors with non-solid or solid electrolyte
1 General
1.1 Scope
This part of IEC 60384 applies to through-hole/leaded polar and bipolar tantalum electrolyte
capacitors with solid and non-solid electrolyte for use in electronic equipment.
It includes capacitors for long-life applications and capacitors for general-purpose
applications.
Capacitors for special purpose application may need additional requirements.
This document covers two basic sub-families:
• Sub-family 1: Fixed non-solid electrolyte tantalum capacitors with porous anode.
• Sub-family 2: Fixed solid electrolyte tantalum capacitors with porous anode.
1.2 Object
The object of this document is to prescribe preferred ratings and characteristics and to select
from IEC 60384-1:2016 the appropriate quality assessment procedures, tests and measuring
methods and to give general performance requirements for this type of capacitor. Test
severities and requirements prescribed in detail specifications referring to this sectional
specification shall be of equal or higher performance level, because lower performance levels
are not permitted.
1.3 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60063, Preferred number series for resistors and capacitors
IEC 60068-1:2013, Environmental testing – Part 1: General and guidance
IEC 60068-2-6, Environmental testing – Part 2-6: Tests – Test Fc: Vibration (sinusoidal)
IEC 60068-2-14, Environmental testing – Part 2-14: Tests – Test N: Change of temperature
IEC 60384-1:2016, Fixed capacitors for use in electronic equipment – Part 1: Generic
specification
IEC 60417, Graphical symbols for use on equipment
IEC 61193-2:2007, Quality assessment system – Part 2: Selection and use of sampling plans
for inspection of electronic components and packages
– 8 – IEC 60384-15:2017 © IEC 2017
ISO 3, Preferred numbers – Series of preferred numbers
1.4 Information to be given in a detail specification
1.4.1 General
Detail specifications shall be derived from the blank detail specification.
Detail specifications shall not specify requirements inferior to those of the generic, sectional
or blank detail specification. When more severe requirements are included, they shall be
listed in 1.9 of the detail specification and indicated in the test schedules, for example, by an
asterisk.
The information given in 1.4.2 may, for convenience, be presented in tabular form.
The following information shall be given in each detail specification and the values quoted
shall preferably be selected from those given in the appropriate clause of this sectional
specification.
1.4.2 Outline drawing and dimensions
There shall be an illustration of the capacitors as an aid to easy recognition and for
comparison of the capacitors with others.
Dimensions and their associated tolerances, which affect interchangeability and mounting,
shall be given in the detail specification. All dimensions shall preferably be stated in
millimetres. However, when the original dimensions are given in inches, the converted metric
dimensions in millimetres shall be added.
The numerical values of the body shall be given as follows:
• for general: the length, width and height;
• for cylindrical body: the diameter and length.
The numerical values of the terminals shall be given as follows:
• for general: the spacing;
• for leaded terminals: the diameter and spacing.
When the configuration is other than described above, the detail specification shall state such
dimensional information as will adequately describe the capacitor.
1.4.3 Mounting
The detail specification shall specify the method of mounting to be applied for normal use and
for the application of the vibration and the bump or shock tests. The design of the capacitor
may be such that special mounting fixtures are required in its use. In this case, the detail
specification shall describe the mounting fixtures and they shall be used in the application of
the vibration and bump or shock tests.
1.4.4 Ratings and characteristics
1.4.4.1 General
The ratings and characteristics shall be given in accordance with the relevant clauses of this
specification, together with the information in 1.4.4.2, 1.4.4.3 and 1.4.4.4.
1.4.4.2 Nominal capacitance range
See 2.2.1.
When products approved to the detail specification have different capacitance ranges, the
following statement should be added:
”The nominal capacitance range available in each voltage range is given in the register of
approvals, available for example on the IECQ on-line certificate system website
www.iecq.org”.
1.4.4.3 Particular characteristics
Additional characteristics may be listed, when they are considered necessary to specify
adequately the component for design and application purposes.
1.4.4.4 Soldering
The detail specification shall specify the test methods, severities and requirements applicable
for the solderability test and the resistance to soldering heat tests.
1.4.5 Marking
The detail specification shall specify the content of the marking on the capacitor and on the
packaging. When there are deviations from 1.6, these shall be given in the detail
specification.
1.5 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
1.5.1
capacitance
equivalent circuit having capacitance and resistance in series
measured with alternating current, approximately sinusoidal waveform at a specified
frequency
1.5.2
capacitor
capacitors intended for applications where a high degree of stability of
characteristics over a long life is essential
1.5.3
capacitor
capacitors intended for applications where the high performance
level of long-life grade capacitors is not required
1.6 Marking
1.6.1 General
See IEC 60384-1:2016, 2.4, with the details of 1.6.2, 1.6.3 and 1.6.4.
– 10 – IEC 60384-15:2017 © IEC 2017
1.6.2 Information for marking
The information given in the marking is normally selected from the following list; the relative
importance of each item is indicated by its position in the list:
a) polarity of the terminations (unless identified by the construction);
b) nominal capacitance;
c) rated voltage (d.c. voltage may be indicated by the symbol: (IEC 60417-5031:2002)
or );
d) tolerance on nominal capacitance;
e) year and month (or year and week) of manufacture;
f) manufacturer's name and/or trade mark;
g) manufacturer's type designation;
h) reference to the detail specification.
1.6.3 Marking on capacitors
The capacitor shall be clearly marked with a), b) and c) of 1.6.2 and with as many as possible
of the remaining items as is considered necessary. Any duplication of information in the
marking on the capacitor should be avoided.
1.6.4 Marking on packaging
The packaging containing the capacitors should be clearly marked with all of the information
listed in 1.6.2 as necessary.
2 Preferred ratings and characteristics
2.1 Preferred characteristics
Preferred climatic categories only shall be given in the preferred characteristics.
The capacitors covered by this specification are classified into climatic categories according
to the general rules given in IEC 60068-1:2013, Annex A.
The lower and upper category temperature shall be taken from the following:
• lower category temperature: −55 °C;
• upper category temperature: +85 °C and +125 °C.
• duration of the damp heat, steady state test: 21 and 56 days.
The severities for the cold and dry heat tests are the lower and upper category temperatures
respectively.
2.2 Preferred values of ratings
2.2.1 Nominal capacitance (C )
N
Preferred values of nominal capacitance are shown in microfarad (µF).
Preferred values of nominal capacitance shall be taken from the E12 series of IEC 60063 and
their decimal multiples. These values are:
1,0 – 1,2 – 1,5 – 1,8 – 2,2 – 2,7 – 3,3 – 3,9 – 4,7 – 5,6 – 6,8 – 8,2;
n
and their decimal multiples (×10 , n: integer).
2.2.2 Tolerance on nominal capacitance
Preferred values of tolerances on rated capacitance are:
±5 % , ±10 % , ±20 %
2.2.3 Rated voltage (U )
R
Preferred values of rated direct voltages taken from the R10, R20 and R40 series of ISO 3
are:
• from R 10: 1,0 – 1,25 – 1,6 – 2,0 – 2,5 – 3,15 – 4,0 – 5,0 – 6,3 – 8,0;
• from R 20: 3,5 ;
• from R 40: 3,0 – 7,5;
n
and their decimal multiples (×10 , n: integer).
2.2.4 Category voltage (U )
C
The category voltages for capacitors having an upper category temperature of 125 °C are
given in Table 1.
2.2.5 Reverse voltage
If required, the value of reverse voltage, which a polar capacitor can withstand continuously at
any temperature between the lower category temperature and the rated temperature, shall be
included in the detail specification.
2.2.6 Surge voltage (U or U )
RS CS
The surge voltage shall be a minimum of 1,15 times the rated or category voltage rounded off
to the nearest volt given in Table 1.
Table 1 – Rated, category and surge voltages
Values in volts
U 2 3 4 6,3 10 16 20 25 35 40 50 63 75 100 125
R
1,3 2 2,6 4,2 6,7 10,7 13,4 16,7 23,4 26,8 33,5 42,2 50,2 67 83,7
U
C
U 2,3 3,4 4,6 7,2 11,5 18,4 23 28,7 40,2 46 57,5 74,4 86,2 115 143,7
RS
U 1,4 2,3 3 4,8 7,7 12,3 15,4 19,2 26,9 30,8 38,5 48,5 57,7 77 96,2
CS
Key
U : Rated voltage
R
U : Category voltage
C
U : Surge voltage to rated voltage
RS
U : Surge voltage to category voltage
CS
2.2.7 Ripple (if required)
Ripple current and/or ripple voltage shall be specified in the detail specification.
———————
ISO 3 indicates the value 3,55 for R 20
– 12 – IEC 60384-15:2017 © IEC 2017
2.2.8 Rated temperature
The standard value of the rated temperature is +85 °C unless otherwise specified in the detail
specification.
3 Quality assessment procedures
3.1 Primary stage of manufacture
For capacitors with solid electrolyte, the primary stage of manufacturing is the formation of the
oxide layer.
3.2 Structurally similar components
Capacitors considered as being structurally similar are capacitors produced with similar
processes and materials, though they may be of different case sizes and values.
3.3 Certified test records of released lots
The information required in IEC 60384-1:2016, Q.1.5, shall be made available when
prescribed in the detail specification and when requested by a purchaser. After the endurance
test, the required parameters are the capacitance change, tangent of loss angle and leakage
current.
3.4 Qualification approval procedures
3.4.1 General
The procedures for qualification approval testing are given in IEC 60384-1:2016, Q.2
The schedule to be used for qualification approval testing on the basis of lot-by-lot and
periodic tests is given in 3.5. The procedure using a fixed sample size schedule is given in
3.4.2 and 3.4.3.
3.4.2 Qualification approval on the basis of the fixed sample size procedure
The fixed sample size procedure is described in IEC 60384-1:2016, Q.2.4. The sample shall
be representative of the range of capacitors for which approval is sought. The samples may
be the whole or part of the range given in the detail specification.
The sample shall consist of four specimens having the maximum and minimum voltages and
for these voltages the maximum and minimum case size. When there are more than four case
sizes, an intermediate case size shall also be tested. In each of these case size/voltage
combinations (values), the maximum capacitance shall be chosen. Thus, for the approval of a
range, testing is required of either four or six values. When the range consists of fewer than
four values, the number of specimens to be tested shall be that required for four values.
Spare specimens are permitted as follows:
Two (for 6 values) or three (for 4 values) per value may be used as replacements for
specimens, which are non-conforming because of incidents not attributable to the
manufacturer.
The numbers given in Group 0 assume that all groups are applicable. If this is not so, the
numbers may be reduced accordingly.
When additional groups are introduced into the qualification approval test schedule, the
number of specimens required for Group 0 shall be increased by the same number as that
required for the additional groups.
Table 2 gives the number of samples to be tested in each group or subgroup together with the
permissible number of non-conforming items for qualification approval tests.
3.4.3 Tests
The complete series of tests specified in Table 2 and Table 3 are required for the approval of
capacitors covered by one detail specification. The tests of each group shall be carried out in
the order given.
The whole sample shall be subjected to the tests of Group 0 and then divided for the other
groups.
Specimens found to be non-conforming in the tests of Group 0 shall not be used for the other
groups.
Approval is granted when the number of non-conforming items is zero.
Table 2 and Table 3 together form the fixed sample size test schedule for the qualification
approval on the basis of the fixed sample size procedure.
Table 2 gives the number of samples and permissible non-conforming items for each tests or
test groups.
Table 3 gives a summary of the test conditions and performance requirements, and choices of
the test conditions and performance requirements in the detail specification.
The test conditions and performance requirements for the qualification approval on the basis
of the fixed sample size procedure should be identical to those for quality conformance
inspection given in the detail specification.
– 14 – IEC 60384-15:2017 © IEC 2017
Table 2 – Sampling plan for qualification approval tests
Permissible
Number of number of non-
specimens conforming
Group no. Test Subclause
items
b
n c
c
0 Visual examination 4.1 0
104+8
Dimensions 4.1
Leakage current 4.2.1
Capacitance 4.2.2
Tangent of loss angle 4.2.3
a
Impedance 4.2.4
Insulation resistance of the external 4.2.5
a
insulation
Voltage proof of the external 4.2.6
a
insulation
a
High surge current 4.19
Spare specimens 8
1A Robustness of terminations 4.3 12 0
Resistance to soldering heat 4.4
Component solvent resistance 4.17
1B Solderability 4.5 24 0
Solvent resistance of the marking 4.18
Rapid change of temperature 4.6
Vibration 4.7
a
Bump 4.8
a
Shock 4.9
1 Climatic sequence 4.10 36 0
2 Damp heat, steady state 4.11 20 0
3 Endurance 4.12 20 0
4A Surge voltage 4.13 8 0
a
4B Reverse voltage 4.14 8 0
5 Characteristics at high and low 4.15 12 0
temperature
a
Charge and discharge 4.16
a
If required.
b
For case size/ voltage combinations, see 3.4.2.
c
Spare specimens.
Table 3 – Test schedule for qualification approval (1 of 6)
Number of
specimens (n)
and number
a
Subclause number and D or Conditions of test of
a
Performance requirements
a b
test , inspection items ND and measurements permissible
non-
conforming
items (c)
Group 0
ND See Table 2
4.1 Visual examination See 4.1 Legible marking and as specified
in the detail specification
4.1 Dimensions See 4.1 See detail specification
(detail)
4.2.1 Leakage current See 4.2.1.2
≤ the initial limit specified in the
detail specification
(at 20°C, 85°C and 125°C)
4.2.2 Capacitance See 4.2.2.2 Within specified tolerance
4.2.3 Tangent of loss angle See 4.2.3.2
≤ the initial limit specified in the
detail specification
c
4.2.4 Impedance See 4.2.4.3
Initial measurement See 4.2.4.2 See detail specification
Measurement at lower See 4.2.4.4 See detail specification
category temperature
4.2.5 Insulation resistance See 4.2.5.2
≥ 100 MΩ
of the external
c
insulation
4.2.6 Voltage proof of the See 4.2.6.2 No breakdown or flashover
c
external insulation during the test
d
4.19 High surge current See IEC 60384-
1:2016, 4.39
Group 1A
D See Table 2
4.3 Robustness of See 4.3.3
terminations
4.3.2 Initial inspection
Capacitance See 4.2.2.2 Within specified tolerance
4.3.5 Final inspections
Visual examination See 4.1 The terminations shall withstand
4 successive bends.
Capacitance See 4.2.2.2 See detail specification
4.4 Resistance to soldering See IEC 60384-
heat 1:2016, 4.14
4.4.3 Final inspections
Visual examination See 4.1 Legible marking and as specified
in the detail specification
Capacitance See 4.2.2.2 See detail specification
4.17 Component solvent See IEC 60384-
resistance 1:2016, 4.31
Group 1B D See Table 2
4.5 Solderability See 4.5.2
4.5.3 Final inspection
Visual examination See 4.1 Good tinning as evidenced by
free flowing of the solder with
wetting of the terminations
– 16 – IEC 60384-15:2017 © IEC 2017
Table 3 (2 of 6)
Number of
specimens (n)
and number
a
Subclause number and D or Conditions of test
a
of permissible Performance requirements
a b
test , inspection items ND and measurements
non-
conforming
items (c)
Group 1B (continued) D See Table 2
4.18 Solvent resistance of See IEC 60384-1:
the marking 2016, 4.32
4.6 Rapid change of See 4.6.3
temperature
4.6.2 Initial inspection
Capacitance See 4.2.2.2 Within specified tolerance
4.6.4 Recovery See 4.6.4
4.6.5 Final inspection
Capacitance See 4.2.2.2 See detail specification
4.7 Vibration See 4.7.2
4.7.3 Final inspections
Visual examination See 4.1 No visible damage and for non-
solid electrolyte capacitors no
leakage of electrolyte
Leakage current See 4.2.1.2 See detail specification
Capacitance See 4.2.2.2 See detail specification
Tan
...
IEC 60384-15 ®
Edition 2.0 2017-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fixed capacitors for use in electronic equipment –
Part 15: Sectional specification: Fixed tantalum capacitors with non-solid or
solid electrolyte
Condensateurs fixes utilisés dans les équipements électroniques –
Partie 15: Spécification intermédiaire: Condensateurs fixes au tantale,
à électrolyte non solide ou solide
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - IEC online collection - oc.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un
en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour
comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 000 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
16 langues additionnelles. Egalement appelé Vocabulaire
Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC 60384-15 ®
Edition 2.0 2017-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fixed capacitors for use in electronic equipment –
Part 15: Sectional specification: Fixed tantalum capacitors with non-solid or
solid electrolyte
Condensateurs fixes utilisés dans les équipements électroniques –
Partie 15: Spécification intermédiaire: Condensateurs fixes au tantale,
à électrolyte non solide ou solide
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.060.40 ISBN 978-2-8322-9329-4
– 2 – IEC 60384-15:2017 © IEC 2017
CONTENTS
FOREWORD . 5
1 General . 7
1.1 Scope . 7
1.2 Object . 7
1.3 Normative references . 7
1.4 Information to be given in a detail specification . 8
1.4.1 General . 8
1.4.2 Outline drawing and dimensions . 8
1.4.3 Mounting . 8
1.4.4 Ratings and characteristics . 8
1.4.5 Marking . 9
1.5 Terms and definitions . 9
1.6 Marking . 9
1.6.1 General . 9
1.6.2 Information for marking . 10
1.6.3 Marking on capacitors . 10
1.6.4 Marking on packaging . 10
2 Preferred ratings and characteristics . 10
2.1 Preferred characteristics . 10
2.2 Preferred values of ratings . 10
2.2.1 Nominal capacitance (C ) . 10
N
2.2.2 Tolerance on nominal capacitance . 11
2.2.3 Rated voltage (U ) . 11
R
2.2.4 Category voltage (U ). 11
C
2.2.5 Reverse voltage . 11
2.2.6 Surge voltage (U or U ) . 11
RS CS
2.2.7 Ripple (if required) . 11
2.2.8 Rated temperature . 12
3 Quality assessment procedures . 12
3.1 Primary stage of manufacture . 12
3.2 Structurally similar components . 12
3.3 Certified test records of released lots . 12
3.4 Qualification approval procedures . 12
3.4.1 General . 12
3.4.2 Qualification approval on the basis of the fixed sample size procedure . 12
3.4.3 Tests . 13
3.5 Quality conformance inspection . 20
3.5.1 Formation of inspection lots . 20
3.5.2 Test schedule . 21
3.5.3 Delayed delivery . 21
3.5.4 Assessment levels . 21
4 Test and measurement procedures . 22
4.1 Visual inspection and check of dimensions . 22
4.2 Electrical tests . 22
4.2.1 Leakage current . 22
4.2.2 Capacitance . 22
4.2.3 Tangent of loss angle (tan δ) . 23
4.2.4 Impedance (if required) . 23
4.2.5 Insulation resistance of the external insulation (if required) . 24
4.2.6 Voltage proof of the external insulation (if required) . 24
4.3 Robustness of terminations . 25
4.3.1 General . 25
4.3.2 Initial inspection. 25
4.3.3 Test Ua1, Ub and Uc applicable. 25
4.3.4 Special bending test . 25
4.4 Resistance to soldering heat . 26
4.4.1 General . 26
4.4.2 Conditions . 26
4.4.3 Final inspections and requirements . 26
4.5 Solderability . 26
4.5.1 General . 26
4.5.2 Test conditions . 26
4.5.3 Final inspections and requirements . 26
4.6 Rapid change of temperature . 26
4.6.1 General . 26
4.6.2 Initial inspection. 27
4.6.3 Test conditions . 27
4.6.4 Recovery . 27
4.6.5 Final inspections and requirements . 27
4.7 Vibration . 27
4.7.1 General . 27
4.7.2 Test condition . 27
4.7.3 Final inspections and requirements . 27
4.8 Bump . 27
4.8.1 General . 27
4.8.2 Mounting . 28
4.8.3 Test conditions . 28
4.8.4 Final inspections and requirements . 28
4.9 Shock . 28
4.9.1 General . 28
4.9.2 Mounting . 28
4.9.3 Test conditions . 28
4.9.4 Final inspections and requirements . 29
4.10 Climatic sequence. 29
4.10.1 General . 29
4.10.2 Initial inspection. 29
4.10.3 Dry heat . 29
4.10.4 Damp heat, cyclic, Test Db, first cycle . 29
4.10.5 Cold. 29
4.10.6 Low air pressure (if required) . 29
4.10.7 Damp heat, cyclic, Test Db, remaining cycles . 29
4.10.8 Recovery . 29
4.10.9 Sealing (if required) . 30
4.10.10 Final inspections and requirements . 30
4.11 Damp heat, steady state . 30
4.11.1 General . 30
– 4 – IEC 60384-15:2017 © IEC 2017
4.11.2 Initial inspection. 30
4.11.3 Final inspections and requirements . 30
4.12 Endurance . 30
4.12.1 General . 30
4.12.2 Initial inspection. 30
4.12.3 Test conditions . 30
4.12.4 Recovery . 31
4.12.5 Final inspections and requirements . 31
4.13 Surge voltage . 31
4.13.1 General . 31
4.13.2 Initial inspection. 31
4.13.3 Test conditions . 31
4.13.4 Final inspections and requirements . 31
4.14 Reverse voltage (if required) . 32
4.14.1 General . 32
4.14.2 Initial inspection. 32
4.14.3 Test conditions . 32
4.14.4 Final inspections and requirements . 32
4.15 Characteristics at high and low temperature . 32
4.15.1 General . 32
4.15.2 Final inspections and requirements . 32
4.16 Charge and discharge (if required) . 32
4.16.1 General . 32
4.16.2 Initial inspection. 32
4.16.3 Test conditions . 33
4.16.4 Recovery . 33
4.16.5 Final inspections and requirements . 33
4.17 Component solvent resistance . 33
4.18 Solvent resistance of the marking . 33
4.19 High surge current (if required) . 33
4.19.1 General . 33
4.19.2 Initial inspection. 33
4.19.3 Final inspections and requirements . 33
Bibliography . 34
Figure 1 – Apparatus of special bending test . 25
Table 1 – Rated, category and surge voltages . 11
Table 2 – Sampling plan for qualification approval tests . 14
Table 3 – Test schedule for qualification approval . 15
Table 4 – Lot-by-Lot inspection . 21
Table 5 – Periodic Inspection . 22
Table 6 – Vibration test frequencies . 27
Table 7 – Shock peak acceleration/pulse duration . 28
Table 8 – Test temperature . 31
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIXED CAPACITORS FOR USE IN ELECTRONIC EQUIPMENT –
Part 15: Sectional specification:
Fixed tantalum capacitors with non-solid or solid electrolyte
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60384-15 has been prepared by IEC technical committee 40:
Capacitors and resistors for electronic equipment.
This second edition cancels and replaces the first edition published in 1982,
Amendment 1:1987 and Amendment 2:1992, and constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) Revision of the structure in accordance with ISO/IEC Directives, Part 2:2016 (seventh
edition) to the extent practicable, and harmonization between other similar kinds of
documents.
b) In addition, Clause 4 and all the tables have been reviewed in order to prevent
duplications and contradictions.
– 6 – IEC 60384-15:2017 © IEC 2017
The text of this International Standard is based on the following documents:
FDIS Report on voting
40/2523/FDIS 40/2535/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
The list of all parts of the IEC 60384 series, under the general title Fixed capacitors for use in
electronic equipment, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
FIXED CAPACITORS FOR USE IN ELECTRONIC EQUIPMENT –
Part 15: Sectional specification:
Fixed tantalum capacitors with non-solid or solid electrolyte
1 General
1.1 Scope
This part of IEC 60384 applies to through-hole/leaded polar and bipolar tantalum electrolyte
capacitors with solid and non-solid electrolyte for use in electronic equipment.
It includes capacitors for long-life applications and capacitors for general-purpose
applications.
Capacitors for special purpose application may need additional requirements.
This document covers two basic sub-families:
• Sub-family 1: Fixed non-solid electrolyte tantalum capacitors with porous anode.
• Sub-family 2: Fixed solid electrolyte tantalum capacitors with porous anode.
1.2 Object
The object of this document is to prescribe preferred ratings and characteristics and to select
from IEC 60384-1:2016 the appropriate quality assessment procedures, tests and measuring
methods and to give general performance requirements for this type of capacitor. Test
severities and requirements prescribed in detail specifications referring to this sectional
specification shall be of equal or higher performance level, because lower performance levels
are not permitted.
1.3 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60063, Preferred number series for resistors and capacitors
IEC 60068-1:2013, Environmental testing – Part 1: General and guidance
IEC 60068-2-6, Environmental testing – Part 2-6: Tests – Test Fc: Vibration (sinusoidal)
IEC 60068-2-14, Environmental testing – Part 2-14: Tests – Test N: Change of temperature
IEC 60384-1:2016, Fixed capacitors for use in electronic equipment – Part 1: Generic
specification
IEC 60417, Graphical symbols for use on equipment
IEC 61193-2:2007, Quality assessment system – Part 2: Selection and use of sampling plans
for inspection of electronic components and packages
– 8 – IEC 60384-15:2017 © IEC 2017
ISO 3, Preferred numbers – Series of preferred numbers
1.4 Information to be given in a detail specification
1.4.1 General
Detail specifications shall be derived from the blank detail specification.
Detail specifications shall not specify requirements inferior to those of the generic, sectional
or blank detail specification. When more severe requirements are included, they shall be
listed in 1.9 of the detail specification and indicated in the test schedules, for example, by an
asterisk.
The information given in 1.4.2 may, for convenience, be presented in tabular form.
The following information shall be given in each detail specification and the values quoted
shall preferably be selected from those given in the appropriate clause of this sectional
specification.
1.4.2 Outline drawing and dimensions
There shall be an illustration of the capacitors as an aid to easy recognition and for
comparison of the capacitors with others.
Dimensions and their associated tolerances, which affect interchangeability and mounting,
shall be given in the detail specification. All dimensions shall preferably be stated in
millimetres. However, when the original dimensions are given in inches, the converted metric
dimensions in millimetres shall be added.
The numerical values of the body shall be given as follows:
• for general: the length, width and height;
• for cylindrical body: the diameter and length.
The numerical values of the terminals shall be given as follows:
• for general: the spacing;
• for leaded terminals: the diameter and spacing.
When the configuration is other than described above, the detail specification shall state such
dimensional information as will adequately describe the capacitor.
1.4.3 Mounting
The detail specification shall specify the method of mounting to be applied for normal use and
for the application of the vibration and the bump or shock tests. The design of the capacitor
may be such that special mounting fixtures are required in its use. In this case, the detail
specification shall describe the mounting fixtures and they shall be used in the application of
the vibration and bump or shock tests.
1.4.4 Ratings and characteristics
1.4.4.1 General
The ratings and characteristics shall be given in accordance with the relevant clauses of this
specification, together with the information in 1.4.4.2, 1.4.4.3 and 1.4.4.4.
1.4.4.2 Nominal capacitance range
See 2.2.1.
When products approved to the detail specification have different capacitance ranges, the
following statement should be added:
”The nominal capacitance range available in each voltage range is given in the register of
approvals, available for example on the IECQ on-line certificate system website
www.iecq.org”.
1.4.4.3 Particular characteristics
Additional characteristics may be listed, when they are considered necessary to specify
adequately the component for design and application purposes.
1.4.4.4 Soldering
The detail specification shall specify the test methods, severities and requirements applicable
for the solderability test and the resistance to soldering heat tests.
1.4.5 Marking
The detail specification shall specify the content of the marking on the capacitor and on the
packaging. When there are deviations from 1.6, these shall be given in the detail
specification.
1.5 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
1.5.1
capacitance
equivalent circuit having capacitance and resistance in series
measured with alternating current, approximately sinusoidal waveform at a specified
frequency
1.5.2
capacitor
capacitors intended for applications where a high degree of stability of
characteristics over a long life is essential
1.5.3
capacitor
capacitors intended for applications where the high performance
level of long-life grade capacitors is not required
1.6 Marking
1.6.1 General
See IEC 60384-1:2016, 2.4, with the details of 1.6.2, 1.6.3 and 1.6.4.
– 10 – IEC 60384-15:2017 © IEC 2017
1.6.2 Information for marking
The information given in the marking is normally selected from the following list; the relative
importance of each item is indicated by its position in the list:
a) polarity of the terminations (unless identified by the construction);
b) nominal capacitance;
c) rated voltage (d.c. voltage may be indicated by the symbol: (IEC 60417-5031:2002)
or );
d) tolerance on nominal capacitance;
e) year and month (or year and week) of manufacture;
f) manufacturer's name and/or trade mark;
g) manufacturer's type designation;
h) reference to the detail specification.
1.6.3 Marking on capacitors
The capacitor shall be clearly marked with a), b) and c) of 1.6.2 and with as many as possible
of the remaining items as is considered necessary. Any duplication of information in the
marking on the capacitor should be avoided.
1.6.4 Marking on packaging
The packaging containing the capacitors should be clearly marked with all of the information
listed in 1.6.2 as necessary.
2 Preferred ratings and characteristics
2.1 Preferred characteristics
Preferred climatic categories only shall be given in the preferred characteristics.
The capacitors covered by this specification are classified into climatic categories according
to the general rules given in IEC 60068-1:2013, Annex A.
The lower and upper category temperature shall be taken from the following:
• lower category temperature: −55 °C;
• upper category temperature: +85 °C and +125 °C.
• duration of the damp heat, steady state test: 21 and 56 days.
The severities for the cold and dry heat tests are the lower and upper category temperatures
respectively.
2.2 Preferred values of ratings
2.2.1 Nominal capacitance (C )
N
Preferred values of nominal capacitance are shown in microfarad (µF).
Preferred values of nominal capacitance shall be taken from the E12 series of IEC 60063 and
their decimal multiples. These values are:
1,0 – 1,2 – 1,5 – 1,8 – 2,2 – 2,7 – 3,3 – 3,9 – 4,7 – 5,6 – 6,8 – 8,2;
n
and their decimal multiples (×10 , n: integer).
2.2.2 Tolerance on nominal capacitance
Preferred values of tolerances on rated capacitance are:
±5 % , ±10 % , ±20 %
2.2.3 Rated voltage (U )
R
Preferred values of rated direct voltages taken from the R10, R20 and R40 series of ISO 3
are:
• from R 10: 1,0 – 1,25 – 1,6 – 2,0 – 2,5 – 3,15 – 4,0 – 5,0 – 6,3 – 8,0;
• from R 20: 3,5 ;
• from R 40: 3,0 – 7,5;
n
and their decimal multiples (×10 , n: integer).
2.2.4 Category voltage (U )
C
The category voltages for capacitors having an upper category temperature of 125 °C are
given in Table 1.
2.2.5 Reverse voltage
If required, the value of reverse voltage, which a polar capacitor can withstand continuously at
any temperature between the lower category temperature and the rated temperature, shall be
included in the detail specification.
2.2.6 Surge voltage (U or U )
RS CS
The surge voltage shall be a minimum of 1,15 times the rated or category voltage rounded off
to the nearest volt given in Table 1.
Table 1 – Rated, category and surge voltages
Values in volts
U 2 3 4 6,3 10 16 20 25 35 40 50 63 75 100 125
R
U 1,3 2 2,6 4,2 6,7 10,7 13,4 16,7 23,4 26,8 33,5 42,2 50,2 67 83,7
C
U
2,3 3,4 4,6 7,2 11,5 18,4 23 28,7 40,2 46 57,5 74,4 86,2 115 143,7
RS
U 1,4 2,3 3 4,8 7,7 12,3 15,4 19,2 26,9 30,8 38,5 48,5 57,7 77 96,2
CS
Key
U : Rated voltage
R
U : Category voltage
C
U : Surge voltage to rated voltage
RS
U : Surge voltage to category voltage
CS
2.2.7 Ripple (if required)
Ripple current and/or ripple voltage shall be specified in the detail specification.
———————
ISO 3 indicates the value 3,55 for R 20
– 12 – IEC 60384-15:2017 © IEC 2017
2.2.8 Rated temperature
The standard value of the rated temperature is +85 °C unless otherwise specified in the detail
specification.
3 Quality assessment procedures
3.1 Primary stage of manufacture
For capacitors with solid electrolyte, the primary stage of manufacturing is the formation of the
oxide layer.
3.2 Structurally similar components
Capacitors considered as being structurally similar are capacitors produced with similar
processes and materials, though they may be of different case sizes and values.
3.3 Certified test records of released lots
The information required in IEC 60384-1:2016, Q.1.5, shall be made available when
prescribed in the detail specification and when requested by a purchaser. After the endurance
test, the required parameters are the capacitance change, tangent of loss angle and leakage
current.
3.4 Qualification approval procedures
3.4.1 General
The procedures for qualification approval testing are given in IEC 60384-1:2016, Q.2
The schedule to be used for qualification approval testing on the basis of lot-by-lot and
periodic tests is given in 3.5. The procedure using a fixed sample size schedule is given in
3.4.2 and 3.4.3.
3.4.2 Qualification approval on the basis of the fixed sample size procedure
The fixed sample size procedure is described in IEC 60384-1:2016, Q.2.4. The sample shall
be representative of the range of capacitors for which approval is sought. The samples may
be the whole or part of the range given in the detail specification.
The sample shall consist of four specimens having the maximum and minimum voltages and
for these voltages the maximum and minimum case size. When there are more than four case
sizes, an intermediate case size shall also be tested. In each of these case size/voltage
combinations (values), the maximum capacitance shall be chosen. Thus, for the approval of a
range, testing is required of either four or six values. When the range consists of fewer than
four values, the number of specimens to be tested shall be that required for four values.
Spare specimens are permitted as follows:
Two (for 6 values) or three (for 4 values) per value may be used as replacements for
specimens, which are non-conforming because of incidents not attributable to the
manufacturer.
The numbers given in Group 0 assume that all groups are applicable. If this is not so, the
numbers may be reduced accordingly.
When additional groups are introduced into the qualification approval test schedule, the
number of specimens required for Group 0 shall be increased by the same number as that
required for the additional groups.
Table 2 gives the number of samples to be tested in each group or subgroup together with the
permissible number of non-conforming items for qualification approval tests.
3.4.3 Tests
The complete series of tests specified in Table 2 and Table 3 are required for the approval of
capacitors covered by one detail specification. The tests of each group shall be carried out in
the order given.
The whole sample shall be subjected to the tests of Group 0 and then divided for the other
groups.
Specimens found to be non-conforming in the tests of Group 0 shall not be used for the other
groups.
Approval is granted when the number of non-conforming items is zero.
Table 2 and Table 3 together form the fixed sample size test schedule for the qualification
approval on the basis of the fixed sample size procedure.
Table 2 gives the number of samples and permissible non-conforming items for each tests or
test groups.
Table 3 gives a summary of the test conditions and performance requirements, and choices of
the test conditions and performance requirements in the detail specification.
The test conditions and performance requirements for the qualification approval on the basis
of the fixed sample size procedure should be identical to those for quality conformance
inspection given in the detail specification.
– 14 – IEC 60384-15:2017 © IEC 2017
Table 2 – Sampling plan for qualification approval tests
Permissible
Number of number of non-
conforming
specimens
Group no. Test Subclause
items
b
n
c
c
0 Visual examination 4.1 0
104+8
Dimensions 4.1
Leakage current 4.2.1
Capacitance 4.2.2
Tangent of loss angle 4.2.3
a
Impedance 4.2.4
Insulation resistance of the external 4.2.5
a
insulation
Voltage proof of the external 4.2.6
a
insulation
a
High surge current 4.19
Spare specimens 8
1A Robustness of terminations 4.3 12 0
Resistance to soldering heat 4.4
Component solvent resistance 4.17
1B Solderability 4.5 24 0
Solvent resistance of the marking 4.18
Rapid change of temperature 4.6
Vibration 4.7
a
Bump 4.8
a
Shock 4.9
1 Climatic sequence 4.10 36 0
2 Damp heat, steady state 4.11 20 0
3 Endurance 4.12 20 0
4A Surge voltage 4.13 8 0
a
4B Reverse voltage 4.14 8 0
5 Characteristics at high and low 4.15 12 0
temperature
a
Charge and discharge 4.16
a
If required.
b
For case size/ voltage combinations, see 3.4.2.
c
Spare specimens.
Table 3 – Test schedule for qualification approval (1 of 6)
Number of
specimens (n)
and number
a
Subclause number and D or Conditions of test of
a
Performance requirements
a b
test , inspection items ND and measurements permissible
non-
conforming
items (c)
Group 0 ND See Table 2
4.1 Visual examination See 4.1 Legible marking and as specified
in the detail specification
4.1 Dimensions
See 4.1 See detail specification
(detail)
4.2.1 Leakage current See 4.2.1.2
≤
...
