IEC 60884-1:2022/COR1:2023
(Corrigendum)Corrigendum 1 - Plugs and socket-outlets for household and similar purposes - Part 1: General requirements
Corrigendum 1 - Plugs and socket-outlets for household and similar purposes - Part 1: General requirements
IEC 60884-1:2022 applies to plugs and fixed or portable socket-outlets for AC only, with or without earthing contact, with a rated voltage greater than 50 V but not exceeding 440 V and a rated current not exceeding 32 A, intended for household and similar purposes, either indoors or outdoors.
Compatible plugs and socket-outlets, when combined, form a plug and socket-outlet system. Standardized systems used around the world are reported in IEC/TR 60083.
The rated current is limited to 16 A maximum for accessories provided with screwless-type terminals.
This fourth edition cancels and replaces the third edition published in 2002, Amendment 1:2006 and Amendment 2:2013. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
plugs and socket-outlets incorporating pilot lights;
crimped connections in accessories;
insulation piercing terminals (IPT);
accessories to be used with American Wire Gauge (AWG) cables;
accessories used in T° below −5 °C down to and including −45 °C;
accessories used in T° above +40 °C up to and including +70 °C;
plugs and socket-outlets for high load (HL);
clarification of some definitions;
durability of markings test;
introduction of thermal monitoring in the plug;
requirements for shutters in portable socket-outlets;
test walls for the verification of ingress of water;
rewriting of the temperature rise clause.
Corrigendum 1 - Prises de courant pour usages domestiques et analogues - Partie 1: Exigences générales
L'IEC 60884-1:2022 s'applique aux fiches et aux socles fixes ou mobiles pour courant alternatif seulement, avec ou sans contact de terre, de tension assignée supérieure à 50 V, mais inférieure ou égale à 440 V et de courant assigné inférieur ou égal 32 A, destinés aux usages domestiques et usages analogues, à l'intérieur ou à l'extérieur des bâtiments.
Les fiches et socles compatibles, lorsqu'ils sont combinés, forment un système de prise de courant. Les systèmes normalisés utilisés dans le monde sont indiqués dans l'IEC/TR 60083.
Le courant assigné est limité à 16 A au maximum pour les appareils équipés de bornes sans vis.
Cette quatrième édition annule et remplace la troisième édition parue en 2002, l'Amendement 1:2006 et l'Amendement 2:2013. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
fiches et socles qui comportent des lampes indicatrices;
raccordements par sertissage dans les appareils;
bornes à perçage d'isolant (IPT);
appareils à utiliser avec des câbles American Wire Gauge (AWG);
appareils utilisés à des températures inférieures à −5 °C jusqu'à −45 °C inclus;
appareils utilisés à des températures supérieures à +40 °C jusqu'à +70 °C inclus;
fiches et socles pour charge élevée (HL);
clarification de certaines définitions;
essai de durabilité des marquages;
introduction du monitorage thermique dans la fiche;
exigences relatives aux obturateurs dans les socles mobiles;
murs d'essai pour la vérification de la pénétration de l'eau;
réécriture de l'article relatif à l'échauffement.
La présente version bilingue (2022-12) correspond à la version anglaise monolingue publiée en 2022-08.
La version française de cette norme n'a pas été soumise au vote.
General Information
- Status
- Published
- Publication Date
- 06-Dec-2023
- Technical Committee
- SC 23B - Plugs, socket-outlets and switches
- Drafting Committee
- MT 4 - TC 23/SC 23B/MT 4
- Current Stage
- PPUB - Publication issued
- Start Date
- 24-Jan-2024
- Completion Date
- 07-Dec-2023
Relations
- Effective Date
- 05-Sep-2023
Frequently Asked Questions
IEC 60884-1:2022/COR1:2023 is a standard published by the International Electrotechnical Commission (IEC). Its full title is "Corrigendum 1 - Plugs and socket-outlets for household and similar purposes - Part 1: General requirements". This standard covers: IEC 60884-1:2022 applies to plugs and fixed or portable socket-outlets for AC only, with or without earthing contact, with a rated voltage greater than 50 V but not exceeding 440 V and a rated current not exceeding 32 A, intended for household and similar purposes, either indoors or outdoors. Compatible plugs and socket-outlets, when combined, form a plug and socket-outlet system. Standardized systems used around the world are reported in IEC/TR 60083. The rated current is limited to 16 A maximum for accessories provided with screwless-type terminals. This fourth edition cancels and replaces the third edition published in 2002, Amendment 1:2006 and Amendment 2:2013. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: plugs and socket-outlets incorporating pilot lights; crimped connections in accessories; insulation piercing terminals (IPT); accessories to be used with American Wire Gauge (AWG) cables; accessories used in T° below −5 °C down to and including −45 °C; accessories used in T° above +40 °C up to and including +70 °C; plugs and socket-outlets for high load (HL); clarification of some definitions; durability of markings test; introduction of thermal monitoring in the plug; requirements for shutters in portable socket-outlets; test walls for the verification of ingress of water; rewriting of the temperature rise clause.
IEC 60884-1:2022 applies to plugs and fixed or portable socket-outlets for AC only, with or without earthing contact, with a rated voltage greater than 50 V but not exceeding 440 V and a rated current not exceeding 32 A, intended for household and similar purposes, either indoors or outdoors. Compatible plugs and socket-outlets, when combined, form a plug and socket-outlet system. Standardized systems used around the world are reported in IEC/TR 60083. The rated current is limited to 16 A maximum for accessories provided with screwless-type terminals. This fourth edition cancels and replaces the third edition published in 2002, Amendment 1:2006 and Amendment 2:2013. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: plugs and socket-outlets incorporating pilot lights; crimped connections in accessories; insulation piercing terminals (IPT); accessories to be used with American Wire Gauge (AWG) cables; accessories used in T° below −5 °C down to and including −45 °C; accessories used in T° above +40 °C up to and including +70 °C; plugs and socket-outlets for high load (HL); clarification of some definitions; durability of markings test; introduction of thermal monitoring in the plug; requirements for shutters in portable socket-outlets; test walls for the verification of ingress of water; rewriting of the temperature rise clause.
IEC 60884-1:2022/COR1:2023 is classified under the following ICS (International Classification for Standards) categories: 29.120.30 - Plugs, socket-outlets, couplers. The ICS classification helps identify the subject area and facilitates finding related standards.
IEC 60884-1:2022/COR1:2023 has the following relationships with other standards: It is inter standard links to IEC 60884-1:2022. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
IEC 60884-1:2022/COR1:2023 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
© IEC 2023
INTERNATIONAL ELECTROTECHNICAL COMMISSION
COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
____________
IEC 60884-1 IEC 60884-1
Edition 4.0 2022-01 Édition 4.0 2022-01
PLUGS AND SOCKET-OUTLETS FOR PRISES DE COURANT POUR USAGES
HOUSEHOLD AND SIMILAR PURPOSES – DOMESTIQUES ET ANALOGUES –
Part 1: General requirements Partie 1: Exigences générales
CO RRI G E NDUM 1
Corrections to the French version appear after the English text.
Les corrections à la version française sont données après le texte anglais.

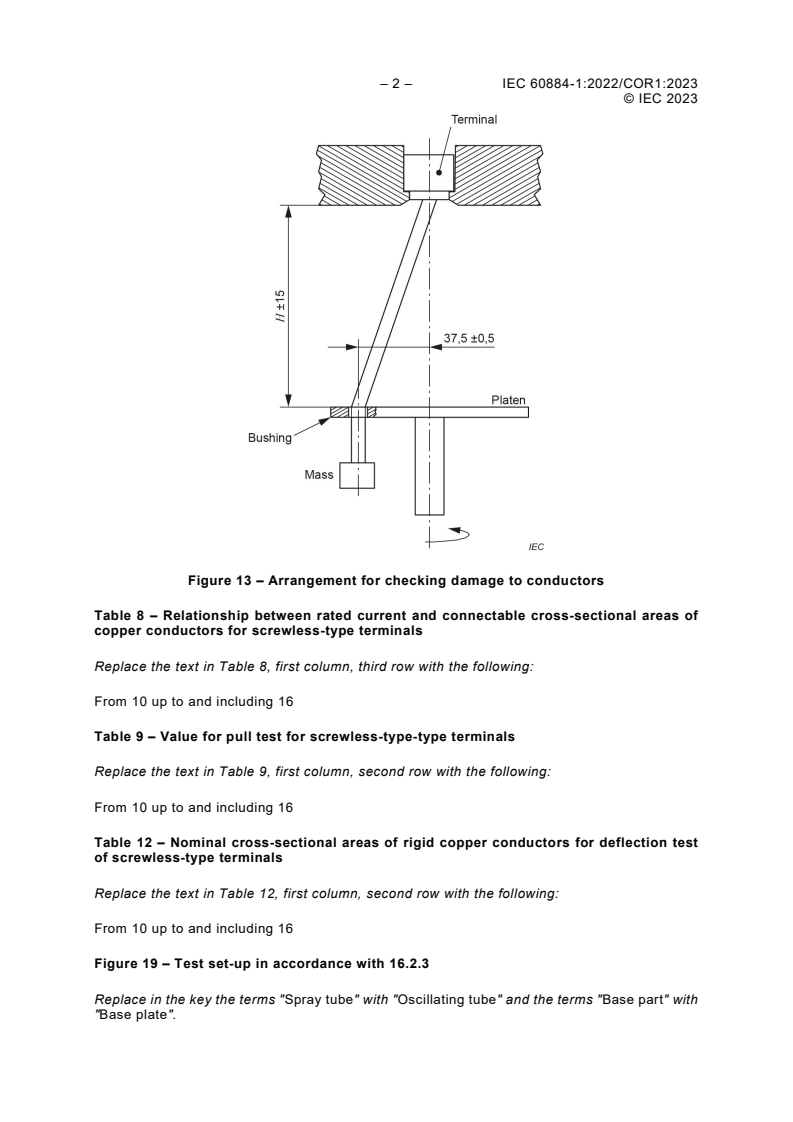

Figure 13 – Arrangement for checking damage to conductors
Replace the dimension "H ± 1,5" with "H ± 15", as follows:
IEC 60884-1:2022-01/COR1:2023-12(en-fr)
– 2 – IEC 60884-1:2022/COR1:2023
© IEC 2023
Figure 13 – Arrangement for checking damage to conductors
Table 8 – Relationship between rated current and connectable cross-sectional areas of
copper conductors for screwless-type terminals
Replace the text in Table 8, first column, third row with the following:
From 10 up to and including 16
Table 9 – Value for pull test for screwless-type-type terminals
Replace the text in Table 9, first column, second row with the following:
From 10 up to and including 16
Table 12 – Nominal cross-sectional areas of rigid copper conductors for deflection test
of screwless-type terminals
Replace the text in Table 12, first column, second row with the following:
From 10 up to and including 16
Figure 19 – Test set-up in accordance with 16.2.3
Replace in the key the terms "Spray tube" with "Oscillating tube" and the terms "Base part" with
"Base plate".
© IEC 2023
17.3 Electric strength test
Replace the first two paragraphs of 17.3 (including the dashed list) with the following:
A voltage of substantially sine-wave form, having a frequency of 50 Hz or 60 Hz, is applied for
1 min between the parts indicated in 17.2.
The test voltage shall be as follows:
– 1 250 V for accessories having a rated voltage up to and including 130 V;
– 2 000 V for accessories having a rated voltage exceeding 130 V.
Accessories with an accessible metal surface according to 10.3.2 shall in addition be tested as
follows:
Between the live parts (L1, L2, L3 and N, if any) connected together and the accessible metal
surface:
– 2 000 V for accessories having a rated voltage up to and including 130 V;
– 3 000 V for accessories having a rated voltage exceeding 130 V.
19.5.1.1 General
Move the first paragraph of 19.5.1.1 after the second paragraph of 19.2.
Table 19 – Maximum and minimum withdrawal force for plugs and socket-outlets
Replace Table 19 with the following:
Table 19 – Maximum and minimum withdrawal force for plugs and socket-outlets
Withdrawal force
Number of the N
Ratings of the accessory poles of the
Single-pin
Multi-pin Single-pin
accessory
gauge gauge gauge
a
maximum minimum maximum
2 40
Up to and including 13 A 3 50 1,5 17
More than 3 70
2 50
Above 13 A up to and including 20 A 3 54 2,0 25
More than 3 70
2 80
Above 20 A up to and including 32 A 3 80 3,0 27
More than 3 100
a
These withdrawal forces are only for testing the resilient earthing contact assembly of a plug.

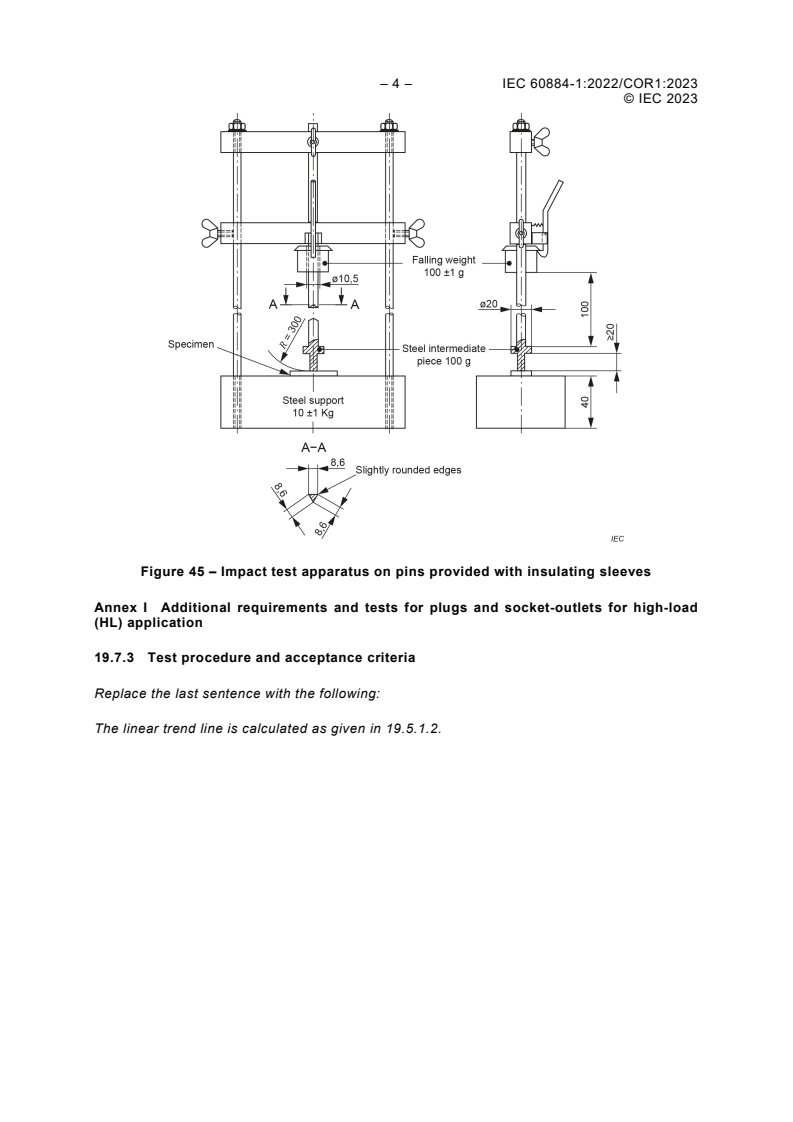

Figure 45 – Impact test apparatus on pins provided with insulating sleeves
Replace "Falling weight 1000 ± 2g" with "Falling weight 100 ± 1 g" as follows:
– 4 – IEC 60884-1:2022/COR1:2023
© IEC 2023
Figure 45 – Impact test apparatus on pins provided with insulating sleeves
Annex I Additional requirements and tests for plugs and socket-outlets for high-load
(HL) application
19.7.3 Test procedure and a
...
