IEC 60884-3-1:2021/COR1:2024

© IEC 2024
INTERNATIONAL ELECTROTECHNICAL COMMISSION
COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
____________
IEC 60884-3-1 IEC 60884-3-1
Edition 1.0  2021-01 Édition 1.0  2021-01

PLUGS AND SOCKET-OUTLETS FOR PRISES DE COURANT POUR USAGES
HOUSEHOLD AND SIMILAR PURPOSES DOMESTIQUES ET ANALOGUES

Part 3-1: Particular requirements for socket- Partie 3-1: Exigences particulières pour les
outlets incorporating USB power supply socles de prise de courant qui intègrent
l'alimentation électrique par port USB

CO RRI G E NDUM 1
Corrections to the French version appear after the English text.
Les corrections à la version française sont données après le texte anglais.

Replace all references to "IEC 60884-1:— " and "IEC 60884-1:—" with "IEC 60884-1:2022",
and delete all footnotes referencing the FDIS, i.e., the footnote "Fourth edition under
preparation. Stage at the time of publication: IEC FDIS 60884-1:2021".
5.4 Additional samples
Table 1 – Survey of specimens needed for tests
Replace the line corresponding to Clause 16 with the following:
f o
16 Resistance to ageing, to harmful ingress of water and to humidity ABC GHI ABC
Replace the line corresponding to Clause 24 with the following:
i, k i
24 Mechanical strength
ABC ABC
Replace the line corresponding to Clause 25 with the following:
l
25 ABC ABC
Resistance to heat
Replace the line corresponding to 28.2 with the following:
m
28.2 DEF DEF
Resistance to tracking
Replace lines corresponding to Clause 101 and Clause 102.3 with the following:
r r
101 Abnormal conditions NOP NOP
s s
102.3 Application of the clauses of IEC 62368-1 and IEC 62368-3 QRS QRS

IEC 60884-3-1:2021-01/COR1:2024-07(en-fr)

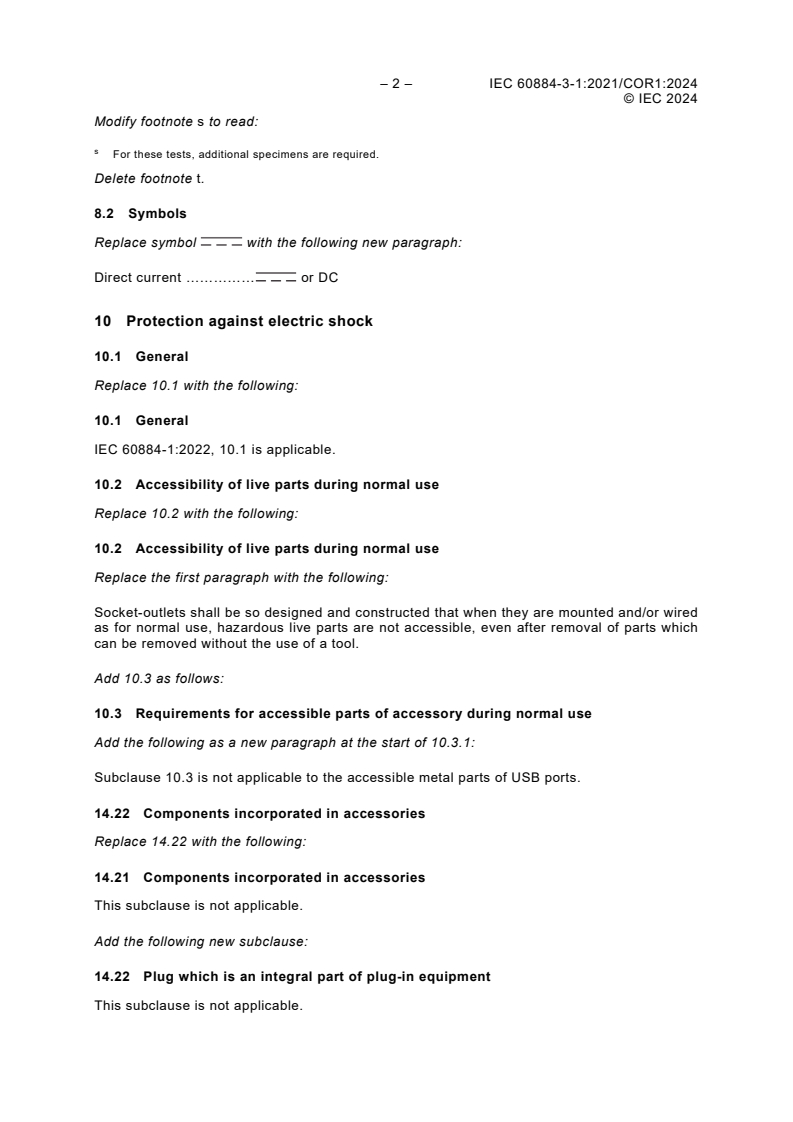

– 2 – IEC 60884-3-1:2021/COR1:2024
© IEC 2024
Modify footnote s to read:
s
For these tests, additional specimens are required.
Delete footnote t.
8.2 Symbols
Replace symbol with the following new paragraph:
Direct current …………… or DC
10 Protection against electric shock
10.1 General
Replace 10.1 with the following:
10.1 General
IEC 60884-1:2022, 10.1 is applicable.
10.2 Accessibility of live parts during normal use
Replace 10.2 with the following:
10.2 Accessibility of live parts during normal use
Replace the first paragraph with the following:
Socket-outlets shall be so designed and constructed that when they are mounted and/or wired
as for normal use, hazardous live parts are not accessible, even after removal of parts which
can be removed without the use of a tool.
Add 10.3 as follows:
10.3 Requirements for accessible parts of accessory during normal use
Add the following as a new paragraph at the start of 10.3.1:
Subclause 10.3 is not applicable to the accessible metal parts of USB ports.
14.22 Components incorporated in accessories
Replace 14.22 with the following:
14.21 Components incorporated in accessories
This subclause is not applicable.
Add the following new subclause:
14.22 Plug which is an integral part of plug-in equipment
This subclause is not applicable.

© IEC 2024
17.2.1
Replace 17.2.1 with 17.2.2.
19 Temperature rise
Replace the existing text of Clause 19 excluding 19.101 with the following:
IEC 60884-1:2022, Clause 19 is applicable except as follows:
19.1 General
Add, after the fourth paragraph, the following new paragraph:
Socket-outlets incorporating a USB power supply for which 19.101 applies.
Add the following new subclause:
21 Normal operation
Replace the second paragraph with the following:
Replace the paragraph before the note (i.e., the note that is the penultimate sentence of
Clause 21) wit
...
