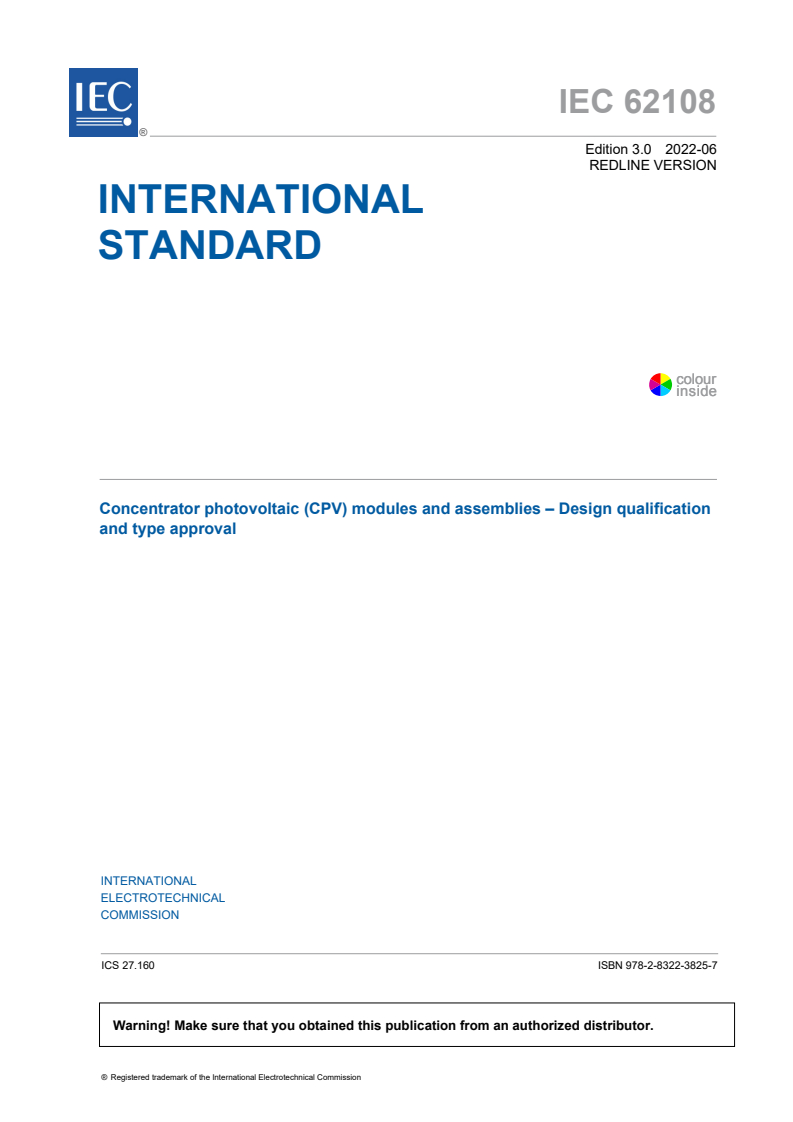

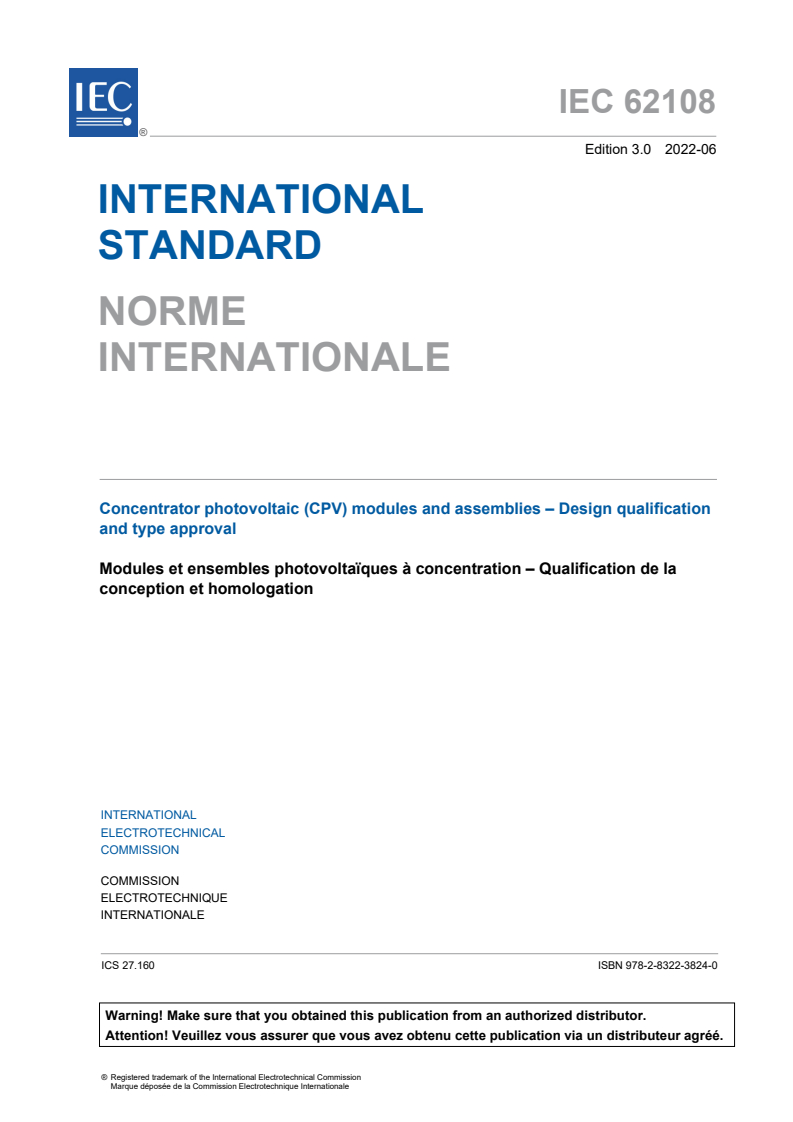

IEC 62108:2022

IEC 62108 ®
Edition 3.0 2022-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Concentrator photovoltaic (CPV) modules and assemblies – Design qualification
and type approval
Modules et ensembles photovoltaïques à concentration – Qualification de la
conception et homologation
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 19 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un
en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour
comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 300 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
19 langues additionnelles. Egalement appelé Vocabulaire

Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC 62108 ®
Edition 3.0 2022-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Concentrator photovoltaic (CPV) modules and assemblies – Design qualification
and type approval
Modules et ensembles photovoltaïques à concentration – Qualification de la
conception et homologation
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 27.160 ISBN 978-2-8322-3824-0
– 2 – IEC 62108:2022 © IEC 2022

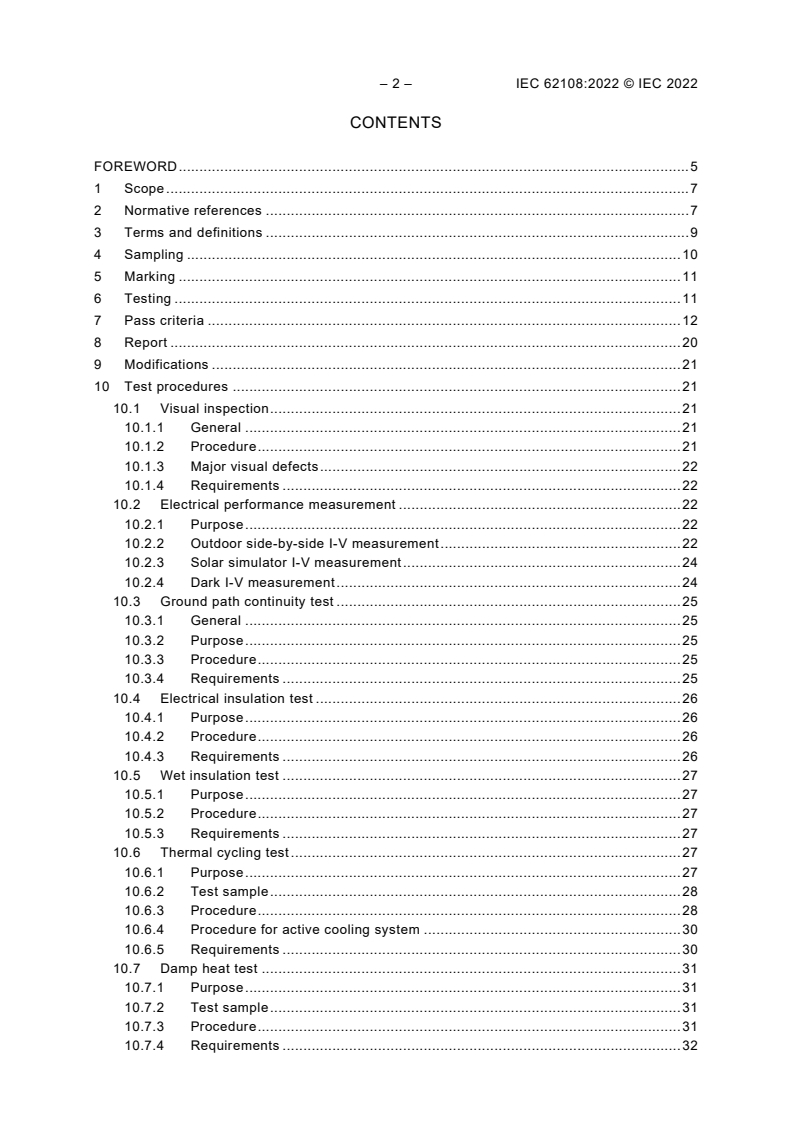

CONTENTS
FOREWORD . 5
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 9
4 Sampling . 10
5 Marking . 11
6 Testing . 11
7 Pass criteria . 12
8 Report . 20
9 Modifications . 21
10 Test procedures . 21
10.1 Visual inspection . 21
10.1.1 General . 21
10.1.2 Procedure . 21
10.1.3 Major visual defects . 22
10.1.4 Requirements . 22
10.2 Electrical performance measurement . 22
10.2.1 Purpose . 22
10.2.2 Outdoor side-by-side I-V measurement . 22
10.2.3 Solar simulator I-V measurement . 24
10.2.4 Dark I-V measurement . 24
10.3 Ground path continuity test . 25
10.3.1 General . 25
10.3.2 Purpose . 25
10.3.3 Procedure . 25
10.3.4 Requirements . 25
10.4 Electrical insulation test . 26
10.4.1 Purpose . 26
10.4.2 Procedure . 26
10.4.3 Requirements . 26
10.5 Wet insulation test . 27
10.5.1 Purpose . 27
10.5.2 Procedure . 27
10.5.3 Requirements . 27
10.6 Thermal cycling test . 27
10.6.1 Purpose . 27
10.6.2 Test sample . 28
10.6.3 Procedure . 28
10.6.4 Procedure for active cooling system . 30
10.6.5 Requirements . 30
10.7 Damp heat test . 31
10.7.1 Purpose . 31
10.7.2 Test sample . 31
10.7.3 Procedure . 31
10.7.4 Requirements . 32

10.8 Humidity freeze test . 32
10.8.1 Purpose . 32
10.8.2 Test sample . 32
10.8.3 Procedure . 32
10.8.4 Requirements . 32
10.9 Hail impact test . 33
10.9.1 Purpose . 33
10.9.2 Apparatus . 33
10.9.3 Procedure . 34
10.9.4 Requirements . 34
10.10 Dust and water ingress protection test . 34
10.10.1 Purpose . 34
10.10.2 Procedure . 35
10.10.3 Requirements . 35
10.11 Bypass/blocking diode thermal test . 35
10.11.1 Purpose . 35
10.11.2 Test sample . 35
10.11.3 Apparatus . 35
10.11.4 Procedure . 36
10.11.5 Requirements . 36
10.11.6 Procedure 2 – Alternate method . 36
10.12 Robustness of terminations test . 37
10.12.1 Purpose . 37
10.12.2 Procedure . 38
10.12.3 Requirements . 38
10.13 Mechanical load test . 38
10.13.1 Purpose . 38
10.13.2 Procedure . 39
10.13.3 Requirements . 39
10.14 Off-axis beam damage test . 39
10.14.1 General . 39
10.14.2 Purpose . 39
10.14.3 Special case . 39
10.14.4 Procedure . 40
10.14.5 Requirements . 40
10.15 Outdoor exposure test . 40
10.15.1 Purpose . 40
10.15.2 Procedure . 40
10.15.3 Requirements . 41
10.16 Hot-spot endurance test . 41
Annex A (informative) Summary of test conditions and requirements . 42
Annex B (normative) Retesting guideline . 45
B.1 Product or process modifications requiring limited retesting to maintain

certification . 45
B.2 Modifications of CPV cell technology . 45
B.3 Modifications in optical encapsulation on the cell (Includes optical coupling
between the cell and a glass secondary optical element bonded to the cell) . 46
B.4 Modification in cell encapsulation outside of intended light path . 46
B.5 Modification of cell package substrate used for heat transfer . 46

– 4 – IEC 62108:2022 © IEC 2022
B.6 Accessible optics (primary or secondary) . 47
B.7 Inaccessible optics (secondary) . 47
B.8 Frame and/or mounting structure . 47
B.9 Enclosure . 48
B.10 Wiring compartment/junction box . 48
B.11 Interconnection terminals . 48
B.12 Interconnection materials or technique (to cells and between receivers) . 49
B.13 Change in electrical circuit design in an identical package . 49
B.14 Output power . 49
B.15 Thermal energy transfer means . 50
B.16 Adhesives . 50

Figure 1 – Schematic of point-focus dish PV concentrator . 14
Figure 2 – Schematic of linear-focus trough PV concentrator . 15
Figure 3 – Schematic of point-focus Fresnel lens PV concentrator . 16
Figure 4 – Schematic of linear-focus Fresnel lens PV concentrator . 17
Figure 5 – Schematic of a heliostat CPV . 18
Figure 6 – Qualification test sequence for CPV modules . 19
Figure 7 – Qualification test sequence for CPV assemblies . 20
Figure 8 – Temperature and current profile of thermal cycle test (not to scale) . 31
Figure 9 – Profile of humidity-freeze test conditions . 33
Figure 10 – Bypass diode thermal test . 37

Table 1 – Terms used for CPV . 10
Table 2 – Allocation of test samples to typical test sequences . 12
Table 3 – Thermal cycle test options for sequence A . 29
Table 4 – Humidity freeze test options for sequence B . 32
Table 5 – Minimum wind loads . 38
Table A.1 – Summary of test conditions and requirements . 42

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
CONCENTRATOR PHOTOVOLTAIC (CPV) MODULES AND ASSEMBLIES –
DESIGN QUALIFICATION AND TYPE APPROVAL

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 62108 has been prepared by IEC technical committee 82: Solar photovoltaic energy
systems. It is an International Standard.
This third edition cancels and replaces the second edition published in 2016. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) Changes in the procedure of the thermal cycling test for the active cooling module.
b) Solar simulator I-V measurement.

– 6 – IEC 62108:2022 © IEC 2022
The text of this International Standard is based on the following documents:
Draft Report on voting
82/2024/FDIS 82/2046/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
CONCENTRATOR PHOTOVOLTAIC (CPV) MODULES AND ASSEMBLIES –
DESIGN QUALIFICATION AND TYPE APPROVAL

1 Scope
This document specifies the minimum requirements for the design qualification and type
approval of concentrator photovoltaic (CPV) modules and assemblies suitable for long-term
operation in general open-air climates as defined in IEC 60721-2-1. The test sequence is
partially based on that specified in IEC 61215-1 for the design qualification and type approval
of flat-plate terrestrial crystalline silicon PV modules. However, some changes have been made
to account for the special features of CPV receivers and modules, particularly with regard to
the separation of on-site and in-lab tests, effects of tracking alignment, high current density,
and rapid temperature changes, which have resulted in the formulation of some new test
procedures or new requirements.
The object of this test document is to determine the electrical, mechanical, and thermal
characteristics of the CPV modules and assemblies and to show, as far as possible within
reasonable constraints of cost and time, that the CPV modules and assemblies are capable of
withstanding prolonged exposure in climates described in the scope. The actual life of CPV
modules and assemblies so qualified will depend on their design, production, environment, and
the conditions under which they are operated.
This document is used in conjunction with the retest guidelines described in Annex B.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60529, Degrees of protection provided by enclosures (IP Code)
IEC 60664-1:2020, Insulation coordination for equipment within low-voltage supply systems –
Part 1: Principles, requirements and tests
IEC 60721-2-1, Classification of environmental conditions – Part 2-1: Environmental conditions
appearing in nature – Temperature and humidity
IEC 60904-1:2020, Photovoltaic devices – Part 1: Measurement of photovoltaic current-voltage
characteristics
IEC 60904-1-1:2017, Photovoltaic devices – Part 1-1: Measurement of current-voltage
characteristics of multi-junction photovoltaic (PV) devices
IEC TS 60904-1-2:2019, Photovoltaic devices – Part 1-2: Measurement of current-voltage
characteristics of bifacial photovoltaic (PV) devices
IEC 60904-2:2015, Photovoltaic devices – Part 2: Requirements for photovoltaic reference
devices
IEC 60904-3:2019, Photovoltaic devices – Part 3: Measurement principles for terrestrial
photovoltaic (PV) solar devices with reference spectral irradiance data

– 8 – IEC 62108:2022 © IEC 2022
IEC 60904-4:2019, Photovoltaic devices – Part 4: Photovoltaic reference devices – Procedures
for establishing calibration traceability
IEC 60904-5:2011, Photovoltaic devices – Part 5: Determination of the equivalent cell
temperature (ECT) of photovoltaic (PV) devices by the open-circuit voltage method
IEC 60904-7:2019, Photovoltaic devices – Part 7: Computation of the spectral mismatch
correction for measurements of photovoltaic devices
IEC 60904-8:2014, Photovoltaic devices – Part 8: Measurement of spectral responsivity of a
photovoltaic (PV) device
IEC 60904-8-1:2017, Photovoltaic devices – Part 8-1: Measurement of spectral responsivity of
multi-junction photovoltaic (PV) devices
IEC 61140:2016, Protection against electric shock – Common aspects for installation and
equipment
IEC 61210:2010, Connecting devices – Flat quick-connect terminations for electrical copper
conductors – Safety requirements
IEC 61215-1:2021, Terrestrial photovoltaic (PV) modules – Design qualification and type
approval – Part 1: Test requirements
IEC 61215-2:2021, Terrestrial photovoltaic (PV) modules – Design qualification and type
approval – Part 2: Test procedures
IEC TS 61836:2016, Solar photovoltaic energy systems – Terms, definitions and symbols
IEC 61853-1:2011, Photovoltaic (PV) module performance testing and energy rating – Part 1:
Irradiance and temperature performance measurements and power rating
IEC 61853-2:2016, Photovoltaic (PV) module performance testing and energy rating – Part 2:
Spectral responsivity, incidence angle and module operating temperature measurements
IEC 61853-3:2018, Photovoltaic (PV) module performance testing and energy rating – Part 3:
Energy rating of PV modules
IEC 62670-1, Photovoltaic concentrators (CPV) – Performance testing – Part 1: Standard
conditions
IEC 62670-3:2017, Photovoltaic concentrators (CPV) – Performance testing – Part 3:
Performance measurements and power rating
IEC 62790:2020, Junction boxes for photovoltaic modules – Safety requirements and tests
IEC 62852:2014, Connectors for DC-application in photovoltaic systems – Safety requirements
and tests
IEC 62852:2014/AMD1:2020
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60664-1,
IEC TS 60904-1-2, IEC 61140, IEC TS 61836 and the following apply, see also Table 1.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
concentrator
term associated with photovoltaic devices that use concentrated sunlight
3.2
concentrator cell
basic photovoltaic device that is used under the illumination of concentrated sunlight
3.3
concentrator optics
optical device that performs one or more of the following functions from its input to output:
increasing the light intensity, filtering the spectrum, modifying light intensity distribution, or
changing light direction. Typically, it is a lens or a mirror
Note 1 to entry: A primary optics receives unconcentrated sunlight directly from the sun. A secondary optics
receives concentrated or modified sunlight from another optical device, such as primary optics or another secondary
optics.
3.4
concentrator receiver
group of one or more concentrator cells and secondary optics (if present) that accepts
concentrated sunlight and incorporates the means for thermal and electric energy transfer
Note 1 to entry: A receiver could be made of several sub-receivers. The sub-receiver is a physically stand-alone,
smaller portion of the full-size receiver.
3.5
concentrator module
group of receivers, optics, and other related components, such as interconnection and
mounting, that accepts unconcentrated sunlight
Note 1 to entry: All above components are usually prefabricated as one unit, and the focus point is not field
adjustable.
Note 2 to entry: A module could be made of several sub-modules. The sub-module is a physically stand-alone,
smaller portion of the full-size module.
3.6
concentrator assembly
group of receivers, optics, and other related components, such as interconnection and
mounting, that accepts unconcentrated sunlight
Note 1 to entry: All above components would usually be shipped separately and need some field installation, and
the focus point is field adjustable.
Note 2 to entry: An assembly could be made of several sub-assemblies. The sub-assembly is a physically stand-
alone, smaller portion of the full-size assembly.

– 10 – IEC 62108:2022 © IEC 2022
3.7
control unit
hardware that is not stressed, but is included in each measurement to enable greater confidence
in consistent measurements
Table 1 – Terms used for CPV
4 Sampling
Figure 1 to Figure 5 are schematics of cells, receivers, modules, and assemblies.
For non-field-adjustable focus-point CPV systems or modules, 7 modules and 2 receivers are
required to complete all the specified tests, plus one receiver for the bypass/blocking diode
thermal test (intrusive or non-intrusive). For details, see Figure 6. For field-adjustable focus-
point CPV systems or assemblies, 9 receivers (including secondary optics sections, if applicable)
and 7 primary optics sections are required to complete all the specified tests, plus one receiver
for the bypass/blocking diode thermal test (intrusive or non-intrusive). For details, see Figure 7.
In the case that a full-size module or assembly is too large to fit into available testing equipment,
such as environmental chambers, or a full-size module or assembly is too expensive (e.g., for
a 20 kW reflective dish concentrator system, 9 receiver samples account for 180 kW of PV cells),
a smaller representative sample can be used. However, even if representative samples are
used for the other test, a full-size module or assembly shall be installed and tested for outdoor
exposure. This can be conducted either in the testing lab, or through on-site witness.
Representative samples shall include all components, except some repeated parts. If possible,
the representative samples shall use sub-receivers, sub-modules, or sub-assemblies. During
the design and manufacturing of the representative samples, much attention shall be paid to
reach the maximum similarity to the full-size component in all electrical, mechanical, and
thermal characteristics related to quality and reliability.
Specifically, the cell string in representative samples shall be long enough to include at least
two bypass diodes, but in no case less than ten cells. The encapsulations, interconnects,
terminations, and the clearance distances around all edges shall be the same as on the actual
full-size products. Other representative components, including lens/housing joints,
receiver/housing joints, and end plate/lens shall also be included and tested.

Test samples should be taken at random from a production batch or batches. When the samples
to be tested are prototypes of a new design and not from production, or representative samples
are used, these facts should be noted in the test report (see Clause 8).
The test samples shall have been manufactured from specified materials and components in
accordance with the relevant drawings and process instructions and should have been
subjected to the manufacturer’s normal inspection, quality control, and production acceptance
procedures. They shall be complete in every detail and should be accompanied by the
manufacturer’s handling, mounting, connection, and operation manuals. Samples shall not be
subjected to other special procedures that are not a part of standard production.
If the intrusive bypass/blocking diode thermal test is to be performed, an additional specially
manufactured receiver is required with extra electrical and thermal detector leads so that each
individual diode can be accessed separately.
5 Marking
Each receiver or module section shall carry the following clear and indelible markings:
– Name, monogram, or symbol of manufacturer.
– Type or model number.
– Serial number.
– Polarity of terminals or leads (color coding is permissible).
– Maximum system voltage for which the module or assembly is suitable.
– Nominal maximum output power and its tolerance at specified condition.
– The date, place of manufacture, and cell materials shall be marked, or be traceable from
the serial number.
If representative samples are used, the same markings as on full-size products shall be included
for all tests, and the marking should be capable of surviving all test sequences.
6 Testing
If recommended by the manufacturer, before beginning the testing, all testing samples,
including the control module and control receiver, shall be exposed to the direct normal
2 2
irradiation (DNI) of sunlight (either natural or simulated) for a total of 5 kWh/m to 5,5 kWh/m
while open circuited. This procedure is designed to reduce the initial photon degradation effects.
In this document all references to short-circuit current I , open-circuit voltage V , maximum
sc oc
output power P , are based on Concentrator Standard Test Condition (CSTC), which is defined
m
in IEC 62670-1. Alternatively, Concentrator Standard Operating Conditions (CSOC), as defined
in IEC 62670-1, may be used consistently. Other parameters and testing method unless
specified are based on IEC 60904 and IEC 61853.
The test samples shall be randomly divided into groups and subjected to the qualification test
sequences in Figure 6 or Figure 7. Test procedures and requirements are detailed in Clause 10,
and summarized in Annex A. The allocation of test samples to typical test sequences is given
in Table 2.
– 12 – IEC 62108:2022 © IEC 2022
After initial tests and inspections, one module or one receiver/mirror section shall be removed
from the test sequence as a control unit. Preferably, the control unit should be stored in the
dark at room temperature to reduce the electrical performance degradation, but it may be kept
outdoors with a dark cover. As shown in Figure 6 for modules or in Figure 7 for assemblies, the
test sequence is performed both in-lab and on-site. If the CPV receiver uses crystalline silicon,
a 1-sun measurement (flash or outdoor) can be used as a diagnostic tool throughout the
program. If the distance between these two locations is considerable or public shipping
companies are involved, a dark current-voltage (I-V) curve measurement before and after the
shipping should be performed to evaluate any possible changes on testing samples.
If a particular manufacturer produces only specific components, such as receivers, lenses, or
mirrors, the design qualification and type approval testing can be conducted only on applicable
test sequences, and a partial certification can be issued independently.
If some test procedures in this document are not applicable to a specific design configuration,
the manufacturer should discuss this with the certifying body and testing agency to develop a
comparable test program, based on the principles described in this document. Any changes and
deviations shall be recorded and reported in details, as required in Clause 8 j).
Table 2 – Allocation of test samples to typical test sequences
Test Module Assembly
sequence
receiver module receiver mirror
Control 1 1 1
A 2 2
B 2 2 2
C 2 2 2
D 1 1 1
E 1 (full-size) 1 (full-size) 1 (full-size)
F 1 1
Total 3 7 10 7
7 Pass criteria
A concentrator photovoltaic module or assembly design shall be judged to have passed the
qualification tests, and therefore to be IEC 62108 type approved, if each test sample meets all
the following criteria:
a) The relative power degradation in sequence A to D does not exceed 13 % if the I-V
measurement is under outdoor natural sunlight, or 8 % if the I-V measurement is under solar
simulator.
b) The relative power degradation in sequence E does not exceed 7 % for natural sunlight I-V
measurement, or 5 % for solar simulator I-V measurement, because the 1 000 kWh/m DNI
outdoor exposure test is not an accelerated stress test.
c) No sample has exhibited any open circuit during the tests.
d) There is no visual evidence of a major defect, as defined in 10.1.2.
e) The insulation test requirements are met at the beginning and the end of each sequence.
f) The wet leakage current test requirements are met at the beginning and the end of each
sequence.
g) Specific requirements of the individual tests are met.

If there are some failures observed during the test, the following judgment and re-test procedure
shall apply:
h) If two or more test samples do not meet pass criteria, the design shall be deemed not to
have met the qualification requirements.
i) Should one sample fail any test, another two samples meeting the requirements of Clause 4
could be subjected to the whole of the relevant test sequence from the beginning.
j) In case i), if both samples pass the test sequence, the design shall be judged to have met
the qualification requirements.
k) In case i), if one or both of these samples also fail, the design shall be deemed not to have
met the qualification requirements.
l) In case h) or k), the entire test program illustrated in Figure 6 or Figure 7 shall be re-
performed, usually after some design or processing improvement.

– 14 – IEC 62108:2022 © IEC 2022

Figure 1 – Schematic of point-focus dish PV concentrator

Figure 2 – Schematic of linear-focus trough PV concentrator

– 16 – IEC 62108:2022 © IEC 2022

Figure 3 – Schematic of point-focus Fresnel lens PV concentrator

Figure 4 – Schematic of linear-focus Fresnel lens PV concentrator

– 18 – IEC 62108:2022 © IEC 2022

Figure 5 – Schematic of a heliostat CPV

Figure 6 – Qualification test sequence for CPV modules

– 20 – IEC 62108:2022 © IEC 2022

Figure 7 – Qualification test sequence for CPV assemblies
8 Report
Following type approval, a certified report of the qualification tests, with measured performance
characteristics and details of any failures and re-tests, shall be prepared by the test agency.
Each test report shall include at least the following information: Components test unless
specified is based on IEC 62790 and IEC 62852.
a) A title.
b) The name and address of the laboratory, and the location where the tests were carried out,
if different from the address of the laboratory (such as on-site location).
c) Unique identification of the test report (such as the serial number), and on each page an
identification to ensure that the page is recognized as a part of the test report, and a clear
identification of the end of the test report.
d) Name and address of client, where appropriate.
e) Description and identification of the item tested.

f) Characterization and condition of the test item.
g) Date of receipt of test item and date(s) of test, where appropriate.
h) Identification of test method used.
i) Reference to sampling procedure, where relevant.
j) Any deviations from, additions to, or exclusions
...
