IEC 61083-3:2020

(Main)

Instruments and software used for measurement in high-voltage and high-current tests - Part 3: Requirements for hardware for tests with alternating and direct voltages and currents

Instruments and software used for measurement in high-voltage and high-current tests - Part 3: Requirements for hardware for tests with alternating and direct voltages and currents

IEC 61083-3:2020 is applicable to digital recording instruments used for measurements during tests with high alternating and direct voltages and currents. It specifies the measuring characteristics and calibrations required to meet the measuring uncertainties and procedures specified in the relevant IEC standards (e.g. IEC 60060-1, IEC 60060-2, IEC 60060-3, IEC 62475, IEC 61180).
This document is applicable to those digital recording instruments that will be designed and type tested according to this document.
This document
• defines performance requirements for digital recording instruments used during tests with alternating voltages and currents (AC) or direct voltages and currents (DC);
• specifies the necessary requirements for such instruments to ensure their suitability for use under the relevant standards;
• establishes the tests and procedures necessary to demonstrate their compliance;
• defines the terms related to digital recording instruments with recording function and access to raw data.
Examples of relevant alternating and direct voltages and currents to be measured are listed in Annex D.
This International Standard has the status of a horizontal standard in accordance with IEC Guide 108.

Appareils et logiciels utilisés pour les mesurages pendant les essais à haute tension et à courant élevé - Partie 3: Exigences relatives au matériel pendant les essais avec des tensions et des courants alternatifs et continus

IEC 61083-3:2020 est applicable aux instruments d'enregistrement numérique utilisés pour les mesurages pendant les essais avec des tensions et des courants alternatifs et continus élevés. Elle spécifie les caractéristiques de mesure et les étalonnages exigés pour satisfaire aux incertitudes de mesure et aux procédures spécifiées dans les normes IEC pertinentes (par exemple IEC 60060-1, IEC 60060-2, IEC 60060-3, IEC 62475, IEC 61180).
Le présent document s'applique aux instruments d'enregistrement numérique qui sont conçus et soumis aux essais conformément au présent document.
Le présent document
• définit les exigences de performance pour les instruments d'enregistrement numérique utilisés pendant les essais avec des tensions et des courants alternatifs ou des tensions et des courants continus;
• spécifie les exigences nécessaires pour ces instruments afin de garantir leur aptitude à être utilisés selon les normes pertinentes;
• établit les essais et les procédures nécessaires pour démontrer leur conformité;
• définit les termes relatifs aux instruments d'enregistrement numérique avec fonction d'enregistrement et accès aux données brutes.
Des exemples de tensions et de courants alternatifs et continus pertinents à mesurer sont énumérés à l’Annexe D.
La présente Norme internationale a le statut d'une norme horizontale conformément au Guide 108 de l'IEC.

General Information

Status
Published
Publication Date
24-Nov-2020
ICS
17.220.20 - Measurement of electrical and magnetic quantities
19.080 - Electrical and electronic testing
Technical Committee
TC 42 - High-voltage and high-current test techniques
Drafting Committee
MT 21 - TC 42/MT 21
Current Stage
PPUB - Publication issued
Start Date
11-Dec-2020
Completion Date
25-Nov-2020
Ref Project

Buy Standard

IEC 61083-3:2020 - Instruments and software used for measurement in high-voltage and high-current tests - Part 3: Requirements for hardware for tests with alternating and direct voltages and currentsIEC 61083-3:2020 - Instruments and software used for measurement in high-voltage and high-current tests - Part 3: Requirements for hardware for tests with alternating and direct voltages and currents
PreviousNext
Standard
IEC 61083-3:2020 - Instruments and software used for measurement in high-voltage and high-current tests - Part 3: Requirements for hardware for tests with alternating and direct voltages and currents
English and French language
66 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

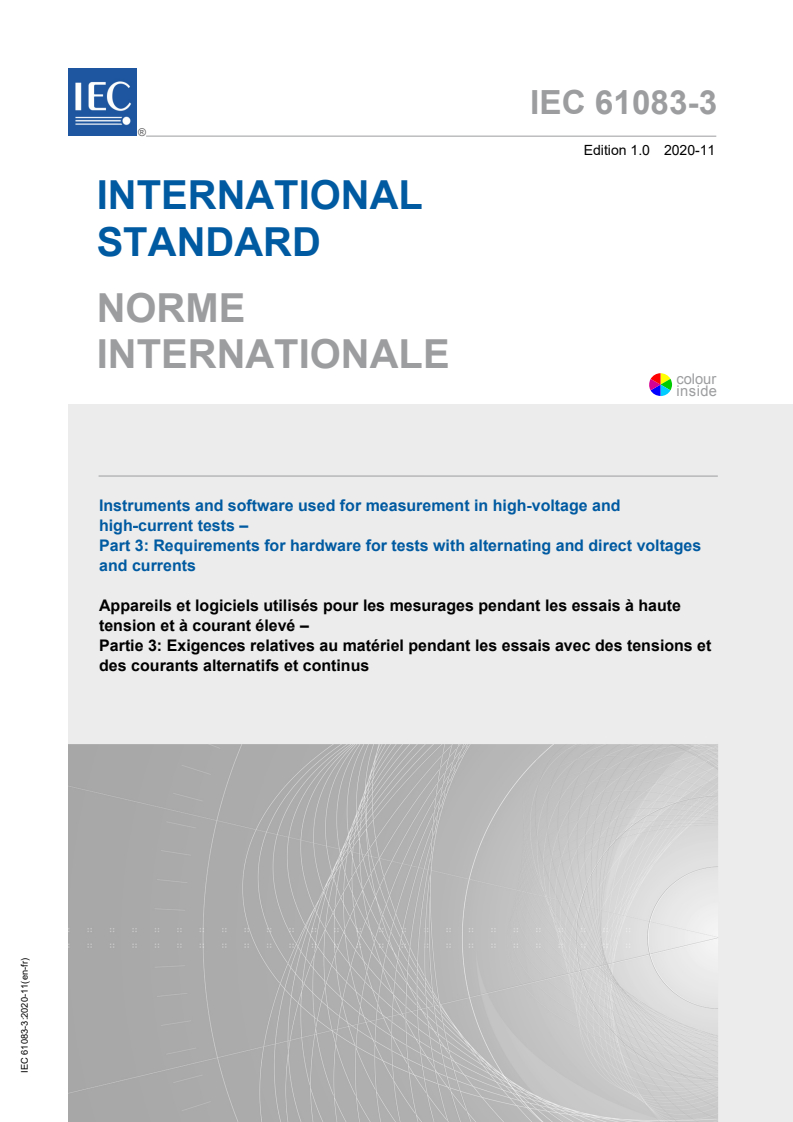

IEC 61083-3 ®
Edition 1.0 2020-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Instruments and software used for measurement in high-voltage and
high‑current tests –
Part 3: Requirements for hardware for tests with alternating and direct voltages
and currents
Appareils et logiciels utilisés pour les mesurages pendant les essais à haute
tension et à courant élevé –
Partie 3: Exigences relatives au matériel pendant les essais avec des tensions et
des courants alternatifs et continus

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.

need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Electropedia - www.electropedia.org
webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au
La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en
en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans
comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire
projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary
Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais
Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des
Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées
antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.

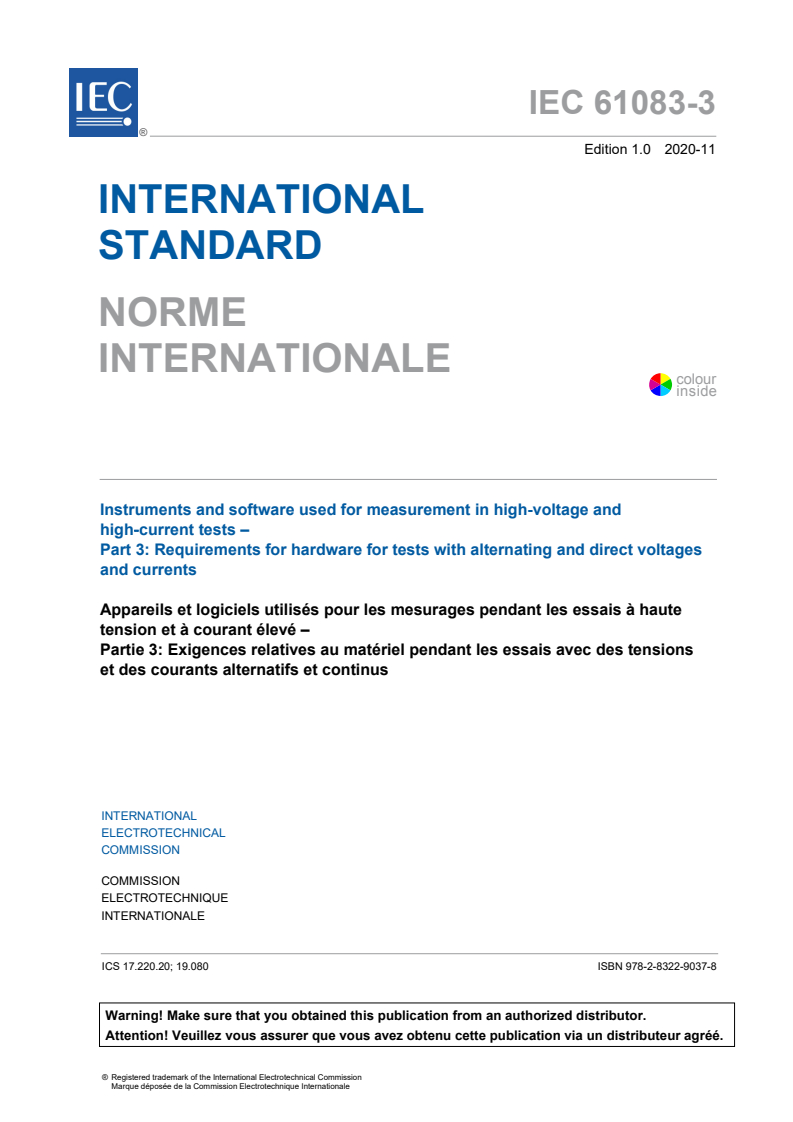

IEC 61083-3 ®
Edition 1.0 2020-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Instruments and software used for measurement in high-voltage and

high‑current tests –
Part 3: Requirements for hardware for tests with alternating and direct voltages

and currents
Appareils et logiciels utilisés pour les mesurages pendant les essais à haute

tension et à courant élevé –
Partie 3: Exigences relatives au matériel pendant les essais avec des tensions

et des courants alternatifs et continus

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 17.220.20; 19.080 ISBN 978-2-8322-9037-8

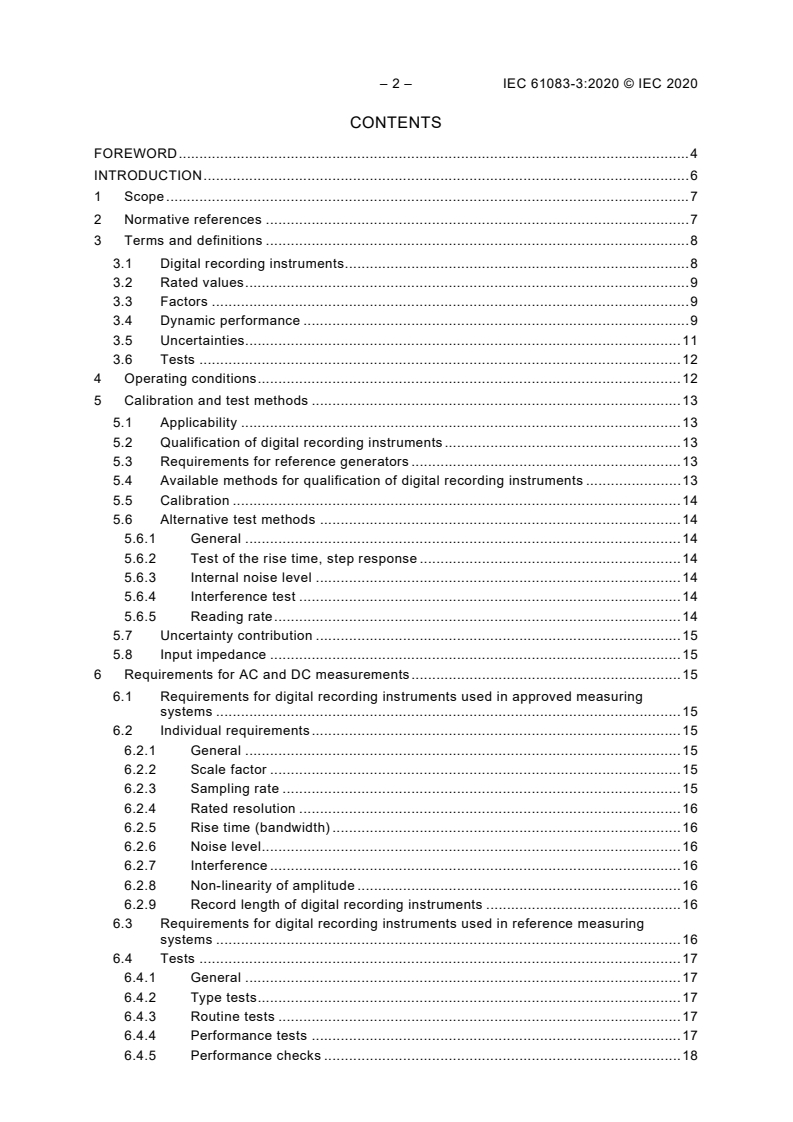

– 2 – IEC 61083-3:2020 © IEC 2020
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 8
3.1 Digital recording instruments . 8
3.2 Rated values . 9
3.3 Factors . 9
3.4 Dynamic performance . 9
3.5 Uncertainties. 11
3.6 Tests . 12
4 Operating conditions . 12
5 Calibration and test methods . 13
5.1 Applicability . 13
5.2 Qualification of digital recording instruments . 13
5.3 Requirements for reference generators . 13
5.4 Available methods for qualification of digital recording instruments . 13
5.5 Calibration . 14
5.6 Alternative test methods . 14
5.6.1 General . 14
5.6.2 Test of the rise time, step response . 14
5.6.3 Internal noise level . 14
5.6.4 Interference test . 14
5.6.5 Reading rate . 14
5.7 Uncertainty contribution . 15
5.8 Input impedance . 15
6 Requirements for AC and DC measurements . 15
6.1 Requirements for digital recording instruments used in approved measuring
systems . 15
6.2 Individual requirements . 15
6.2.1 General . 15
6.2.2 Scale factor . 15
6.2.3 Sampling rate . 15
6.2.4 Rated resolution . 16
6.2.5 Rise time (bandwidth) . 16
6.2.6 Noise level . 16
6.2.7 Interference . 16
6.2.8 Non-linearity of amplitude . 16
6.2.9 Record length of digital recording instruments . 16
6.3 Requirements for digital recording instruments used in reference measuring
systems . 16
6.4 Tests . 17
6.4.1 General . 17
6.4.2 Type tests . 17
6.4.3 Routine tests . 17
6.4.4 Performance tests . 17
6.4.5 Performance checks . 18

7 Uncertainty contributions for complete measuring systems . 18
8 Record of performance . 18
(normative) Electromagnetic interference in high-voltage and high-current
laboratories and test fields . 19
A.1 General . 19
A.2 Precautions . 19
A.2.1 Electromagnetic shielding . 19
A.2.2 Reduction of conducted interference from the supply line . 19
A.2.3 Reduction of interference on the signal line . 19
A.2.4 Signal transmission by optical means . 20
A.3 Tests with transient induced electromagnetic fields . 20
A.4 Tests with current injection . 20
(informative) Electromagnetic interference in high-voltage and high-current
laboratories and test fields – Recommendations for digital recording instruments . 22
(informative) Procedure to determine the non-linearity of amplitude of

sampling instruments . 24
(informative) Examples and considerations . 26
D.1 Suggested requirements for digital recording instruments for AC and DC
voltage measurements . 26
D.1.1 Test cases . 26
D.1.2 Background . 27
D.1.3 Recommendations for digital recording instruments for AC testing (up to
60 Hz without consideration of harmonics) . 27
D.1.4 Recommendations for digital recording instruments for DC te
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

This May Also Interest You

IEC
IEC 61083-1:2021(Main)
Instruments and software used for measurements in high-voltage and high-current tests - Part 1: Requirements for instruments for impulse tests

IEC 61083-1:2021 is applicable to digital recorders, including digital oscilloscopes, used for measurements during tests with high impulse voltages and high impulse currents. It specifies the measuring characteristics and calibrations required to meet the measuring uncertainties and procedures specified in IEC 60060-2 and IEC 62475.
This document
• defines the terms specifically related to digital recorders;
• specifies the necessary requirements for such instruments to ensure their compliance with the requirements for high-voltage and high-current impulse tests;
• establishes the tests and procedures necessary to demonstrate their compliance;
• covers digital recorders that permit access to raw data from permanent or temporary storage;
• covers peak meters used for measuring the extreme value of lightning impulses, the peak value of switching or current impulses.
It has the status of a horizontal standard in accordance with IEC Guide 108.
This horizontal standard is primarily intended for use by technical committees in the preparation of standards in accordance with the principles laid down in IEC Guide 108. One of the responsibilities of a technical committee is, wherever applicable, to make use of horizontal standards in the preparation of its publications. The contents of this horizontal standard will not apply unless specifically referred to or included in the relevant publications.
This third edition cancels and replaces the second edition published in 2001. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
a) Requirements for static integral non-linearity and static differential non-linearity have been removed.
b) Requirement for impulse scale factor non-linearity has been added.
c) Uncertainty requirements for impulse calibrators have been revised.
d) Requirements for peak voltmeter have been revised.

  • Standard
    50 pages
    English and French language
    sale 15% off
IEC
IEC 60270:2000/AMD1:2015(Amendment)
Amendment 1 - High-voltage test techniques - Partial discharge measurements
  • Standard
    25 pages
    English and French language
    sale 15% off
IEC
IEC 60060-2:2010(Main)
High-voltage test techniques - Part 2: Measuring systems

IEC 60060-2:2010 is applicable to complete measuring systems, and to their components, used for the measurement of high voltages during laboratory and factory tests with direct voltage, alternating voltage and lightning and switching impulse voltages as specified in IEC 60060-1. For measurements during on-site tests see IEC 60060-3. The limits on uncertainties of measurements stated in this standard apply to test levels stated in IEC 60071-1:2006. The principles of this standard apply also to higher levels but the uncertainty may be greater. This standard also defines the terms used, methods to estimate the uncertainties of high-voltage measurements, states the requirements which the measuring systems shall meet, describes the methods for approving a measuring system and checking its components and describes the procedures by which the user shall show that a measuring system meets the requirements of this standard, including the limits set for the uncertainty of measurement. This third edition cancels and replaces the second edition, published in 1994, and constitutes a technical revision. The significant technical changes with respect to the previous edition are as follows:
- The general layout and text was updated and improved to make the standard easier to use.
- The standard was revised to align it with IEC 60060-1.
- The treatment of measurement uncertainty estimation has been expanded.

  • Standard
    149 pages
    English and French language
    sale 15% off
IEC
IEC 60060-3:2006(Main)
High-voltage test techniques - Part 3: Definitions and requirements for on-site testing

Applicable to the following on-site test voltages and in service stresses, which are in relation to IEC 60060-1: direct voltage;alternating voltage; lightning impulse voltage of aperiodic or oscillating shape: switching impulse voltage of aperiodic or oscillating shape.

  • Standard
    33 pages
    English language
    sale 15% off
IEC
IEC 60060-3:2006(Main)
High-voltage test techniques - Part 3: Definitions and requirements for on-site testing

Applicable to the following on-site test voltages and in service stresses, which are in relation to IEC 60060-1: direct voltage;alternating voltage; lightning impulse voltage of aperiodic or oscillating shape: switching impulse voltage of aperiodic or oscillating shape.

  • Standard
    33 pages
    English language
    sale 15% off
IEC
IEC 60270:2000/COR1:2001(Corrigendum)
Corrigendum 1 - High-voltage test techniques - Partial discharge measurements
  • Standard
    10 pages
    English and French language
    sale 15% off
IEC
IEC 61083-1:2001(Main)
Instruments and software used for measurement in high-voltage impulse tests - Part 1: Requirements for instruments

Applies to digital recorders and digital oscilloscopes used for measurements during tests with high impulse voltages and high impulse currents. Specifies the measuring characteristics and calibrations required to meet the measuring accuracies and procedures given in IEC 60-1.

  • Standard
    69 pages
    English and French language
    sale 15% off
IEC
IEC 60270:2000(Main)
High-voltage test techniques - Partial discharge measurements

Applies to the measurement of localized electrical discharges in insulating media, restricted to only a part of the dielectric under test and only partially bridging the insulation between conductors. The contents of the corrigendum of October 2001 have been included in this copy.

  • Standard
    50 pages
    English language
    sale 15% off
  • Standard
    50 pages
    French language
    sale 15% off
  • Standard
    99 pages
    English and French language
    sale 15% off
  • Standard
    226 pages
    English and French language
    sale 15% off
IEC
IEC 61083-1:2021(Main)
Instruments and software used for measurements in high-voltage and high-current tests - Part 1: Requirements for instruments for impulse tests

IEC 61083-1:2021 is applicable to digital recorders, including digital oscilloscopes, used for measurements during tests with high impulse voltages and high impulse currents. It specifies the measuring characteristics and calibrations required to meet the measuring uncertainties and procedures specified in IEC 60060-2 and IEC 62475.
This document
• defines the terms specifically related to digital recorders;
• specifies the necessary requirements for such instruments to ensure their compliance with the requirements for high-voltage and high-current impulse tests;
• establishes the tests and procedures necessary to demonstrate their compliance;
• covers digital recorders that permit access to raw data from permanent or temporary storage;
• covers peak meters used for measuring the extreme value of lightning impulses, the peak value of switching or current impulses.
It has the status of a horizontal standard in accordance with IEC Guide 108.
This horizontal standard is primarily intended for use by technical committees in the preparation of standards in accordance with the principles laid down in IEC Guide 108. One of the responsibilities of a technical committee is, wherever applicable, to make use of horizontal standards in the preparation of its publications. The contents of this horizontal standard will not apply unless specifically referred to or included in the relevant publications.
This third edition cancels and replaces the second edition published in 2001. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
a) Requirements for static integral non-linearity and static differential non-linearity have been removed.
b) Requirement for impulse scale factor non-linearity has been added.
c) Uncertainty requirements for impulse calibrators have been revised.
d) Requirements for peak voltmeter have been revised.

  • Standard
    50 pages
    English and French language
    sale 15% off
IEC
IEC 61788-26:2020(Main)
Superconductivity - Part 26: Critical current measurement - DC critical current of RE-Ba-Cu-O composite superconductors

IEC 61788-26:2020 specifies a test method for determining the DC critical current of short RE (rare earth)-Ba-Cu-O (REBCO) composite superconductor specimens that have a shape of straight flat tape. This document applies to test specimens shorter than 300 mm and having a rectangular cross section with an area of 0,03 mm2 to 7,2 mm2, which corresponds to tapes with width ranging from 1,0 mm to 12,0 mm and thickness from 0,03 mm to 0,6 mm.
This method is intended for use with superconductor specimens that have critical current less than 300 A and n-values larger than 5 under standard test conditions: the test specimen is immersed in liquid nitrogen bath at ambient pressure without external magnetic field during the testing. Deviations from this test method that are allowed for routine tests and other specific restrictions are given in this document.

  • Standard
    54 pages
    English and French language
    sale 15% off
