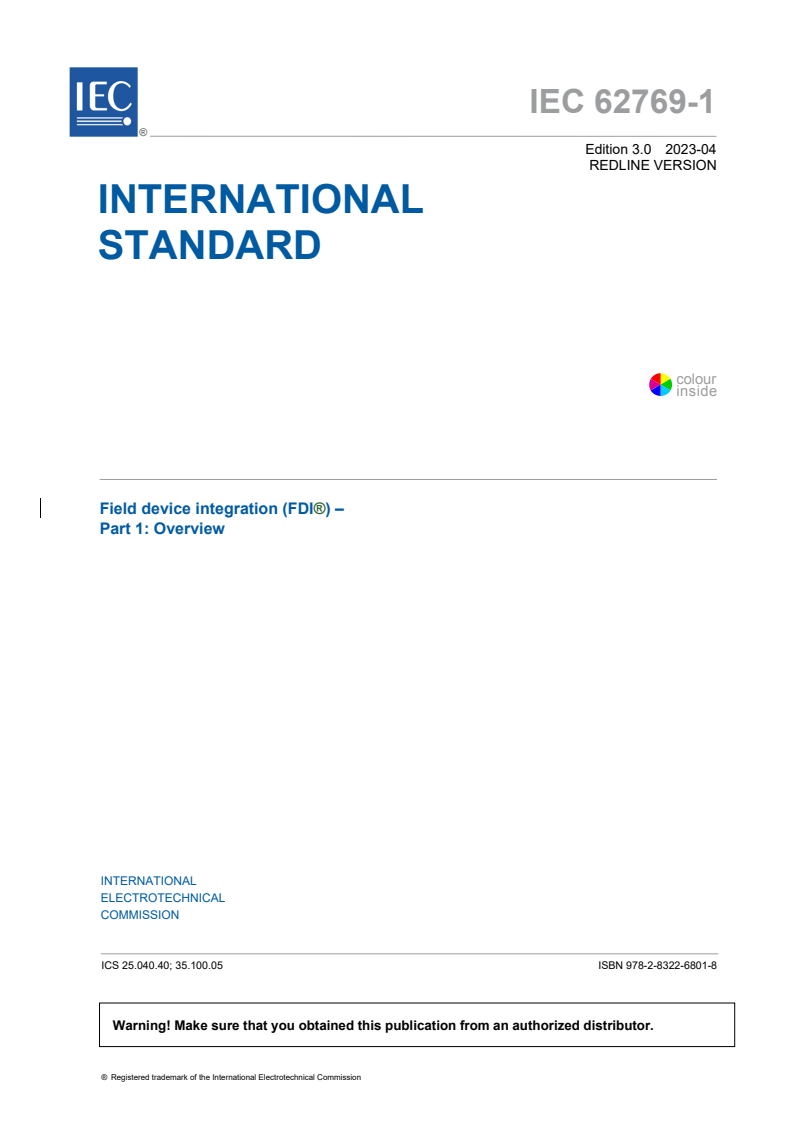

IEC 62769-1:2023

IEC 62769-1 ®
Edition 3.0 2023-04
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Field device integration (FDI®) –
Part 1: Overview
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always have
committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc

If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
IEC 62769-1 ®
Edition 3.0 2023-04
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Field device integration (FDI®) –
Part 1: Overview
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 25.040.40; 35.100.05 ISBN 978-2-8322-6801-8
– 2 – IEC 62769-1:2023 RLV © IEC 2023

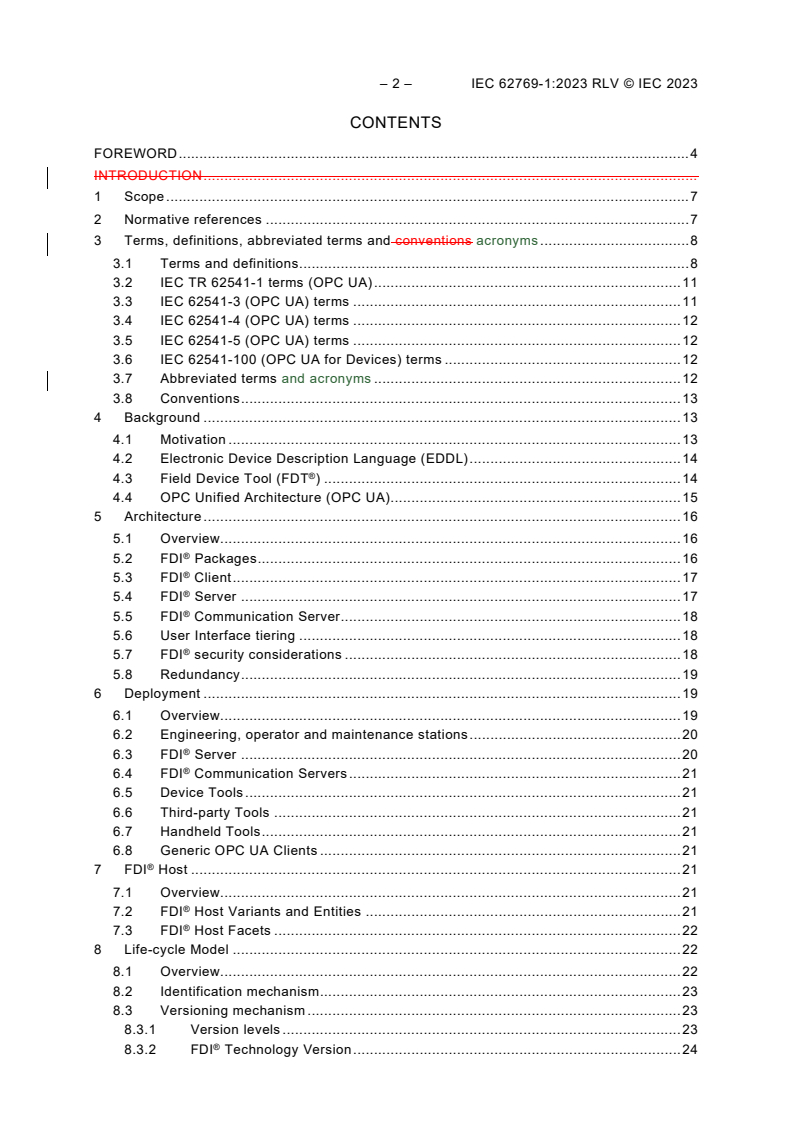

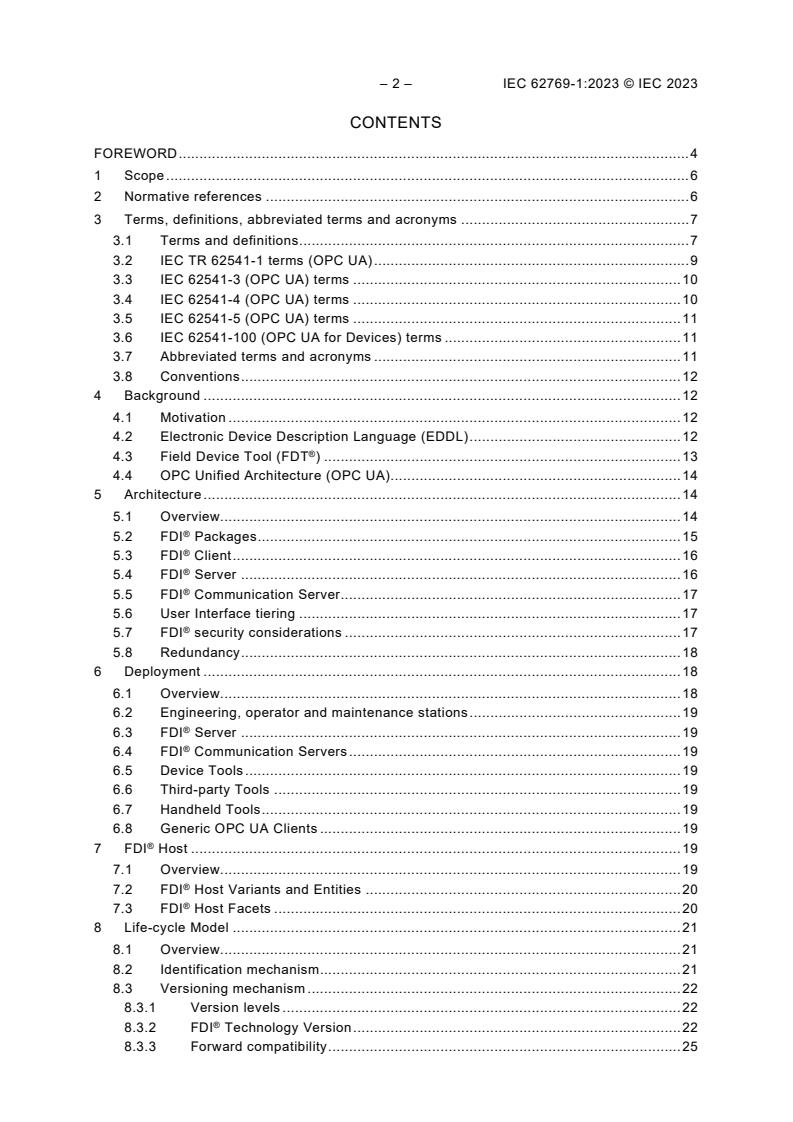

CONTENTS
FOREWORD . 4
INTRODUCTION .
1 Scope . 7
2 Normative references . 7
3 Terms, definitions, abbreviated terms and conventions acronyms . 8
3.1 Terms and definitions . 8
3.2 IEC TR 62541-1 terms (OPC UA) . 11
3.3 IEC 62541-3 (OPC UA) terms . 11
3.4 IEC 62541-4 (OPC UA) terms . 12
3.5 IEC 62541-5 (OPC UA) terms . 12
3.6 IEC 62541-100 (OPC UA for Devices) terms . 12
3.7 Abbreviated terms and acronyms . 12
3.8 Conventions . 13
4 Background . 13
4.1 Motivation . 13
4.2 Electronic Device Description Language (EDDL) . 14 ®
4.3 Field Device Tool (FDT ) . 14
4.4 OPC Unified Architecture (OPC UA) . 15
5 Architecture . 16
5.1 Overview. 16 ®
5.2 FDI Packages . 16 ®
5.3 FDI Client . 17 ®
5.4 FDI Server . 17 ®
5.5 FDI Communication Server. 18
5.6 User Interface tiering . 18 ®
5.7 FDI security considerations . 18
5.8 Redundancy . 19
6 Deployment . 19
6.1 Overview. 19
6.2 Engineering, operator and maintenance stations . 20 ®
6.3 FDI Server . 20 ®
6.4 FDI Communication Servers . 21
6.5 Device Tools . 21
6.6 Third-party Tools . 21
6.7 Handheld Tools . 21
6.8 Generic OPC UA Clients . 21 ®
7 FDI Host . 21
7.1 Overview. 21 ®
7.2 FDI Host Variants and Entities . 21 ®
7.3 FDI Host Facets . 22
8 Life-cycle Model . 22
8.1 Overview. 22
8.2 Identification mechanism . 23
8.3 Versioning mechanism . 23
8.3.1 Version levels . 23 ®
8.3.2 FDI Technology Version . 24

8.3.3 Forward compatibility . 27 ®
Annex A (informative) FDI life-cycle concept summary . 29
A.1 General . 29
A.2 Life-cycle relevant topics (references) . 29
Annex B (informative) Issue reporting .
Bibliography . 32
®
Figure 1 – FDI architecture diagram . 16
Figure 2 – Typical deployment scenario . 20 ®
Figure 3 – FDI Technology Version dependencies . 25
®
Table 1 – FDI Host Variants and possible Facets . 22
® ®
Table 2 – FDI Host Facets and related required FDI Entities . 22 ®
Table 3 – Summary of influences on the FDI Technology Version . 26
Table 4 – Combinations of Minor Versions that require special handling . 27 ®
Table A.1 – Life-cycle aspects as part of the FDI technology . 29 ®
Table A.2 – Life-cycle aspects as part of products and services provided with the FDI
technology . 30

– 4 – IEC 62769-1:2023 RLV © IEC 2023
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________ ®
FIELD DEVICE INTEGRATION (FDI ) –

Part 1: Overview
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
This redline version of the official IEC Standard allows the user to identify the changes
made to the previous edition IEC 62769-1:2021. A vertical bar appears in the margin
wherever a change has been made. Additions are in green text, deletions are in
strikethrough red text.
IEC 62769-1 has been prepared by subcommittee 65E: Devices and integration in enterprise
systems, of IEC technical committee 65: Industrial-process measurement, control and
automation. It is an International Standard.
This third edition cancels and replaces the second edition published in 2021. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) added references to Part 6-100 and Part 6-200 (technology mapping for .NET and HTML5);
b) updated Subclause 8.3.1: major version, minor version and revision shall be written as two-
digit numbers; ®
c) added reference to new Part 8 and FDI OPC UA Server Facet.
The text of this International Standard is based on the following documents:
Draft Report on voting
65E/854/CDV 65E/927/RVC
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications.
A list of all parts in the IEC 62769 series, published under the general title Field device ®
integration (FDI ), can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The "colour inside" logo on the cover page of this document indicates that it
contains colours which are considered to be useful for the correct understanding of its
contents. Users should therefore print this document using a colour printer.

– 6 – IEC 62769-1:2023 RLV © IEC 2023
INTRODUCTION
The IEC 62769 series has the general title Field Device Integration (FDI) and the following
parts:
– Part 1: Overview
– Part 2: FDI Client
– Part 3: FDI Server
– Part 4: FDI Packages
– Part 5: FDI Information Model
– Part 6: FDI Technology Mapping
– Part 7: FDI Communication Devices
– Part 100: Profiles – Generic Protocol Extensions
– Part 101-1: Profiles – Foundation Fieldbus H1
– Part 101-2: Profiles – Foundation Fieldbus HSE
– Part 103-1: Profiles – PROFIBUS
– Part 103-4: Profiles – PROFINET
– Part 109-1: Profiles – HART and WirelessHART
– Part 115-2: Profiles – Protocol-specific Definitions for Modbus RTU
– Part 150-1: Profiles – ISA 100.11a
®
FIELD DEVICE INTEGRATION (FDI ) –

Part 1: Overview
1 Scope
This part of IEC 62769 describes the concepts and overview of the Field Device Integration
®1
(FDI ) specifications. The detailed motivation for the creation of this technology is also
described (see 4.1). Reading this document is helpful to understand the other parts of this multi-
part standard.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61804 (all parts), Devices and integration in enterprise systems − Function Blocks (FB) for
process control and Electronic Device Description Language (EDDL)
IEC 61804-3, Devices and integration in enterprise systems − Function blocks (FB) for process
control and electronic device description language (EDDL) − Part 3: EDDL syntax and
semantics
IEC 61804-4, Devices and integration in enterprise systems − Function blocks (FB) for process
control and electronic device description language (EDDL) − Part 4: EDD interpretation
IEC 62453 (all parts), Field device tool (FDT) interface specification
IEC 62541 (all parts), OPC Unified Architecture
IEC TR 62541-1, OPC Unified Architecture – Part 1: Overview and concepts
IEC 62541-3, OPC Unified Architecture – Part 3: Address Space Model
IEC 62541-4, OPC Unified Architecture – Part 4: Services
IEC 62541-5, OPC Unified Architecture – Part 5: Information Model
IEC 62541-100, OPC Unified Architecture – Part 100: Device Interface ®
IEC 62769-2, Field Device Integration (FDI ) – Part 2: Client
____________
1 ®
FDI is a registered trademark of the non-profit organization Fieldbus Foundation, Inc. This information is given
for the convenience of users of this document and does not constitute an endorsement by IEC of the trademark
holder or any of its products. Compliance does not require use of the trade name. Use of the trade name requires
permission of the trade name holder.

– 8 – IEC 62769-1:2023 RLV © IEC 2023 ®
IEC 62769-3, Field Device Integration (FDI ) – Part 3: Server
® ®
IEC 62769-4:2023, Field Device Integration (FDI ) – Part 4: FDI Packages
® ®
IEC 62769-5:2023, Field Device Integration (FDI ) – Part 5: FDI Information Model
® ®
IEC 62769-6:2023, Field Device Integration (FDI ) – Part 6: FDI Technology Mappings ®
IEC 62769-7, Field Device Integration (FDI ) – Part 7: Communication Devices ®
) – Part 8: EDDL to OPC-UA Mapping
IEC 62769-8, Field Device Integration (FDI
ISO/IEC 11578, Information technology – Open Systems Interconnection – Remote Procedure
Call (RPC)
3 Terms, definitions, abbreviated terms and conventions acronyms
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC TR 62541-1,
IEC 62541-3, IEC 62541-4, IEC 62541-5, IEC 62541-100 and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
3.1.1
Field Device Integration ®
FDI
Device Integration and Device Management Technology, combining base concepts and
technology aspects of the Electronic Device Description Language (EDDL) according to ®
IEC 61804 series and Field Device Tool (FDT ) according to IEC 62453 series, as well as in
IEC 62541-1 (OPC UA)
Note 1 to entry: The combination of those different proven technologies ensures a secure life-cycle and the ability
to address all challenges of Device Integration and Device Management in a scalable manner.
3.1.2
Action
® ®
procedure that requires collaboration between an FDI Client and an FDI Server
3.1.3
Business Logic ®
descriptive element of an FDI Package that specifies the device specific behaviour and/or
mapping logic for a Nested Communication
3.1.4
Business Logic Interface
interface through which Business Logic is integrated with the Information Model
3.1.5
Communication Device
physical device that provides access to networks and devices
Note 1 to entry: Gateways and routers are examples of Communication Devices.

3.1.6
Connection Point
logical representation of a connection of a communication end point to a communication
network
3.1.6
Device Access Services
set of services through which a User Interface Plug-in accesses the Information Model of an ®
FDI Server
3.1.7
Device Definition ®
required element of an FDI Package that provides the core definition of a device
3.1.8
Device Instance ®
representation of a specific device in the Information Model of an FDI Server
3.1.9
Device Tool
® ®
standalone application that contains both an FDI Client and an FDI Server
3.1.11
Device Topology
arrangement of communication networks and devices that forms a network
3.1.10
Device Type ®
representation of a type of device in the Information Model of an FDI Server
3.1.11 ®
FDI Client
software component that uses the Information Model, interprets User Interface Descriptions,
and hosts User Interface Plug-ins
3.1.12 ®
FDI Communication Server ®
Server to access non-native networks
OPC UA server that is used by an FDI
3.1.13 ®
FDI Package
collection of components that provide all the information necessary to integrate a type of device
into a system
3.1.14 ®
FDI Server
software component that implements the Information Model, executes Business Logic, and
communicates with device via Native Communication and/or Nested Communication
3.1.15 ®
FDI Technology Version ®
version number that identifies to a specific revision of the overall FDI technology
3.1.16
Hosting Services ®
set of services through which a User Interface Plug-in interacts with an FDI Client

– 10 – IEC 62769-1:2023 RLV © IEC 2023
3.1.17
Information Model ®
set of objects, variables, and methods exposed by an FDI Server
3.1.18
Modular Device
device that is composed of one or more subdevices
3.1.19
Native Communication
communication with devices that are an integral part of the system
3.1.20
Nested Communication
communication with devices through a series of Communication Devices
3.1.23
Offline Data
device information maintained by an FDI Server that is stored in an FDI Server-specific
database
3.1.24
Online Data
device information maintained by an FDI Server that is retrieved from a physical device
3.1.21
User Interface Services
UI Services
set of services through which a User Interface Plug-in accesses the operating system
3.1.22
platform User Interface Services
platform UI Services
user interface services provided natively by the operating system
3.1.23
User Interface Description
UID
® ®
descriptive element of an FDI Package that is used by an FDI Client to render user interface
3.1.24
UID interpreter
User Interface Description interpreter ®
software component in an FDI Client that renders User Interface Descriptions and invokes
Actions
3.1.25
User Interface Plug-in
UIP
® ®
executable element of an FDI Package that is executed by an FDI Client
3.1.26
UIP Services
User Interface Plug-in Services ®
set of services through which an FDI Client interacts with a User Interface Plug-in

3.2 IEC TR 62541-1 terms (OPC UA)
For the purposes of this document, the following terms and definitions given in IEC TR 62541‑1
apply.
AddressSpace
Attribute
Client
Method
Node
NodeClass
Notification
Object
ObjectType
Reference
ReferenceType
Server
Service Set
Session
Subscription
Variable
3.3 IEC 62541-3 (OPC UA) terms
For the purposes of this document, the following terms and definitions given in IEC 62541-3
(OPC UA) apply.
Aggregates
ArrayDimensions
AuditEvent
AuditUpdateMethodEvent
BrowseName
ByteString
DataType
DataVariable
Folder
HasComponent
HasProperty
HasSubType
HasTypeDefinition
ModellingRule
NodeId
Property
UserAccessLevel
UserExecutable
Value
ValueRank
– 12 – IEC 62769-1:2023 RLV © IEC 2023
3.4 IEC 62541-4 (OPC UA) terms
For the purposes of this document, the following terms and definitions given in IEC 62541-4
(OPC UA) apply.
AddReferences
Browse
BrowseNext
Call
CreateSession
NodeManagement
Read
Request Header
Response Header
StatusCode
TranslateBrowsePathsToNodeIds
UserIdentityToken
Write
3.5 IEC 62541-5 (OPC UA) terms
For the purposes of this document, the following terms and definitions given in IEC 62541-5
apply.
BaseObjectType
PropertyType
3.6 IEC 62541-100 (OPC UA for Devices) terms
For the purposes of this document, the following terms and definitions given in IEC 62541-100
apply.
Block
Device
DeviceType
Parameter
3.7 Abbreviated terms and acronyms
DTM Device Type Manager
EDD Electronic Device Description
EDDL Electronic Device Description Language
FB Function blocks ®
FDI Field Device Integration
®2
Field Device Tool (see IEC 62453 series)
FDT
GUI Graphical User Interface
n/a Not applicable
____________
2 ®
FDT logo is a trade name registered trademark of the non-profit organization FDT Group AISBL. This information
is given for the convenience of users of this document and does not constitute an endorsement by IEC of the
trade names trademark holder or any of its products. Compliance does not require use of the registered trade
name trademark. Use of the trade names trademark requires permission of the trade name trademark holder.

OPC Open packaging conventions
OPC UA OPC Unified Architecture (see IEC 62541 series)
PC Personal computer
PNO PROFIBUS Nutzerorganisation e. V. (is a regional organization of the
PROFIBUS and PROFINET International consortium)
RPC Remote Procedure Call
UI User Interface
UID User Interface Description
UIP User Interface Plug-in
UUID Universally unique identifier
XML Extensible markup language
ZVEI Zentralverband Elektrotechnik- und Elektronikindustrie e. V.

3.8 Conventions
Capitalization of the first letter of words beyond those defined in ISO/IEC Directives Part 2 is ®
used in the IEC 62769 series to emphasize an FDI specific meaning. It is used for the following
cases:
• defined terms,
• names of Services defined in IEC 62769-2, ®
• names of FDI Package elements defined in IEC 62769-4,
• names of Information Model elements defined in IEC 62769-5,
EDD language elements are written with all letters in uppercase.
4 Background
4.1 Motivation
In today’s automation systems, field devices from many different suppliers have to be integrated
into the system, which results in additional effort for installation, version management and
operation of these devices. This challenge is best met with an open and standardized device
integration solution.
Two different device integration technologies exist: the Electronic Device Description Language ®
(EDDL) according to IEC 61804 series and the Field Device Tool (FDT ) according to
IEC 62453 series. While these technologies take different approaches to solve the problem,
there is a lot of overlap between them. This has led to a situation where technologies compete
with each other instead of complementing each other. As a result, system suppliers have taken
their positions, device suppliers have had to double their efforts in order to support EDDL and ®
FDT , and the end users have become frustrated because they want the best of both
technologies.
For all parties involved, the ideal solution looks different. System suppliers want to achieve
robustness while assuring a high level of technology and platform independence. Device
suppliers want to support only one technology instead of two in order to reduce cost and effort,
and they want to provide the optimal means for operating their devices. End users want to avoid
false investments and therefore demand only one future-proof solution that offers all the
advantages of the competing technologies.

– 14 – IEC 62769-1:2023 RLV © IEC 2023
4.2 Electronic Device Description Language (EDDL)
The Electronic Device Description Language (EDDL) is a language for describing the behaviour
of field devices. It enables systems to configure, calibrate, troubleshoot, and operate a field
device without any prior knowledge of the device.
Device descriptions written in EDDL describe the capabilities of the field device; it is up to the
system to determine how to utilize these capabilities. These device descriptions enable systems
to access all the data and properties of all devices, which simplifies the maintenance, support,
and operation of the devices. It works well for small handheld applications and large integrated
automation systems. It works well for embedded systems and systems running on commercial
operating systems.
With EDDL, the device supplier can organize the device's data, properties, and procedures for
access by the end user. This provides the system guidance in dynamically creating a user
interface for the device. The capabilities of this user interface can vary significantly for different
classes of devices, and it can be as simple or complex as the device being described.
In the early 1990s, the first version of EDDL was created and was used to describe HART field
devices. In 1996, the EDDL was used to describe FOUNDATION Fieldbus devices. Then in 2000
it was used to describe PROFIBUS devices. All three versions of EDDL can trace their lineage
back to the original HART version. Therefore, all three versions are largely the same, with some
differences due to differences in the underlying communication protocols. EDDL was
standardized first as part of IEC 61804-3 and IEC 61804-4 in March 2004. ®
4.3 Field Device Tool (FDT ) ®
FDT is an interface specification that standardizes the interface between the device software
and the systems. It provides independence from the communication protocol and establishes a
clear boundary between the software provided by the device supplier and the software provided
by the system supplier. ®
In FDT , field devices are delivered with a device-specific software component called a Device ®
Type Manager (DTM), which is only functional when used in conjunction with an FDT -specific
environment called a "frame application". A frame application interacts with a DTM through a ®
set of standard FDT interfaces.
A device supplier can develop a DTM for each of its devices, or it can develop a DTM for a
group of devices. A DTM can be used to access Device Parameters, configure and operate the
device, and diagnose problems. A DTM can range from a simple graphical user interface (GUI)
for setting Device Parameters to a highly sophisticated application for performing complex
calculations for diagnosis.
DTMs can be nested in order to support Modular Devices. The nesting of DTMs also allows
multi-level communication hierarchies to be supported. Devices routed through different bus
protocols can be connected through standard interfaces. A device DTM just has to support its
own communication protocol. Gateway DTMs that connect to the device DTM handle protocol
transformation.
® ®3 ®4
The FDT specification supports a variety of bus protocols, for example: PROFIBUS , HART ,
®5 ®6 ®7 ®2 ®8
FOUNDATION Fieldbus, INTERBUS , AS-interface , IO-Link , DeviceNet , and ®
PROFINET IO.
In 1998, the specification phase started in the context of the Zentralverband Elektrotechnik und
Elektronikindustrie e. V. (ZVEI). In 1999, completion of the technology was accelerated when
the specification was adopted by PROFIBUS Nutzerorganisation e. V. (PNO), which later
® 9
transferred the rights to the FDT Group AISBL. FDT was standardardized in IEC 62453-1 [1]
in May 2009.
4.4 OPC Unified Architecture (OPC UA)
OPC Unified Architecture (OPC UA) is a platform-independent standard through which various
kinds of systems and devices can communicate by sending messages between clients and
servers over various types of networks. It supports robust, secure communication that assures
the identity of clients and servers and resists attacks.
OPC UA defines standard sets of services that servers can provide, and individual servers
specify to clients what service sets they support. The services act on an object model which is
managed by the server and discoverable by a client. Information is conveyed using standard
and vendor-defined data types, and servers define object models that clients can dynamically
discover. Servers can provide access to both current and historical data, as well as alarms and
events to notify clients of important changes.
OPC UA can be mapped onto a variety of communication protocols and data can be encoded
in various ways to trade off portability and efficiency. Transports and encodings for XML based
Web Services as well as a high-performance binary are defined for OPC UA. The abstraction
of the OPC UA standard from any particular technology provides future-proofing allowing OPC
UA to be mapped onto future technologies.
The integration of system components includes a "how" factor and a "what" factor. The
comprehensive set of services provided by OPC UA enables the "how" of system integration.
____________
3 ® ® ®
PROFIBUS , PROFINET , and IO-Link are the registered trademarks of the non-profit organization PROFIBUS
Nutzerorganisation e.V. (PNO). This information is given for the convenience of users of this document and does
not constitute an endorsement by IEC of the trademark holder or any of its products. Compliance does not require
use of the trademark. Use of the trademark requires permission of the trademark holder.
4 ®
HART is a registered trademark of the non-profit organization FieldComm Group, Inc. This information is given
for convenience of users of this document and does not constitute an endorsement by IEC of the trademark holder
or any of its products. Compliance does not require use of the trademark. Use of the trademark requires
permission of the trademark holder.
5 ®
FOUNDATION is a registered trademark of the non-profit organization Fieldbus Foundation, Inc. This information
is given for the convenience of users of this document and does not constitute an endorsement by IEC of the
trademark holder or any of its products. Compliance does not require use of the trademark. Use of the trademark
requires permission of the trademark holder.
6 ®
INTERBUS is a registered trademark of Phoenix Contact GmbH & Co. KG., control of trade name use is given
to the non-profit organisation INTERBUS Club. This information is given for the convenience of users of this
document and does not constitute an endorsement by IEC of the trademark holder or any of its products.
Compliance does not require use of the trademark. Use of the trademark requires permission of the trademark
holder.
7 ®
AS-Interface is a registered trademark of the non-profit consortium AS - International Association. This
information is given for the convenience of users of this document and does not constitute an endorsement by
IEC of the trademark holder or any of its products. Compliance does not require use of the trademark. Use of the
trademark requires permission of the trademark holder.
8 ®
DeviceNet is a registered trademark of the non-profit consortium ODVA. This information is given for the
convenience of users of this document and does not constitute an endorsement by IEC of the trademark holder
or any of its products. Compliance does not require use of the trademark. Use of the trademark requires
permission of the trademark holder.
Numbers in square brackets refer to the Bibliography.

– 16 – IEC 62769-1:2023 RLV © IEC 2023
OPC UA also provides the basic building blocks of the "what" of system integration by defining
an extensible object model. Other standards bodies, vendors, and end users can extend this
object model to achieve a tight integration between system components.
OPC UA is standardized in the IEC 62541 series.
5 Architecture
5.1 Overview
® ® ® ®
The FDI architecture consists of FDI Packages, FDI Clients, and FDI Servers as shown in
Figure 1. ®
Figure 1 – FDI architecture diagram ®
5.2 FDI Packages ®
FDI Packages are the means by which device vendors provide information about their devices ®
to system vendors. FDI Packages collect all of the device information required by a system ®
vendor in one place. FDI Packages are system independent, i.e., device vendors provide the ®
same FDI Package to all system vendors. ®
An FDI Package includes the following: ®
• Device Definition – Core definition of the device that is used by an FDI Server to create
the Information Model.
• Business Logic – Ensures the integrity of the Information Model. ®
• User Interface Description – Declarative user interface that is rendered by an FDI Client
via a UID Interpreter. ®
• User Interface Plug-in – Optional programmed user interface that is hosted by an FDI
Client. ®
The Device Definition and Business Logic are used exclusively by an FDI Server. The User
® ®
Interface Description is processed by the FDI Server and transferred to the FDI Client. User ®
Interface Plug-ins are not processed by the FDI Server, beyond what is necessary to deliver ®
them to the FDI Client.
The Device Definition, Business Logic, and User Interface Description are completely platform
independent. User Interface Plug-ins shall be targeted at a specific run-time environment.
Distinct User Interface Plug-ins can be developed for different run-time environments, but a
specific User Interface Plug-in will only run on a single run-time environment. ®
The content of an FDI Package is specified in IEC 62769-4. ®
5.3 FDI Client ®
FDI Clients interpret and render descriptive user interface contents (UID, Device Parameter
® ®
values and so on) that are delivered to an FDI Client via the Information Model of an FDI
Server in a specified format and through defined services. Interpretation of the EDD portion of
® ® ®
an FDI Package, however, is only done in the FDI Server. In addition, FDI Clients also host
User Interface Plug-ins.
The environment for hosting User Interface Plug-ins consists of four sets of services: the
Hosting Services, the UIP Services, the User Interface Services, and the Device Access
Services.
• The Hosting Services provide the means by which a User Interface Plug-in interacts with ®
the FDI Client. ®
• The UIP Services provide the means by which an FDI Client can activate, control, and
shutdown the User Interface Plug-in.
• The User Interface Services provide the means by which a User Interface Plug-in accesses
the operating system specific Platform UI Services, which provide access to the screen,
keyboard, mouse, and so on.
• The Device Access Services provide the means by which a User Interface Plug-in accesses ®
the Information Model in an FDI Server. ®
The behaviour of an FDI Client is specified in IEC 62769-2. ®
5.4 FDI Server
® ®
FDI Servers provide FDI Clients access to information about Device Instances and Device
Types regardless of where the information is stored, for example, in the device itself or in a
data store. This information can be provided via OPC UA services. ®
The Information Model specifies the entities that can be accessed in an FDI Server, including
their properties, their relationships, and the operations that can be performed on them. The ®
Information Model is driven largely by the Device Definitions in FDI Packages. The Information
Model is based on the Information Model specified in the OPC UA Devices Specification.
® ®
The FDI Server invokes the Business Logic in FDI Packages as entities in the Information
Model are accessed. One of the main purposes of the Business Logic is to keep the Information
Model consistent.
– 18 – IEC 62769-1:2023 RLV © IEC 2023
The Business Logic Interface is the means by which Business Logic is integrated with the
Information Model. This interface consists of a set of well-defined Business Logic entry points,
which can be used by the Information Model to invoke Business Logic, and a set of well-defined
Information Model entry points, which can be used by the Business Logic to access the
Information Model.
® ®
Server shall support all elements of an FDI Package.
An FDI ®
Some of the information managed by an FDI Server shall be stored persistently. The means
by which this data is stored is server specific. ®
The behaviour of an FDI Server is specified in IEC 62769-3, and the Information Model is
specified in IEC 62769-5. ®
5.5 FDI Communication Server ®
An FDI Server inherently knows how to communicate with devices via the communication ®
hardware it natively supports. In addition, an FDI Communication Server can be used to extend
® ®
Server can communicate with. An FDI Server communicates with an
the devices that the FDI ®
FDI Communication Server via standard communication services that are specified in
IEC 62769-7.
5.6 User Interface tiering ®
There are three tiers of user interfaces that can be developed using FDI .
The lowest tier is a User Interface Description based user interface. This kind of user interface
is completely defined by a User Interface Description. It is the easiest user interface to create,
but it also has the most limitations. This kind of user interface is sufficient for relatively simple
devices.
The second tier is a User Interface Plug-in based user interface. This kind of user interface is
defined via the combination of a User Interface Description and one or more User Interface
Plug-ins. This is a more complicated user interface to build since it involves some software
development, but it also can produce a more sophisticated user interface. This kind of user
interface is required for some complex devices.
® ®
The third tier is an FDI Client. An FDI Client may can access multiple devices, while User
Interface Descriptions and User Interface Plug-ins may only access a single device. This kind
of user interface is required when access to multiple devices is required. ®
5.7 FDI security considerations ®
FDI is used between components in the operation of an industrial facility at multiple levels:
from high-level enterprise management applications accessing device data to low-lev
...
