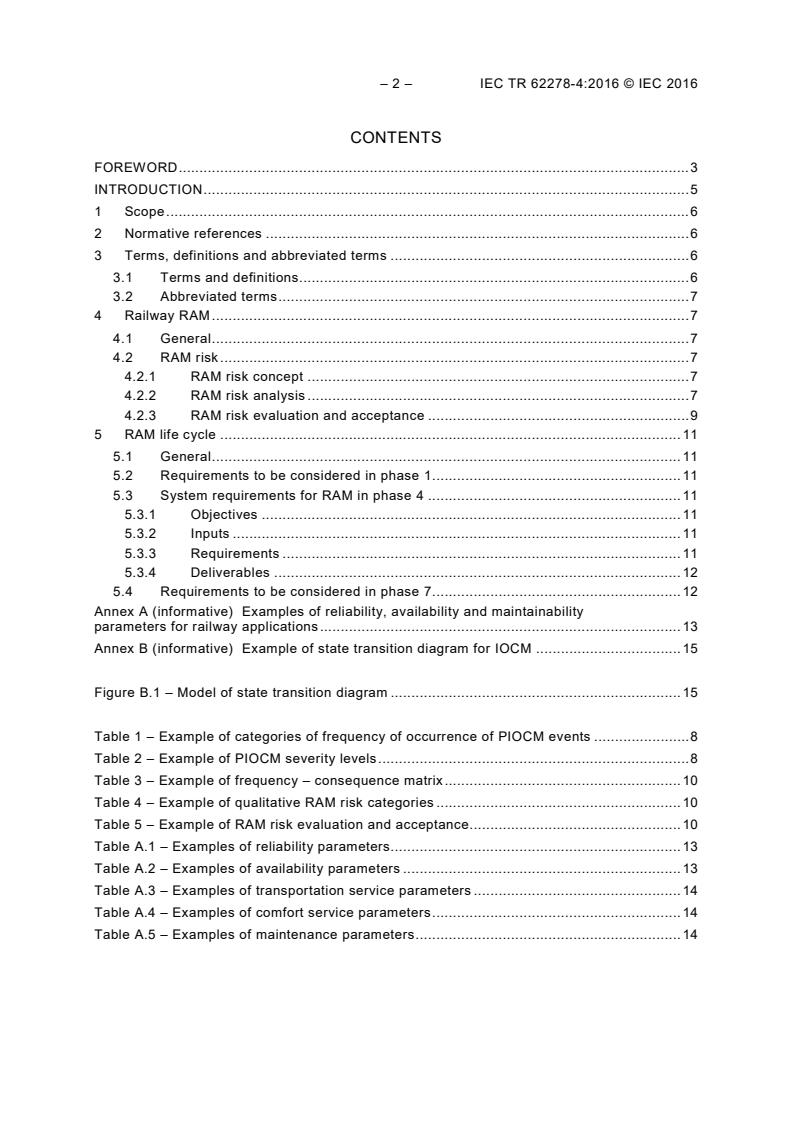

– 2 – IEC TR 62278-4:2016 © IEC 2016

CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions and abbreviated terms . 6
3.1 Terms and definitions. 6
3.2 Abbreviated terms . 7
4 Railway RAM . 7
4.1 General . 7
4.2 RAM risk . 7
4.2.1 RAM risk concept . 7
4.2.2 RAM risk analysis . 7
4.2.3 RAM risk evaluation and acceptance . 9
5 RAM life cycle . 11
5.1 General . 11
5.2 Requirements to be considered in phase 1. 11
5.3 System requirements for RAM in phase 4 . 11
5.3.1 Objectives . 11
5.3.2 Inputs . 11
5.3.3 Requirements . 11
5.3.4 Deliverables . 12
5.4 Requirements to be considered in phase 7. 12
Annex A (informative) Examples of reliability, availability and maintainability
parameters for railway applications . 13
Annex B (informative) Example of state transition diagram for IOCM . 15

Figure B.1 – Model of state transition diagram . 15

Table 1 – Example of categories of frequency of occurrence of PIOCM events . 8
Table 2 – Example of PIOCM severity levels . 8
Table 3 – Example of frequency – consequence matrix . 10
Table 4 – Example of qualitative RAM risk categories . 10
Table 5 – Example of RAM risk evaluation and acceptance. 10
Table A.1 – Examples of reliability parameters. 13
Table A.2 – Examples of availability parameters . 13
Table A.3 – Examples of transportation service parameters . 14
Table A.4 – Examples of comfort service parameters . 14
Table A.5 – Examples of maintenance parameters . 14

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RAILWAY APPLICATIONS – SPECIFICATION AND DEMONSTRATION OF
RELIABILITY, AVAILABILITY, MAINTAINABILITY AND SAFETY (RAMS) –

Part 4: RAM risk and RAM life cycle aspects

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
The main task of IEC technical committees is to prepare International Standards. However, a
technical committee may propose the publication of a technical report when it has collected
data of a different kind from that which is normally published as an International Standard, for
example "state of the art".
IEC TR 62278-4, which is a technical report, has been prepared by IEC technical committee 9:
Electrical equipment and systems for railways.
The text of this technical report is based on the following documents:
Enquiry draft Report on voting
9/2184/DTR 9/2204A/RVC
Full information on the voting for the approval of this technical report can be found in the
report on voting indicated in the above table.

– 4 – IEC TR 62278-4:2016 © IEC 2016
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 62278 series, published under the general title Railway
applications – Specification and demonstration of reliability, availability, maintainabilty and
safety (RAMS), can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

INTRODUCTION
IEC 62278 series Railway applications – Specification and demonstration of reliability,
availability, maintainability and safety (RAMS) is issued for demonstration of the RAMS
aspects. It is based on the European Norm EN 50126:1999 that was prepared by Technical
Committee CENELEC TC 9X: Electrical and electronic applications for railways. It was
submitted to the National Committees for voting under the Fast Track Procedure. This
standard is widely used for safety requirements for the safety within the railway field, with
relevant safety standards for railway applications such as IEC 62425 and IEC 62279.
For rolling stock, the guidance on applying the RAM requirements in IEC 62278 is issued as
IEC TR 62278-3, which is aimed at the customers/operators and main suppliers of rolling
stock. The RAM aspects are important for the whole railway systems, not limited to rolling
stock. This means that the RAM aspects need to be elaborated upon in the current version of
IEC 62278.
IEC technical committee 9 set up Ad-hoc group 9 (AHG 9) with remit to study the possibilities
to develop a Technical Report giving input in order to allow the introduction of RAM risk and
RAM life cycle aspects in a future revision of EN 50126 by CENELEC TC 9X or of IEC 62278
by IEC TC 9. This technical report is the result of the study in AHG 9 in order to achieve
suitable RAM aspects in the future version of IEC 62278.

– 6 – IEC TR 62278-4:2016 © IEC 2016
RAILWAY APPLICATIONS – SPECIFICATION AND DEMONSTRATION OF
RELIABILITY, AVAILABILITY, MAINTAINABILITY AND SAFETY (RAMS) –

Part 4: RAM risk and RAM life cycle aspects

1 Scope
This part of IEC 62278 provides an idea for the expansion of the requirements relating only to
RAM aspects in IEC 62278.
This document is intended to be used as an input to the revision for the next edition of
IEC 62278. This technical report is entirely informative in nature and does not contain
normative aspects.
This document details the idea by means of referring to and revising the related clauses of the
current edition of IEC 62278.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 62278:2002, Railway applications – Specification and demonstration of reliability,
availability, maintainability and safety (RAMS)
3 Terms, definitions and abbreviated terms
For the purposes of this document, the terms and definitions given in IEC 62278 and the
following apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1 Terms and definitions
3.1.1
impact on operation, comfort or maintenance
IOCM
combination of impact on operational capability, impact on passenger's comfort or impact on
maintenance
Note 1 to entry: examples of IOCM can be:
• for operational capability: delay, cancelation, stop on the line,
• for passenger comfort: degradation or loss of passenger information, air conditioning, lighting,
• for maintenance: failure without direct impact on operation or comfort, loss of diagnostic system.

3.1.2
potential impact on operation, comfort or maintenance
PIOCM
physical situation with a potential impact on operational capability, passenger's comfort or
maintenance
3.1.3
PIOCM Log
document in which all reliability, availability and
...
