Secondary cells and batteries containing alkaline or other non-acid electrolytes - Safety requirements for portable sealed secondary cells, and for batteries made from them, for use in portable applications - Part 2: Lithium systems

IEC 62133-2:2017 specifies requirements and tests for the safe operation of portable sealed secondary lithium cells and batteries containing non-acid electrolyte, under intended use and reasonably foreseeable misuse.
This first edition cancels and replaces the second edition of IEC 62133 published in 2012. It constitutes a technical revision.
This edition includes the following significant technical changes with respect to IEC 62133:2012:
- separation of nickel systems into a separate Part 1;
- inclusion of coin cell requirements;
- update of assembly of cells into batteries (5.6);
- mechanical tests [vibration, shock] (7.3.8.1, 7.3.8.2);
- insertion of IEC TR 62914 within the Bibliography.

Accumulateurs alcalins et autres accumulateurs à électrolyte non acide - Exigences de sécurité pour les accumulateurs portables étanches, et pour les batteries qui en sont constituées, destinés à l'utilisation dans des applications portables - Partie 1: Systèmes au lithium

L'IEC 62133-2:2017 spécifie les exigences et les essais pour le fonctionnement en toute sécurité des accumulateurs portables étanches au lithium contenant un électrolyte non acide dans des conditions d’utilisations prévues et dans des conditions d’utilisations abusives raisonnablement prévisibles.
Cette première édition annule et remplace l'IEC 62133 parue en 2012. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l'IEC 62133:2012:
- séparation des systèmes au nickel dans une Partie 1 séparée;
- intégration des exigences en matière d’éléments boutons;
- mise à jour de l'assemblage des éléments dans les batteries (5.6);
- essais mécaniques [vibration, choc] (7.3.8.1, 7.3.8.2);
- insertion de l’IEC TR 62914 dans la Bibliographie.
Mots clé: lithium, li-ion

General Information

Status
Published
Publication Date
06-Feb-2017
Current Stage
PPUB - Publication issued
Start Date
03-Mar-2017
Completion Date
07-Feb-2017
Ref Project

Relations

Buy Standard

Standard
IEC 62133-2:2017+AMD1:2021 CSV - Secondary cells and batteries containing alkaline or other non-acid electrolytes - Safety requirements for portable sealed secondary cells, and for batteries made from them, for use in portable applications - Part 2: Lithium systems Released:7/15/2021
English and French language
190 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
IEC 62133-2:2017 - Secondary cells and batteries containing alkaline or other non-acid electrolytes - Safety requirements for portable sealed secondary cells, and for batteries made from them, for use in portable applications - Part 2: Lithium systems
English and French language
94 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

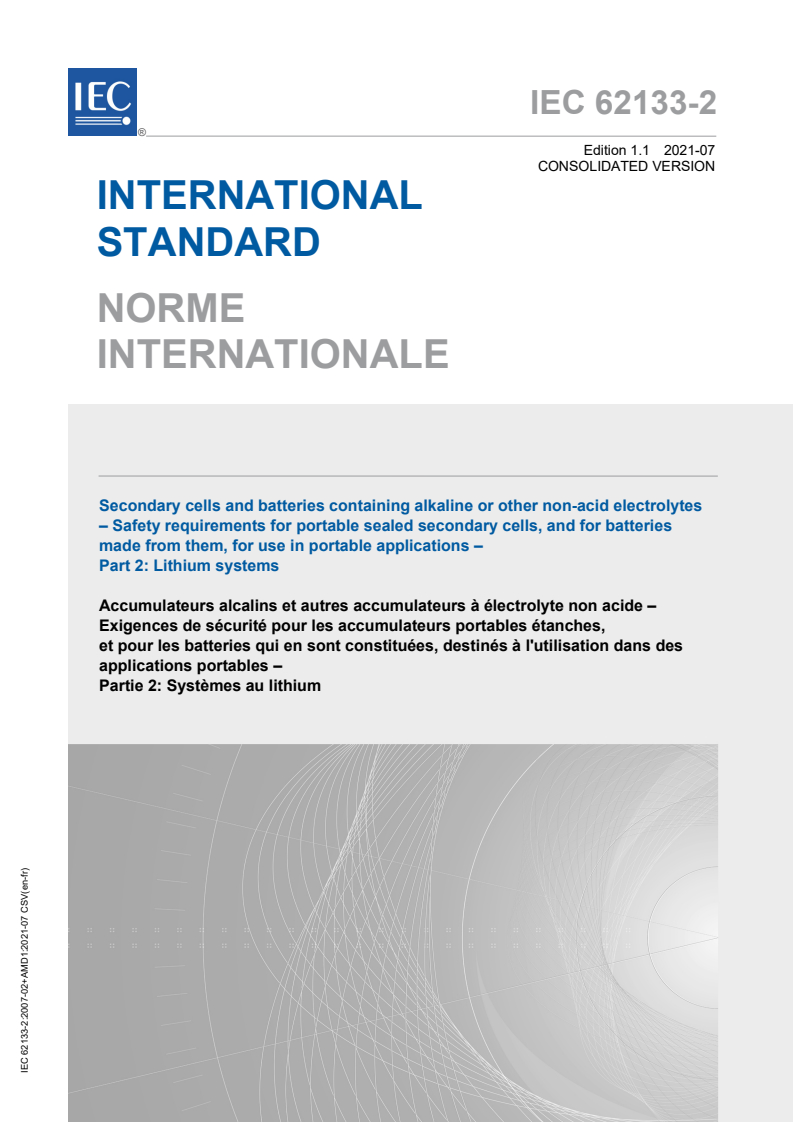

IEC 62133-2
®


Edition 1.1 2021-07
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE

Secondary cells and batteries containing alkaline or other non-acid electrolytes
– Safety requirements for portable sealed secondary cells, and for batteries
made from them, for use in portable applications –
Part 2: Lithium systems

Accumulateurs alcalins et autres accumulateurs à électrolyte non acide –
Exigences de sécurité pour les accumulateurs portables étanches,
et pour les batteries qui en sont constituées, destinés à l'utilisation dans des
applications portables –
Partie 2: Systèmes au lithium


IEC 62133-2:2007-02+AMD1:2021-07 CSV(en-fr)

---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2021 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.


Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland

About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.


A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - IEC online collection - oc.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un
en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour
comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 000 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
16 langues additionnelles. Egalement appelé Vocabulaire

Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.

---------------------- Page: 2 ----------------------

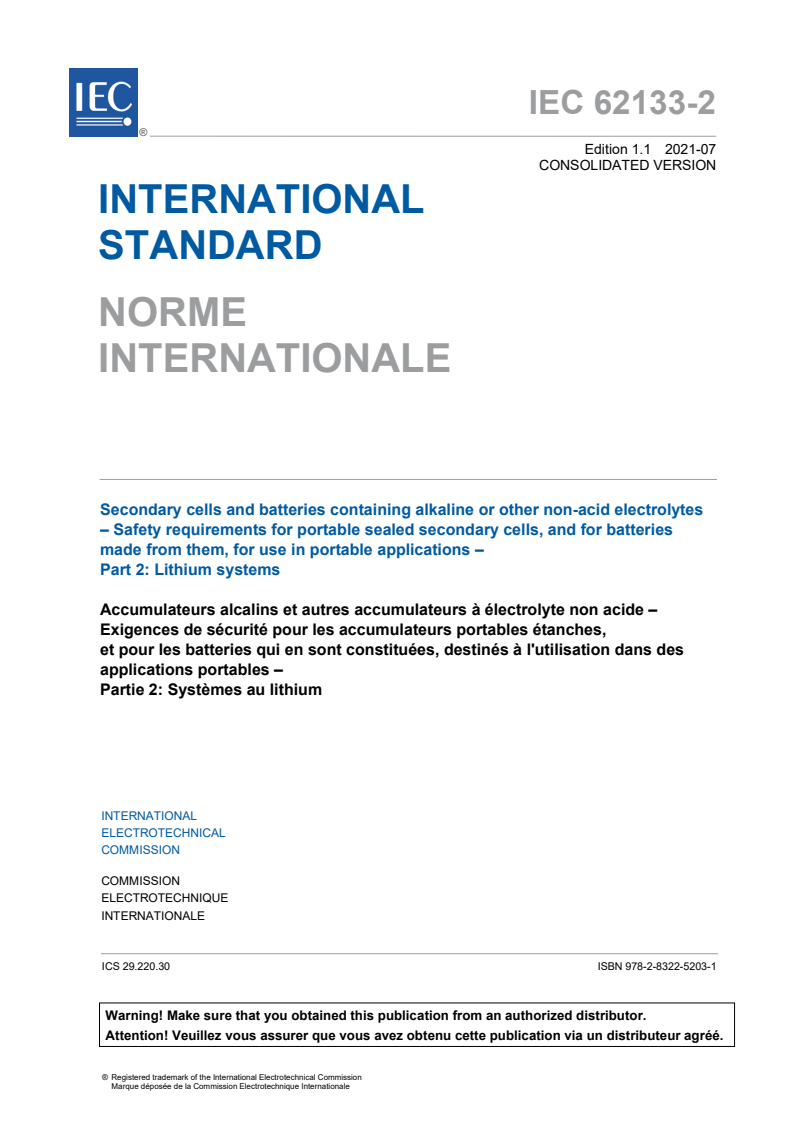

IEC 62133-2
®

Edition 1.1 2021-07
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Secondary cells and batteries containing alkaline or other non-acid electrolytes
– Safety requirements for portable sealed secondary cells, and for batteries
made from them, for use in portable applications –
Part 2: Lithium systems
Accumulateurs alcalins et autres accumulateurs à électrolyte non acide –
Exigences de sécurité pour les accumulateurs portables étanches,
et pour les batteries qui en sont constituées, destinés à l'utilisation dans des
applications portables –
Partie 2: Systèmes au lithium
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.220.30 ISBN 978-2-8322-5203-1

Warning! Make sure that you obtained this publication from an authorized distributor.
Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.
® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale

---------------------- Page: 3 ----------------------
IEC 62133-2
®


Edition 1.1 2021-07
CONSOLIDATED VERSION
REDLINE VERSION
VERSION REDLINE


Secondary cells and batteries containing alkaline or other non-acid electrolytes
– Safety requirements for portable sealed secondary cells, and for batteries
made from them, for use in portable applications –
Part 2: Lithium systems

Accumulateurs alcalins et autres accumulateurs à électrolyte non acide –
Exigences de sécurité pour les accumulateurs portables étanches,
et pour les batteries qui en sont constituées, destinés à l'utilisation dans des
applications portables –
Partie 2: Systèmes au lithium

IEC 62133-2:2007-02+AMD1:2021-07 CSV(en-fr)

---------------------- Page: 4 ----------------------
– 2 – IEC 62133-2:2017+AMD1:2021 CSV
 © IEC 2021

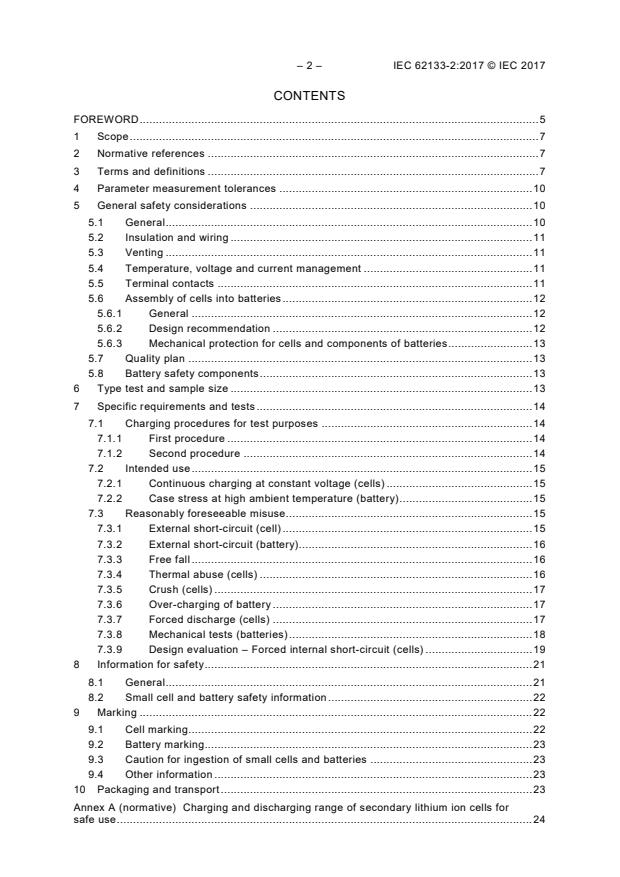

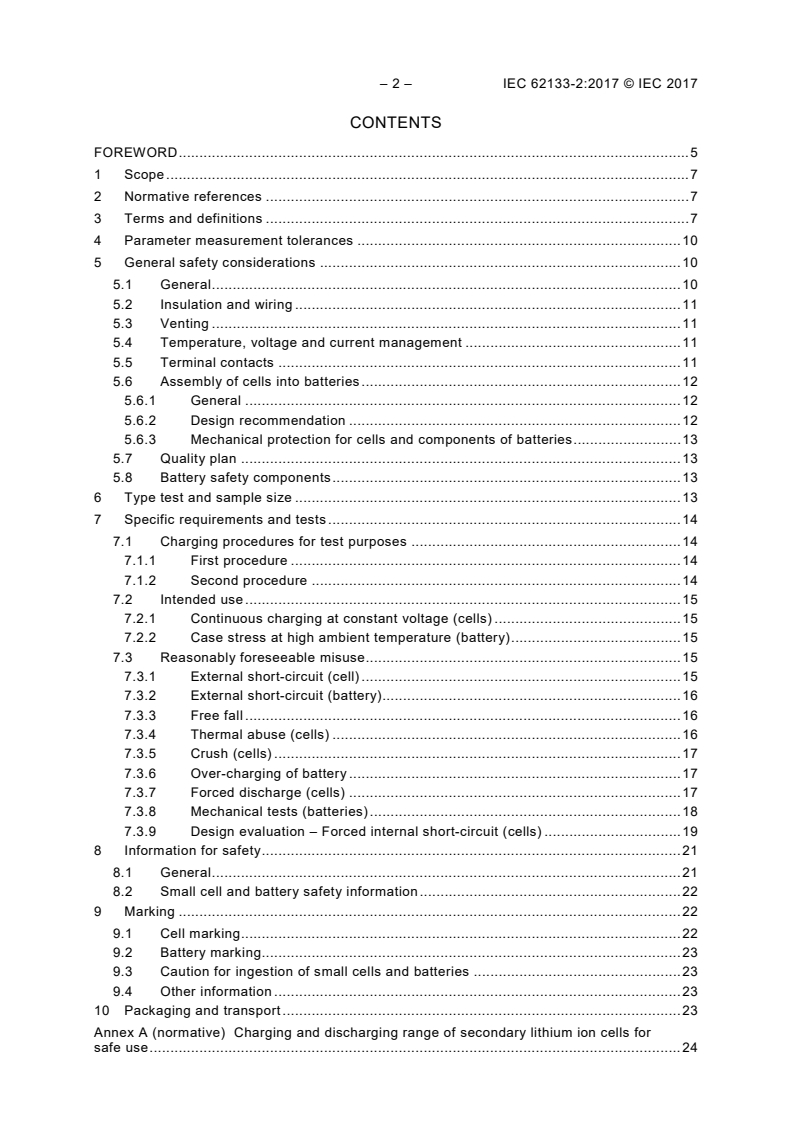

CONTENTS
FOREWORD . 5
1 Scope . 7
2 Normative references. 7
3 Terms and definitions . 7
4 Parameter measurement tolerances . 10
5 General safety considerations . 10
5.1 General . 10
5.2 Insulation and wiring . 11
5.3 Venting . 11
5.4 Temperature, voltage and current management . 11
5.5 Terminal contacts . 11
5.6 Assembly of cells into batteries . 12
5.6.1 General . 12
5.6.2 Design recommendation . 12
5.6.3 Mechanical protection for cells and components of batteries . 13
5.7 Quality plan. 13
5.8 Battery safety components . 13
6 Type test and sample size . 13
7 Specific requirements and tests . 14
7.1 Charging procedures for test purposes . 14
7.1.1 First procedure . 14
7.1.2 Second procedure . 14
7.2 Intended use . 15
7.2.1 Continuous charging at constant voltage (cells) . 15
7.2.2 Case stress at high ambient temperature (battery) . 15
7.3 Reasonably foreseeable misuse . 15
7.3.1 External short-circuit (cell). 15
7.3.2 External short-circuit (battery) . 16
7.3.3 Free fall . 16
7.3.4 Thermal abuse (cells) . 16
7.3.5 Crush (cells) . 17
7.3.6 Over-charging of battery . 17
7.3.7 Forced discharge (cells) . 17
7.3.8 Mechanical tests (batteries). 18
7.3.9 Design evaluation – Forced internal short-circuit (cells) . 19
8 Information for safety . 21
8.1 General . 21
8.2 Small cell and battery safety information . 22
9 Marking . 22
9.1 Cell marking . 22
9.2 Battery marking . 23
9.3 Caution for ingestion of small cells and batteries . 23
9.4 Other information . 23
10 Packaging and transport . 23

---------------------- Page: 5 ----------------------
IEC 62133-2:2017+AMD1:2021 CSV – 3 –
© IEC 2021
Annex A (normative) Charging and discharging range of secondary lithium ion cells for
safe use . 24
A.1 General . 24
A.2 Safety of lithium ion secondary battery . 24
A.3 Consideration on charging voltage . 24
A.3.1 General . 24
A.3.2 Upper limit charging voltage . 24
A.4 Consideration of temperature and charging current . 26
A.4.1 General . 26
A.4.2 Recommended temperature range . 26
A.4.3 High temperature range. 27
A.4.4 Low temperature range . 28
A.4.5 Scope of the application of charging current . 29
A.4.6 Consideration of discharge . 29
A.5 Sample preparation . 30
A.5.1 General . 30
A.5.2 Insertion procedure for nickel particle to generate internal short . 30
A.5.3 Disassembly of charged cell . 31
A.5.4 Shape of nickel particle . 31
A.5.5 Insertion of nickel particle in cylindrical cell . 31
A.5.6 Insertion of nickel particle in prismatic cell . 34
A.6 Experimental procedure of the forced internal short-circuit test . 36
A.6.1 Material and tools for preparation of nickel particle . 36
A.6.2 Example of a nickel particle preparation procedure . 37
A.6.3 Positioning (or placement) of a nickel particle . 37
A.6.4 Damaged separator precaution . 38
A.6.5 Caution for rewinding separator and electrode . 38
A.6.6 Insulation film for preventing short-circuit . 39
A.6.7 Caution when disassembling a cell . 39
A.6.8 Protective equipment for safety . 39
A.6.9 Caution in the case of fire during disassembling . 39
A.6.10 Caution for the disassembling process and pressing the electrode core . 39
A.6.11 Recommended specifications for the pressing device . 39
Annex B (informative) Recommendations to equipment manufacturers and battery
assemblers . 42
Annex C (informative) Recommendations to the end-users . 43
Annex D (normative) Measurement of the internal AC resistance for coin cells . 44
D.1 General . 44
D.2 Method . 44
Annex E (informative) Packaging and transport . 45
Annex F (informative) Component standards references . 46
Bibliography . 47


Figure 1 – Forced discharge time chart . 18
Figure 2 – Jig for pressing . 21
Figure 3 – Ingestion gauge . 22
Figure A.1 – Representation of lithium ion cells operating region for charging . 25
Figure A.2 – Representation of lithium ion cell operating region for discharging . 30

---------------------- Page: 6 ----------------------
– 4 – IEC 62133-2:2017+AMD1:2021 CSV
 © IEC 2021
Figure A.3 – Shape of nickel particle . 31
Figure A.4 – Nickel particle insertion position between positive and negative active
material coated area of cylindrical cell . 31
Figure A.5 – Nickel particle insertion position between positive aluminium foil and
negative active material coated area of cylindrical cell . 32
Figure A.6 – Disassembly of cylindrical cell . 33
Figure A.7 – Nickel particle insertion position between positive and negative (active
material) coated area of prismatic cell . 34
Figure A.8 – Nickel particle insertion position between positive aluminium foil and
negative (active material) coated area of prismatic cell . 35
Figure A.9 – Disassembly of prismatic cells . 36
Figure A.10 – Dimensions of a completed nickel particle . 37
Figure A.11 – Positioning of the nickel particle when it cannot be placed in the
specified area . 38
Figure A.12 – Cylindrical cell . 38
Figure A.13 – Distance / time ratio of several types of pressing devices . 41

Table 1 – Sample size for type tests . 14
Table 2 – Condition of charging procedure . 15
Table 3 – Conditions for vibration test . 19
Table 4 – Shock parameters . 19
Table 5 – Ambient temperature for cell test . 20
Table A.1 – Examples of operating region charging parameters . 25
Table A.2 – Recommended specifications of a pressing device . 40
Table F.1 – Component standard references . 46

---------------------- Page: 7 ----------------------
IEC 62133-2:2017+AMD1:2021 CSV – 5 –
© IEC 2021
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________

SECONDARY CELLS AND BATTERIES CONTAINING
ALKALINE OR OTHER NON-ACID ELECTROLYTES –
SAFETY REQUIREMENTS FOR PORTABLE SEALED
SECONDARY CELLS, AND FOR BATTERIES MADE
FROM THEM, FOR USE IN PORTABLE APPLICATIONS –

Part 2: Lithium systems

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This consolidated version of the official IEC Standard and its amendment has been
prepared for user convenience.
IEC 62133-2 edition 1.1 contains the first edition (2017-02) [documents 21A/620/FDIS
and 21A/628/RVD] and its amendment 1 (2021-07) [documents 21A/760/FDIS and
21A/729B/RVD].
In this Redline version, a vertical line in the margin shows where the technical content
is modified by amendment 1. Additions are in green text, deletions are in strikethrough
red text. A separate Final version with all changes accepted is available in this
publication.

---------------------- Page: 8 ----------------------
– 6 – IEC 62133-2:2017+AMD1:2021 CSV
 © IEC 2021
International Standard IEC 62133-2 has been prepared by subcommittee 21A: Secondary
cells and batteries containing alkaline or other non-acid electrolytes, of IEC technical
committee 21: Secondary cells and batteries.
This first edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to
IEC 62133:2012:
– separation of nickel systems into a separate Part 1;
– inclusion of coin cell requirements;
– update of assembly of cells into batteries (5.6);
– mechanical tests [vibration, shock] (7.3.8.1, 7.3.8.2);
– insertion of IEC TR 62914 within the Bibliography.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The following different practices of a less permanent nature exist in the countries indicated
below.
7.3.9: Design evaluation – Forced internal short-circuit test only applies to Korea, Japan,
Switzerland and France.
A list of all parts of the IEC 62133 series, published under the general title Secondary cells
and batteries containing alkaline or other non-acid electrolytes – Safety requirements for
portable sealed secondary cells, and for batteries made from them, for use in portable
applications, can be found on the IEC website.
The committee has decided that the contents of the base publication and its amendment will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
considered to be useful for the correct
that it contains colours which are
understanding of its contents. Users should therefore print this document using a
colour printer.

---------------------- Page: 9 ----------------------
IEC 62133-2:2017+AMD1:2021 CSV – 7 –
© IEC 2021
SECONDARY CELLS AND BATTERIES CONTAINING
ALKALINE OR OTHER NON-ACID ELECTROLYTES –
SAFETY REQUIREMENTS FOR PORTABLE SEALED
SECONDARY CELLS, AND FOR BATTERIES MADE
FROM THEM, FOR USE IN PORTABLE APPLICATIONS –

Part 2: Lithium systems



1 Scope
This part of IEC 62133 specifies requirements and tests for the safe operation of portable
sealed secondary lithium cells and batteries containing non-acid electrolyte, under intended
use and reasonably foreseeable misuse.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60050-482:2004, International Electrotechnical Vocabulary – Part 482: Primary and
secondary cells and batteries (available at http://www.electropedia.org)
IEC 61960, Secondary cells and batteries containing alkaline or other non-acid electrolytes –
Secondary lithium cells and batteries for portable applications
ISO/IEC Guide 51, Safety aspects – Guidelines for their inclusion in standards
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60050-482,
ISO/IEC Guide 51 and the following apply.
3.1
safety
freedom from unacceptable risk
3.2
risk
combination of the probability of occurrence of harm and the severity of that harm
3.3
harm
physical injury or damage to the health of people or damage to property or to the environment
3.4
hazard
potential source of harm

---------------------- Page: 10 ----------------------
– 8 – IEC 62133-2:2017+AMD1:2021 CSV
 © IEC 2021
3.5
intended use
use of a product, process or service in accordance with specifications, instructions and
information provided by the supplier
3.6
reasonably foreseeable misuse
use of a product, process or service in a way which is not intended by the supplier, but which
may result from readily predictable human behaviour
3.7
secondary cell
basic manufactured unit providing a source of electrical energy by direct conversion of
chemical energy, that consists of electrodes, separators, electrolyte, container and terminals,
and that is designed to be charged electrically
3.8
secondary battery
assembly of secondary cell(s) which may include associated safety and control circuits and
case, ready for use as a source of electrical energy characterized by its voltage, size, terminal
arrangement, capacity and rate capability
Note 1 to entry: Includes single cell batteries.
3.9
leakage
unplanned, visible escape of liquid electrolyte
3.10
venting
release of excessive internal pressure from a cell or batte
...

IEC 62133-2
®

Edition 1.0 2017-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside


Secondary cells and batteries containing alkaline or other non-acid
electrolytes – Safety requirements for portable sealed secondary cells, and for
batteries made from them, for use in portable applications –
Part 2: Lithium systems

Accumulateurs alcalins et autres accumulateurs à électrolyte non acide –
Exigences de sécurité pour les accumulateurs portables étanches, et pour les
batteries qui en sont constituées, destinés à l’utilisation dans des applications
portables –
Partie 2: Systèmes au lithium
IEC 62133-2:2017-02(en-fr)

---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2017 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.


Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch

About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.


A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.


Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
65 000 entrées terminologiques électrotechniques, en anglais
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.

---------------------- Page: 2 ----------------------
IEC 62133-2

®


Edition 1.0 2017-02




INTERNATIONAL



STANDARD




NORME



INTERNATIONALE
colour

inside










Secondary cells and batteries containing alkaline or other non-acid

electrolytes – Safety requirements for portable sealed secondary cells, and for

batteries made from them, for use in portable applications –


Part 2: Lithium systems



Accumulateurs alcalins et autres accumulateurs à électrolyte non acide –


Exigences de sécurité pour les accumulateurs portables étanches, et pour les

batteries qui en sont constituées, destinés à l’utilisation dans des applications

portables –

Partie 2: Systèmes au lithium









INTERNATIONAL

ELECTROTECHNICAL

COMMISSION


COMMISSION

ELECTROTECHNIQUE


INTERNATIONALE




ICS 29.220.30 ISBN 978-2-8322-3910-0



Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale

---------------------- Page: 3 ----------------------
– 2 – IEC 62133-2:2017 © IEC 2017
CONTENTS
FOREWORD . 5
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 7
4 Parameter measurement tolerances . 10
5 General safety considerations . 10
5.1 General . 10
5.2 Insulation and wiring . 11
5.3 Venting . 11
5.4 Temperature, voltage and current management . 11
5.5 Terminal contacts . 11
5.6 Assembly of cells into batteries . 12
5.6.1 General . 12
5.6.2 Design recommendation . 12
5.6.3 Mechanical protection for cells and components of batteries . 13
5.7 Quality plan . 13
5.8 Battery safety components . 13
6 Type test and sample size . 13
7 Specific requirements and tests . 14
7.1 Charging procedures for test purposes . 14
7.1.1 First procedure . 14
7.1.2 Second procedure . 14
7.2 Intended use . 15
7.2.1 Continuous charging at constant voltage (cells) . 15
7.2.2 Case stress at high ambient temperature (battery) . 15
7.3 Reasonably foreseeable misuse . 15
7.3.1 External short-circuit (cell) . 15
7.3.2 External short-circuit (battery). 16
7.3.3 Free fall . 16
7.3.4 Thermal abuse (cells) . 16
7.3.5 Crush (cells) . 17
7.3.6 Over-charging of battery . 17
7.3.7 Forced discharge (cells) . 17
7.3.8 Mechanical tests (batteries) . 18
7.3.9 Design evaluation – Forced internal short-circuit (cells) . 19
8 Information for safety . 21
8.1 General . 21
8.2 Small cell and battery safety information . 22
9 Marking . 22
9.1 Cell marking . 22
9.2 Battery marking. 23
9.3 Caution for ingestion of small cells and batteries . 23
9.4 Other information . 23
10 Packaging and transport . 23
Annex A (normative) Charging and discharging range of secondary lithium ion cells for
safe use . 24

---------------------- Page: 4 ----------------------
IEC 62133-2:2017 © IEC 2017 – 3 –
A.1 General . 24
A.2 Safety of lithium ion secondary battery . 24
A.3 Consideration on charging voltage . 24
A.3.1 General . 24
A.3.2 Upper limit charging voltage . 24
A.4 Consideration of temperature and charging current . 26
A.4.1 General . 26
A.4.2 Recommended temperature range . 26
A.4.3 High temperature range . 27
A.4.4 Low temperature range . 28
A.4.5 Scope of the application of charging current . 29
A.4.6 Consideration of discharge . 29
A.5 Sample preparation . 30
A.5.1 General . 30
A.5.2 Insertion procedure for nickel particle to generate internal short . 30
A.5.3 Disassembly of charged cell . 31
A.5.4 Shape of nickel particle . 31
A.5.5 Insertion of nickel particle in cylindrical cell . 31
A.5.6 Insertion of nickel particle in prismatic cell . 34
A.6 Experimental procedure of the forced internal short-circuit test . 36
A.6.1 Material and tools for preparation of nickel particle . 36
A.6.2 Example of a nickel particle preparation procedure . 37
A.6.3 Positioning (or placement) of a nickel particle . 37
A.6.4 Damaged separator precaution . 38
A.6.5 Caution for rewinding separator and electrode . 38
A.6.6 Insulation film for preventing short-circuit . 39
A.6.7 Caution when disassembling a cell . 39
A.6.8 Protective equipment for safety . 39
A.6.9 Caution in the case of fire during disassembling . 39
A.6.10 Caution for the disassembling process and pressing the electrode core . 39
A.6.11 Recommended specifications for the pressing device . 39
Annex B (informative) Recommendations to equipment manufacturers and battery
assemblers . 42
Annex C (informative) Recommendations to the end-users . 43
Annex D (normative) Measurement of the internal AC resistance for coin cells . 44
D.1 General . 44
D.2 Method . 44
Annex E (informative) Packaging and transport . 45
Annex F (informative) Component standards references . 46
Bibliography . 47

Figure 1 – Forced discharge time chart . 18
Figure 2 – Jig for pressing . 21
Figure 3 – Ingestion gauge . 22
Figure A.1 – Representation of lithium ion cells operating region for charging . 25
Figure A.2 – Representation of lithium ion cell operating region for discharging . 30
Figure A.3 – Shape of nickel particle . 31

---------------------- Page: 5 ----------------------
– 4 – IEC 62133-2:2017 © IEC 2017
Figure A.4 – Nickel particle insertion position between positive and negative active
material coated area of cylindrical cell . 31
Figure A.5 – Nickel particle insertion position between positive aluminium foil and
negative active material coated area of cylindrical cell . 32
Figure A.6 – Disassembly of cylindrical cell . 33
Figure A.7 – Nickel particle insertion position between positive and negative (active
material) coated area of prismatic cell . 34
Figure A.8 – Nickel particle insertion position between positive aluminium foil and
negative (active material) coated area of prismatic cell . 35
Figure A.9 – Disassembly of prismatic cells . 36
Figure A.10 – Dimensions of a completed nickel particle . 37
Figure A.11 – Positioning of the nickel particle when it cannot be placed in the
specified area . 38
Figure A.12 – Cylindrical cell . 38
Figure A.13 – Distance / time ratio of several types of pressing devices . 41

Table 1 – Sample size for type tests . 14
Table 2 – Condition of charging procedure . 15
Table 3 – Conditions for vibration test . 19
Table 4 – Shock parameters . 19
Table 5 – Ambient temperature for cell test . 20
Table A.1 – Examples of operating region charging parameters . 25
Table A.2 – Recommended specifications of a pressing device . 40
Table F.1 – Component standard references . 46

---------------------- Page: 6 ----------------------
IEC 62133-2:2017 © IEC 2017 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________

SECONDARY CELLS AND BATTERIES CONTAINING
ALKALINE OR OTHER NON-ACID ELECTROLYTES –
SAFETY REQUIREMENTS FOR PORTABLE SEALED
SECONDARY CELLS, AND FOR BATTERIES MADE
FROM THEM, FOR USE IN PORTABLE APPLICATIONS –

Part 2: Lithium systems

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62133-2 has been prepared by subcommittee 21A: Secondary
cells and batteries containing alkaline or other non-acid electrolytes, of IEC technical
committee 21: Secondary cells and batteries.
This first edition cancels and replaces the second edition of IEC 62133 published in 2012. It
constitutes a technical revision.
This edition includes the following significant technical changes with respect to
IEC 62133:2012:
– separation of nickel systems into a separate Part 1;
– inclusion of coin cell requirements;

---------------------- Page: 7 ----------------------
– 6 – IEC 62133-2:2017 © IEC 2017
– update of assembly of cells into batteries (5.6);
– mechanical tests [vibration, shock] (7.3.8.1, 7.3.8.2);
– insertion of IEC TR 62914 within the Bibliography.
The text of this standard is based on the following documents:
FDIS Report on voting
21A/620/FDIS 21A/628/RVD

Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The following different practices of a less permanent nature exist in the countries indicated
below.
7.3.9: Design evaluation – Forced internal short-circuit test only applies to Korea, Japan,
Switzerland and France.
A list of all parts of the IEC 62133 series, published under the general title Secondary cells
and batteries containing alkaline or other non-acid electrolytes – Safety requirements for
portable sealed secondary cells, and for batteries made from them, for use in portable
applications, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.

---------------------- Page: 8 ----------------------
IEC 62133-2:2017 © IEC 2017 – 7 –
SECONDARY CELLS AND BATTERIES CONTAINING
ALKALINE OR OTHER NON-ACID ELECTROLYTES –
SAFETY REQUIREMENTS FOR PORTABLE SEALED
SECONDARY CELLS, AND FOR BATTERIES MADE
FROM THEM, FOR USE IN PORTABLE APPLICATIONS –

Part 2: Lithium systems



1 Scope
This part of IEC 62133 specifies requirements and tests for the safe operation of portable
sealed secondary lithium cells and batteries containing non-acid electrolyte, under intended
use and reasonably foreseeable misuse.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60050-482:2004, International Electrotechnical Vocabulary – Part 482: Primary and
secondary cells and batteries (available at http://www.electropedia.org)
IEC 61960, Secondary cells and batteries containing alkaline or other non-acid electrolytes –
Secondary lithium cells and batteries for portable applications
ISO/IEC Guide 51, Safety aspects – Guidelines for their inclusion in standards
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60050-482,
ISO/IEC Guide 51 and the following apply.
3.1
safety
freedom from unacceptable risk
3.2
risk
combination of the probability of occurrence of harm and the severity of that harm
3.3
harm
physical injury or damage to the health of people or damage to property or to the environment
3.4
hazard
potential source of harm

---------------------- Page: 9 ----------------------
– 8 – IEC 62133-2:2017 © IEC 2017
3.5
intended use
use of a product, process or service in accordance with specifications, instructions and
information provided by the supplier
3.6
reasonably foreseeable misuse
use of a product, process or service in a way which is not intended by the supplier, but which
may result from readily predictable human behaviour
3.7
secondary cell
basic manufactured unit providing a source of electrical energy by direct conversion of
chemical energy, that consists of electrodes, separators, electrolyte, container and terminals,
and that is designed to be charged electrically
3.8
secondary battery
assembly of secondary cell(s) which may include associated safety and control circuits and
case, ready for use as a source of electrical energy characterized by its voltage, size, terminal
arrangement, capacity and rate capability
Note 1 to entry: Includes single cell batteries.
3.9
leakage
unplanned, visible escape of liquid electrolyte
3.10
venting
release of excessive internal pressure from a cell or battery in a manner intended by design to
preclude rupture or explosion
3.11
rupture
mechanical failure of a cell container or battery case induced by a
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
