IEC 60086-2:2000

INTERNATIONAL IEC
STANDARD
60086-2
Edition 10.1
2001-10
Edition 10: 2000 consolidated with amendment 1:2001
Primary batteries –
Part 2:
Physical and electrical specifications
Piles électriques –
Partie 2:
Spécifications physiques et électriques

Reference number

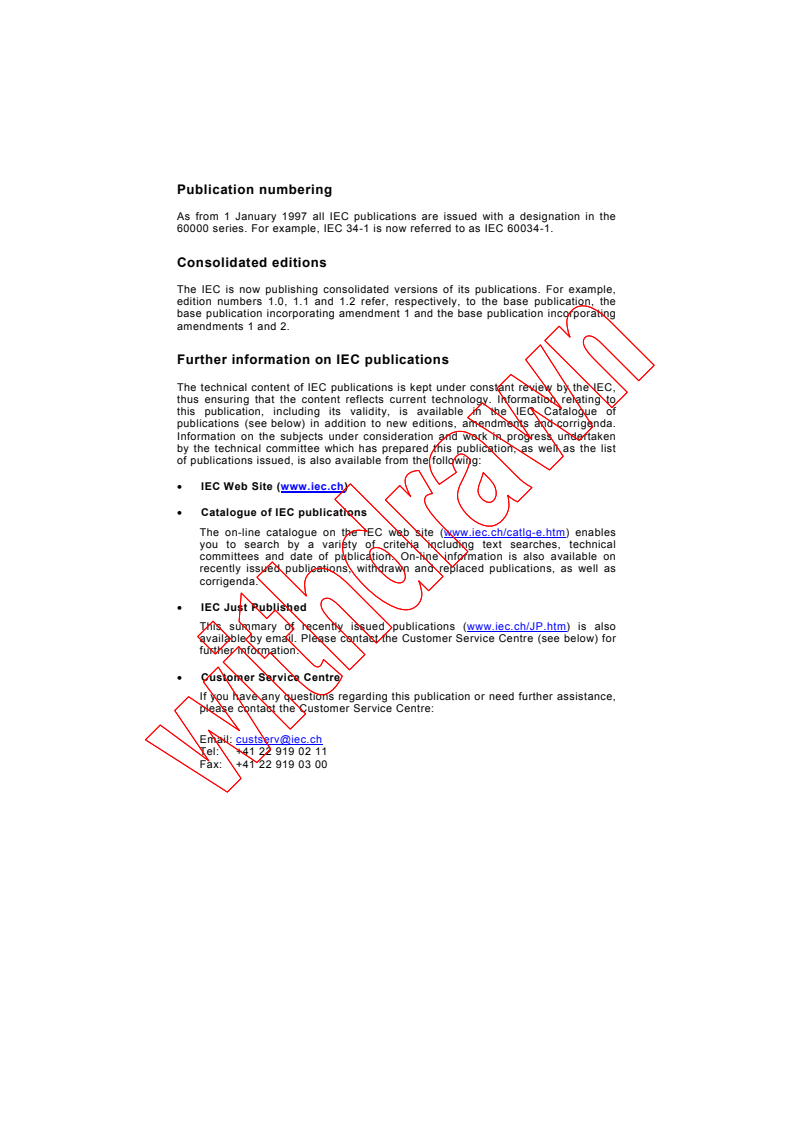

Publication numbering
As from 1 January 1997 all IEC publications are issued with a designation in the
60000 series. For example, IEC 34-1 is now referred to as IEC 60034-1.

Consolidated editions
The IEC is now publishing consolidated versions of its publications. For example,

edition numbers 1.0, 1.1 and 1.2 refer, respectively, to the base publication, the
base publication incorporating amendment 1 and the base publication incorporating
amendments 1 and 2.
Further information on IEC publications
The technical content of IEC publications is kept under constant review by the IEC,
thus ensuring that the content reflects current technology. Information relating to
this publication, including its validity, is available in the IEC Catalogue of
publications (see below) in addition to new editions, amendments and corrigenda.
Information on the subjects under consideration and work in progress undertaken
by the technical committee which has prepared this publication, as well as the list
of publications issued, is also available from the following:
• IEC Web Site (www.iec.ch)
• Catalogue of IEC publications
The on-line catalogue on the IEC web site (www.iec.ch/catlg-e.htm) enables
you to search by a variety of criteria including text searches, technical
committees and date of publication. On-line information is also available on
recently issued publications, withdrawn and replaced publications, as well as
corrigenda.
• IEC Just Published
This summary of recently issued publications (www.iec.ch/JP.htm) is also
available by email. Please contact the Customer Service Centre (see below) for
further information.
• Customer Service Centre
If you have any questions regarding this publication or need further assistance,
please contact the Customer Service Centre:
Email: custserv@iec.ch
Tel: +41 22 919 02 11
Fax: +41 22 919 03 00
INTERNATIONAL IEC
STANDARD
60086-2
Edition 10.1
2001-10
Edition 10: 2000 consolidated with amendment 1:2001
Primary batteries –
Part 2:
Physical and electrical specifications
Piles électriques –
Partie 2:
Spécifications physiques et électriques

 IEC 2001  Copyright - all rights reserved
No part of this publication may be reproduced or utilized in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without permission in writing from the publisher.
International Electrotechnical Commission 3, rue de Varembé Geneva, Switzerland
Telefax: +41 22 919 0300 e-mail: inmail@iec.ch IEC web site http://www.iec.ch
Commission Electrotechnique Internationale
PRICE CODE
X
International Electrotechnical Commission
For price, see current catalogue

– 2 – 60086-2 © IEC:2000+A1:2001(E)

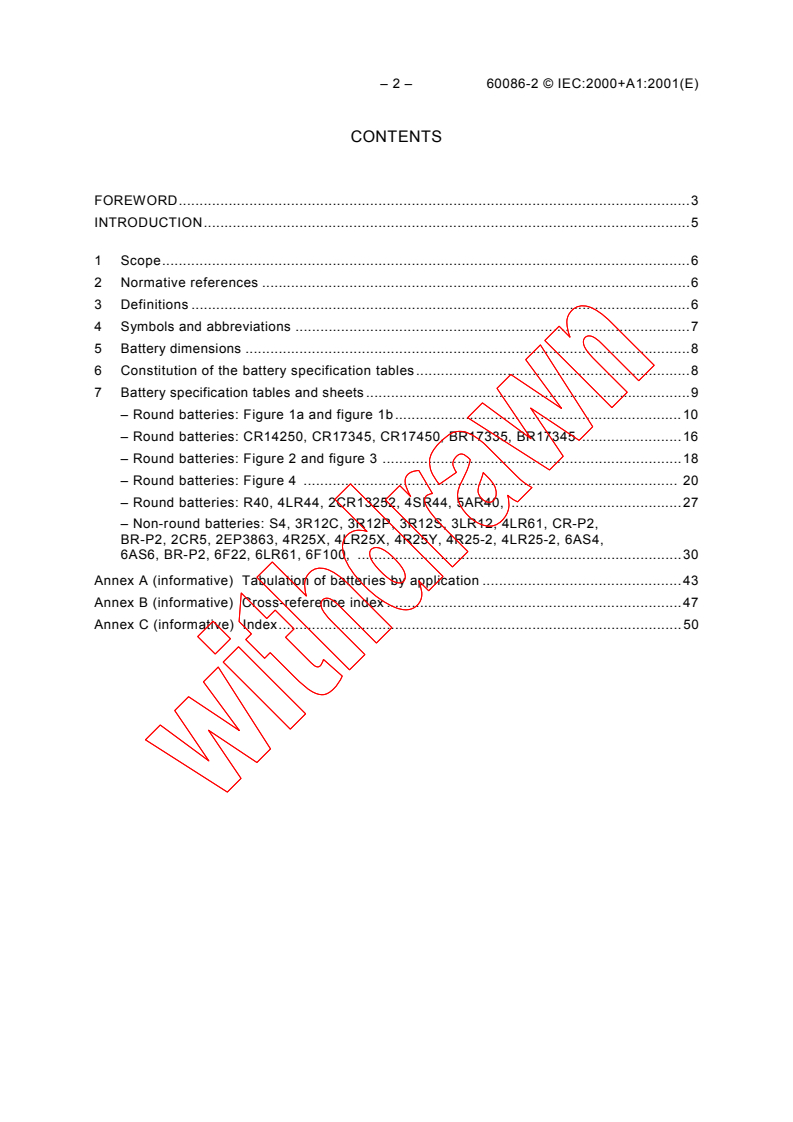

CONTENTS
FOREWORD.3

INTRODUCTION.5

1 Scope.6

2 Normative references .6

3 Definitions .6
4 Symbols and abbreviations .7
5 Battery dimensions .8
6 Constitution of the battery specification tables.8
7 Battery specification tables and sheets .9
– Round batteries: Figure 1a and figure 1b.10
– Round batteries: CR14250, CR17345, CR17450, BR17335, BR17345 .16
– Round batteries: Figure 2 and figure 3 .18
– Round batteries: Figure 4 . 20
– Round batteries: R40, 4LR44, 2CR13252, 4SR44, 5AR40, .27
– Non-round batteries: S4, 3R12C, 3R12P, 3R12S, 3LR12, 4LR61, CR-P2,
BR-P2, 2CR5, 2EP3863, 4R25X, 4LR25X, 4R25Y, 4R25-2, 4LR25-2, 6AS4,
6AS6, BR-P2, 6F22, 6LR61, 6F100, .30
Annex A (informative) Tabulation of batteries by application .43
Annex B (informative) Cross-reference index .47
Annex C (informative) Index.50

60086-2 © IEC:2000+A1:2001(E) – 3 –

INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
PRIMARY BATTERIES –
Part 2: Physical and electrical specifications

FOREWORD
1) The IEC (International Electrotechnical Commission) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of the IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, the IEC publishes International Standards. Their preparation is
entrusted to technical committees; any IEC National Committee interested in the subject dealt with may
participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. The IEC collaborates closely with the International
Organization for Standardization (ISO) in accordance with conditions determined by agreement between the
two organizations.
2) The formal decisions or agreements of the IEC on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested National Committees.
3) The documents produced have the form of recommendations for international use and are published in the form
of standards, technical specifications, technical reports or guides and they are accepted by the National
Committees in that sense.
4) In order to promote international unification, IEC National Committees undertake to apply IEC International
Standards transparently to the maximum extent possible in their national and regional standards. Any
divergence between the IEC Standard and the corresponding national or regional standard shall be clearly
indicated in the latter.
5) The IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with one of its standards.
6) Attention is drawn to the possibility that some of the elements of this International Standard may be the subject
of patent rights. The IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60086-2 has been prepared by IEC technical committee 35:
Primary cells and batteries.
This consolidated version of IEC 60086-2 is based on the tenth edition (2000) [documents
35/1136/FDIS and 35/1147/RVD], and its amendment 1 (2001) [documents 35/1157/FDIS
and 35/1163/RVD].
It bears the edition number 10.1.
A vertical line in the margin shows where the base publication has been modified by
amendment 1.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 3.
Annexes A, B and C are for information only.

– 4 – 60086-2 © IEC:2000+A1:2001(E)

IEC 60086 consists of the following parts under the general title: Primary batteries

– Part 1: General
– Part 2: Physical and electrical specifications

– Part 3: Watch batteries
– Part 4: Safety of lithium batteries

– Part 5: Safety of batteries with aqueous electrolyte

The committee has decided that the contents of the base publication and its amendment will
remain unchanged until 2002. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
A bilingual version of this standard may be issued at a later date.

60086-2 © IEC:2000+A1:2001(E) – 5 –

INTRODUCTION
The technical content of this part of IEC 60086 provides physical dimensions, discharge test

conditions and discharge performance requirements. IEC 60086-2 complements the general

information and requirements of IEC 60086-1 through provision of specification sheets for

primary cells and batteries.
This part was prepared to benefit primary battery users, device designers and battery

manufacturers by furnishing the specifics of form, fit and function for individual standardized

primary cells and batteries. Over the years, this part has been changed to improve its
contents and may again be revised in due course in the light of comments made by National
Committees and experts on the basis of practical experience and changing technology. This
current revision is the result of a reformatting initiative, as well as some content changes,
aimed at making this part more user-friendly, less ambiguous, and, from a cross-reference
basis, fully harmonized with other parts of IEC 60086.
NOTE Safety information as been removed from IEC 60086-1, and is now available in IEC 60086-4 and
IEC 60086-5.
– 6 – 60086-2 © IEC:2000+A1:2001(E)

PRIMARY BATTERIES –
Part 2: Physical and electrical specifications

1 Scope
This part of IEC 60086 is applicable to primary batteries based on standardized electro-

chemical systems.
It specifies – the physical dimensions
– the discharge test conditions and discharge performance requirements.
2 Normative references
The following normative documents contain provisions which, through reference in this text,
constitute provisions of this part of IEC 60086. For dated references, subsequent amend-
ments to, or revisions of, any of these publications do not apply. However, parties to
agreements based on this part of IEC 60086 are encouraged to investigate the possibility of
applying the most recent editions of the normative documents indicated below. For undated
references, the latest edition of the normative document referred to applies. Members of IEC
and ISO maintain registers of currently valid International Standards.
IEC 600050(481):1996, International Electrotechnical Vocabulary – Chapter 481: Primary
cells and batteries
IEC 60086-1:2000, Primary batteries – Part 1: General
ISO 1101:1983, Technical drawings – Geometrical tolerancing – Tolerancing of form,
orientation, location and run out – Generalities, definitions, symbols, indication on drawings
3 Definitions
For the purpose of this International Standard, the definitions of IEC 60050(481), as well as
the following definitions, apply.
3.1
application test
test which simulates the actual use of a battery in a specific application, for example,
"portable lighting", "tape recorder" or "transistor radio" test
3.2
end-point voltage (EV)
specified closed circuit voltage at which a service output test is terminated
3.3
minimum average duration (MAD)
that minimum average time on discharge which shall be met by a sample of batteries
NOTE The discharge test is carried out according to the specified methods and designed to show conformity with
the standard applicable to the battery types

60086-2 © IEC:2000+A1:2001(E) – 7 –

3.4
nominal voltage of a primary battery (Vn)

suitable approximate value of voltage used to identify the voltage of a primary battery

3.5
on-load voltage
(closed-circuit voltage) (CCV)

voltage across the terminals of a battery when it is on discharge

3.6
open-circuit voltage (OCV)
(off-load voltage)
voltage across the terminals of a battery when no external current is flowing
3.7
primary battery
one or more primary cells, including case, terminals and marking
3.8
primary cell
source of electrical energy obtained by the direct conversion of chemical energy, that is not
designed to be charged by any other electrical source
3.9
service output (of a primary battery)
service life, or capacity, or energy output of a battery under specified conditions of discharge
3.10
service output test
test designed to measure the service output of a battery
NOTE A service output test may be prescribed, for example, when
a) an application test is too complex to replicate;
b) the duration of an application test would make it impractical for routine testing purposes
3.11
storage life
duration under specified conditions at the end of which a battery retains its ability to perform a
specified service output
3.12
terminals (of a primary battery)
conductive parts provided for the connection of a battery to external conductors
4 Symbols and abbreviations
4.1 EV: end-point voltage
4.2 MAD: minimum average duration
4.3 OCV: open-circuit voltage (off-load voltage)
4.4 R: load resistance
4.5 Vn: nominal voltage of a battery

– 8 – 60086-2 © IEC:2000+A1:2001(E)

5 Battery dimensions
The symbols used to denote the various dimensions are as follows:

A: maximum overall height of the battery

B: minimum distance between the flats of the positive and negative contacts

C: minimum outer diameter of the negative flat contact surface

D: maximum inner diameter of the negative flat contact surface

E: maximum recess of the negative flat contact surface

F: maximum diameter of the positive contact within the specified projection height
G: minimum projection of the flat positive contact
K: minimum projection of the flat negative contact
L: maximum diameter of the negative contact within the specified projection height
M: minimum diameter of the flat negative contact
N: minimum diameter of the flat positive contact
ø: maximum and minimum diameters of the battery
ø P: concentricity of the positive contact
Recesses are permitted in the negative flat contact surface defined by dimensions C and D for
batteries having the shape shown in figure 1a, provided that batteries placed end to end in
series make electrical contact with each other and that the contact separation is an integral
multiple of the contact separation for one battery. The following conditions must be satisfied:
C > F
N > D
G > E
6 Constitution of the battery specification tables
6.1 Batteries are categorized into several groups according to their shapes.
6.2 In each category, batteries having the same shape but belonging to a different electro-
chemical system are grouped together and shown in succession.
6.3 Batteries are always listed in ascending order of nominal voltage and, within each nominal
voltage, in ascending order of volume.
6.4 One common shape drawing of these batteries which fall in the same group is exhibited.
6.5 Designation, nominal voltage, dimensions, discharge conditions, minimum average
duration and application for these batteries which fall into the same group are summarized in
one table
6.6 When a drawing represents only one type of battery, the dimensions of the relevant
battery are directly shown on the drawing.
6.7 Batteries are categorized into the following groups:
a) Category 1: Round batteries according to figures 1a and 1b
R1, R03, R6C, R6P, R6S, R14C, R14P, R14S, R20C, R20P, R20S, 2R10
LR8D425, LR1, LR03, LR6, LR14, LR20
CR 12A604
60086-2 © IEC:2000+A1:2001(E) – 9 –

b) Category 2: Round batteries

CR14250, CR17345, CR17450
BR17335, BR17345
c) Category 3: Round batteries according to figure 2 and figure 3

LR9, LR53
CR 11108
d) Category 4: Round batteries according to figure 4

PR70, PR41, PR48, PR43, PR44
LR41, LR55, LR54, LR43, LR44
SR62, SR63, SR65, SR64, SR60, SR67, SR66, SR58, SR68, SR59, SR69, SR41, SR57,
SR55, SR48, SR56, SR54, SR42, SR43, SR44
CR1025, CR1216, CR1220, CR1616, CR2012, CR1620, CR2016, CR2025, CR2320,
CR2032,CR2330, CR2430, CR2354, CR3032, CR2450
BR1225, BR2016, BR2020, BR2320, BR2325, BR3032
e) Category 5: Other round batteries – Miscellaneous
R40
4LR44
2CR13252
4SR44
5AR40
f) Category 6: Non-round batteries – Miscellaneous
S4
3R12C, 3R12P, 3R12S, 3LR12
4LR61
BR-P2, CR-P2
2CR5
2EP3863
4R25X, 4LR25X
4R25Y
4R25-2, 4LR25-2
6AS4
6AS6
6F22, 6LR61
6F100
6.8 Drawings of round batteries which correspond to figures 1a and 1b, figure 2, figure 3 and
figure 4 are prepared by reduction or enlargement of the relevant original drawings. The other
drawings are prepared by reduction or enlargement of conventional specification drawings.
In each case the drawings show the shape of the relevant batteries. Dimensions for each
battery are shown in the tables.
7 Battery specification tables and sheets
NOTE See annex C for ease of locating battery sizes.

– 10 –       60086-2 © IEC:2000+A1:2001(E)

PHYSICAL AND ELECTRICAL SPECIFICATIONS CATEGORY 1 BATTERIES
Batteries complying with these physical and electrical specifications are:
F F
N
Designation OCV Max.
V
R1, R03, R6C, R6P, R6S, R14C, R14P, R14S 1,725
Optional pip Optional pip
Positive contact Positive contact
R20C, R20P, R20S
F F
2R10 3,450
LR8D425, LR1, LR03, LR6, LR14, LR20 1,65
CR12A604 3,7
For the definition of the dimensions, see clause 5.
The cylindrical surface is insulated from the contacts.
Terminals: flat/cap and base.
for terminal details, see respectively 4.1.3.5 and 4.1.3.2 of IEC 60086-1.
For general information, see IEC 60086-1.
D
C C
Figure 1a: negative contact C may not be flat over the whole area.
∅ ∅
Figure1b: negative contact shall be essentially flat over the whole surface area.
Negative contact Negative contact
area area
The profile over the dotted line The profile over the dotted line
sections is not specified sections is not specified
IEC  2380/2000 IEC  2381/2000
Figure 1a                            Figure 1b
For batteries complying with figures 1a and 1b, flat negative contact is not necessarily
recessed.
When the flat negative contact surface forms the lower part of the battery, dimensions "A"
and "B" are both measured from the surface and dimension "E" is zero.
Dimensions "P" to be measured in accordance with ISO 1101.
∅ P
B
G
E
0,4 max.
E
G
A
∅ P
B
G
E
0,4 max.
E
G
A
60086-2 © IEC:2000+A1:2001(E)        – 11 –

PHYSICAL AND ELECTRICAL SPECIFICATIONS CATEGORY 1 BATTERIES
Dimensions
Discharge conditions
Electro- mm
a
Vn MAD
Applications
chemical Designation
AB C E F G ∅∅P R EV
V (initial)
system
Daily period
Max. Min. Min. Max. Max. Min. Max. Min. Max. Ω V
300 12 h 0,9 76 h Hearing aids
(see note)
R1
1,5 30,2 29,1 5,0 0,2 4,0 0,5 12,0 10,9 0,5
5,1 5 min 0,9 57 min Portable lighting
5,1 b 0,9 45 min Portable lighting
Personal cassette player
10 1 h 0,9 1,4 h
and tape recorder
R03
75 4 h 0,9 20 h Radio
1,5 44,5 43,3 4,3 0,5 3,8 0,8 10,5 9,5 0,4
15 s per min
24 1,0 4 h Remote control
8 h per day
c
3,6 0,9 Pulse test
pulses
43 4 h 0,9 25 h Radio
3,9 1 h 0,8 47 min Motor/toy
Personal cassette player
10 1 h 0,9 3,5 h
R6C
and tape recorder
1,5 50,5 49,2 7,0 0,5 5,5 1,0 14,5 13,5 0,5
(high
15 s per min
capacity)
24 1,0 10,9 h Remote control
8 h per day
1,8 c 0,9 Pulse test
pulses
43 4 h 0,9 27 h Radio
3,9 1 h 0,8 60 min Motor/toy
Personal cassette player
10 1 h 0,9 4,1 h
R6P
and tape recorder
1,5 50,5 49,2 7,0 0,5 5,5 1,0 14,5 13,5 0,5
(high power)
15 s per min
24 1,0 11 h Remote control
8 h per day
c
1,8 0,9 Pulse test
pulses
R6S
1,5 50,5 49,2 7,0 0,5 5,5 1,0 14,5 13,5 0,5 43 4 h 0,9 22 h Radio
(standard)
NOTE Delayed discharge performance after 12 months is 80 % of MAD.
a
Standard conditions.
b
4 min beginning at hourly intervals for 8 h per day.
c
15 s on, 45 s off for 24 h per day.

– 12 –       60086-2 © IEC:2000+A1:2001(E)

PHYSICAL AND ELECTRICAL SPECIFICATIONS CATEGORY 1 BATTERIES
Dimensions
Discharge conditions
mm
Electro-
a
Vn
MAD
chemical Designation Applications
AB C E F G ∅∅P R EV
V (initial)
system
Daily period
Ω V
Max. Min. Min. Max. Max. Min. Max. Min. Max.
b
3,9 0,9 250 min Portable lighting
(see note)
6,8 1 h 0,9 7 h Tape recorders
R14C 1,5 50,0 48,6 13,0 0,9 7,5 1,5 26,2 24,9 1,0
20 4 h 0,9 25 h Radio
(high
capacity)
3,9 1 h 0,8 2,5 h Toy
b
3,9 0,9 300 min Portable lighting
6,8 1 h 0,9 9 h Tape recorders
R14P 1,5 50,0 48,6 13,0 0,9 7,5 1,5 26,2 24,9 1,0
20 4 h 0,9 30 h Radio
(high power)
3,9 1 h 0,8 4,8 h Toy
3,9 b 0,9 120 min Portable lighting
6,8 1 h 0,9 3,0 h Tape recorders
R14S 1,5 50,0 48,6 13,0 0,9 7,5 1,5 26,2 24,9 1,0
20 4 h 0,9 15 h Radio
(standard)
3,9 1 h 0,8 1,5 h Toy
2,2 b 0,9 300 min Portable lighting (1)
3,9 1 h 0,9 9 h Tape recorders
10 4 h 0,9 30 h Radio
R20C 1,5 61,5 59,5 18,0 1,0 9,5 1,5 34,2 32,3 1,0
2,2 1 h 0,8 4 h Toy
(high
capacity)
1,5 4 min per 15 0,9 130 min Portable lighting (2)
min
8 h per day
NOTE Delayed discharge performance after 12 months is 80 % of MAD.
a
Standard conditions.
b
4 min beginning at hourly intervals for 8 h per day.

60086-2 © IEC:2000+A1:2001(E)        – 13 –

PHYSICAL AND ELECTRICAL SPECIFICATIONS          CATEGORY 1 BATTERIES
Dimensions Discharge conditions
mm
Electro- a
Vn
MAD
chemical Designation Applications
(initial)
AB C E F G ∅∅P R Daily period EV
V
system
Ω V
Max. Min. Min. Max. Max. Min. Max. Min. Max.
b
R20P
(see note 1) 1,5 61,5 59,5 18,0 1,0 9,5 1,5 34,2 32,3 1,0 2,2 0,9 320 min Portable lighting
(high power)
3,9 1 h 0,9 13 h Tape recorders
10 4 h 0,9 35 h Radio
2,2 1 h 0,8 6 h Toy
1,5 4 min per 15 min 0,9 137 min Portable lighting (2)
8 h per day
b
R20S 1,5 61,5 59,5 18,0 1,0 9,5 1,5 34,2 32,3 1,0 2,2 0,9 100 min Portable lighting
(standard)
3,9 1 h 0,9 4 h Tape recorders
10 4 h 0,9 18 h Radio
2,2 1 h 0,8 2 h Toy
1,5 4 min per 15 min 0,9 32 min Portable lighting (2)
8 h per day
2R10 3,0 74,6 71,5 9,0 0,8 6,8 1,0 21,8 20,0 6,8 5 min 1,8 85 min Portable lighting
NOTE 1 Delayed discharge performance after 12 months is 80 % of MAD.
c
L LR8D425 1,5 42,5 41,5 0,1 3,8 0,7 8,3 7,7 0,1 5,1 5 min 0,9 90 min Lighting
2,3
(see note 2)
75 1 h 1,1 22 h Laser pointer
75 1 h 0,9 27 h Service output test
LR1 1,5 30,2 29,1 5,0 0,2 4,0 0,5 12,0 10,9 0,5 300 12 h 0,9 130 h Hearing aids
5,1 5 min 0,9 94 min Portable lighting
d
3 000 0,9 888 h Paging test
NOTE 2 Delayed discharge performance after 12 months is 90 % of MAD.
a
Standard conditions.
b
4 min beginning at hourly intervals for 8 h per day.
c
This battery does not fulfil the requirement C > F due to constructional constraints.
d
24 h per day, plus 10 Ω for 5 s at hourly intervals for 24 h per day.

– 14 –       60086-2 © IEC:2000+A1:2001(E)

PHYSICAL AND ELECTRICAL SPECIFICATIONS CATEGORY 1 BATTERIES
Dimensions
Discharge conditions
Electro- a
mm
Vn MAD
chemical Designation Applications
AB C E F G ∅∅P R
EV
V (initial)
system
Daily period
Max. Min. Min. Max. Max. Min. Max. Min. Max. Ω V
b
5,1 0,9 130 min Portable lighting
L
24 15 s per min 1,0 14,5 h Remote control
(see note)
8 h per day
10 1 h 0,9 5 h Personal cassette
LR03 1,5 44,5 43,3 4,3 0,5 3,8 0,8 10,5 9,5 0,4
player and tape
recorder
75 4 h 0,9 44 h Radio
c
(current drain) 0,9 140 pulses Photo flash
600 mA
43 4 h 0,9 60 h Radio
3,9 1 h 0,8 4 h Motor/toy
10 1 h 0,9 11,5 h Personal cassette
player and tape
LR6 1,5 50,5 49,2 7,0 0,5 5,5 1,0 14,5 13,5 0,5
recorder
c
(current drain)
0,9 200 pulses Photo flash
1 000 mA
24 15 s per min 1,0 31 h Remote control
8 h per day
b
3,9 0,9 770 min Portable lighting
6,8 1 h 0,9 23 h Tape recorders
LR14 1,5 50,0 48,6 13,0 0,9 7,5 1,5 26,2 24,9 1,0
20 4 h 0,9 77 h Radio
3,9 1 h 0,8 12 h Toy
b
2,2 0,9 810 min Portable lighting (1)
3,9 1 h 0,9 25 h Tape recorders
10 4 h 0,9 81 h Radio
LR20 1,5 61,5 59,5 18,0 1,0 9,5 1,5 34,2 32,3 1,0
2,2 1 h 15 h Toy
0,8
1,5 4 min 0,9 450 min Portable lighting (2)
per 15 min
8 h per day
NOTE Delayed discharge performance after 12 months is 90 % of MAD.
a
Standard conditions.
b
4 min beginning at hourly intervals for 8 h per day.
c
10 s on, 50 s off for 1 h per day.

60086-2 © IEC:2000+A1:2001(E)        – 15 –

PHYSICAL AND ELECTRICAL SPECIFICATIONS          CATEGORY 1 BATTERIES
Dimensions
Discharge conditions
mm
Electro- a
Vn
MAD
chemical Designation Applications
AB C E F G ∅∅P R Daily EV (initial)
V
system
period
V
Max. Min. Min. Max. Max. Min. Max. Min. Max. Ω
b
C 3 60,4 58,0 4,8 – 4,5 0,3 12,0 10,7 2 000 24 h 2,0 840 h Service output test
CR12A604
(see note)
NOTE Delayed discharge performance after 12 months is 98 % of MAD.
a
Standard conditions
b
Marking: subclause 4.1.6.2 of IEC 60086-1 is applicable.

– 16 –       60086-2 © IEC:2000+A1:2001(E)

PHYSICAL AND ELECTRICAL SPECIFICATIONS          CATEGORY 2 BATTERIES
F
Batteries complying with these physical and electrical specifications are as follows:
(+)
Designation OCV Max.
V
CR14250, CR17345, CR17450 3,7
BR17335, BR17345 3,7
For the definition of the dimensions, see clause 5.
The cylindrical surface is insulated from the contacts.
Terminals: flat/cap and base.
for terminal details, see respectively 4.1.3.5 and 4.1.3.2 of IEC 60086-1.
For general information, see IEC 60086-1.
(–)
C
∅
IEC  2382/2000
E
G
A/B
60086-2 © IEC:2000+A1:2001(E)        – 17 –

PHYSICAL AND ELECTRICAL SPECIFICATIONS     CATEGORY 2 BATTERIES
Dimensions
Discharge conditions
mm
Electro- a
Vn
MAD
chemical Designation Applications
A/B C E F G R Daily EV
∅
(initial)
V
system
period
kΩ V
Max. Min. Min. Max. Min. Max. Min. Max. Min.
C CR14250 3 25,0 23,5 5,0 8,0 0,4 14,5 13,5 3 24 h 2,0 750 h Service
output test
(see note1)
CR17345 3 34,5 33,5 11,0 0,9 0,5 9,6 1,0 17,0 16,0 0,1 24 h 2,0 40 h Service
output test
(Current 3 s on 1,55 1 400 Photo
drain) 27 s off pulses
900 mA 24h/d
CR17450 3 45,0 43,5 5,0 8,0 0,4 17,0 16,0 1 24 h 2,0 710 h Service
output test
NOTE 1 Delayed discharge performance after 12 months is 98 % of MAD.
B BR17335 3 33,5 32,0 5,0 8,0 0,1 17,0 16,0
(see note 2)
BR17345 3 34,5 33,5 11,0 0,9 0,5 9,6 1,0 17,0 16,0 0,1 24 h 2,0 40 h Service
output test
(Current 3 s on 1,55 1 200 Photo
drain) 27 s off pulses
900 mA 24h/d
NOTE 2 Delayed discharge performance after 12 months is 98 % of MAD.
a
Standard conditions.
– 18 –       60086-2 © IEC:2000+A1:2001(E)

PHYSICAL AND ELECTRICAL SPECIFICATIONS          CATEGORY 3 BATTERIES
L
L
M Optional pip Optional pip
Batteries complying with these physical and electrical specifications are as follows:
M
(–)
(–)
Designation OCV Max.
V
LR9, LR53 1,65
(+)
N CR11108 3,7
(+) F
N
∅
For the definition of the dimensions, see clause 5.
∅
The cylindrical surface is connected to the positive terminal.
IEC  2383/2000 IEC  2384/2000
Terminals: flat/cap and case.
for terminal details, see respectively 4.1.3.5 and 4.1.3.3 of IEC 60086-1.
Figure 2                              Figure 3
For general information, see IEC 60086-1.
No part of the battery shall project beyond the positive contact area.
Marking: 4.1.6.2 of IEC 60086-1 is applicable.
K
B
A
G
K
B
A
60086-2 © IEC:2000+A1:2001(E)        – 19 –

PHYSICAL AND ELECTRICAL SPECIFICATIONS      CATEGORY 3 BATTERIES
Dimensions
Discharge conditions
mm
Electro-
a
Vn
MAD
chemical Designation Applications
AB F G K L M N ∅
R Daily EV (initial)
V
system
period
Max. Min. Max. Min. Min. Max. Min. Min. Max. Min. Ω V
L LR9 1,5 6,2 5,6 13,5 2,0 0,2 12,5 10,0 10,0 16,0 15,2 390 24 h 0,9 48 h Service
output test
(see note 1)
LR53 1,5 6,1 5,4 20,9 2,1 0,2 21,0 15,3 18,7 23,2 22,6 470 24 h 0,9 50 h Service
output test
NOTE 1 Delayed discharge performance after 12 months is 90 % of MAD.
C CR11108 3 10,8 10,4 – – 0,2 9,0 3,0 9,0 11,6 11,4 15000 24 h 2,0 620 h Service
output test
(see note 2)
NOTE 2 Delayed discharge performance after 12 months is 98 % of MAD.
a
Standard conditions.
– 20 –       60086-2 © IEC:2000+A1:2001(E)

PHYSICAL AND ELECTRICAL SPECIFICATIONS          CATEGORY 4 BATTERIES
M
Batteries complying with these physical and electrical specifications are as follows:
(–)
Designation OCV Max.
V
PR70, PR41, PR48, PR43, PR44 1,68
LR41, LR55, LR54, LR43, LR44 1,65
SR62, SR63, SR65, SR64, SR60, SR67, SR66, SR58, SR68, 1,63
SR59, SR69, SR41, SR57, SR55, SR48, SR56, SR54, SR42,
(+)
SR43, SR44
N
3,7
CR1025, CR1216, CR1220, CR1616, CR2012, CR1620,
CR2016, CR2025, CR2320, CR2032, CR2330, CR2430,
∅
CR2354, CR3032, CR2450
IEC  2385/2000
BR1225, BR2016, BR2020, BR2320, BR2325, BR3032
3,7
Figure 4
For the definition of the dimensions, see clause 5.
Any difference between the height of the battery and the distance between
the contacts shall not exceed 0,1 mm.
The cylindrical surface is connected to the positive terminal. Positive contact
should be made to the side of the battery but may be made to the base.
No part of the battery shall project beyond the positive contact.
Terminals: flat/cap and case.
Marking: 4.1.6.2 of IEC 60086-1 is applicable.
for terminal details, see respectively 4.1.3.5 and 4.1.3.3 of IEC 60086-1.
The flat negative contact shall project.
Contact pressure resistance, see 4.1.3.1 of IEC 60086-1.
For general information see IEC 60086-1.
A/B
60086-2 © IEC:2000+A1:2001(E)        – 21 –

PHYSICAL AND ELECTRICAL SPECIFICATIONS     CATEGORY 4 BATTERIES
Dimensions
Discharge conditions
mm
Electro- a
Vn
MAD
chemical Designation Applications
A/B M N R Daily EV
∅
(initial)
V
system
period
kΩ V
Max. Min. Min. Min. Max. Min.
b
P 1,4 3,6 3,3 – – 5,8 5,55 3 12 h 0,9 90 h Hearing aids
PR70
c
(see note)
d
3 1,0 45 h High power service output test
b
1,4 3,6 3,3 3 3,8 7,9 7,55 1,5 12 h 0,9 Hearing aids
PR41
c
e
1,5 1,0 25 h High power service output test
b
1,4 5,4 5,0 3 3,8 7,9 7,55 1,5 12 h 0,9 195 h Hearing aids
PR48
c
f
1,5 1,0 30 h High power service output test
b
1,4 4,2 3,8 3,8 3,8 11,6 11,25 1 12 h 0,9 Service output test
PR43
c
b
1,4 5,4 5,0 3,8 3,8 11,6 11,25 0,620 12 h 0,9 195 h Hearing aids
PR44
c
g
0,620 1,0 38 h High power service output test
NOTE Delayed discharge performance after 12 months is 95 % of MAD.
a
Standard conditions.
b
A period of at least 10 min shall elapse between activation and commencement of electrical measurement.
c
Equipment designers' attention is drawn to the importance of making positive electrical contact on the side of the battery so that air access is not impeded for "P" system batteries.
d
24 h per day, plus 510 Ω for 1 s on/3 s off for 12 h per day.
e
24 h per day, plus 160 Ω for 1 s on/3 s off for 12 h per day.
f
24 h per day, plus 110 Ω for 1 s on/3 s off for 12 h per day.
g
24 h per day, plus 43 Ω for 1 s on/3 s off for 12 h per day.

– 22 –       60086-2 © IEC:2000+A1:2001(E)

PHYSICAL AND ELECTRICAL SPECIFICATIONS     CATEGORY 4 BATTERIES
Dimensions Discharge conditions
a
Electro- Vn mm MAD
chemical Designation (initial) Applications
V
A/B M N ∅ R Daily EV
system
period
kΩ V
Max. Min. Min. Min. Max. Min.
L LR41 1,5 3,6 3,3 3 3,8 7,9 7,55 22 24 h 1,2 300 h Service output test
(see note)
LR55 1,5 2,1 1,85 3,8 3,8 11,6 11,25 22 24 h 1,2
...
