IEC 60096-0-1:1990/AMD1:2000
(Amendment)Amendment 1 - Radio-frequency cables. Part 0: Guide to the design of detailed specifications - Section One: Coaxial cables
Amendment 1 - Radio-frequency cables. Part 0: Guide to the design of detailed specifications - Section One: Coaxial cables
Amendement 1 - Câbles pour fréquences radioélectriques. Partie zéro: Guide pour la conception des spécifications particulières - Section un: Câbles coaxiaux
General Information
- Status
- Published
- Publication Date
- 04-May-2000
- Technical Committee
- SC 46A - Coaxial cables
- Drafting Committee
- WG 3 - TC 46/SC 46A/WG 3
- Current Stage
- DELPUB - Deleted Publication
- Start Date
- 30-Oct-2012
- Completion Date
- 26-Oct-2025
Relations
- Effective Date
- 05-Sep-2023
- Effective Date
- 05-Sep-2023
Overview
IEC 60096-0-1:1990/AMD1:2000 is an internationally recognized amendment to the original IEC 60096-0-1 standard, published by the International Electrotechnical Commission (IEC). This amendment focuses specifically on radio-frequency (RF) cables, emphasizing a guide to the design of detailed specifications for coaxial cables. Produced by IEC Subcommittee 46A under Technical Committee 46, it addresses cable materials, dielectric properties, and dimensional tolerances to ensure high-performance coaxial cable design.
As an essential reference for manufacturers, engineers, and quality control professionals, this amendment updates critical technical data, offering standardized tables that define material constants and nominal dimensions for coaxial cable dielectrics. The amendment helps streamline the specification process, promotes interoperability, and supports the development of reliable communication and signalling systems.
Key Topics
Material Constants for Dielectric and Sheath
The amendment updates Table 3.1, which lists critical electrical and physical properties for materials used in coaxial cables, including:- Permittivity of dielectric materials
- Dissipation factor (tan δ) of dielectrics
- Maximum permissible voltage gradient
- Density and thermal resistivity
- Maximum operating temperatures
Materials covered include solid and cellular polyethylene (PE), polytetrafluoroethylene (PTFE), fluorinated ethylene propylene (FEP), ethylene tetrafluoroethylene (ETFE), perfluoroalkoxy (PFA), and polyvinyl chloride (PVC).
Nominal Dimensions of Dielectric for Coaxial Cables
The updated Table 4 defines nominal diameters over the dielectric with specified tolerances for various cable impedances (e.g., 50 Ω, 75 Ω, 93 Ω). These dimensions cover a range of dielectric types, including solid PE, cellular PE, semi-air-spaced PE, and fluorinated variants. Precise control of these dimensions is critical for achieving the required impedance and electrical performance.Design Guidance
Guidance on material selection, dimensional tolerances, and electrical characteristics supports manufacturers in producing coaxial cables that meet stringent RF performance and environmental requirements. This amendment acts as an authoritative reference in refining detailed product specifications for coaxial cables used in communication systems.
Applications
IEC 60096-0-1:1990/AMD1:2000 serves as an invaluable resource for:
Telecommunication Infrastructure
Designing coaxial cables that meet standardized performance parameters for radio and TV broadcasting, mobile networks, and satellite communications.Signal Transmission Systems
Ensuring consistent cable impedance and low signal loss in RF signal distribution within industrial and commercial communication setups.Cable Manufacturing
Providing precise specifications for materials and dimensions that facilitate quality control and reproducible cable performance.Testing and Certification
Supporting compliance verification processes by enabling clear reference to standardized material constants and dimensional tolerances.Research and Development
Guiding the development of new coaxial cable materials and designs that align with international standards for dielectric and sheath properties.
Related Standards
Professionals working with IEC 60096-0-1:1990/AMD1:2000 may also refer to the following complementary IEC publications:
- IEC 60096 series - Comprehensive standards for radio-frequency cables covering other aspects and types beyond coaxial cables.
- IEC 61196 series - Specifications and test methods for RF coaxial cables and connectors.
- IEC 60228 - Standard on conductor classification relevant to cable design.
- IEC 60502 - Power cables with extruded insulation potentially used alongside RF cables in communication systems.
Adhering to these standards together supports a holistic approach to designing, manufacturing, and certifying coaxial cables optimized for radio-frequency applications worldwide.
Keywords: IEC 60096-0-1 amendment, RF cables, coaxial cables, radio-frequency cable specifications, dielectric properties, cable design guide, coaxial cable materials, IEC standards, communication cables, cable impedance, material constants, nominal cable dimensions
Frequently Asked Questions
IEC 60096-0-1:1990/AMD1:2000 is a standard published by the International Electrotechnical Commission (IEC). Its full title is "Amendment 1 - Radio-frequency cables. Part 0: Guide to the design of detailed specifications - Section One: Coaxial cables". This standard covers: Amendment 1 - Radio-frequency cables. Part 0: Guide to the design of detailed specifications - Section One: Coaxial cables
Amendment 1 - Radio-frequency cables. Part 0: Guide to the design of detailed specifications - Section One: Coaxial cables
IEC 60096-0-1:1990/AMD1:2000 is classified under the following ICS (International Classification for Standards) categories: 33.120.10 - Coaxial cables. Waveguides. The ICS classification helps identify the subject area and facilitates finding related standards.
IEC 60096-0-1:1990/AMD1:2000 has the following relationships with other standards: It is inter standard links to IEC 60096-0-1:1990, IEC 60096-0-1:2012. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
IEC 60096-0-1:1990/AMD1:2000 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
NORME CEI
INTERNATIONALE IEC
60096-0-1
INTERNATIONAL
STANDARD
AMENDEMENT 1
AMENDMENT 1
2000-05
Amendement 1
Câbles pour fréquences radioélectriques –
Partie 0:
Guide pour la conception des spécifications
particulières –
Section un: Câbles coaxiaux
Amendment 1
Radio-frequency cables –
Part 0:
Guide to the design of detailed specifications –
Section One: Coaxial cables
IEC 2000 Droits de reproduction réservés Copyright - all rights reserved
International Electrotechnical Commission 3, rue de Varembé Geneva, Switzerland
Telefax: +41 22 919 0300 e-mail: inmail@iec.ch IEC web site http://www.iec.ch
CODE PRIX
Commission Electrotechnique Internationale
E
PRICE CODE
International Electrotechnical Commission
Pour prix, voir catalogue en vigueur
For price, see current catalogue
– 2 – 60096-0-1 amend. 1 © CEI:2000
AVANT-PROPOS
Le présent amendement a été établi par le sous-comité 46A: Câbles coaxiaux, du comité
d’études 46 de la CEI: Câbles, fils, guides d’ondes, connecteurs, et accessoires pour commu-
nication et signalisation.
Le texte de cet amendement est issu des documents suivants:
FDIS Rapport de vote
46A/363/FDIS 46A/371/RVD
Le raport de vote indiqué dans le tableau ci-dessus donne toute information sur le vote ayant
abouti à l’approbation de cet amendement.
Le comité a décidé que le contenu de cette publication et de ses amendements ne sera pas
modifié avant 2006. A cette date, la publication sera
• reconduite;
• supprimée;
• remplacée par une édition révisée; ou
• amendée.
__________
Page 10
3.1 Tableau des constantes des matériaux en ce qui concerne le diélectrique et la
gaine et leurs valeurs pour les différents matériaux
Remplacer le tableau 3.1 par le nouveau tableau suivant:
60096-0-1 Amend. 1 © IEC:2000 – 3 –
FOREWORD
This amendment has been prepared by subcommittee 46A: Coaxial cables, of IEC technical
committee 46: Cables, wires, waveguides, r.f. connectors, and accessories for communication
and signalling.
The text of this amendment is based on the following documents:
FDIS Report on voting
46A/363/FDIS 46A/371/RVD
Full information on the voting for the approval of this amendment can be found in the report on
voting indicated in the above table.
The committee has decided that the contents of this publication and its amendments will
remain unchanged until 2006. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition; or
• amended.
_____________
Page 11
3.1 Table of material constants relating to dielectric and sheath and their values for
different materials
Replace table 3.1 by the following new table:

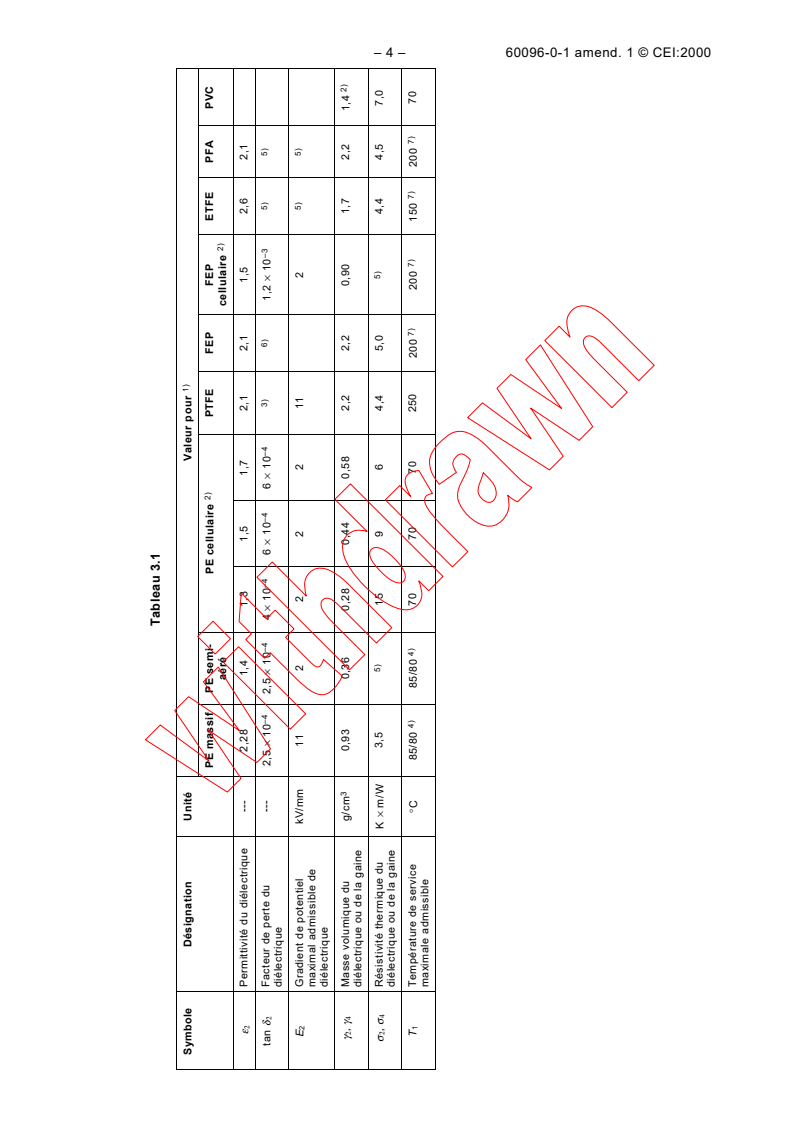

– 4 – 60096-0-1 amend. 1 © CEI:2000
Tableau 3.1
1)
Symbole Désignation Unité Valeur pour
2)
PE massif PE semi- PE cellulaire PTFE FEP FEP ETFE PFA PVC
2)
aéré cellulaire
Permittivité du diélectrique --- 2,28 1,4 1,3 1,5 1,7 2,1 2,1 1,5 2,6 2,1
ε
–4 –4 –4 –4 –4 3) 6) –3 5) 5)
tan δ Facteur de perte du --- 2,5 × 10 2,5 × 10 4 × 10 6 × 10 6 × 10 1,2 × 10
diélectrique
5) 5)
E Gradient de potentiel kV/mm 11 2 22 2 11 2
maximal admissible de
diélectrique
3 2)
Masse volumique du 0,93 0,36 0,28 0,44 0,58 2,2 2,2 0,90 1,7 2,2
γ , γ g/cm 1,4
2 4
diélectrique ou de la gaine
5) 5)
σ , σ Résistivité thermique du K × m/W 3,5 15 9 6 4,4 5,0 4,4 4,5 7,0
2 4
diélectrique ou de la gaine
4) 4) 7) 7) 7) 7)
T Température de service °C 85/80 85/80 70 70 70 250 200 200 150 200 70
maximale admissible
60096-0-1 Amend. 1 © IEC:2000 – 5 –
Table 3.1
1)
Symbol Designation Unit Value for
2) 2)
Solid PE Semi-air- Cellular PE PTFE FEP Cellular ETFE PFA PVC
spaced PE FEP
Permittivity of dielectric --- 2,28 1,4 1,3 1,5 1,7 2,1 2,1 1,5 2,6 2,1
ε2
–4 –4 –4 –4 –4 3) 6) –3 5) 5)
tan δ Dissipation factor --- 2,5 × 10 2,5 × 10 4 × 10 6 × 10 6 × 10 1,2 × 10
of dielectric
5) 5)
E Maximum permissible kV/mm 11 2 22 2 11 2
voltage gradient
of dielectric
3 2)
Density of dielectric 0,93 0,36 0,28 0,44 0,58 2,2 2,2 0,90 1,7 2,2
γ , γ g/cm 1,4
2 4
or sheath
5) 5)
Thermal resistivity 3,5 15 9 6 4,4 5,0 4,4 4,5 7,0
σ , σ K × m/W
2 4
of dielectric
...
